Miele hdsn-30 CS 7641 FL Manuale utente
11782200-00
Installation
*INSTALLATION*
Safety instructions for installation
Damage risk from incorrect installation.
Incorrect installation can cause damage to the SmartLine element.
The SmartLine element must only be installed by a qualified person.
Risk of electric shock!
Incorrect connection to the mains supply may result in an electric shock.
The SmartLine element must be connected to the electrical supply by a
qualified person only.
Damage from falling objects.
Take care not to damage the SmartLine element when fitting wall units or a
cooker hood above it.
Fit the wall units and the cooker hood before the SmartLine element.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any backmoulds must be of heat-resistant
material.
The SmartLine element must not be installed over a fridge, fridge-
freezer, freezer, dishwasher, washing machine, washer-dryer or
tumble dryer.
This SmartLine element must not be installed above ovens or
cookers unless these have a built-in cooling down fan.
After installation, the mains connection cable of the SmartLine
element must not come into contact with any moving kitchen
component (e.g. a drawer) or be subject to mechanical loads which
could damage it.
Observe carefully the safety clearances listed on the following
pages.
11782200-00
Installation
*INSTALLATION*
Safety distances

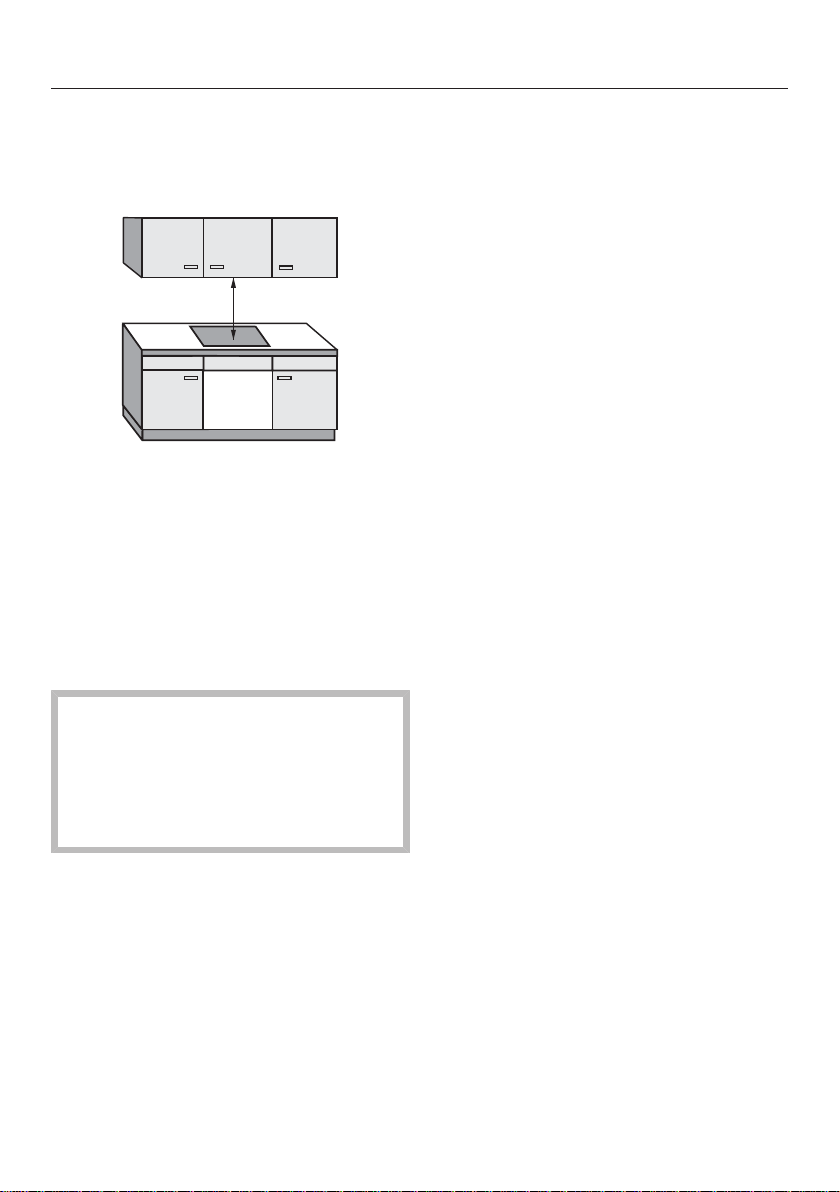

Safety distance above the SmartLine
element
The safety distance specified by the
manufacturer of the cooker hood must
be maintained between the SmartLine
element and the cooker hood above it.
If combustible objects are installed
above the SmartLine element (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 600mm must be
maintained.
When two or more SmartLine
elements which have different safety
distances are installed together
below a cooker hood, you should
observe the greatest specified safety
distance.
11782200-00
Installation
*INSTALLATION*

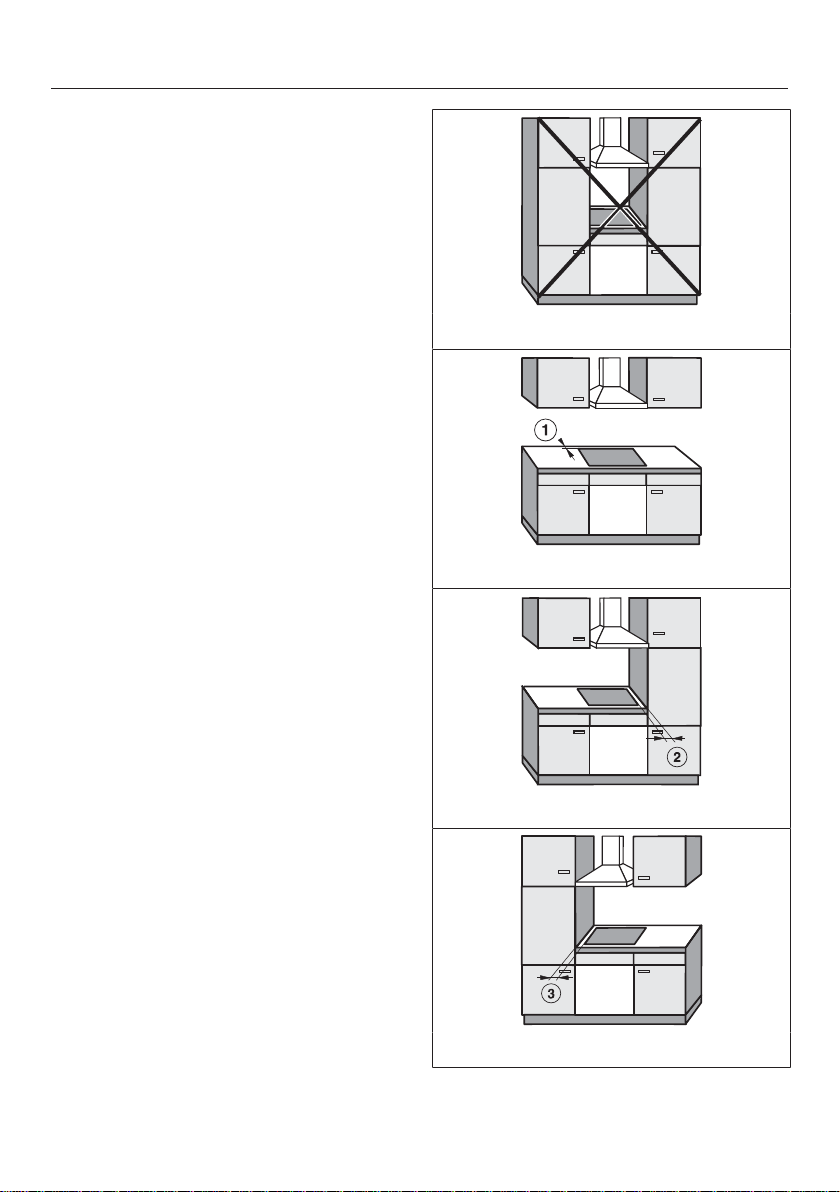

Safety distances to the sides and
back of the hob
The SmartLine element should
preferably be installed with plenty of
space on the right and left.
The minimum distance specified
below must be observed between the
rear of the SmartLine element and a tall
unit or room wall.
The minimum distance, specified
below must be adhered to between one
side of the SmartLine element (right or
left) and a tall unit or room wall. A
minimum distance of 300mm must be
observed on the opposite side.
Minimum distance between the back
of the worktop cut-out and the rear
edge of the worktop:
50mm
Minimum distance on the right side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Minimum distance on the left side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Not allowed
Highly recommended
Not recommended
Not recommended
11782200-00
Installation
*INSTALLATION*
Minimum safety distance underneath
the SmartLine element
To ensure proper ventilation of the
SmartLine element, a minimum safety
distance is required between the
element and an oven, interim shelf or
drawer.
The minimum safety distance from the
lower edge of the SmartLine element to
- Upper edge of oven: 15mm
- Upper edge of interim shelf: 15mm
- Upper edge of drawer: 5mm
- Base of drawer: 75mm
Intermediate shelf
It is not necessary to fit an interim shelf
underneath the SmartLine element but
one may be fitted if you wish.
Leave a gap of 10mm at the back of
the shelf to accommodate the mains
connection cable. We recommend a
gap at the front of the SmartLine
element of 20mm to ensure good
ventilation.
11782200-00
Installation
*INSTALLATION*

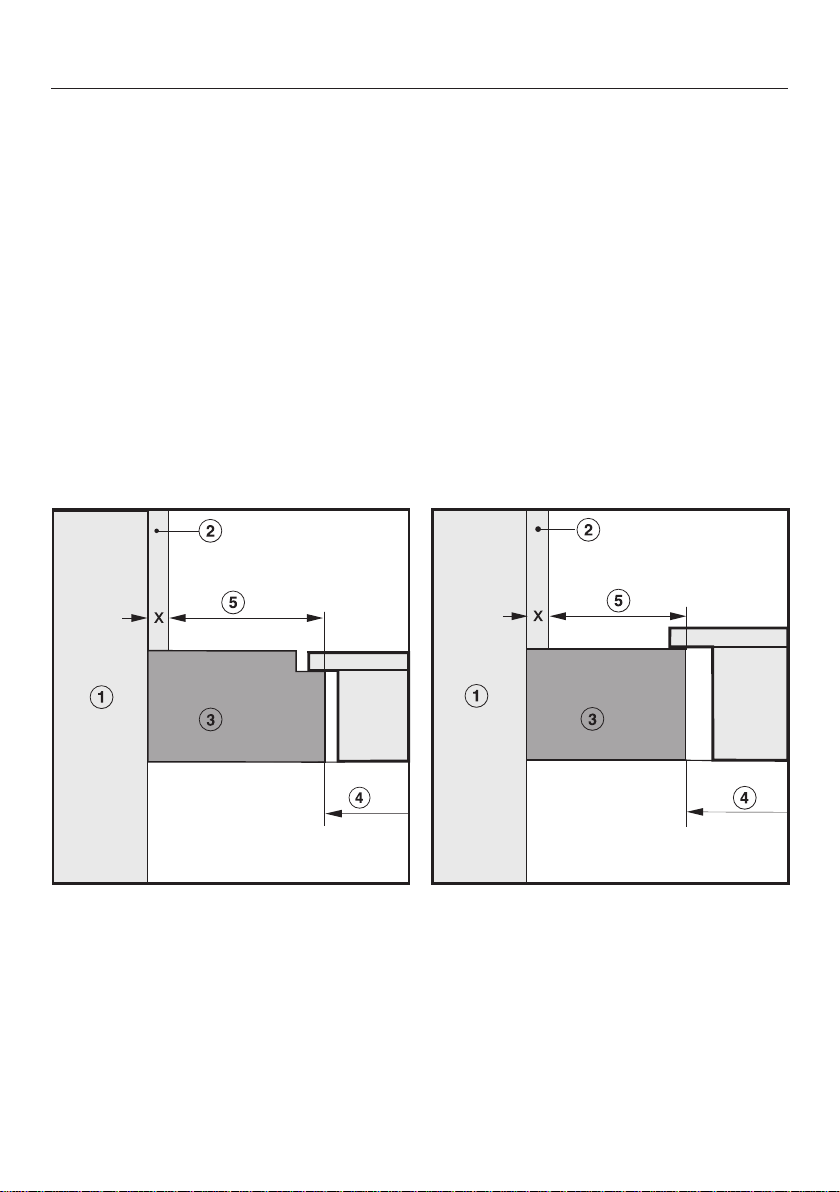

Safety distance when installing the appliance near a wall with additional
niche cladding
If a niche cladding is installed, a minimum safety distance must be maintained
between the worktop cut-out and the cladding, since high temperatures can
damage these materials.
If the niche cladding is made from a combustible material (e.g. wood) a minimum
safety distance of 50mm must be maintained between the worktop cut-out and
the cladding.
If the niche cladding is made from a non-combustible material (e.g. metal, natural
stone, ceramic tiles) the minimum safety distance between the worktop cut-out
and the cladding will be 50mm less the thickness of the cladding.
Example: 15mm niche cladding
50mm - 15mm = minimum safety distance of 35mm
Flush-fit installation Onset installation
aMasonry
bNiche cladding dimension x = thickness of the niche cladding material
cWorktop
dWorktop cut-out
eMinimum distance to
combustible materials 50mm
non-combustible materials 50mm - dimension x
11782200-00
Installation
*INSTALLATION*
Surface-mounted
Installation notes –
surface-mounted
Sealing between the SmartLine
Element and the worktop
The SmartLine element and worktop
may be damaged if the element
needs to be removed after it has
been sealed with a sealant.
Do not use any sealant between the
SmartLine element and the worktop.
The seal under the edge of the top
part of the appliance provides a
sufficient seal for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the SmartLine element
frame must be smooth and even. If they
are not, the SmartLine element will not
sit flush with the worktop and the
sealing strip underneath the top part of
the appliance will not provide a good
seal between the appliance and the
worktop.
Sealing strip
Dismantling the SmartLine element
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine element.
Always replace the sealing strip
before reinstalling the SmartLine
element.
11782200-00
Installation
*INSTALLATION*
Installing several
SmartLine elements
The gaps between the individual
SmartLine elements are sealed with a
silicone sealant that is heat-resistant to
at least 160°C. With flush-fit
installation, the gap between the
SmartLine element(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
elements must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine elements
are not accessible from below, the
sealant must be removed so that they
can be removed.
Combination with a downdraft
extractor
If the SmartLine element is installed in
combination with a downdraft extractor,
the latter must be installed first.
Induction wok next to the downdraft
extractor
The induction wok can only be fitted on
the side of the downdraft extractor
opposite the connector.
11782200-00
Installation
*INSTALLATION*
Worktop cutout – surface-mounted
Information for calculating the cutout
The elements overlap the worktop by 10mm.
When installing several elements, a distance of 2mm must be observed between
the individual elements.
Calculating cutout dimensionB
1 element = Width of the element minus 10mm on the right, minus 10mm on the
left
Several elements = Total width of the elements plus 2mm distance between the
elements, minus 10mm on the right, minus 10mm on the left.
Some examples are illustrated below.
11782200-00
Installation
*INSTALLATION*
Installation with a downdraft extractor
Combination examples Numberxwidth [mm] Dimension
B
[mm]
Cooking
elements
Downdraft
extractor
1x378 1x120 480+1
2x378 1x120 860+1
1x378
1x620
2x120 1224+1
3x378 2x120 1362+1
2x378
1x620
2x120 1604+1
4x378 2x120 1742+1
1x620 2x120 844+1
11782200-00
Installation
*INSTALLATION*

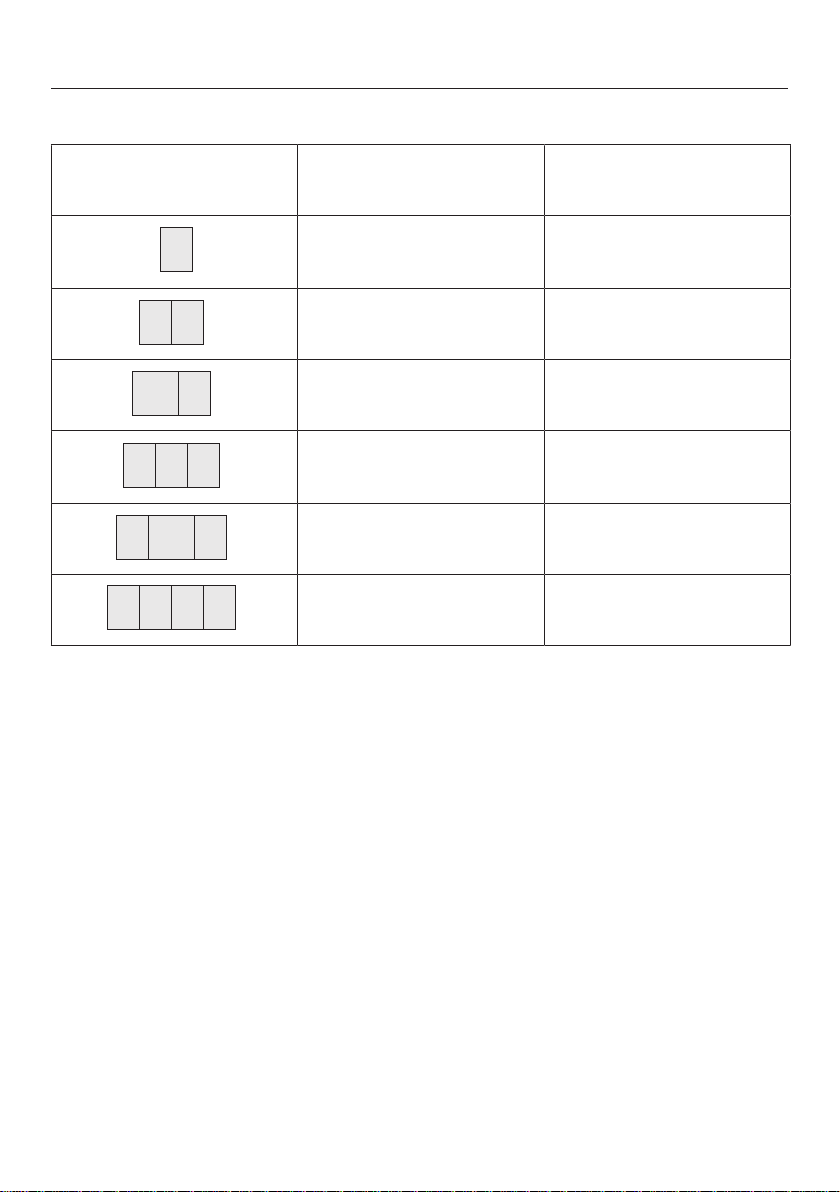

Installation without a downdraft extractor
Combination examples Numberxwidth [mm] DimensionB
[mm]
Cooking elements
1x378 358+1
2x378 738+1
1x378
1x620
980+1
3x378 1118+1
2x378
1x620
1360+1
4x378 1498+1
