Miele KF 1901 Vi Manuale utente

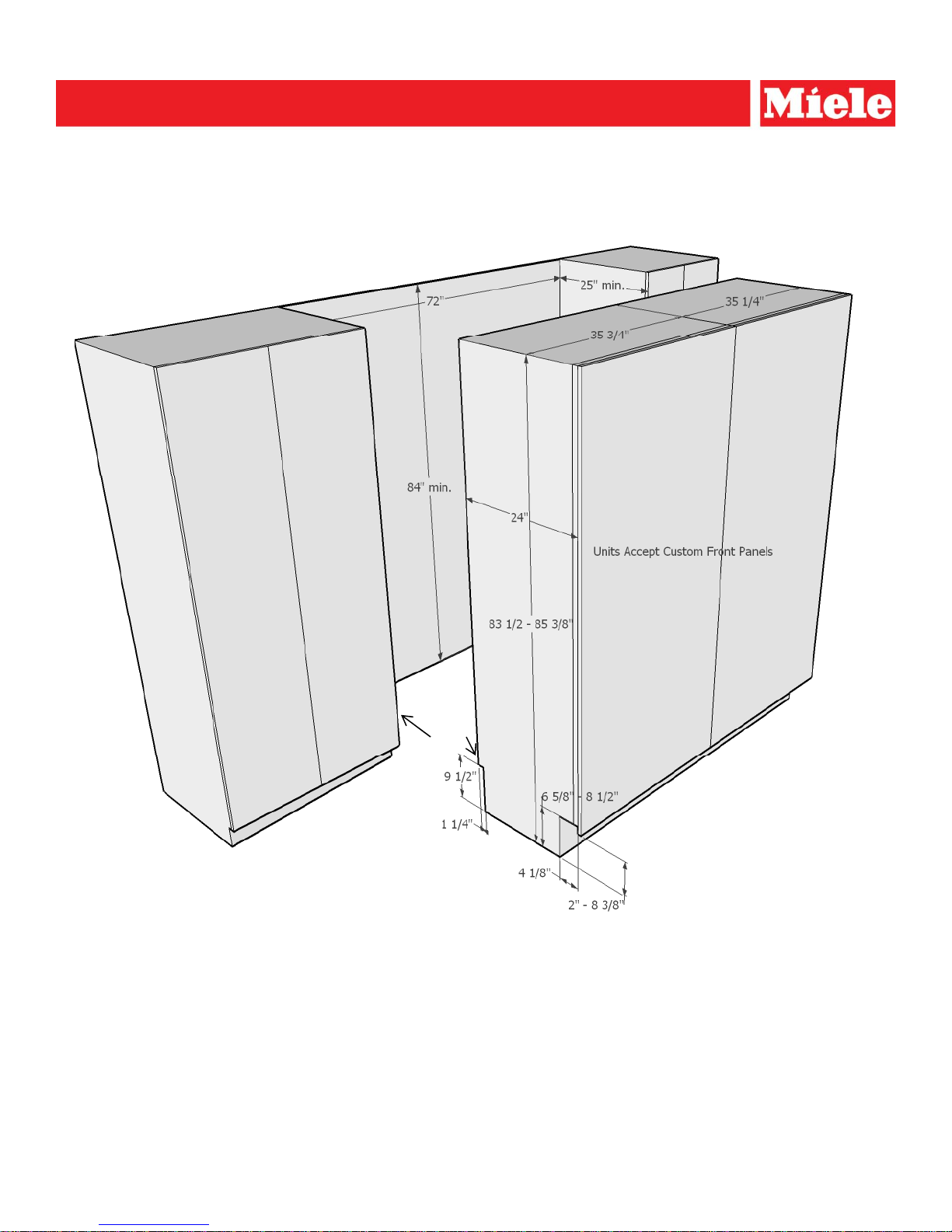

Product and Cut-out Dimensions Page 1 of 5
F 1911 Vi 36
”
Freezer (Integrated left
-
hinge)
F
1911
Vi
36
Freezer
(Integrated
,
left
hinge)
K 1901 Vi 36” Refrigerator (Integrated, right-hinge)
O
E
WCaution
The appliance is very heavy.
Use caution when unpacking
and opening the door, danger
of tipping.
Location Codes
E- 5 foot – 120 Volt – 15 A 3-wire molded plug power supply connects lower left rear.
O- Standard NEMA 5-15 Outlet – locate less than 9” above finished floor
W- ¼” flexible water line – tape to floor (F1911Vi only)
Notes
Merging kit 38996010USA KSK1002 Side-by-side kit must be used when combining units. (Please review the manual)
RemoteVision Module needs to be installed prior to install.
All installations must be done in accordance with local codes.
Sides of adjoining cabinets should be filled (flush to frame) to insure proper fit and finish.
Drawing is not to scale Specification Sheets OJS 11112011
Product and Cut-out Dimensions Page 2 of 5
F 1911 Vi 36
”
Freezer (Integrated left
-
hinge)
F
1911
Vi
36
Freezer
(Integrated
,
left
hinge)
K 1901 Vi 36” Refrigerator (Integrated, right-hinge)

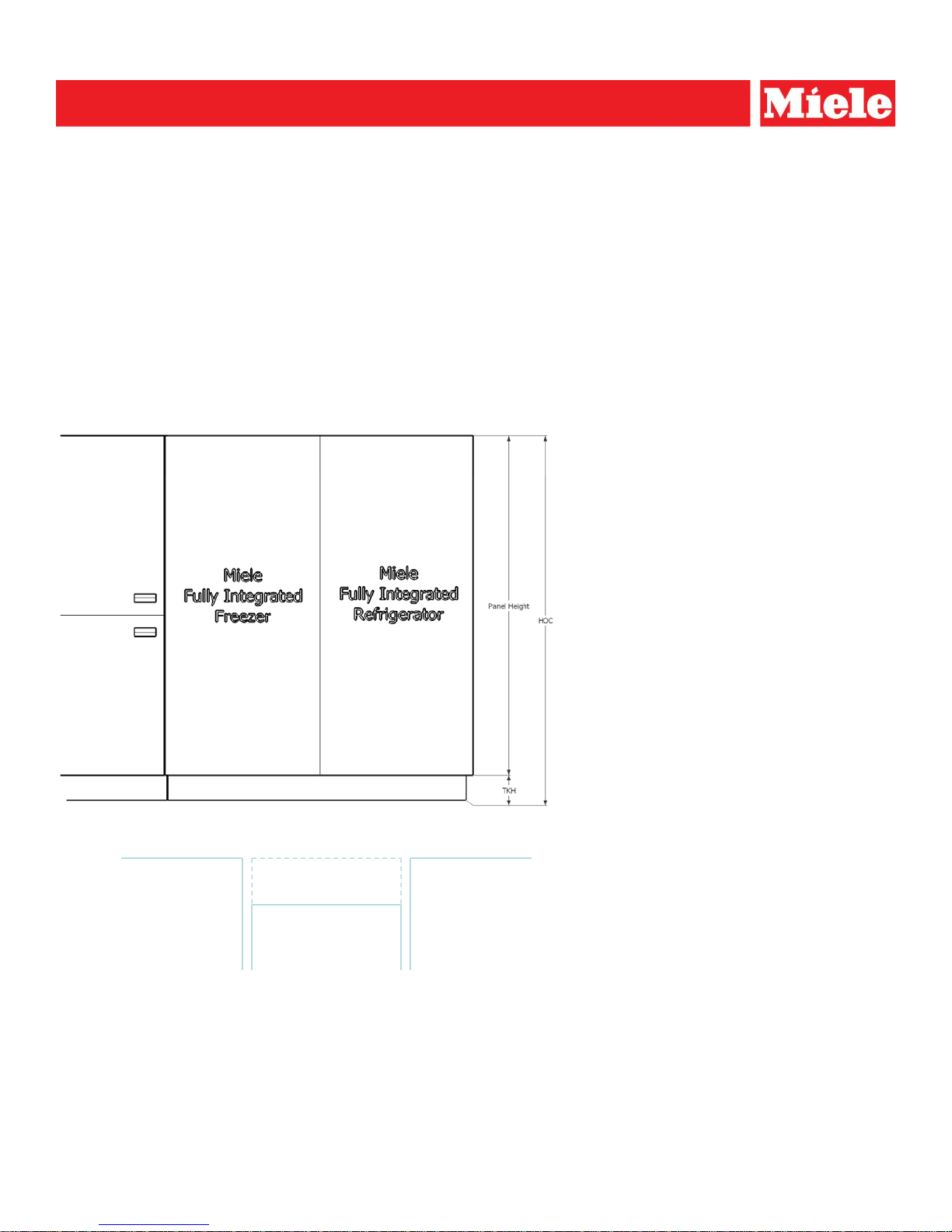

Custom Panel Installations
These units do not come equipped with a front panel. They are designed to accept a custom door panel supplied by
the cabinet maker. Miele has a unique panel integration system which allows the panels to align with the
surrounding cabinets. (See installation section of the manual)
Panel size is determined in the following manner per individual unit:
Panel details for Individual Units
Width:
35 ¾
”
in all cases
Width:
35
¾
in
all
cases
Thickness: Minimum ¾” outside frame
Height: Determined using the
following calculation:
Panel Height = HOC – TKH
HOC= Total height of cabinet
or side panel
TKH= Toe-kick height
Maximum hinge capacity: 200 Pounds
Maximum panel weight:
67 Pounds
Maximum
panel
weight:
67
Pounds
Adjoining
cabinet
Extended
Panel
Panel Notes
If the adjoining cabinets are taller than the height of
Notes
cabinet
Panel
Machine
If
the
adjoining
cabinets
are
taller
than
the
height
of
machine (HOM) the front panel may be extended
accordingly. Simply maintain the toe-kick height and
extend the panel for the required distance.
Merging kit 38996010USA KSK1002 Side-by-side kit must be used when combining units. (Please review the manual)
Front panel gap kit 38996050USA used to join two custom panels on one unit.
RemoteVision Module needs to be installed prior to install.
All installations must be done in accordance with local codes.
Drawing is not to scale Specification Sheets OJS 11112011
Product and Cut-out Dimensions Page 3 of 5
F 1911 Vi 36
”
Freezer (Integrated left
-
hinge)
F
1911
Vi
36
Freezer
(Integrated
,
left
hinge)
K 1901 Vi 36” Refrigerator (Integrated, right-hinge)

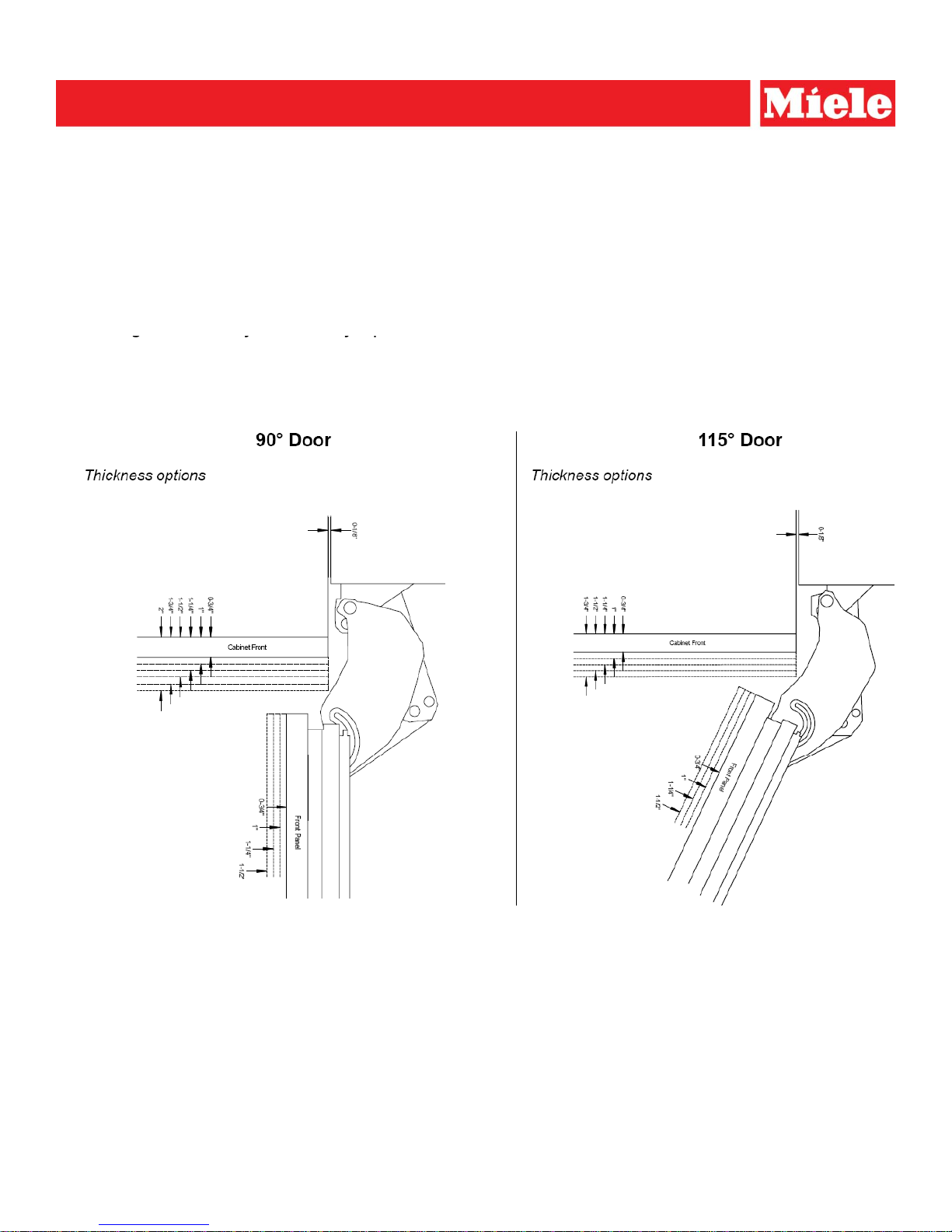

Door hinge cabinet front and door panel thickness dimensions, stop pinned at 90°
(
refri
g
eration onl
y)
and full
y
o
p
ened at 115°.
(g y) yp
Refrigeration only.
Greater door swing lower cabinet front thickness
Notes
The dimensions of the door fronts and handles will vary according to each individual kitchen.
Drawing is not to scale Specification Sheets OJS 11112011

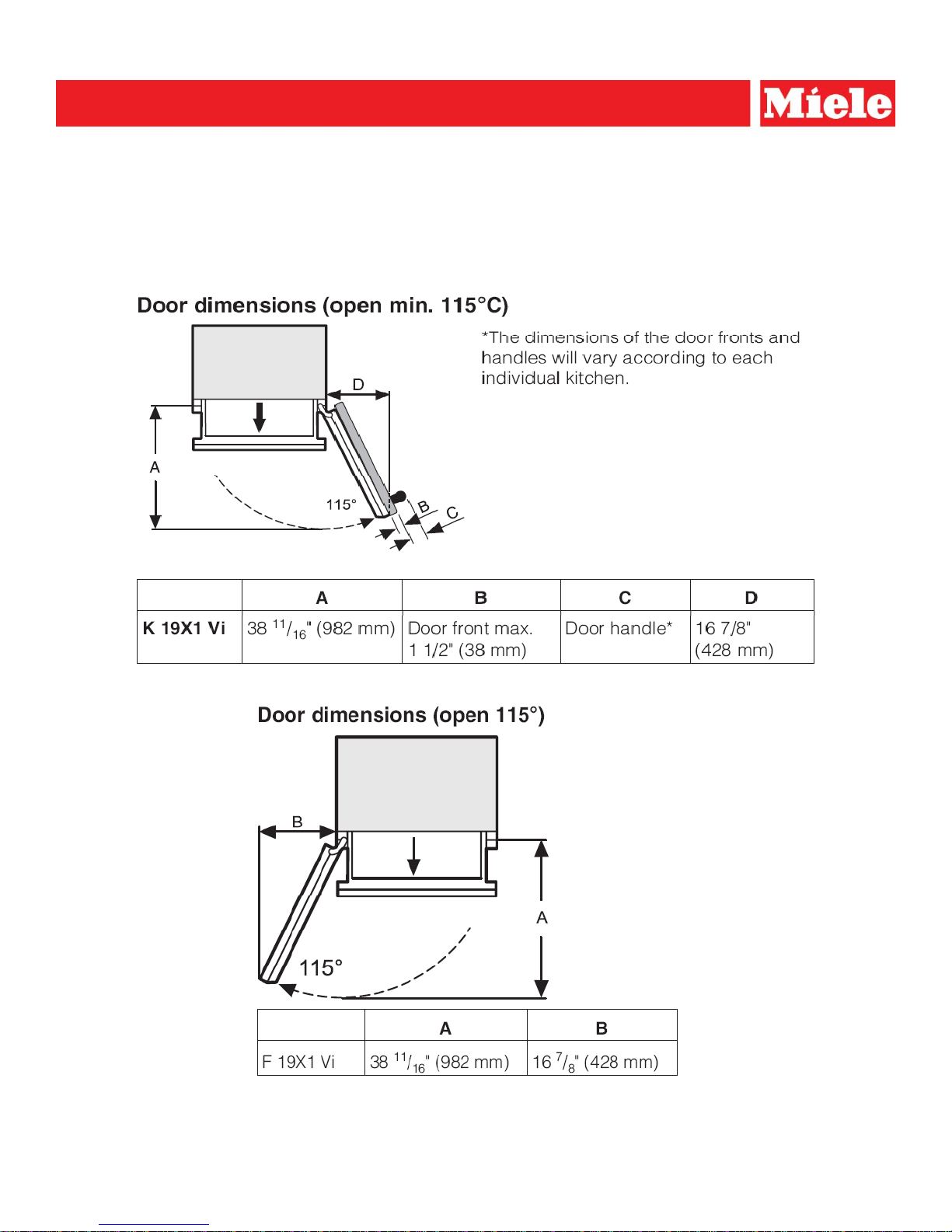

Product and Cut-out Dimensions Page 4 of 5
F 1911 Vi 36
”
Freezer (Integrated left
-
hinge)
F
1911
Vi
36
Freezer
(Integrated
,
left
hinge)
K 1901 Vi 36” Refrigerator (Integrated, right-hinge)
Notes
All installations must be done in accordance with local codes.
Drawing is not to scale Specification Sheets OJS 11112011
Product and Cut-out Dimensions Page 5 of 5

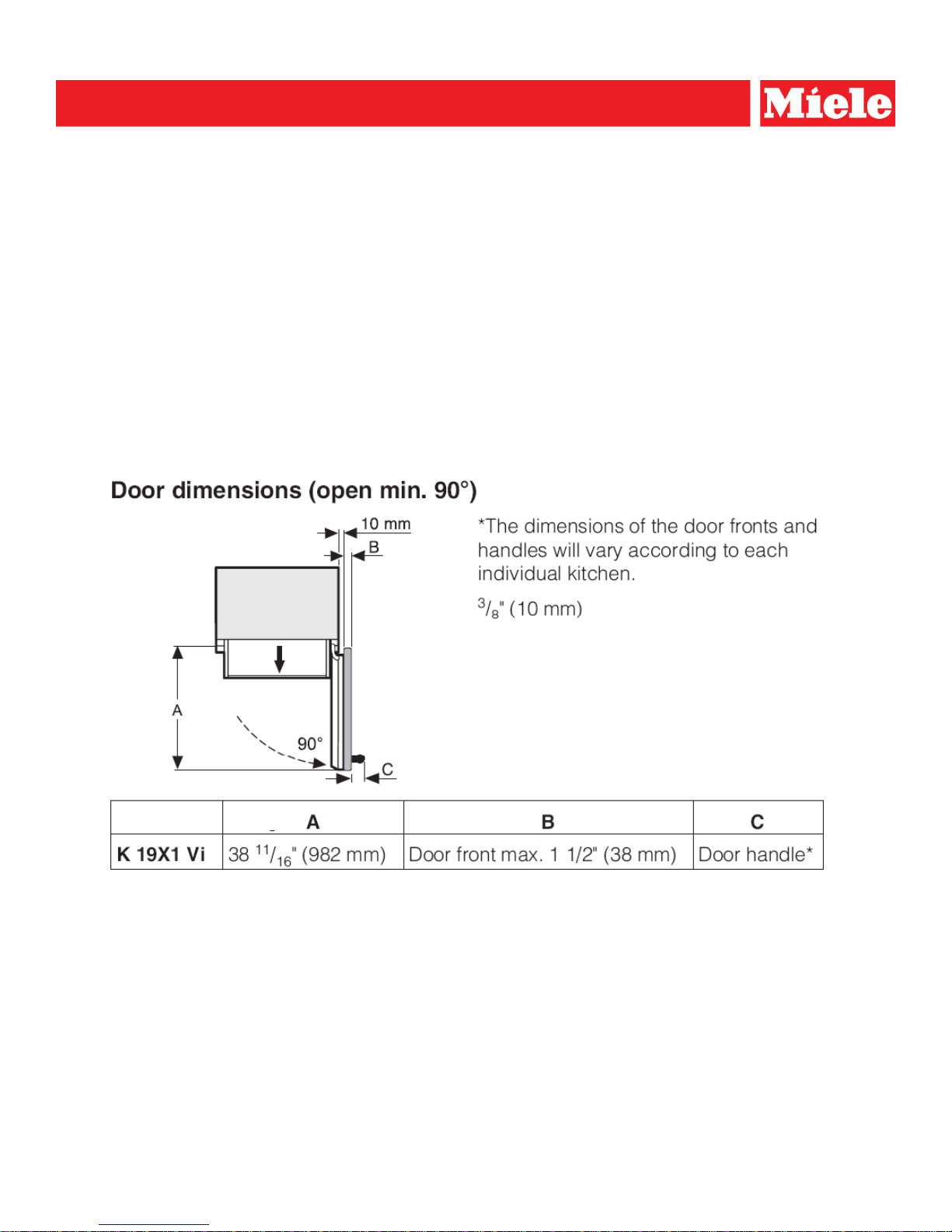

K 1901 Vi 36
”
Refrigerator (Integrated right
-
hinge)
K
1901
Vi
36
Refrigerator
(Integrated
,
right
hinge)
90
°
Door pin to be used only with refrigerator when necessary
90
Door
pin
to
be
used
only
with
refrigerator
when
necessary
Notes
All installations must be done in accordance with local codes.
Drawing is not to scale Specification Sheets OJS 11112011
