Notes on connecting to the

water supply

The appliance must be connected to

the water supply by a qualified

professional.

The water being used should meet

the drinking water standards of the

country where the machine is used.

–The appliance is in compliance with

the requirements of IEC 61770 and

EN 61770.

– All units and systems used to deliver

the water to the appliance must

conform with the regulations of the

respective country.

– The appliance must be connected to

a cold water supply only.

– The water pressure must be between

1.5 and 6 bar.

–The stainless steel hose is 1.5 m

long.

The stainless steel hose can be

lengthened with an extension hose. It

must be fitted by a qualified

technician.

The extension hose is available from

Miele Customer Service.

–A water shut-off valve must be

provided between the stainless steel

hose and the household water

supply to ensure that the water

supply can be cut off if necessary.

The water shut-off valve must be

accessible after installation.

Connecting to the water

supply

Disconnect the refrigerator/freezer

from the electric power supply prior

to connecting to the water supply.

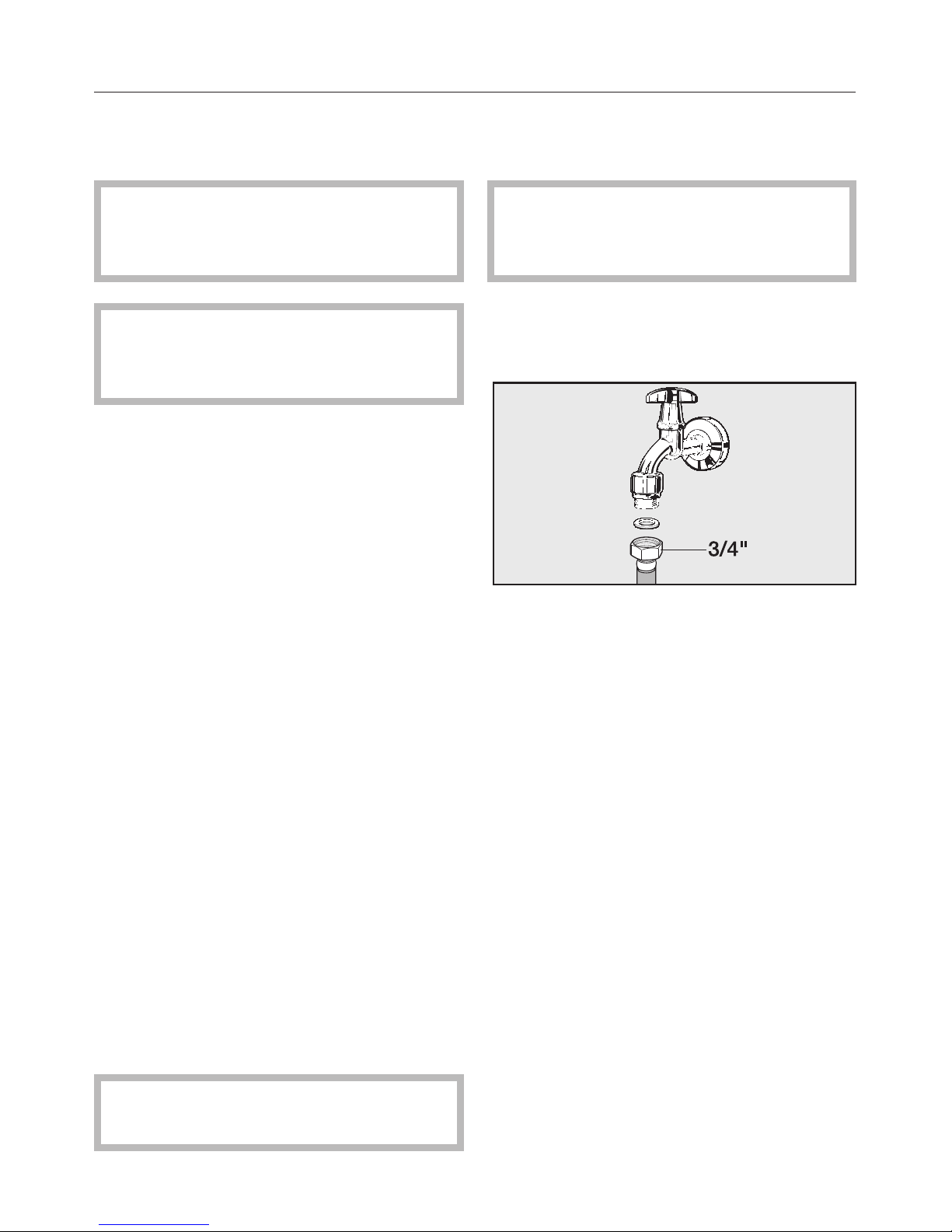

A water shut-off valve with 3/4" thread is

required for connection to the water

supply.

^Connect the straight end of the

stainless steel hose to the water

shut-off valve.

^Ensure that it is properly screwed into

position.

Before using the appliance for the first

time, the water supply line needs to be

purged of air by a qualified technician:

–The stainless steel hose should be

filled with as much water as possible

immediately before connecting to the

solenoid valve.

–Mop up any spillage with a cloth.

Water supply

^Attach the stainless steel hose to the

solenoid valve at the bottom rear side

of the appliance.

^Ensure that the hose is correctly fitted

and that it is water-tight.

^Slowly open the water shut-off valve

and check the whole water system

for leaks.

^The appliance can now be

connected to the power supply (see

"Electrical connection").

^Slide the appliance into the desired

position.

When doing so, make sure that the

stainless steel hose does not get kinked

or damaged.

After a maximum of 24 hours, the

first ice cubes will drop out of the ice

cube maker and collect in the

drawer.

Water supply

,Avoid the risk of electrical shock

- Plug into a grounded 3-prong

outlet.

- Do not move the ground plug.

- Do not use an adapter.

- Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

Improper connection of the

equipment grounding conductor

may result in electric shock.

If you are in any doubt as to whether

the appliance has been properly

grounded, have the appliance

checked by a qualified electrician or

service technician.

Installation, repairs and other work

by unqualified persons could be

dangerous. The manufacturer will

not be held responsible for damage

or injury arising from unauthorized

work.

Before installing the appliance,

verify that the voltage, load and

circuit rating information found on

the data plate match the household

electrical supply.

If there are any questions regarding the

electrical connection of this appliance

to the power supply, please consult a

licensed electrician or call the Miele

Technical Service.

V1-800-565-6435

The appliance is supplied with a

UL-listed, 3-wire power cord and

NEMA 5-15 P plug ready for connection

to a 120 V, 60 Hz supply.

The fuse rating is 15 amps.

The appliance requires a 3-wire

receptacle.

The receptacle must be installed by a

licened electrician only.

In the case of side-by-side installations,

a separate outlet must be used for each

appliance.

Ideally, the power outlet should be next

to the appliance and easily accessible.

Do not connect the appliance to the

power supply by an extension cord.

Extension cords do not guarantee the

required safety of the appliance

(danger of overheating).

If any changes are needed to the

household wiring or power supply, this

work must be performed by a qualified

electrician.

Electrical information

Do not place any devices that

produce heat (such as a toaster or

microwave) on top of the appliance.

This would increase the energy

consumption of the appliance!

This fridge/freezer should not be

placed side-by-side with a second

model.

Because the appliance does not

have heated side walls, a

side-by-side arrangement can lead

to the build-up of condensation

water.

Contact your dealer for advice.

Location

The appliance should not be installed

directly next to a heat source (such as

a kitchen range or a heater) or in direct

sunlight. The higher the ambient

temperature, the longer the appliance

will run and the higher the energy

consumption.

Choose a dry, well-ventilated room for

installation.

Climate range

The appliance is designed for use

within a certain climate range (room

temperature range) and should not be

used outside this range. The climate

range is stated on the data plate inside

the appliance.

Climate range Room temperature

+10 °C to +32 °C

+16 °C to +32 °C

+16 °C to +38 °C

+16 °C to +43 °C

If the room is too cold, it will cause the

cooling system in the appliance to

switch off for too long. This may lead to

higher temperatures in the appliance

and the frozen food may even start

thawing!

Proper ventilation

The air behind the appliance gets

warm. In order to ensure adequate

ventilation, you must make sure that the

ventilation slits are not covered or

blocked in any way.

Also, the ventilation slits must be

dusted/cleaned on a regular basis.

Installation

^First remove any cable clips from the

rear of the appliance.

^Check that all the parts on the rear of

the appliance are free to move.

Remove any obstructions.

^Gently slide the appliance into the

desired location.

^The rear of the appliance can be

directly against the wall.

Installation information

Adjustments

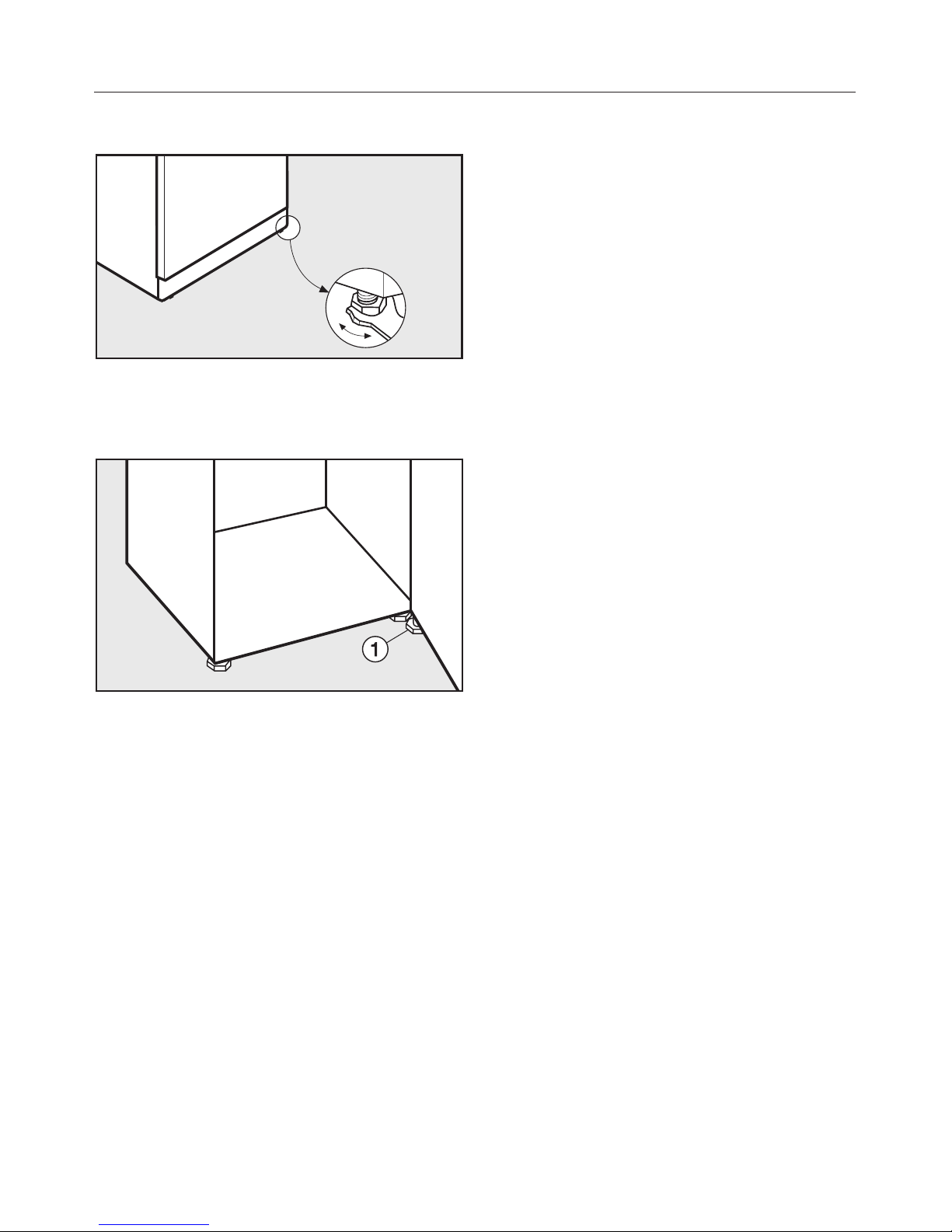

^Use the wrench provided to adjust

the feet as needed, so that the

appliance is level.

^If necessary, unscrew the foot a

from the hinge bracket in order to

support the appliance door.

Installation information

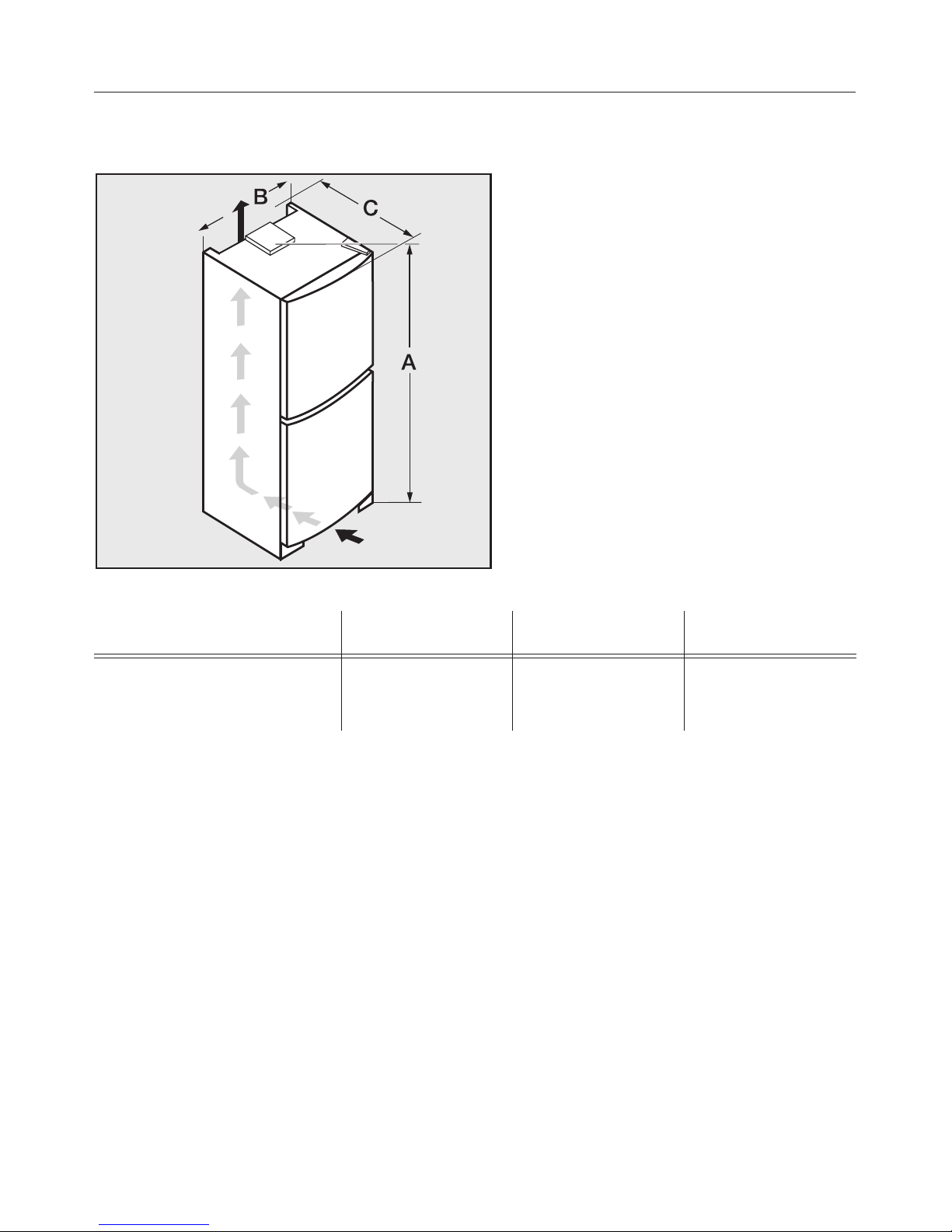

Appliance dimensions

ABC

KFN 14943 SDE ed 2020 750 630

Installation information

The appliance comes with right-hand

hinging. If left-hand door hinging is

preferred, then follow these instructions

to change the door hinge:

You will need the following tools:

–a crosstip screwdriver,

–a flathead screwdriver,

–various sizes of Torx screwdrivers,

–a fork wrench.

Always change the door hinging

with the assistance of another

person.

Removing the door handles:

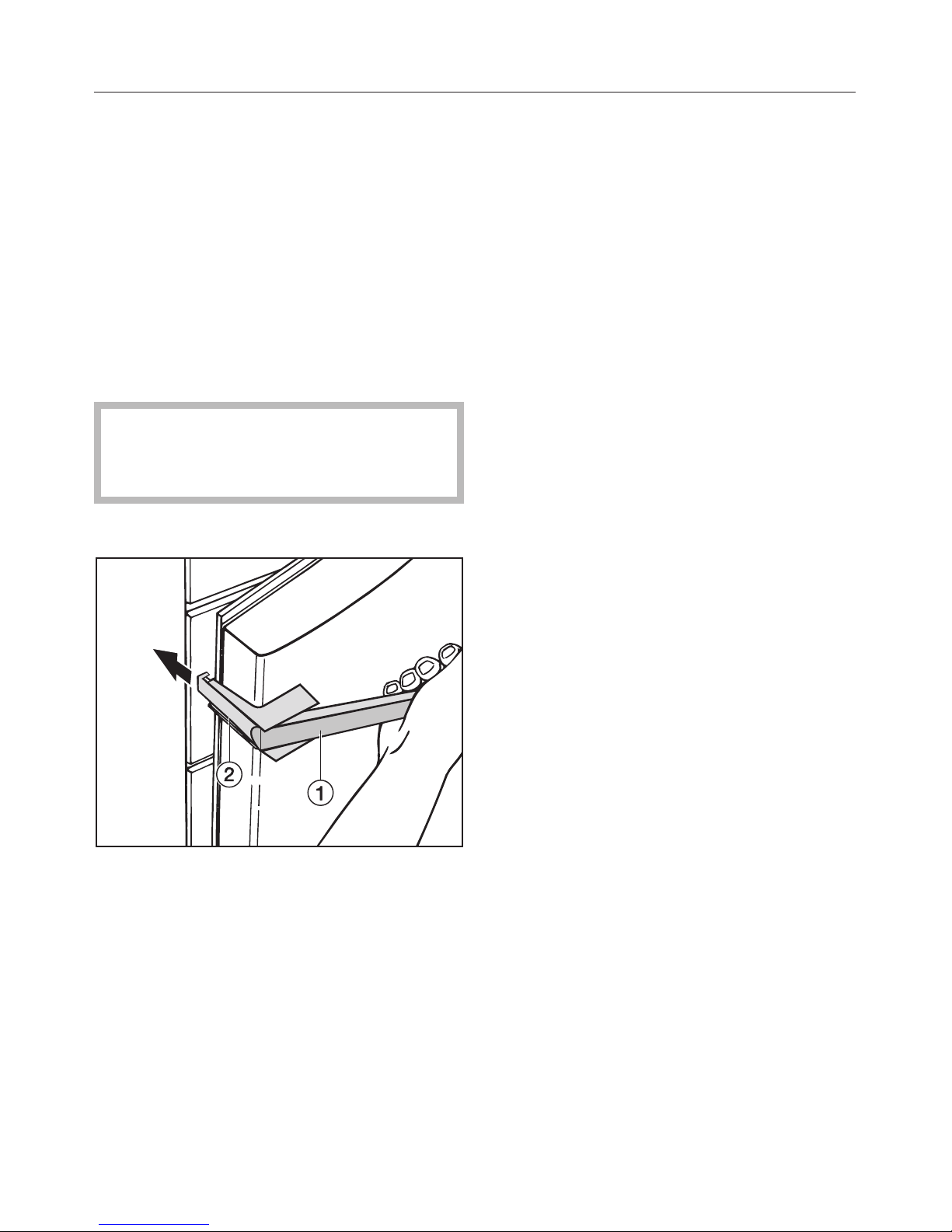

^When you pull on the door handle a,

the sidebar bmoves backwards.

^Pull the sidebar bbackwards out of

the track.

^Now loosen the 4 screws (Torx 15) in

the mounting plate and remove the

handle.

^Remove the covers from the opposite

side and place them on the holes that

are now vacant.

Changing the door hinging

Before changing the hinging,

remove any items of food from the

shelves in the appliance door.

Removing the top soft-close

mechanism:

^Open the top door of the appliance.

^Loosen the panel afrom the

soft-close mechanism: From below,

slide a flathead screwdriver into the

recesses, then slowly and carefully

lift off the panel.

Be careful not to damage the door

seal.

If the door seal is damaged, the

appliance door may not close

properly and there will not be

enough refrigeration!

^Slide the panel ain the direction of

the appliance and leave it hanging

between the door and the appliance.

^Place the securing device b

(supplied with the appliance) on the

soft-close mechanism cso that it

engages.

With the securing device in place, the

joint cannot snap shut. Do not remove

the securing device until instructed to!

^Using a flathead screwdriver,

carefully lift the top and the bottom of

the cover dfrom the retainer.

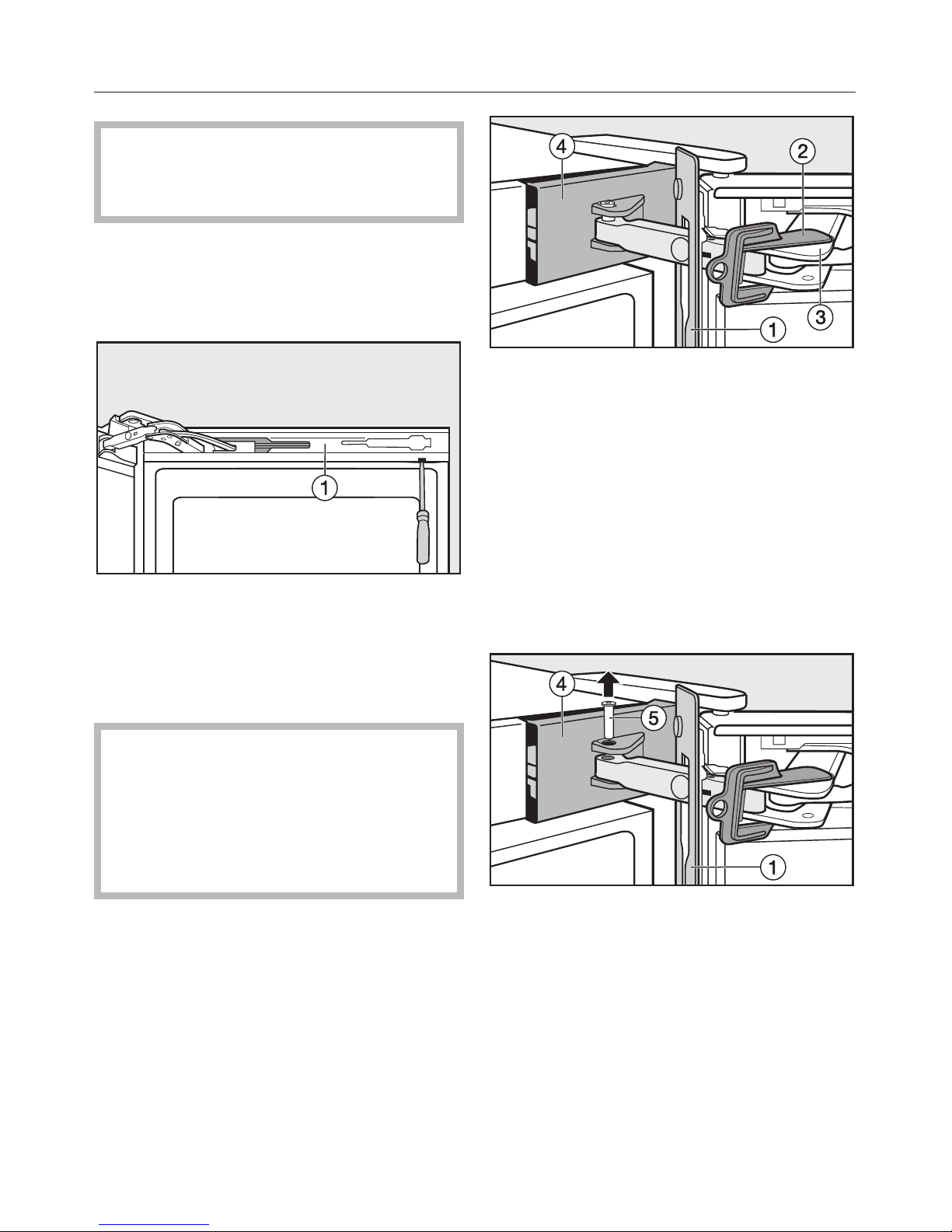

^Push the pin eup and out using a

flathead screwdriver.

Changing the door hinging

^Remove the cover d.

Now the soft-close mechanism and the

appliance are no longer connected.

^Remove the panel a.

^Push the shock absorber arm fas

far as possible towards the handle

side.

^Loosen the three screws gon the

soft-close mechanism and the

spacer.

^In the middle, pry out the housing

with the soft-close mechanism using

a flathead screwdriver.

^Then, pry the housing with the

soft-close mechanism out of the

retainer from the appliance side.

^Lay the soft-close mechanism aside.

^Push out the spacer towards the

hinge side.

^Lay the spacer aside.

Removing the top door of the

appliance:

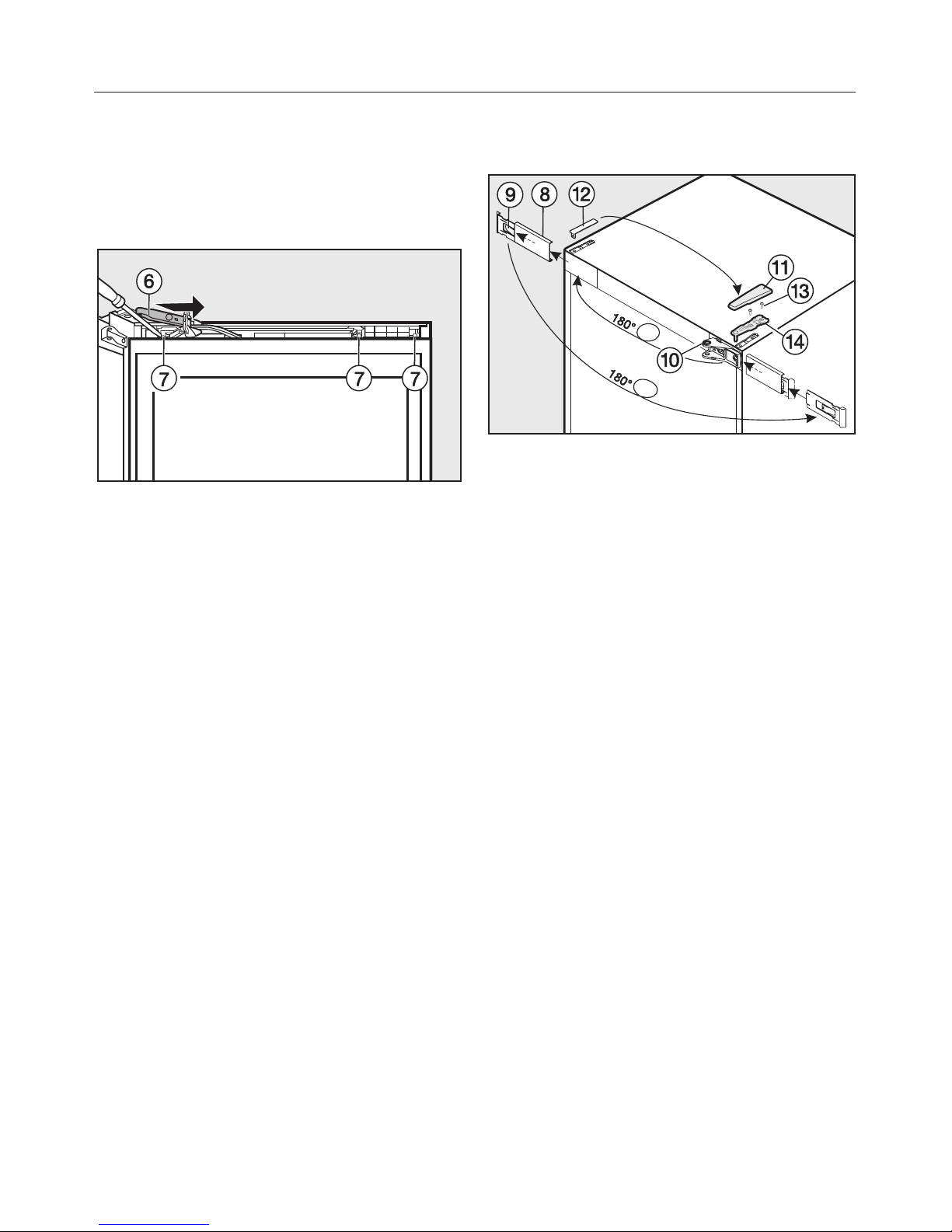

^Loosen the cover hby carefully

sliding a flathead screwdriver from

below into the recess.

^Remove the cover htogether with

the mounting bracket i.

^Loosen the mounting bracket ifrom

the cover hby pushing it slightly to

the left and then removing the cover

plate towards the front.

^Turn the mounting bracket i180°.

^Place the cover honto the front of

the mounting bracket iand push it

to the right. The writing must be

visible.

^Unscrew the bearing jmechanism,

turn it 180° and replace it on the

opposite side. If necessary,

pre-punch the screw holes.

^Remove the top cover kby pushing

it from back to front and lifting it up.

^Remove the cover lupwards.

Changing the door hinging

Altri manuali per KFN 14943 SDE ED

Indice

Altri manuali Miele Frigorifero

Miele

Miele K 31222 Ui Manuale utente

Miele

Miele KFN 29493 DE edt/cs Manuale utente

Miele

Miele K 8852 SD Manuale utente

Miele

Miele KFN 8993 SDE ed Scheda tecnica

Miele

Miele F 1813 SF Manuale utente

Miele

Miele KF 2802 Vi Manuale utente

Miele

Miele K 14827 SD ed/cs Scheda tecnica

Miele

Miele KFN 14923 SDE ed Scheda tecnica

Miele

Miele KS 7793 D Manuale utente

Miele

Miele K 34673 iD Manuale utente

Miele

Miele KF 1803 Vi Manuale utente

Miele

Miele KFN 29233 D bb Manuale utente

Miele

Miele K 26 1 Vi Series Manuale utente

Miele

Miele K 1801 Vi Manuale utente

Miele

Miele TX3587 Manuale utente

Miele

Miele KFNS 37432 iD Manuale utente

Miele

Miele KFN 14827 SDE ed Scheda tecnica

Miele

Miele KF 7544 Manuale utente

Miele

Miele K 1801 Vi Scheda tecnica

Miele

Miele KS 28463 D ed/cs Manuale utente

Miele

Miele KFNS 37432 iD Manuale utente

Miele

Miele KFN 8997 SE ed Scheda tecnica

Miele

Miele KF 1801 Vi Manuale utente

Miele

Miele KDN 9713 iD Scheda tecnica

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
