Miele KFN 9755 IDE Manuale utente

Operating and Installation

Instructions

Fridge-Freezer Combination

KFN 9755 iDE

To prevent accidents

and machine damage

read these instructions

before

installation or use. M.-Nr. 07 938 590

en - US, CA

Installation instructions

Information is subject to change. Please refer to our website to obtain the most

current product specification, technical & warranty information.

To prevent accidents

and machine damage

read these instructions

before

installation or use.

Disposal of packing materials

The cardboard box and packing

materials are biodegradable and

recyclable. Please recycle.

Ensure that any plastic wrappings,

bags, etc., are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Disposal of an old appliance

Old appliances contain materials that

can be recycled. Please contact your

local recycling center about the

possibility of recycling these materials.

Before discarding an old appliance,

disconnect it from the electrical supply

and cut off the power cord to prevent it

from becoming a hazard.

Caring for the environment

All plumbing work should be carried

out by a suitably qualified and

competent person, in accordance

with all applicable local and national

regulations.

The water quality must conform to

country requirements for drinking

water.

–The appliance is only suitable for

connection to the cold water supply.

– Water pressure on-site:

Minimum: 21.76 psi

Maximum: 87.02 psi, if higher, install

a pressure reduction valve.

– Use only the supplied stainless-steel

hose (length: 78 3/4" [2 m]).

Do not re-use older hoses.

– A separate shut-off valve must be

installed, so that the water supply

can be interrupted as needed. If one

is not present, have a water valve

installed by a licensed plumber.

It must be easily accessible after the

appliance has been built-in.

–Be sure not to kink or damage the

hose when pushing the appliance

into the installation niche.

Connecting the water supply

Before any installation or

maintenance work is performed be

sure the appliance is disconnected

from the electrical supply.

Connection to the water supply should

include a shut-off valve with a 3/4"

thread.

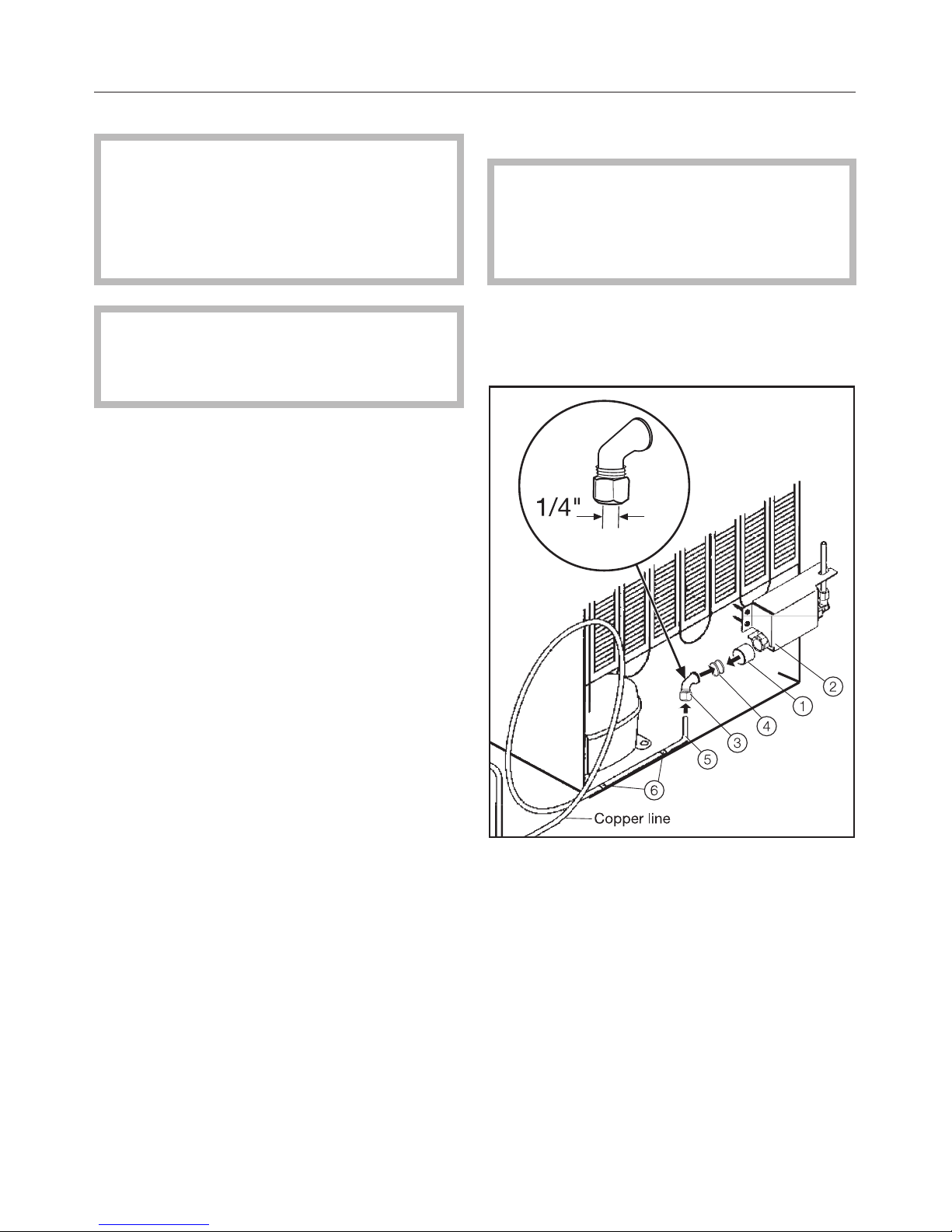

^Remove the cover cap afrom the

solenoid valve b.

^Install the compression fitting cwith

the sealing ring don the solenoid

valve b.

^Attach the copper line eto the

compression fitting c.

^Secure the copper line to the

appliance using cable clips f.

Plumbing

^Open the water supply slowly and

check the water system for leaks.

^The appliance can now be

connected to the electrical supply

(see "Electrical connection").

Before using the appliance for the first

time the water pipe should be purged

of air by a qualified person.

^Slide the appliance into the

installation niche.

Be sure not to kink the hose, otherwise

there is the risk of leaks and water

damage.

After a maximum of 24 hours the first

ice cubes will drop out of the ice

cube maker and collect in the

drawer.

Plumbing

,Avoid the risk of electrical

shock

- Plug into a grounded 3-prong

outlet.

- Do not move the ground plug.

- Do not use an adapter.

- Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

Improper connection of the

equipment grounding conductor

may result in electric shock. If you

are in any doubt as to whether the

appliance has been properly

grounded, have the appliance

checked by a qualified electrician or

service technician.

Installation, repairs and other work

by unqualified persons could be

dangerous.

Before installing the appliance,

verify that the voltage, load and

circuit rating information found on

the data plate match the household

electrical supply.

If there are any questions regarding the

electrical connection of this appliance

to the power supply, please consult a

licensed electrician or call the Miele

Technical Service.

U1-800-999-1360

V1-800-565-6435

The appliance is supplied with a

UL-listed, 3-wire power cord and

NEMA 5-15 P plug ready for connection

to a 120 V, 60 Hz supply.

The fuse rating is 15 amps.

The appliance requires a 3-wire

receptacle.

The receptacle must be installed by a

licensed electrician only.

In the case of side-by-side installations,

a separate outlet must be used for each

appliance. Ideally, the power outlet

should be next to the appliance and

easily accessible. Do not connect the

appliance to the power supply by an

extension cord. Extension cords do not

guarantee the required safety of the

appliance (danger of overheating).

If any changes are needed to the

household wiring or power supply, this

work must be performed by a qualified

electrician.

Electrical connection

Have the appliance installed by a

qualified technician, according to

the enclosed installation instructions.

,WARNING

This appliance is top-heavy and

must be secured to prevent it from

tipping forward.

Installation site

The appliance should be installed in a

dry, well-ventilated room.

Do not install the appliance:

- outdoors

- in an environment with dripping

water

- in rooms that are at risk of frost.

The installation location should not be

exposed to direct sunlight, or near a

heat source, such as an oven,

radiator, etc.

The ambient temperature should not

drop below 50°F (10°C) or rise above

110°F (43°C), otherwise malfunctions

may occur.

If installation next to a heat source is

unavoidable, use a suitable insulating

plate or observe the following minimum

distances from the heat source:

–11/4" (3 cm) from an electric cooktop

or oven.

–12" (30 cm) from a gas cooktop or

oven.

Ventilation

The air at the rear wall of the appliance

gets warm. Therefore sufficient space

must be provided around the appliance

for ventilation.

Air is taken in through the plinth of the

furniture housing unit.

A ventilation gap of at least 1 ½"

(38 mm) depth must be allowed for

behind the appliance for air to circulate.

The cross-sectional area of the

ventilation gaps and also the

cross-sectional area beneath the

ceiling needs to be at least 78 3/4" 2

(200 cm2) throughout to ensure that

warm air can escape without

obstruction.

The air intake and outlet must not be

blocked or covered in any way. They

also need to be dusted/cleaned on a

regular basis.

Installation

Ventilation grill

During construction the ventilation grill

can be built-in.

^Cut an opening into the plinth b,as

shown in the illustration above.

^Place the ventilation grill ainto the

cut-out.

^Slide the clips c, from the back, into

the ventilation grill until the hooks

connect with the plinth.

^Install the plinth with the inserted

ventilation grill.

Before installation

^Remove the cover strip, the sealing

strip and other accessories from the

inside and from the exterior rear wall

of the appliance.

^Do not remove the spacers from the

rear wall of the appliance. They

ensure that there is enough space

between the rear wall of the

appliance and the wall.

^Remove the cable clips from the rear

of the appliance.

^Remove the red transport fixing a,

and use the supplied plug bto close

the empty hole.

^Check that all the parts on the rear

the appliance can move freely. Bend

any parts carefully if needed.

Installation

Did the old appliance have a

different hinge system?

Even if your old appliance had a

different hinge system you can still use

a custom door panel.

^Un-install the old hinges; they are no

longer necessary, the custom door

panel will be mounted on the

appliance door.

All necessary parts are included with

the appliance or can be ordered from

Miele.

Installation

Freezer section height (A) Niche height (B)

KFN 9755 iDE 27 3/8"

(695 mm)

69 3/4" - 70 3/8"

(1772 mm - 1788 mm)

Dimensions
