Milesight UG67 Manuale utente

Outdoor

LoRaWAN®Gateway

UG67

Quick Start Guide

Safety Precautions

Milesight will not shoulder responsibility for any loss or damage resulting from not following the

instructions of this operating guide.

The device must not be modeled in any way.

Do not place the device close to objects with naked flames.

Do not place the device where the temperature is below/above the operating range.

Do not power on the device or connect it to other electrical device when installing.

Check lightning and water protection when used outdoors.

Do not connect or power the equipment using cables that have been damaged.

Related Documents

This Quick Start Guide only explains the installation of Milesight UG67 LoRaWAN®Gateway. For more

functionality and advanced settings, please refer to the relevant documents as below.

Document

Description

UG67 Datasheet

Datasheet for UG67 LoRaWAN®Gateway.

UG67 User Guide

Users can refer to the guide for instruction on how to log in the web GUI, and

how to configure all the settings.

The related documents are available on Milesight website: https://www.milesight-iot.com

Declaration of Conformity

UG67 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and

RoHS.

For assistance, please contact

Milesight technical support:

Email: iot.support@milesight.com

Support Portal: support.milesight-iot.com

Tel: 86-592-5085280

Fax: 86-592-5023065

Address: Building C09, Software Park III, Xiamen

361024, China

Revision History

Date

Doc Version

Description

October 30, 2020

V1.0

Initial version

May 6, 2021

V1.1

Delete optional mark of LoRa antennas, add DC pinouts

July 29, 2021

V1.2

Add antenna accessories and installation method

Oct. 31, 2022

V1.3

1. Delete Ethernet cable

2. Web GUI pictures update

March 6, 2023

V1.4

1. Add short mounting backboard installation

2. Update antenna installation method, delete embedded

antenna description

Contents

1. Packing List .................................................................................................................................................... 5

2. Hardware Introduction ...................................................................................................................................5

2.1 Overview ............................................................................................................................................... 5

2.2 Dimensions (mm)................................................................................................................................ 6

2.3 LED Indicators ...................................................................................................................................... 6

2.4 Reset Button .........................................................................................................................................7

2.5 DC Power Connector ........................................................................................................................... 7

3. Hardware Installation .....................................................................................................................................7

3.1 SIM Card Installation (Cellular Version Only) .....................................................................................7

3.2 Antenna Installation .............................................................................................................................7

3.3 Ethernet Cable & Power Cable Installation .........................................................................................8

3.4 Power Supply ........................................................................................................................................9

3.5 Gateway Installation ............................................................................................................................ 9

3.5.1 Wall Mounting ........................................................................................................................... 9

3.5.2 Pole Mounting .........................................................................................................................10

4. Login the Web GUI ....................................................................................................................................... 11

4.1 Wireless Access .................................................................................................................................11

4.2 Wired Access ..................................................................................................................................... 12

5. Network Connection .................................................................................................................................... 14

5.1 Configure the Ethernet Connection .................................................................................................. 14

5.2 Configure the Wi-Fi Connection ........................................................................................................ 15

5.3 Configure the Cellular Connection (Cellular Version Only) ............................................................. 16

6. Packet Forwarder Configuration .................................................................................................................18

7. Network Server Configuration .....................................................................................................................19

7.1 Connect UG67 to Milesight IoT Cloud .............................................................................................. 19

7.2 Connect UG67 to MQTT/HTTP Server ............................................................................................. 21

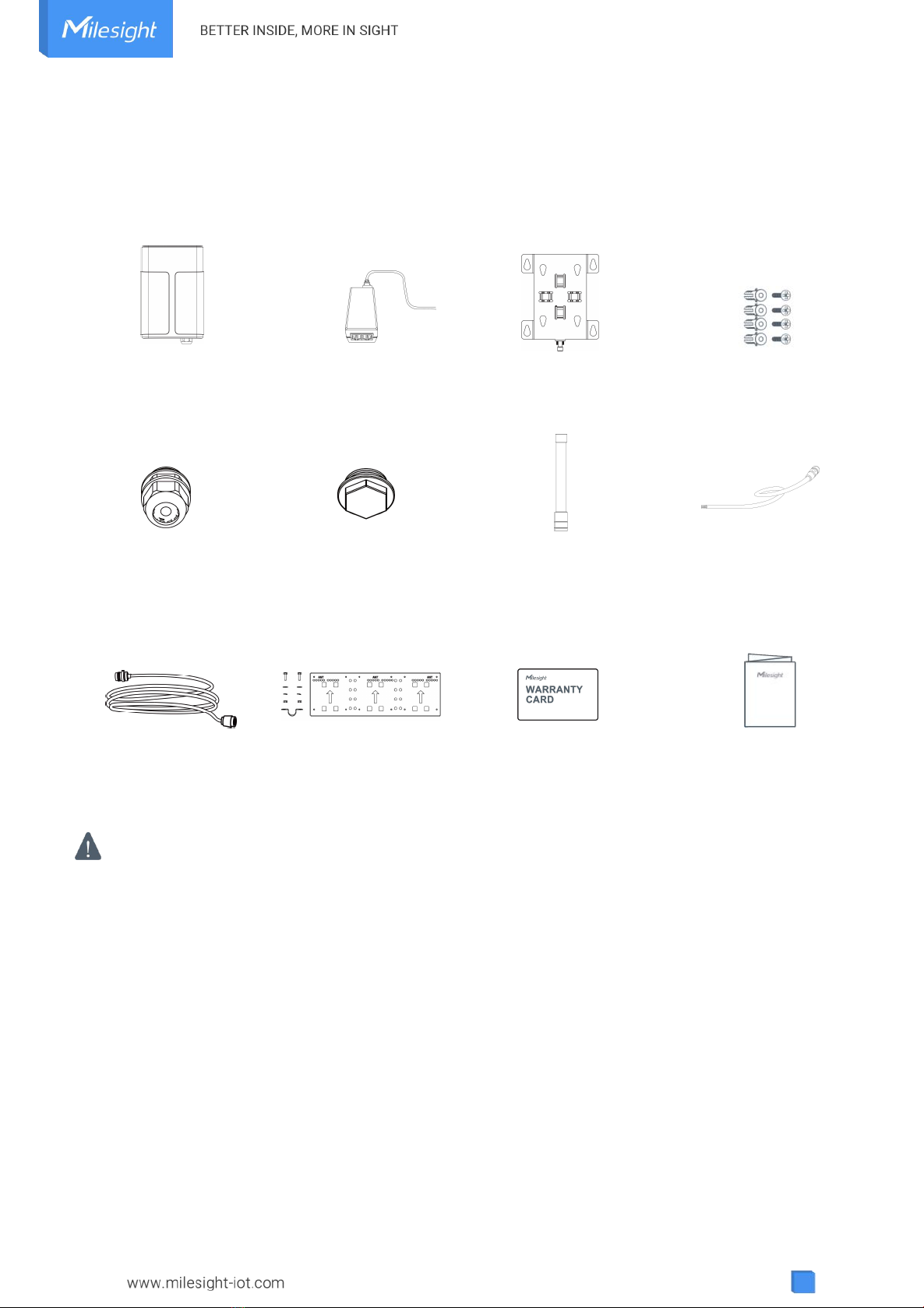

1. Packing List

Before you begin to install the UG67 LoRaWAN®Gateway, please check the package contents to verify

that you have received the items below.

1 × RJ45 Cable Gland

1 × SIM Dust Cover

2 × LoRaWAN®Antennas

(60 cm)

1 × M12 DC Power

Cable

1 × Antenna Coaxial Cable

(1m)

1 × Short Mounting

Backboard Kit

1 × Warranty Card

1 × Quick Start Guide

If any of the above items is missing or damaged, please contact your sales representative.

2. Hardware Introduction

2.1 Overview

1 × UG67

1 × PoE Injector

1 × Mounting Bracket

4 × Wall Mounting Kits

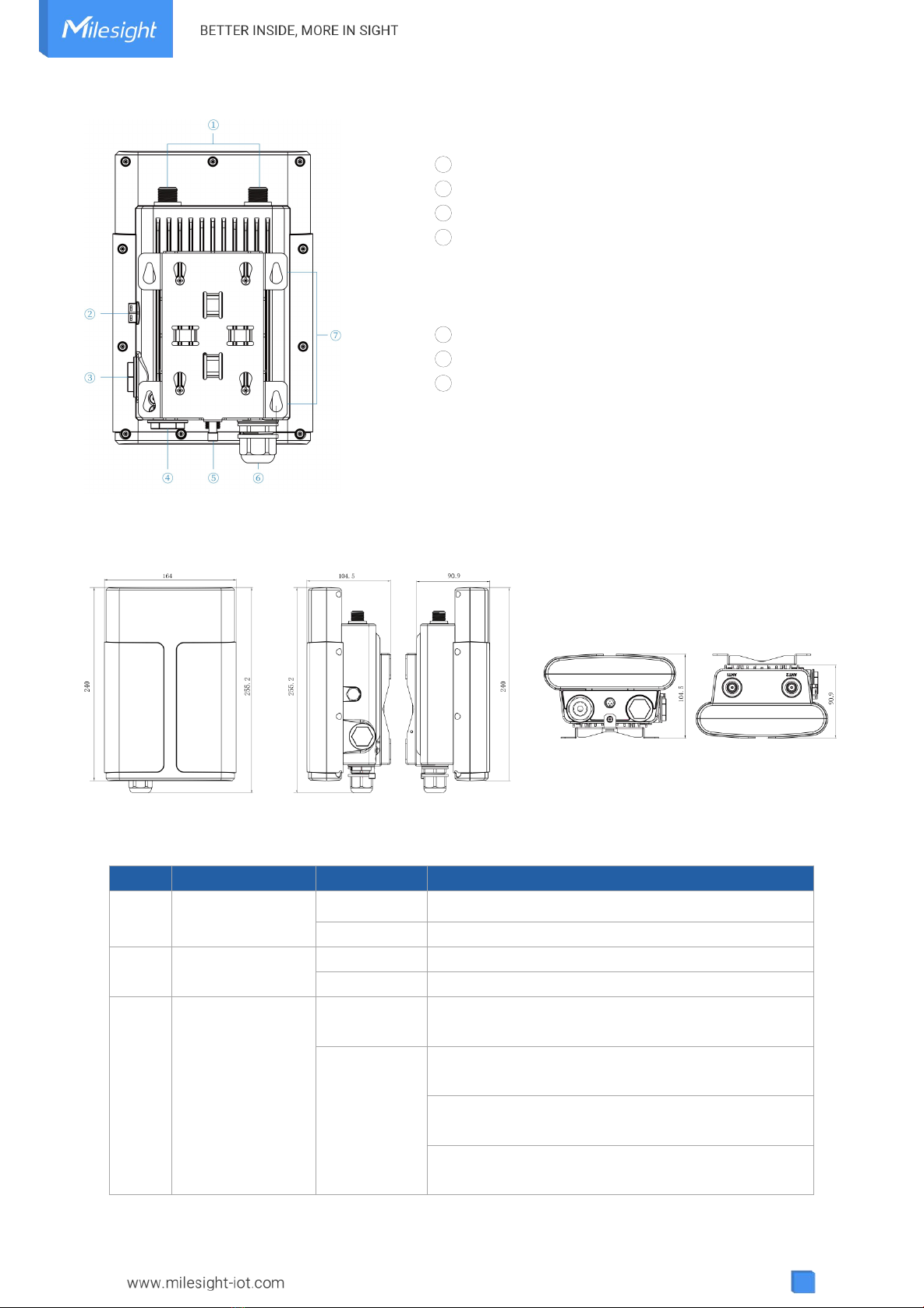

2.2 Dimensions (mm)

2.3 LED Indicators

LED

Indication

Status

Description

SYS

System Status

Green Light

Static: the system is running properly

Red Light

The system goes wrong

LoRa

Packet

Forwarder Status

Off

Packet Forwarder mode is running off

Green Light

Packet Forwarder mode is running well

LTE

Cellular Status

Off

SIM card is registering or fails to register

(or there are no SIM cards inserted)

Green Light

Blinking slowly: SIM card has been registered and

is ready for dial-up

Blinking rapidly: SIM card has been registered and

is dialing up now

Static: SIM card has been registered and dialed up

successfully

1LoRaWAN®Antenna Connector

2Vent Plug

3SIM Slot

4LED Area & Type-C Port & Reset Button

SYS: System Indicator

LoRa: LoRa Indicator

LTE: Cellular Indicator

5DC Power Connector (Solar Connector)

6Ethernet Port (PoE)

7Mounting Bracket

2.4 Reset Button

Function

Description

SYS LED

Action

Reset

Static Green

Press and hold the reset button for more than 5 seconds.

Static Green →

Rapidly Blinking

Release the button and wait.

Off →Static Green

The gateway resets to factory default.

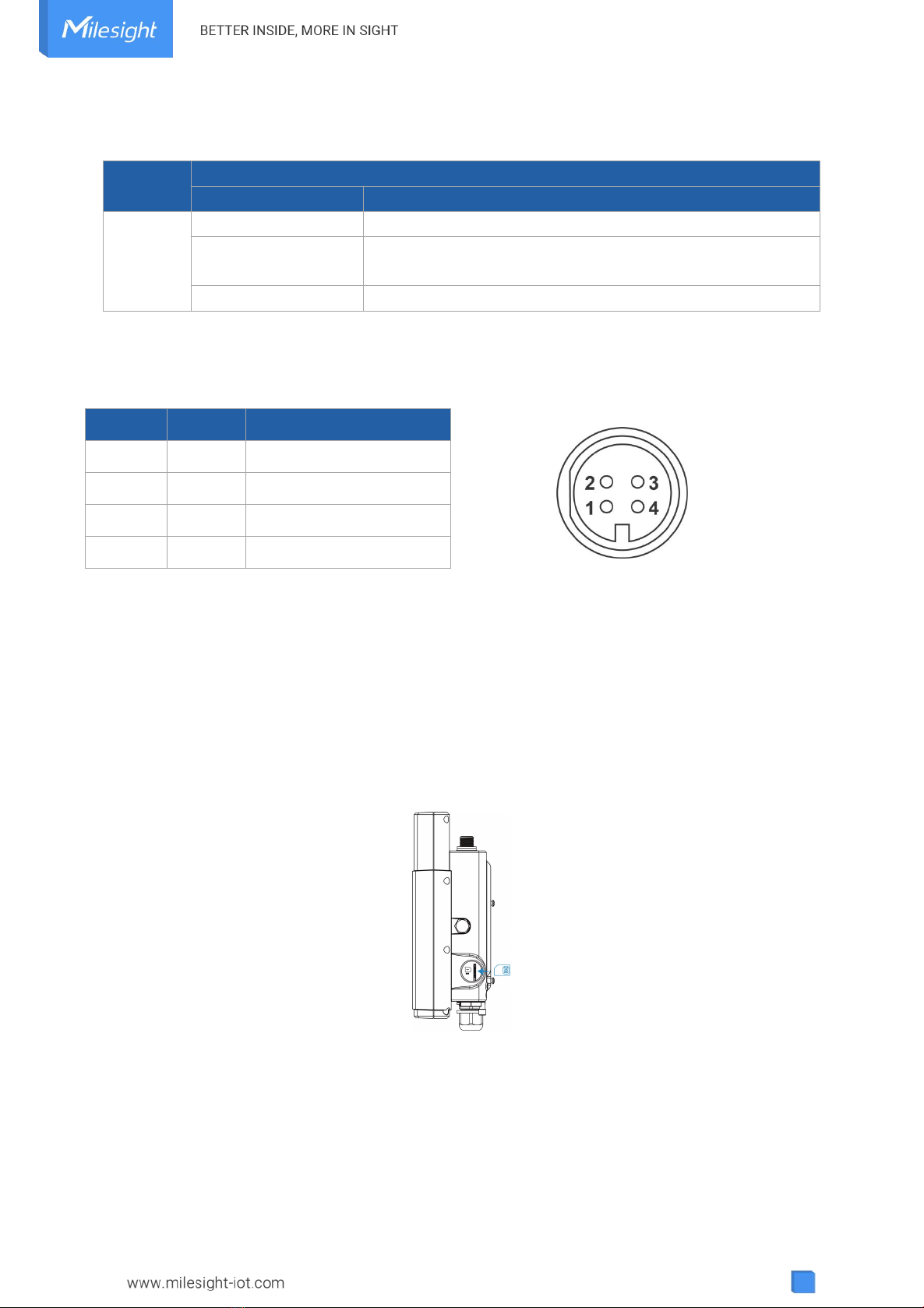

2.5 DC Power Connector

UG67 supports 12 VDC or solar supply via M12 connector.

Color

Description

Black

GND

White

Reserved

Yellow

Reserved

Red

+12V

3. Hardware Installation

3.1 SIM Card Installation (Cellular Version Only)

A. Insert the SIM card into the device according to the direction icon on the device. If you need to take

out the SIM card, press into the SIM card and it will pop up automatically.

B. Tighten the SIM dust cover with wrench to prevent water into the device.

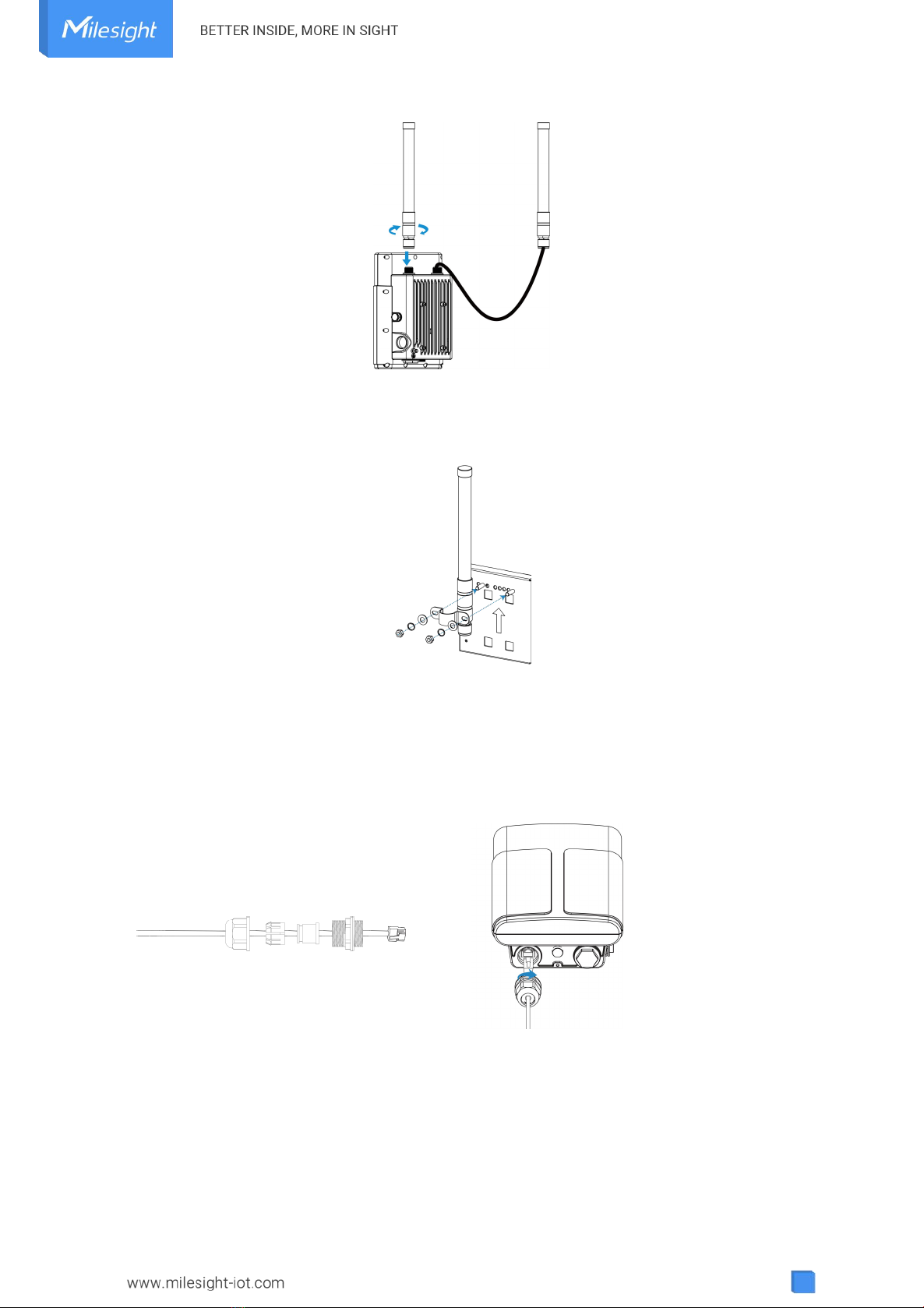

3.2 Antenna Installation

Rotate one antenna into the antenna connector directly and install another to mounting board via

coaxial cable to prevent getting too close. The external antenna should be installed vertically always on

a site with a good signal. It is suggested to install coaxial cable to ANT1 connector.

Note: do not install antenna to gateway directly if there is strong wind on the scene.

To install antenna to short mounting backboard, pass the antenna through the U-strap and fix the

U-strap clamp to short mounting backboard with 2 screws at back of board and then screw flat washers,

spring washers and nuts in front of the board.

3.3 Ethernet Cable & Power Cable Installation

Pass the Ethernet cable through the cable gland and rotate the cable gland to gateway, then tighten the

cable gland with wrench.

For DC or solar power supply, remove the protective cap of power connector and rotate the DC power

cable into the power connector.

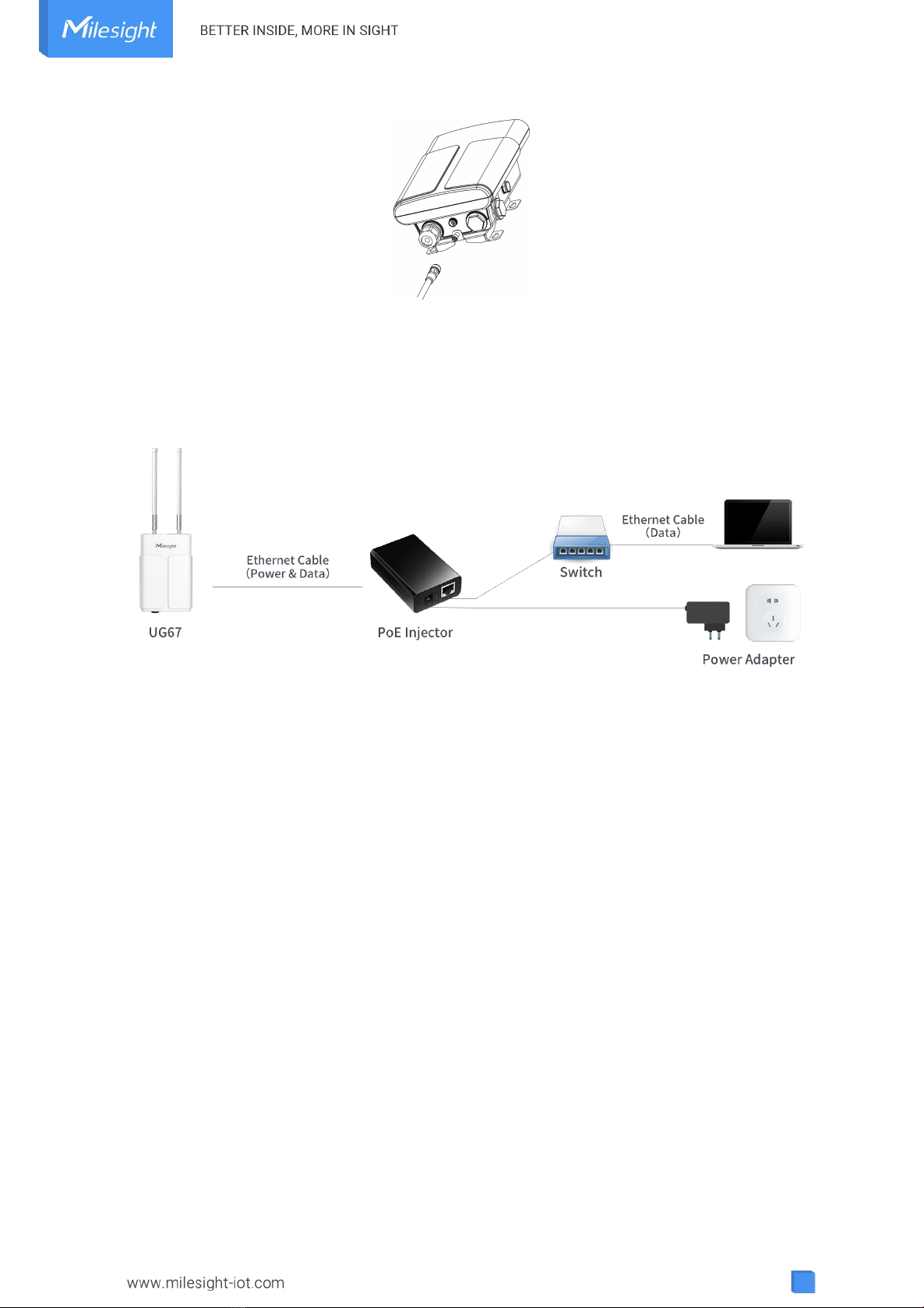

3.4 Power Supply

UG67 can be powered by 802.3af standard PoE or 12VDC. Please follow the picture to provide power

supply via PoE injector:

3.5 Gateway Installation

UG67 can be mounted to a wall or a pole. Before you start, make sure that your SIM card has been

inserted, your antennas have been attached and all cables have been installed.

Note: Do not connect device to power supply or other devices when installing.

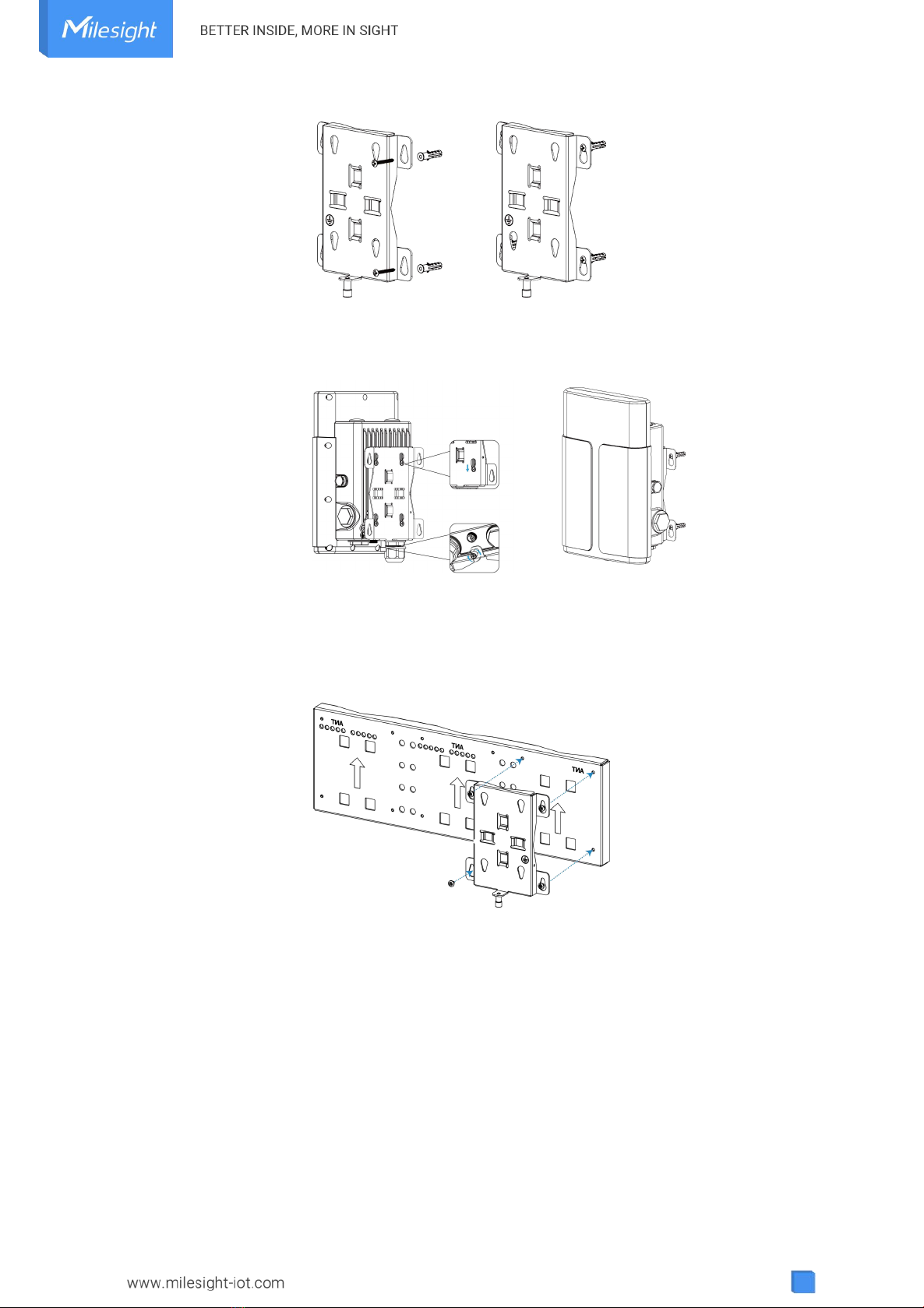

3.5.1 Wall Mounting

Preparation: mounting bracket (with a screw), wall plugs, wall mounting screws and other required

tools.

A. Align the mounting bracket horizontally to the desired position on the wall, use a marker pen to mark

four mounting holes on the wall, and then remove the mounting bracket from the wall.

Note: The connecting lines of adjacent points are at right angles.

B. Drill four holes with a depth of 32 mm by using your drill with a 6 mm drill bit on the positions you

marked previously on the wall.

C. Insert four wall plugs into the holes respectively.

D. Mount the mounting bracket horizontally to the wall by fixing the wall mounting screws into the wall

plugs.

E. Hang the device to the mounting bracket via bracket mounting screws on the back of device, then

screw the bracket screw to the bottom of the device.

3.5.2 Pole Mounting

Preparation: mounting bracket (with a screw), short mounting backboard kit and other required tools.

A. Fix the mounting bracket to short mounting backboard with 4 Phillips screws.

B. Hang the device to the mounting bracket via bracket mounting screws on the back of device, then

screw the bracket screw to the bottom of the device.

C. Fix one antenna to another side of short mounting backboard, then connect the antenna to device

with the coaxial cable.

D. Slide hose clamps through the rectangular rings in the mounting bracket and short mounting

backboard and wrap them around the pole. After that use a screwdriver to tighten the locking

mechanism by turning it clockwise.
