Milestone pro MPTP-T70-WPT-4K Manuale utente
MPTP-T70-WPT-4K
4K Wallplate HDBaseT Transmitter
All Rights Reserved
Version: MPTP-T70-WPT-4K_2021V1.0
User Manual
4K Wallplate HDBaseT Transmitter
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual are for reference only, different model and specifications are subject to real
product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till February, 2020. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
4K Wallplate HDBaseT Transmitter
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
⚫Unpack the equipment carefully and save the original box and packing material for
possible future shipment
⚫Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
⚫Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
⚫Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
⚫Refer all servicing to qualified service personnel.
⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
⚫Do not put any heavy items on the extension cable in case of extrusion.
⚫Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
⚫Install the device in a place with fine ventilation to avoid damage caused by
overheat.
⚫Keep the module away from liquids.
⚫Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
⚫Do not twist or pull by force ends of the optical cable. It can cause malfunction.
⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
⚫Unplug the power cord when left unused for a long period of time.
⚫Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
4K Wallplate HDBaseT Transmitter
Table of Contents
1. Introduction .................................................................................................................1
1.1 Product Introduction ..........................................................................................1
1.2 Features ............................................................................................................1
1.3 Package List ......................................................................................................1
2. Panel Description........................................................................................................2
2.1 Front Panel ........................................................................................................2
2.2 Rear Panel.........................................................................................................3
3. System Connection.....................................................................................................4
4. Button Control.............................................................................................................5
5. RS232 Control ............................................................................................................6
5.1 RS232 Control Connection ................................................................................6
5.2 RS232 Control Software....................................................................................7
5.3 RS232 Commands ............................................................................................8
5.3.1 Control Mode Switching...........................................................................8
5.3.2 Signal Switching ......................................................................................8
5.3.3 VGA Scaling Configuration ......................................................................8
5.3.4 HDCP Compliance ..................................................................................9
5.3.5 VGA Image Adjusting...............................................................................9
5.3.6 EDID Configuration................................................................................11
5.3.7 Device Configuration.............................................................................11
6. Specification .............................................................................................................12
7. Panel Drawing ..........................................................................................................13
8. Troubleshooting & Maintenance ...............................................................................14
9. Customer Service .....................................................................................................15
4K Wallplate HDBaseT Transmitter
1
1. Introduction
1.1 Product Introduction
Connect, switch and extend HDMI and 1 VGA+ audio input to displays or projectors in
conference rooms, classrooms and control centers. Inputs are automatically switched
(or manually selected) to permit seamless transfer from one source to the next. Extend
signal up to 70 meters (230ft) over a single Category cable. Certified HDBaseT
technology for a complete professional installation including HD video, power, RS232
control. This device uses Power over HDBaseT (PoH) to provide the flexibility for
powering the transmitter from the receiver at the display over the same Category cable.
This product is used with HDBaseT 70M extender Receiver.
1.2 Features
⚫HDBaseT Alliance certified.
⚫Dual gang Decora form factor with matte anodized aluminum finish.
⚫Delivers full uncompressed HD video 3D and 4Kx2K (VESA resolutions up to
1920x1200@60Hz, and HDTV resolutions up to 2160p) over single Category cable
up to 70m (230ft).
⚫Supports key features of HDMI 1.4 including EPG, EDID, and HDCP.
⚫Built-in scaling function to automatically match signals to display native resolution.
⚫PoH (power over HDBaseT) allows powering from the receiver at the display end.
⚫Locking features for input connectors.
1.3 Package List
⚫1 x 4K Wallplate HDBaseT Transmitter
⚫4 x Mounting Screws
⚫1 x 2-pin Pluggable Terminal Block
⚫1 x 4-pin Pluggable Terminal Block
⚫1 x Top Cover
⚫1 x Power Adaptor (12V DC 2A)
⚫1 x User Manual
Note:
Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.
4K Wallplate HDBaseT Transmitter
2
2. Panel Description

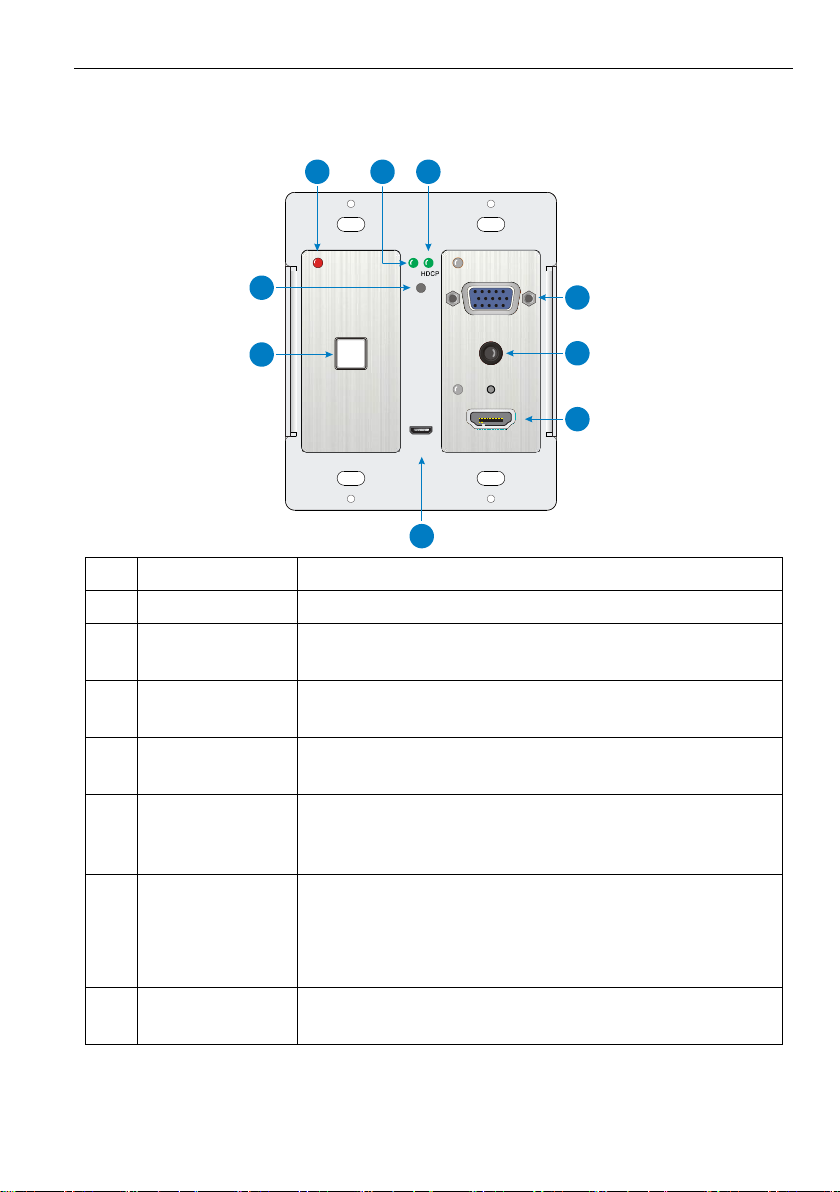

2.1 Front Panel
No.
Name
Description
①
POWER
LED indicator glows red when power is applied.
②
LINK
LED indicator glows green when an HDBaseT link is
established.
③
HDCP
LED indicator glows green when an HDCP link is
established.
④
RESET
This button performs a soft reboot of the 4K Wallplate
HDBaseT Transmitter.
⑤
SOURCE/AUTO
Button switches sources and upon push and hold
changes mode between Auto and Manual source select.
LED indicator glows green when in Auto mode.
⑥
VGA & VGA IN
⚫VGA – LED indicator glows green when the VGA input
is active, amber when a source is available, and does
not light when there is no source connected.
⚫VGA IN – HD 15 connector.
⑦
AUDIO IN
3.5mm stereo audio connector supplies audio for the VGA
input.
LINK
RESET
FIRMWARE
SOURCE/AUTO
POWER
VGA IN
VGA
AUDIO IN
HDMI
HDMI IN
123
9
57
8
6
4
4K Wallplate HDBaseT Transmitter
3
⑧
HDMI & HDMI IN
⚫HDMI - LED indicator glows when HDMI input is
active, amber when a source is available, and does
not light when there is no source connected.
⚫HDMI IN – HDMI connector with locking feature.
⑨
FIRMWARE
Micro-USB connector used to update firmware.

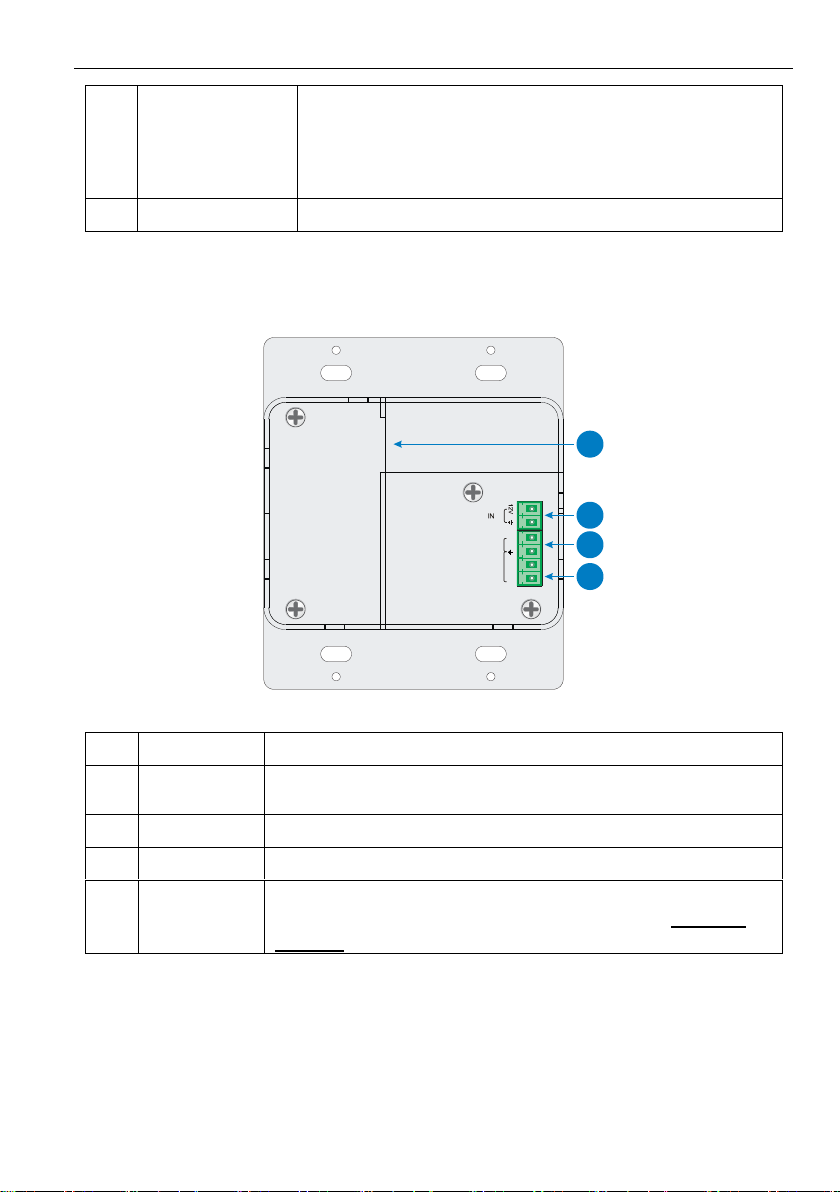

2.2 Rear Panel
No.
Name
Description
①
HDBT OUT
HDBaseT output, connects with HDBaseT Receiver over a
single Category cable to deliver AV signals, support PoC.
②
IN
12V input, connects with power adapter.
③
OUT
12V output, connects with Control Panel to energize it.
④
RS232
Serial port for control MPTP-T70-WPT-4K and the third-party
device via RS232 commands. Please refer to the 5. RS232
Control for more details.
12V Tx Rx
OUT
RS232
HDBT OUT
1
2
3
4
4K Wallplate HDBaseT Transmitter
4
3. System Connection
Usage Precautions
⚫System should be installed in a clean environment and has a prop temperature and
humidity.
⚫All of the power switches, plugs, sockets and power cords should be insulated and
safe.
⚫All devices should be connected before power on.

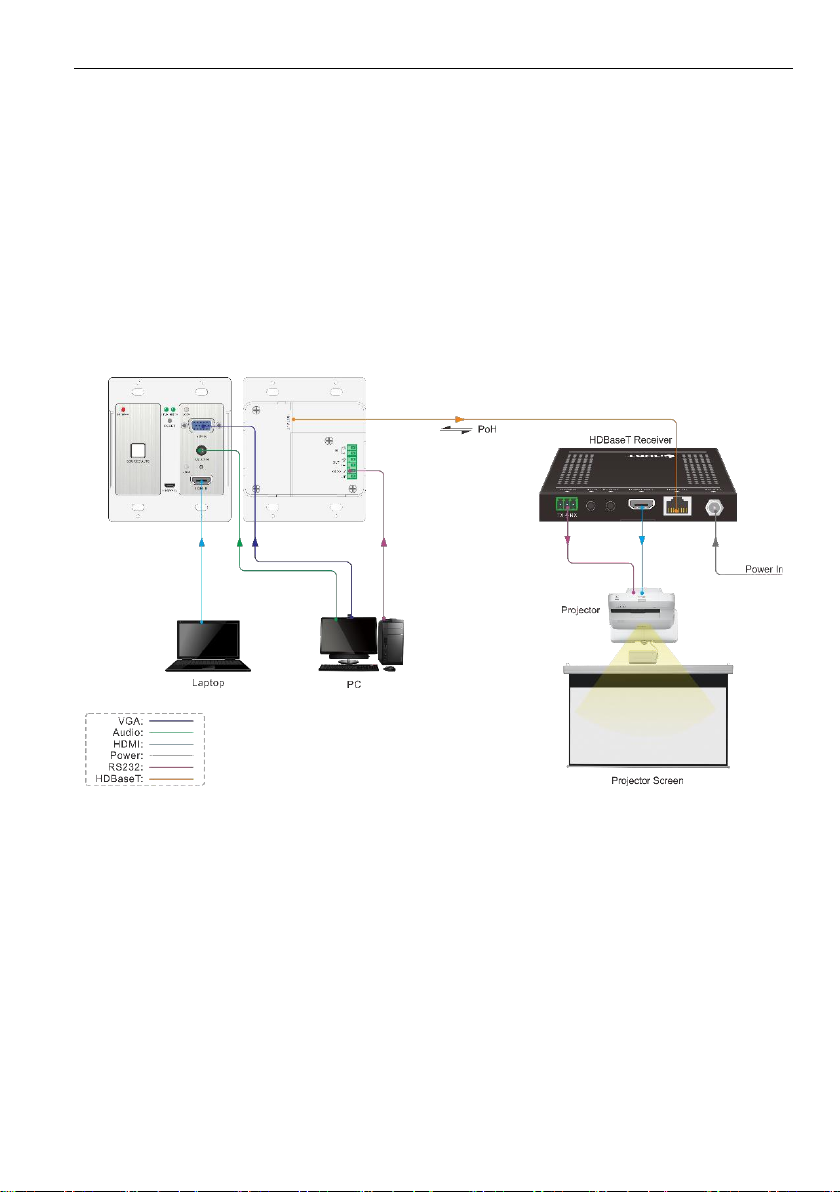

Overview:
Installation
①If installing in a back-box, it is recommended that the4K Wallplate HDBaseT
Transmitter be installed in a 4-5/8” square box at a minimum. The 4-5/8” square
box has sufficient space to terminate the cables with jacks behind the unit when
fully installed.
②Run one twisted pair cable from the4K Wallplate HDBaseT Transmitter location to
the location where the HDBaseT Receiver will be located (somewhere near the
display device).See the installation instructions for the 70M HDBaseT Receiver.
③If using the Control Panel, run another twisted pair cable from the 4K Wallplate
4K Wallplate HDBaseT Transmitter
5
HDBaseT Transmitter location to the location that the Control Panel will be
mounted.
④All twisted pair cables should be terminated with jacks. This allows the permanent
link between the two devices to be tested.
⑤Use the appropriate category rated patch cable to connect the HDBaseT link to
the HDBT OUT connector.
⑥If using the Control Panel, use the supplied adapter cable to connect with the
second cable and follow the installation instructions for the HDBaseT Receiver
and Control Panel.
Note: We recommends Category 6A cabling with alien crosstalk prevention technology
for the performance of HDBaseT link.
4. Button Control
SOURCE/AUTO Button
Press and hold the SOURCE/AUTO button for approximately 3 seconds. When the
button lights up green the 4K Wallplate HDBaseT Transmitter is in AUTO mode. This
mode automatically selects the last video source connected to the 4K Wallplate
HDBaseT Transmitter and outputs it to the display. Press and hold again for
approximately 3 seconds, the light will go out, and the device will be in Manual mode
which will allow the user to momentarily press the button to toggle between the two
sources.
4K Wallplate HDBaseT Transmitter
6
5. RS232 Control

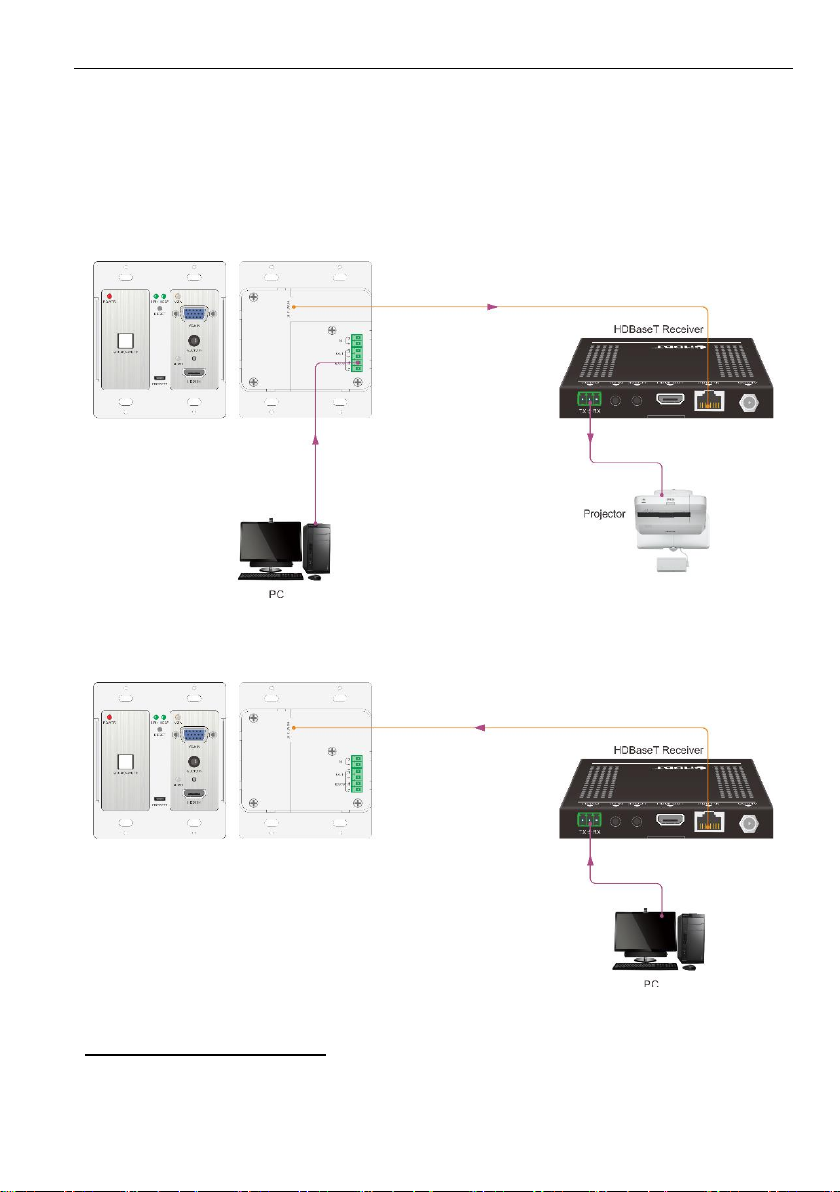

5.1 RS232 Control Connection
There are two RS232 control modes switching via sending 50779% or 50780%.
①Control this Wallplate HDBaseT Transmitter and far-end third-party device (such
as Projector) device by local PC, and the connection diagram shown as below:
②Control the Wallplate HDBaseT Transmitter by the remote PC which is connected
with Receiver
The RS232 control mode can be chosen via RS232 commands, please refer to the
5.3.1 RS232 mode switching for more details.
