OWNER’S MANUAL OMĆ209 472

May 2002

CST Rack Running Gear (195 114)

WARNING

ELECTRIC SHOCK can kill.

•Do not touch live electrical parts.

•Turn Off welding power source and input disconnect

device.

•Disconnect input power conductors from

deenergized supply BEFORE moving welding

power source.

CYLINDERS can explode if damaged.

•Keep cylinders away from welding and other

electricalcircuits.

•Never touch cylinder with welding electrode.

•Always secure cylinder to running gear, wall, or

other stationary support.

FALLING EQUIPMENT can cause injury

and damage.

•Use proper equipment to lift unit.

•Use lifting forks long enough to extend out opposite

side of base.

•Do not put any body part under unit while lifting.

miscwarn1.1* 2/94

803 265

Tools Needed:

9/16 in

Description (Qty)

Part

No.

Item

No.

1 209 396 Running Gear Bkt Assy (4)

2 209 479 Caster (4)

3 601 965 Screw 375-16x1.00 Hex (32)

4 167 788 Nut 375-16 .56 Hex (32)

Be sure to provide Model when ordering

replacement parts.

.Brackets MUST be installed onto rack before installing casters.

Screws and nuts MUST be installed as shown. If CST rack does

not already have bracket holes in the frame, see page 3 for

template to mark hole locations.

13/32 in

Figure 1. Installing Running Gear

OM-209 472 Page 2

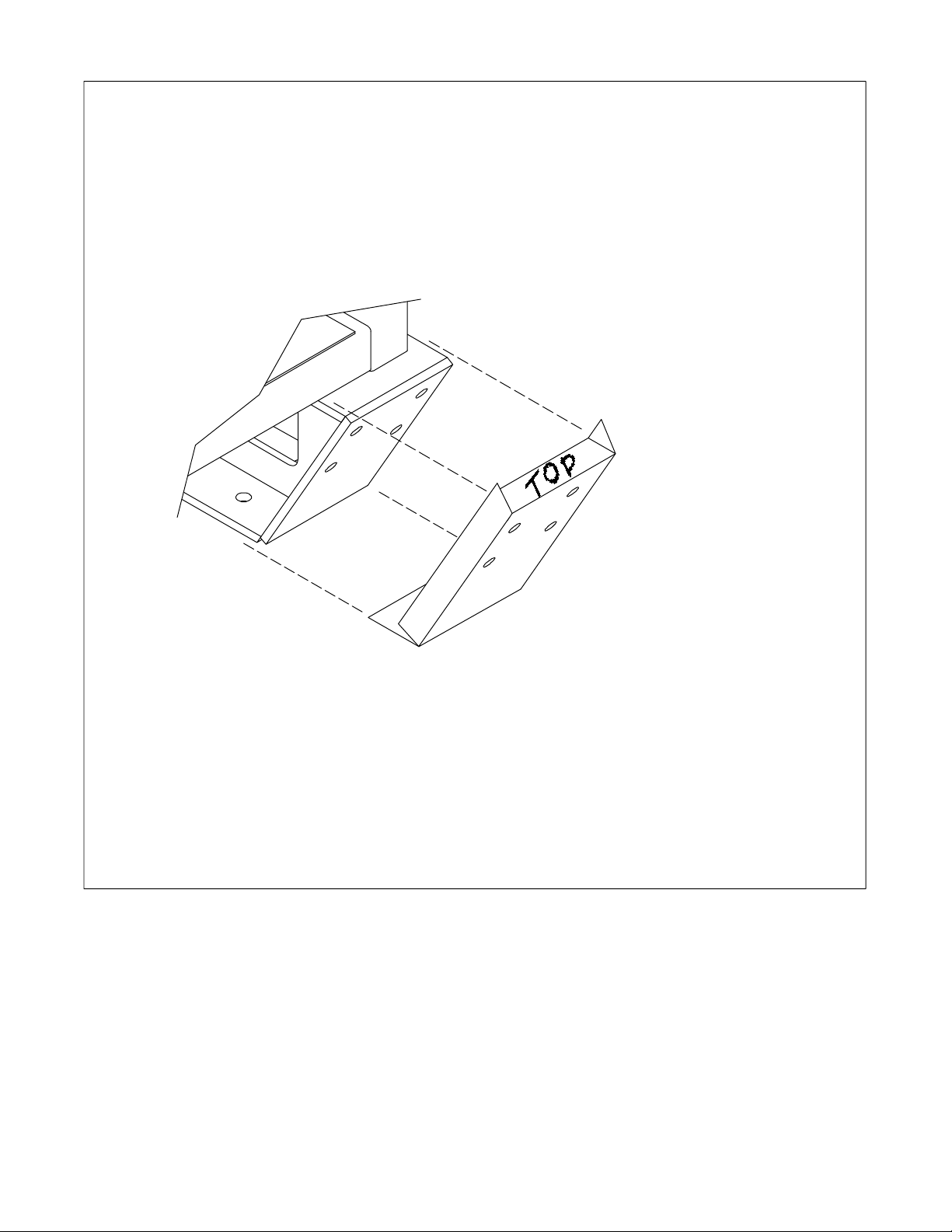

1. Hole Location In Rack Using Template For Bracket Assembly

1 Rack Skid

2 Template

If CST rack does not already have

bracket holes in the frame, use the

template on page 3 to mark hole

locations. Use a drill and 13/32 in

drill bit for all holes.

Cut template from page 3 and fold

as indicated by fold lines. Position

templateas shown and mark holes

using a center punch.

.Template must be positioned

with tab labeled “TOP” placed

on top surface of skid.

OM-209 472 Page 3

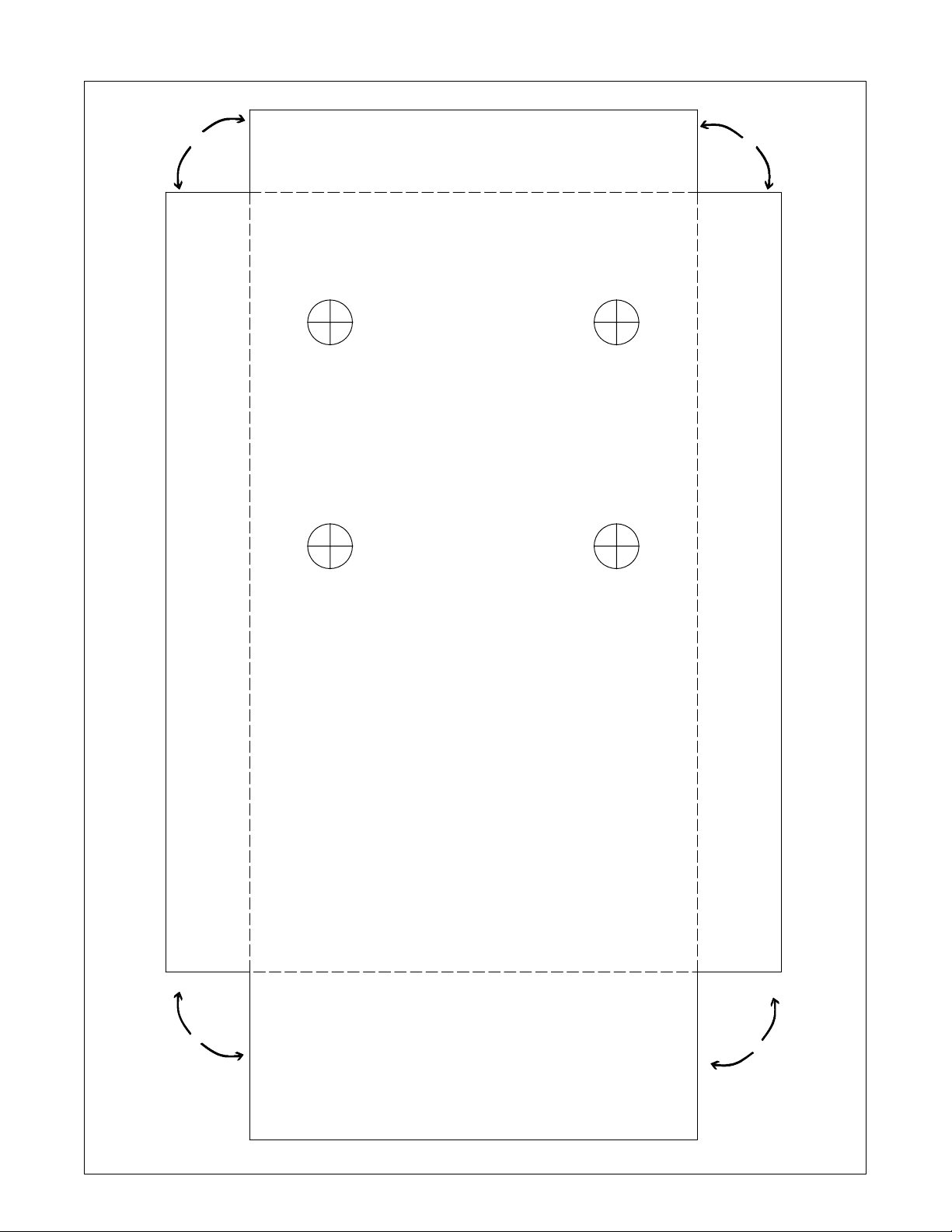

2. Template For Bracket Assembly Holes In Rack

Cut

Fold

TOP

Cut

Cut Cut

OM-209 472 Page 4
