Tx300P-1800 Print Guide
Thank you for purchasing our inkjet printer Tx300P-1800.
This “Print Guide” explains the printing method using Tx300P-1800 and the attached software RIP [RasterLink]
and items to be checked/set before printing.
First, confirm the following items:
Before printing, the preparation for Tx300P-1800 and the software RIP [RasterLink] is required.
First, prepare the followings:
About system configuration (Refer to P. 2)
The explanation of the system configuration to print is described.
Prepare Tx300P-1800 (Refer to P. 3)
To use Tx300P-1800, the items below are explained:
Connect the PC in which the software RIP [RasterLink] has been installed with
Tx300P-1800.
Turn on the power supply.
Depending on the media to be set, adjust the print head height etc.
Set the media.
Perform test printing to check whether there is no nozzle clogging etc.
Correct the feeding rate of media.
Correct the ink drop position.
Prepare the RasterLink (Refer to P. 4)
The preparation of the software RIP [RasterLink] is explained.
For the installation method, refer to the manual of the RasterLink.
The printing method using a sample is
explained.
Here, the printing method using a sample image included in the attached CD.
Perform printing (Refer to P. 6)
Download the profile suitable for the using condition. (Refer to P. 8)
Some typical questions are described.
Typical questions (Refer to P. 10)
- 2 -
First, confirm the following items:
About system configuration

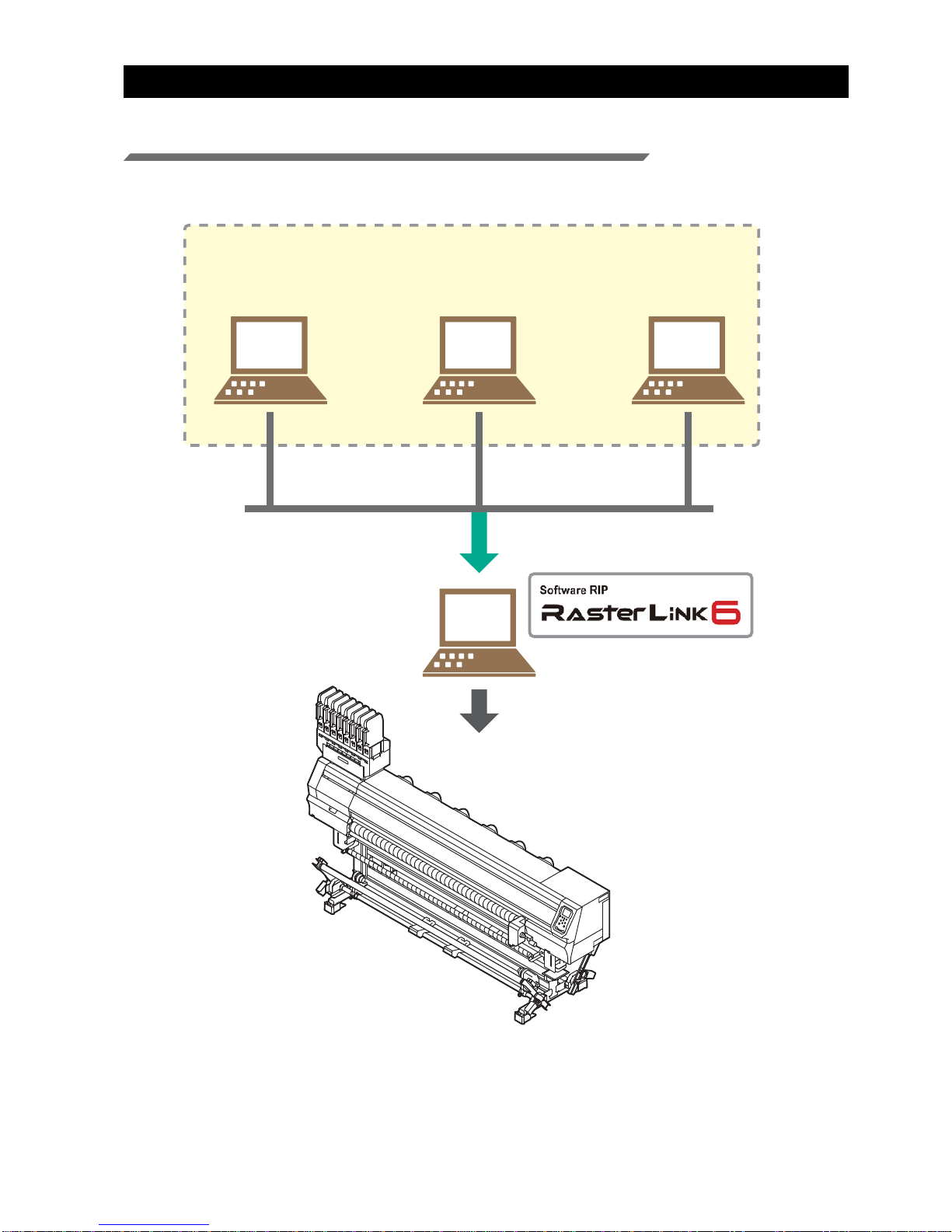

Instruct to print the printing data created with the application such as Illustrator or Photoshop etc. from the PC in
which the attached RasterLink has been installed.
Send the data to be printed to the PC in which
RasterLink6 has been installed.
Instruct to print from
RasterLink6.
- 3 -
Prepare Tx300P-1800
Following the procedures below, prepare Tx300P-1800.

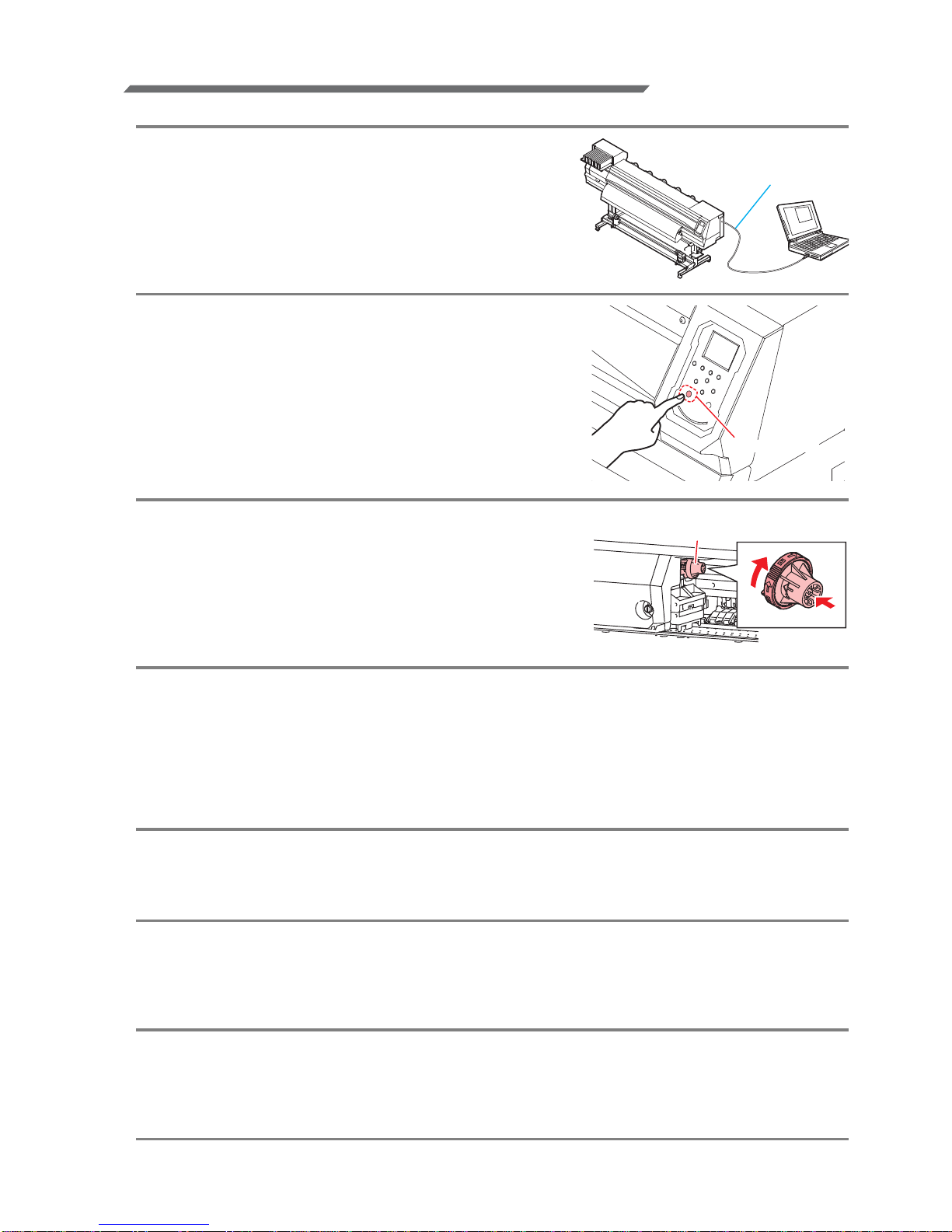

1. Connect a PC in which the attached Ras-
terLink is installed with Tx300P-1800.
• For details, refer to Chapter 1 “Connecting Cables”
of Tx300P-1800 Operation Manual.
2. Turn on the power supply of Tx300P-1800.
• For details, refer to Chapter 2 “Turning the Power ON”
of Tx300P-1800 Operation Manual.
3. Before setting a media, check the height of
print head.
• For details, refer to Chapter 2 “Adjusting the Head
Height” of Tx300P-1800 Operation Manual.
• Adjust the Height-adjusting lever depending on the media
to be used.
4. Set the media.
• When setting the roll media : Chapter 2 “Using the tension bar to set the roll media” of
Tx300P-1800 Operation Manual
Chapter 2 “Seting roll media without using tension bar” of
Tx300P-1800 Operation Manual
• When setting the leaf media : Chapter 2 “Setting leaf media” of Tx300P-1800 Operation
Manual
5. Perform a test printing.
• Check if discharging defect such as nozzle clogging exists or not.
• For details, refer to Chapter 2 “Test Printing” of Tx300P-1800 Operation Manual.
6. Perform a media correction.
• Correct the feeding rate of media.
• For details, refer to Chapter 2 “Setting of Media Correction” of Tx300P-1800 Operation Man-
ual.
7. Perform a dot position correction.
• Correct the ink drop position.
• For details, refer to Chapter 2 “If the Positions of Dots Shift...” of Tx300P-1800 Operation
Manual.
USB cable
Power switch
Height-adjusting handle
- 4 -
Prepare the Mimaki Driver
1. Check if the attached Mimaki Driver is installed.
• For the installation, refer to Installation Guide of the attached Mimaki Driver.
Prepare the RasterLink
Check that the attached software RIP [RasterLink] is prepared.
1. Check if the attached RasterLink is installed.
• If it is installed, the icon on the right is displayed on the PC
desktop.
• For the installation, refer to Installation Guide of the attached RasterLink.
2. Check the connection with Tx300P-1800.
(1) Is the power supply of Tx300P-1800 turned ON?
(2) Is the PC in whichthe attached RasterLink is installed connected with Tx300P-1800?
3. Double-click to start the attached
RasterLink.
• “Printer Management...” is displayed
4. Register the printer.
• For print in Tx300P-1800, the registration of the printer
into the attached RasterLink is required.
• If the printer has already been registered, this operation
can be skipped.

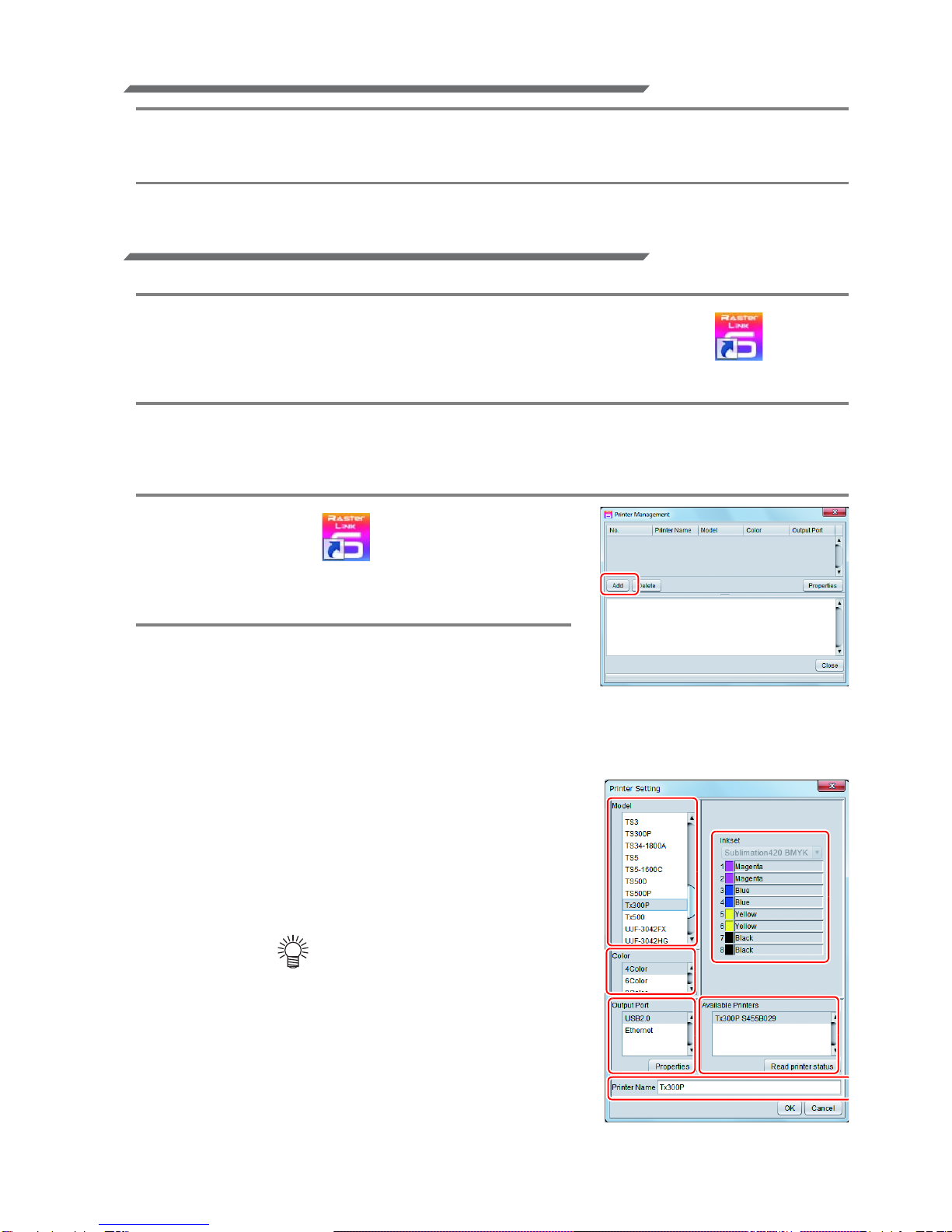

(1) Click [Add] in the “Printer Management...” window.
(2) Set the printer information.
When not using Tx300P hybrid function
• Model : Tx300P
• Color : Select depending on the
device.
• Output Port : USB2.0 or Ethernet
• Available Printers : Select Tx300P S455B029
• Printer Name : Enter the Tx300P
• The Hot folder of the name entered
here is automatically created.
• For an ink set, the information
retrieved from the printer is dis-
played.
- 5 -

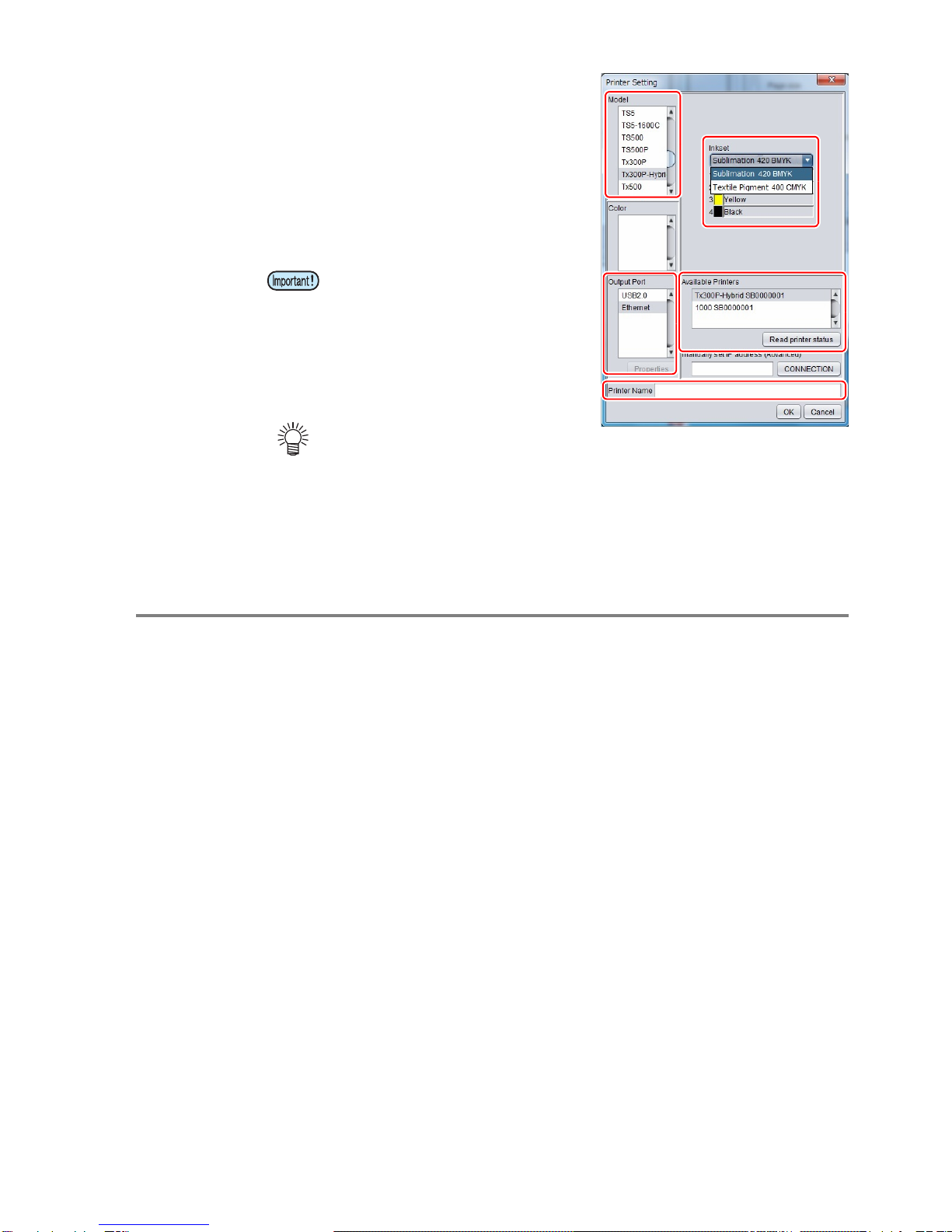

When using Tx300P hybrid function.
When setting Inkset (Sublimation 420 BMYK,
Textile Pigment 400 CMYK) using the hybrid
function, please select "Tx300P-Hybrid" as the
model name.
• Model : Tx300P-Hybrid
• Output Port : USB2.0 or Ethernet
• Available Printers : Select Tx300P
• Printer Name : Enter the Tx300P-Hybrid
• Inkset : Select according to the ink
set to be used
(3) Click [OK].
• The confirmation screen is displayed.
Clicking [OK] starts the registration of the printer.
• It is necessary to register the
printer for each ink set.
Select “Sublimation 420 BMYK” in
the inkset box and register the
printer.
Select “Textile Pigment 400
CMYK” in the inkset box and
register the printer.
• The Hot folder of the name entered
here is automatically created.
• For an ink set, the information
retrieved from the printer is dis-
played.
- 6 -
Perform printing
Here, the printing method using a sample image included in the CD of the Tx300P-1800 Operation Manual.
1. Double-click to start the attached RasterLink.
• The main window of the attached RasterLink is displayed.
2. Set the CD of Tx300P-1800 Operation Manual into the disk drive.
3. Click [Print Guide / Sample data].
• The “Print Guide and Sample Data” dialog is displayed.

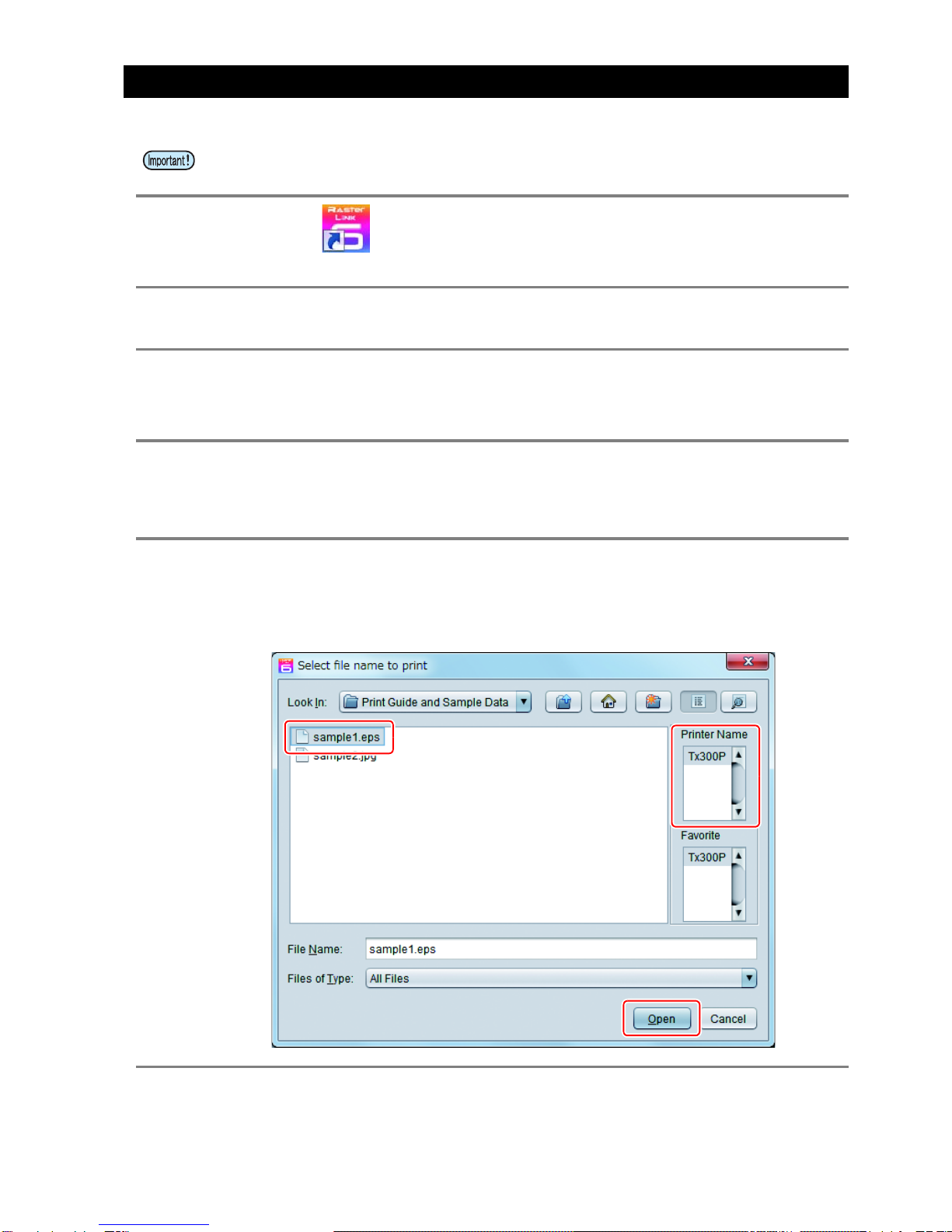

4. To select the data you want to print from the RasterLink, select [File],
and then [Open] from the menu.
• The “Select file name to print” dialog is displayed.
5. Select the file to be printed, and click [Open].
• If more than one printer is registered, select [Tx300P] from [Printer Name].
• For details on the favorites setting, refer to Reference Guide of the attached RasterLink.
• The file is loaded. The loaded file is displayed on the [Tx300P] tab in the main window.
• Check P. 2 to P. 4 “First, confirm the following items:” without fail before creating a seal/a
sticker.
- 7 -

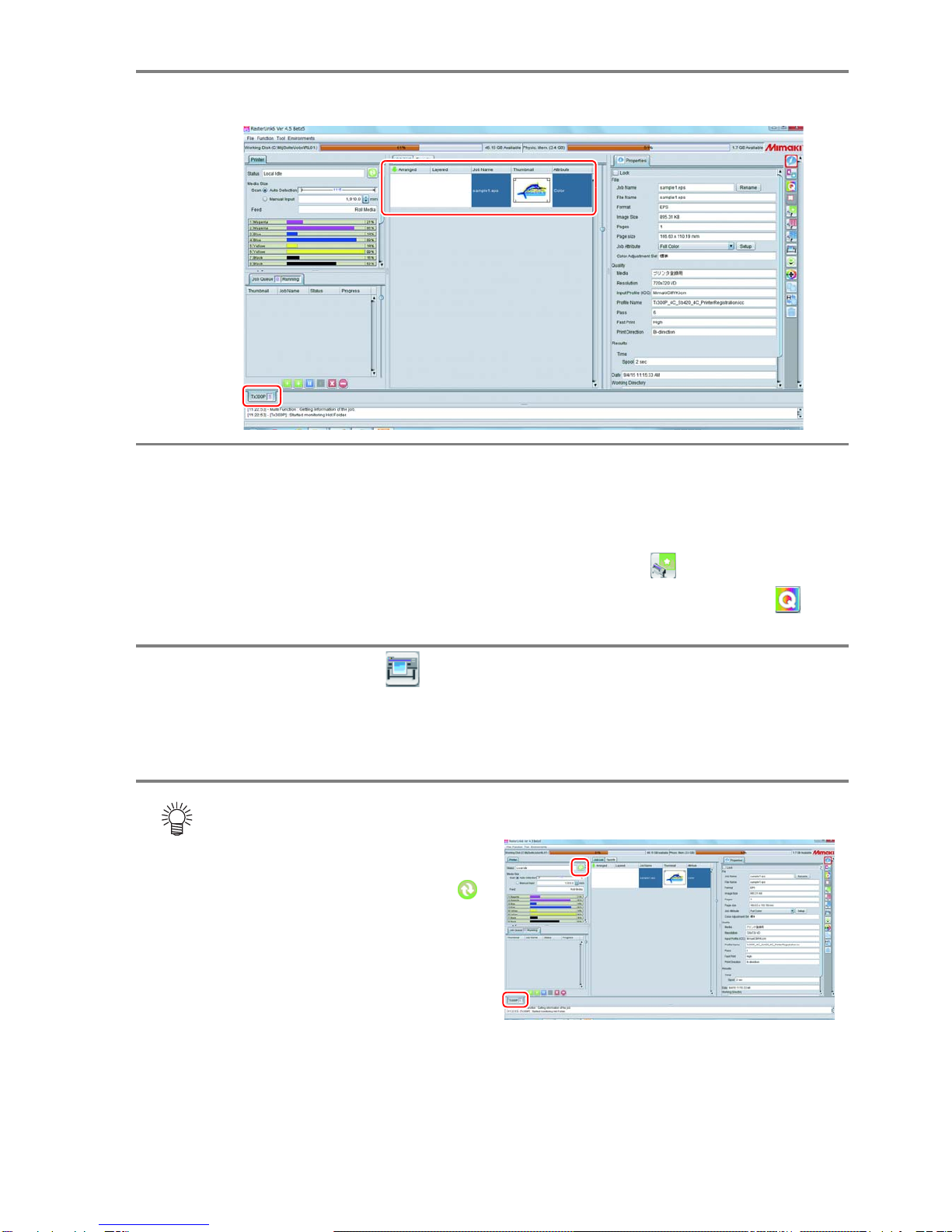

6. Select the file loaded into the [Tx300P] tab.
7. To check or edit the settings, from [Function icons] displayed in the
right side of the window, select the icons shown below.
• For details about each function icon, refer to Reference Guide of the attached RasterLink.
(1) To specify the enlargement, reduction, or copy setting, select (General Print).
(2) To select a profile that matches the medium or ink set installed in Tx300P, select (Qual-
ity).
8. To print a file, select (Execution) from the [Function icons] dis-
played in the right side of the window.
(1) Select [RIP & Print] or [Immediate Print].
(2) Click [Start].
• If you have replaced a medium in Tx300P-1800, perform the following steps to acquire the
width of the medium from the printer.
1. In the media window, select the
[Tx300P] tab.
2. In the [Printer] section, click .
- 8 -
Download the profile suitable for the using condition.
Here, the download method of the profile suitable for the ink set to use is explained.
Read this by replacing the printer/ the profile with the one you use.
1. Start the Profile Update.
(1) Select [RasterLink6] - [Update] - [Profile Update] from the Start menu.
(2) Click [Next].

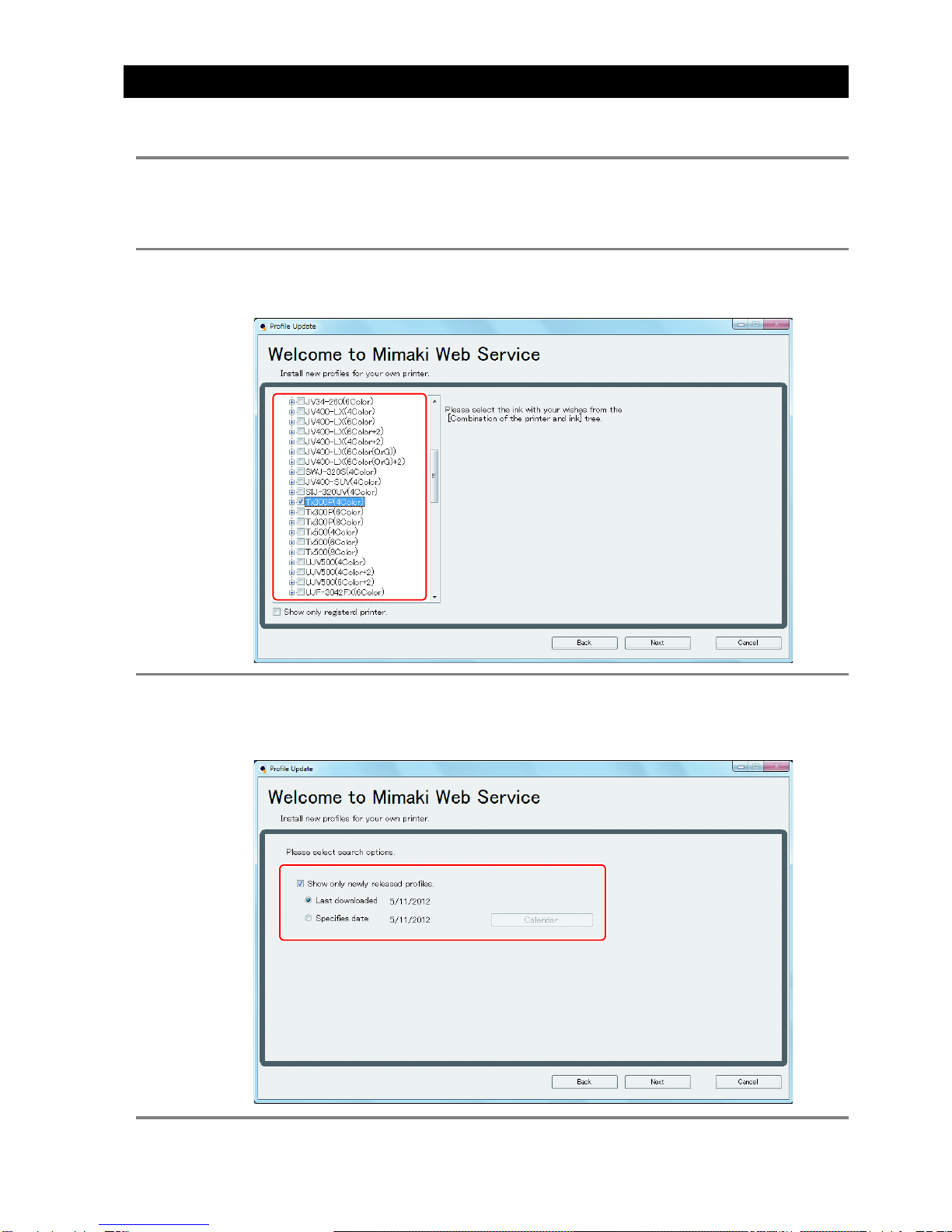

2. Specify the printer and ink to install a profile.
• After selecting, click [Next].
3. Specify the option.
(1) After selecting, click [Next].
(2) Connect the Internet and check the profile.
- 9 -
4. Download the profile.

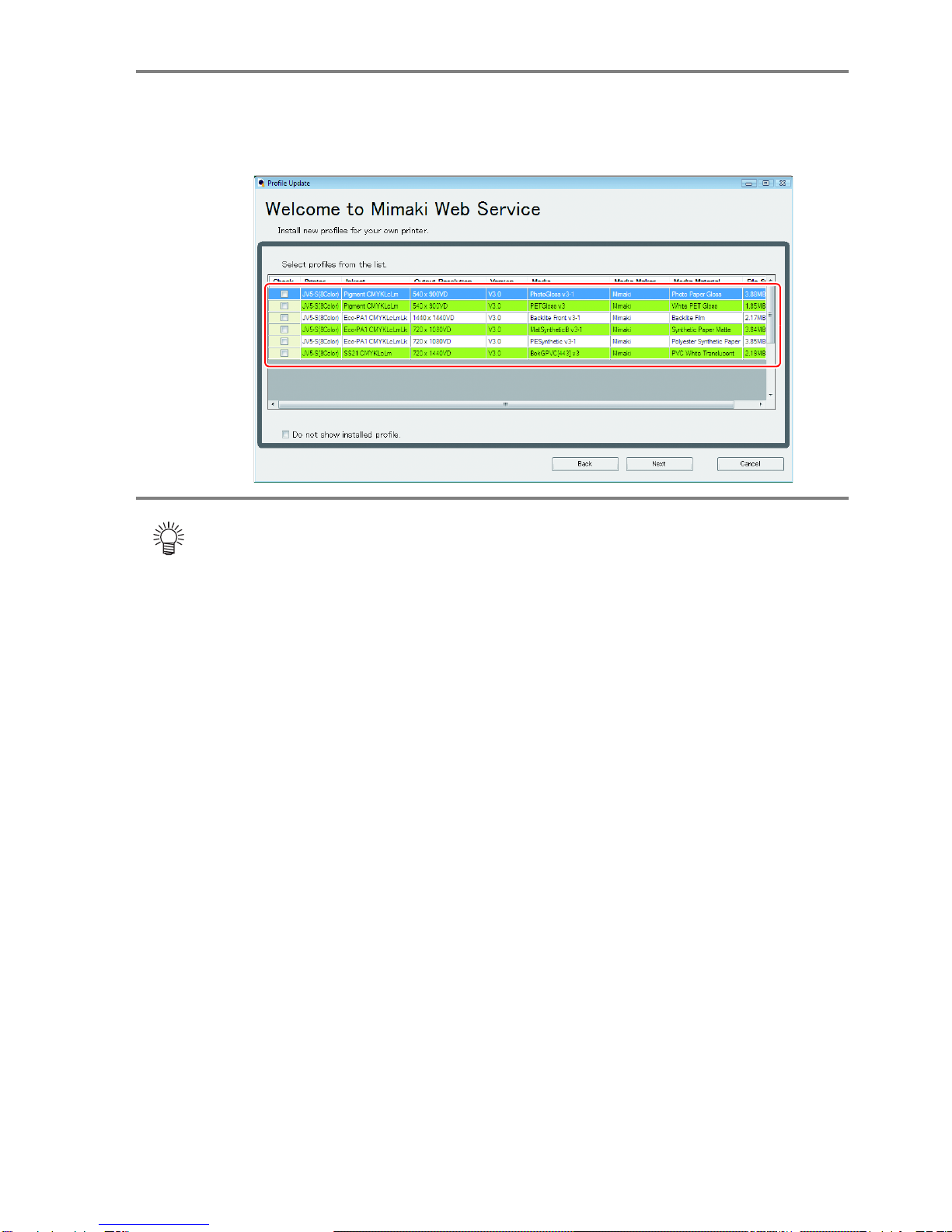

• If there are profiles that meet the settings, the list appears.
(1) Select the profile to install, and click [Next]
(2) Click [Finish] to end the download procedure.
• The profile is installed when RasterLink6 is started next.
Refer to Installation Guide of the attached RasterLink for details.
•You can also download the profile from our website. (http://mimaki.com/)
- 10 -
Typical questions
The answers to the questions/ the troubles frequently asked by the customer are provided.
About errors
“Replace a Wiper”is displayed
Time for replacement of the wiper has come.
Replace the wiper by following the procedures in Chapter 4 “Replacing the wiper” of Tx300P-1800
Operation Manual.
“Waste ink full” is displayed
The waste ink tank is full. Replace the waste ink tank by following the procedures in Chapter4 “If a Waste
Ink Tank Confirmation Message Appears” of Tx300P-1800 Operation Manual.
Supplied items
Purchase them in a distributor in your district or our office.
Name of part Type of Ink Part codes
Cleaning Liquid 03 MAINTENANCE KIT
Sublimation dye ink :Sb420
Disperse dye ink :Dd400
Acid-dye ink :Ac400
Reactive-dye ink :Rc400
ML003-2-K1
Textile pigment ink :TP400
Hybrid ink : Sb420+TP400 C-ML012-Z-K1-1-KW
Name of part Part codes
Waste ink tank (2L) SPA-0246
Wiper kit 300TS SPA-0271
Clean stick for the surroundings of the head 50pcs SPC-0527
CP pat set SPA-0269
Ink receiving spacer SPA-0248
300 fan filter SPC-0774
Pinch rollers SPA-0275
