MINJCODE MJ3670 Manuale utente

0-3RUWDEOH:LUHOHVV

%DUFRGH6FDQQHU0DQXDO

9

(PDLOVXSSRUW#PLQMFQ

:HEîZZZPLQMFRGHFRP

CContents

Function Settings 4

Output Mode Setting

Data Transmission Mode Setting

Communication Mode Setting

USB Interface Type Setting And Output Type Setting Inventory Mode

Setting

Vibration Setting

Battery Display

Beep Setting

Sleep Setting

GS Character Conversion

Letter Case Conversion

Keyboard Language Setting

2.4G Setting

Bluetooth Setting

Program pdate

Data Editing Settings 9

End Character Setting

Hidden Character Setting

Suffix / Prefix Setting 9

Data Code Table 13

ASCII Code Table 13

Technical Parameter：

Mfr P/N MJ3670

Type 2.4G ，Bluetooth，USB wired

Wireless Transmission Range Inside 15m, outside 30m

Storage Capacity Approx 2MB, can store approx 100,000 barcodes

Battery Capacity 3.7v 360mAh

Charging Power DC 5V 1000mA

Standby ≥ 10mA

Operating Current ≥ 150mA

Sleeping Power Consumption 0mA

Light Source Type Laser

Interface Micro USB

Continuity Turn on the vibration mode can work continuously for 140 minutes

Certificate CE, FCC，RoHS，IP54

Applicable 1D barcode

EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、

Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of

5、Matrix 2 of 5、Code11、 MSI-Plessey、Standard 2 of 5、Plessey、China

Post、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)

IIndicator And Buzzer Status Description

Indicator light description

Green light--> Charging indicator

(1) Every time the code is successfully scanned, it flashes rapidly once

(2) When USB or 2.4G and Bluetooth HID are not connected, it will be off

(3) When the USB or 2.4G or Bluetooth is connected, it is always on

(4) When entering 2.4G or Bluetooth HID pairing, then flashing constantly

(5) When entering Bluetooth SPP/BLE pairing, it will be slow flashing

Buzzer Description

A long sound --> states are: (1) indicates power on (power on).

(2) Failure during Bluetooth data transmission.

A short sound --> the status is: (1) reading common barcode successfully and uploading successfully.

(2) Successful USB connection.

(3) Successful 2.4G/Bluetooth connection or pairing.

High and low short tones --> the status is: (1) obtaining the setting code successfully.

(2) Storage of data is successful.

(3) Uploading data completed.

(4) Enter shutdown state.

Three short tones --> states with. (1) USB/2.4G/Bluetooth connection is disconnected.

(2) Unsuccessful data upload or storage Flash is full.

(3) The setup code function is not working.

Three short tones with high and low sounds --> status: insufficient power, ready to enter the shutdown state.

Software Version NumberRestore factory defaults

Note: With an asterisk (*) for the parameters after restoring the factory

OOutput method

USB priority output(*)Simultaneous output mode

Notes.:

Simultaneous output mode: USB

and 2.4G or Bluetooth are output at

the same time (determined by the

communication mode), where

2.4G or Bluetooth output is

unsuccessful, an alarm is raised.

Data transfer mode

Normal mode(*) Auto Storage Mode Inventory Mode

Remark.

In normal mode, the scanned data will be uploaded instantly, and the alarm will be raised if the transmission fails, and the data will not be saved.

In automatic storage mode, the data will be saved automatically when the distance is exceeded, and when you need to upload the automatically saved

data, you can scan the setting code "upload all data" to upload the saved data.

In inventory mode, the scanned barcode will be saved automatically, if you need to check the statistics or upload data, you can

scan the corresponding setting barcode to check it.

Communication Mode

2.4G Mode(*) Bluetooth HID Mode Bluetooth BLE Mode

Bluetooth SPP Mode

Note: Bluetooth HID mode, is switched to HID mode, the previously paired Bluetooth, will automatically connect.

Bluetooth BLE transmissive mode, Bluetooth devices (i.e. cell phones / IPAD and other Bluetooth devices) need to download or develop low-power

Bluetooth BLE transmissive software to use.

Bluetooth SPP pass-through mode, Bluetooth devices (i.e. mobile phones/IPAD and other Bluetooth devices) need to download or develop classic

Bluetooth SPP pass-through software to use.

When there is a problem with Bluetooth communication, the alarm indicates that the entry of Bluetooth is not successful.

USB Interface Type

"!



"!COM

Note: Setting the USB interface type will change the USB interface type of both the transmitter (i.e. scanner gun) and the receiver

(i.e. receiver)

USB-HID Data Type

Transferable keyboard function keys Direct ASCII transfer

IInventory Mode

Upload statistics Clear all data Upload all data

Electricity

Display battery

Vibration mode setting

Vibrate mode off Vibrate mode on(*)

Sound settings

Sound volume setting

Quiet High volume Volume Medium

Low volume

6RXQGIUHTXHQF\VHWWLQJ

# #

Sleep time setting

No Sleep Sleep time setting

Sleep after 10 seconds Sleep after 30 seconds Sleep after 1 minutes

Sleep after 5 minutes Sleep after 10 minutes Sleep after 30 minutes

Note: You can long press the button until you hear the first ring for about 8 seconds, release the button to enter the

hibernation

GGS character conversion

No conversion(*) Convert to <GS>

Convert to |

Convert to]

Convert to ^]

Letter case conversion

No conversion(*) All capitalization All lowercase

Case reversal

Keyboard Language Setting

United States(*) Germany France

Italy Canada Spain

Brazil Sweden Portugal

Belgium TurkeyF TurkeyQ

Italy-14 Holland Poland

Finland Latin America Serbia

Hungary Denmark Norway

Japan

22.4G Setting

2.4Ghz Mode(*)

Remark.

Set 2.4G mode, it will automatically enter into 2.4G

receiver mode and connect the last paired receiver by

default.

2.4G Pairing

Paired receivers

1. To enter 2.4G pairing, there are two ways.

(1) scan the pairing receiver setting code to enter 2.4G pairing mode.

(2) long press the button to 8 seconds will hear the first ring, continue to press and hold until it

rings again (probably a total of about 16 seconds) and then release the button, it automatically

enters 2.4 wireless into pairing mode

2. Exit 2.4G pairing.

(1) When the Bluetooth pairing on, will prompt a sound, and end the pairing.

(2) Double click the button twice to exit, and will be prompted once.

(3) When waiting for 1 minute, it will automatically exit when it is not paired. and will prompt

three times.

Note: When exiting pairing, if no new receiver is connected, the receiver that

was last paired before will be connected automatically by default

Turn on and long press 16S to enter 2.4G pairing(*) Close long press 16S to enter 2.4G pairing(*)

2.4G Extended Cache Settings

Turn off 2.4G extended cache(*) Enabling 2.4G extended cache

Remarks

1. Off: the scanned data will be uploaded and you need to wait for the data to be uploaded before scanning the next one.

2. On: the scanned data is saved into the cache, and then the next scan can be done without waiting for the transmission

to finish. Automatically store the cache and then send the data.

Bluetooth Specific Settings

(three modes)

Bluetooth HID Function Settings

Bluetooth HID mode

Bluetooth HID pairing

Notes.

Set Bluetooth HID mode, it will enter into Bluetooth HID mode and automatically connect to the last paired Bluetooth by default.

Not in broadcast status, if you need to pair to see Bluetooth HID pairing details.

1. To enter Bluetooth HID pairing mode.

(1) Set up Bluetooth pairing, you can search Bluetooth by Bluetooth devices.

(2) Press and hold the button for 8 seconds, hear the first ring, release it to enter Bluetooth HID mode and set

Bluetooth pairing. It can be searched and paired by Bluetooth devices.

2. To exit Bluetooth HID pairing.

(1) When Bluetooth pairing is on, it will prompt once and end the pairing.

(2) Double click the button twice to exit, and will be prompted once.

(3) Wait for 1 minute, Bluetooth is not paired on, then automatically exit, and will prompt three times.

Note: When you exit pairing, if no new device is connected, the old device that was last paired before is automatically connected by default.

Turn on long press 8S

Bluetooth HID pairing(*)

Close long press 8S Bluetooth

HID pairing

SShow or hide Bluetooth HID virtual keyboard under IOS system

Show or hide virtual keyboard

in IOS system

Note: In HID mode, IOS system, fast

press 3 times to show or hide the IOS

virtual keyboard

Bluetooth HID upload speed setting

Ultra High Speed Fast High Speed

Medium speed Low speed Ultra Low Speed

Remark:.

1. Under IOS, it is recommended to use fast upload

2. Under Android, you can set the speed according to the response speed of your phone. If the upload content is wrong or

data is lost, please turn down the speed.

Bluetooth HID RSSI Settings

Note: Please see the Bluetooth HID RSSI values table for details

Bluetooth SPP mode

Remark.

Set Bluetooth SPP mode, it will automatically enter into Bluetooth SPP mode and

automatically in broadcast state by default, you can pair directly.

Bluetooth BLE pass-through mode

Bluetooth BLE mode

Remark.

Set Bluetooth BLE transmissive mode, it will automatically enter into Bluetooth

BLE transmissive mode and automatically connect to the last paired Bluetooth by default, if

it can't connect, it will automatically be in broadcast status and can be paired directly.

Bluetooth name setting

Bluetooth name barcode definition

1. Fix "^&C0C&^" in front,

The last "XXX" is the name to be set. 2.

2. The maximum length of Bluetooth name can be set to 24 bytes. Note: After

modifying the name, the Bluetooth HID/SPP/BLE name will be changed.

Bluetooth name ASCII definition

1.1. Scan the setup code "Bluetooth name ASCII definition"

2.2. Scan the content you want to add in order, please find the ASCII code table 3.3. finally

scan the setting code "Save data and exit".

Note: The longest Bluetooth name can be set to 24 bytes.

Setting tutorial: You can refer to the tutorial of adding prefix and suffix.

Bluetooth name restore factory settings

Remark:

Set Bluetooth name restore factory, automatically will clear the set Bluetooth name. Or

sweep restore factory will also clear the custom Bluetooth name.

GGet Bluetooth name

Get Bluetooth name

Remark:

Only in Blue HID/SPP/BLE mode, the Bluetooth name can be obtained

successfully, otherwise it fails.

Get Bluetooth address

Remark:

Only in HID/SPP/BLE mode, get the Bluetooth address can be successful, otherwise it fails.

Bluetooth address can not be displayed, debugging available

serial port to view the address

Program Update Options

Update the transmitter program Update the receiver program Update the Bluetooth program

Data Editing

Terminator settings

The terminator is a character added after the decoded data in the format: decoded data + terminator character

None CR(*) LF

Tab CR+LF

Hidden character settings

Hide pre-character Hidden posterior characters

Note: Hide before character and hide after

character shortcut settings, please check Hide

before and after character shortcut settings for

details.

Add prefix and suffix settings

Add prefix Add suffix

Indice

Altri manuali MINJCODE Lettore di codici a barre

MINJCODE

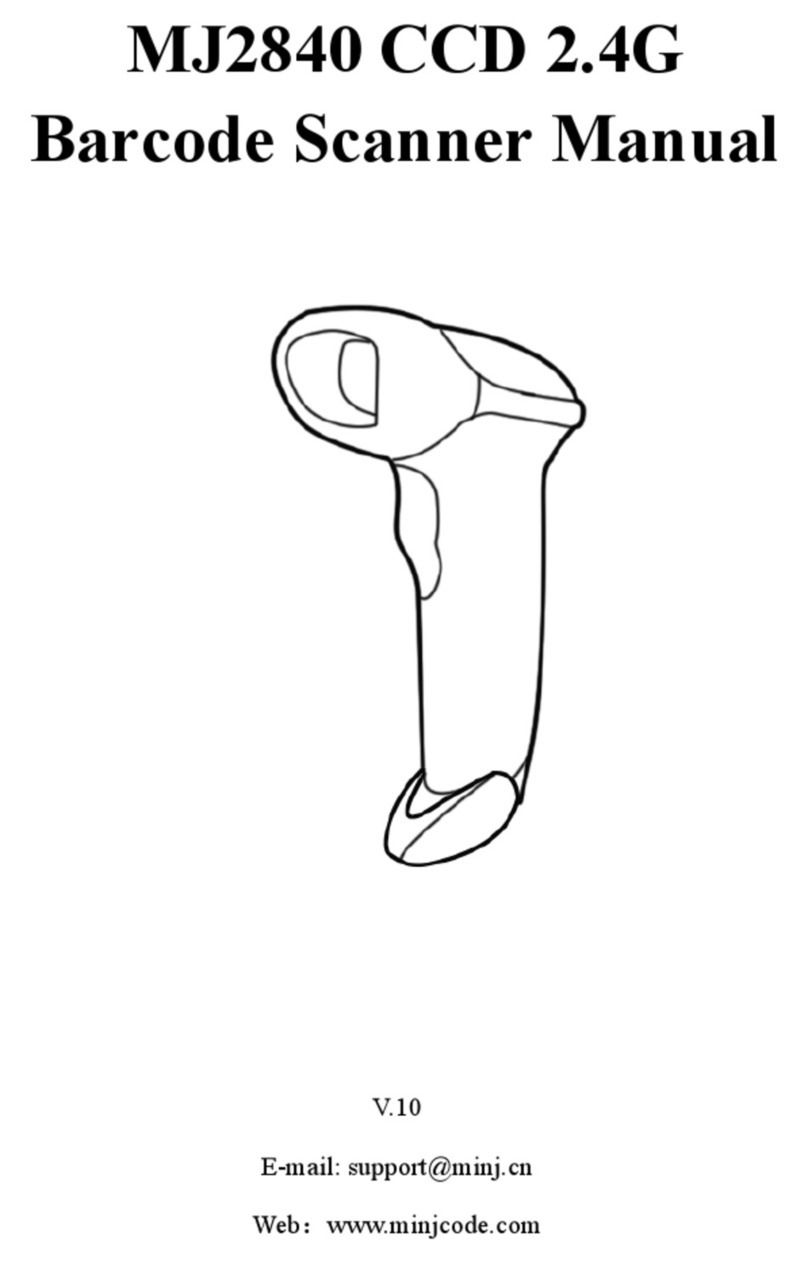

MINJCODE MJ2840 Manuale utente
