MinkaAire Light Wave Manuale utente

CERTIFICATE

Light Wave

Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.

This warranty is only valid to the original purchaser or user against all defects in material and workmanship light bulbs (

excluded for one full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling ) (1)

fan excluding wall controls and electrical components , to the original purchaser or user. ( )

* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…

* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.

* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific other than the hanger bracket supplied ) & installed

with this specific fan.

Date Purchased Store Purchased Model Number Serial Number

F844

Warranty Service Information

To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of

purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty

claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a limited

warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.

To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or

contact Minka-Aire® through www.minkagroup.net and select FAQ to answer any questions or if you require additional assistance submit the question

from found there.

CONTENTS

SAFETY RULES

PACKAGE CONTENTS

INSTALLING THE FAN

BLADE INSTALLATION

HANGING THE FAN

ELECTRICAL CONNECTIONS

...................................................

......................................

...................................

..........................................

..........................

FINISHING THE INSTALLATION

INSTALLING THE 17W LED ASSEMBLY

OPERATING THE REMOTE CONTROL/WALL CONTROL

CARE OF YOUR FAN

TROUBLESHOOTING

SPECIFICATIONS

........................................................

............................................

...............

..............................................................................

...........................................................................

..................................................................................

SAFETY RULES

2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes. Hire a qualified electrician or

consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet

from the floor and 18 inches from the top of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L Listed metal octagonal outlet box marked"Acceptable For Fan Support".

Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at

least 50 pounds). Do not use a plastic box.

6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with

the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.

Before you begin installing the fan, shut power off the circuit breaker of the fuse box.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and

situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into

this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.

NOTE: READ AND SAVE ALL INSTRUCTIONS!

WARNING

TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L LISTED OUTLET BOX OR SUPPORTING

SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE

LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXS COMMONLY USED FOR THE SUPPORT OF LIGHTING FIXTURES ARE NOT

ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. CONSULT A QUALIFIDE ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING BALANCING THE BLADES OR CLEANING

THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE DL-1167RYS-02 SOLID-STATE SPEED CONTROL WITH

DL-4111G-01 REMOTE CONTROL ONLY.

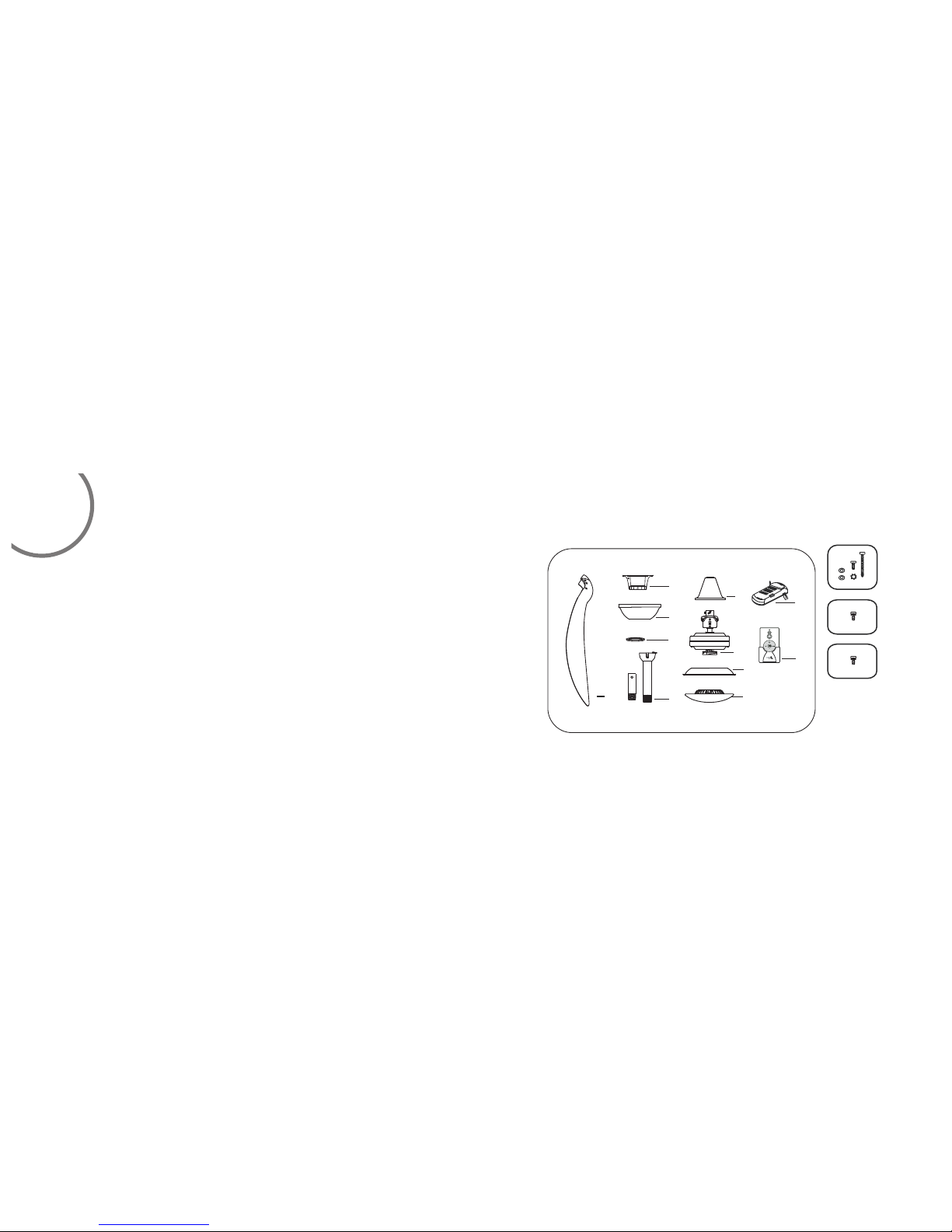

PACKAGE CONTENTS

1. Fan blades(3)

2. Hanger bracket

3. Canopy

4. Canopy cover

5. Standard downrod assembly (6")

Minimum-length downrod (4.5")

6. Coupling cover

7. Fan motor/housing assembly

8. Flywheel

9. 17W LED assembly

10. Receiver with 6 wire nuts

11. Transmitter+holder+2 mounting

screws

A. Mounting hardware:

#8x3/4”Machine screws (2)

#10x1.5”Wood screws (2)

4mm Star washers (2)

Metal washers (2)

Lock washers (2)

B. Blade attachment hardware:

1/4“x15.8mm screws with lock

washers(10)

C. Flywheel attachment hardware:

1/4“x9.5mm screws with lock

washers(6)

Unpack your fan and check the contents. You should have the following items:

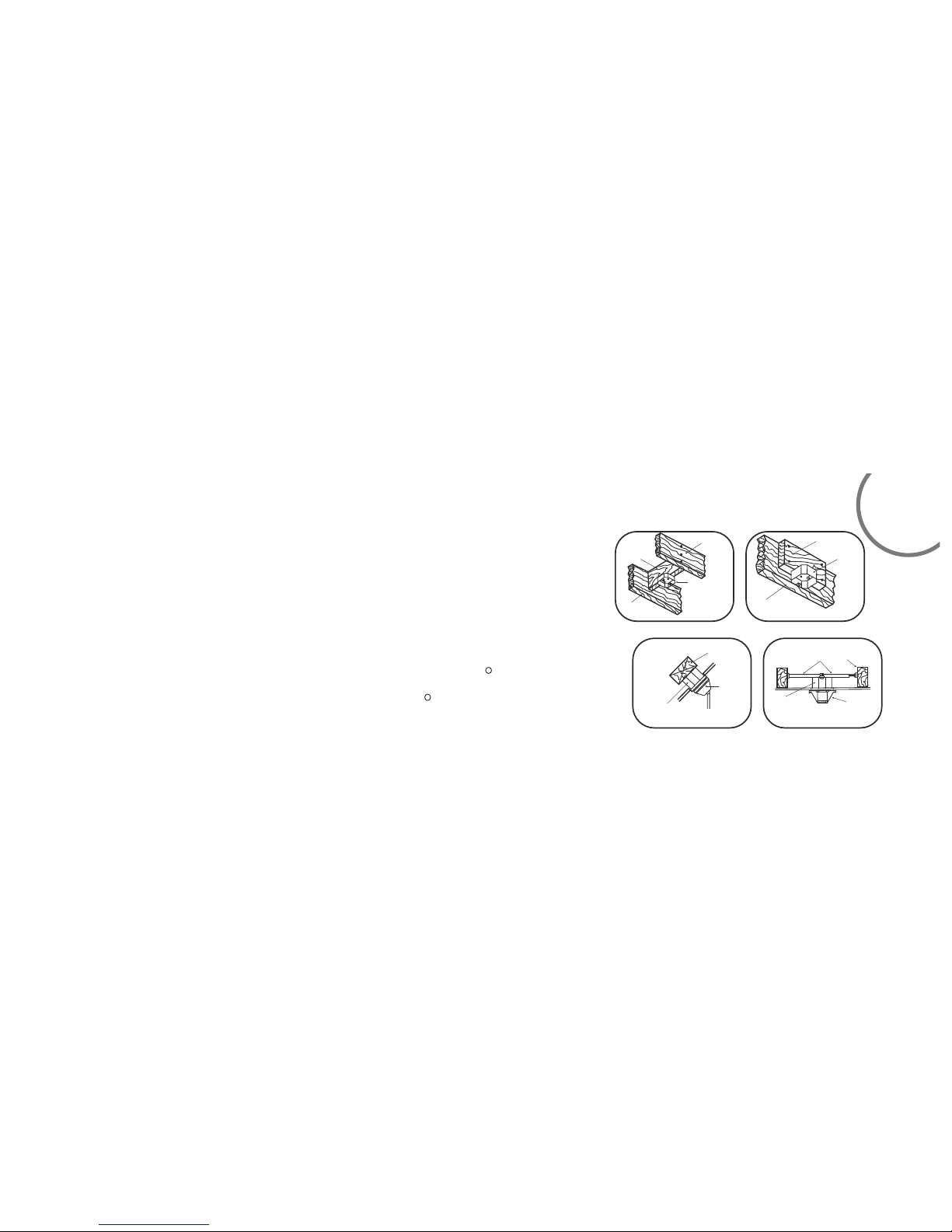

INSTALLING THE FAN

FIG. 1

CROSS BRA CE

CEILING

JOIST

CEILING

jOIST

OUTLET

BOX

FIG. 2

PARALL EL

WOOD BRAC E

(MIN. 2’’ THICK)

OUTLET

BOX

CEILING

JOIST OR

CROSS BRA CE

FIG. 3

ANGLE D CE ILING

MAXIM UM 1 8° AN GLE

PROVI DE

STRON G

SUPPO RT

RECES SE D

OUTLE T

BOX

HANGE R

OPENI NG

must be

FACING

UPSIDE

FIG. 4

CEILING

JOIST

OUTLE T BO X

HANGE R BA R

(OPTI ON AL)

HANGE R

BRACKET

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and

building materials. The outlet box and its support must be able to fully support the moving

weight of the fan (at least 50 lbs.).Use a UL listed metal outlet box.

Do not use a plastic outlet box.

Figure1,2 and 3 are examples of different ways to mount the outlet box.

Note: You may need a longer downrod to maintain proper blade clearance when installing on

a steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need to

install a hanger bar as shown in Fig.4(available at your Minka Aire dealer or local hardware store).

Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape.

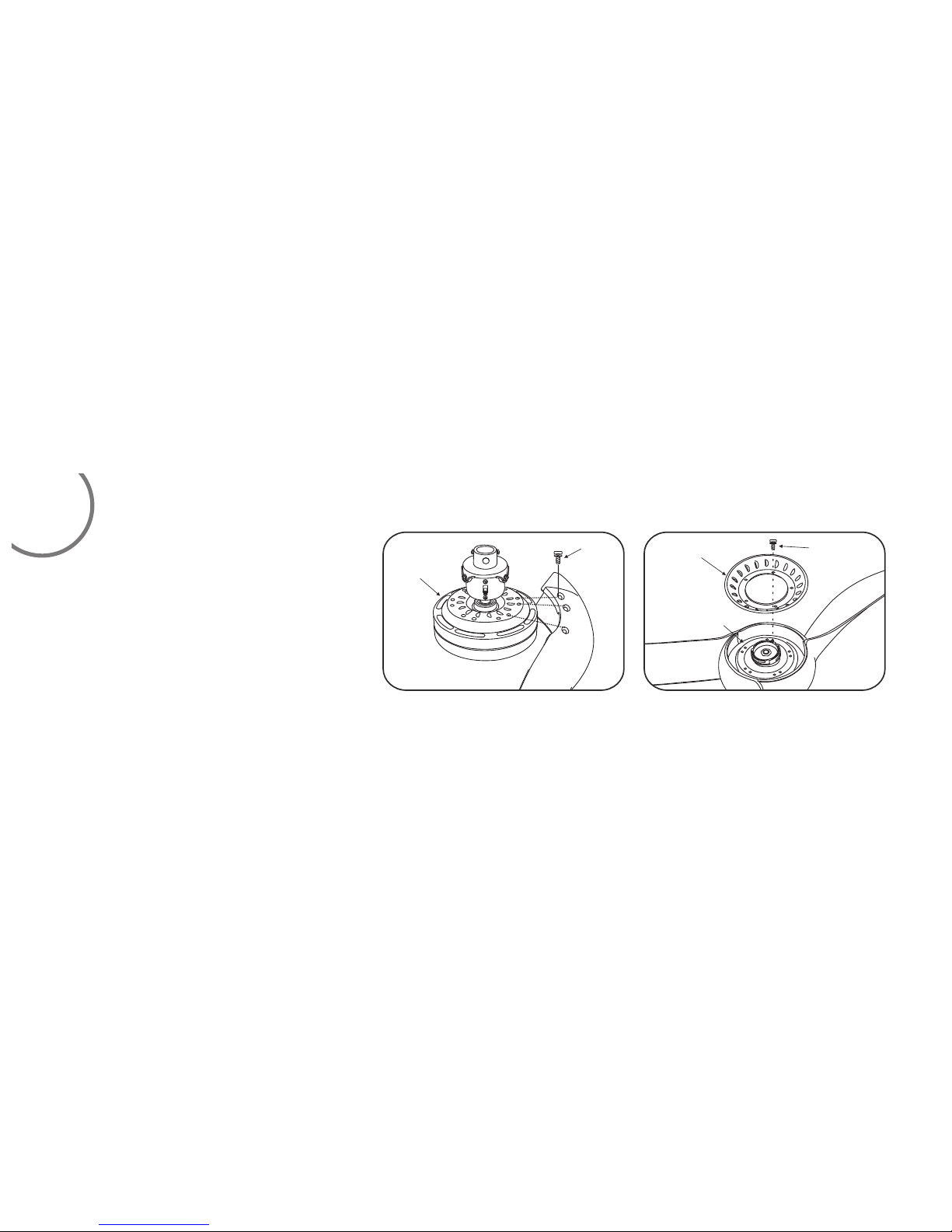

4BLADE INSTALLATION

Align the 3 holes from the blade to the

fan motor.

Secure blade with 3 blade screws with locked washer

provided. Follow the same process for the remaining

two blades. (Fig. 5)

All blade sets are grouped together by weight.

Step 2. Align holes in the flywheel and the fan motor

assembly, and secure with the screw. Ensure all the

screws are tightened. (Fig. 6)

Step 1.

Fig. 6

Screw

Fan motor

Fig. 5

Fan motor

Screw

Blade

Flywheel
