MINOLTA-QMS Magicolor 2200 DP Manuale operativo

magicolor 2200 Family

MaintenanceGuide

1800626-001C

Dear magicolor

2200

User:

Thank you for purchasing a magicolor 2200. Place this

Maintenance Guide

near the printer for quick information.

For technical support: www.minolta-qms.com, and then click on 24-Hour

On-line Help. The Answer Base (the dancing sun icon) helps you locate the

information you need by asking you questions. You can also refer to the

magicolor 2200 installation and user’s guide for further information.

= Dispose of used consumables properly according to your local

regulations. Do not dispose of them by burning.

= Keep dry

Trademarks

The following are registered trademarks of MINOLTA-QMS, Inc.: QMS, the

MINOLTA-QMS logo, and magicolor.

Minolta is a trademark of Minolta Co., Ltd. Other product names mentioned in

this guide may also be trademarks or registered trademarks of their

respective owners.

copied, in whole or part, nor transferred to any other media or language,

without written permission of MINOLTA-QMS, Inc.

Notice

MINOLTA-QMS, Inc. reserves the right to make changes to this guide and to

the equipment described herein without notice. Considerable effort has been

made to ensure that this guide is free of inaccuracies and omissions.

However, MINOLTA-QMS, Inc. makes no warranty of any kind including, but

not limited to, any implied warranties of merchantability and fitness for a

particular purpose with regard to this guide. MINOLTA-QMS, Inc. assumes no

responsibility for, or liability for, errors contained in this guide or for

incidental, special, or consequential damages arising out of the furnishing of

this guide, or the use of this guide in operating the equipment, or in

connection with the performance of the equipment when so operated.

Contents

Media Specifications 3

Loading Media—Upper and Optional Trays 4

Clearing Media Jams 7

Maintenance Schedule 10

Error Messages 11

Replacing a Toner Cartridge 14

Replacing the OPC Drum, Laser Lens Cover, and Waste Toner

Pack Kit 15

Replacing the Transfer Belt 17

Replacing the Fuser Oil Roller 20

Replacing the Fuser Unit 21

Replacing the Transfer Roller Unit 23

Cleaning 24

Media Specifications



All media is fed short edge first. There is a 0.157 inch (4 mm)

non-print border for all edges on all media types.

Media Type Media Size Input* Output Auto-

duplex**

Inches Millimeters

A4 8.2 x11.7 210.0x297.0 U/L/M Top/

Mailbox Yes

A4 Transparency 8.2x11.7 210.0x297.0 U/L/M Top No

A5 5.8x8.3 149.0x210.0 M Top No

B5 (ISO) Envelope 6.9x9.8 176.0x250.0 M Top No

B5 (JIS) 7.2x10.1 182.0x257.0 M Top No

C5 Envelope 6.4x9.0 162.0x229.0 M Top No

C6 Envelope 4.5x6.4 114.0x162.0 M Top No

Com 10 Envelope 4.1x9.5 105.0x241.3 M Top No

DL Envelope 4.3x8.7 110.0x220.0 M Top No

Executive 7.3x10.5 184.0x267.0 M Top No

Folio 8.5x13.0 215.9x330.0 M Top Yes

Foolscap 8.0x13.0 203.0x330.0 M Top Yes

Japanese Postcard 3.9x5.8 100.0x148.0 M Top No

Legal 8.5x14.0 215.9x355.6 U/L/M Top Yes

Letter 8.5x11.0 215.9x279.4 U/L/M Top/

Mailbox Yes

Letter

Transparency 8.5x11.0 215.9x279.4 U/L/M Top No

Monarch Envelope 3.9x7.5 98.4x190.5 M Top No

SP Folio 8.5x12.4 215.9x315.0 M Top Yes

Statement 5.5x8.5 140.0x215.9 M Top No

UK Quarto 8.0x10.0 203.0x254.0 M Top Yes

Notes: *U = Upper media tray (500 sheet)

L = Lower input feeder media tray (500 sheet)

M = Multipurpose tray (150 sheet)

**An optional duplex unit can be added to the DeskLaser, N, GN, and EN models.

Only plain paper can be duplexed.

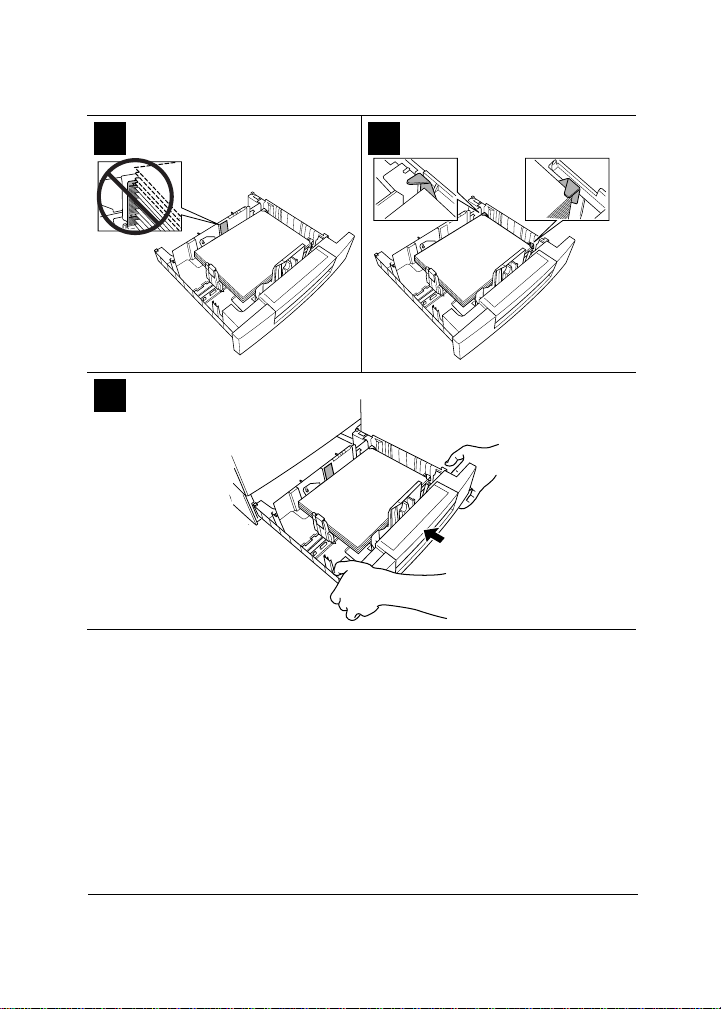

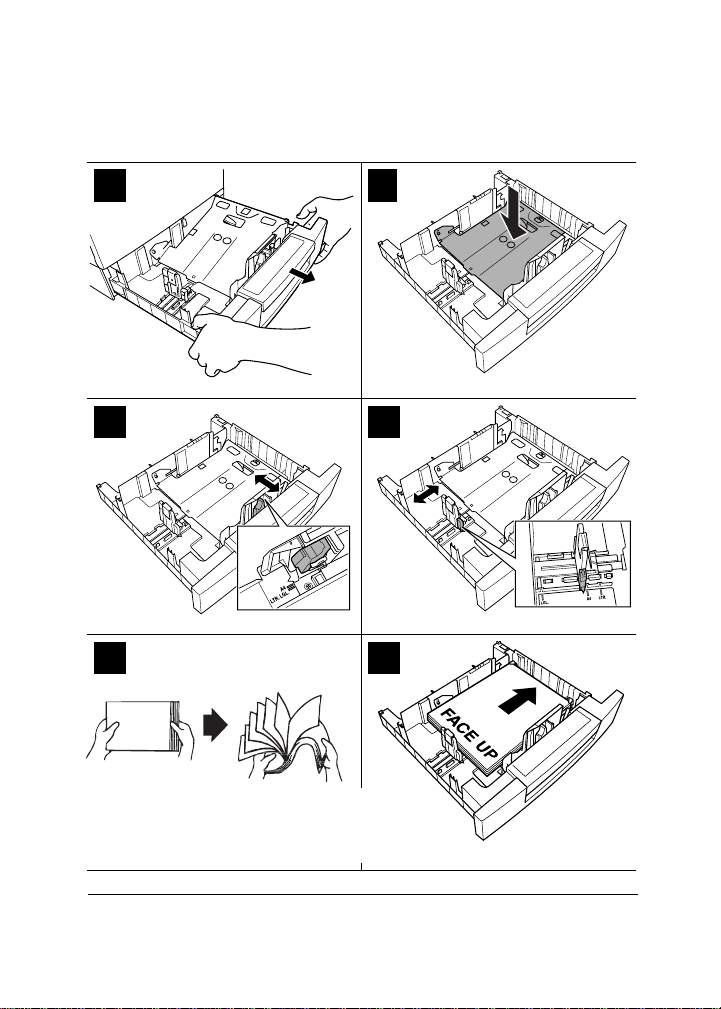

Loading Media—Upper and Optional Trays

3 4

154dv

OHP

5 6

7 8

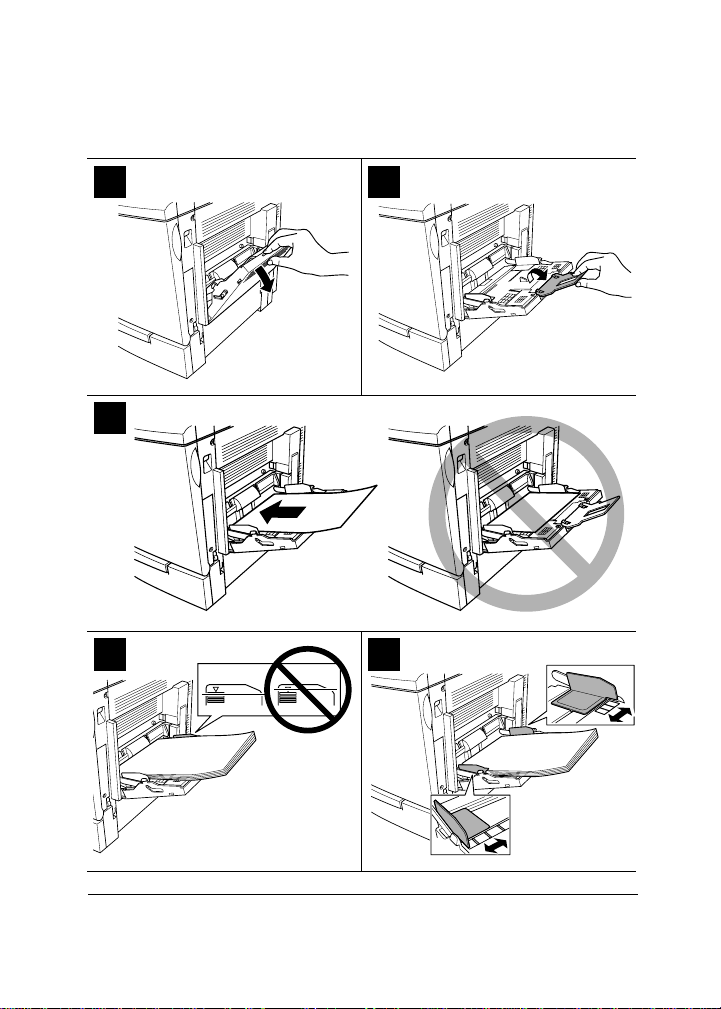

Multipurpose Tray

1 2

FACE

DOWN

LTR.

LGL.

EXE.

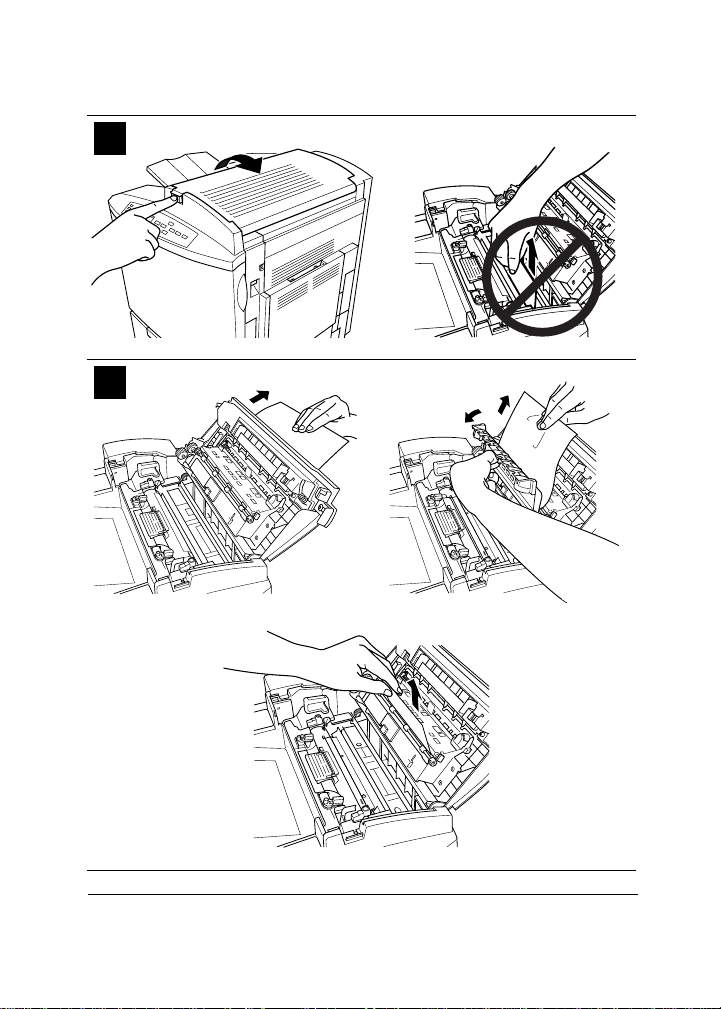

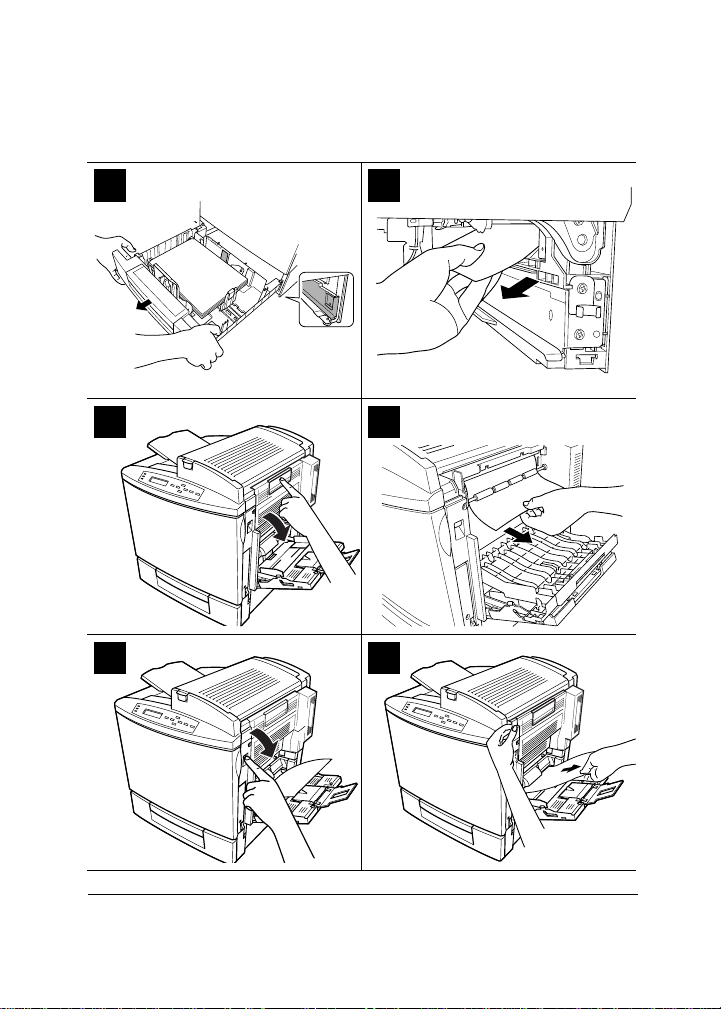

Clearing Media Jams

1 2
