Minox BD 10 x 25 BR Manuale utente

Instruction manual

BF 8 x 25 BR

BF 10 x 25 BR

BF 8 x 42 BR

BF 10 x 42 BR

BF 8 x25 BR

BF 10x25 BR

BF 8 x42 BR

BF 10x42 BR

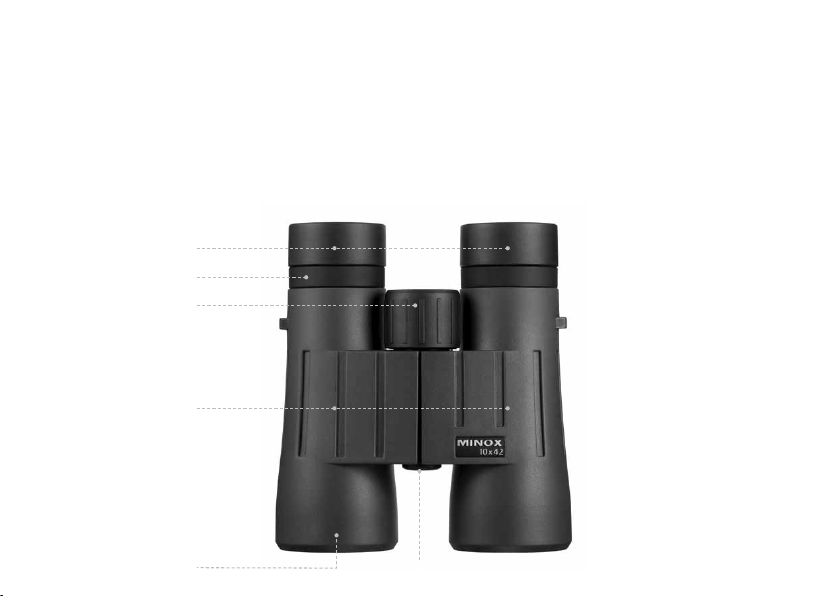

Operating parts

1. Eyepieces with adjustable eyecups

2. Diopter compensation

3. Central drive

4. Collapsible tubes

5. Lens

6. Tripod adapter (Cover screw)

With these binoculars from MINOX you have chosen a

product of highest optical quality and mechanical precision.

These instructions are to help you benefit from the full

performance spectrum of your MINOX binoculars.

We wish you much pleasure and enjoyment

with your new MINOX binoculars!

Adjustments Ideal for people wearing glasses

To ensure that people wearing glasses also have an optimal

field of view MINOX binoculars are fitted with rotating

eyecups.

For use without wearing glasses

Those who do not wear glasses must turn the eyecups at

both eyepieces in counterclockwise direction until they

engage in the extended position. The binoculars are now

set at the correct distance to the eyes.

For use with glasses

Those who wear glasses must leave the rotating eyecups on

both eyepieces in the original position (as delivered) or, if

necessary, turn the eyecups in clockwise direction until they

noticeably engage. In this setting you can enjoy the entire

field of view without disturbing interference at the edges.

The right distance between the eyes

(inter-pupillary distance)

Look into the eyepieces of your binoculars and adjust the

angle of the hinged tubes until you have a singular circular

viewing field from both fields of view.

Focusing For pin-sharp definition you must adjust the optics of the

binoculars to your individual eye vision. To do this, please

proceed as follows:

(a) First get a far-off, fixed object into view. With closed right

eye turn the central focusing until the object in view has

optimal sharpness for your left eye.

(b) Next you must get the same object in view again with

your left eye closed and turn the adjusting ring on the right

eyepiece until the object has optimal sharpness for your

right eye.

vision of both eyes.

(d) For the observation of different objects at varying

distances you will always have to adjust the focusing. To do

this, please now just use the central focusing.

Caution:

Do not use binoculars to look into the sun, this could lead

to eye injuries.

Attaching a tripod

Tips on how to care

For shake-free viewing we recommend the use of a tripod,

especially for high-power magnification. For this purpose,

use the MINOX tripod adapter which is available as an

optional accessory (Order no. 69727). Remove the cover

screw (6) on the bottom of the binoculars and attach the

MINOX tripod adapter in its place. Keep the cover screw

(6) in a safe place and replace it after removing the tripod

adapter.

Soiling impairs the brightness of your MINOX binoculars.

We therefore recommend always removing fingerprints,

dust and other forms of soiling on the surfaces of the lens

and eyepieces using a soft hair brush or the special MINOX

Lens-Cleaner (Order number 99605).

On the bottom of each pair of binoculars you will find the

factory number. It is important that you make a note of this

number for the event of loss.

Technical data BF 8x25 BR BF 10x25 BR

Magnification 8 x 10 x

Front lens diameter 0.98 inch / 25.0 mm 0.98 inch / 25.0 mm

Exit pupil 0.12 inch / 3.1 mm 0.098 inch / 2.5 mm

Field of view 358 ft at 1,000 yds 6.8° 290 ft at 1,000 yds 5.5°

119 m at 1,000 m 6.8° 96 m at 1,000 m 5.5°

Eye relief 0.61 inch / 15.5 mm 0.61 inch / 15.5 mm

Close distance 4.92 ft / 1.5 m 4.92 ft / 1.5 m

Over run (∞) 4 dpt 4 dpt

Diopter adjustment ± 4 dpt ± 4 dpt

Twilight factor 14.1 15.8

Geom. Twilight no. 9.8 6.3

Operating temperature 14° up to 122° F 14° up to 122° F

-10° up to +50° C -10° up to +50° C

Waterproof yes, down to 9.84 ft / 3.0 m yes, down to 9.84 ft / 3.0 m

Height x Width x Depth 4.29 x 3.85 x 1.53 inch 4.29 x 3.85 x 1.53 inch

109 x 98 x 39 mm 109 x 98 x 39 mm

Weight approx. 9.14 oz / 259 g 9.14 oz / 259 g

BF 8x42 BR BF 10x42 BR

8 x 10 x

1.65 inch / 42.0 mm 1,65 inch / 42.0 mm

0.21 inch / 5.25 mm 0.17 inch / 4.2 mm

389 ft at 1,000 yds 7.4° 342 ft at 1,000 yds 6.5°

129 m at 1,000 m 7.4° 114 m at 1,000 m 6.5°

0.71 inch / 18.0 mm 0.60 inch / 15.0 mm

3.94 ft / 1.2 m 3.94 ft / 1.2 m

4 dpt 4 dpt

±4 dpt ± 4 dpt

18.3 20.5

27.6 17.6

14° up to 122° F 14° up to 122° F

-10° up to +50° C -10° up to +50° C

yes, down to 9.84 ft / 3.0 m yes, down to 9.84 ft / 3.0 m

5.5 x 5.0 x 2.0 inch 5.5 x 5.0 x 2.0 inch

140 x 127 x 51 mm 140 x 127 x 51 mm

27.5 oz / 780 g 27.5 oz / 780 g
