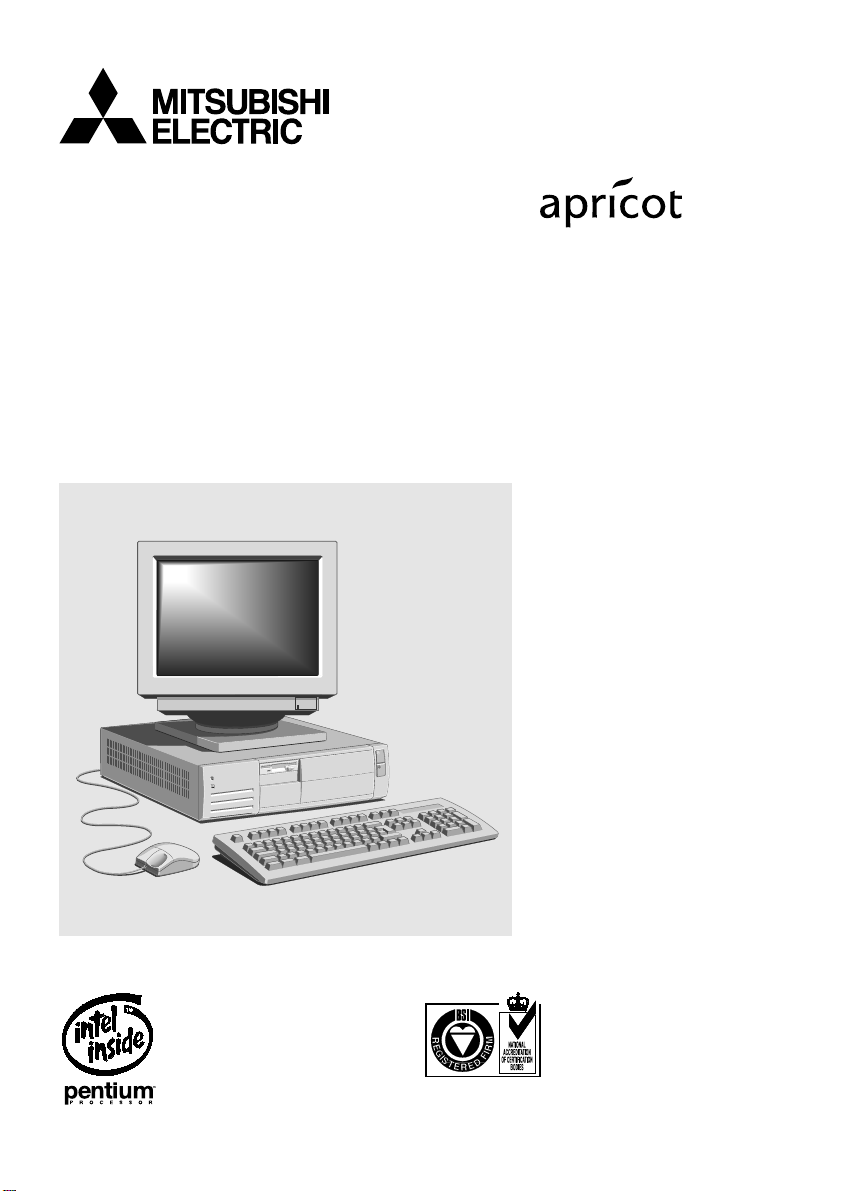

LS/VS550
Owner’s Handbook
NATIONAL
ACCREDITATION
OF CERTIFICATION
BODIES
OWNERS HANDBOOK
APRICOT LS/VS 550
Intel and Pentium®are registered trademarks of Intel Corporation.
Microsoft, MS-DOS, Windows®95 and Windows®3.11 are registered trademarks of
Microsoft Corporation in the US and other countries.
Other trademarks mentioned within this document and not listed above are the
properties of their respective owners.
Information contained in this document is subject to change without notice
and does not represent a commitment on the part of Apricot Computers
Limited. Any software described in this manual is furnished under a
license agreement. The software may be used or copied only in
accordance with the terms of this agreement. It is against the law to copy
any disk supplied for any purpose other than the purchaser’s personal
use.
No part of this manual may be reproduced or transmitted in any form or by any
means electronic or mechanical including photocopying and recording, for any
purpose, without the express written permission of the publishers.
Copyright © Apricot Computers Limited 1996. All rights reserved.
Published by:
Apricot Computers Limited
3500 Parkside
Birmingham Business Park
Birmingham, England
B37 7YS
http://www.apricot.co.uk
Printed in the United Kingdom
Safety and regulatory notices
I
Safety and Regulatory Notices
Electrical
The computer uses a safety ground and must be earthed.
The system unit AC power cord is its disconnect device. Ensure that the system unit
is positioned close to the AC power outlet and that the plug is easily accessible. The
power cord packed with the computer complies with the safety standards applicable
in the country in which it is first sold. Use only this power cord. Do not substitute a
power cord from any other equipment.
To prevent fire and electric shock, do not expose any part of the computer to rain or
moisture and turn off the computer and unplug all power cords before moving or
cleaning the system unit, or removing the system top cover.
Battery
This product contains a lithium battery.
Do not use a metal or other conductive implement to remove the battery. If a short-
circuit is made between its positive and negative terminals the battery may explode.
Replace a discharged configuration (CMOS) battery with one of the same type.
Dispose of the battery in accordance with the manufacturer's recommended
instructions and Do not attempt to recharge, disassemble or incinerate the discharged
battery. Keep away from children.
Laser products
Any CD-ROM drive fitted in this system is classified as a CLASS 1 LASER
PRODUCT according to IEC825 Radiation Safety of Laser Products (Equipment
Classification: Requirements and User's Guide). The CLASS 1 LASER PRODUCT
label is located on the under side of the system unit.
It will be in high visibility colours and bear the details shown above.
Use the CD-ROM drive only as described in this manual. Failure to do so may result
in exposure to hazardous radiation.
Ergonomic
When positioning the system unit, monitor and keyboard, take into account any
local or national regulations relating to ergonomic requirements.
Safety and regulatory notices
II
Standards
Safety
This product complies with the European safety standards EN60950 and EN41003
when applicable, will include the national deviations for the country in which it is
sold.
The computers motherboard complies with the following International safety standards:
UL1950 (USA)
Electro-magnetic Compatibility (EMC)
This product complies with the following European EMC standards:
Emissions EN55022 Class B
Immunity EN50082 Level 1
Harmonics EN61000-3-2
This product also complies with the following International EMC standards:
VCCI level 2 (Japan)
The applicable standards for the country of sale will be shown on the label fixed to
the rear of the system.
Notes
All interconnecting cables (e.g. Microphone, headphone and speaker) and
communication cables should be less than 2 metres in length. If cable extensions are
used, ensure adequate earth connections are provided and screened cables are used.
Legalities
This equipment complies with the relevant clauses of the following European
Directives:
Low voltage Directive 73/23/EEC
EMC Directive 89/336/EEC
Telecommunications Directive 91/263/EEC
CE marking Directive 93/668/EEC
Caution
This system has been tested to comply with CE marking and its strict legal requirements.
Use only Apricot tested and approved parts. Failure to do so may result in invalidating
both the compliance and your warranty. All expansion cards must carry CE approvals.
Safety and regulatory notices
III
Power connection information
Typical AC plugs
250V
E
L N
E
N L
250V
E
NL
125V
BS1363A SHUCO NEMA 5-15P
United Kingdom Austria Belgium Taiwan
Denmark Finland Thailand
France Germany USA
Holland Italy Canada
Norway Sweden
Procedure
Note
Any ancillary equipment using an AC power supply cable should be earthed.
The power supplies in the computer and the monitor are correct for the country in
which the system is first sold. Do not alter any switch settings on the rear of the
system. If you wish to use the computer in another country it may not be suitable,
contact your supplier or an authorised Apricot dealer.
♦ Before connecting up any parts of the system, ensure that the AC supply is
switched off or disconnected.
♦ First connect up the keyboard, mouse, monitor signal cable, and audio cables
as appropriate.
♦ Connect up all AC cables. (System to supply, system to monitor, all related
peripherals.) Then switch on or connect the AC supply.
♦ Switch on the monitor first, then the computer followed by the peripherals,
such as printer or speakers.
◊ If the monitor AC lead is connected to the computer AC outlet, when you
come to switch off, the computer power button will switch off the monitor
at the same time.
Safety and regulatory notices
IV
Power Cable Connections - UK ONLY
This equipment is supplied with an AC power lead that has a non-removable
moulded plug.
Always replace the fuse with one of the same type and rating which is BSI or ASTA
approved to BS1362. Always refit the fuse cover, never use the plug with the fuse
cover omitted.
LS/VS 550 OWNER’S HANDBOOK I
CONTENTS
1 Introducing your Computer
Unpacking 1/1
Pictorial guides 1/3
2 Getting Started
General advice 2/1
Connecting the components 2/2
Turning on and booting the computer 2/4
3 Using your Computer
Using the 3.5 diskette drive 3/1
Using the CD-ROM drive 3/3
Using the PD/CD-ROM drive 3/6
Using an FTD Travan tape drive 3/9
Using a SCSI DDS-2 tape drive 3/12
The sound connections 3/17
The anti-theft features of your computer 3/17
Customising your display settings 3/20
Software Backup 3/21
Using Help 3/22
Caring for your computer 3/22
Transporting your computer 3/24
Using your computer in another country 3/25
4 Expansion Cards
Configuring the card 4/2
Installing the card 4/7
5 System Upgrades
Inside the system unit 5/2
Adding more system memory 5/3
Adding more video memory 5/6
Adding a second hard disk drive 5/8
Upgrading the processor 5/9
II LS/VS 550 OWNER’S HANDBOOK
6 Troubleshooting
Problems when starting 6/1
Troubleshooting checklist 6/5
The systems disk drives 6/7
A Inside the System Unit
Anti-static precautions A/1
Opening the system unit A/2
Board layout A/3
Changing the jumper settings A/4
System connectors A/6
Replacing the CMOS battery A/7
Replacing the Sensonic batteries A/8
B System BIOS and Setup
Entering setup B/2
If setup runs on its own B/2
Control keys B/3
Main menu screen B/4
System summary B/5
Product data B/5
Devices and I/O ports B/5
Date and time B/7
System security B/8
Start options B/10
Advanced Setup B/11
Plug and Play B/12
Error Log B/13
Power management B/13
Error messages B/15
C Technical Information
Specifications C/1
Physical characteristics C/2
Fall-back Password
Introducing your computer
LS/VS 550 OWNER’S HANDBOOK 1/1
1 INTRODUCING YOUR
COMPUTER
This chapter gives you a quick tour of your Apricot computer. It
details the energy-efficient features of the computer and contains
pictorial guides to help you identify the various parts of the
machine. As soon as you’ve unpacked the components and
familiarised yourself with them, you should progress to the next
chapter, ‘Getting Started’.
WarningWarning
Read the power guidelines which can be found in the Safety &
Regulatory section of this manual before using the computer for the first
time.
Unpacking
On unpacking the computer, you should find:
♦ Apricot PC system unit.
♦ System unit AC power cord, and monitor power cord,
appropriate for the country of sale.
♦ System documentation (this Owner’s Handbook, etc.)
♦ Microsoft Windows 95 or (if requested) Microsoft MS-DOS
and Windows for Workgroups documentation.
More elaborate systems may include software or hardware options
with accompanying installation diskettes and additional documentation.
Some of these options may have been factory configured, or
installed by your supplier.
Keep the cartons, boxes and packaging materials; you will need
them again if you have to transport the computer elsewhere.
Make a note of the manufacturer’s data recorded on the various
components (product codes, serial numbers, etc.). A service engineer
may need this information if the computer develops a fault.
