E1061/E1063

Installation Manual

English

MA00815F, 2014-12

Foreword

Installation manual for E1061/E1063

Foreword

All E1000 are developed to satisfy the demands of human-machine

communication. Built-in functions such as displaying and controlling text,

dynamic indication, time channels, alarm and recipe handling are included.

The operator panel works primarily in an object-oriented way, making it easy to

understand and use. Conﬁguration is carried out on a PC using the conﬁguration

tool. The project can then be transferred and stored in the operator panel itself.

Various types of automation equipment such PLCs, servos or drives can be

connected to the E1000. In this manual, the term “the controller” refers to the

connected equipment.

This manual explains how to install the operator panel. Please refer to the

reference manual for further information.

Order no: MA00815F

The information in this document is subject to changewithoutnoticeandisprovidedasavailableatthe

time of printing. Mitsubishi Electric Automation Inc reserves the right to change any information without

updating this publication. Mitsubishi Electric Automation Inc assumes no responsibility for any errors

that may appear in this document. Read the entire installation manual prior to installing and using this

equipment. Only qualiﬁed personnel may install, operate or repair this equipment. Mitsubishi Electric

Automation Inc is not responsible for modiﬁed, altered or renovated equipment. Because the equipment has

a wide range of applications, users must acquire the appropriate knowledge to use the equipment properly

in their speciﬁc applications. Persons responsible for the application and the equipment must themselves

ensure that each application is in compliance with all relevant requirements, standards and legislation in

respect to conﬁguration and safety. Only parts and accessories manufactured according to speciﬁcations set

by Mitsubishi Electric Automation Inc may be used.

MITSUBISHI ELECTRIC AUTOMATION INC SHALL NOT BE

LIABLE TO ANYONE FOR ANY DIRECT, INDIRECT, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM

THE INSTALLATION, USE OR REPAIR OF THIS EQUIPMENT,

WHETHER ARISING IN TORT, CONTRACT, OR OTHERWISE.

BUYER'S SOLE REMEDY SHALL BE THE REPAIR, REPLACEMENT,

OR REFUND OF PURCHASE PRICE, AND THE CHOICE OF THE

APPLICABLE REMEDY SHALL BE AT THE SOLE DISCRETION OF

MITSUBISHI ELECTRIC AUTOMATION INC .

Mitsubishi Electric, MA00815F

Contents

1 SafetyPrecautions ....................................................... 4

1.1 General ........................................................... 4

1.2 UL and cUL Installation ......................................... 4

1.3 DuringInstallation .............................................. 6

1.4 DuringUse ....................................................... 6

1.5 Service and Maintenance ........................................ 6

1.6 Dismantling and Scrapping ..................................... 6

2 Installation ............................................................... 7

2.1 SpaceRequirements ............................................. 7

2.2 InstallationProcess .............................................. 7

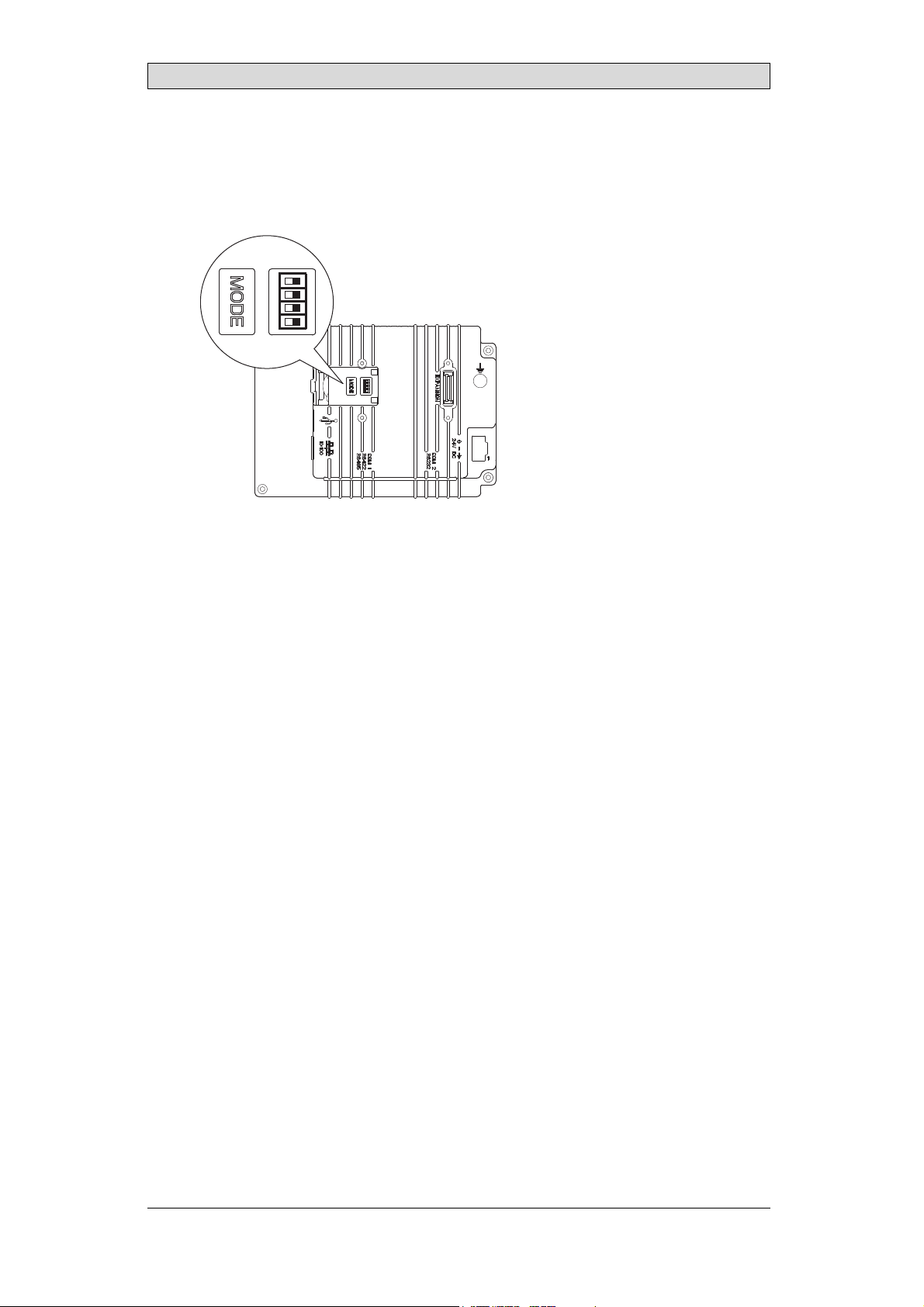

2.2.1 ModeSwitches ...................................................10

2.2.2 ConnectionstotheController ..................................10

2.2.3 OtherConnectionsandPeripherals .............................10

3 TechnicalData ........................................................... 11

4 ChemicalResistance .................................................... 13

4.1 MetalCasing ..................................................... 13

4.2 Touch Screen and Overlay Material ............................ 13

4.2.1 AutotexF157/207 ...............................................13

4.2.2 TouchScreenSurface ............................................14

4.2.3 TouchScreenProtector ..........................................15

5 OperatorPanelDrawings .............................................. 16

5.1 CommunicationPorts ........................................... 16

5.2 E1061/E1063 Outline .......................................... 17

6 Additional Installation Tips ............................................ 18

6.1 Grounding the Operator Panel ................................. 18

6.2 Ethernet Connection in the Panel .............................. 19

6.3 To Achieve Better EMC Protection ............................. 20

6.4 AmbientTemperature ........................................... 21

6.5 Safety ............................................................. 22

6.6 GalvanicIsolation ................................................ 23

6.7 Cable and Bus Termination RS485 ............................. 24

Mitsubishi Electric, MA00815F

Safety Precautions

1SafetyPrecautions

Both the installer and the owner and/or operator of the operator panel must read

and understand this installation manual.

1.1 General

•Read the safety precautions carefully.

•Check the delivery for transportation damage. If damage is found, notify the

supplier as soon as possible.

•The supplier is not responsible for modiﬁed, altered or reconstructed

equipment.

•Use only parts and accessories manufactured according to speciﬁcations of

the supplier.

•Read the installation and operating instructions carefully before installing,

using or repairing the operator panel.

•Neverallowﬂuids,metalﬁlingsorwiringdebristoenteranyopeningsinthe

operator panel. This may cause ﬁre or electrical shock.

•Only qualiﬁed personnel may operate the operator panel.

•Storing the operator panel where the temperature is lower/higher than

recommended in this manual can cause the LCD display liquid to

congeal/become isotopic.

•The LCD display liquid contains a powerful irritant. In case of skin contact,

wash immediately with plenty of water. In case of eye contact, hold the eye

open,ﬂushwithplentyofwaterandgetmedicalattention.

•Theﬁguresinthismanualservesanillustrativepurpose. Becauseofthemany

variables associated with any particular installation, the supplier cannot

assume responsibility for actual use based on the ﬁgures.

•The supplier neither guarantees that the operator panel is suitable for your

particular application, nor assumes responsibility for your product design,

installation or operation.

•It is recommended to turn on and shut down the operator panel at least once

before installing any components/cards or before connecting the operator

panel to external devices, like for example serial devices.

1.2 ULandcULInstallation

Caution:

This section is only valid for UL labeled E1061/E1063 panels.

•This equipment is suitable for use in non-hazardous locations only.

[Combinations of equipment in your system are subject to investigation by

the local authority having jurisdiction at the time of installation].

•All devices have to be supplied by a Class 2 power supply.

Mitsubishi Electric, MA00815F 4

Safety Precautions

Warning:

Do not disconnect equipment unless power has been removed or the area is

known to be non-hazardous

AVANT DE DECONNECTER L’EQUIPEMENT, COUPER LE COURANT

OUS’ASSURER QUE L‘EMPLACEMENT EST DESIGNE NON DANGEREUX.

Warning:

Only UL and cUL approved expansion units are allowed to be connected to

the port designated “EXPANSION”. At the moment there are no such units

evaluated or allowed.

SEULES LES UNITÉS D'EXTENSION CERTIFIÉES UL ET

cUL PEUVENT ÊTRE RACCORDÉES AU PORT DÉSIGNÉ « EXPANSION ».

À L'HEURE ACTUELLE, AUCUNE UNITÉ DE CE TYPE N'A ÉTÉ TESTÉE

OU AUTORISÉE.

Warning:

Do not replace expansion unit unless power has been switched off or the area

is known to be non-hazardous.

NE REMPLACEZ L'UNITÉ D'EXTENSION QUE SI LE

COURANT A ÉTÉ COUPÉ OU SI LA ZONE EST JUGÉE NON DANGEREUSE.

•This product contains a battery; this must only be changed in an area known

to be non-hazardous.

•Replace the battery with a CR2450 battery. Use of another type of battery

may present a risk of ﬁre or explosion.

Warning:

Battery may explode if mistreated. Do not recharge, disassemble or dispose

of in ﬁre.

LA BATTERIE PEUT EXPLOSER EN CAS DE MAUVAISE MANIPULATION.

NE LA RECHARGEZ PAS, NE LA DÉMONTEZ PAS ET NE LA JETEZ

PAS DANS LE FEU.

•For use on a ﬂat surface of a type 4X enclosure indoor use only.

•Use minimum 75°C copper conductors only.

•To make wiring connections to the power supply connector, follow the table

with cable and torque speciﬁcations below:

Terminal Block Connector Wire Size TQ Lb.In.

X1/X100 Phoenix connectors AWG 30–12 5–7

X1/X100 Anytek connectors AWG 24–12 3.5

•These devices are Class 2 supplied programmable controllers (industrial PCs)

for the use in industrial control equipment and are intended to be (front)

panel mounted (Type 1 and 4x for indoor use only).

Mitsubishi Electric, MA00815F 5

Safety Precautions

Caution:

TheenclosureprovidesadegreeofprotectionofatleastIP20,butwheninstalledinan

apparatus, it should meet IP54.

LE BOÎTIER OFFRE UN DEGRÉ DE PROTECTION D'AU MOINS IP20, MAIS

LORSQU'IL EST INSTALLÉ DANS UN APPAREIL, IL DOIT ÊTRE DE CLASSE IP54.

1.3 During Installation

•The operator panel is designed for stationary installation on a plane surface,

where the following conditions are fulﬁlled:

–no high explosive risks

–no strong magnetic ﬁelds

–no direct sunlight

–no large, sudden temperature changes

•Install the product according to the accompanying installation instructions.

•Ground the product according to the accompanying installation instructions.

•Only qualiﬁed personnel may install the operator panel.

•Separate the high voltage, signal and supply cables.

•Make sure that the voltage and polarity of the power source is correct before

connecting the product to the power outlet.

•Peripheral equipment must be appropriate for the application and location.

1.4 During Use

•Keep the operator panel clean.

•Emergency stop and other safety functions may not be controlled from the

operator panel.

•Do not use excessive force or sharp objects when operating the touchscreen.

1.5 Service and Maintenance

•Only qualiﬁed personnel should carry out repairs.

•The agreed warranty applies.

•Before carrying out any cleaning or maintenance operations, disconnect the

equipment from the electrical supply.

•Clean the display and surrounding front cover with a soft cloth and mild

detergent.

•Replacing the battery incorrectly may result in explosion. Only use batteries

recommended by the supplier. During the warranty period, the battery needs

to be replaced by an authorized Mitsubishi Electric service center.

1.6 Dismantling and Scrapping

•The operator panel or parts thereof shall be recycled according to local

regulations.

•The following components contain substances that might be hazardous

to health and the environment: lithium battery, electrolytic capacitor and

display.

Mitsubishi Electric, MA00815F 6

Installation

2Installation

2.1 Space Requirements

•Installation plate thickness: 1.5 - 7.5 mm (0.06 - 0.3 inch)

•Space requirements when installing the operator panel:

50 mm

152 mm

202 mm

(2.0 inch)

50 mm

(2.0 inch)

100 mm

(4.0 inch)

100 mm

(4.0 inch)

100 mm

(4.0 inch)

57 mm

(2.24 inch)

(7.95 inch)

(5.98 inch)

Caution:

The openings on the enclosure are for air convection. Do not cover these openings.

2.2 Installation Process

1. Unpack and check the delivery. If damage is found, notify the supplier.

x 4

Panel cut out 180 x 130 mm

(7.09 x 5.12 inch)

Note:

Place the operator panel on a stable surface during installation.

Dropping it or letting it fall may cause damage.

Mitsubishi Electric, MA00815F 7

Installation

2. Place the panel cut out where the operator panel is to be situated, draw along

the outer sides of the holes and cut according to the markings.

3. Secure the operator panel in position, using all the fastening holes and the

provided brackets and screws:

x 4

0.5 - 1.0 Nm

Mitsubishi Electric, MA00815F 8

Installation

4. Connect the cables in the speciﬁed order, according to the drawing and steps

below.

Caution:

•The operator panel must be brought to ambient temperature before it is started

up. If condensation forms, ensure that the operator panel is dry before connecting

it to the power outlet.

•Ensure that the operator panel and the controller system have the same electrical

grounding (reference voltage level), otherwise errors in communication may

occur.

•Ensure that the voltage and polarity of the power source is correct.

•Separate high voltage cables from signal and supply cables.

•Shielded communication cables are recommended.

24V DC

RS422/

RS485

RS232

24V DC

Controller

Power

Ethernet

–Connect cable A.

–Connect cable B, using an M5 screw and a grounding conductor (as short

as possible), that is sized correctly according to local electrical codes.

–Connect cable C.

–Connect cable D.

5. Carefully remove the laminated ﬁlm over the operator panel display, to avoid

static electricity that could damage the panel.

Mitsubishi Electric, MA00815F 9

Installation

2.2.1 Mode Switches

All mode switches must be in OFF position during operator panel use.

Themodeswitchesshouldnotbetouchedunlessbyqualiﬁedpersonnel.

1 2 3 4

ON DIP

1 2 3 4

ON DIP

2.2.2 Connections to the Controller

For information about the cables to be used when connecting the operator panel to

the controller, please refer to the help ﬁle for the driver in question.

2.2.3 Other Connections and Peripherals

Cables, peripheral equipment and accessories must be suitable for the application

and its environment. For further details or recommendations, please refer to the

supplier.

Mitsubishi Electric, MA00815F 10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Mitsubishi Electric Monitor

Mitsubishi Electric

Mitsubishi Electric Untitle LDT37Iv Manuale utente

Mitsubishi Electric

Mitsubishi Electric 56P-QF60LCU Manuale utente

Mitsubishi Electric

Mitsubishi Electric Diamond View DV153 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MDT402S Manuale utente

Mitsubishi Electric

Mitsubishi Electric TFV6708SKHKW Manuale utente

Mitsubishi Electric

Mitsubishi Electric MTD701S Manuale utente

Mitsubishi Electric

Mitsubishi Electric LDT323V Manuale utente

Mitsubishi Electric

Mitsubishi Electric 56P-QF60LCU Manuale utente

Mitsubishi Electric

Mitsubishi Electric LDT32IV Manuale utente

Mitsubishi Electric

Mitsubishi Electric 56P-QF60LCU Manuale utente

Mitsubishi Electric

Mitsubishi Electric NSH1157STTUW Manuale utente

Mitsubishi Electric

Mitsubishi Electric LDT46IV2 Manuale utente

Mitsubishi Electric

Mitsubishi Electric LDT421V Manuale utente

Mitsubishi Electric

Mitsubishi Electric LDT461V Manuale utente

Mitsubishi Electric

Mitsubishi Electric DT1151 Manuale utente

Mitsubishi Electric

Mitsubishi Electric GOT2000 Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric PH50 series Istruzioni operative e di sicurezza

Mitsubishi Electric

Mitsubishi Electric LDT422V (BR931) Manuale utente

Mitsubishi Electric

Mitsubishi Electric MLM300 Manuale utente

Mitsubishi Electric

Mitsubishi Electric DR854 Manuale utente

Mitsubishi Electric

Mitsubishi Electric LDT321V Manuale utente

Mitsubishi Electric

Mitsubishi Electric PD-6130 Manuale utente

Mitsubishi Electric

Mitsubishi Electric 2107e Manuale utente

Mitsubishi Electric

Mitsubishi Electric LDT52IV Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
