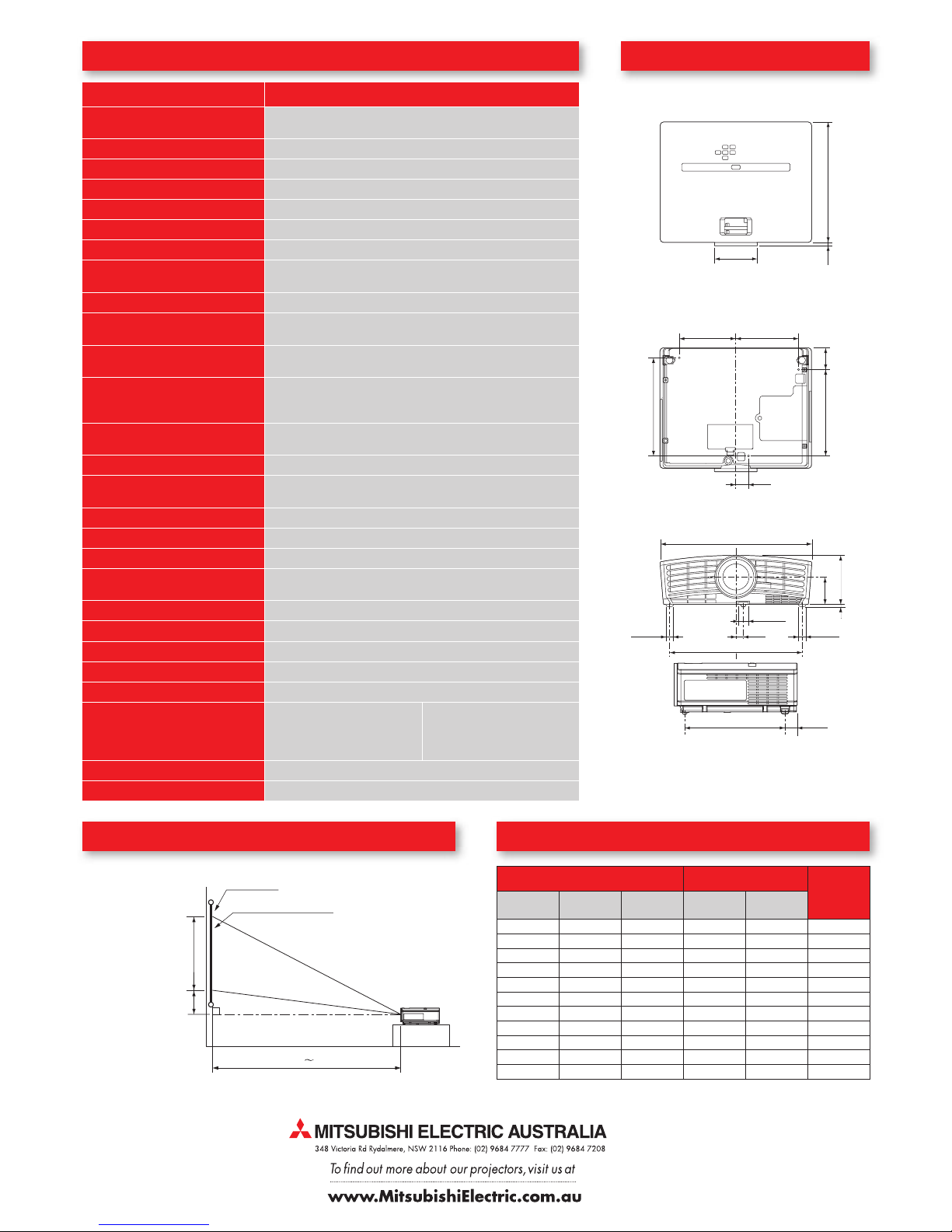

Speciﬁ cations Dimensions

Screen size chart (16:9 aspect ratio)

Projection distance

Screen Size Projection Distance Distance

from lens

axis (Hd)

Diagonal

(type destination)

Width Height

Without

Magniﬁ cation

With

Magniﬁ cation

inch cm cm m m cm

40 89 50 1.4 1.7 17

60 133 75 2.2 2.6 25

70 155 87 2.5 3.1 29

80 177 100 2.9 3.5 33

90 199 112 3.3 4.0 38

100 221 125 3.6 4.4 42

110 244 137 4.0 4.9 46

120 266 149 4.4 5.3 50

150 332 187 5.5 6.6 63

275 609 342 10.1 - 115

The above numbers are approximate, and may be slightly different from the

actual measurements.

MODEL HC3000

Display Technology DDP3020 DLP(R)TrueVision™ Integrated Circuit with

Dark Chip 2 featuring BrilliantColor™ Technology

Resolution 1280 x 768 (Total 983,040 pixels), HD720p

Brightness (Maximum) 1000 ANSI Lumens

Contrast Ratio 4000:1

Zoom/Focus Manual Focus & Zoom Lens

Projection Lens F= 2.4-2.6 with Optical Iris 100"@141.7" (Diagonal)

Throw Ratio 1.59 - 1.97

Offset Axis 3 : -1 up (No variable lens shift)

±38 degrees digital lens shift

Picture Size 40-275 inch

Source Lamp* 200W (Shut Off Time 2000hrs) with Low Mode

(160W: Shut Off Time 3000hrs)

PC Compatibility Resolution: 640 x 480 – 1024 x 576

(Compressed 1280 x 1024) (Sync on Green available)

Video Compatibility

NTSC/NTSC 4.43/PAL (including PAL-M, N /SECAM/

PAL-60), Component Video; 480i/p

576i/p, 720p, 1080i (1125i 60Hz), 1080i (1125i 50Hz)

Input Terminals RGB: Mini D-sub 15pin x 1 HDMI x 1

Video: RCA x 1, S-VIDEO x 1, RCA (Y, CB, CR) x 1

Output Terminal 12V Trigger Out; Stereo mini jack (3.5mm) x 1

Communication Terminal RS-232C (8 pin) x 1 (Direct command is available), USB

(Service use only)

Scanning Rate [H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot Clock] max 110 MHz

Audio Speaker N/A

Height Adjuster Two Push Rear leg (-1 to 7 degree variable)

Hand Remote Unit Projector Control, Back light key,

Direct functions with AV memory

Power Consumption 280W / 2.9 A

Dimension (W x D x H) 310mm x 245mm x 100mm (excludes height adjuster)

Weight 2.9kg/6.4lbs

Power Requirements AC 100-240V / ±10%, 50/60 Hz

Fan Noise 25dBA (Low mode)

Supplied Accessories

• AC Power Cable

• RGB Cable

• RS-232C Cable

• Remote Unit (incl. battery)

• Light Shade Cover

• Quick Start Card

• User Manual

• Safety Manual

Optional Accessories Replacement Lamp Bulb (VLT-HC910LP)

Warranty 2 Years Parts and Labour

* Approximate ﬁ gure representing average operational lifecycle.







 



















 























 



















 

















MULTIMEDIA DATA/VIDEO PROJECTORS

HC3000

Home Theatre Projector

Contrast: 4000:1

Brightness: 1000lm

Long Life Lamp: 3000hrs

The ﬁ rst DLP Home Theatre projector to feature BrilliantColor™ technology,

providing more vivid colours for that true cinematic experience.

The award winning HIGH DEFINITION

HC3000 DLP™ Home Theatre projector from

Mitsubishi Electric represents a breakthrough

in HD home cinema products. This is the ﬁ rst

home theatre projector ever to feature the

state-of-the-art DDP3020 chip incorporating

BrilliantColor™ technology.

Running in native High Deﬁ nition resolution (720p),

the HC3000 includes features like an amazing 4000:1

contrast ratio, a quiet 25dBA running volume and a

ﬁ lter free design.

FEATURES:

• BrilliantColor™ technology

At the heart of the HC3000 is Texas Instruments’

state-of-the-art DDP3020 chip featuring

BrilliantColor™. By boosting the midtone

colour levels, this cutting-edge technology

enables higher brightness as well as truer,

more vibrant colours for brilliant, true-to-life images.

Up t o 3 00 0 h o u rs li f e-sp a n

me an s f ewe r l a mp ch ang es

and m or e mov ie s!

Illuminated

remote

control unit

• High Contrast Ratio

of 4000:1

With a high 4000:1 contrast ratio,

a night sky appears inky black with

stars a brilliant white. A combination

of the newly developed DDP3020

panel driver with an all-glass lens and

a remote-controlled, internal

motor-driven iris makes these

amazing images possible.

• 10-bit I/P Conversion

Annoying screen jaggies are

eliminated and overall noise is

reduced for a smoother picture,

thanks to the 10-bit processing

circuitry included in the HC3000.

• 720p Native Resolution

Computer signals can be displayed full frame

without cropping, while all 16:9 widescreen

video can also be displayed full frame.

• Filter Free Design

Since projector ﬁ lters need regular cleaning to

remove dust and other material, we decided to

design our DLP projectors to run ﬁ lter free.

Combined with the long-life lamps, this ensures

that minimal ongoing maintenance is required.

• Ultra Quiet Operation

At only 25dBA, the whisper-quiet fan means

you’ll never be distracted from your cinematic

experience.

• High Deﬁ nition

HDMI Support

Includes high deﬁ nition signal support with

DVD players and other digital equipment.

• Trigger Terminal

Connects to a motor driven projector,

enabling you to raise or lower the touch

screen at a touch of a button.

LONG LIFE L A MP!

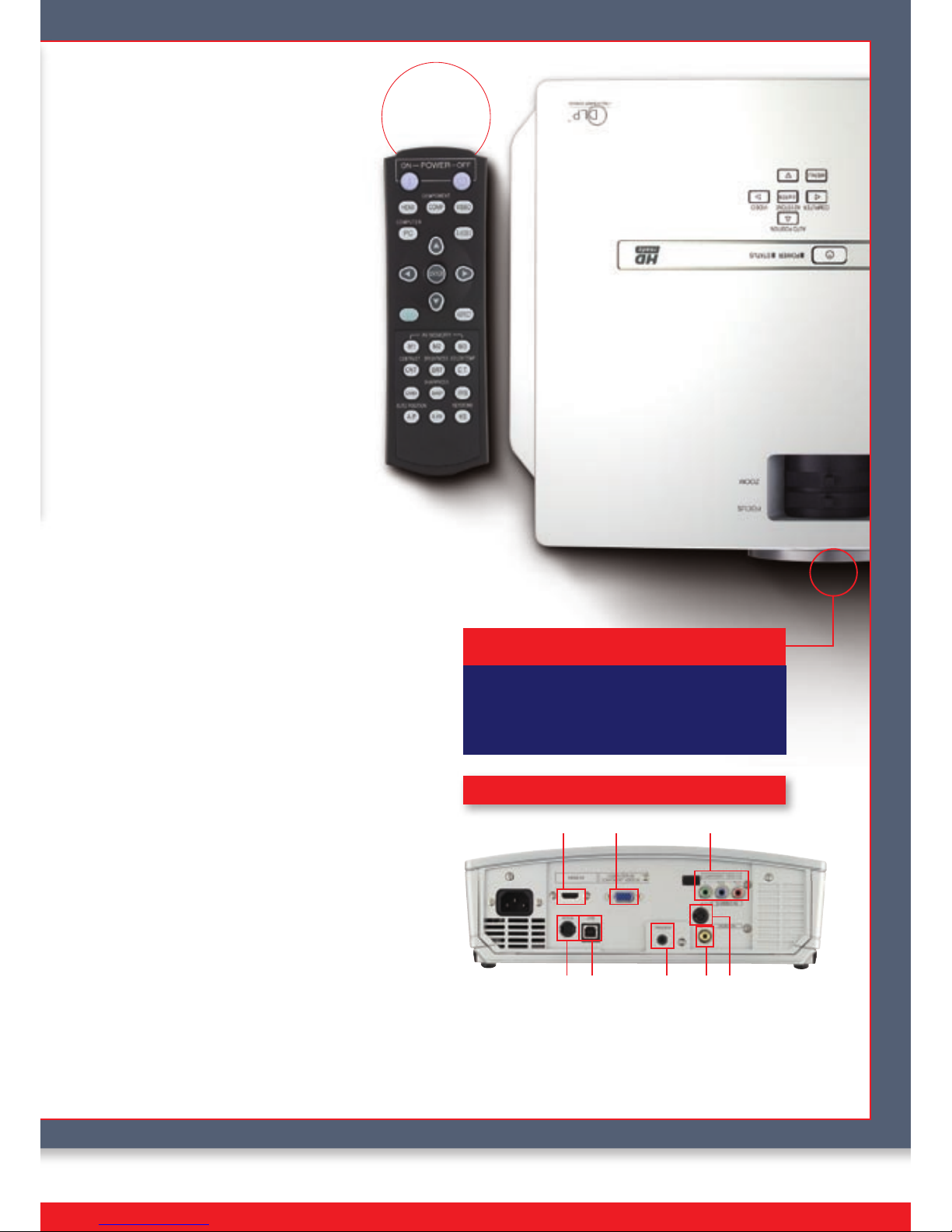

Input/Output Terminals

➍ ➎ ➏ ➐ ➑

➌➋➊

➊ HDMI Input

➋ Computer / Component Video Input

➌ Component Input

➍ Serial Input

➎ USB Input

➏ Trigger Terminal Output

➐ Composite Video Input

➑ S-Video Input
