CITY MULTI Control System

MA Remote Controller PAR-30MAOA

Instruction Book

Product features

Mode Temp.

Cool Set temp.

Feature 1

Large, easy-to-see display

Full-dot LCD display with large characters

for easy viewing

Simple button arrangement

Feature 3

Large, easy-to-press buttons

Buttons are arranged according

to usage to allow for intuitive

navigation.

Frequently used buttons are larger

than other buttons to prevent

unintended pressing of other

buttons.

Feature 2

Contents

Safety precautions................................................4

Controller components.........................................6

Controller interface ..............................................................6

Display.................................................................................8

Menu structure and icons...................................10

Menu structure...................................................................10

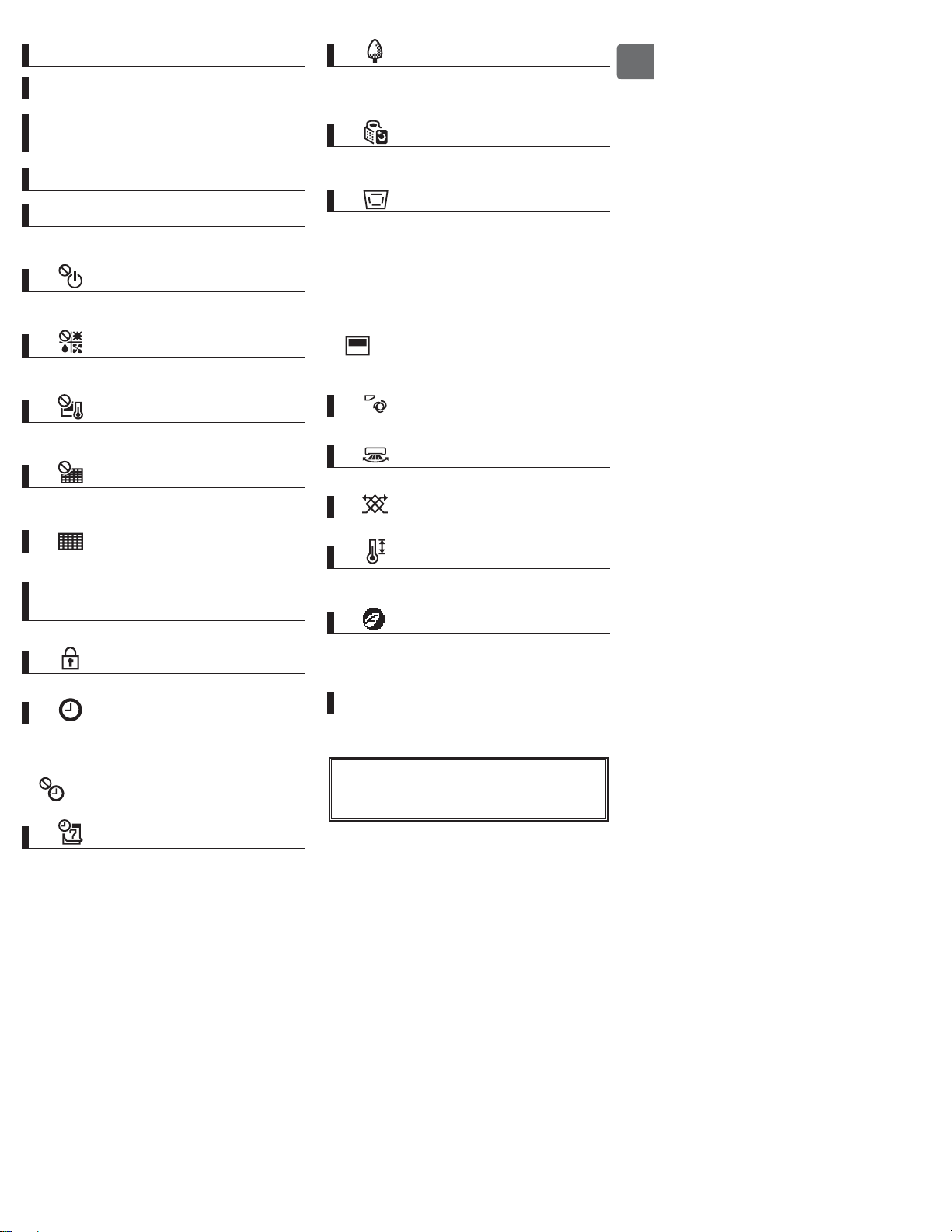

Icon explanations...............................................................11

Basic operations.................................................12

Power ON/OFF..................................................................12

Operation mode, temperature, and fan speed settings

..........14

Navigating through the menu.............................18

Main menu list....................................................................18

Restrictions for the sub remote controller..........................19

Navigating through the Main menu....................................20

Function settings................................................22

9DQH/RXYHU9HQW/RVVQD\ ............................................22

High power.........................................................................25

Clock..................................................................................26

7LPHU2Q2IIWLPHU...........................................................27

7LPHU$XWR2IIWLPHU ........................................................29

Weekly timer......................................................................31

OU silent mode..................................................................34

Restriction..........................................................................37

Energy saving....................................................................41

Night setback ....................................................................46

Manual vane angle ............................................................48

Main display.......................................................................51

Contrast.............................................................................52

Language selection............................................................53

Daylight saving time...........................................................55

Function setting ................................................................57

Maintenance.......................................................59

Filter information................................................................59

Troubleshooting..................................................61

Error information................................................................61

No occupancy Auto-OFF ...................................................63

Specifications.....................................................64

Controller specifications.....................................................64

)XQFWLRQOLVWDVRI0DUFK ....................................65

List of functions that can/cannot be used in combination..66

Safety precautions

Thoroughly read the following safety precautions before using the unit.

Observe these precautions carefully to ensure safety.

WARNING Indicates a risk of death or serious injury.

CAUTION Indicates a risk of serious injury or structural damage.

After reading this manual, pass it on to the end user to retain for future reference.

Keep this manual for future reference and refer to it as necessary. This manual should be made available

to those who repair or relocate the controller. Make sure that the manual is passed on to any future

users.

General precautions

WARNING

Do not install the unit in a place where large

amounts of oil, steam, organic solvents, or

corrosive gases, such as sulfuric gas, are present

or where acidic/alkaline solutions or sprays are

used frequently. These substances can

compromise the performance of the unit or cause

certain components of the unit to corrode, which

can result in electric shock, malfunctions, smoke,

or fire.

To reduce the risk of shorting, current leakage,

electric shock, malfunctions, smoke, or fire, do not

wash the controller with water or any other liquid.

To reduce the risk of electric shock, malfunctions,

smoke or fire, do not operate the switches/buttons

or touch other electrical parts with wet hands.

When disinfecting the unit using alcohol, ventilate

the room adequately. The fumes of the alcohol

around the unit may cause a fire or explosion

when the unit is turned on.

To reduce the risk of injury or electric shock,

before spraying a chemical around the controller,

stop the operation and cover the controller.

To reduce the risk of injury or electric shock, stop

the operation and switch off the power supply

before cleaning, maintaining, or inspecting the

controller.

,IDQ\DEQRUPDOLW\HJEXUQLQJVPHOOLVQRWLFHG

stop the operation, turn off the power switch, and

consult your dealer. Continued use of the product

may result in electric shock, malfunctions, or fire.

Properly install all required covers to keep

moisture and dust out of the controller. Dust

accumulation and water can cause electric shock,

smoke, or fire.

CAUTION

To reduce the risk of fire or explosion, do not

place flammable materials or use flammable

sprays around the controller.

To reduce the risk of damage to the controller, do

not directly spray insecticide or other flammable

sprays on the controller.

To reduce the risk of environmental pollution,

consult an authorized agency for proper disposal

of remote controller.

To reduce the risk of electric shock or

malfunctions, do not touch the touch panel,

switches, or buttons with a pointy or sharp object.

To reduce the risk of injury and electric shock,

avoid contact with sharp edges of certain parts.

To avoid injury from broken glass, do not apply

excessive force on the glass parts.

To reduce the risk of injury, wear protective gear

when working on the controller.

Precautions for moving or repairing the controller

WARNING CAUTION

The controller should be repaired or moved only

by qualified personnel. Do not disassemble or

modify the controller.

Improper installation or repair may cause injury,

electric shock, or fire.

To reduce the risk of shorting, electric shock, fire,

or malfunction, do not touch the circuit board with

tools or with your hands, and do not allow dust to

accumulate on the circuit board.

Additional precautions

To avoid damage to the controller, use appropriate

tools to install, inspect, or repair the controller.

This controller is designed for exclusive use with

the Building Management System by Mitsubishi

Electric. The use of this controller for with other

systems or for other purposes may cause

malfunctions.

This appliance is not intended for use by persons

LQFOXGLQJFKLOGUHQZLWKUHGXFHGSK\VLFDOVHQVRU\

or mental capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Children should be supervised to ensure that they

do not play with the appliance.

To avoid discoloration, do not use benzene,

thinner, or chemical rag to clean the controller. To

clean the controller, wipe with a soft cloth soaked

in water with mild detergent, wipe off the detergent

with a wet cloth, and wipe off water with a dry

cloth.

To avoid damage to the controller, provide

protection against static electricity.

This appliance is intended to be used by expert or

trained users in shops, in light industry and on

farms, or for commercial use by lay persons.

If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Function buttons

Controller components

Controller interface

123

7890

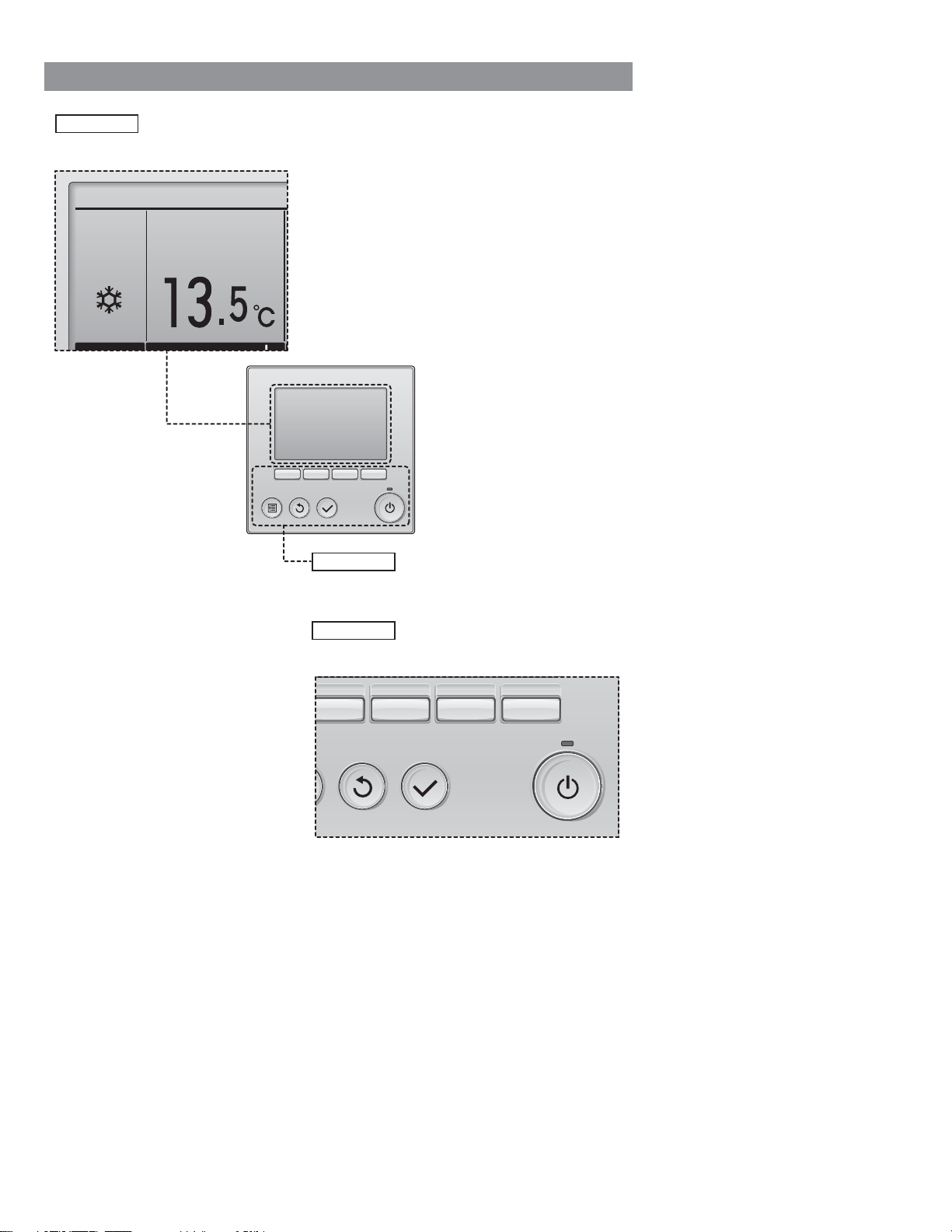

① ON/OFF button

Press to turn ON/OFF the indoor unit.

② SELECT button

Press to save the setting.

③ RETURN button

Press to return to the previous screen.

④ MENU button Page 20

Press to bring up the Main menu.

⑤Backlit LCD

Operation settings will appear.

When the backlight is off, pressing any

button turns the backlight on and it will stay

lit for a certain period of time depending on

the screen.

When the backlight is off, pressing any

button turns the backlight on and does

QRWSHUIRUPLWVIXQFWLRQH[FHSWIRUWKH

ON/OFF EXWWRQ

⑥ON/OFF lamp

This lamp lights up in green while the unit

is in operation. It blinks while the remote

controller is starting up or when there is an

error.

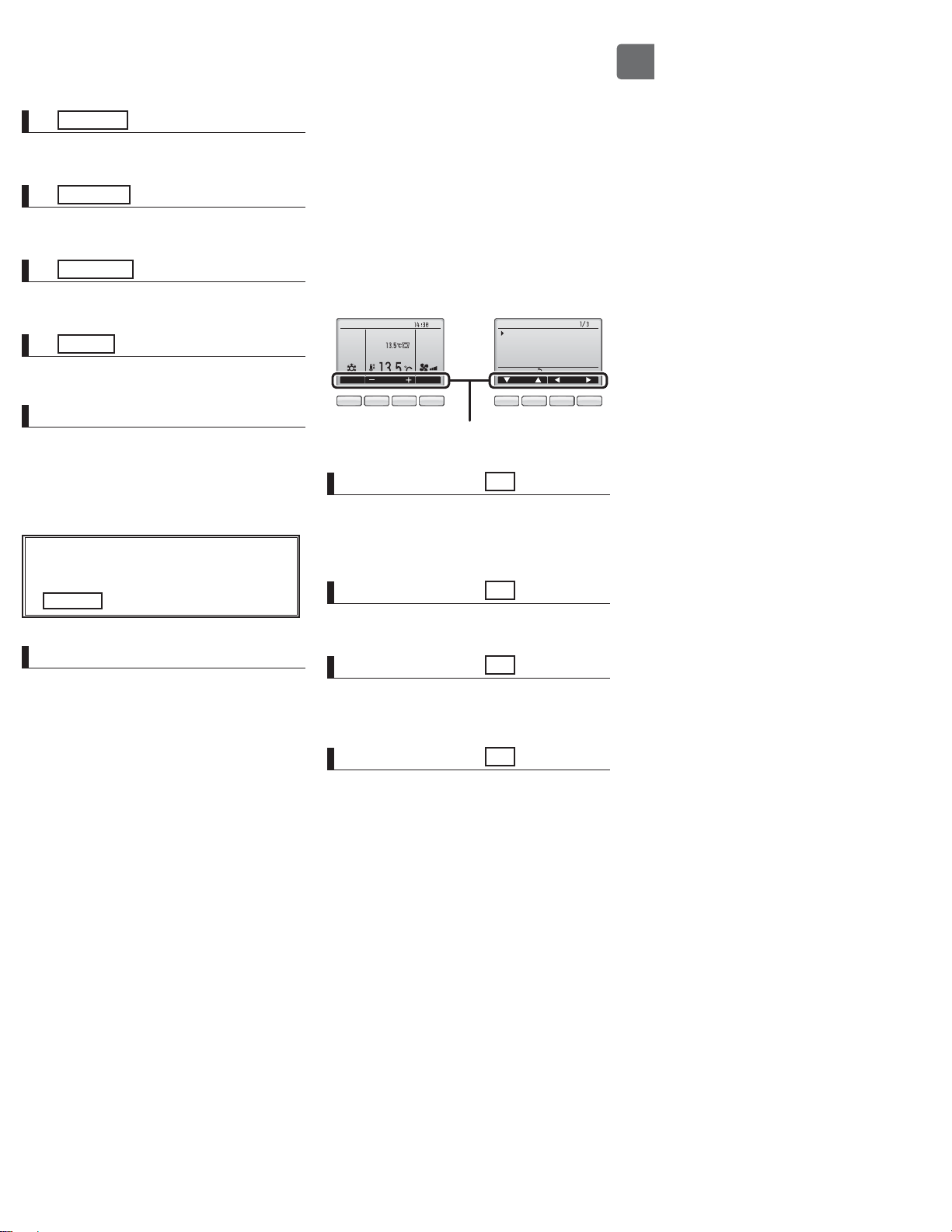

The functions of the function buttons

change depending on the screen. Refer

to the button function guide that

appears at the bottom of the LCD for

the functions they serve on a given

screen.

When the system is centrally

controlled, the button function guide

that corresponds to the locked button

will not appear.

Main display Main menu

Main display:

Fri

Set temp.

Mode Temp. Fan

Cool

Main

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

Function guide

⑦Function button F1

Main display:

Press to change the operation

mode.

Main menu: Press to move the cursor

down.

⑧Function button F2

Main display:

Press to decrease temperature.

Main menu: Press to move the cursor up.

⑨Function button F3

Main display:

Press to increase temperature.

Main menu: Press to go to the previous

page.

⑩Function button F4

Main display:

Press to change the fan speed.

Main menu: Press to go to the next page.

878 0 7 909

Controller components

Display

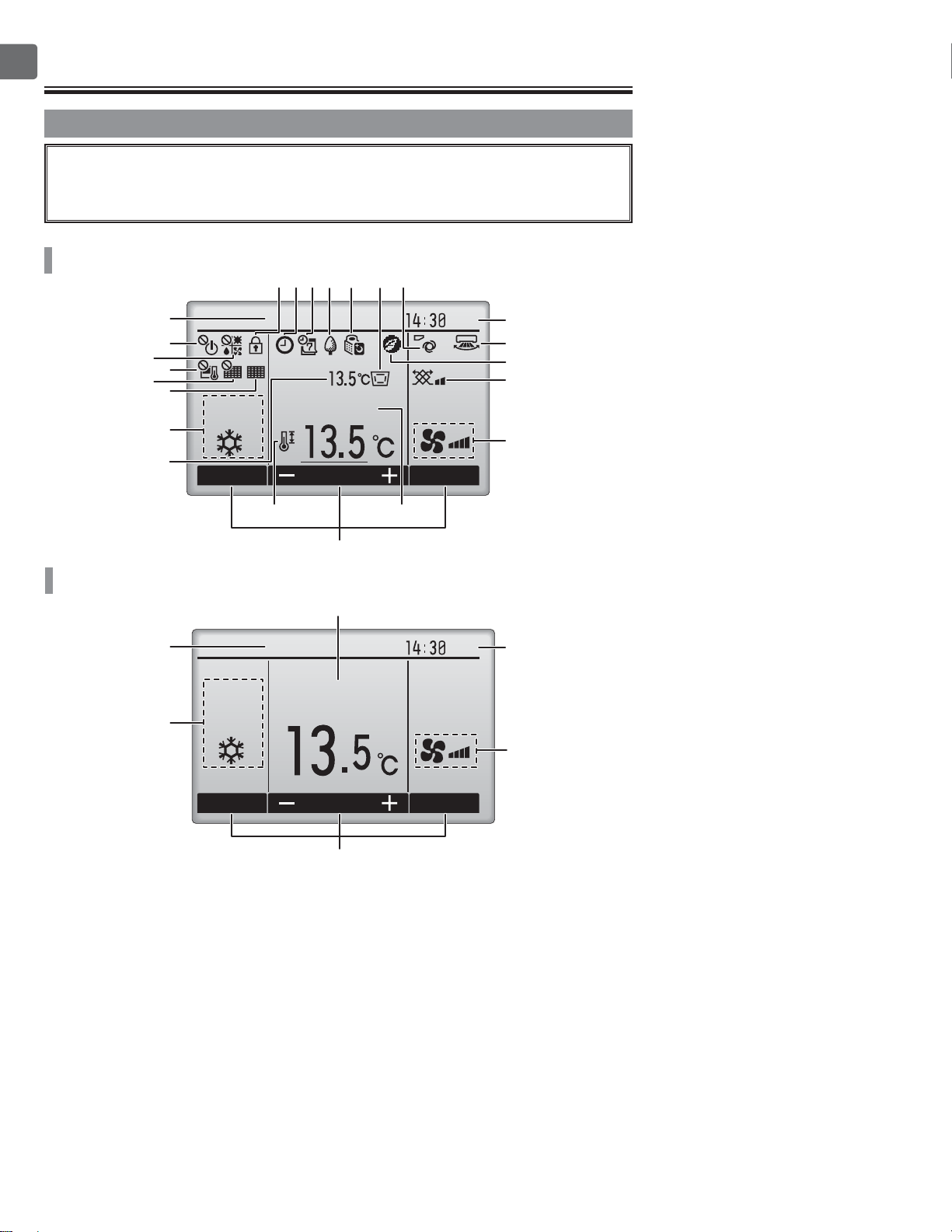

The main display can be displayed in two different modes: "Full" and "Basic."

The factory setting is "Full." To switch to the "Basic" mode, change the setting

RQWKH0DLQGLVSOD\VHWWLQJ5HIHUWRSDJH51

Full mode

Basic mode

* All icons are displayed for

explanation.

Fri

Mode Temp. Fan

Cool Set temp.

Fri

Cool

Mode Temp. Fan

Set temp.

Centrally controlled

hgfedcb

①Operation mode Page 14

②Preset temperature Page 15

③Clock

(See the Installation Manual.)

④Fan speed Page 16

⑤Button function guide

Functions of the corresponding buttons

appear here.

⑥

Appears when the ON/OFF operation is

centrally controlled.

⑦

Appears when the operation mode is

centrally controlled.

⑧

Appears when the preset temperature is

centrally controlled.

⑨

Appears when the filter reset function is

centrally controlled.

⑩ Page 59

Indicates when filter needs maintenance.

⑪Temperature

(See the Installation Manual.)

Current outlet air temperature appears here.

⑫ Page 39

Appears when the buttons are locked.

⑬ Page 27, 29, 46

$SSHDUVZKHQWKH2Q2IIWLPHU3DJH

1LJKWVHWEDFN3DJHRU$XWRRIIWLPHU

3DJHIXQFWLRQLVHQDEOHG

appears when the timer is disabled by

the centralized control system.

⑭ Page 31

Appears when the Weekly timer is enabled.

⑮ Page 44

Appears while the units are operated in the

HQHUJ\VDYHPRGH:LOOQRWDSSHDURQVRPH

PRGHOVRILQGRRUXQLWV

⑯ Page 34

Appears while the outdoor units are operated

in the silent mode.

⑰

Appears when the thermistor on the indoor

unit is activated to monitor the outlet air

WHPSHUDWXUHa

* This icon appears when the remote

controller is connected to the Fresh Air

Intake model. If the icon does not appear,

refer to the indoor unit Instruction Book.

appears when the built-in thermistor on

the remote controller is activated to monitor

the room temperature.

⑱ Page 22

Indicates the vane setting.

⑲ Page 24

Indicates the louver setting.

⑳ Page 24

Indicates the ventilation setting.

㉑ Page 37

Appears when the preset temperature range

is restricted.

㉒

Appears when an energy-saving operation is

performed using a "3D i-See sensor"

function.

㉓Centrally controlled

Appears for a certain period of time when a

centrally-controlled item is operated.

0RVWVHWWLQJVH[FHSW212))PRGHIDQ

VSHHGWHPSHUDWXUHFDQEHPDGHIURP

WKH0DLQPHQX5HIHUWRSDJH20

Menu structure and icons

Menu structure

Main menu

Press the MENU

button.

Move the cursor

to the desired

item with the F1

and F2 buttons,

and press the

SELECT button.

9DQH/RXYHU9HQW/RVVQD\ .................... Page 22

High power .................... Page 25

Timer

On/Off timer.........................Page 27

Auto-Off timer ......................Page 29

Weekly timer .................... Page 31

OU silent mode .................... Page 34

Restriction

Temp. range......................... Page 37

Operation lock...................... Page 39

Energy saving

Auto return........................... Page 41

Schedule .............................Page 44

Night setback .................... Page 46

Filter information .................... Page 59

Error information .................... Page 61

Maintenance

Auto descending panel......... Refer to the Instructions Manual that

came with the automatic elevating panel.

Manual vane angle............... Page 48

3D i-See sensor................... Refer to the indoor unit Instruction

Book.

Initial setting

Main/Sub.............................Refer to the Installation Manual.

Clock...................................Page 26

Main display.........................Page 51

Contrast............................... Page 52

Display details...................... Refer to the Installation Manual.

Auto mode........................... Refer to the Installation Manual.

Administrator password........ Refer to the Installation Manual.

Language selection.............. Page 53

Daylight saving time............. Page 55

Altri manuali per PAR-30MAOA

Indice

Lingue:

Altri manuali Mitsubishi Electric Telecomando

Mitsubishi Electric

Mitsubishi Electric Trane TAR-40MAAU Manuale utente

Mitsubishi Electric

Mitsubishi Electric MAC-SL100M-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-SL101A-E Series Istruzioni per l'installazione e il funzionamento

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Manuale utente

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-SW96U-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-SF44SRA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-FL31MA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-SF41SCA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-FL32MA Manuale utente

Mitsubishi Electric

Mitsubishi Electric MAC-821SC-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-SF41SCA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-W21MAA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-SF44SRA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Manuale utente

Mitsubishi Electric

Mitsubishi Electric WD-52527 Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-F27MEA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-YT52CRA-K Manuale utente

Mitsubishi Electric

Mitsubishi Electric MRCH1 Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAR-FL32MA Manuale utente

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-YT53CRAU-J Manuale utente

Mitsubishi Electric

Mitsubishi Electric ecodan PAR-WT60R-E Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
