MK-1080 PAVER SAW

OPERATION & PARTS MANUAL

www.mkdiamond.com

Caution: Read all safety and operating instructions before

using this equipment. This manual MUST accompany the

equipment at all times.

03.2012

Revision 102

Manual Part No. 166894

INTRODUCTION

Congratulations on your purchase of a MK-1080 Paver Saw. We are certain that you will be

pleased with your purchase. MK Diamond takes pride in producing the finest construction

power tools and diamond blades in the industry.

Operated correctly, your MK-1080 Paver Saw should provide you with years of service. In

order to help you, we have included this manual. This owners manual contains information

necessary to operate and maintain your MK-1080 Paver Saw safely and correctly. Please take

a few minutes to familiarize yourself with the MK-1080 Paver Saw by reading and reviewing

this manual.

If you should have questions concerning your MK-1080 Paver Saw, please feel free to call our

friendly customer service department at: 800 421-5830

Regards,

MK Diamond

NOTE THIS INFORMATION FOR FUTURE USE:

MODEL NUMBER:

SERIAL NUMBER:

PURCHASE PLACE:

PURCHASE DATE:

NOTE: For your (1) one year warranty to be effective, complete the warranty

card (including the Serial Number) and mail it in as soon as possible.

SAFETY

Safety Message/Alert Symbols

Safety Warnings

Hazard Symbols

Rules for Safe Operation

Electric Motor Safety

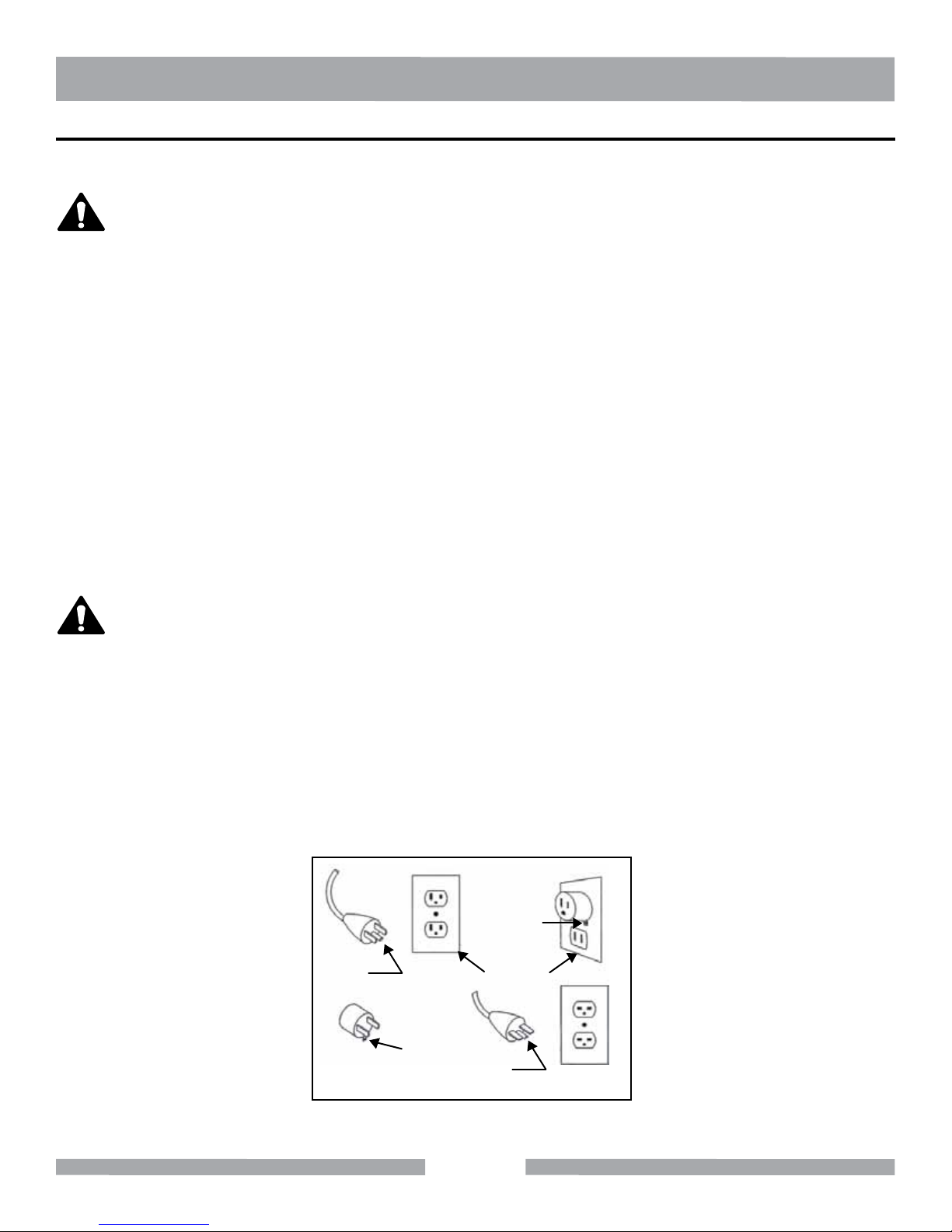

Electrical Requirements & Grounding Instructions

Operation & Safety Decals

Safety Decal Locations

PRODUCT SPECIFICATIONS

Specications

INSPECTION & SET-UP

Unpacking & Contents

Installing the Blade

Installing the Water Pump

OPERATION

Motor Information

Cutting Operations

MAINTENANCE

Adjusting Belt Tension

Adjusting Blade Alignment to Table

Diamond Blade Sharpening (Re-Dressing)

GENERAL PRODUCT INFORMATION

Parts List: Paver Saw, MK-1080 1.5 HP 120V 60HZ, 153203

Parts List: Paver Saw, MK-1080 Home Depot 1.5 HP 120V 60HZ, 153203-HD

Parts List: Paver Saw, MK-1080 Assy, Cutting Head, 166877

Parts List: Paver Saw, MK-1080 Home Depot Assy, Cutting Head, 166877-HD

Parts List: Paver Saw, MK-1080 Assy, Motor Mount, 166878

Parts List: Paver Saw, MK-1080 Home Depot Assy, Motor Mount, 166878-HD

Parts List: Paver Saw, MK-1080 Assy, Table, 166880

Parts List: Paver Saw, MK-1080 Assy, Blade Guard, 154297

Parts List: Paver Saw, MK-1080 Home Depot Assy, Blade Guard, 154297-HD

Parts List: Paver Saw, MK-1080 Assy, Spring Bushing, 166874

Ordering Information

Contact Information and Limited Warranty

7-8

10-11

16-17

21-22

24-25

26-27

28-29

30-31

32-33

34-35

TABLE OF CONTENTS

MK-1080 PAVER SAW SAFETY

Safety precautions should be followed at all times when operating this equipment. Failure to read and

understand the Safety Precaution and Operating Instructions could result in injury to yourself and

others. This Operation and Parts Manual has been developed to provide complete instructions for the

safe and efcient operation of the MK-1080 Paver Saw.

Before using this machine, ensure that the person operating the machine has read and understands all

instructions in this manual.

SAFETY MESSAGE / ALERT SYMBOLS

A safety message alerts you to potential hazards that could hurt you or others. Each safety message is

preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.

DANGER

You WILL be KILLED or SERIOUSLY INJURED if you do not follow directions.

WARNING

You CAN be KILLED or SERIOUSLY INJURED if you do not follow directions.

CAUTION

You CAN be INJURED if you do not follow directions. It may also be used to alert against unsafe prac-

tices.

NOTICE

You can cause PROPERTY DAMAGE to your machine if you don’t follow directions.

Each message tells you what the hazard is, what can happen, and what you can do to avoid or re-

duce injury. Other important messages are preceded by the word NOTICE.

The safety labels should be periodically inspected and cleaned by the user to maintain good legibility

at a safe viewing distance. If the label is worn, damaged or illegible, it should be replaced.

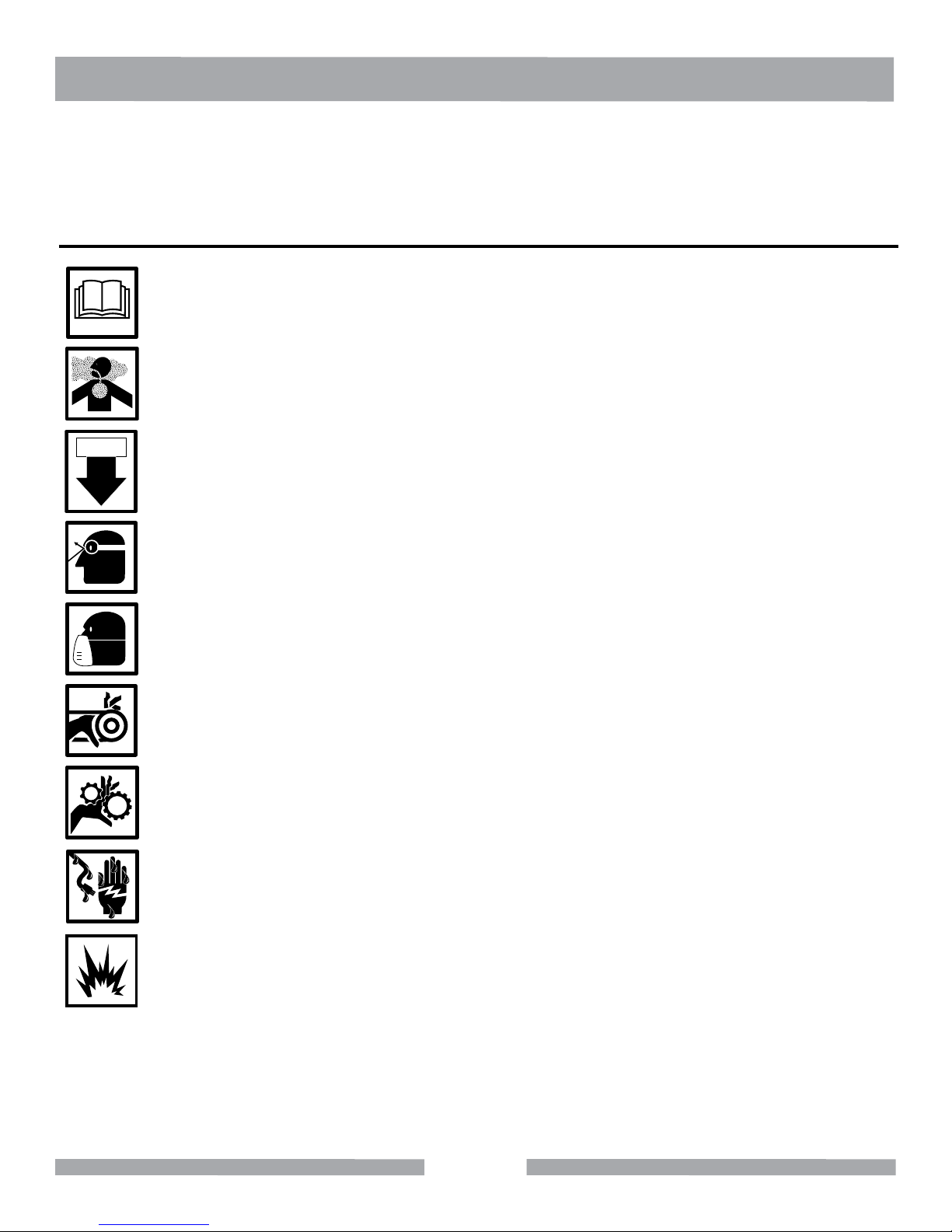

MK-1080 PAVER SAW SAFETY

Potential hazards associated with the MK-1080 Paver Saw operation will be referenced with Hazard

Symbols which appear throughout this manual, and will be referenced in conjunction with Safety Mes-

sage/Alert Symbols.

NEVER operate equipment with covers, or guards removed. Keep ngers, hands, hair

and clothing away from all moving parts to prevent injury.

ALWAYS place the power ON/OFF switch in the OFF position when the machine is not in

use.

ALWAYS wear approved eye protection.

HAZARD SYMBOLS

ON / OFF

ALWAYS wear approved respiratory protection.

ALWAYS read this Owner’s Manual before operating the machine.

ALWAYS avoid inhalation of and skin contact with silica dust and/or mist.

ALWAYS use caution around gears. Keep ngers, hands, hair and clothing away from

all moving parts to prevent injury.

NEVER touch the power cord with wet hands or while standing in water when it is con-

nected to a power source.

NEVER operate the machine in an explosive atmosphere or near combustible materials.

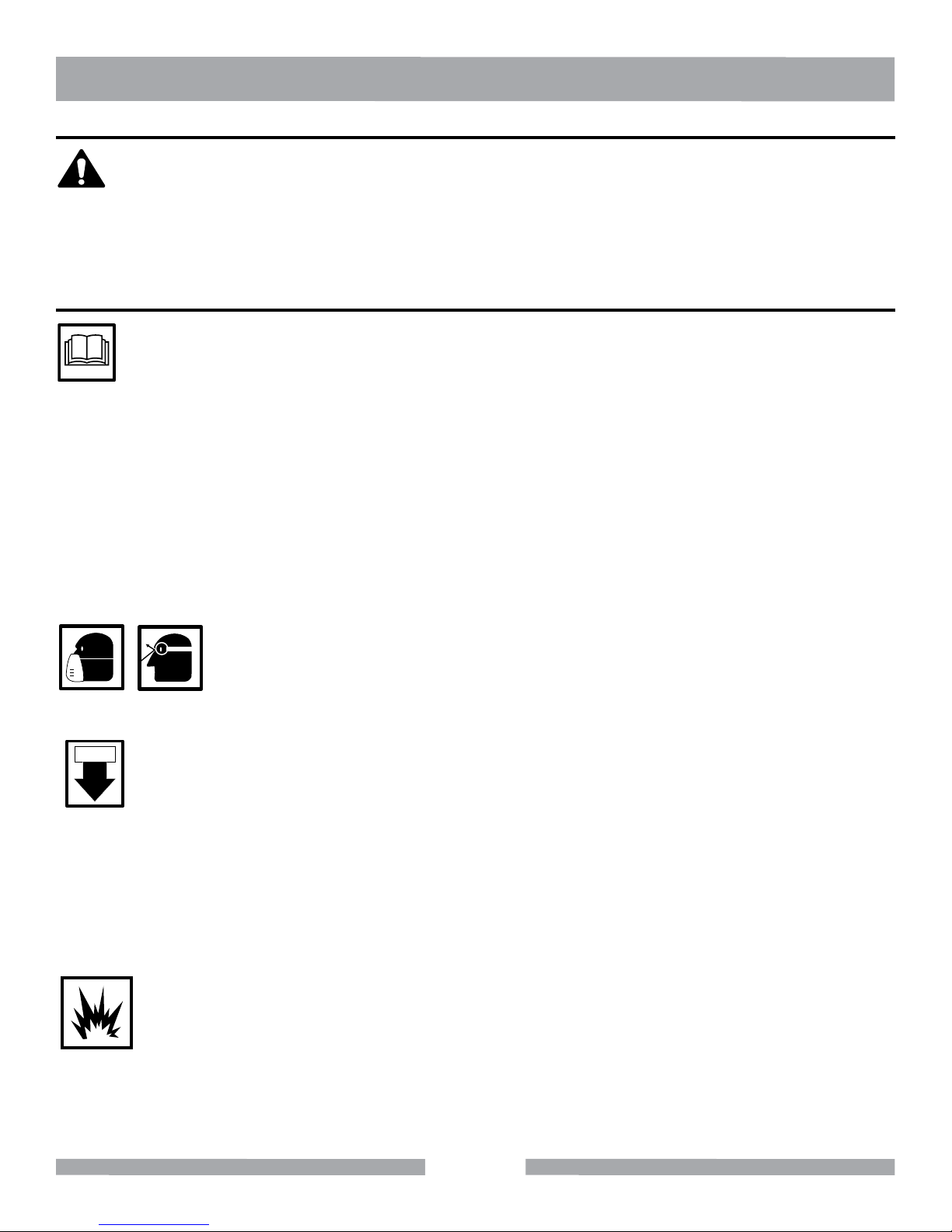

MK-1080 PAVER SAW SAFETY

•This equipment should not be operated by persons under 18 years of age.

• NEVER operate this equipment without proper protective clothing, shatterproof glasses, steeltoed

boots and other protective devices required by the job.

• NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.

• NEVER operate this equipment under the inuence of drugs or alcohol.

• Whenever necessary, replace nameplate, operation and safety decals when they become difcult

to read.

• ALWAYS check the machine for loose bolts before starting.

•ALWAYS wear proper respiratory (mask) hearing and eye protection

equipment when operating this machine.

• ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean,

dry location out of the reach of children.

 •NEVER leave the machine unattended. Turn off electric motor when unattended.

• CAUTION must be observed while servicing the machine. Rotating parts can cause injury if contacted.

•Ensure that any electrical extension cord is protected against damage. Always ensure that the

electrical extension cord is not trapped underneath the machine. When using an extension cord,

be sure to use one heavy enough to carry the current your product will draw. An undersized cord

will cause a drop in line voltage that will result in a loss of power and overheating. The Table shown

on page 11 shows the correct AWG size to use depending on cord length and nameplate ampere

rating. If in doubt, use the next heaviest gage. The smaller the gage number, the heavier the cord.

• Before starting the machine, check that all guards are in position and correctly tted.

•Keep area around the machine clear of obstructions which could cause persons to fall onto moving parts.

• ALWAYS ensure that the machine is on level ground before using.

• DONOT overreach. Keep proper footing and balance at all times.

Failure to follow instructions in this manual may lead to serious injury or even death! This equipment is

to be operated by trained and qualied personnel only! This equipment is for industrial use only.

The following safety guidelines should always be used when operating the MK-1080 Paver Saw.

GENERAL SAFETY

DANGER

RULES FOR SAFE OPERATION

ON / OFF

•DONOT operate or service this equipment before reading this entire manual.

• DONOT allow extension cord to come into contact with water or uids.

•DO NOT spray water onto electric motor.

•NEVER operate the machine in an explosive atmosphere.

MK-1080 PAVER SAW SAFETY

•NEVER stand on the tool. Serious injury could occur if a power tool is tipped, or if a cutting tool is

unintentionally contacted.

•Become familiar with the controls of the machine before operating. Know how to stop the machine

quickly in case of emergency.

•ALWAYS secure work. Clamps or a vise should be used to hold work whenever practical. Keep-

ing your hands free to operate a power tool is safer.

•ALWAYS disconnect AC power plug from power source before moving, cleaning or servicing the

machine.

•NEVER leave a tool running unattended. Do not leave a tool until it comes to a complete stop.

ALWAYS turn a power tool OFF when leaving the work area, or when a cut is nished.

•Make sure the OFF/ON power switch on the electric motor is always in the OFF position before

inserting the machine’s power plug into an AC receptacle.

•Operate electric motor only at the specied voltage indicated on the nameplate.

•NEVER disconnect any “emergency or safety devices”. These devices are intended for operator

safety. Disconnection of these devices can cause severe injury, bodily harm or even death! Dis-

connection of any of these devices will void all warranties.

•Unauthorized equipment modications will void all warranties. Manufacturer does not assume respon-

sibility for any accident due to equipment modications.

• NEVER use accessories or attachments, which are not recommended by MK Diamond for this

equipment. Damage to the equipment and/or injury to user may result.

• Replace damaged cutting blade before operating.

• NEVER try to stop a moving blade with your hand.

•NEVER lubricate components or attempt service on a running machine.

•Keep the machinery in proper running condition.

•Before using a power tool, check for damaged parts. A guard or any other part that is damage

should be carefully checked to determine if it would operate properly and perform its intended

function. Always check moving parts for proper alignment or binding. Check for broken parts and

mountings and all other conditions that may affect the operation of the power tool. A guard, or any

damaged part, should be properly repaired or replaced.

MAINTENANCE SAFETY

WARNING

NEVER use this machine with any cutter designed for wood working.

•Wear eye protection.

•Disconnect saw before servicing, when changing cutting blades and cleaning.

•Replace damaged cutting blade before operation.

•Remove adjusting keys and wrenches.

SAW SAFETY

WARNING

MK-1080 PAVER SAW SAFETY

Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition

may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,

brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of

airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-

dition, California and some other authorities have listed respirable crystalline silica as a substance

known to cause cancer. When cutting such materials, always follow respiratory precautions.

SILICA DUST WARNING

CALIFORNIA PROPOSITION 65 MESSAGE

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-

tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

•Lead, from lead-based paints

•Crystalline silica, from bricks and cement and other masonry products

•Arsenic and chromium, from chemically treated lumber

For further information, consult the following sources:

http://www.osha.gov/dsg/topics/silicacrystalline/index.html

http://www.cdc.gov/niosh/consilic.html

http://oehha.ca.gov/prop65/law/P65law72003.html

http://www.dir.ca.gov/Title8/sub4.html

Your risk from these exposures varies depending on how often you do this type of work. To reduce

your exposure to these chemicals, work in a well-ventilated area, and work with approved safety

equipment, such as those dust masks that are specially designed to lter out microscopic particles.

To choose the proper extension cord:

ELECTRIC MOTOR SAFETY

For maintenance care and operation of the electric motor, refer to your electric motor instruction booklet

furnished with the electric motor. Protect the electric motor from dust as much as possible and keep

ventilating openings clean.

• DONOT spray water on the electric motor. Do not touch the plug with wet hands. To

reduce the risk of electrocution, keep all connections dry and off the ground.

• DONOT operate electric motor in an explosive environment.

CAUTION

MK-1080 PAVER SAW SAFETY

NOTICE

Most Motor Problems are caused by improper

voltage and extension cords. Cord should be

one-piece and short as possible. Cord

selection should match the following table.

1-2 H.P.

25’

50’

75’

100’

150’

250’

Max. Cord Length

No. 12 Wire

No. 10 Wire

No. 8 Wire

115v 230v

Fig. 1 Extension Cord Table

WARNING

Use only extensions cords that are intended for outdoor use. These extension cords are identied

by a marking, “Acceptable for use with outdoor appliances; store indoors while not in use.” Use only

extension cords having an electrical rating not less than the rating of the product. Do not use dam-

aged extension cords. Examine extension cords before using and replace if damaged. Do not abuse

extension cords and do not yank on any cord to disconnect. Always disconnect the extension cord

from the receptacle before disconnecting the product from the extension cord.

WARNING

• Locate the length of extension cord needed

in table to the right.

• Once the proper length is found, move

down the column to obtain the correct

AWG size required for that length of

extension cord.

Use of undersize extension cords result in low voltage to the motor that can result in motor burnout

and premature failure. MK Diamond warns that equipment returned to us showing signs of being run

in a low voltage condition, through the use of undersized extension cords will be repaired or replaced

totally at the customers expense. There will be no warranty claim.

Electric Motor Connection

ALWAYS make certain that the power source required for the electric motor is correct and always

use the correct NEMA conguration plug. Motors can burn out when the line voltage falls 10% below

the voltage rating of the motor. Failure to use proper voltage will cause the motor to overheat. Make

certain that the correct size grounded (3-wires) extension cord is used. See the table below.

MK-1080 PAVER SAW SAFETY

In order to prevent potential electrical shock and injury, the following electrical safety precautions and

symbols should be followed at all times!

In case of a malfunction or breakdown, grounding provides a path of least resistance for electric cur-

rent to reduce the risk of electric shock. This tool is equipped with an electric cord having an equip-

ment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet

that is properly installed and grounded in accordance with all local codes and ordinances.

ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS

WARNING

• Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed by a

qualied electrician

• Improper connections of the equipment-grounding conductor can result in a risk of electric

shock. The equipment-grounding conductor is the insulated conductor that has an outer surface

that is green, with or without yellow stripes. If repair or replacement of the electric cord or plug is

necessary, do not connect the equipment-grounding conductor to a live terminal

• Check with a qualied electrician or service personnel if the grounding instructions are not

completely understood, or if in doubt as to whether the tool is properly grounded

• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that

accept the tool’s plug

• Repair or replace a damaged or worn cord immediately

WARNING

This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A of

Figure 1. The tool has a grounding plug that looks like the plug illustrated in Sketch A of Figure 1. A

temporary adapter, which looks like the adapter illustrated in sketches B and C, may be used to con-

nect this plug to a 2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not avail-

able. The temporary adapter should be used only until a properly grounded outlet can be installed by

a qualied electrician. The green-colored rigid ear, lug, and the like, extending from the adapter, must

be connected to a permanent ground such as a properly grounded outlet box.

NOTE: Use of a temporary adapter is not permitted in Canada.

Grounding

Means

(A)

Metal Screw

Cover of

Grounded

Outlet Box

(D)

ADAPTER

Grounding

Pin (B)

Fig. 1 Circuit and Adapter Information

Altri manuali per MK-1080

Indice

Altri manuali MK Diamond Products Sega

MK Diamond Products

MK Diamond Products PX-3 Guida all'applicazione

MK Diamond Products

MK Diamond Products MK-212 Series Manuale del sistema

MK Diamond Products

MK Diamond Products MK-660 SERIES Manuale del sistema

MK Diamond Products

MK Diamond Products MK-100 TRACKER Manuale del sistema

MK Diamond Products

MK Diamond Products MK- 2005G Manuale del sistema

MK Diamond Products

MK Diamond Products MK-101 PRO24 Manuale utente

MK Diamond Products

MK Diamond Products MK-101 Manuale utente

MK Diamond Products

MK Diamond Products MK 770 Manuale del sistema

MK Diamond Products

MK Diamond Products MK-170 SERIES Manuale utente

MK Diamond Products

MK Diamond Products MK-100 SERIES Manuale utente

MK Diamond Products

MK Diamond Products MK-2000 PRO Series Manuale del sistema

MK Diamond Products

MK Diamond Products MK-770 EXP Manuale del sistema

MK Diamond Products

MK Diamond Products SRX-150 Manuale utente

MK Diamond Products

MK Diamond Products MK-170 SERIES Manuale utente

MK Diamond Products

MK Diamond Products MK-1280 Manuale utente

MK Diamond Products

MK Diamond Products MK-5005S Manuale del sistema

MK Diamond Products

MK Diamond Products MK-2013HE GX390 Manuale utente

MK Diamond Products

MK Diamond Products MK-170 SERIES Manuale utente

MK Diamond Products

MK Diamond Products MK-370EXP TILE SAW Manuale utente

MK Diamond Products

MK Diamond Products MK-377EXP Manuale utente

MK Diamond Products

MK Diamond Products HD-101R Pro24 JCS Manuale del sistema

MK Diamond Products

MK Diamond Products CX-3E1 Manuale del sistema

MK Diamond Products

MK Diamond Products MK-2013 HSP Manuale utente

MK Diamond Products

MK Diamond Products HD-101R Pro24 JCS Manuale utente

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente
