MIDI LOOP & SWITCH LS12/2
Instruction Manual 3
MARK L Custom Guitar Electronics 3
Introduction
Congratulations on buying your MIDI/LOOP & SWITCH LS12/2
Our effect loops guarantee:
-perfectly transparent sound
-ultra-clean sound thanks to using passive components
-signal to noise ration comparable to CD quality recording s(102dB)
-no dynamic loss
-full bandwidth
-silent, click-free switching, even in high gain level
-MIDI compatibility ( CC# Control Change and PC# Program Change )
-two relay contact closures (S1-S2) for devices utilizing switch to ground
functions
-high grade low noise ( INPUT 1 ) line buffer
-alternating or direct current operation

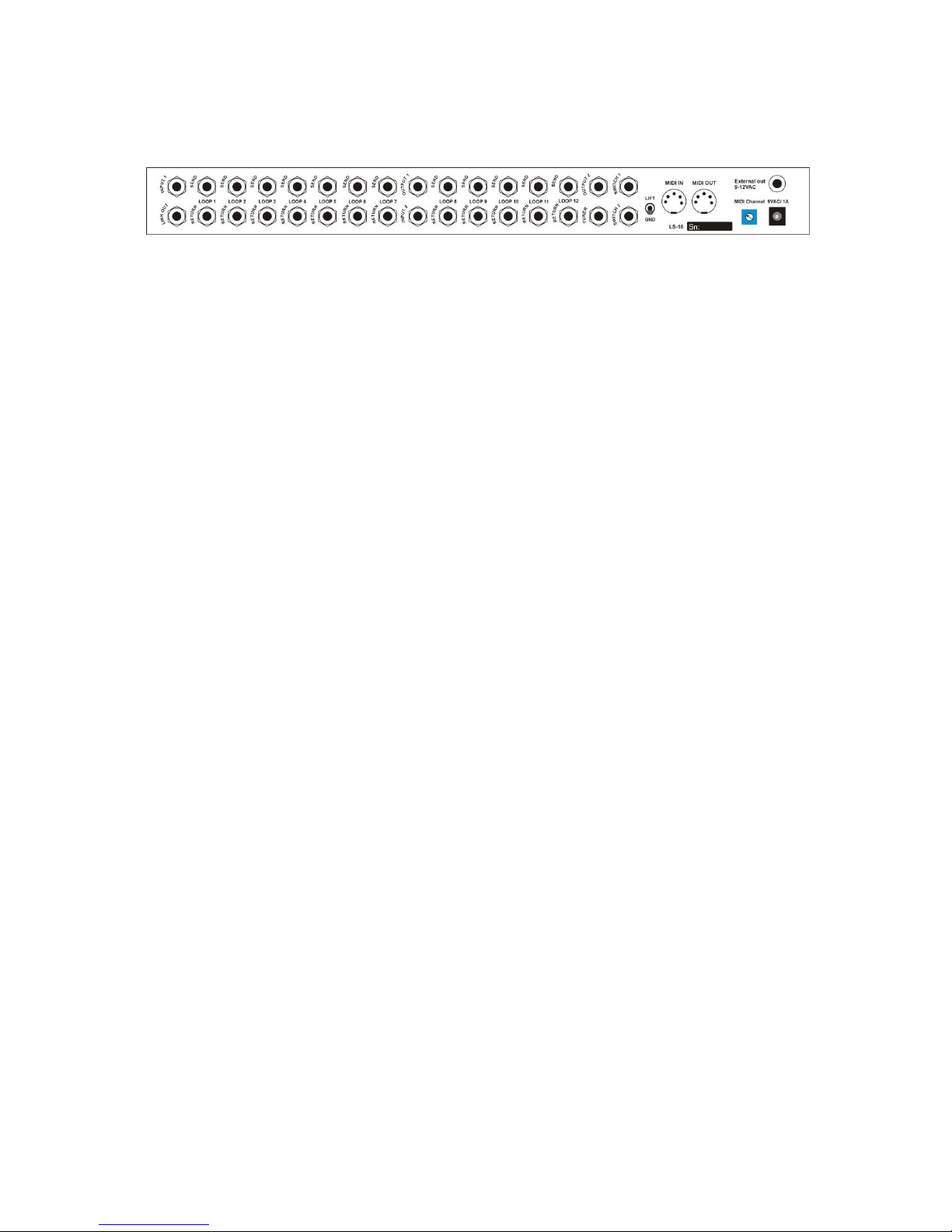

LS12/2 is equipped with 12 effect loops, 2 switches ground separated,
LS12/2 is controlled by MIDI CC (Control Change) and MIDI PC ( Program Change )
commands over 16 MIDI channels.
LS12/2 is compatible with any type of MIDI controller capable of sending CC or PC midi
commands, but to ensure proper operation and maximum effectiveness we recommend using
MLC MARK L controllers.
The effects loop can be hooked up with:
-12 mono effects (12 effects plugged in before the amplifier)
-12 mono effects (12 effects plugged in the amplifier’s FX LOOP )
By dividing the loop into two sections we can plug in:
- 12 mono effects (7 before the amplifier and 5 in the amplifier’s FX LOOP)
- 5 stereo effects (5 left channels to loop 1-5 and 5 right channels to loop 8-11) achieving 5
stereo loops for 5 effects
- 7/5 or 5 MUTE EFFECT (in pair with a line mixer)
