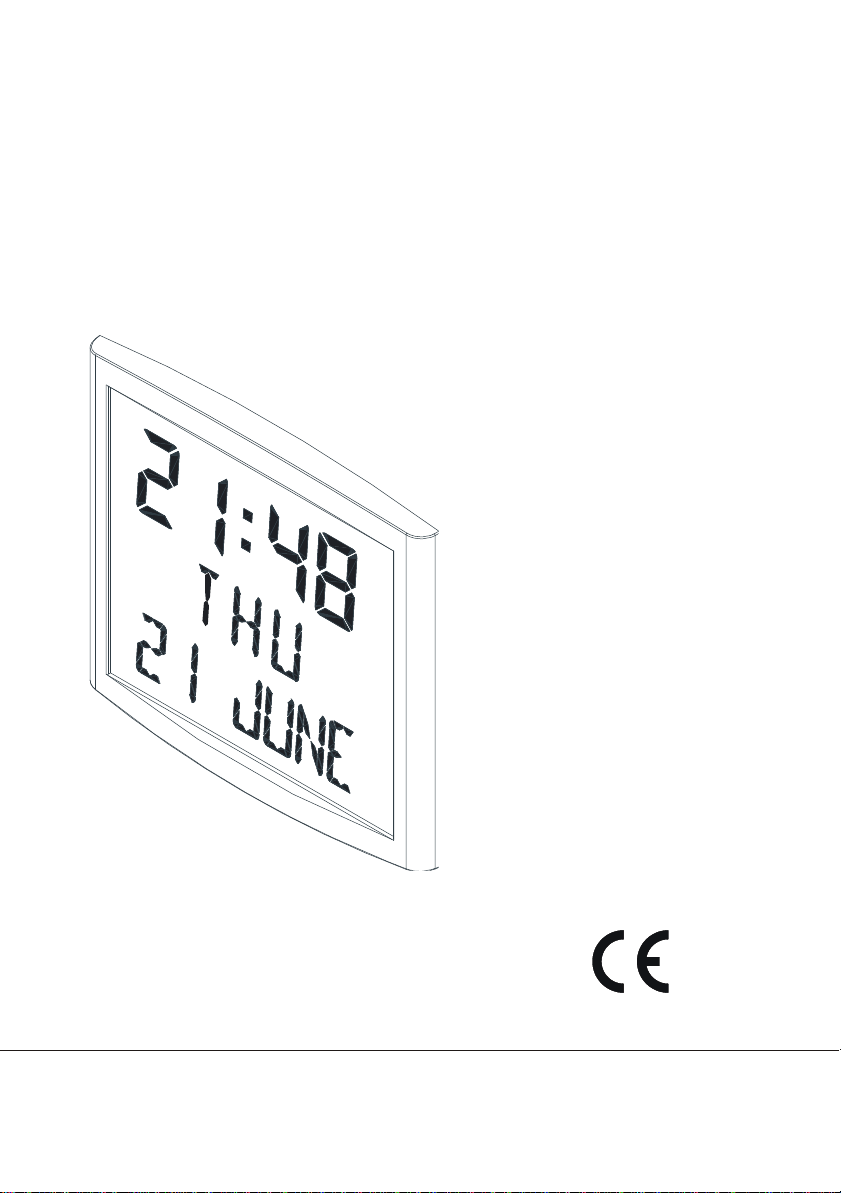

Mobatime MOBALINE Cristalys Date Manuale utente

INSTALLATION AND OPERATING INSTRUCTIONS

INSTALLATION UND GEBRAUCHSANWEISUNG

Cristalys Date

MOBALINE

When receiving goods please check nothing is broken otherwise make a claim near shipping company.

Bitte, vergewissern Sie sich am Empfang der Waren, daß diese keine Schaden erlitten.

Réf.: 605873 C

Table of contents

ENGLISH................................3

I - INITIAL VERIFICATION ........................3

1.1 Unpacking the clock ........................3

1.2 Cleaning ..............................3

1.3 Backup...............................3

II - INTRODUCTION TO THE CRISTALYS CLOCK............4

III - SETTING IN OPERATION - INSTALLATION .............5

3.2 Installation .............................6

IV - TIME SETTING MENU ........................7

V - CONFIGURATION MENU .......................9

Configuration menu ..........................11

VI - PRINCIPLE OF TIME SETTING ...................18

6.2 Annex for time difference .....................19

VII - TECHNICIAN MENU .........................20

VIII - WHAT TO DO IF...? ...CHECK. ..................22

IX - TECHNICAL FEATURES .......................23

DEUTSCH ...............................25

ENGLISH

I - INITIAL VERIFICATION

Thank you for choosing a Cristalys clock.

We advise you to read this manual thoroughly before attempting to manipulate the clock.

These indicate important comments.

Keep this booklet during all the life of your clock, so that you can refer to it each time it is

necessary.

1.1 Unpacking the clock

Unpack with caution and check the contents of the packaging. It must contain :

nThe Cristalys date clock clipped on to its wall holder,

nA fixation kit (2 screws + 2 rawlplugs),

nA cleaning kit (impregnated antistatic cloth)

nThis booklet,

nwith option, a table holder.

Remark : when unpacking, some segments of the clock can be activated. This is not a

default.

The manufacturer accepts no responsibility for any use not in compliance with these

instructions.

Any modification to the product will invalidate the warrantee.

1.2 Cleaning

Use an antistatic product of similar type to the one shipped in the original packaging. Never

use alcohol, acetone or any other solvent liable to damage the casing and filter on your

World clock.

1.3 Backup

All the parameters for the clock are saved permanently.

II - INTRODUCTION TO THE CRISTALYS CLOCK

The Cristalys Date clock is a calendar clock for indoor use.

It displays the hours (in 12 hr or 24 hr mode), minutes and date. It automatically manages

summer-winter time changeovers.

An ECO function enables the display to be switched off at night between 11.00pm

and 06.00am.

It has three menus for making adjustments :

nthe time setting menu ;

nthe configuration menu ;

nthe technician menu, which is reserved for maintenance personnel .

Adjustments can be made using the two push buttons [SEL] and [+] located on the back of

the clock.

Sel.Sel.

°°

ResetReset

Temperature probe

Diag. 1

III - SETTING IN OPERATION - INSTALLATION

3.1 Link-up to a Mobaline distribution network

The Cristalys clocks Mobaline are synchronised by the Mobaline signal.

Time distribution type has to be configured in

the technician menu (see “sync” page 20)

3.2 Installation

nFit the wall bracket using the plugs and screws supplied.

nClip the clock in place on the bracket and secure with the anti-theft locking screw provided

(see Diag.2).

nRemove the protective sheet from the front panel and use the anti-static cloth to clean the clock.

Mounting on vertical bracket or ceiling bracket :

nCristalys clocks can be installed on various types of brackets (ref. 938901, 938907 and

938908). See the installation manual delivered with the bracket.

150

161

100

Diag.: 2

Anti-theft locking

screw

Setting of the table bracket (if supplied)

(in the 2 notches of the wall bracket).

IV - TIME SETTING MENU

4.1 Mobaline synchronised clock

After the clock has been connected to the Mobaline, the screen remains blank during 8-10

seconds before displaying 0h00. The radio pictogram flashes every seconds.

The time on the slave clock Cristalys Mobaline will be set automatically over a period of 4-5

minutes and the radio pictogram is fixed.

After a reset, a time setting or change in configuration, the clock searches until it get

synchronised.

Remark : See the chapter “Technician Menu”

page 20 to parameter to time distribution.

4.2 Time and date setting in independent

mode

The [SEL] button enables you to shift between

the different menus and the [+]1button enables

you to scroll through the setting values.

Each time [SEL] is pressed, the option that is

flashing is validated.

To set the clock to the correct time, proceed as

follows :

1. a On installing the batteries or on the initial powering up, the time is

initialised at 00h00 01/01/2000. Press [SEL] for 2 seconds : the

hour flashes.

b Press [+] until the required hour is shown (the display of hours takes

account of the 12 /24 hr mode, see paragraph 5 page 11).

2. a Validate the hour by pressing [SEL] : the minutes flash.

b Press [+] until the required minute is displayed. To synchronise your

clock to the nearest second, select the current minute +1 and as

the minute pips, validate by pressing [SEL] ;

The internal second counter is then reset to zero and starts up.

3. a Having validated the minutes : the year flashes.

Sel.Sel.

°°

ResetReset

(1)Maintaining pressure on the [+] button for longer enables you to increase the values rapidly

(minutes, hours, days, etc).

b Press [+] until the current year is displayed.

4. a Validate the year by pressing [SEL] : the month flashes.

b Press [+] until the required month is displayed.

5. a Press [SEL] to validate the month : the day flashes.

b Press [+] until the chosen day is displayed (Scrolling of the days

takes account of the month and year selected (leap years)).

6.a To conclude time setting, press the [SEL] button.

Caution : At any time by holding down [SEL] then :

pressing [+] quickly, will return you to normal display mode.

pressing [+] for longer (more than 3 seconds), will take you to the configuration menu.

If no buttons are pressed for a period of over 10 minutes, the clock automatically returns to

normal time display mode.

V - CONFIGURATION MENU

This mode enables you to select the different modes : 12 /24 hr, Eco, language selection, type of

display, summer-winter time zone and time difference. With the different languages, there are no less

than 4 million display possibilities offered by your calendar clock. We only give the simple functions

below, but by combining them, you can find them all.

To programme your clock, select the display option below then go to the paragraph

“Advanced Functions” page 11.

Standard display on your clock.

Hour

Day of the week

Date

Time display in 12 hr AM/PM mode.

Go into the configuration menu, point “2” (page 11).

Changing the language.

Go to the configuration menu, point “4” (page 11).

Alternating display in 2 languages.

Go into the configuration menu point “4” (page 11).

Display of the central line : To access these

functions, go into the configuration menu, point “5”

(page 12).

seconds temperature day of

the week day number week n°

Alternating display between 2 functions on the second line

To alternate the display between 2 functions, go to

point “4” (page 11).

A single alternating mode is possible, this is why you

cannot display alternating information in 2 languages.

But the alternating display of functions is compatible

with the options (date "DT", event "EV" or world "WO")

for the language selected.

Select and validate the option (otherwise, select “- -”).

Select and validate the following option alternating display “Alt”.

Display of the bottom line :

Digital display of the date.

Go into the configuration menu, point “4” (page 11).

Select and validate the first language, then select and validate the option

“DT”.

Countdown to an event.

Go into the configuration menu, point “4” (page 11).

Select and validate the first language, then select and validate the option

“EV”.

Select the date of this event (year, month, day).

Then select the display mode for this event.

Either fixed validating by FIX or alternated with the date validating by

ALT or alternated with a programmed message validating by ALT PRG.

N.B. when the countdown is finished, the clock returns to displaying the

date.

World Clock.

To display the name of a city as a fixture, go into the configuration menu,

point “4” (page 11).

Select and validate the first language, then select and validate the option

“WO”.

Select and validate the city.

Then select the display mode fixed or alternated with the date.
