USER GUIDE
MOBIUS M9 SORTER
CONTENTS
This User Guide is a comprehensive manual covering the operation and maintenance of the M9 Sorter
machine as of the date of publication. ETEROS TECHNOLOGIES reserves the right to make updates
to the machine from time to time. In the event of an update, this User Guide will remain appropriate
for the safe operation and maintenance of your unit. This User Guide, as well as any documentation
supplied by component manufacturers, are to be considered the information package associated
with this device. Every operator must read and understand the User Guide. The manual should be
located within easy access for periodic review.
5
5
6
6
7
4
9
11
12
8
14
13
16
16
17
15
NOTES:
| CONTENTS |
SAFETY
SAFETY INSTRUCTIONS
DISCLAIMER
WARNING LABELS
SERVICE & REPAIRS
GENERAL SAFETY PRECAUTIONS
INITIAL SETUP
INITIAL ASSEMBLY & INSPECTION
GET TO KNOW YOUR SORTER
WHAT'S IN THE CRATE
GENERAL OPERATION
CLEANING & MAINTENANCE
CLEANING THE MACHINE
PREVENTATIVE MAINTENANCE
SPECIFICATIONS
OPERATION
SAFETY
| CONTENTS |
5
DISCLAIMER
ETEROS TECHNOLOGIES recognizes that the M9 Sorter is a purpose-built machine for processing
cannabis by licensed producers. Please check all municipal, provincial/state, and federal laws and
regulations before using the M9 Sorter. ETEROS TECHNOLOGIES does not promote or condone the use
of processing equipment in any way that may be deemed illegal.
ETEROS TECHNOLOGIES recognizes that our equipment can be used for processing herbs, hops, owers
and many other products. It is not the responsibility of ETEROS TECHNOLOGIES to conrm alternative
applications for our equipment.
©2021 ETEROS TECHNOLOGIES INC. ALL RIGHTS RESERVED. | MOBIUSTRIMMER.COM
SAFETY INSTRUCTIONS
To ensure operator safety while in use, this device includes decaling, guarding, and other safety features.
Operators are encouraged to use caution and best judgment when using equipment. Equipment
should be serviced when required.
To avoid possible damage to the machine and risk of injury to the operator, consult with an ETEROS
TECHNOLOGIES representative to answer any questions.
All operators must read and understand this User Guide and be trained in safe operation and use of the
M9 SORTER. We recommend the owner of this equipment develop a standard operating procedure
specic to each worksite to address any local hazards or other conditions not outlined in this User
Guide. The M9 SORTER must be inspected regularly for damage, component failure, and wear. Results
of inspection activity should be documented.
ETEROS TECHNOLOGIES makes every effort to ensure the M9 SORTER is compliant with all current safety
standards. It is the responsibility of the owner to ensure all municipal, provincial, state, county, territorial,
and federal codes, regulations and standards have been met in each working location.
Do not lend or rent your machine without providing the User Guide. A rst-time operator should receive
practical instruction before using the machine.
This machine is not to be used for any purpose other than those expressly stated in the User Guide,
advertising literature, or other ETEROS TECHNOLOGIES written material pertaining to the M9 SORTER.
MOBIUS M9 SORTER USER GUIDE
6
WARNING LABELS
SERVICE & REPAIRS
Indicates a hazardous situation that, if not avoided, will result in serious
injury and / or death. This signal word is to be limited to the most extreme
situations; typically for machine components that, for functional
purposes, cannot be guarded.
Indicates a potentially hazardous situation that, if not avoided, could
result in serious injury and / or death. It includes hazards that are exposed
when guards are removed. It may also be used to alert against unsafe
practices.
Indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury. It may also be used to alert against
unsafe practices.
Repairs may only be carried out by Eteros Technologies or a designated authorized agent (service
technician).
Should the need arise, please notify us:
ETEROS TECHNOLOGIES
26 Industrial Ave.
Carleton Place, Ontario, Canada
K7C 3T2
www.eteros.com
Improper interfacing, improper repair, or unauthorized modication could result in void warranty claims.
CAUTION:
WARNING:
DANGER:
7
GENERAL SAFETY PRECAUTIONS
©2021 ETEROS TECHNOLOGIES INC. ALL RIGHTS RESERVED. | MOBIUSTRIMMER.COM
1. READ and become familiar with the entire User Guide. LEARN the equipment applications, limitations,
and possible hazards.
2. DO NOT USE THE DEVICE IN A DANGEROUS ENVIRONMENT or damp or wet locations. Never expose
the control panel directly to rain or water. Keep the work area well illuminated.
3. DO NOT use the device in the presence of ammable liquids or gases.
4. KEEP WORK AREA CLEAN. Cluttered areas and workspaces invite accidents.
5. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts. Non-slip footwear is recommended. Wear protective
hair covering to contain long hair.
6. POWER DOWN AND DISCONNECT EQUIPMENT before washing, servicing and when changing
accessories.
7. CHECK FOR DAMAGED PARTS PRIOR TO OPERATION. The equipment should be inspected prior to
use to ensure proper operation in performing its intended function. Check for alignment of moving
parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may
affect its operation. Any damaged part including guards should be properly repaired or replaced.
8. ALWAYS WEAR EYE PROTECTION.
INITIAL SETUP
| CONTENTS |
9
INITIAL ASSEMBLY & INSPECTION
1. Inspect the crate and crate contents to ensure no damage occurred during shipping.
2. Carefully remove M9 Sorter from crate
3. Insert hopper Pins into Adjustment Blocks to lock hopper in position
4. Attach Shelf on the outfeed side of the Sorter by inserting holes on shelf onto pins and pushing down
on shelf to wedge in place.
5. Attach Slide-outs by hooking them onto the edge of the Slide Out Table. This will allow Slide-outs to
be adjustable
6. Once initial assembly is complete, inspect the M9 Sorter to conrm that it is ready to operate:
• Conrm the power cord is in good condition
• Ensure the Sorter Belts are placed properly within pulley grooves
• Ensure Rear Tailgate is properly closed
• Ensure Casters are in the locked position
• Attach Slide-Outs to desired distance for sorting into totes
• Ensure Polycarbonate end covers are in place and Safety sensors activated
• Place a Tote under Slide-outs and on Outfeed Shelf to collect sorted material
MOBIUS M9 SORTER USER GUIDE
10
1. Inspect the crate and crate contents to ensure no damage occurred during shipping.
2. Remove components from the crate.

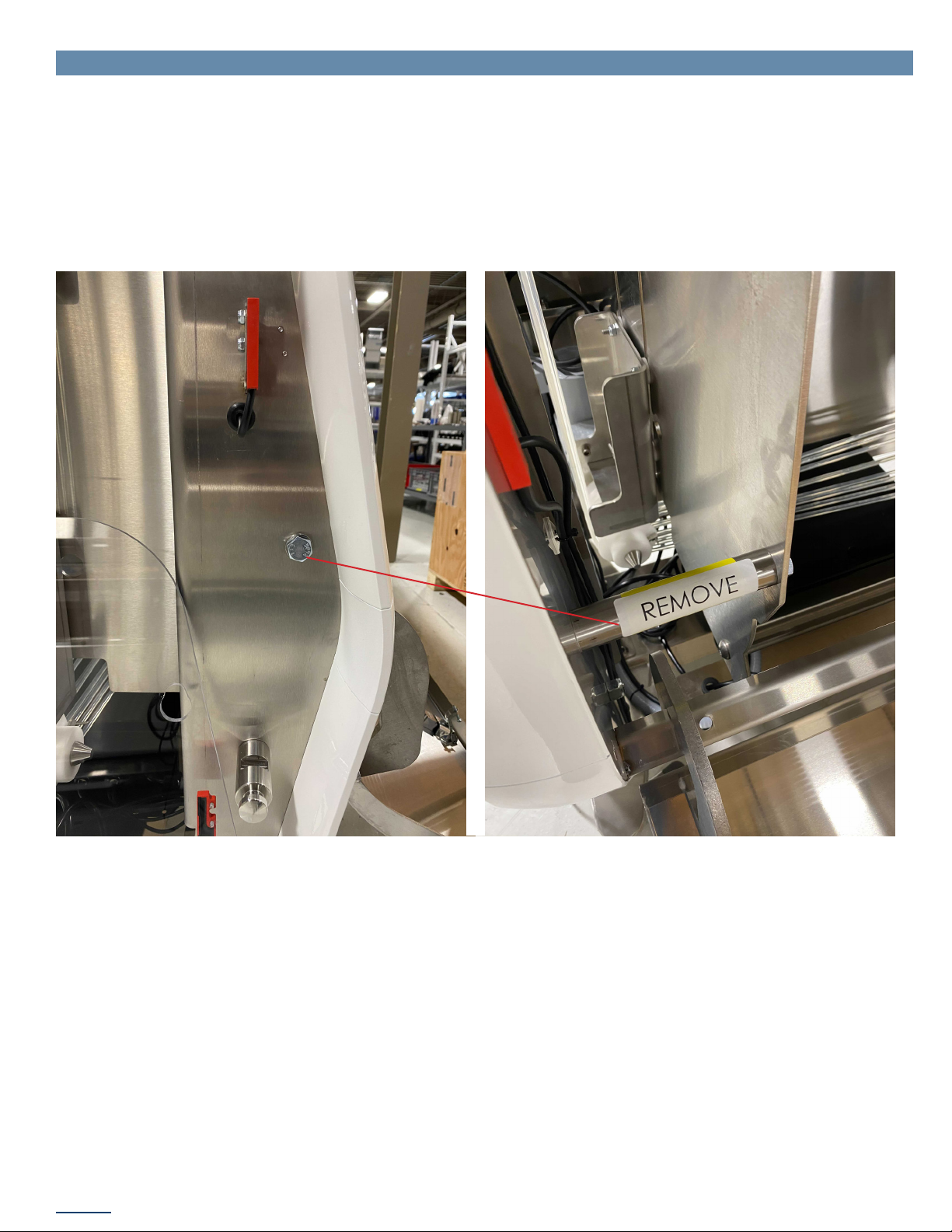

3. The support will need to be removed on either end of the Sorter by removing the hex bolts.
4. If the supports aren't removed, the operator will not be able to disassemble the belts off for cleaning.
©2021 ETEROS TECHNOLOGIES INC. ALL RIGHTS RESERVED. | MOBIUSTRIMMER.COM
THIS SUPPORT IS TO ENSURE NO SAGGING WHILE SHIPPING IN THE INNER PLATE
