Modena Giusto Series Manuale del proprietario

Nomor: IMKG.547.02.2020

User

Manual Book

Portable Cooker

Giusto Series

PC 2721 L

PC 2721 LD

PC 2721

TABLE OFCONTENTS

Part 1: Safety Warnings 2

Part 2: Nameof Parts 3

Part 3: Installation 4

Part 4: How to Use 4

Knob Control 5

How to use the Burner 6

Part 5: Maintenance 7

Stainless Steel Part 7

Grid 7

Burner 7

Part 6: Trouble Shooting 7

Part 7: Precaution 8

Part 8: Specification 9

This guide book explains everything you need to know about your new product.

Please contact our Customer Care should you need further assistance through

www.modena.com

If you do not understand about the procedure installation of gas cooker, you should

contact MODENA Call Center to perform the installation.

Prepare the support equipment required for installation like:

LPG gas cylinder.

Gas hose with a safety standard for lack.

Clamp.

Gas regulator clamp / hose clamp with a lowpressure type.

Matches / gas lighter.

Room air ventilation

The air in the room that will be put gas appliances must have good ventilation so that

air can flow / move smoothly (there is circulation), if the air in the room can Not flow

then the air in the room will contain more combustion of the gas compared to oxygen.

It will cause the flame on the stove / burner is not perfect (a yellow flame because lack

of oxygen). Therefore, the room that will be put gas appliances should have good

ventilation.

PART 1: SAFETY WARNINGS

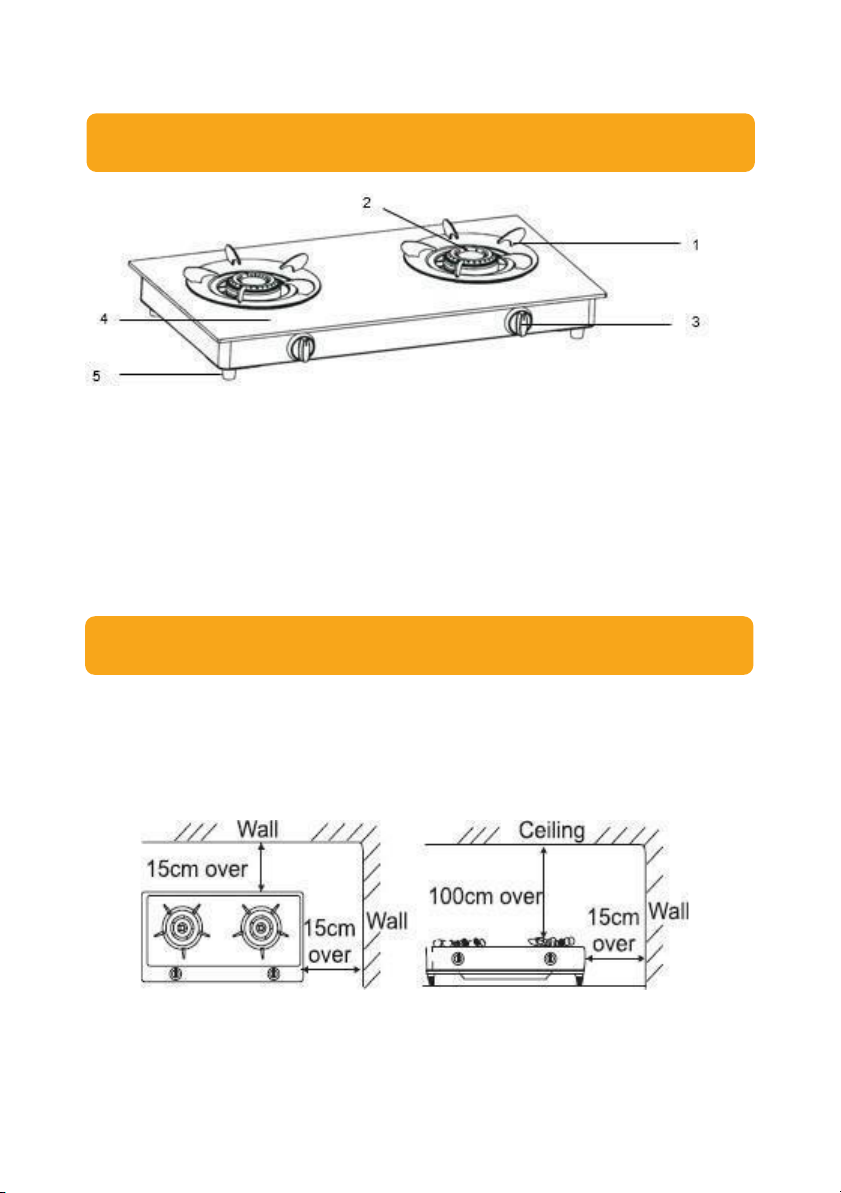

1. Pan support/Grid

2. Burner

3. Knob

4. Tempered glass

5. Feet

Image is a general overview and is not necessarily the same as the product you receive.

The features and product specifications depend on the product type

•Open the stove carton packaging, then take the stove out and put on a flat

surface.

•Stove must be placed at minimum distance of 15cm from side/back wall and

100cm from the ceiling.

PART 2: NAME OF PARTS

PART 3: INSTALLATION

•Insert the rubber hose at the end of the gas cylinder and regulator ot the

other end of the rubber. Try to get as deep as possible then tighten the

rubber hose with hose clamp.

•Open clamp on the gas cylinder. If there is a leak or strong gas smell, close

the gas tap immediately, then open the window so that gas comes out of

the kitchen room.

•The stove is ready to operate.

Knob Control

The amount of gas flow in the burner can be set on the knob as shown below:

OFF

No gas flow/OFF

Maximum gas flow and

Ignition

Minimum gas flow

To decrease/increase the fire on turned on burner:

Turn the knob to position the maximum fire sign or direction of the position of the

minimum fire sign.

To use the minimum fire:

Turn the knob to gas flow –Minimum .

ATTENTION

•To avoid gas leak, please use gas standardized hose with gas safety

device.

•Use the hose and regulator that are specified to avoid gas leak.

•Do not use a high pressure regulator.

PART 4: HOW TO USE

To turn off the fire on burner : Turn the knob to “OFF” symbols.

How to Use the Burner

To use the burner properly, compare the burner diameter with cooking equipment

diameter. Cooking equipment diameter must be proportional to the power of

burner so we can save the gas usage and fasten the cooking process.

Burner

Recommended Pot Diameter (cm)

Small

12–14

Medium

14-20

Large

18-26

Double Ring

18-28

Triple Ring

18-28

ATTENTION

In the event of a gas leak, do not turn on electronic equipment, turn on the

fan or testing by fire. Close the gas valve as soon as possible and open the

whole window/vent.

NOTE

•Cooking equipment with a wide bottom surface will quicken the cooking

process rather than those with smaller surface.

•Diameter of cooking equipment does not exceed the maximum

recommended size based on the above table.

•If the diameter exceeds the size of the cooking equipment that has been

recommended, then the hot stove/burner cannot circulate properly, this

can cause the glass top plate broken.

•Maximum load of cooking equipment and food ingredients are 10 kg.

MODENA gas cooker are designed specifically for long-term use so it does not

require complex treatment. However, there are some recommended steps to

lengthen the prime state.

Stainless Steel Part

Clean stainless steel part with a wet towel or special detergent for stainless

material. After that, dry it with soft towel.

Grid

Part of enameled grid can be wash or put into the dishwasher.

Burner

Burner can be removed and cleaned using soapy water. After cleaning, dry the

burner completely and reinstall it with the right position.

Problem

Possible Cause

Recommended Action

Smell of gas

•Gas leak

•Improper gas hose and

regulator installation

•Perform a gas leak test using soap

water to the gas hose, regulator,and

LPG cylinder, especially on

connection parts.

•Inspectgas hose and regulator, make

sure both are installed properly.

•If the smell of gas is still present,

detach the regulator from the LPG

cylinder and do not light any fire.

Contact MODENA Call Center

immediately.

PART 5: MAINTENANCE

PART 6: TROUBLESHOOTING

Problem

Possible Cause

Recommended Action

Abnormal fire

(red/small/unstable)

Gas supply is

obstructed/interfered.

•Make sure that the holes in the

burner is not clogged withspillovers.

•Clean the burner, including the fire

holes.

Insufficient gas amount

•Inspect the gas amount on the

regulator’s gas indicator. Make sure

the gas amount is still sufficient.

Lack of oxygen supply due

to improper air circulation.

•Make sure that the room’s air

circulation is convenient for gas use.

•

Always lower the heat or turn off the fire before lifting pan from the burner.

•During cooking process, fat or oil must be carefully treated because this

material can get burnt if it reaches a certain temperature.

•When you smell gas, immediately release the regulator from the gas tank, do

not light a fire and immediately contact MODENA Call Center.

•Frequently check the gas hose, to make sure that gas hose is far from hot

surface, and not in bent position. Make sure the outer surface of hose isn’t

cracked so that can be a leakage.

•Always remember that territory around the gas stove can be hot for the long

time (around 30 minutes) after you turn off the gas stove.

•Do the routine service on your built-in oven every 3 (three) month, because if

the is something wrong on your Built-in oven, you can immediately detect and

repair

PART 7: PRECAUTION

TIPE

PC 2721 L / LD / LM

Numbers of Burner

Burners Composition

SS Burner + Brass Burner cap

Ignition Type

Piezoelectric

Heat Input

5.4 KW

Material

Stainless steel + Tempered glass

Color

Black

Gas Type

LPG

Grid type/Pan support

Enameled Pan Support

Product Dimension (L x W) mm

710 x 380

Specifications of this appliance may change without notice to improve the quality

of the product. Pictures in this manual are schematic and may not match your

product exactly. Values stated on the machine labels or in the documentation

accompanying it are obtained in laboratory in accordance with the relevant

standards. Depending on operational and environmental conditions of the

appliance, values may vary.

PART 8: SPECIFICATION

06/21

PT MODENA INDONESIA

Jl. Industri Raya I Blok D-8,

Jatiuwung, Tangerang 15135
