Modena Museo Series Manuale del proprietario
User
Manual Book
Freestanding Cooker
Museo Series
FC 2940 LV, FC 2945 LV
Urbana Series
FC 3952, FC 3955
Carrara Series
FC 5942 S, FC 5642 S
FC 5942 LR, FC 5942 L
Prima Series
FC 7643 S, FC 7943 S
FC 7943 W
Fano Series
FC 8940 S, FC 8640
FC 8943 L, FC 8643 L
FC 8533 L
Cervia Series
FC 9942 S, FC 9642 S
2
TABLE OFCONTENTS
Part 1: Safety Warnings 3
Part 2: Nameof Parts 4
FC 2 Series 4
FC 3 Series 5
FC 5 Series 6
FC 7 Series 7
FC 8 Series 8
FC 9 Series 10
Part 3: Installation 11
Installation 11
Installation in the Kitchen Cabinet 13
Part 4: Howto Use 15
How to UseTop Burner 16
How to Usethe Oven 17
Shelf Position 21
Part 5: Maintenance 22
Enamel Part 21
Stanless Steel Part 21
Grid 21
Burner 21
Lighter and GasSafety Device 21
Removing the Glass from the Oven Door 21
Part 6: Troubleshooting 23
Part 7: Precaution 25
Part 8: Specification 26
Appendix 1 32
Appendix 2 33
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com
3
•If you don’t understand the procedure of installing freestanding
stove, do not hesitate to contact the MODENA Call Center for
installation procedure.
•Prepare the required supporting equipments for installation, for
example:
•LPG cylinder
•Standard gas supply hose with safety leak equipment.
•Hose clamp
•Low-pressure gas regulator
•Gas lighter
•Room ventilation
•The room where gas equipments are to be stored must have proper
air circulation to enable free flow of air. Any room with inadequate
ventilation system will have more emission gas molecules than the
oxygen, resulting in imperfect flammation (flame will become yellow
due to lack of oxygen). As such, make sure that the room where gas
equipments are contained have proper ventilation.
•Prepare easily accessible electrical socket for your stove power cord.
PART 1: SAFETY WARNINGS
4
FC 2 Series
FC 2940LV
FC 2945LV
PART 2: NAME OF PARTS
5

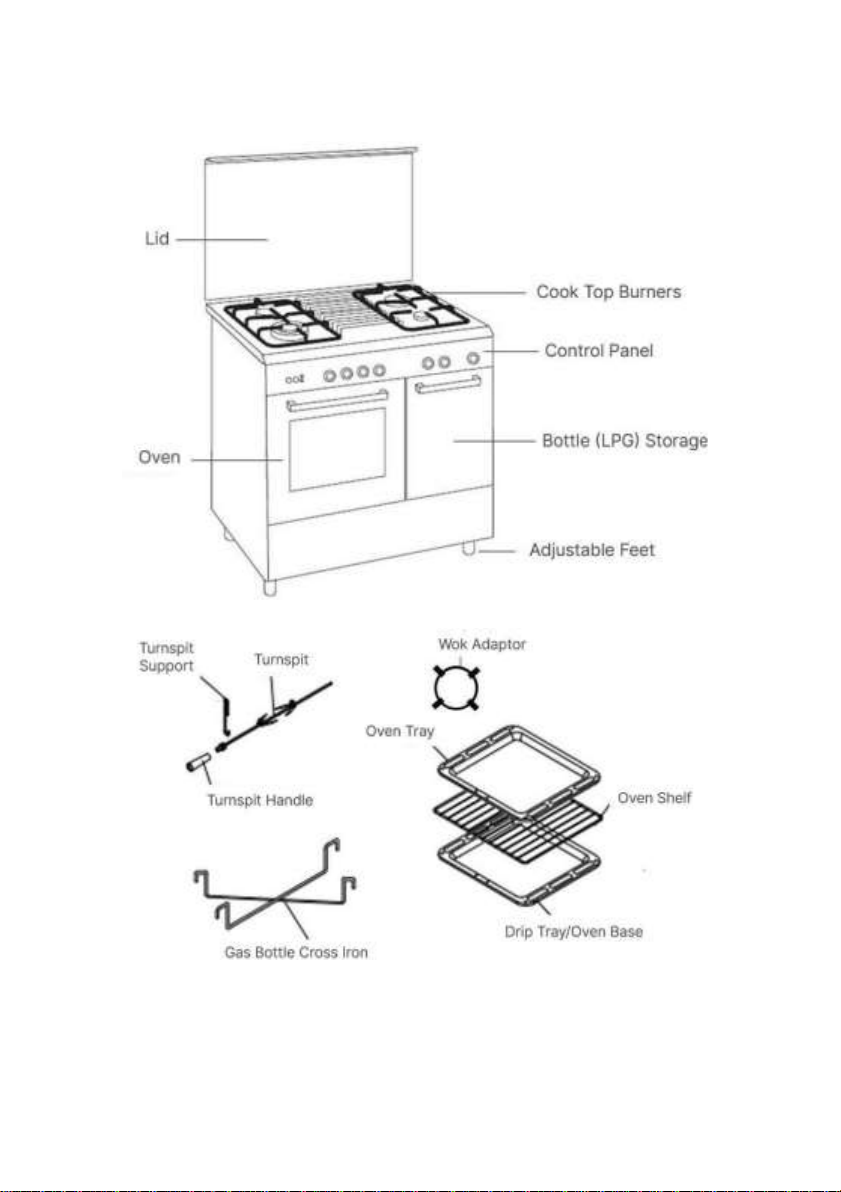

FC 3 Series
6

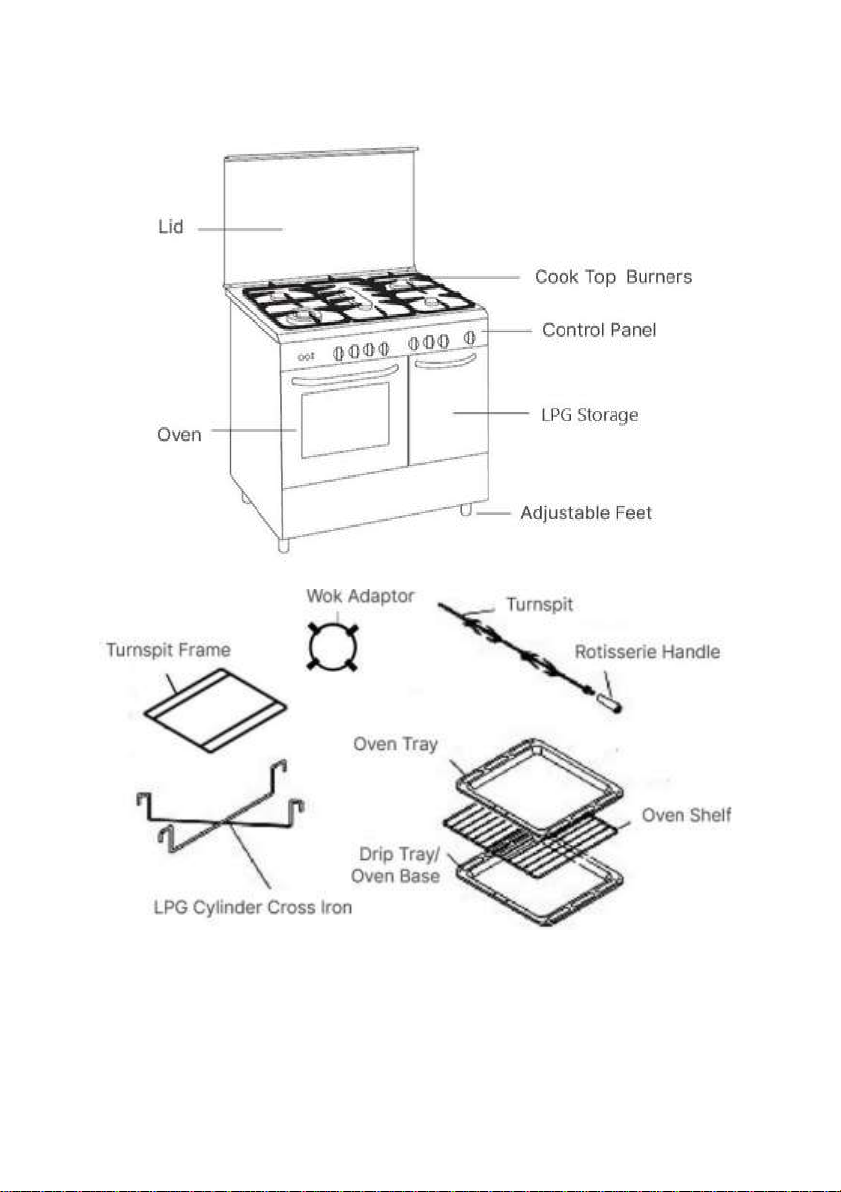

FC 5 Series
7

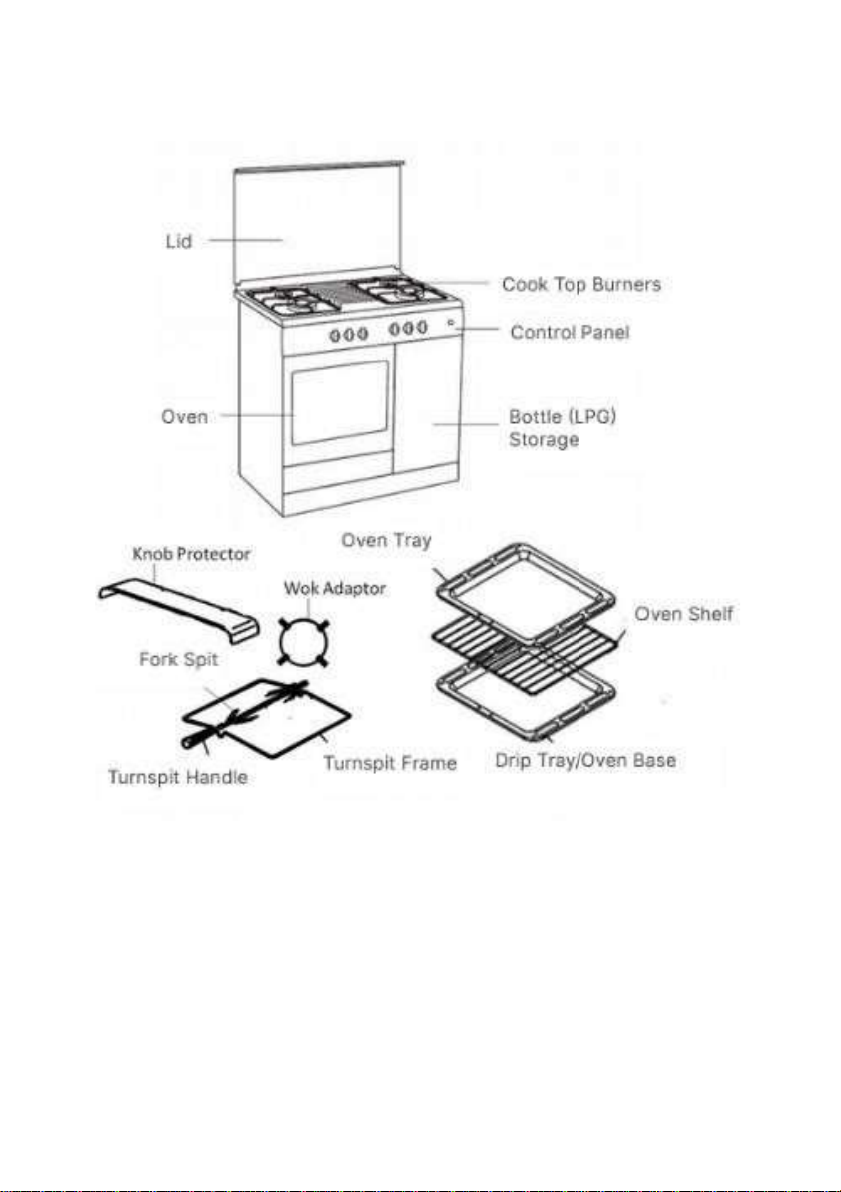

FC 7 Series
8

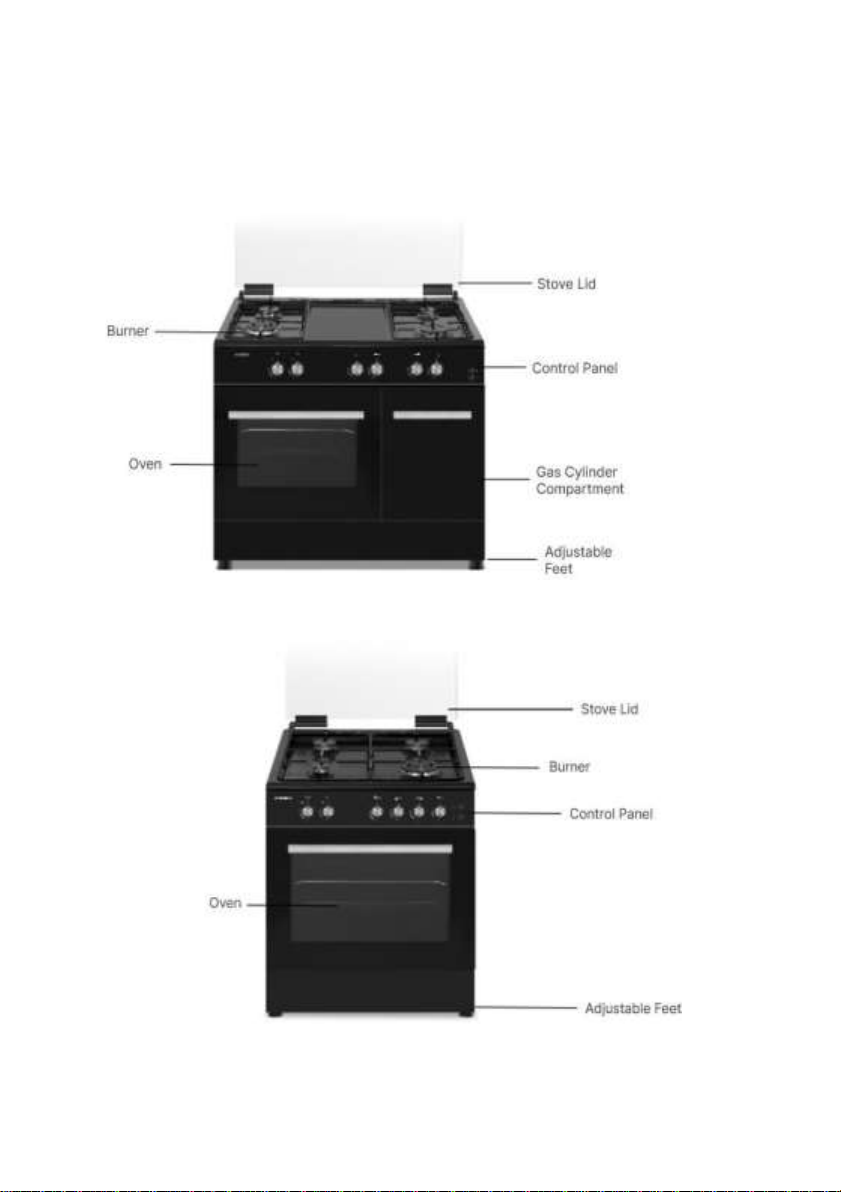

FC 8 Series
FC 8943 L
FC 8643 L
9

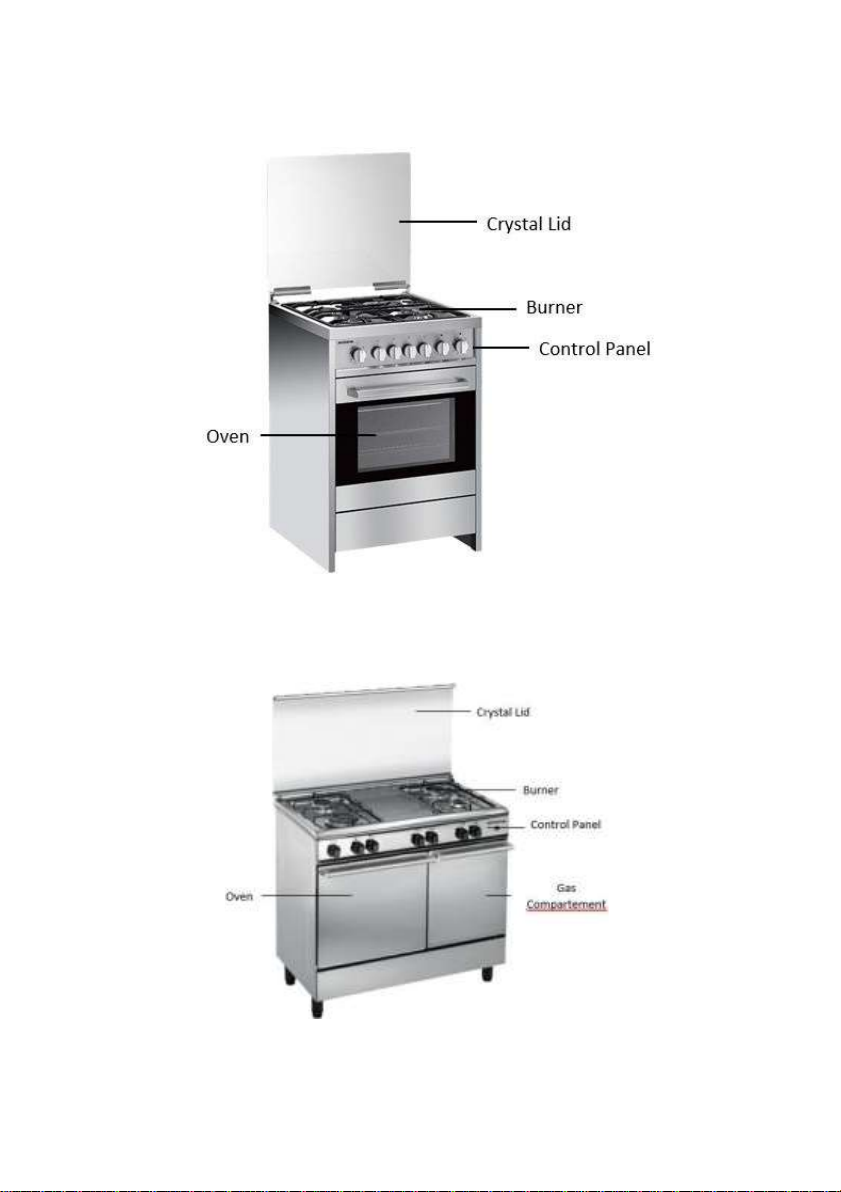

FC 8533L
FC 8940S
10
FC 8640

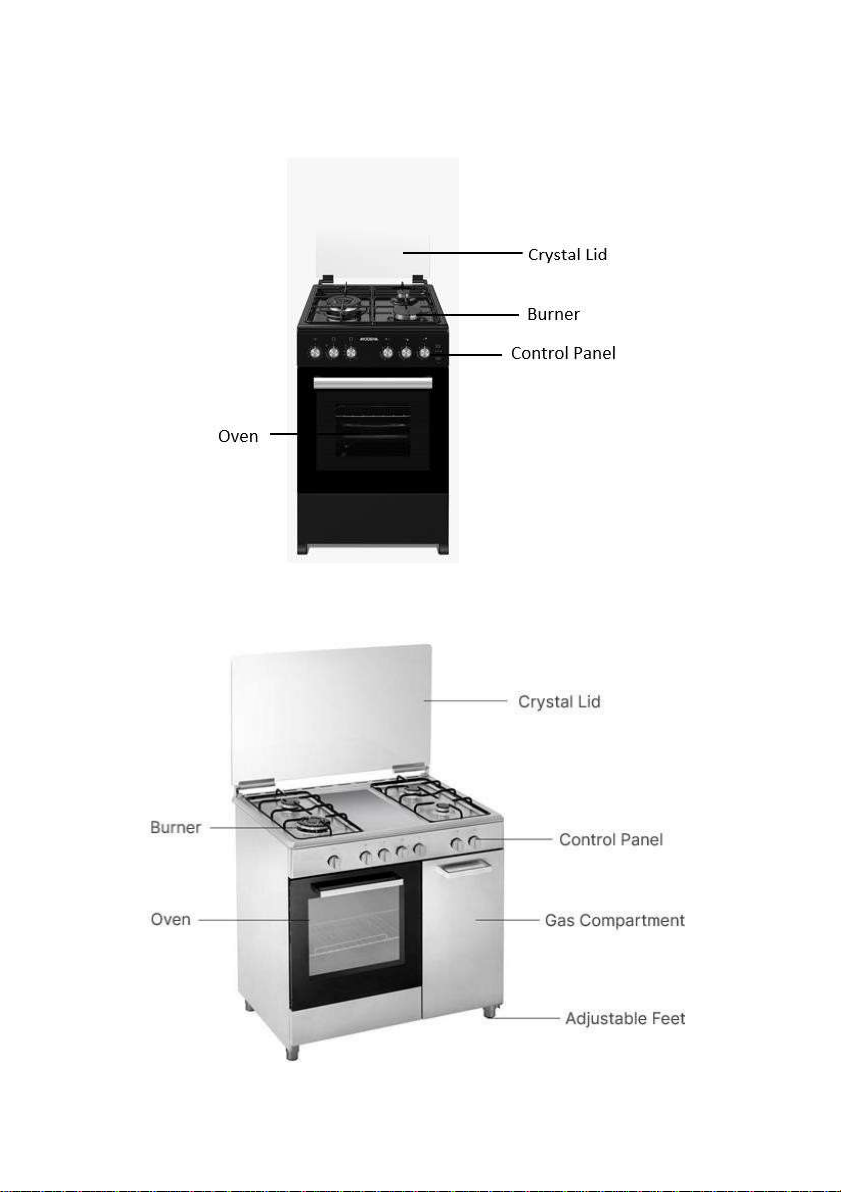

FC 9 Series
FC 9942 S
Questo manuale è adatto per i seguenti modelli
