Modena BH 3958 SAM Manuale del proprietario

User

Manual Book

Built-In Gas Hob

BH 3958 SAM




2

CONTENT PAGE

Part 1: Safety Warnings 3
Part 2: Name Of Parts 4
BH 3958 SAM 4
Part 3: Installation 5
Adjusting The Stove On Kitchen Table 5
Installing The Stove On The Kitchen Table Hole 9
Electrical Connection For Gas Cooktop 11
Part 4: How To Use 12
How To Use The Burner 12
Gas Burners 13
Control Knob 13
Lighting The Burner 13
Model With Electric Ignition Switch United With The Knob 13
Model With Safety Valve 13
Model Without Electric Ignition 14
To Decrease / Increase The Fire On Turned On Burner: 14
To Turn Off The Fire On Burner: 14
Part 5: Maintenance 15
Enameled Part 15
Stainless Steel Part 15
Grid 15
Burner 15
Ignition Plug And Gas Safety Device 15
Part 6: Troubleshooting 16
Part 7: Precaution 17
Part 8: Specification 18

•If you do not understand about the procedure installation of gas

cooker, you should contact your local service center to perform the

installation.

•Prepare the support equipment required for installation like:

•LPG gas cylinder.

•Gas hose with a safety standard for lack.

•Clamp.

•Gas regulator clamp / hose clamp with a lowpressure type.

•Matches / gas lighter.

•Room air ventilation

The air in the room that will be put gas appliances must have good

ventilation so that air can flow / move smoothly (there is circulation),

if the air in the room can Not flow then the air in the room will contain

more combustion of the gas compared to oxygen. It will cause the

flame on the stove / burner is Not perfect (a yellow flame because

lack of oxygen). Therefore, the room that will be put gas appliances

should have good ventilation.

PART 1: SAFETY WARNINGS

BH 3958 SAM

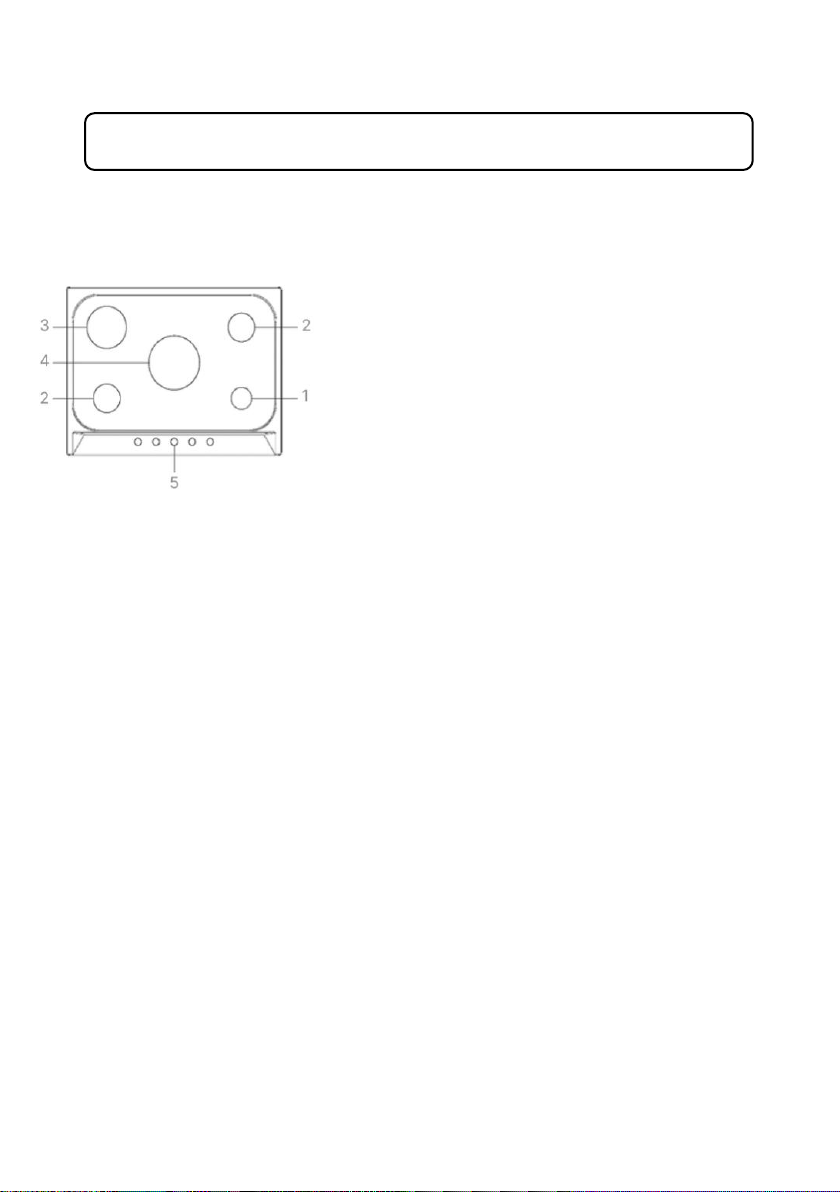

PART 2: NAME OF PARTS

1. Small burner

2. Medium burner

3. Large burner

4. Triple ring burner

5. Control knobs

Positioning for Gas Hob

•The room must be fitted with a ventilation system which vents

smoke and gases from combustion to the outside. This must be done

by means of a hood or electric ventilator that turns on automatically

each time the hood is operated.

•The room must also allow for the influx of the air needed for proper

combustion. The flow of air for combustion purposes must, not be

less than 2 m³/h per kW of installed capacity. The supply of said air

can be affected by means of direct influx from the outside through a

duct with a inner cross section of at least 100cm² which must not be

able to be accidentally blocked. Those appliances which are not

fitted with a safety device to prevent the flame from accidentally

going out must have a ventilation opening twice the size otherwise

required, i.e., a minimum of 200 cm² (Fig. A). Otherwise, the room

can be vented indirectly through adjacent rooms fitted with

ventilation ducts to the outside as described above, as long as the

adjacent rooms are not shared areas, bedrooms or present the risk

of fire (Fig. B).

PART 3: INSTALLATION

In a chimney stack or branched flue.

(Exclusively for cooking appliances)

Directly to the outside

•Intensive and prolonged use of the appliance may necessitate

supplemental ventilation, e.g. opening a Window or increasing the

power of the air intake system (if present).

•Liquidified petroleum gases are heavier than air and, as a result,

settle downwards. Rooms in which LPG tanks are installed must be

fitted with ventilation openings to the outside in order to allow the

gas to escape in the event of a leak. Therefore, LPG tanks, whether

empty or partially full, must not be installed or stored in rooms or

spaces below ground level'(cellars, etc..). It is also a good idea to

keep only the tank currently being used in the room, making sure

that it is not near sources of heat (ovens, fireplaces, stoves, etc.)

that could raise the internal temperature of the tank above 50ºC.

Adjusting the Stove on Kitchen Table

The gas hobs are prepared with protection degree against excessive

heating of type X, the appliance can therefore be installed next to

cabinets, provided the height does not exceed that of the hob. For a

correct installation of the cooking hob the following precautions must

be followed:

Examples of ventilation holes for

comburant air

FIG. A

Enlarging the ventilation slot between

window and floor

FIG. B

•Stove can be installed on the kitchen table as long as the table is

resistant to heat. To make a hole at the kitchen table use cardboard

templates to customize the size. Make a hole should be proportional

not too wide or too small.

•The furniture standing next to the unit, that is highe1 than the

working boards, must be placed at least 110mm from the edge of the

board.

•The cabinets should be positioned next to the hood at a height of at

least 420 mm (Fig. C).

•To ensure the final result in accordance with the installation plan,

before making the planting hole check the distance between the

bottom plate to the top plate.

•Check if the size of the hole on the kitchen table is appropriate to

put the stove.

•If the stove with a top plate of glass will be installed parallel to the

tile, to install make a distance of at least 2 mm for expansion.

•Free area under the stove must be more than 40 cm, and the

distance to objects on the stove should be more than 100 cm.

•It is recommended to use a cabinet / counter with a width of more

than 55 cm, make a hole at the front of the open air circulation

cabinets / counter.

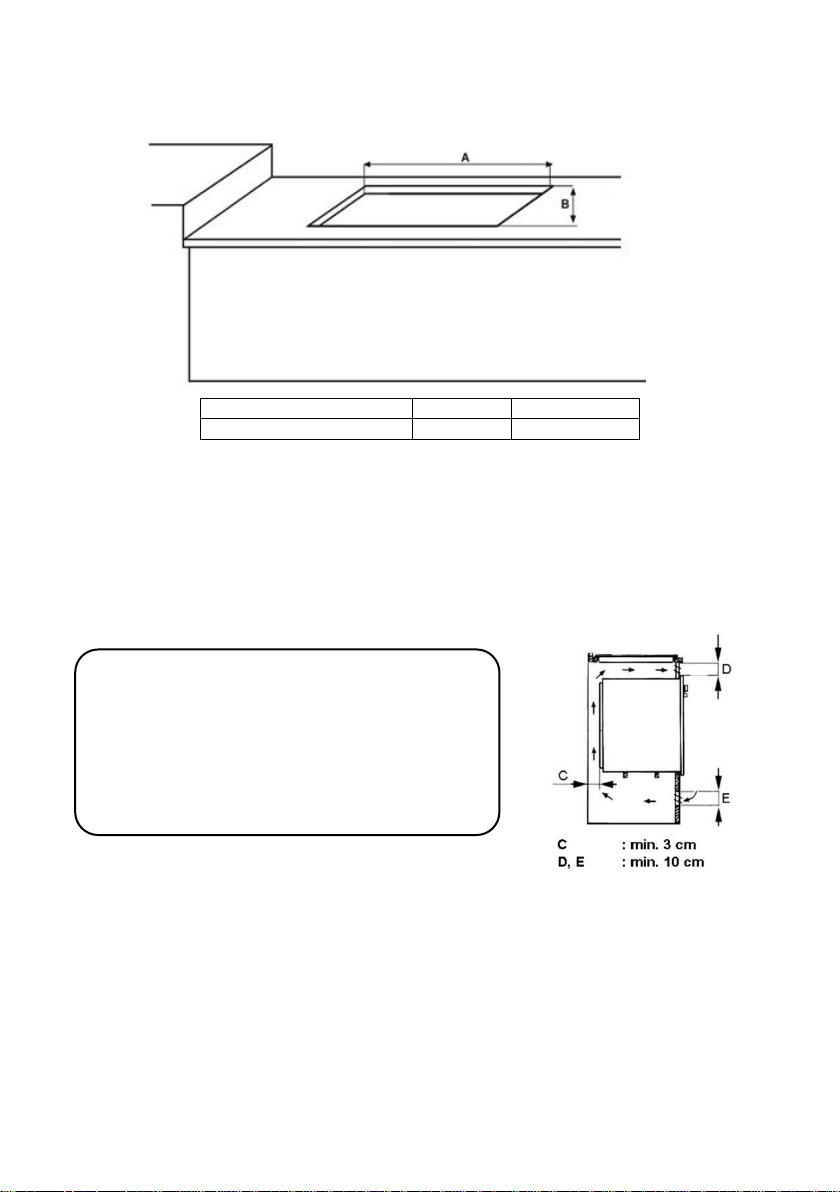

•The size of the hole to put the stove on the kitchen table is as

follows.

FIG. C

•In the event the cooktop is not installed above a built-in oven, a

wood panel must be inserted as insulation. This panel must be

placed at least 20 mm from the bottom of the cooktop itself.

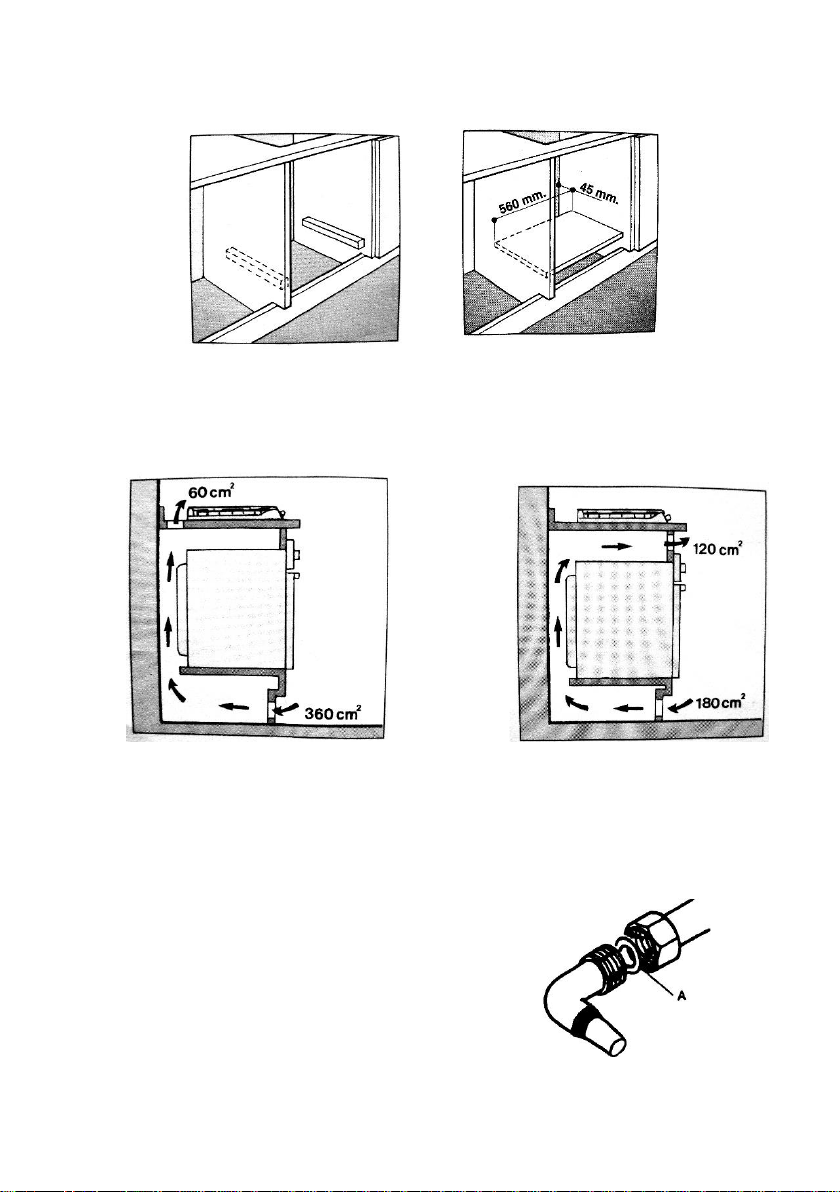

•When installing the hob above a built-in oven, the oven should be

placed on two wooden strips; in the case of a joining cabinet surface,

remember to leave a space of at least 45 x 560 mm at the back.

Type

A(mm)

B(mm)

BH 3958 SAM

827

475

ATTENTION!

If the stove is installed with oven under

heat, separator panel must be placed

under the stove and frame underneath

with a minimum distance of 10 cm.

•When installing on a built-in oven without forced ventilation, ensure

that there are air inlets and outlets for ventilating the interior of the

cabinet adequately.

Installing The Stove On The Kitchen Table Hole

To install the stove in your kitchen table hole, do the followings:

•Connect the hose that connecting the

gas pipe, and tighten using a wrench

•Before installing the pipe that

connecting the gas hose, check and

make sure whether the gasket / seal (A)

has already installed.

•Perform installation properly Elbow,

where the main pipe with Elbow should

use a seal, to avoid gas leakage.

•Use of two pass key 22 & 24 (adjusted)

at the time of going to Elbow perform

installation, test connections with

soapy water, make sure there are no

leaks.

•Installation should be performed by

experienced technicians, all forms of

loss and adverse effects due to

improper installation or MODENA

technician, then it is not be the

responsibility of MODENA.

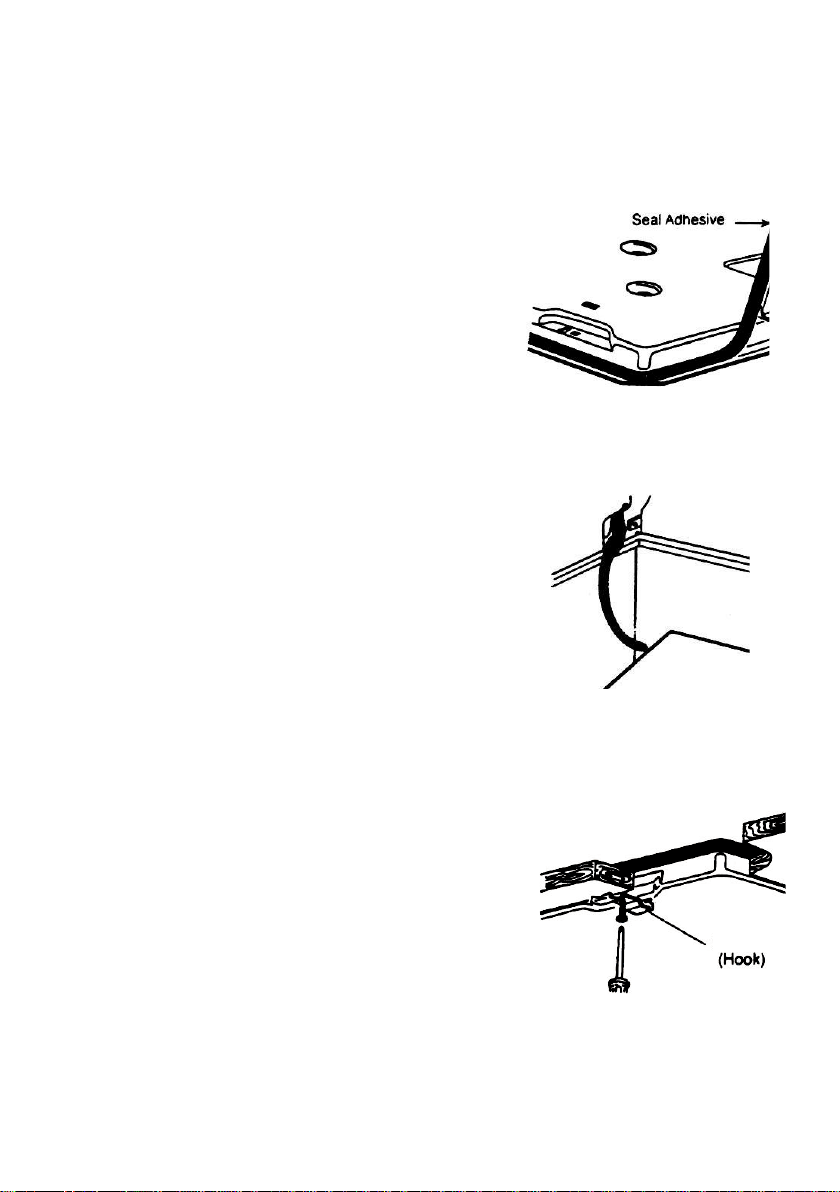

•Embed Seal Adhesive (glue) along the

bottom edge of the stove. It is

necessary to keep the moisture on the

bottom of the stove.

•Connect the gas hose to the stove, and

tighten the connection with the hose

clam p. Then do leak test on the gas

hose connection with your stove.

•Put the stove on the kitchen table hole,

then to tighten use a hook which has

been available on stove packaged

equipment.

•Once the appliance has been installed,

make sure all the connections are

properly sealed, using a soapy water

solution. Never use a flame.
