Modena PX 7111 Manuale utente

User

Manual Book

Slim Hood

PX 9022, PX 9002, PX 9012 V

PX 7111, PX 7001,

PX 6001, PX 6021

PX 6011 V, PX 6111

PX 6031 L, PX 6031 V

TABLE OF CONTENTS

Part 1: Safety Warnings 3

Electrical Shock Hazards 3

Part 2: Name of Parts 4

Part 3: Installation 5

Preparations 5

Hood Installation (Slim Hood) 6

Setting the Air Vents 8

Part 4: How to Use 9

Push Type Button 10

Part 5: Maintenance 11

Regular Care 11

Monthly Maintenance for Grease Filter 11

Maintenance for Carbon Filter 11

Part 6: Problem & Solution 12

Part 7: Precaution 12

Part 8: Specification 13

This guide book explains everything you need to know about your new

product. Please contact our Customer Care should you need further

assistance through www.modena.com

•Do not allow children to operate the unit.

•This exhaust hood is designed for home use only, not suitable for the

environmental condition, bake shop, barbecue, and other commercial

purposes.

•The exhaust hood should be cleaned periodically so that its power is

maintained.

•Clean the exhaust hood according to the instructions contained in this book and

keeps it away from the danger of being burnt.

•No direct grilling on a gas stove.

•Keep your kitchen remains good circulation.

•Before connecting the unit to a power source, make sure the power cord is in

good shape. If there is damage to the power cord, the replacement must be

performed by qualified personnel or contact the MODENA Service Center for

replacement process.

•The room should have good ventilation during the use of exhaust hood on gas

stoves or other fuels.

•The exhaust hood waste pipe should be separated with an air-duct.

•Regulations regarding the air exhaust must be met.

•The unit is not intended to be used by persons (including children) with a

physical, sensory, or mental disability, or lack of experience and knowledge

unless they have been given supervision or instructions concerning the use of

the appliance by the person who is responsible for their safety.

•Children should be supervised to ensure that they are not playing with the unit.

•Do not strike a fire under the sucker of the exhaust hood.

•The exhaust hood is not aimed to be installed on top of the stove that had more

than four burners.

Electrical Shock Hazards

•Connect the unit only to a grounded power socket correctly. If you are in doubt,

ask advice from an experienced technician who is suitably qualified.

•The failure to follow these instructions may cause electric shock, fire, or other

hazards that are fatal.

PART 1: SAFETY WARNINGS

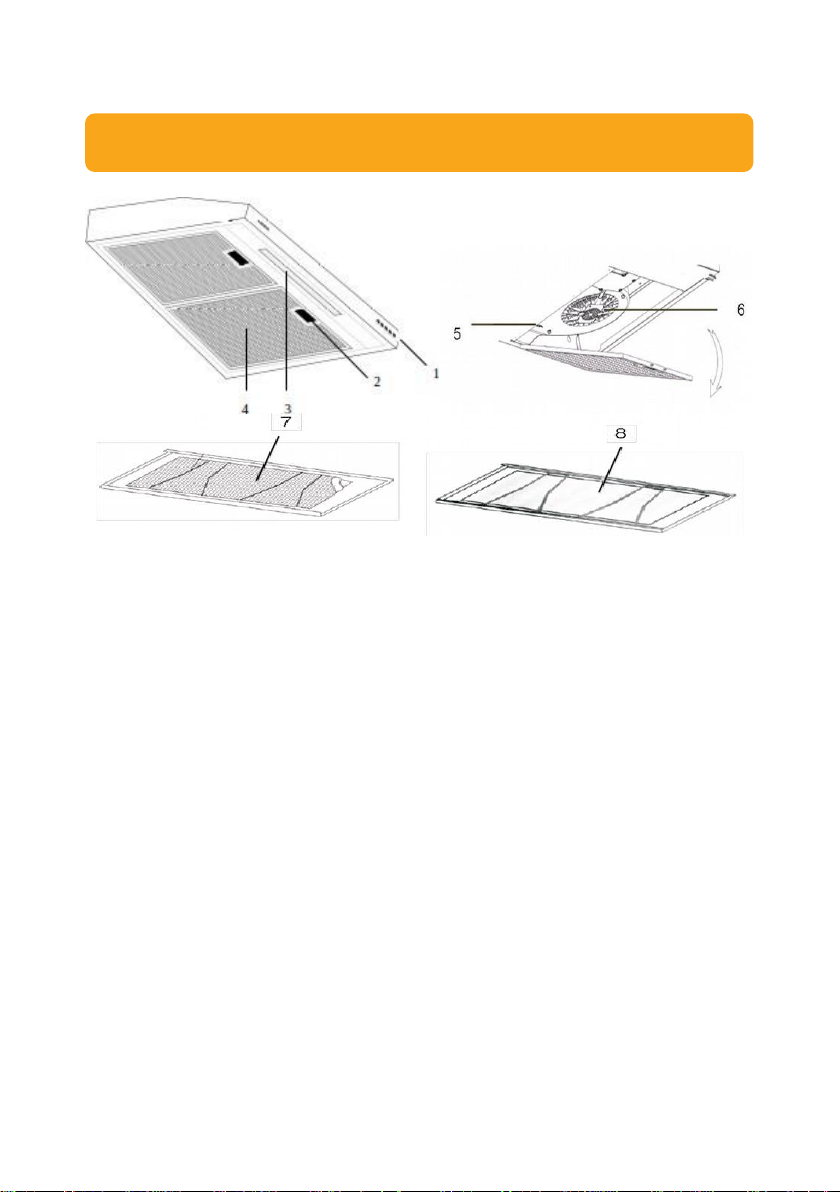

1. Control panel

2. Lock latches

3. Lamp

4. Aluminum filter

5. Air flow direction regulator knob

6. Motor

7. Carbon filter

8. Cassette Aluminum Filter

•The image is a general overview and is not necessarily the same as the product

you receive.

•Features and completeness depends on the type of products.

PART 2: NAME OF PARTS

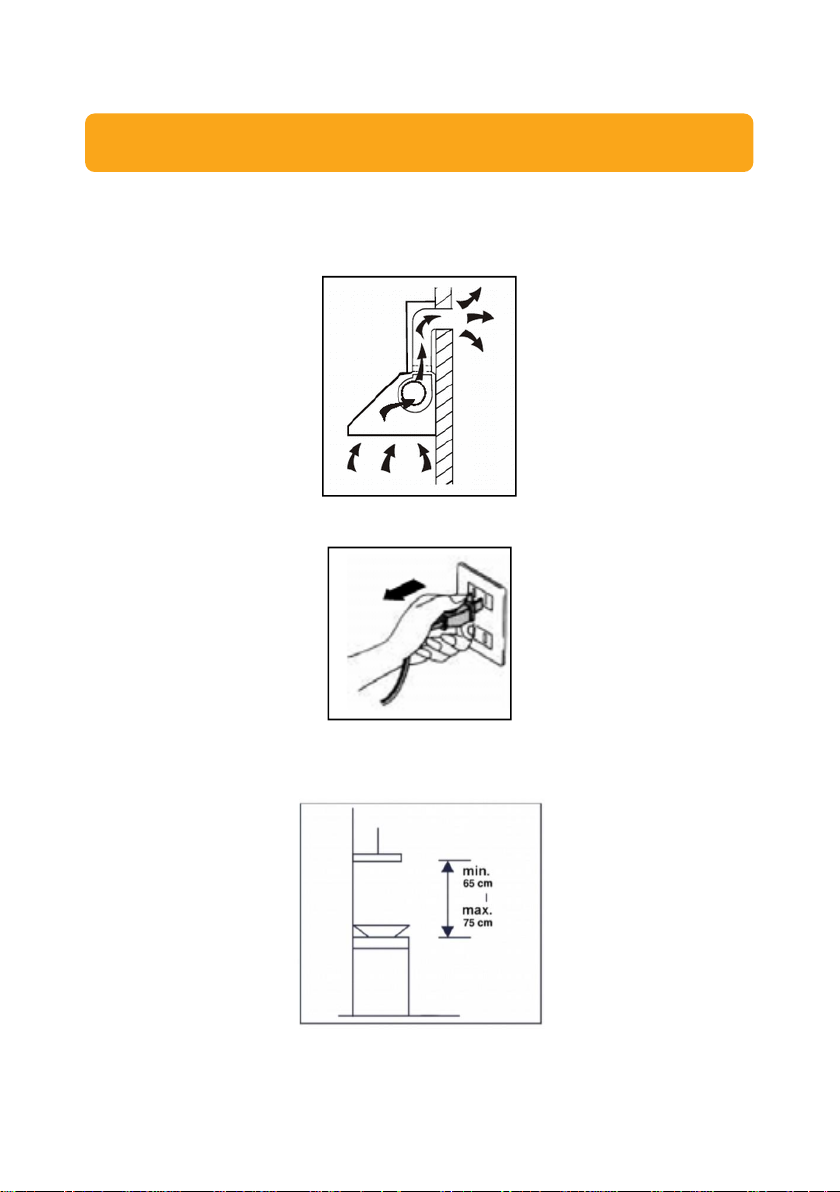

Preparations

1. If you have a waste pipe outside, the cooker hood can be connected using

extraction duct (enamel, aluminum, flexible pipe or a fire-resistant material

with an inner diameter of 150 mm), see the following picture:

2. Before installation, switch off the unit and unplug the power cord from the wall

socket.

3. Installation of the cooker hood should be right on the top of the stove with a

minimum distance of 65 cm and a height of maximum 75 cm from the surface

of the stove.

PART 3: INSTALLATION

Hood Installation (slim hood)

Cooker hood can be installed on a concrete wall or on the bottom of the kitchen

set cabinet wall.

Installing on a concrete wall

1. Make a center line on the wall where it will be placed in the cooker hood.

2. Attach the template to drill the wall. If it is not completed by a template, attach

the cooker hood to the wall and give a sign to make a hole with a center hole

spacing on the back of the cooker hood.

3. Make holes on the two previous signs using a drill bit with the diameter of 8 mm

or the size of the nut. Then insert the nut into the holes.

CAUTION

•Before drilling, make sure that there is no cable, water pipe and

other installations on the walls.

•Put the screw on the two top holes and let a distance of 1 cm

between the screw head and the wall surface.

•Attach the cooker hood on the wall that has been fastened by

screws by hanging the cooker hood on the screws.

•If the position of the cooker hood on the wall is correct, tighten

the two screws.

•Then close the grid.

•Install the safety ventilation using screws 6 mm in diameter.

•Connect the waste pipe with Spigot/ Flange if the cooker hood

will be used as ducting/ exhaust system.

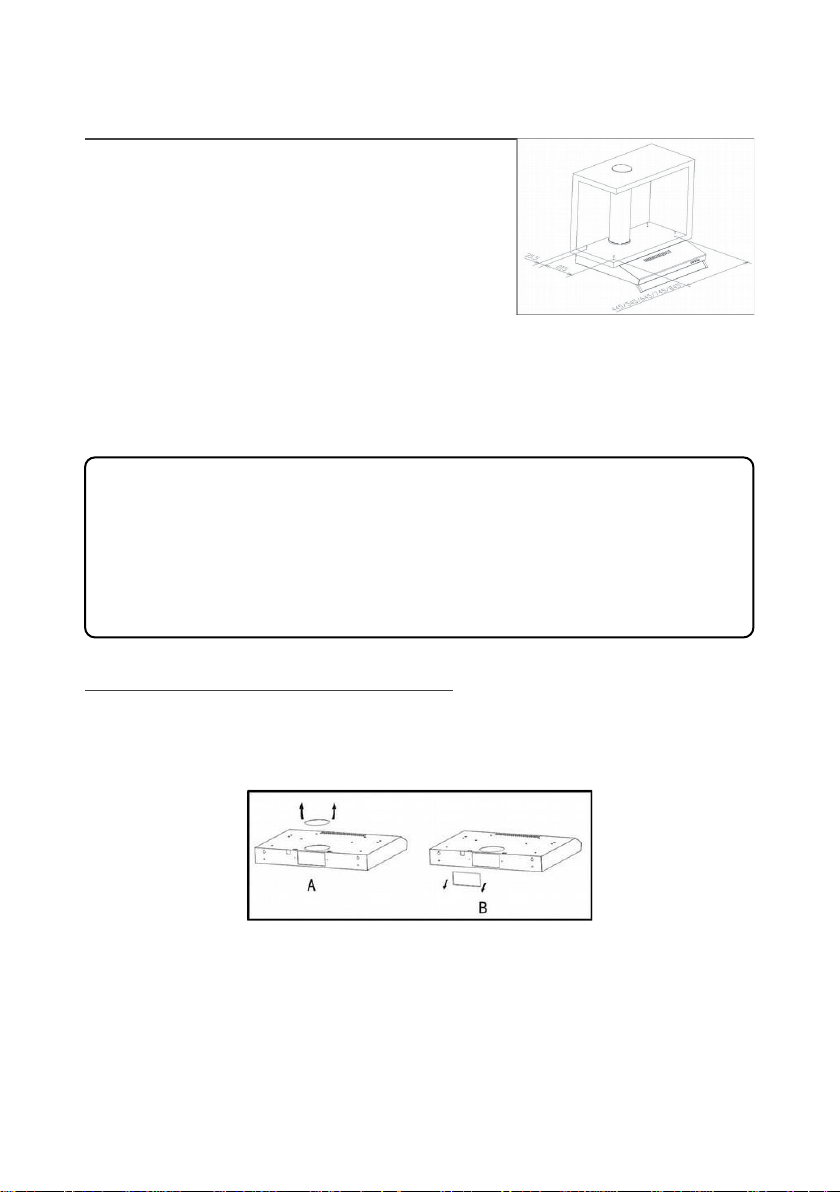

Installing on the bottom of the kitchen set cabinet

1. Place the sucker cap on the bottom of the

kitchen set cabinet in accordance with the

planned position precisely.

2. Make signs at the bottom of the kitchen set

cabinet for flexible pipe holes and then make

the holes if the cooker hood will use the

ducting/ exhaust system.

3. Drill 4 holes with diameter of 6 mm at the appropriate position. Attach the

spigot/ flange and then attach the cooker hood and fasten with 4 screws at the

position that has been prepared.

4. Attach the controller board on the bottom of the cooker hood to prevent the

gap between the cooker hood and the kitchen set.

Please note when doing installation

Open the cover of the outlet at its top to apply vertical ventilation system. See Fig.

A. Meanwhile, applying the horizontal ventilation system can be done by removing

the cover on the outgoing airways on the back of the unit. See Pic.B.

Rectangular outlet for horizontal ventilation is not included.

NOTE

•Pipe extension is an additional accessory, not included in the

unit.

•Remove the protective layer before mounting.

•There are 2 methods of ventilation, that is: 'horizontal ventilation'

and 'vertical ventilation'.

Setting the air vents

MODENA cooker hood has two (2) working way versions that are:

Ducting System:

1. In this version, the cooker hood works

by sucking fumes/ cooking aroma which

then is thrown out through the waste

pipe.

2. It is needed heat/ flame resistant

ducting system is needed to throw away

the smoke/ aroma through the outlet.

3. To connect the cooker hood with the waste pipe, Spigot/flange is used. It has

been provided in every pack of cooker hoods.

4. To use a cooker hood with this system then turn the control knob of the air-

circulation direction to the outside circulation position.

A few things to note for the cooker hood installation using the ducting system:

•Carbon filter should be removed because the sucked cooking aroma will

immediately dump out of the room.

•A suction power will be decreased if the waste pipe is too long and has a lot of

angles.

•Do not connect the waste pipe to a chimney or a room air duct or a hot air duct.

•If the cooker hood is about to be installed in buildings or apartments, preferably

before the installation of the waste pipe, it is consulted first with the

responsible person of the building/ apartment.

•The use of a cooker hood with ducting system should be in an open room with

a good air circulation system.

Recirculation System:

1. In this version, the cooker hood works by sucking fumes/ cooking aroma which

then will be filtered through an aluminum filter and a carbon filter respectively.

The smoke is filtered and then flowed back into the room (recirculation). This

system is used if the cooker hood installation place does not allow the ducting

system installation.

2. To use a cooker hood with this system then turn the control knob of the air

circulation direction to the position of recirculation and install the cover of the

waste pipe.

A few things to note for the cooker hood installation using recirculation system:

•Both carbon filters and filter aluminum should be used.

•The position of the two filters must be precise.

•The holes where the air comes out located on the front of the cooker hood

cabinet should not be closed.

Connect the plug to the power outlet.

Turning on or turning off the cooker hood and cooker hood lights can be done by

sliding or pressing a motor speed regulator button and the lighting button as shown

below.

NOTE

Carbon filters are installed at the rear of the grill and must be

replaced after three months.

WARNING

Carbon filters cannot be washed or recycled. The maximum use of

carbon filters is for 120-hour use and must be replaced afterwards.

Carbon filters should not be exposed to the heat

PART 4: HOW TO USE

NOTE

The setting of the cooker hood motor speed is adjusted to the

thickness of the smoke / steam that arises when cooking.

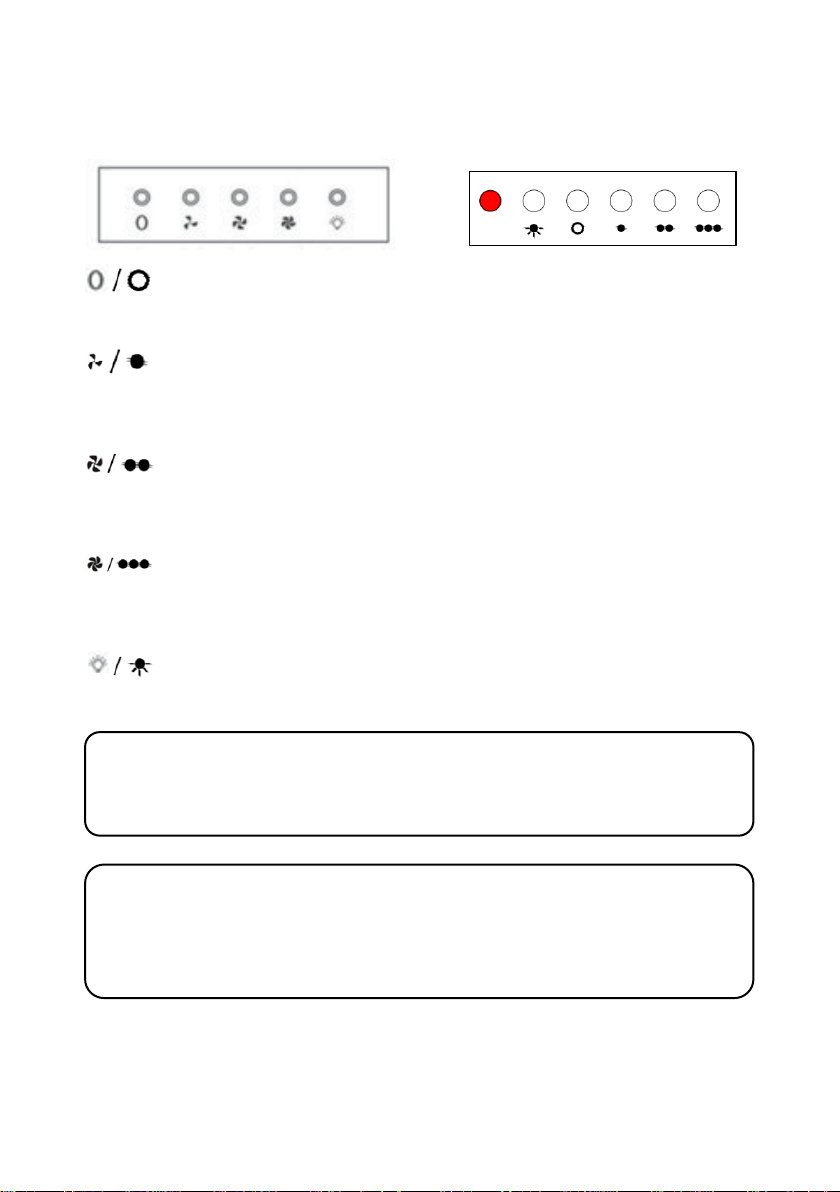

Push Type Button

On/ Off Buttons

The Buttons which are for turning off or turning on the cooker hood

Motor speed button –LOW

Suitable for air circulation used in the kitchen or cooking conditions that

does not cause a lot of smoke or steam.

Motor speed button - MEDIUM

Air circulation speed that is suitable for a cooking process that raises a

medium volume of smoke or fumes.

Motor speed button - HIGH

When the level of smoke or steam produced is high enough, then use a

high-speed level for effective air circulation.

Lamp Button

Button to turn on/off lights

NOTE

If the low/ medium/ high speed button pressed simultaneously,

then the unit will turn on the high speed only.

CAUTION

Avoid a direct contact between the stove being turned on and the

cooker hood. To get the optimal filtering, cooker hood should be

turned off 20-30 minutes after cooking is finished.
