EZ Repair Instructions

Damaged Carrier Locking Pin Assembly

If additional help is needed, please call MoJack Customer Service: 1-877-575-3173.

Review the Product Manual and Parts List for MoJack EZ at www.themojack.com. The detailed breakout

drawing includes all part numbers used in these instructions.

DO NOT attempt any repairs on your MoJack if there is a mower on the lift.

PROBLEM: Damaged Carrier Locking Pin Assembly

Probable

cause: Not pulling out on the Locking Pin when lowering your mower or Key Ring coming off

Solution: Replace Carrier Locking Pin #33

Tools needed:

•Hammer

•Small 1/8 pin punch

•Large 5/16 pin punch

•Two 19mm wrenches or two adjustable wrenches

Steps to make the repair:

Place the MoJack EZ lift on its side and position Crank Handle

#4 so that it cannot move.

•Using a small punch, tap all parts of the existing Roll Pin #32

out of the hole at the bottom of the Lift Screw #1.

•DO NOT try to drill out a broken Roll Pin as it may cause

damage to the hole.

•Remove Flat Washer #27 from Lift Screw.

EZ Repair Instructions

Damaged Carrier Locking Pin Assembly

If additional help is needed, please call MoJack Customer Service: 1-877-575-3173.

Unscrew the Lift Screw out of the Bronze Nut #28 in the Carrier

Assembly #30, by turning the Crank Handle counter-clockwise.

Now that the Lift screw has been removed from the Carrier

Assembly, remove Carrier Bolt #2 (using two 19mm wrenches)

and Rear Carriage Roller #31 which will allow

you to take the Carrier Assembly off of the Tower #40.

•This may require pulling out the Carrier Locking Pin #33 if it

is engaged in one of the locking holes in the Tower.

Remove carrier bolt and roller 

•Examine the locking pin hole for old spring or other metal.

•Oil hole before going to the next step.

EZ Repair Instructions

Damaged Carrier Locking Pin Assembly

If additional help is needed, please call MoJack Customer Service: 1-877-575-3173.

Insert the new Carrier Locking Pin with the new Spring-Locking

Pin #34 from the inside of the Carrier Assembly and fasten in

place on the outside with new Key Ring #35 (Safety Tag #42 is

optional).

•IMPORTANT: new Locking Pin is beveled and must be

inserted with the short part of the bevel on top and the long

part on the bottom.

Insert new locking pin and spring 

Fasten locking pin with key ring 

•Install the Carrier Assembly back on the Tower with the

Carrier Bolt and Rear Carriage Roller.

•This will require pulling out on the Key Ring.

•Caution: do not over-tighten the Carrier Bolt as the Rear Roller

needs to turn freely.

Make sure the two Front Carriage Rollers #29 are in place below

the new Bronze Nut and to the left and right side.

EZ Repair Instructions

Damaged Carrier Locking Pin Assembly

If additional help is needed, please call MoJack Customer Service: 1-877-575-3173.

•Thread the Lift Screw down from the top into the new Bronze

Nut by rotating the Crank Handle clockwise.

•The two Front Carriage Rollers should be on the left and

right of the Lift Screw as it passes below the Bronze Nut.

•Continue rotating until the Lift Screw goes through the

welded tab at the bottom of the Tower.

10)

Apply new Flat Washer on Lift Screw and hammer the new Roll

Pin (bevel end first) into the hole using a large punch.

EZ Repair Instructions

Damaged Carrier Locking Pin Assembly

If additional help is needed, please call MoJack Customer Service: 1-877-575-3173.

11)

•Grease (or oil) top and bottom of new Flat Washer and the

new Lift Screw.

•This might be a good time to do the yearly maintenance on

your MoJack EZ. Consult your Product Manual, page 17, for

the Maintenance Schedule

12)

Before attempting to load your mower, test raising and lowering

the Lift Arm to make sure your MoJack EZ is working properly.

Altri manuali per EZ

Indice

Altri manuali MoJack Sistema di sollevamento

MoJack

MoJack EZ Istruzioni per l'installazione

MoJack

MoJack EZ Guida all'installazione

MoJack

MoJack ZR 350 Manuale utente

MoJack

MoJack EZ Lift Istruzioni per l'installazione

MoJack

MoJack HDL 45501 Istruzioni per l'installazione

MoJack

MoJack PRO Istruzioni per l'installazione

MoJack

MoJack XT Istruzioni per l'installazione

MoJack

MoJack MoJackPRO Istruzioni per l'installazione

MoJack

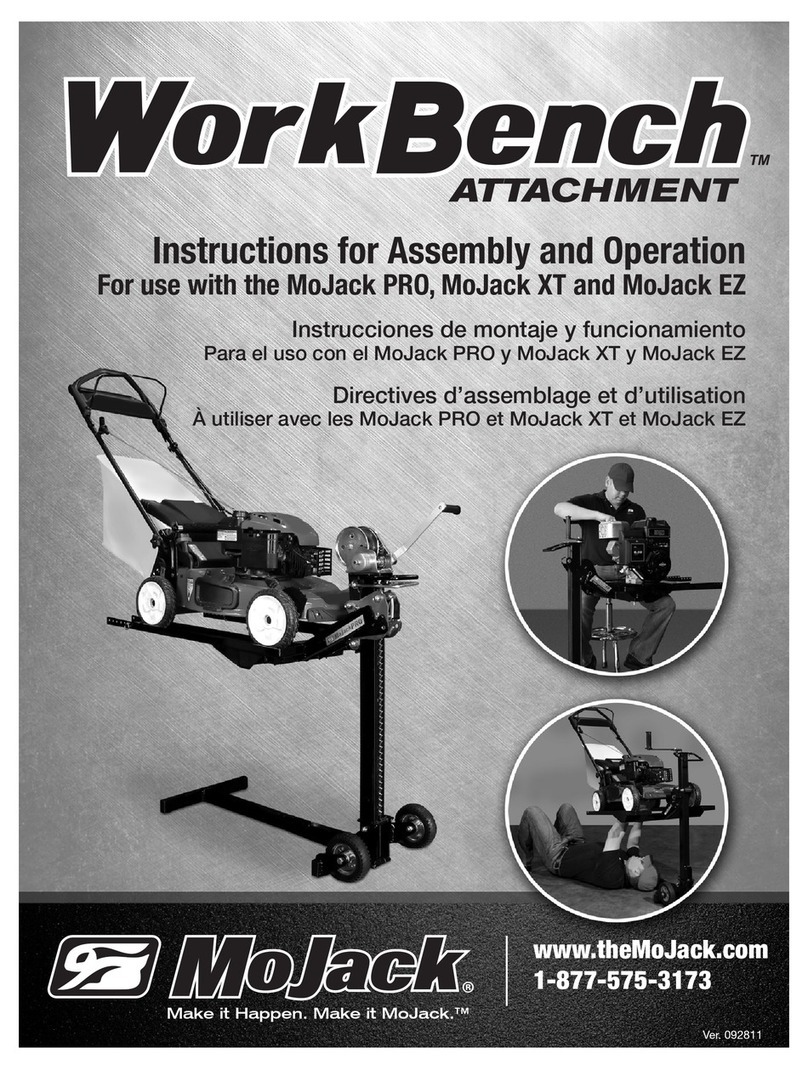

MoJack WorkBench Istruzioni per l'installazione
