Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 1 of 8

Revision: A Revision Date: 12-30-15

INSULATION CRIMP

▲SEE NOTE

BRUSH

STRIP LENGTH

BELL MOUTH

CONDUCTOR

CRIMP HEIGHT

BEND

DOWN

BEND UP

ROLLING

CONDUCTOR CRIMP

TWISTING

CUT-OFF TAB

SEAM

Application Tooling

Specification Sheet

Tool Kit

Order No. 63825-6370

Hand Crimp Tool

Order No. 63825-6300

FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Ergonomically designed soft handles

Precisely designed crimping profiles with simple contact positioning

Easy handling due to outstanding force ratio

Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed

into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.

For 14AWG crimps, use terminals 35725-19x0 and hand tool 63825-6400

SCOPE

Products: Slip-On Wire-to-Wire Terminal, 6.35mm Tab, Male, 16-18 AWG.

Terminal Series No.

Terminal Order No.

Wire Size

Insulation Diameter

Strip Length

Reel Form Only

Wire Style

AWG

In.

35725

35725-1800

35725-1810

UL1015

2.6 –3.2

0.102 –0.126

4.8 –5.2

0.19 –0.21

UL1015

2.5 –3.1

0.100 –0.122

Customer to cut off terminal from reel: 0.18mm (.007”) maximum Cut-off Tab.

DEFINITION OF TERMS

TYPE 4C

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 2 of 8

Revision: A Revision Date: 12-30-15

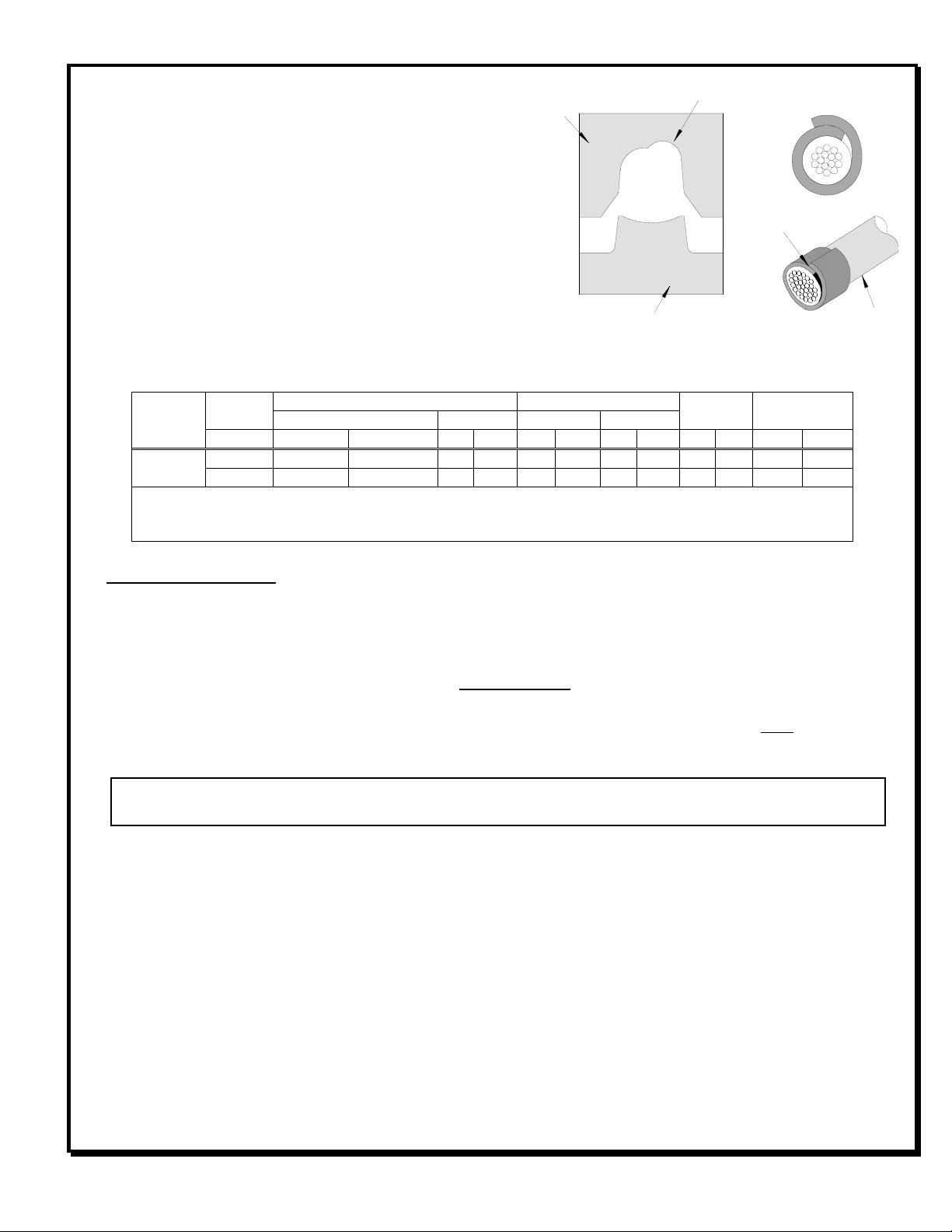

▲Insulation Crimp Note:

Due to the terminal’s insulation grip design and/or

insulation diameter range, this tool uses “overlap” form

geometry in the insulation punch. This produces an

overlap insulation crimp (A620 –compliant). While the

insulation punch profile may appear “lopsided”, this is a

normal condition for this tool. See figure to the right.

(Some tools with multiple crimp pockets may not have

the “overlap” profile on all pockets).

CONDITIONS:

After crimping, the conductor profiles should measure the following (see notes below).

Terminal

Series No.

Wire Size

Conductor Crimp

Insulation Crimp

Pull Force

Minimum

Profile

Height

Width (Ref)

Height (Ref)

Width (Ref)

AWG

In.

Lbs

B (16)

A (18)

35725

1.60 –1.80

0.063 –0.071

2.80

0.110

3.40

0.134

3.80

0.150

133

1.40 –1.50

0.055 –0.059

2.80

0.110

3.20

0.126

3.60

0.142

To Achieve IPC-A-620 Class 2 Crimps, the following over-all wire insulation diameter ranges are recommended:

Profile A (18): 2.5 –3.1mm (0.100 –0.122 inch)

Profile B (16): 2.6 –3.2mm (0.102 –0.126 inch)

Tool Specification Notes:

1. Pull Force should be measured with no influence from the insulation crimp.

2. The above specifications are guidelines to an optimum crimp.

Note:

A crimp height chart is provided with this manual as Reference Only. Due to the wide range of wires, strands,

insulation diameters, and durometers, actual crimp height measurements may vary slightly. An occasional,

destructive, pull force test should be performed to check crimp secureness. The pull force value must exceed the

minimum pull force specifications listed.

CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage

can occur to the tool or die.

INSTALLATION IN POWER ADAPTER

To install the Tool Kit into the Power Crimp Head follow the steps below:

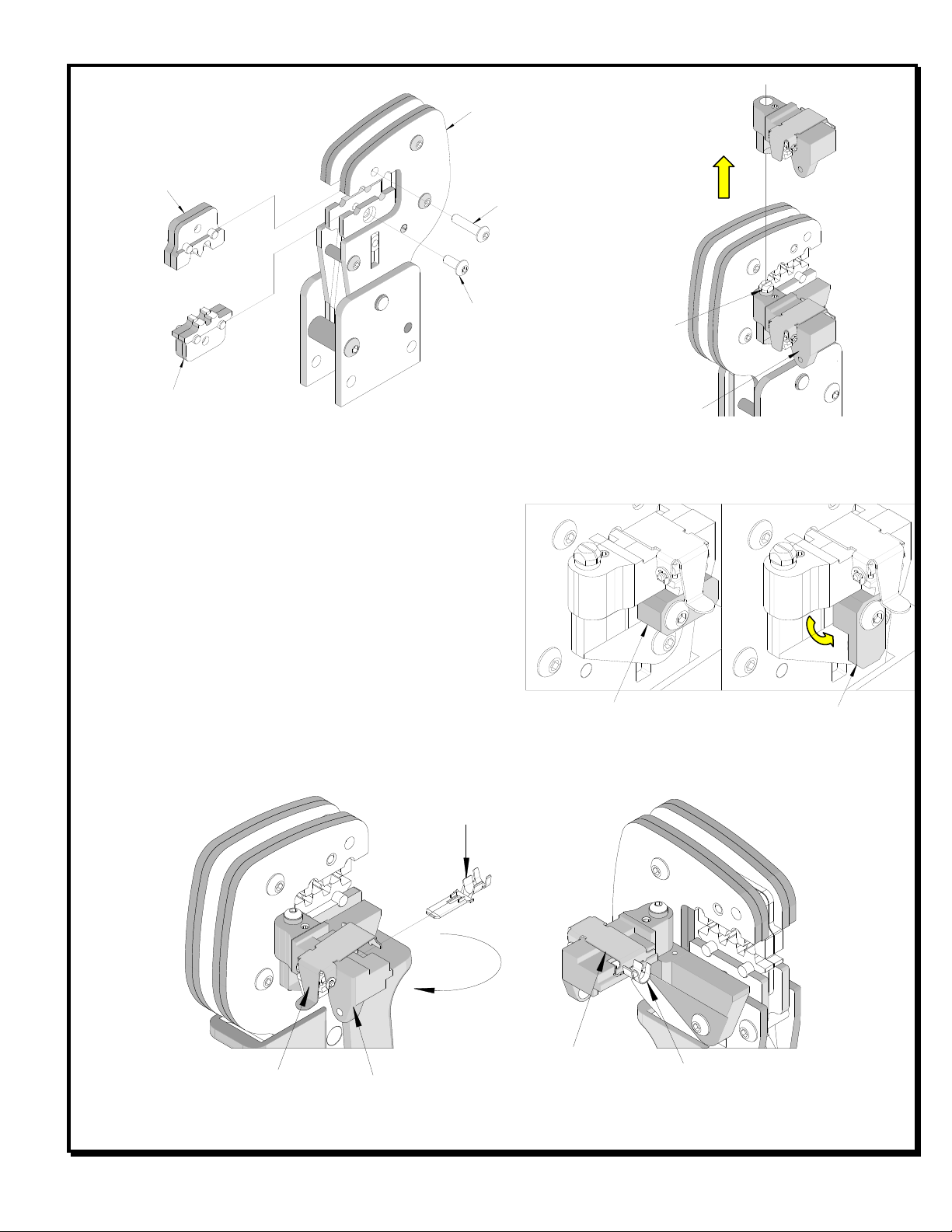

Anvils and Punches Installation

1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place.

2. Insert the Punches into the top slots of the nest. Install the M4 x 18 long BHCS and tighten in place. See

Figure 1.

Locator Installation and Removal

Follow the steps below to install or replace the locator. See Figure 2.

OVERLAP

INSULATION

CRIMP

OVERLAP FORM GEOMETRY

ANVIL

PUNCH

WIRE

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 3 of 8

Revision: A Revision Date: 12-30-15

SWING

LOCATOR

OPEN

PRESS DOWN

ON THE BRASS

PIVOT SHAFT

LIFT UP ON

THE LOCATOR

Figure 2

ANVILS

POWER

CRIMP

HEAD

Figure 1

PUNCHES

M4 X 10 LONG

BHCS

M4 X 18 LONG

BHCS

SWING OPEN

TERMINAL

PUSH HERE TO

OPEN WIRE STOP

LOCATOR

TERMINAL

IN PLACE

Figure 4

LOCATOR LATCH

IN OPEN POSITION

To install the locator

1. Position the locator with the hole over the brass pivot shaft and snap it into place.

To remove the locator

1. Open the crimp hand tool.

2. Swing the existing locator open and away from the

hand tool.

3. Firmly press down on the brass pivot shaft with your

thumb, while pulling the locator up. Slip the locator off

the top of the brass pivot shaft.

OPERATION

Open the tool by squeezing the handles together, at the

end of the closing stroke, the ratchet mechanism will

release the handles, and the hand tool will spring open.

Figure 3

LATCH LOCKED

LATCH UNLOCKED

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 4 of 8

Revision: A Revision Date: 12-30-15

JAWS PARTIALLY

CLOSED

WIRE IN TERMINAL

WIRE AGAINST

WIRE STOP

Figure 6

HANDLE

OPEN

LOCATOR

CLOSED

Figure 5

TERMINAL

PUSH HERE TO

OPEN WIRE STOP

Crimping Terminals

1. Select the desired terminal listed in the preceding charts.

2. Turn the Locator Lock Latch down to unlock. See Figure 3.

3. Swing the terminal locator away from the crimp tool shown in Figure 4. Some terminals with large insulation

grips may interfere with the crimp tooling when swinging the locator into position. The terminal must then be

loaded into the locator in the closed/crimp position. See Figure 5.

4. Press down on the wire stop on the locator as shown in Figure 5. Insert the proper terminal into the proper nest

opening. Make sure when choosing the nest opening, it will correspond with the A, or B profile on the hand tool.

5. Return the locator to its original position.

6. Turn the Locator Lock Latch up to lock. Make

sure that the terminal is visually centered over the

punch.

7. Insert the proper wire over the terminal.

8. Gently touch the wire stop with the end of the

wire. See Figure 6 and 7.

9. Compress the terminal by squeezing the tool

handles until the ratchet mechanism cycle has

been completed. Release handles to open the

jaws.

10. Remove the crimped terminal from the terminal

locator by pressing down on the wire stop and

gently pulling on the wire. The terminal locator

can be in either position.

11. Visually inspect the crimped terminal for proper

crimp location.

Note: The tamper proof ratchet action will not release the tool until it has been fully closed.

For the Battery Power Tool:

1. Cycle the Battery Power Tool to crimp the terminal to the wire.

2. Remove the crimped terminal from the terminal locator by pressing down on the wire stop and gently pulling on

the wire. The terminal locator can be in either position.

3. Visually inspect the crimped terminal for proper crimp location.

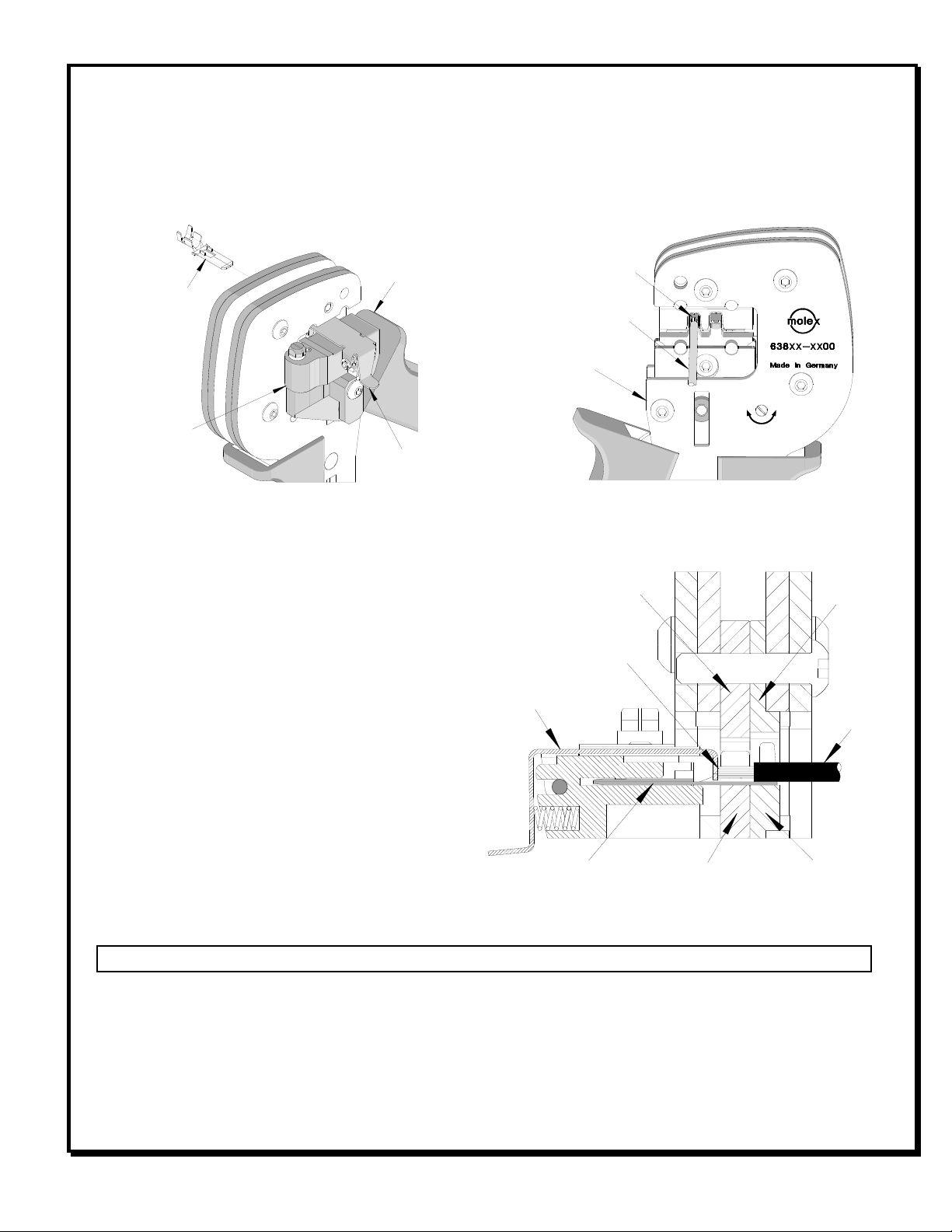

Figure 7

WIRE

INSULATION

PUNCH

CONDUCTOR ANVIL

LOCATOR

INSULATION

ANVIL

WIRES AGAINST

LOCATOR STOP

CONDUCTOR

PUNCH

TERMINAL

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 5 of 8

Revision: A Revision Date: 12-30-15

Maintenance

It is recommended that each operator of the tool

be made aware of, and responsible for, the

following maintenance steps:

1. Remove dust, moisture and other

contaminants with a clean brush, or soft,

lint-free cloth.

2. Do not use any abrasive materials that

could damage the tool.

3. Make certain all pins; pivot points and

bearing surfaces in the tool head are

protected with a thin coat of high quality

machine oil. Do not oil excessively. This

tool was engineered for durability, but like any fine piece of equipment, it needs cleaning and lubrication for a

maximum service life of trouble-free crimping. The use of light oil, such as 30 weight automotive oil, every

5,000 crimps or monthly, will significantly enhance the tool life and ensure a stable calibration. See Figure 8A

or 8B for lubrication points.

4. Store the tool in a clean and dry area when not in use.

Miscrimps or Jams for Crimp Hand Tools Only (See Figure 11)

Should this tool ever become stuck or jammed in a partially closed position, Do Not force the handles open or

closed. The tool will open easily by rotating the small slotted screw marked with an arrow. See Figure 11.

Warranty

This tool kit is for electrical terminal crimping purposes only. This tool kit is made of the best quality materials. All

vital components are long life tested. All tools are warranted to be free of manufacturing defects for a period of 30

days. Should such a defect occur, we will repair or exchange the tool kit free of charge. This repair or exchange

will not be applicable to altered, misused, or damaged tools.

CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling.

CAUTIONS

1. Manually powered hand tools are intended for low volume or field repair. This tool is NOT intended for

production use. Repetitive use of this tool should be avoided.

2. Insulated rubber handles are not protection against electrical shock.

3. Wear eye protection at all times.

4. Use only the Molex terminals specified for crimping with this tool.

CAUTION: Repetitive use of this tool should be avoided.

Certification

Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for

customers to re-certify hand tools.

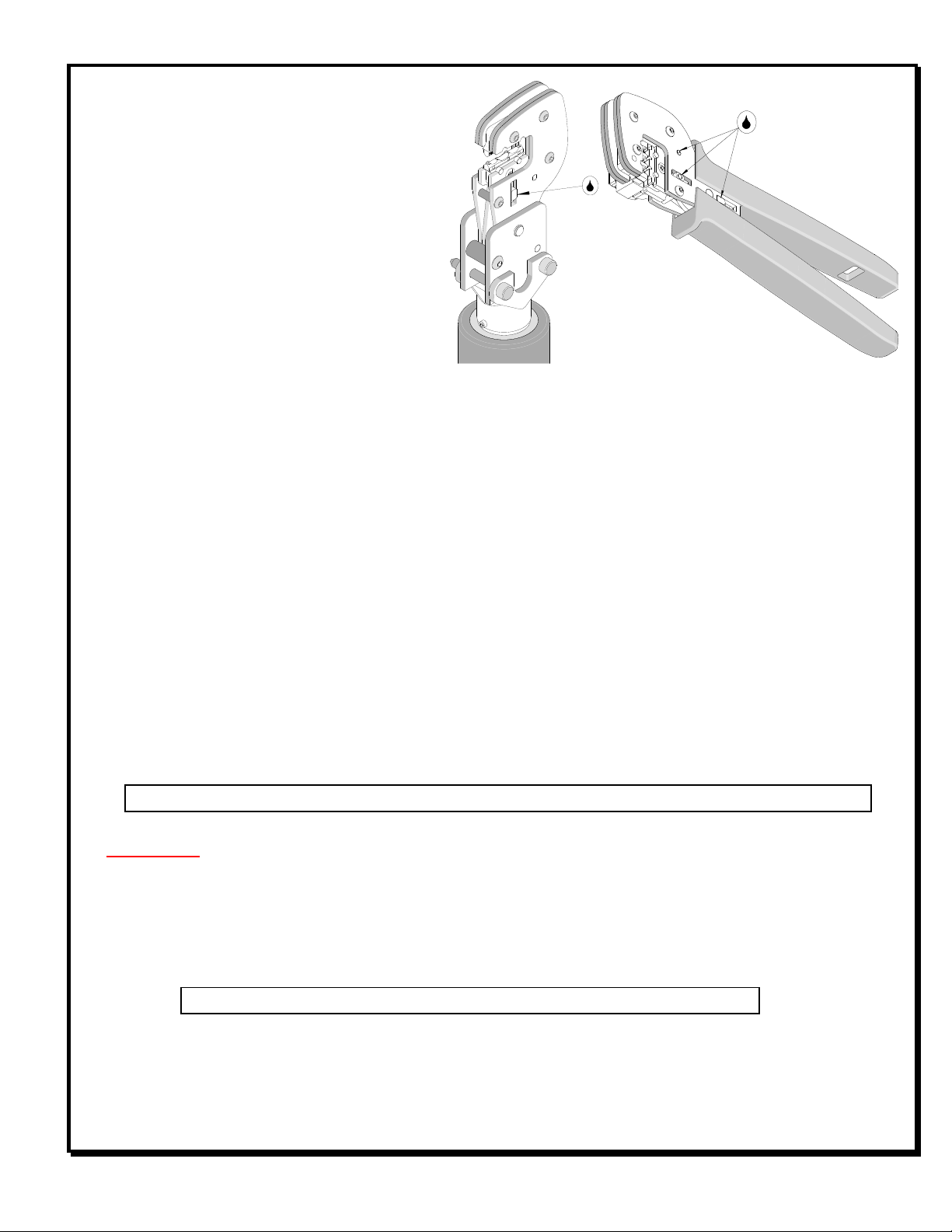

WIRE

LUBRICATION

POINTS

(BOTH SIDES)

LIGHT OIL

(EVERY MONTH

5,000 CRIMPS)

Figure8A

Figure 8B

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 6 of 8

Revision: A Revision Date: 12-30-15

This tool is qualified to pull force only. To re-certify, crimp a terminal to a wire, which has been stripped

12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than

25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull

testing.

When the hand tool is no longer capable of achieving minimum pull force, it should be taken out of service and

replaced.

This tool is very difficult to disassemble and reassemble. Customer repair is not recommended.

The chart below shows all applications for this Tool Kit.

Tool Kit

Order No.

Tool

Order no.

Tool

Description

Power Head

Order No.

Adapter

Description

Figure

No.

63825-6370

63810-1050

Hand Crimp Frame (Short handles)

N/A

63810-1000

Hand Crimp Frame (Long handles)

N/A

63816-0200

Battery Power Tool (110 V)

63816-0300

Power Crimp Head

63816-0250

Battery Power Tool (220 V)

63816-0300

Power Crimp Head

Applications for the Tool Kit

Hand Crimp Tool

Battery Powered Tool

Figure 9

Figure 10

WARNING: NEVER operate service, install tool kits, or adjust the Power Crimp Head without proper

instruction and without first reading and understanding the instructions in the proper Manual or

Specification Sheet. See Chart above for the correct Manual or Specification Sheet.

WARNING: NEVER install tooling or service this tool while it is into any power source. Make sure the

power is turned off.

CAUTION: Keep fingers away from the crimping area when operating this tool. It may cause severe injury.

CAUTION: Wear safety glasses when operating or serving this tool.

POWER

CRIMP

HEAD

LOCKING PINS

BATTERY

POWERED

TOOL

TOOLING KIT

HAND CRIMP

FRAME LONG

AND SHORT

TOOLING KIT

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 7 of 8

Revision: A Revision Date: 12-30-15

RATCHET

RELEASE SCREW

Figure 11

M4 X 8mm

LONG BHCS

M4 X 18mm

LONG BHCS

M4 X 10mm

LONG BHCS

WITH TOOL KIT

LOCATOR ONLY

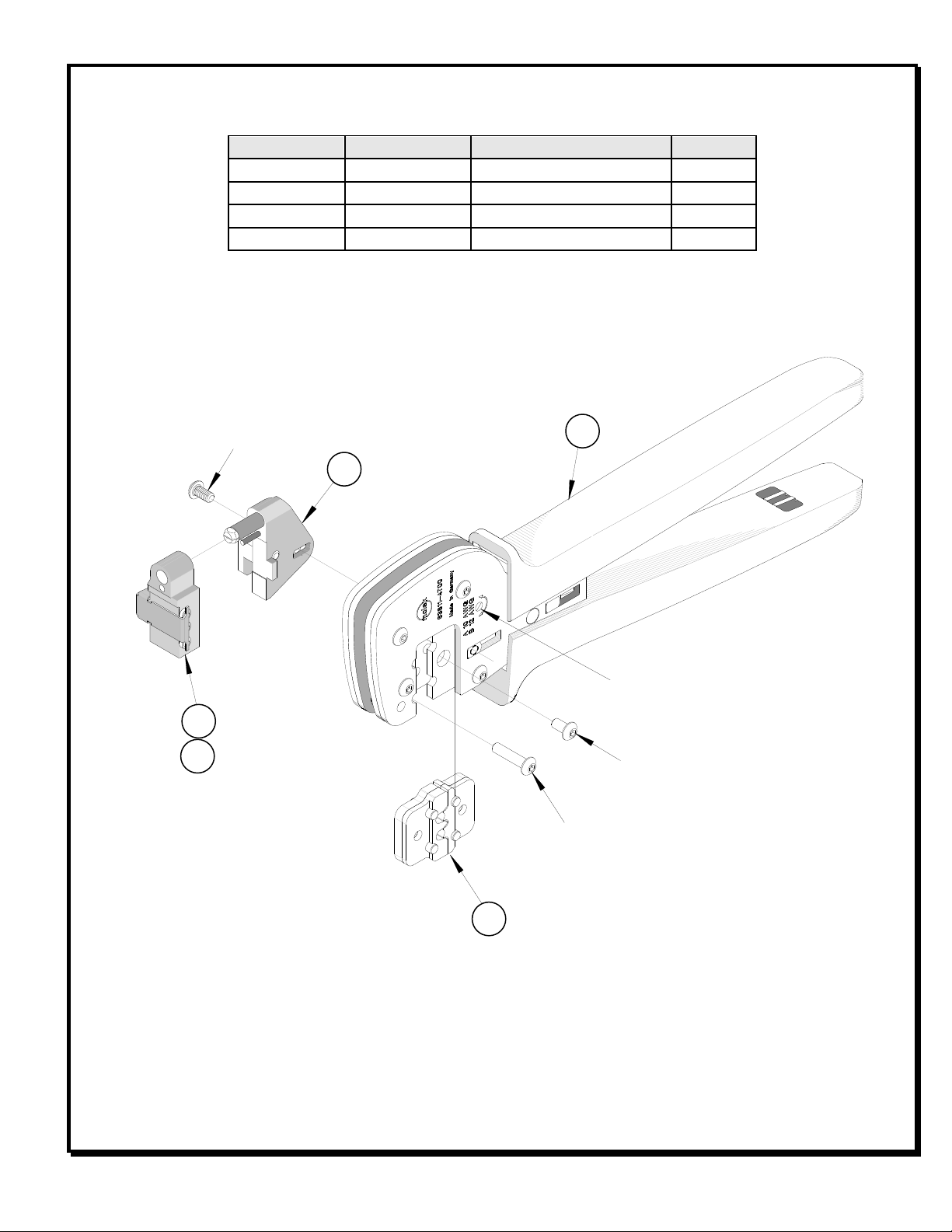

HAND TOOL PARTS LIST

Item Number

Order Number

Description

Quantity

63810-1050

Hand Crimp Frame (Long)

63825-6370

Tool Kit with Locator

63825-5673

Locator Base

63825-6375

Locator (only)

REF

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal

Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 8 of 8

Revision: A Revision Date: 12-30-15

Figure 12

M4 by 8 Long

BHCS

M4 by 18 Long

BHCS

M4 by 10 Long

BHCS

POWER HEAD PARTS LIST

Item

Order No

Engineering No.

Description

Quantity

63816-0300

Power Crimp Head

63825-6370

Tool Kit

http://www.molex.com

Altri manuali per 207129 Series

100

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali molex Utensili per crimpatura

molex

molex 207129 Series Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 63819-1500 Manuale utente

molex

molex 63819-9200 Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 63825-6900 Guida utente

molex

molex 207129 Series Manuale utente

molex

molex 64001-5900 Manuale utente

molex

molex 35465 Series Manuale utente

molex

molex 63811-7200 Manuale utente

molex

molex 63825-6070 Manuale utente

molex

molex CS 150 Manuale utente

molex

molex 63816-0900 Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 63816-0200 Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 63811-5500 Manuale utente

molex

molex 35745 Series Manuale utente

molex

molex 63823-7970 Manuale utente

molex

molex RHT-4754 Manuale utente

molex

molex 63825-7570 Manuale utente

molex

molex 200218-4500 Guida utente

Manuali Utensili per crimpatura popolari di altre marche

Panduit

Panduit CT-1000 Guida per l'amministratore

JST

JST CS 10 Manuale utente

Danfoss

Danfoss ET4200 Manuale utente

Tyco Electronics

Tyco Electronics PRO-CRIMPER III Manuale utente

TE Connectivity

TE Connectivity 2063528-1 Manuale utente

Tyco Electronics

Tyco Electronics 69156-1 Manuale utente

CRH

CRH CRL CBLHCT1 Manuale utente

Emerson

Emerson Klauke ES 105CFM Manuale utente

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Manuale di istruzioni

Danfoss

Danfoss ET4350 Manuale utente

Milwaukee

Milwaukee M18 Manuale utente

HOGERT

HOGERT HT1P169 Manuale utente

Textron

Textron ESG105L Manuale utente

Tyco Electronics

Tyco Electronics 90035-3 Manuale utente

Emerson

Emerson Klauke ES 20RMCCFB Manuale utente

Continental Refrigerator

Continental Refrigerator PC150HD Manuale utente

TE Connectivity

TE Connectivity ERGOCRIMP 1-1579001-3 Manuale utente

Tyco Electronics

Tyco Electronics CERTI-CRIMP 90418-1 Manuale utente
