Molex 207129 Series Manuale utente

Hand Crimp Tool for SPOX™ Terminals

Doc No: ATS-638116500 Release Date: 05-10-06 UNCONTROLLED COPY Page 1 of 6

Revision: B Revision Date: 03-29-08

TYPE 2C

INSULATION

CRIMP

BRUSH

STRIP

LENGTH

LL MOUTH

CRIMP HEIGHT

BEND

DOWN

BEND UP

ROLLING

CONDUCTOR

CRIMP

TWISTING

HAND CRIMP TOOL

SPECIFICATION SHEET

Order No. 63811-6500

FEATURES



A full cycle ratcheting hand tool ensures complete crimps



Ergonomic soft grip handles for comfortable crimping



A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position



This tool is WHMA-IPCA620 Class 2 and RoHS compliant

SCOPE

Products: SPOX™ Crimp Terminal, 18-24 AWG.

Terminal Order No. Wire Size



Insulation Diameter

Strip LengthTerminal

Series No.

Loose Piece



Reel AWG mm² mm In. mm In.

08-70-1030

39-00-0022

08-70-1031

39-00-0409

5194 39-00-0021

39-00-0416

18 - 24

0.80-0.20

1.30-3.00 .051-.118 3.00-3.50

.118-.138



Customer to cut off terminal from reel: 0.40mm (.016”) maximum Cut-off Tab.



See Conditions on page 2.

DEFINITION OF TERMS

The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the

scope.

Hand Crimp Tool for SPOX™ Terminals

Doc No: ATS-638116500 Release Date: 05-10-06 UNCONTROLLED COPY Page 2 of 6

Revision: B Revision Date: 03-29-08

CONDITIONS:

After crimping, the conductor profiles should measure the following (see notes on page 5).

Conductor Crimp Insulation Crimp

Wire Size Height (Ref.) Width (Ref.)

Height (Ref.)

Width (Ref.)

Pull Force

Minimum Profile

Terminal

Series No

AWG

2mm In. mm In. mm In. mm In. N Lb. A B

5194 18 0.80 1.16-1.26

.046-.050

1.70 .067 2.90 .114 2.70 .106 89.0

20.00

5194 20 0.50 0.97-1.07

.038-.042

1.70 .067 2.14 .084 2.70 .106 57.8

13.00

5194 22 0.35 0.97-1.07

.038-.042

1.70 .067 2.09 .082 2.70 .106 40.0

9.00 X

5194 24 0.20 0.97-1.07

.038-.042

1.70 .067 2.07 .081 2.70 .106 28.5

6.40 X

To Achieve IPC-A-620 Class 2 Crimps, the following over-all wire insulation diameter ranges are recommended:

Profile A: 2.00-3.00mm (.079-.118 inch)

Profile B: 1.30-2.50mm (.051-.098 inch)

OPERATION

CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as

damage can occur to the tool or die.

Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will

release the handles, and the hand tool will spring open.

Crimping Terminals

1. Select the desired terminal listed in the preceding charts.

2. Swing the terminal locator away from the crimp tool shown in

Figure 2. Some terminals with large insulation grips may

interfere with the crimp tooling when swinging the locator into

position. The terminal must then be loaded into the locator in the

closed/crimp position.

3. When using the locator, press down on the wire stop on the

locator as shown in Figure 2. Insert the proper terminal into the

proper nest opening. Make sure when choosing the nest

opening, it will correspond with the A or B profile on the hand

tool.

4. Return the locator to its original position.

5. Insert the proper wire over the terminal. Some large O.D. wires may need to be placed into the terminal before

closing the tool. Gently touch the wire stop with the end of the wire. See Figure 3.

6. Compress the terminal by squeezing the tool handles until the ratchet mechanism cycle has been completed.

Release handles to open the jaws.

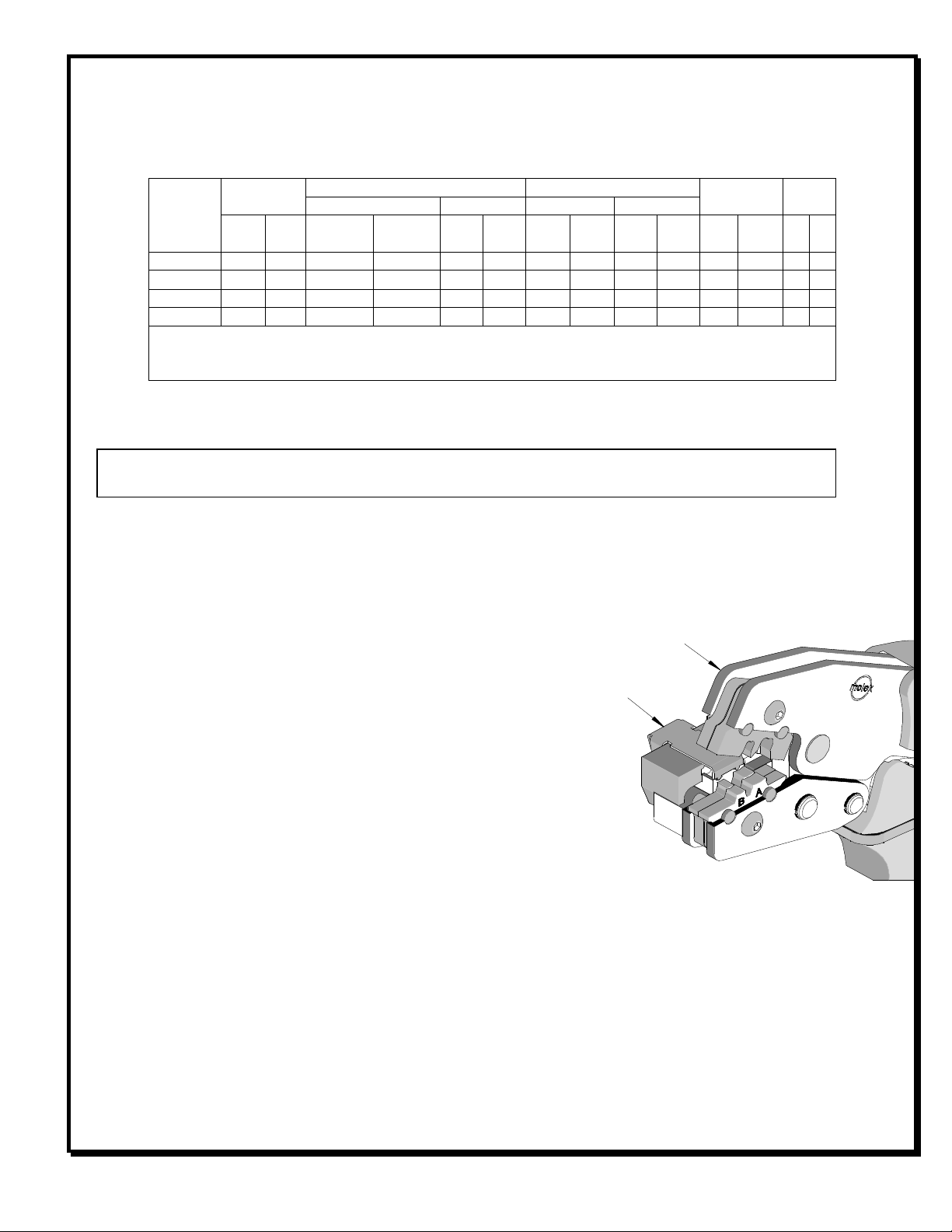

Figure 1

LOCATOR

JAWS OPEN

Hand Crimp Tool for SPOX™ Terminals

Doc No: ATS-638116500 Release Date: 05-10-06 UNCONTROLLED COPY Page 3 of 6

Revision: B Revision Date: 03-29-08

TERMINAL

PUSH HERE TO

OPEN WIRE STOP

SWING OPEN

LOCATOR

TERMINAL IN PLACE

Figure 2

LOCATOR

IN PLACE

WIRE STOP

TERMINAL

WIRE

WIRE STOP

WIRE

AGAINST STOP

Figure 3

Note: The tamper proof ratchet action will not release the tool

until it has been fully closed.

7. Remove the crimped terminal from the terminal locator by

pressing down on the wire stop and gently pulling on the wire.

The terminal locator can be in either position.

8. Visually inspect the crimped terminal for proper crimp location.

Note:

A crimp height chart is provided with this manual as Reference

Only. Due to the wide range of wires, strands, insulation

diameters, and durometers, actual crimp height measurements

may very slightly. An occasional, destructive, pull force test should

be preformed to check hand tool crimp. Pull Force value Must

exceed the Minimum pull force specifications listed on page 2.

Locator Replacement

See the parts list on the last page of this document for the

proper locator order number. Follow the steps below to replace

the locator.

1. Open the crimp hand tool.

2. Swing the existing locator open and away from the hand

tool.

3. Firmly press down on the brass pivot shaft with your

thumb, while pulling the locator up. Slip the locator off

the top of the brass pivot shaft. See Figure 4.

4. Replace it with the proper locator by putting over the

brass pivot shaft and snapping it into place.

SWING

LOCATOR

OPEN

PRESS DOWN ON

BRASS PIVOT SHAFT

LIFT UP

LOCATOR

JAWS

OPEN

Figure 4

Hand Crimp Tool for SPOX™ Terminals

Doc No: ATS-638116500 Release Date: 05-10-06 UNCONTROLLED COPY Page 4 of 6

Revision: B Revision Date: 03-29-08

Maintenance

It is recommended that each operator of the tool be made aware of,

and responsible for, the following maintenance steps:

1. Remove dust, moisture, and other contaminants with a clean

brush, or soft, lint free cloth.

2. Do not use any abrasive materials that could damage the tool.

3. Make certain all pins; pivot points and bearing surfaces are

protected with a thin coat of high quality machine oil. Do not oil

excessively. The tool was engineered for durability but like any

fine piece of equipment it needs cleaning and lubrication for a

maximum service life of trouble free crimping. Light oil such as 30 weight automotive oil used at the oil

points, every 5,000 crimps or 3 months, shown in Figure 6 will significantly enhance the tool life.

4. Wipe excess oil from hand tool, particularly from crimping area. Oil transferred from the crimping area onto

certain terminations may affect the electrical characteristics of an application.

5. When tool is not in use, keep the handles closed to prevent objects from becoming lodged in the crimping

dies, and store the tool in a clean, dry area.

Miscrimps or Jams

Should this tool ever become stuck or jammed in

a partially closed position, Do Not force the

handles open or closed. The tool will open easily

by pressing the ratchet release lever. See Figure

How to Adjust Tool Preload

(See Figure 6)

This hand tool is factory preset to 25-45 LBS.

preload. It may be necessary over the life of the

tool to adjust tool handle preload force. Listed

below are the steps required to adjust the

crimping force of the hand tool to obtain proper

crimp conditions:

1. Remove or fold back the handle grip from the handle to expose the eccentric axle and setting wheel.

2. Remove the locking screw with a 2mm hex wrench. The wrench set (63810-0101), is not supplied. It is sold

separately from the hand tool.

3. Turn the eccentric axle and setting wheel with the wrench or pliers Counter-clockwise (CCW) to increase

handle force.

4. Replace the locking screw, aligning the nearest notch in the setting wheel to locking screw.

5. Replace the handle grip.

6. Check the crimp specifications or conduct a pull test after tool handle preload force is adjusted.

RATCHET

RELEASE LEVER

Figure 6

HANDLE

GRIP

REMOVED

ECCENTRIC AXLE

HANDLE

GRIP

LOCKING

SCREW

WRENCH SET

(SOLD

SEPERATELY)

PRELOAD

CHECK POINT

25.4MM

SETTING WHEEL

LUBRICATION POINTS

(BOTH SIDES) LIGHT OIL

(EVERY 3 MONTHS OR

5,000 CRIMPS)

Figure 5

Hand Crimp Tool for SPOX™ Terminals

Doc No: ATS-638116500 Release Date: 05-10-06 UNCONTROLLED COPY Page 5 of 6

Revision: B Revision Date: 03-29-08

Warranty

This tool is for electrical terminal crimping purposes only. This tool is made of the best quality materials. All vital

components are long life tested. All tools are warranted to be free of manufacturing defects for a period of 30

days. Should such a defect occur, we will repair or exchange the tool free of charge. This repair or exchange will

not be applicable to altered, misused, or damaged tools. This tool is designed for hand use only. Any clamping,

fixturing, or use of handle extensions voids this warranty.

CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling.

CAUTIONS

1. Manually powered hand tools are intended for low volume or field repair. This tool is NOT intended for

production use. Repetitive use of this tool should be avoided.

2. Insulated rubber handles are not protection against electrical shock.

3. Wear eye protection at all times.

4. Use only the Molex terminals specified for crimping with this tool.

Certification

Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for

customers to re-certify hand tools.

%This tool is qualified to pull force only. To re-certify, crimp a terminal to a wire, which has been stripped

12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than

25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull

testing.

%If the tool does not meet minimum pull force values, handle preload should be increased and the pull test

rerun, (See How To Adjust Preload).

%When the hand tool is no longer capable of achieving minimum pull force, it should be taken out of service and

replaced.

Hand Crimp Tool for SPOX™ Terminals

Doc No: ATS-638116500 Release Date: 05-10-06 UNCONTROLLED COPY Page 6 of 6

Revision: B Revision Date: 03-29-08

PARTS LIST

Item Number Order Number Description Quantity

REF 63811-6500 Hand Crimp Tool Figure 7

1 63810-0101 Wrench Set (Not included) 0

2 63810-0102 Locator Base Assembly 1

3 63810-0103 Repair Kit (Not included) 0

4 63811-6575 Locator 1

Americas Headquarters

Lisle, Illinois 60532 U.S.A.

1-800-78MOLEX

[email protected]

Far East North Headquarters

Yamato, Kanagawa, Japan

81-462-65-2324

[email protected]

Far East South Headquarters

Jurong, Singapore

65-6-268-6868

[email protected]

European Headquarters

Munich, Germany

49-89-413092-0

[email protected]

Corporate Headquarters

2222 Wellington Ct.

Lisle, IL 60532 U.S.A.

630-969-4550

Fax: 630-969-1352

Visit our Web site at http://www.molex.com

RATCHET

RELEASE LEVER

Figure 7

M4 X 5LG

BHCS

Altri manuali per 207129 Series

100

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali molex Utensili per crimpatura

molex

molex 63827-8600 Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 57030-3000 Manuale operativo e di manutenzione

molex

molex 207129 Series Manuale utente

molex

molex 63827-5000 Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex MOLEX Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 200218-2600 Guida utente

molex

molex 63825-5770 Manuale utente

molex

molex MV-396 Guida utente

molex

molex 63825-7470 Guida utente

molex

molex 63819-2900 Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 63825-9670 Manuale utente

molex

molex 63823-9100 Manuale utente

molex

molex 207129 Series Manuale utente

molex

molex 63825-8000 Manuale utente

molex

molex 63811-5600 Manuale utente

molex

molex 63823-7570 Manuale utente

molex

molex 207129 Series Manuale utente

Manuali Utensili per crimpatura popolari di altre marche

Panduit

Panduit CT-1000 Guida per l'amministratore

JST

JST CS 10 Manuale utente

Danfoss

Danfoss ET4200 Manuale utente

Tyco Electronics

Tyco Electronics PRO-CRIMPER III Manuale utente

TE Connectivity

TE Connectivity 2063528-1 Manuale utente

Tyco Electronics

Tyco Electronics 69156-1 Manuale utente

CRH

CRH CRL CBLHCT1 Manuale utente

Emerson

Emerson Klauke ES 105CFM Manuale utente

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Manuale di istruzioni

Danfoss

Danfoss ET4350 Manuale utente

Milwaukee

Milwaukee M18 Manuale utente

HOGERT

HOGERT HT1P169 Manuale utente

Textron

Textron ESG105L Manuale utente

Tyco Electronics

Tyco Electronics 90035-3 Manuale utente

Emerson

Emerson Klauke ES 20RMCCFB Manuale utente

Continental Refrigerator

Continental Refrigerator PC150HD Manuale utente

TE Connectivity

TE Connectivity ERGOCRIMP 1-1579001-3 Manuale utente

Tyco Electronics

Tyco Electronics CERTI-CRIMP 90418-1 Manuale utente
