Monarch 9445 Documento tecnico

Equipment Manual

Each product and program carries a respective written

warranty, the only warranty on which the customer can rely.

Monarch reserves the right to make changes in the product

and the programs and their availability at any time and without

notice. Although Monarch has made every effort to provide

complete and accurate information in this manual, Monarch

shall not be liable for any omissions or inaccuracies. Any

update will be incorporated in a later edition of this manual.

WARNING

This equipment can interfere with radio communication if

not installed and used in accordance with the instruction

manual. It has been tested and found to comply with the

limits for a Class A computing device pursuant to FCC

Rules, Subpart B, Part 15, which provide reasonable

protection against such interference when operated in a

commercial environment. Operation in a residential area is

likely to cause interference which the user must correct at

their own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits

for radio noise emissions from digital apparatus set out in

the Radio Interference Regulations of the Canadian

Department of Communications.

Le présent appareil numérique n’émet pas de bruits

radioélectriques dépassant les limites applicables aux

appareils numériques de la classe A prescrites dans le

Réglement sur le brouillage radioélectrique édicte par le

ministère des Communications du Canada.

Preface

This manual contains information about the general setup and

maintenance of the 9445printer. Some of the features in this

manual may not be available on your printer.

Other 9445 manuals include:

Operator’s

Handbook Explains how to enter data and print

labels.

User’s Manual Explains how to create and enter

formats. This manual also explains

special setup functions for the printer.

Programmer’s

Manual Explains communications and message

structures for sending formats and batch

data online.

Messages Manual Lists error messages and operator

responses.

Preface

9445 Equipment Manual

Table of Contents

1. Installing the Printer.......................................................1-1

2. Loading Supply...............................................................2-1

Non-Peel Mode.........................................................2-1

Peel Mode.................................................................2-8

Loading Fan-Fold Supply........................................2-16

Adjusting the Supply Sensor...................................2-18

Adjusting the On Demand Sensor...........................2-20

3. Loading a Ribbon............................................................3-1

Loading a Ribbon Roll...............................................3-2

Loading a Ribbon Cassette.......................................3-6

4. Adjusting the Display ....................................................4-1

5. Cleaning the Printhead and Platen Roller ....................5-1

Appendix A. Converting the Keyboard for

Table Top Use ......................................................................A-1

Appendix B.Troubleshooting ............................................B-1

"Head Test Failure" Message ....................................B-1

Start-Up and Printing ................................................B-2

Start-Up and Printing (continued) .............................B-3

Cutting.......................................................................B-4

Table of Contents

iii

Appendix C. Specifications ...............................................C-1

Printer.......................................................................C-1

Supplies....................................................................C-2

9445 Equipment Manual

1. Installing the Printer

1. Place the printer on a level surface.

2. To install the keyboard on top of the printer:

a. Remove the cord from the base of the keyboard.

b. Plug the cord from the keyboard into the socket.

c. Insert all of the cord except a few coils back into the

base. Secure the cord by sliding a coil into the slot in

the base.

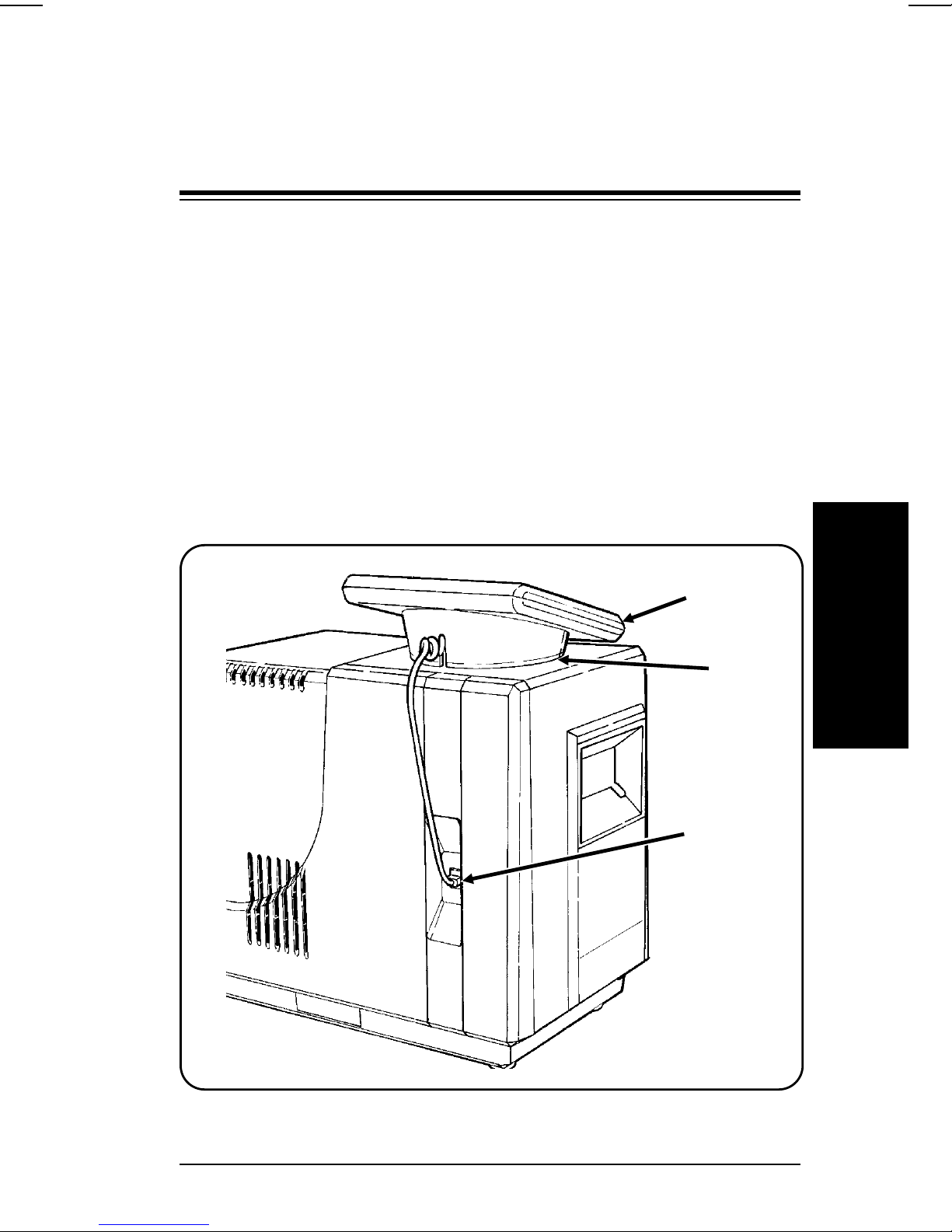

d. Place the keyboard in the recess on top of the printer

as shown.

Keyboard

Recess

Socket

Installing the Printer

1-1

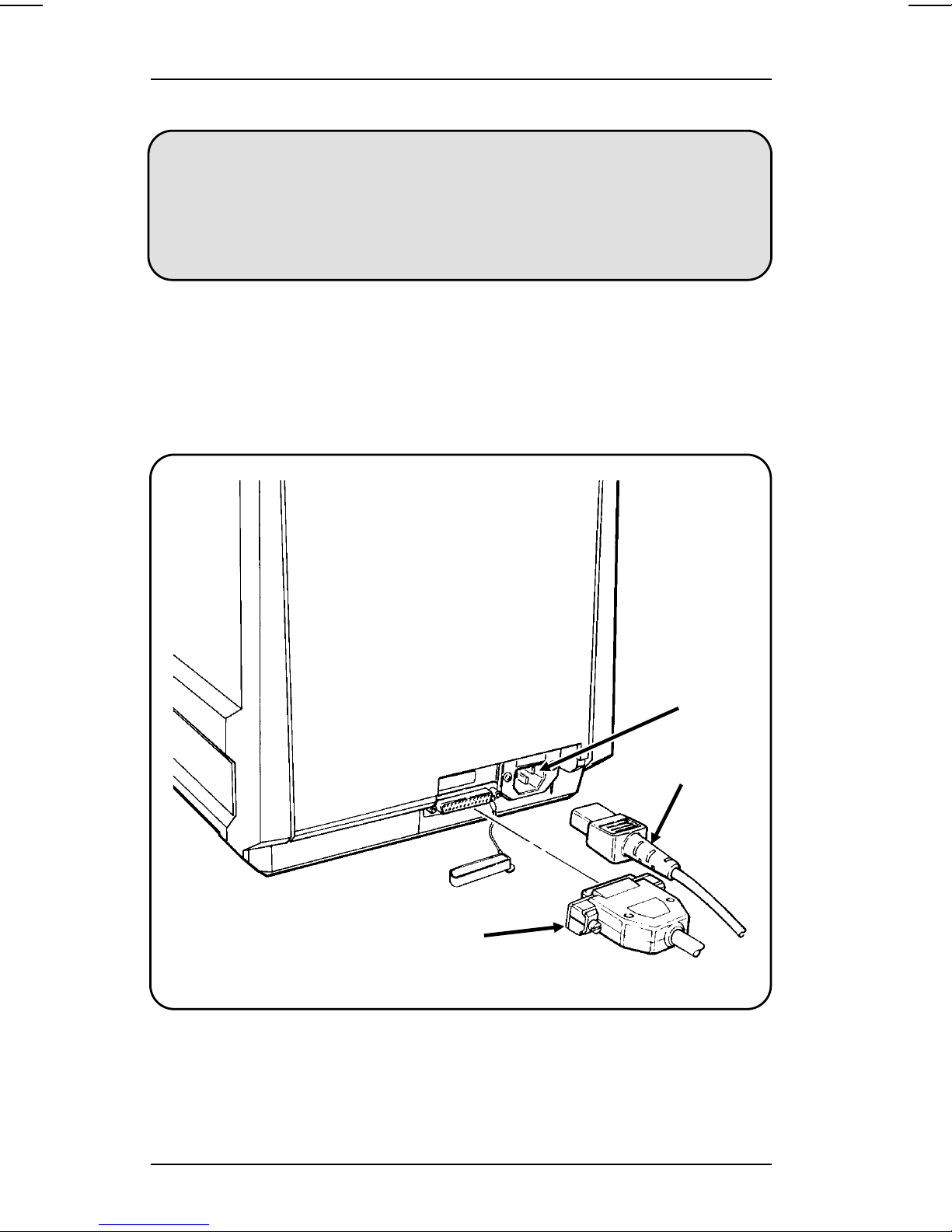

3. Turn the power switch off and insert the power cord into

the socket. Plug the other end of the cord into a

grounded 115 VAC electrical outlet.

NOTE: If you are going to use the printer online, also

connect the RS-232 cable.

4. On the initial startup, leave the printer on for 24 hours to

charge the new backup batteries.

Socket

Power Cord

RS-232 Cable

CAUTION

If your 9445 printer has been in storage below room

temperature, allow 10-12 hours for the printer to adjust to

room temperature before turning the power on. Failure to

do this may damage the printer.

9445 Equipment Manual

1-2

2. Loading Supply

The printer prints both tags and labels. The supply may be

wound with the printable side on either the inside or the

outside.

This chapter explains how to load supply for

•Non-Peel Mode Printing (labels are printed in one strip.

This can be used with Continuous Printing.)

•Peel Mode Printing (one label at a time while the

backing paper rewinds inside the printer. This must be

used with On Demand Printing.)

•Fan-Fold Mode Printing (fan-fold supply is printed in

one strip). Call Service if you would like to use fan-fold

supply.

NOTE: If your printer has a knife, follow the instructions under

"Non-Peel Mode." You cannot use On Demand

printing with a knife. Also, if your printer has a knife, it

does not have the take-up spool shown in the

instructions for loading supply.

If you are going to use thermal direct supply (no

ribbon) and your printer is equipped with a ribbon roll

adapter, turn the thermal supply indicator to the right.

(See "Loading a Ribbon Roll" in Chapter 3.)

Non-Peel Mode

This mode is for both tags and labels. The printer dispenses

the desired amount of supply without separating the backing

paper from the label. This mode is usually used with

continuous printing.

1. Open the front panel.

Loading Supplies

2-1

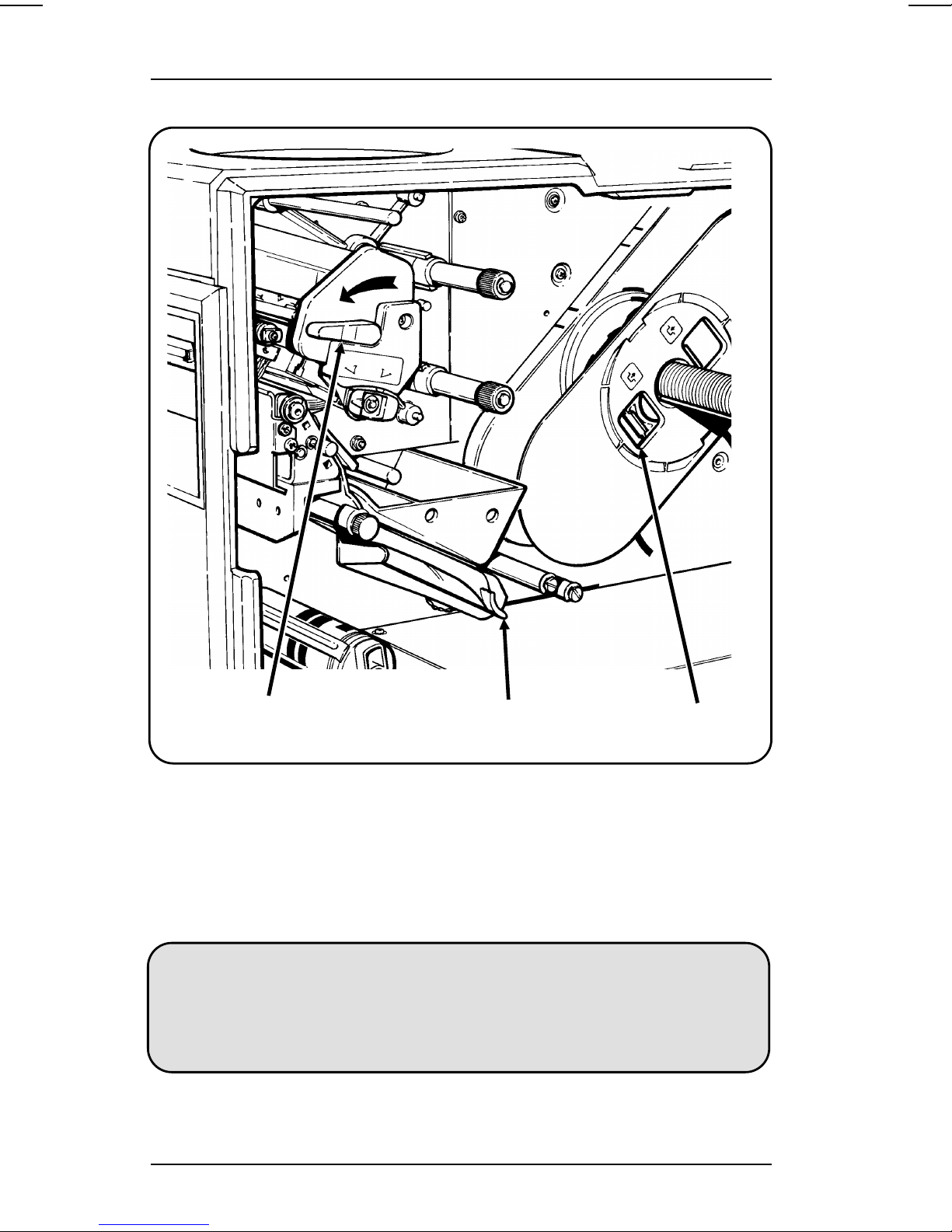

2. Turn the printhead lever to the left to release the printhead.

3. Hold down the lower supply guide and rewind the old

supply roll, if there is one.

4. Release the lower supply guide.

Printhead

Lever Lock

Lower Supply

Guide

CAUTION

If you run out of supply while printing, pull the supply strip

back through the printer. DO NOT pull it forward through

the printhead. Pulling it forward may cause jamming.

9445 Equipment Manual
