Specification Created 1/04

110208

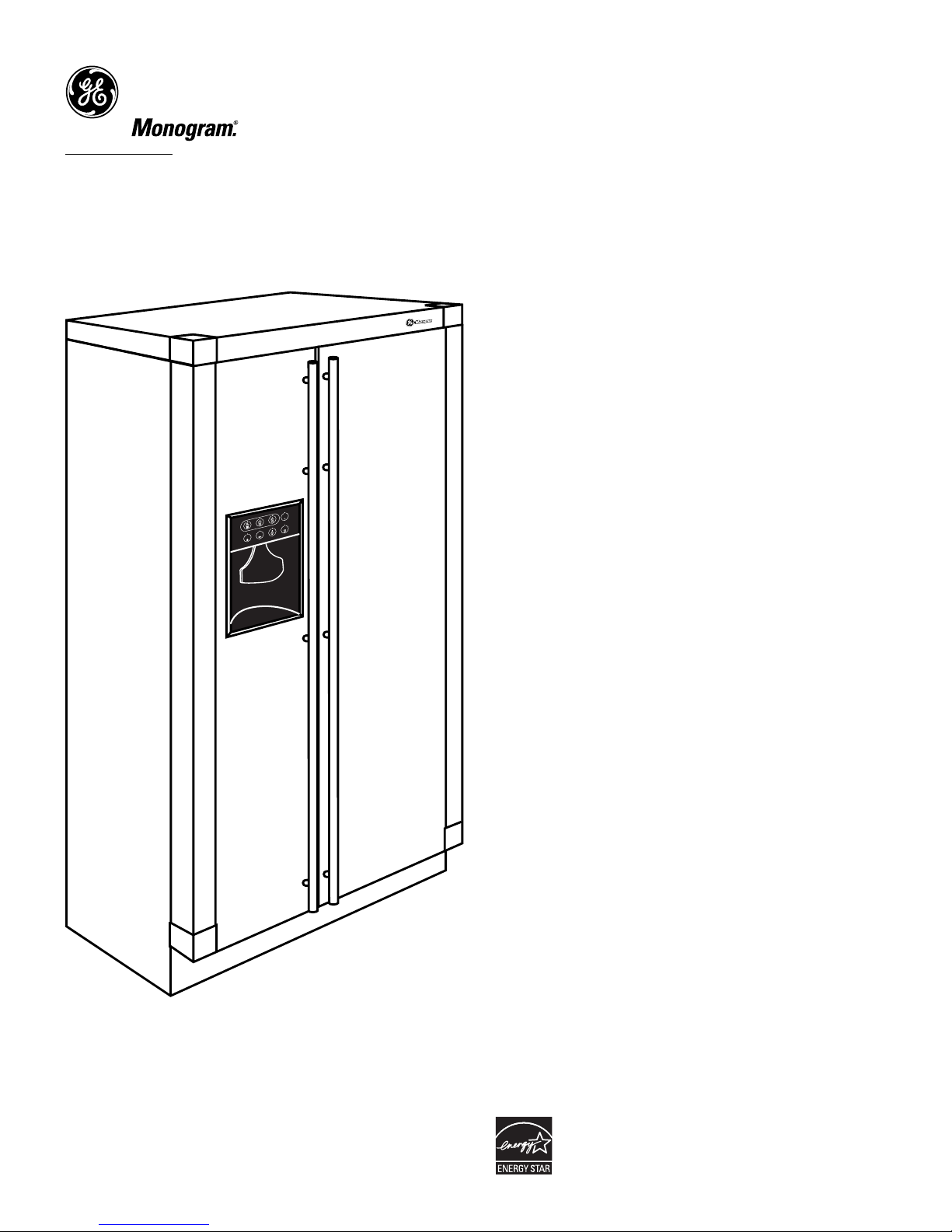

ZFSB26DRSS – GE Monogram 25.5 Cu. Ft. Free-Standing Stainless Steel

Side-by-Side Refrigerator with Dispenser

Listed by

Underwriters

Laboratories

For answers to your Monogram,

® GE Profile™ or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

Dimensions and Specifications (in inches)

36"

72"

34"

Including

Handles

605Dia41

32"

Installation Note:

Door and passageways into the installation location require a

36" minimum opening. If the opening is less than 36", the top cap

and doors must be removed. See installation instructions for details.

Electrical

A 115V, 60Hz., 15 or 20 amp power supply is required. An individual

properly grounded branch circuit or circuit breaker is recommended.

Install a properly grounded 3-prong electrical receptacle recessed

into the back wall.

Note: GFI (ground fault interrupter) is not recommended.

Water Line

The water line can enter the opening through the floor or back wall.

Route 1/4" O.D. copper tubing or GE QuickConnect kit between the

cold water line and the water connection location at the rear of the

refrigerator. The installation of an easily accessible shut-off valve in

the water line is required.

Door Swing Clearances

The installation must allow for clearances to adjacent walls or

cabinets. These refrigerators are factory set for a 160° door swing.

605Dia43

19"

14-1/4"

ZFSB26 and ZFSB23

160°

160° Door Swing

Allow 19" minimum clearance on the fresh food side for a full

160° door swing and pan removal. Allow 14-1/4" clearance on the

freezer side for removal of ice bin.

• 4" minimum clearance is required when the door swing is

restricted to 90°.

Air Circulation Clearances

Allow 1/8" on each side and 1" at the top and back side for proper

air circulation.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

ZFSB26

28"

22"

90° Door Swing

ZFSB26

4" Min.

to Wall

Specification Created 1/04

110208

ZFSB26DRSS – GE Monogram 25.5 Cu. Ft. Free-Standing Stainless Steel

Side-by-Side Refrigerator with Dispenser

ZFSB25DMSS.EPS

QUICK

ICE

CONTROL

LOCK

DOOR

ALARM

RESET

WATER FILTER

Features and Benefits

• 25.5 cu. ft. capacity (fresh food 16.0 cu. ft./

freezer 9.5 cu. ft.)

• ENERGY STAR® qualified

• Integrated Ice™ System – The ice bucket is integrated

into the icemaker, not the freezer door, freeing up

valuable storage space

• Upfront electronic controls with digital readout

• Tri-Level light system

• Multi-shelf air management tower

• Climate control drawer with Express Chill,

Express Thaw and Select Temp

• LightTouch! tall dispenser delivers chilled water,

cubed and crushed ice through the door

• Model ZFSB26DRSS – Stainless steel

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.
