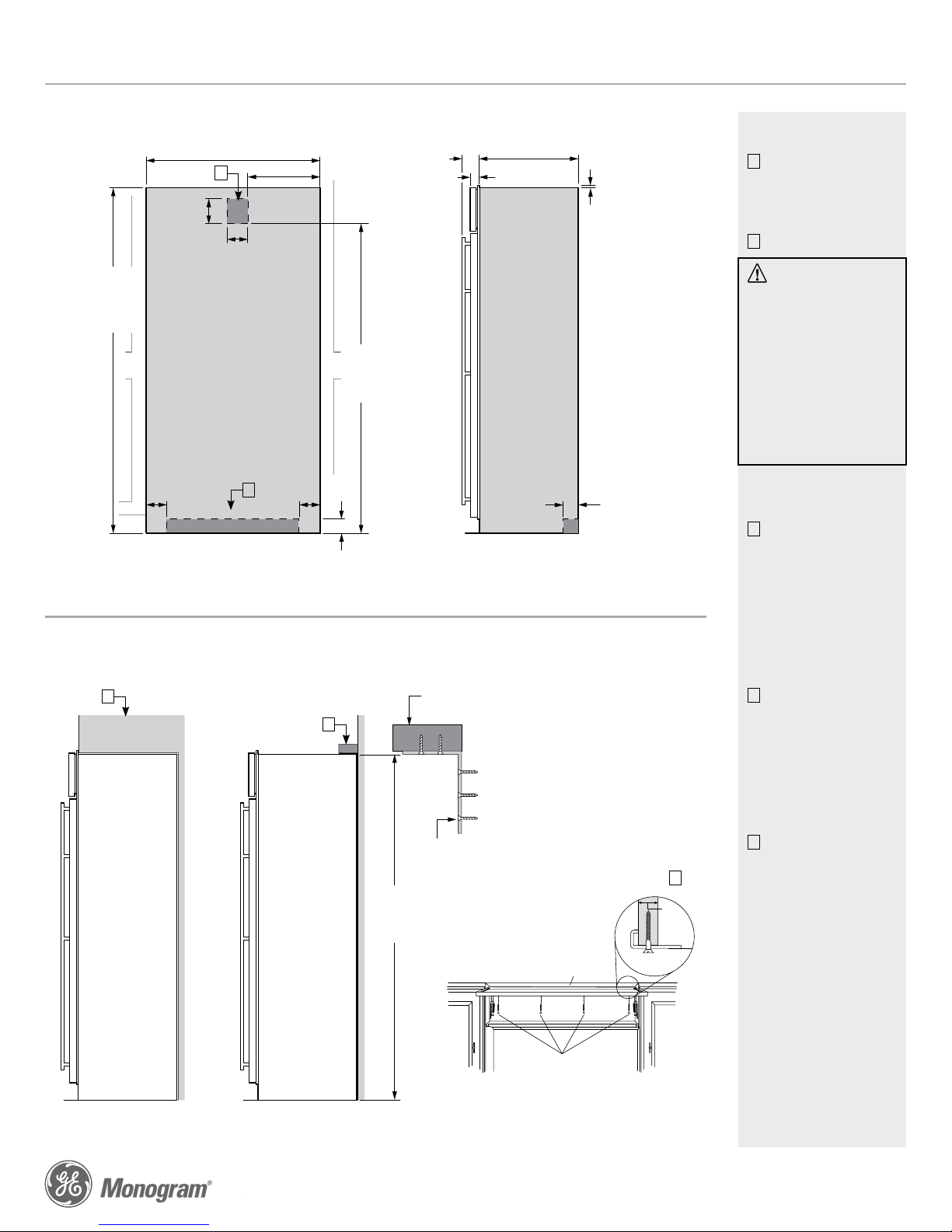

OVERALL DIMENSIONS

Product Speciﬁcation Created 6/14

ZISS420DHSSGE Monogram®42" Built-In Side-by-Side Refrigerator

25 3/4" (65.4)

23 7/8" (60.7)

(5.1)

*3 3/4"

(9.5)

42" (106.7)

*84"

(213.4)

*72 1/4"

(183.5)

13 1/2"

(34.3)

*40"

(101.6)

64 1/4"

(163.2)

*4 1/4"

(10.8)

*83 1/2"

(212.1)

41" (104.2)

Case width

26 5/8"

(67.6)

ZISS420DXSS

TOP VIEW

SIDE VIEWFRONT VIEW

* Shipping height. Use leveling legs and wheels for maximum

1" height adjustment from shipping height.

** Allow 4" (10.2) min

clearance to a wall for 90˚

door swing

** Allow 4" (10.2) min

clearance to a wall for 90˚

door swing

** These refrigerators are equipped with a 2-position door stop. The factory-set 130° door

swing can be adjusted to 90° if clearances to adjacent cabinets or walls is restricted. Allow

full 130° door swings for pan removal. If the 90° door stop position is used, pan access is

maintained, but pan removal is restricted.

** Allow 13" (33.0) min

clearance for 130˚

door swing

** Allow 19" (48.3) min

clearance for 130˚

door swing

25 3/4" (65.4)

23 7/8" (60.7)

(5.1)

*3 3/4"

(9.5)

42" (106.7)

*84"

(213.4)

*72 1/4"

(183.5)

13 1/2"

(34.3)

*40"

(101.6)

64 1/4"

(163.2)

*4 1/4"

(10.8)

*83 1/2"

(212.1)

41" (104.2)

Case width

26 5/8"

(67.6)

ZISS420DXSS

TOP VIEW

SIDE VIEWFRONT VIEW

* Shipping height. Use leveling legs and wheels for maximum

1" height adjustment from shipping height.

** Allow 4" (10.2) min

clearance to a wall for 90˚

door swing

** Allow 4" (10.2) min

clearance to a wall for 90˚

door swing

** These refrigerators are equipped with a 2-position door stop. The factory-set 130° door

swing can be adjusted to 90° if clearances to adjacent cabinets or walls is restricted. Allow

full 130° door swings for pan removal. If the 90° door stop position is used, pan access is

maintained, but pan removal is restricted.

** Allow 13" (33.0) min

clearance for 130˚

door swing

** Allow 19" (48.3) min

clearance for 130˚

door swing

ATTENTION ELECTRICIAN:

A 115 volt 60Hz., 15 or 20 amp power supply

is required. An inidividual properly grounded

branch circuit or circuit breaker is recommended.

Install a properly grounded 3-prong electrical

receptacle recessed into the back wall.

SPECIFICATIONS

Overall Width 42" (91.44 cm)

Overall Height 84" (213.36 cm)

Overall Depth 25 3/4" (65.41 cm)

Door Clearance 26 5/8" (67.6 cm)

Cutout Width 41 1/2" (105.4 cm)

Cutout Height 83 1/2" - 84 1/2"

(212.1 - 214.6 cm)

Cutout Depth 24" (61 cm)

Plumbing Requirements 1/4" OD copper

tubing or GE

SmartConnect kit

Shipping Weight 725 lb

Dimensions in parentheses are in centimeters unless otherwise noted.

Actual product dimension may vary due to manufacturing tolerances.

STANDARD INSTALLATION

ANTI-TIP BRACKET

FRONT VIEW SIDE VIEW

24" (61.0)

(5.1)

(10.7)

7/16"

(1.1)

Trim overlap

3 1/2"

(8.9)

WATER

41 1/2" (105.4)

18" (45.7)

*83 1/2" min

*84 1/2" max

(212.1-214.6)

*Trim will overlap

additional 7/16"

3 1/2"

(8.9)

75"

(190.5 )

From floor

to bottom

of electrical

area

(15.2)

(12.7)

ZISS420DXSS

SIDE VIEW INSTALLED

WITH WOODEN WALL STUDS

AND NO SOFFIT

SIDE VIEW INSTALLED

UNDER SOFFIT

SOFFIT

*84"

(213.4)

*Or installation

height from floor

2" x 4"

Cut to 35" Length

Screws mounted

into vertical wall

studs

FRONT VIEW INSTALLED

WITH METAL WALL STUDS

AND NO SOFFIT

Top Case Trim

3/4"

Min.

Side View Top

Case Trim

Install Screws

Through Trim and Into

3/4" Min. Wood Brace

FRONT VIEW SIDE VIEW

24" (61.0)

(5.1)

(10.7)

7/16"

(1.1)

Trim overlap

3 1/2"

(8.9)

WATER

41 1/2" (105.4)

18" (45.7)

*83 1/2" min

*84 1/2" max

(212.1-214.6)

*Trim will overlap

additional 7/16"

3 1/2"

(8.9)

75"

(190.5 )

From floor

to bottom

of electrical

area

(15.2)

(12.7)

ZISS420DXSS

SIDE VIEW INSTALLED

WITH WOODEN WALL STUDS

AND NO SOFFIT

SIDE VIEW INSTALLED

UNDER SOFFIT

SOFFIT

*84"

(213.4)

*Or installation

height from floor

2" x 4"

Cut to 35" Length

Screws mounted

into vertical wall

studs

FRONT VIEW INSTALLED

WITH METAL WALL STUDS

AND NO SOFFIT

Top Case Trim

3/4"

Min.

Side View Top

Case Trim

Install Screws

Through Trim and Into

3/4" Min. Wood Brace

GE Monogram®42" Built-In Side-by-Side Refrigerator

The refrigerator will project forward,

slightly beyond adjacent cabinetry.

AMounting the junction

box in this location will

also allow for front

accessability through

access panel.

BWater supply area.

WARNING:

The refrigerator is top

heavy and must be secured

to prevent the possibility of

tipping forward. Failure to

do so may result in death

or serious injury.

The information below is

for cabinet design only.

When installing the anti-

tip system you must use

the product installation

instructions.

Determine your installation

construction and required

anti-tip conﬁguration:

CInstalled Under Sofﬁt

After installing unit into

installation opening,

raise grille panel and

screw metal case sides to

adjacent cabinet. When

installed under a sofﬁt,

the sofﬁt cannot exeed 24”

deep. The top case trim

overlaps the bottom of the

sofﬁt.

DWooden Wall Studs and

No Sofﬁt

• Cut a 2” x 4” block and

secure to brackets

provided.

• Secure brackets to back

wall of opening at 84” or

your installation height

from the ﬂoor.

EMetal Wall Studs and

No Sofﬁt

This method requires

securely fastened cabinets

on both sides and a ¾”

minimum wood brace

above unit, with it’s front

surface 24” from back wall.

• After installing unit into

opening, raise grille panel

and attach metal case

top trim to ¾” minimum

wood brace.

• The brace spanning

the enclosure must be

securely fastened to

cabinets on both sides.

See Installation

Instructions for detailed

instructions.

NOTES

Product Speciﬁcation Created 6/14

ZISS420DHSS

NOTES

GE Monogram®42" Built-In Side-by-Side Refrigerator

FSide panels must be

used whenever the sides

of the refrigerator will

be exposed. The 1/4”

side panels will slip

into the side case trim.

Secure the panels to

the refrigerator with

stick-on hook and loop

fastener strips. Order

the side panels from the

cabinet manufacturer.

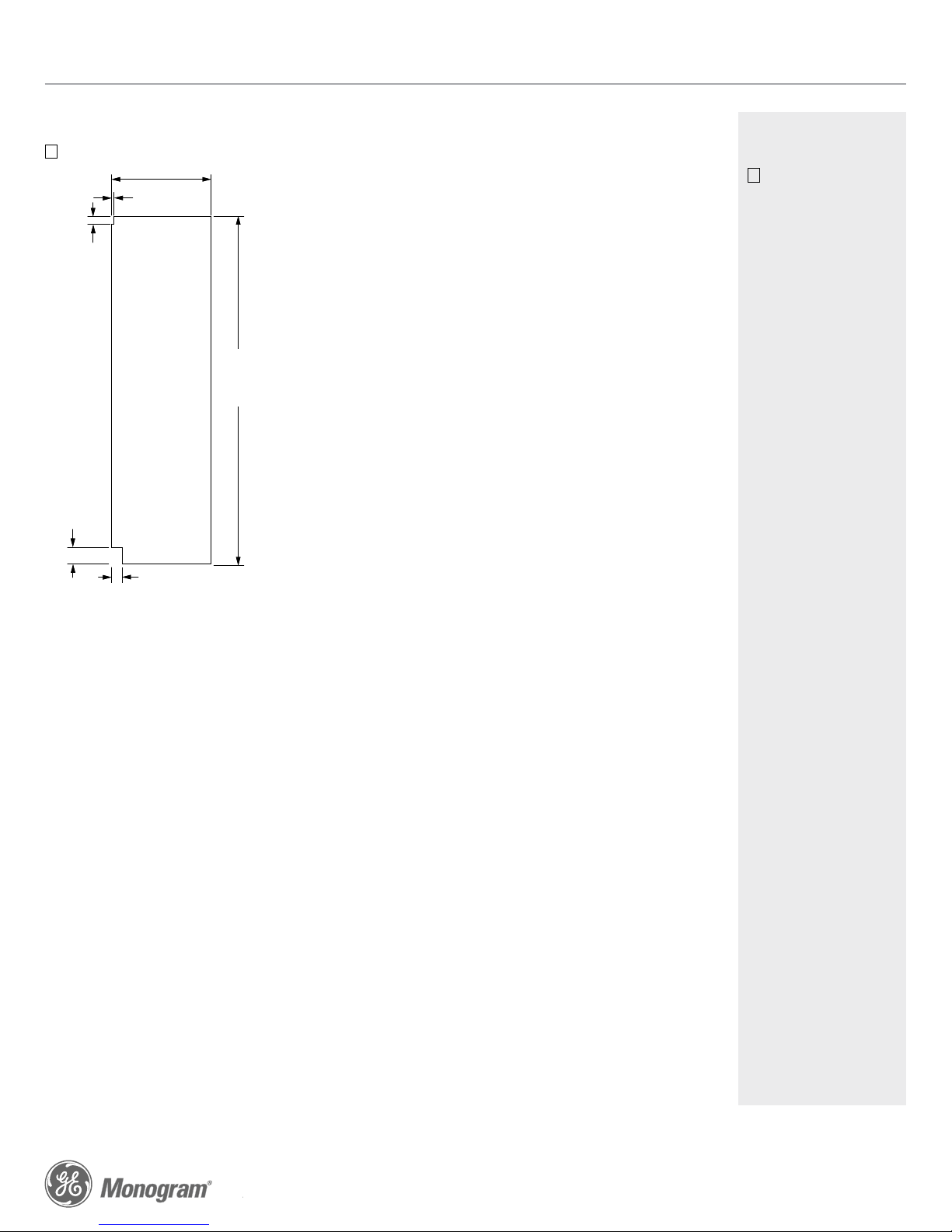

CUSTOM SIDE PANELS

2 9/16"

(6.5)

*3" - 4"

(7.6 - 10.2)

*Depending

on installation

height

1 7/8"

(4.8)

24" (61.0)

3/16"

(.5)

*84”

(213.4)

*Depending

on installation

*84"

(213.4)

*Depending

on installation

height

ZIF360NXLH_ZIF360NXRH _ZIFP360NXLH_ZIFP360NXRH_ ZIFS360NXLH_ZIFS360NXRH

ZIR360NXLH_ZIR360NXRH_ZIRP360NXLH_ZIRP360NXRH_ZIRS360NXLH_ZIRS360NXRH

Product Speciﬁcation Created 6/14

ZISS420DHSS

FEATURES AND BENEFITS

Halogen Light Columns - Located in the freezer

and fresh food compartments, extend the full

length of the interior compartments providing

brilliant, all-level illumination

LED Lighting - Located at the top of the fresh

food compartment, and inside the vegetable and

climate-control drawers, illuminates contents

without compromising space

Advanced Temperature Management System

with Multi-Shelf Air Tower - Provides even

distribution of air throughout the refrigerator

Climate-Control Drawer - Allows you to express-

chill beverages, express-thaw meats and select

speciﬁc temperatures for perishable foods

Dispenser with Proximity Sensor - Designed to

accommodate glassware of all sizes, from pitch-

ers to tumblers; control graphics light up as you

approach and automatically switch off when you

walk away

Filter-Change Indicator Light - Located on the

upfront control panel, provides a visual reminder

when it's time to replace the ﬁlter for the water

dispenser

GE®Water Filter - Has been moved from the

fresh food compartment to the overhead cabinet,

where it is discreetly out of sight

Dairy Bin with Center Divider - Has a unique

magnetic seal that locks in freshness

GE Monogram®42" Built-In Side-by-Side Refrigerator

Product Speciﬁcation Created 6/14
