Monoprice 34898 Manuale utente
HDMI® and USB KVM Extender
P/N 34898
User's Manual
2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Unplug this device from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Ensure that power is turned off and disconnected before making any electrical
connections.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
3
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
INTRODUCTION
Thank you for purchasing this HDMI® and USB KVM Extender! This Keyboard-Video-Mouse
extender can extend high resolution HDMI video and USB 2.0 signals to distances up to 164
feet (50 meters) over a single Cat6 Ethernet cable with zero latency. It supports video
resolutions up to 1080p@60Hz and is compliant with the HDMI 1.4b, HDCP 1.4, and USB 2.0
specifications. It also supports the Power over Cable (PoC) feature, which allows either unit
to draw power over the Ethernet cable, so you only need a single AC power adapter.
FEATURES
Supports video resolutions up to 1080p@60Hz
Compliant with the HDMI 1.4b and HDCP 1.4 specifications
Includes an HDMI loop-out on the transmitter for use with a local display
Compliant with the DVI standard
Supports USB 2.0
Zero latency and uncompressed transmission technology
Supports up to 7.1 channels of high-definition compressed and uncompressed audio,
including LPCM, DTS-HD Master Audio™, and Dolby TrueHD™
4
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x KVM Transmitter
1x KVM Receiver
1x AC Power Adapter (12 VDC, 1A)
1x User's Manual
PRODUCTION OVERVIEW

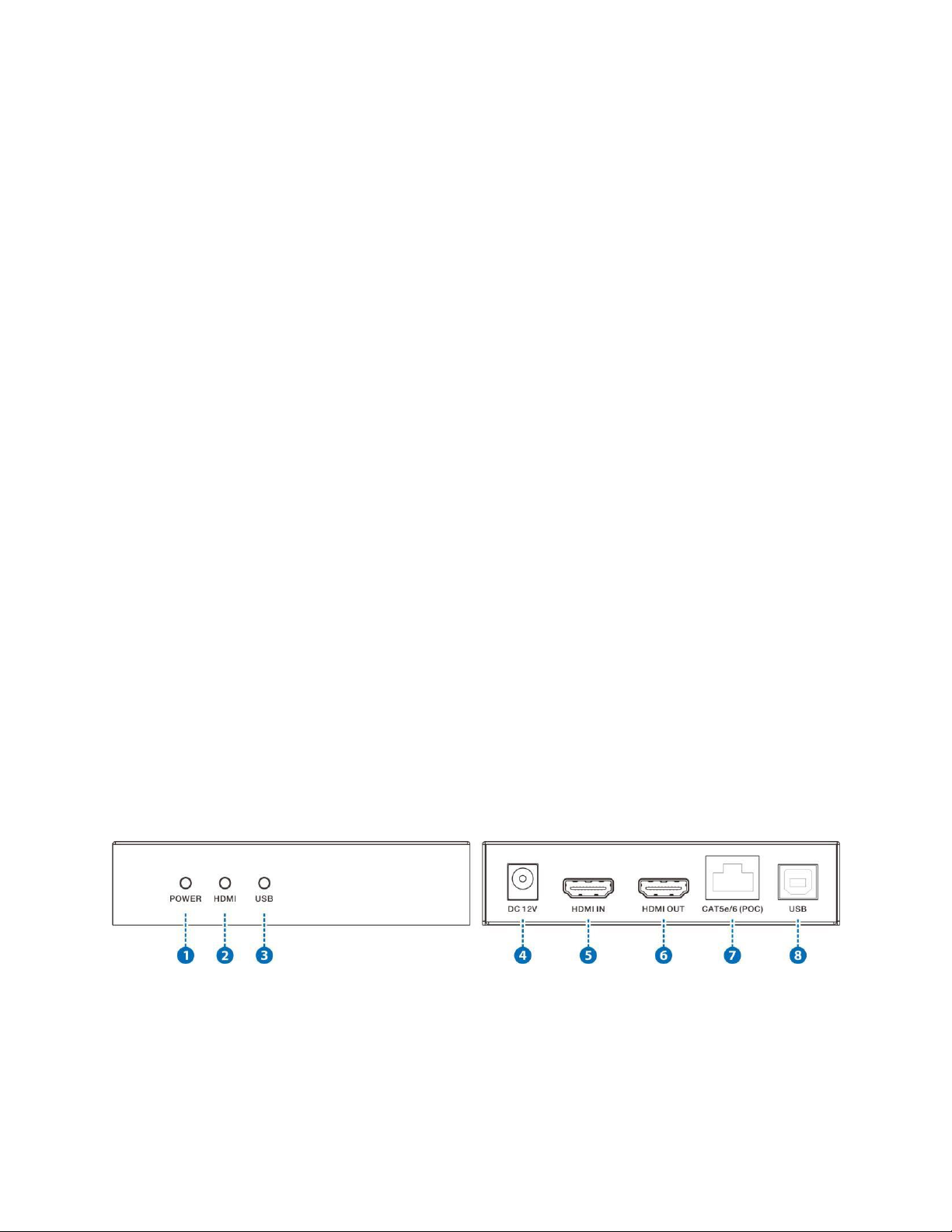

Transmitter
1. POWER: The POWER LED illuminates when power is applied.
2. HDMI: The HDMI® LED illuminates when there is an active HDMI input signal.
3. USB: The USB LED flashes slowly there is no USB signal being transmitted and
flashes rapidly when USB data is being transmitted.
5
4. DC 12V: DC barrel connector for connecting the included AC power adapter.
5. HDMI IN: HDMI® connector for connecting the HDMI video source.
6. HDMI OUT: HDMI loop output connector for connecting a local display.
7. CAT5e/6 (POC): RJ45 jack for connecting an Ethernet cable (not included) to the
receiver.
8. USB: USB Type-B port for connecting the host PC.
Receiver
1. POWER: The POWER LED illuminates when power is applied.
2. HDMI: The HDMI® LED illuminates when there is an active HDMI input signal.
3. USB: The USB LED flashes slowly there is no USB signal being transmitted and
flashes rapidly when USB data is being transmitted.
4. DC 12V: DC barrel connector for connecting the included AC power adapter.
5. HDMI OUT: HDMI connector for connecting the remote display.
6. CAT5e/6 (POC): RJ45 jack for connecting an Ethernet cable (not included) from the
transmitter.
7. USB KEYBOARD: USB port for connecting the remote keyboard.
8. USB MOUSE: USB port for connecting the remote mouse.
6
SAMPLE CONNECTION DIAGRAM
7
SPECIFICATIONS
Model
34898
Transmitter Inputs
1x HDMI®, 1x USB Type-B
Transmitter Outputs
1x HDMI, 1x RJ45
Receiver Inputs
1x RJ45
Receiver Outputs
1x HDMI, 2x USB Type-A
Maximum Video Resolution
1080p@60Hz
HDMI Version
1.4b
HDCP Version
1.4
USB Version
2.0
Maximum Transmission Distance
Up to 146 feet (50m)
Color Depth
8 bits/channel (24 bits total)
Audio Support
Up to 7.1 channels high definition
compressed or uncompressed
Input Power
12 VDC, 1A
AC Adapter Input Power
100 ~ 240 VAC, 50/60Hz
Maximum Transmitter Power Consumption
1.92 watts
Maximum Receiver Power Consumption
1.68 watts
Operating Temperature
+32 ~ +104°F (0 ~ +40°C)
Storage Temperature
-4 ~ +140°F (-20 ~ +60°C)
Operating Humidity
20 ~ 90% RH, non-condensing
Dimensions (each)
4.3" x 3.0" x 1.0" (109 x 77 x 25 mm)
Transmitter Weight
7.5 oz. (213g)
Receiver Weight
7.5 oz. (212g)
8
REGULATORY COMPLIANCE
Notice for FCC
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
9
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
DTS®, the Symbol, and DTS and the Symbol together are registered trademarks of DTS, Inc.
DTS-HD™ and DTS-HD Master Audio™ are trademarks of DTS, Inc.
Dolby®, Dolby® TrueHD™, Dolby Audio™, and the double-D symbol are trademarks of Dolby
Laboratories.
