Monoprice 37924 Manuale utente
27" Vivid UHD 4K Monitor
P/N 37924, 38941
User's Manual
2
CONTENTS
SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3
CUSTOMER SERVICE....................................................................................................................................................................................4
PACKAGE CONTENTS.................................................................................................................................................................................4
SETUP........................................................................................................................................................................................................................5
KENSINGTON SECURITY SLOT............................................................................................................................................................6
OSD MENU........................................................................................................................................................................................................... 7
Button Labels and Functions ........................................................................................................................................................ 7
Menu Structure..........................................................................................................................................................................................8
TECHNICAL SUPPORT...............................................................................................................................................................................14
SPECIFICATIONS............................................................................................................................................................................................15
REGULATORY COMPLIANCE..............................................................................................................................................................16
Notice for FCC ..........................................................................................................................................................................................16
Notice for Industry Canada........................................................................................................................................................... 17
EU Declaration of Conformity .................................................................................................................................................... 17
WEEE Information ................................................................................................................................................................................. 17
Safety Notice.............................................................................................................................................................................................18
3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This monitor is intended for indoor use only.
Do not expose this monitor to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the monitor. If moisture does get in or on
the monitor, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the monitor, the power cord, or any other connected cables with wet
hands.
Do not place the monitor on an unstable surface where it could fall and cause either
personal injury or damage to the monitor and/or other equipment.
Do not subject the monitor to extreme force, shock, or fluctuations in temperature
or humidity.
Do not block the ventilation holes in the monitor's casing. Do not place the monitor
in a confined space with inadequate ventilation. Periodically check the ventilation
holes to ensure they do not become clogged with dust, debris, or nearby items.
Do not place the monitor near a heat source, such as a fireplace, heating vent,
radiator, etc. Do not leave it in direct sunlight.
Do not place or install this monitor in an area where it can be exposed to excessive
amounts of dust, humidity, oil, smoke, or combustible vapors.
Prior to operation, check the monitor and power cord for physical damage. Do not
use if physical damage has occurred.
Unplug this monitor from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the monitor by pulling on the power cord. Always grasp the
connector head or adapter body.
4
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This monitor has no user serviceable parts. Do not open the case or otherwise
attempt to modify this monitor.
Do not leave a single image on the display for a long period of time. Doing so could
cause "burn-in" of the image. It is recommended to use a variable desktop
background and to use a screen saver to prevent "burn-in". Alternatively, ensure
that the monitor is powered off for at least 2 hours out of every 12.
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Vivid UHD 4K Monitor
1x Stand
1x Base
1x HDMI® Cable
1x AC Power Cord
1x User's Manual
1x Thank You Card
5
SETUP
Perform the following steps to prepare your monitor for use.
1. Either assemble the stand and attach it to the rear of the monitor or mount the
monitor to a wall or desk mount.
2. Plug one end of the included HDMI® cable into one of the HDMI inputs on the
monitor, then plug the other end into the HDMI video output on your computer.
Alternatively, you can connect using a DisplayPort® cable (not included).
3. Next, plug a pair of headphones or powered speakers into the audio output on the
monitor.
4. Plug one end of the included AC power cord into the AC input on the monitor, then
plug the other end into a nearby AC power outlet. The LED power indicator on the
monitor will illuminate orange.
6

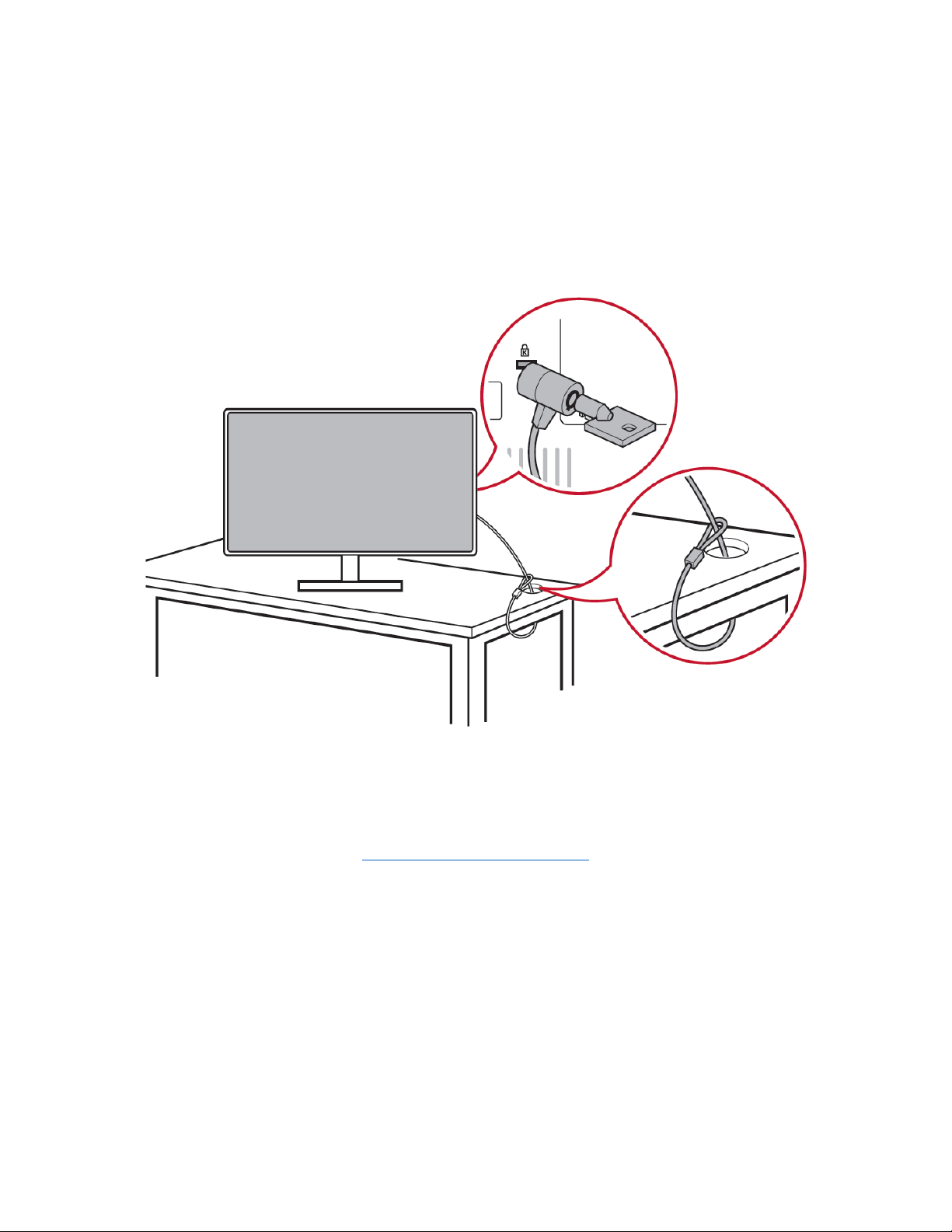

KENSINGTON SECURITY SLOT
This monitor features a Kensington Security Slot™, which can be used to secure your
monitor to prevent theft. The connector is located on the rear of the monitor. The
following image illustrates an example of usage to secure the monitor to a table or desk.
For more information on installation and usage, please visit the Kensington website at the
following address:
http://www.kensington.com
7
OSD MENU
Button Labels and Functions
Pressing any of the control buttons, other than the Power Button ( ), causes the button
labels to appear on screen above their respective buttons. Following are the basic menu
level button labels, from left to right.
View Mode: Displays a quick menu that allows for selection of one of nine video
equalization presets (Standard, Game, Movie, Web, Text, MAC, and Mono).
Input Select: Displays a quick menu that allows for selection of one of three video
inputs (HDMI® 1, HDMI 2, and DisplayPort®)
Menu: Displays the full OSD menu.
Exit: Turns off the on-screen button labels.
Once inside one of the above three menus, the button labels will change to indicate their
functions in operating the menus. Following are the various labels and their purpose.
Select: Enters the highlighted submenu or edits the selected menu entry.
Back: Goes back to the previous menu or exits editing an entry.
Exit: Closes the OSD menu.
Up: Moves the highlight up.
Down: Moves the highlight down.
8
Left/Decrease: Moves the highlight to the left or decreases the displayed value
when editing an entry.
Right/Increase: Moves the highlight to the right or increases the displayed value
when editing an entry.
Menu Structure
Input Select
HDMI 1
HDMI 2
DisplayPort
Audio Adjust
Volume (0-100)
Mute (On/Off)
View Mode
Standard
Low Input Lag (On/Off)
Black Stabilization (0-100 in increments of 10)
Advanced DCR (0/25/50/75/100)
Blue Light Filter (0-100)
Response Time
Standard
Advanced
9
Ultra Fast
Recall
Game
GAMER 1
Low Input Lag (On/Off)
Black Stabilization (0-100 in increments of 10)
Advanced DCR (0/25/50/75/100)
Blue Light Filter (0-100)
Response Time
Standard
Advanced
Ultra Fast
Rename
Recall
GAMER 2
Low Input Lag (On/Off)
Black Stabilization (0-100 in increments of 10)
Advanced DCR (0/25/50/75/100)
Blue Light Filter (0-100)
Response Time
Standard
Advanced
Ultra Fast
Rename
Recall
10
GAMER 3
Low Input Lag (On/Off)
Black Stabilization (0-100 in increments of 10)
Advanced DCR (0/25/50/75/100)
Blue Light Filter (0-100)
Response Time
Standard
Advanced
Ultra Fast
Rename
Recall
FPS 1
FPS 2
RTS
MOBA
Movie
Web
Text
MAC
Mono
