Instruction Manual

ITEM: 751821

Wards.com 1•888•557•3848

Montgomery Ward Customer Service

3650 Milwaukee Street, Madison, WI 53714

8:00 am to Midnight, Monday through Friday

Get

ready to

deep

clean!

Wards.com 1•888•557•3848

Pressure Washer

Thank you for purchasing your Montgomery Ward Pressure Washer.

Put through the paces by the experts, we guarantee that it will

perform to the highest standard, time after time, with all the

convenience, easy clean-up and durability you rely on from Wards.

Important Safeguards ................... 3

Electrical Safety ...............................4

Speciﬁcations.................................... 4

Parts & Features............................... 5

How to Use.................................... 6–9

Cleaning & Care.............................. 10

Troubleshooting............................... 11

Return Information ........................12

Warranty..............................................13

Table of Contents

21•888•557•3848

Wards.com

Important Safeguards

READ CAREFULLY BEFORE USING AND SAVE THESE INSTRUCTIONS!

• FOR HOUSEHOLD USE ONLY. Do NOT use this power tool for other than its

intended use.

• REMOVE all packaging materials and labels before ﬁrst use. Please dispose

of the packaging materials via the appropriate recycling system, in an

environmentally friendly manner.

• Know how to stop the product and release pressures quickly. Be thoroughly

familiar with the controls before using the power washer.

• We do NOT recommend using an extension cord with this power tool. However,

if an extension cord is used, it must be a cord regulated for outdoor use and

the marked electrical rating should be at least as great as the electrical rating

of the pressure washer.

• CLOSE SUPERVISION IS NECESSARY WHEN USING THIS POWER TOOL NEAR

CHILDREN OR ANIMALS. DO NOT DIRECT DISCHARGE STREAM AT PERSONS

OR ANIMALS.

• Do NOT use an accessory or attachment not recommended by Wards, as this

may cause injury, or damage the power tool.

• Keep hands, hair and clothing away from all MOVING PARTS.

• Turn OFF AND UNPLUG when not in use.

• NO SERVICEABLE PARTS INSIDE THIS POWER TOOL.

• DO NOT USE A POWER TOOL WITH A DAMAGED CORD OR PLUG, OR AFTER

IT MALFUNCTIONS, OR HAS BEEN DAMAGED IN ANY MANNER.

• Do NOT use item in areas where ﬂammable items are present.

• Stay alert. Do NOT operate the power tool when fatigued or under the inﬂuence

of alcohol or drugs.

• Item is intended for outdoor use, Do NOT use indoors.

• Store item in an area that is clean and protects the unit from freezing.

• Old appliances/tools contain valuable materials that can be recycled. Please

dispose of your old appliances/tools using appropriate collection systems.

• Do not over reach or stand on an unstable surface. Keep good footing and

balance at all times.

• Keep all electrical connections dry and off the ground. Do NOT touch the

plug with wet hands!

• Do NOT use the pressure washer in cold temperatures; prevent the machine

from freezing.

• This pressure washer has been designed for using ONLY CLEAN WATER.

Thank you

for your

purchase!

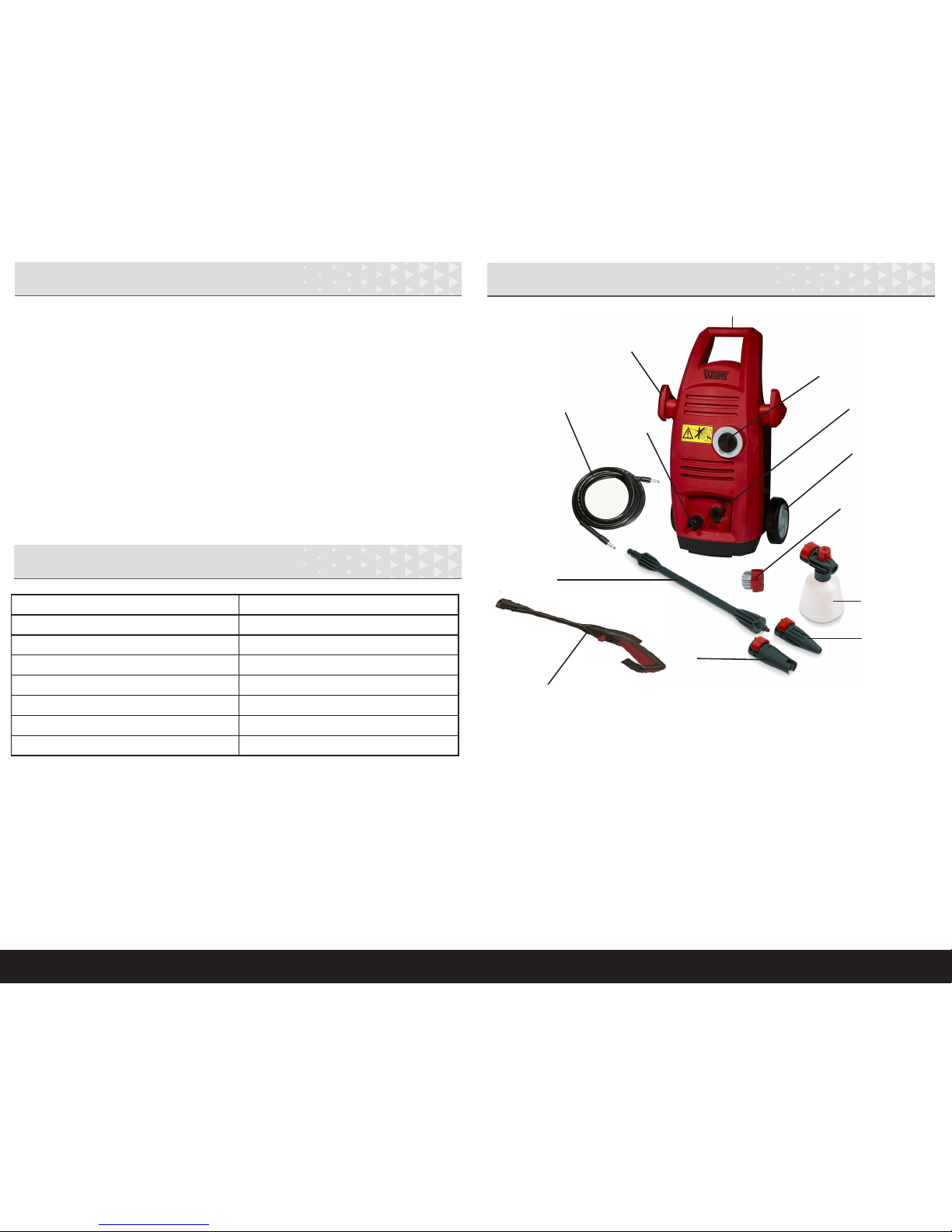

Parts & Features

Speciﬁcations

Electrical Safety

41•888•557•3848

Wards.com

This power tool is equipped with a polarized plug in which one prong is wider

than the other. This is a safety feature to reduce the risk of electrical shock. The

plug will ﬁt into a polarized outlet only one way. If you are unable to insert the plug

into the outlet, try reversing the plug. If it still does not ﬁt, contact a qualiﬁed

electrician. Do not attempt to modify the plug in any way. Montgomery Ward can

not accept any liability for damage or injury resulting from failure to observe these

safety procedures.

POWER RATING 13A, 120V, 60Hz, 1500W

RATED PRESSURE 1400psi

MAXIMUM PRESSURE 1850psi

RATED FLOW 1.6GPM

MAXIMUM FLOW 1.8GPM

INLET (MAXIMUM) 80psi

CORD LENGTH 30’

MODEL BY01-VBS-W-ST

Ne: This product is provided with a ground fault circuit interrupter

(GFCI) built into the power cord plug.

1. High Pressure Hose

2. Water Inlet Connector

3. Storage Hook (2)

4. Carry Handle

5. On/O Switch

6. Water Outlet Connector

7. Wheel (2)

8. Water Inlet Coupling and Filter

9. Soap Foam Sprayer and Container

10. Turbo Nozzle

11. Multi Nozzle

12. Wand

13. Spray Gun

14. Tool Storage (on back of unit, not shown)

1•888•557•3848

Wards.com 7

How to Use How to Use

SAFETY DEVICES:

• The pressure washer has a valve that will automatically reduce the pressure if

pressure exceeds pre-set values.

• The spray gun features a trigger safety lock. When the safety is activated, the

trigger gun will not operate.

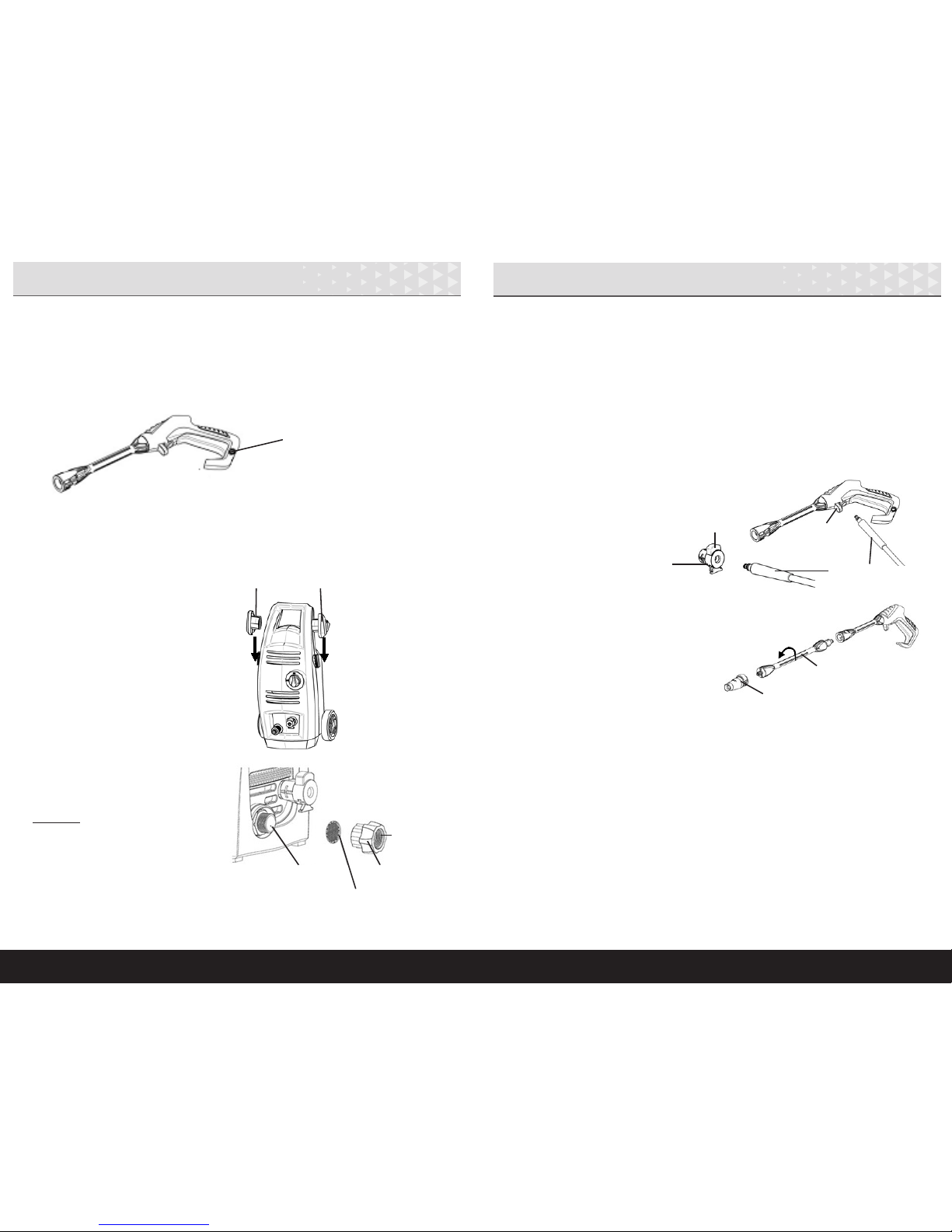

GETTING STARTED:

1. Assemble the storage hooks on

the sides of the machine.

2. Screw the water inlet coupling

tight onto the water inlet.

THE FILTER WITH GASKET MUST

ALWAYS BE POSITIONED IN THE

COUPLING TO FILTER OUT SAND,

LIMESTONE AND OTHER

IMPURITIES, AS THESE WILL

DAMAGE THE PUMP VALVES.

(continued on next page)

3. Connect a standard garden hose to the pressure washer. Any standard ½”–¾”

hose of 10-25’ is suitable.

IMPORTANT! Let the water run through the garden hose (until clear)

before connecting to the pressure washer to prevent sand

and other impurities from entering the machine.

4. Attach the high pressure hose to the spray gun and then

to the water outlet connector on the

pressure washer. (Detach the high

pressure hose by pressing

(A) and (B).)

5. Push the wand into the spray gun.

When inserted, turn it. Make sure the

wand is properly attached to the

gun, then attach the nozzle to the

wand.

Ne: When attaching the nozzle, the button on the nozzle should pop out

again. Check before pressing the trigger that the nozzle is properly

inserted and the button has popped back out. Pull outward on the

nozzle to ensure it is locked in place.

6. Turn on the water from garden hose tap.

• A thermal sensor protects the motor against overloading. The machine will

automatically shut down, then automatically restart after a few minutes

(when the thermal sensor has cooled).

Trigger Safety Lock

Storage Hooks

Water Inlet

Coupling

Water Outlet Connector High Pressure

Hose Ends

Nozzle

Wand

Water Inlet

Filter with Gasket

Gasket for

Garden

Hose

1•888•557•3848

Wards.com

How to UseHow to Use

WARNING: When the machine is turned on, the interior pump starts and

continues to run even if the trigger has not been depressed.

Running the machine without depressing the trigger could

cause heat damage to the motor and pumps. Do NOT leave the

machine running unattended at any time.

OPERATING THE PRESSURE WASHER:

1. Plug the pressure washer plug into an electrical outlet.

2. The spray gun can “kick” when operated. Hold firmly with both hands and

point the nozzle at the ground.

3. Ensure the machine is in an upright position and all air vents are clear. This

pressure washer needs air circulation!

4. PRESSURE MUST BE RELEASED BEFORE TURNING ON the pressure washer.

Before each use, release the trigger safety lock, and squeeze the trigger; let the

water run until all air has escaped from the water hose. Release the trigger.

5. Turn on the pressure washer.

6. Squeeze the trigger to dispense pressurized water. Adjust the distance and the

pressure of the nozzle to the surface you are cleaning.

(continued on next page)

7. When the trigger is released, the machine automatically stops. The pressure

washer will start again when you re-activate the trigger.

8. When ﬁnished using the pressure washer, turn o.

9. Disconnect the plug from the outlet (do not pull on cord).

10. Shut o the water supply (from the tap) and squeeze the trigger of the spray

gun to release remaining water and pressure.

11. Lock the trigger safety lock.

WARNING: The pressure for the multi nozzle can be adjusted by

turning the nozzle. Do NOT adjust the nozzle while pressure

washer is operating, as injury to hands can occur.

SOAP FOAM SPRAYER:

1. Unscrew the top (the foam sprayer) from the container.

2. Add soap (deck wash, siding wash, etc.) to the container and screw the top

back on.

3. The foam sprayer is equipped with a quick connector. The nozzle end of the

wand inserts into the connector. When the soap foam sprayer is properly

attached to the wand, the coupling button should pop out again.

4. The foam sprayer has its own nozzle.

5. Adjust the amount of soap dispensed by turning the knob clockwise for less

(if you turn the knob all the way to close, only water will be dispensed) or

counter-clockwise for more soap.

WARNING: When the machine is running, maintain a constant water

supply. Without water circulation the sealing rings of the

pressure washer can be damaged.

Foam Sprayer

Container

Knob

Coupling Button

1•888•557•3848

Wards.com

10 11

TroubleshootingCleaning & Care

Ne: The pressure washer and accessories should be stored in a room that

is 60–800F. NEVER store outside or in a room that will freeze.

1. Turn o the pressure washer. Turn o the water tap and detach the garden

hose.

2. Restart the machine and squeeze the trigger. Let it run until no more water

comes out.

3. Turn o the machine and unplug. Remove the spray gun from the high

pressure hose.

4. Rinse the high pressure hose, the wand and nozzles with clean water.

5. If used, rinse the foam sprayer and container with clean water.

6. Wind up the high pressure hose and cord on the storage hooks.

7. Clean all connectors of dust and debris. Remove the water intake coupling and

rinse the ﬁlter (use an adjustable wrench, if needed). Replace.

8. Dry all parts before storing.

9. Place spray gun, wand, nozzles and other accessories on the holders on the

machine for storage.

10. Wipe the exterior of the machine with a damp cloth.

WARNING: Do not immerse any electrical tool, its cord, or its plug,

into water!

Symptom Cause Recommended action

Machine refuses to start Not plugged in

Defective outlet

Fuse has blown, GFCI

has tripped or circuit has

tripped

Defective extension cord

Plug in machine

Try another outlet

Check fuses, reset button or

circuit breaker box

Try without extension cord

Fluctuating pressure Pump is sucking air

Water pressure is

insucient

Check that hoses and

connections are tight

Check for hose blockage

and/or kinks

Machine stops Fuse has blown, GFCI

has tripped or circuit has

tripped

Incorrect voltage

Thermal sensor activated

Nozzle blocked

Check fuses, reset button or

circuit breaker box

Check for proper voltage

Turn machine o to cool

down for 5 minutes

Clean the nozzle with a

needle or by spraying water

backward into the nozzle

Machine starts and stops by

itself

Spray gun is leaking

No water supply

Check connection

Check for hose blockage

and/or kinks

Machine starts but no water

comes out

Inlet ﬁlter is blocked

Nozzle blocked

Clean ﬁlter

Clean the nozzle with a

needle or by spraying water

backward into the nozzle

Returns

If any item, for any reason, does not meet your expectations, just

return it to us. We’ll gladly either:

• Refund your merchandise amount

• Credit your account

• Send a replacement

You can return any unused item in its original packaging within 60

days of its receipt for a full refund of the purchase price (excluding

shipping and handling charges).

Please send returns to:

Montgomery Ward, Inc.

Attn: Customer Returns

2000 Harrison Suite 100

Clinton, IA 52732-6676

When returning an item:

• Use the original packaging and pack it securely.

• Please adequately insure your item in case you need to

make a claim with the carrier you choose for returning your

item.

• Include your order number and reason for return.

• We recommend keeping the receipt for 4 weeks.

Montgomery Ward, Inc. warrants this product

to be free from defects in material and workmanship

for one year from provable date of purchase.

Within this warranty period, Montgomery Ward will repair

replace, at its option, defective parts of this

product at no charge, provided the product is returned,

freight prepaid with proof of purchase to

Montgomery Ward.

Allow 2–4 weeks for return shipping.

This warranty does not cover improper installation, misuse,

abuse or neglect on part of the owner. Warranty is also

invalid in any case that the product is taken apart or

serviced by an unauthorized service station.

This warranty gives you speciﬁc legal rights and they may

vary from state to state.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL

OTHER WARRANTIES AND CONDITIONS,

EXPRESS OR IMPLIED, INCLUDING

BUT NOT LIMITED TO THOSE OF MERCHANTIBILITY

OR FITNESS FOR A PARTICULAR PURPOSE.

1 Year Limited Warranty

Montgomery Ward Customer Service

8:00 am to Midnight CST, Monday through Friday

Wards.com 1•888•557•3848

12 13

1•888•557•3848

Wards.com

12 13

Indice

Altri manuali Montgomery Ward Idropulitrice

Montgomery Ward

Montgomery Ward 795734 Manuale utente

Manuali Idropulitrice popolari di altre marche

Shark

Shark RG-232637 Manuale utente

Shakti Technology

Shakti Technology S3 Manuale utente

Kärcher

Kärcher K 4 Pure Manuale utente

Porter-Cable

Porter-Cable D25806-025-2 Manuale utente

REM POWER

REM POWER HDEm 662 Manuale utente

Landa

Landa HS-3000 Manuale utente

Craftsman

Craftsman 580.752270 Manuale utente

HIKOKI

HIKOKI AW 100 Manuale utente

Delco

Delco DC 1302 Manuale utente

Kärcher

Kärcher K 3 Full Control Manuale utente

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Manuale utente

ARKSEN

ARKSEN 014-HG-14141-HR Manuale utente

Black & Decker

Black & Decker PW1700SPX Manuale utente

Kärcher

Kärcher 595 - SPARE Guida

Kranzle

Kranzle B 10 200 Manuale utente

Stihl

Stihl RE 90 Manuale utente

Husky

Husky HU80911 Manuale utente

PowR-Quip

PowR-Quip PQ-2600 Manuale utente
