Montpellier MR90CEMX-K Manuale utente

90cm Double Oven Range Cooker

MR90CEMX-K - All Electric - Ceramic

Stainless Steel/Black

Please read these instructions carefully before attempting to install or use this appliance.

We recommend that you keep these instructions in a safe place for future reference.

Installation and Operating Instructions

THE PERFECT BALANCE OF FUNCTION AND STYLE

LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier All Electric, Ceramic Range Cooker.

Our Range Cookers have been designed to provide you with the best combination of style, reliability and

performance to give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing

or using your Cooker to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future reference.

Your Range Cooker is covered by a comprehensive two year Parts & Labour

Guarantee. In the unlikely event that you experience a problem with your

Cooker, you can rest assured that you are fully protected against the cost of

repairs for the first 24 months . Please note that any claim must be

accompanied by the model reference number, serial number and proof of

purchase.

To activate your guarantee, you will need your product serial number. This can

be found on the rear of the machine.

There are two ways to register your Guarantee:

•Online: Visit the Support page on our website and complete the online Product

Registration form. www.montpellier-appliances.com

•By Post: Simply detach and ll in the form provided, attach a stamp and send

it in the post. Don’t forget to include your e-mail address so that we can send

conrmation through to you.

Welcome

Note: We are unable to take registrations over the phone.

ACROSS ALL OUR MODELS

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

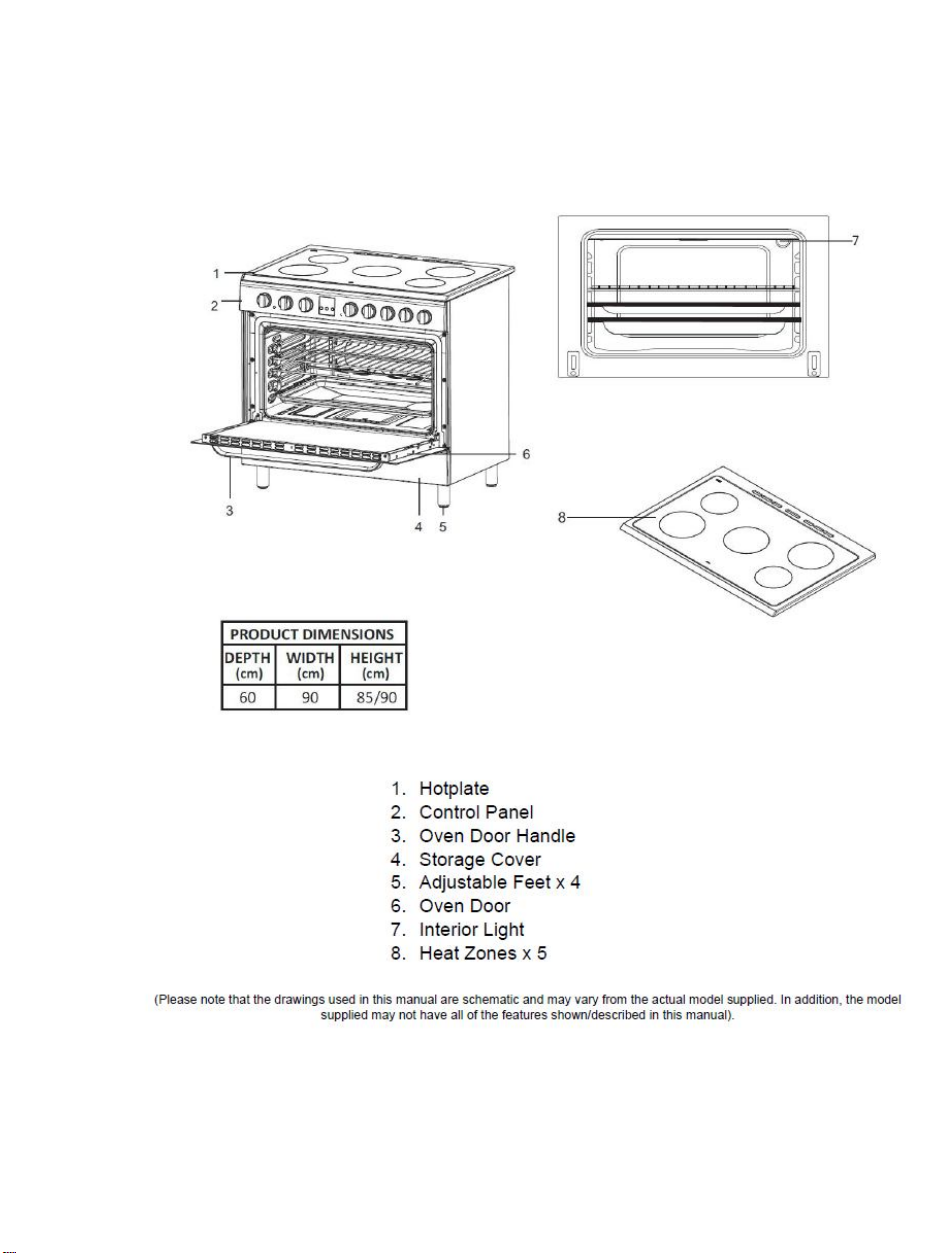

Description

The

Appliance

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

ection

Installation

•Remove all packaging, protective film and securing tape from

the appliance.

•Position the appliance in a dry atmosphere.

•The following dimensions are provided as a guide for

installation – your installer will carry out the installation in

accordance with the current regulations.

•Your installer will connect the power cable in accordance with

the current regulations.

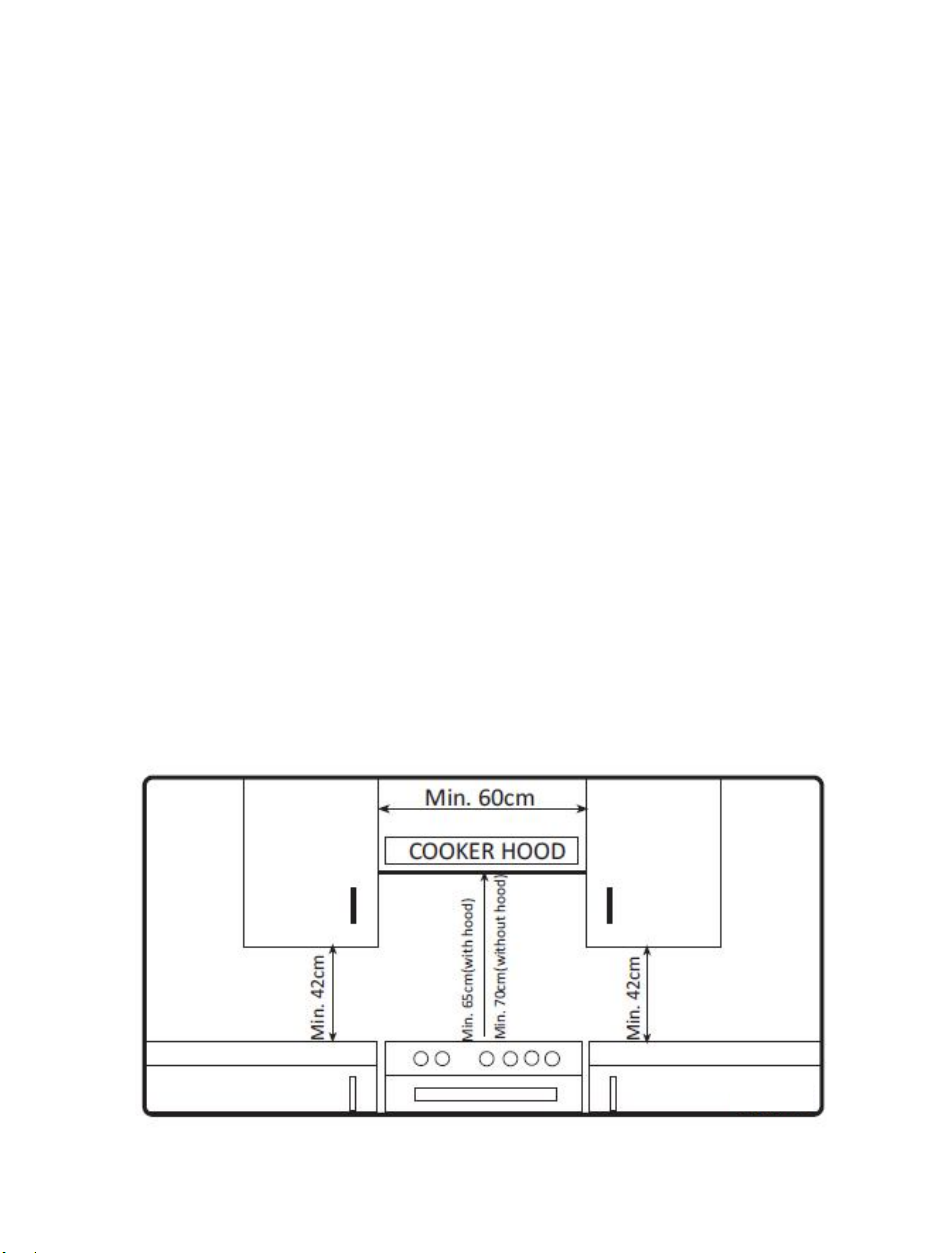

1.1. Positioning the Appliance

•Position the appliance as shown in the diagram below.

•Ensure an air gap of at least 2cm on all sides of the appliance.

•You must ensure a minimum gap of 65cm between the top of

the appliance and a cooker hood. The gap must be 70cm if

there is no cooker hood installed above the appliance.

1.2. Electrical Connection

This appliance must be ‘hard wired’ into a suitable

fused spur adjacent to the appliance housing, by a Qualified

Electrician. Please note that a switchable spur should be accessible

above the work surface in order that the power can be turned

off by the consumer.

Your installer will supply and use the appropriate diameter of

electrical cable based on the Power Rating of the appliance as

shown on the Rating Label affixed to the appliance.

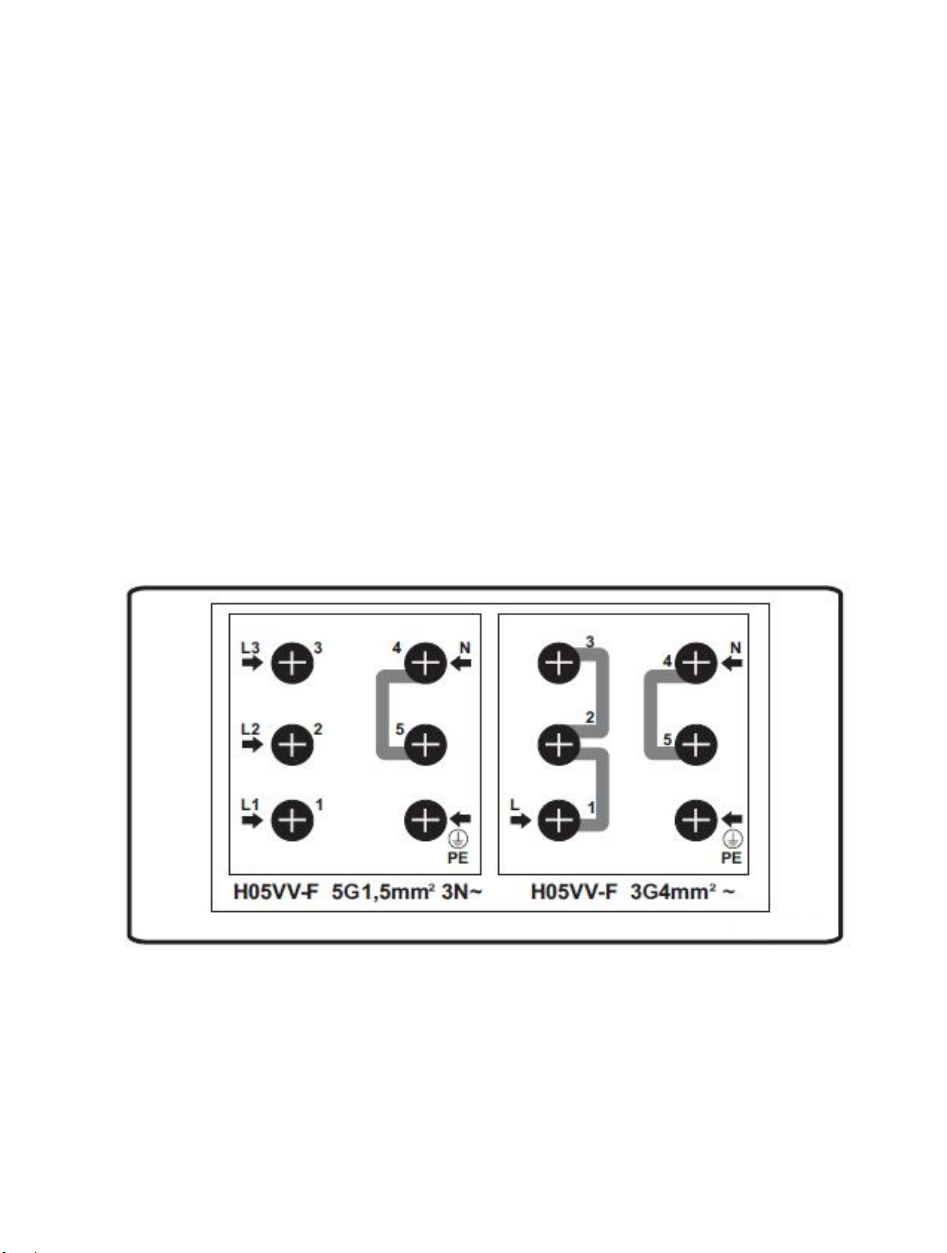

Electrical Connection Diagram:

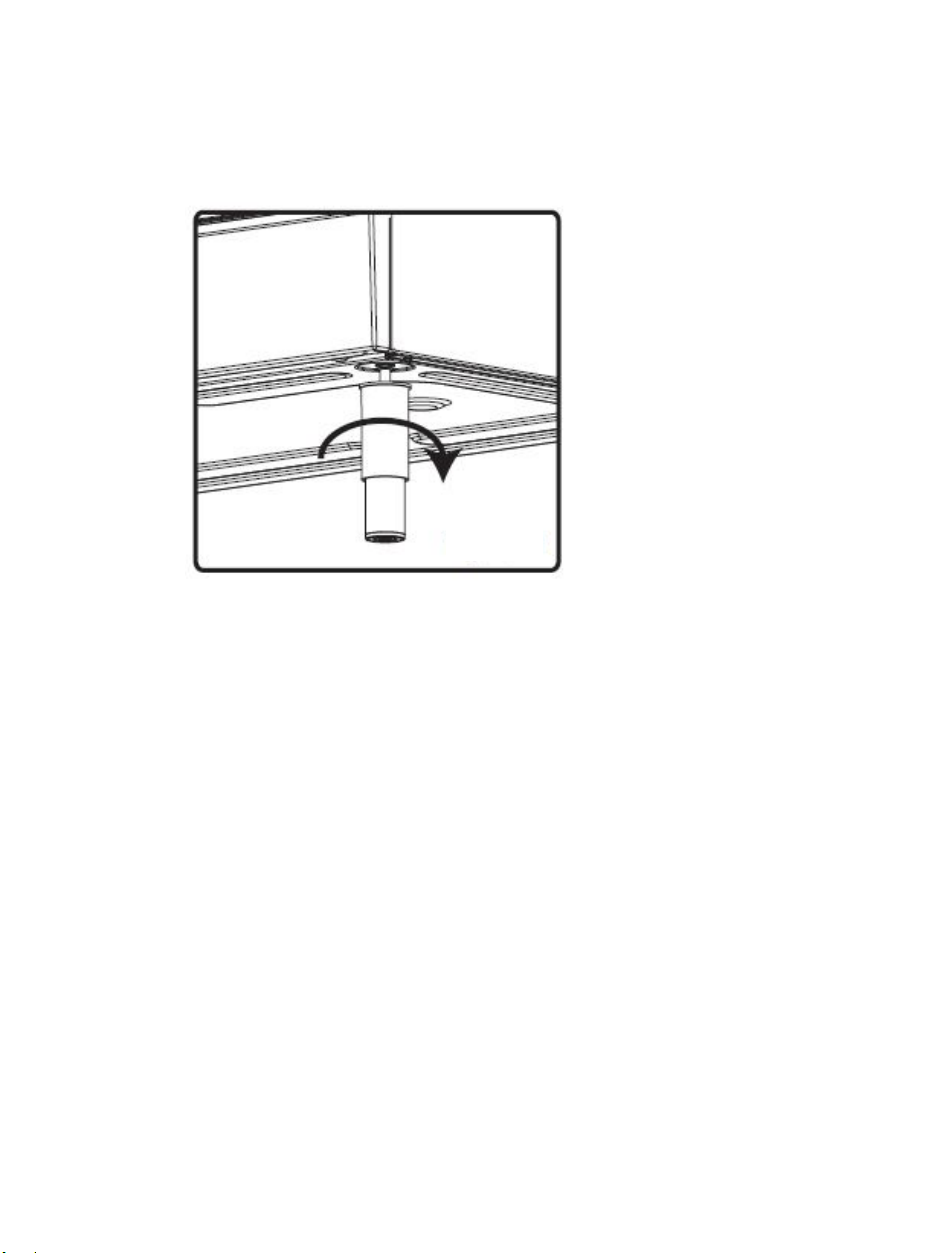

1.3. Level the Appliance

Finally, ensure that the appliance is level by adjusting the 4

feet as shown below.

Section 2. Safety Advice

-Please read this booklet thoroughly before installing and

switching on the appliance. The manufacturer accepts no

responsibility for incorrect installation and usage.

-This appliance is guaranteed for Domestic Use Only.

-The appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning the use of the

appliance by a person responsible for their safety. Children

should be supervised to ensure that they do not play with the

appliance.

-This appliance must only be used for cooking/heating food

items. Do not use it for any other purpose.

-If using an adaptor, this must be used in accordance with the

manufacturers instructions and ensure that the electrical

circuit is not overloaded as this could cause overheating.

-Do not twist or bend the cables, and keep them away from hot

surfaces.

-Following installation make sure that the power cable is not

trapped underneath the appliance.

-Keep the appliance surfaces clean. Failure to do this could lead

to the appliance malfunctioning.

-The surface of this appliance will get extremely hot during use.

Take care when using the appliance and keep children well

away.

-The interior and surface of this appliance will remain hot after it

has been turned off. Do not touch or clean the appliance until it

has completely cooled down.

-Never lift this appliance using the door handle or ‘open’ door.

-If the power supply cord is damaged, it must be replaced by the

manufacturer, it’s service agent or similarly qualified persons in

order to avoid a hazard.

Section 3. Operating the Appliance

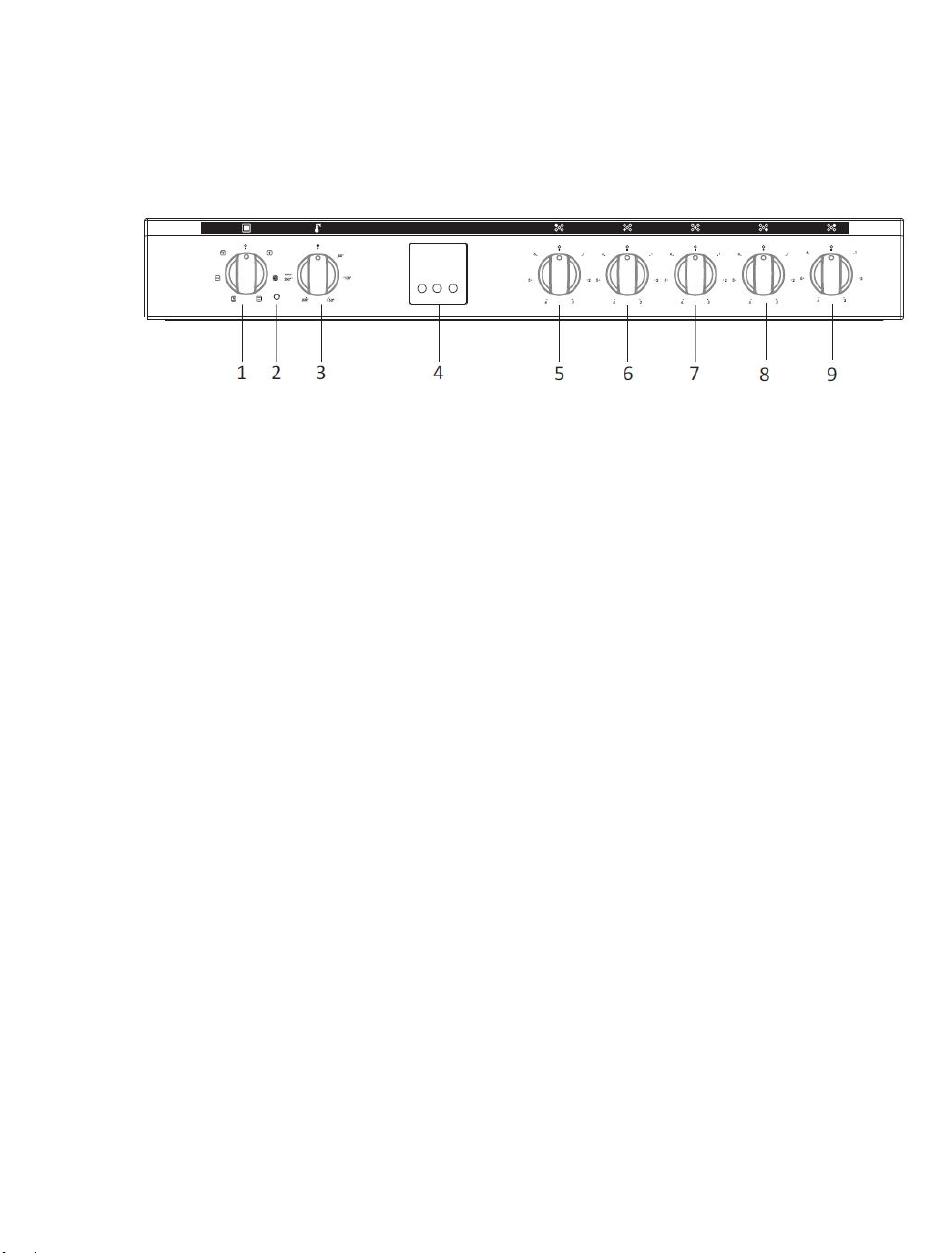

3.1. Oven Control Panel

1. Oven Function Control Knob

2. Oven Thermostat Operation Light

3. Oven Thermostat Control Knob

4. Digital Timer

5. Rear Left Heat Zone Control Knob

6. Front Left Heat Zone Control Knob

7. Centre Heat Zone Control Knob

8. Front Right Heat Zone Control Knob

9. Rear Right Heat Zone Control Knob

3.2. Cooking & Functions

3.2.1. Operating the Hotplate

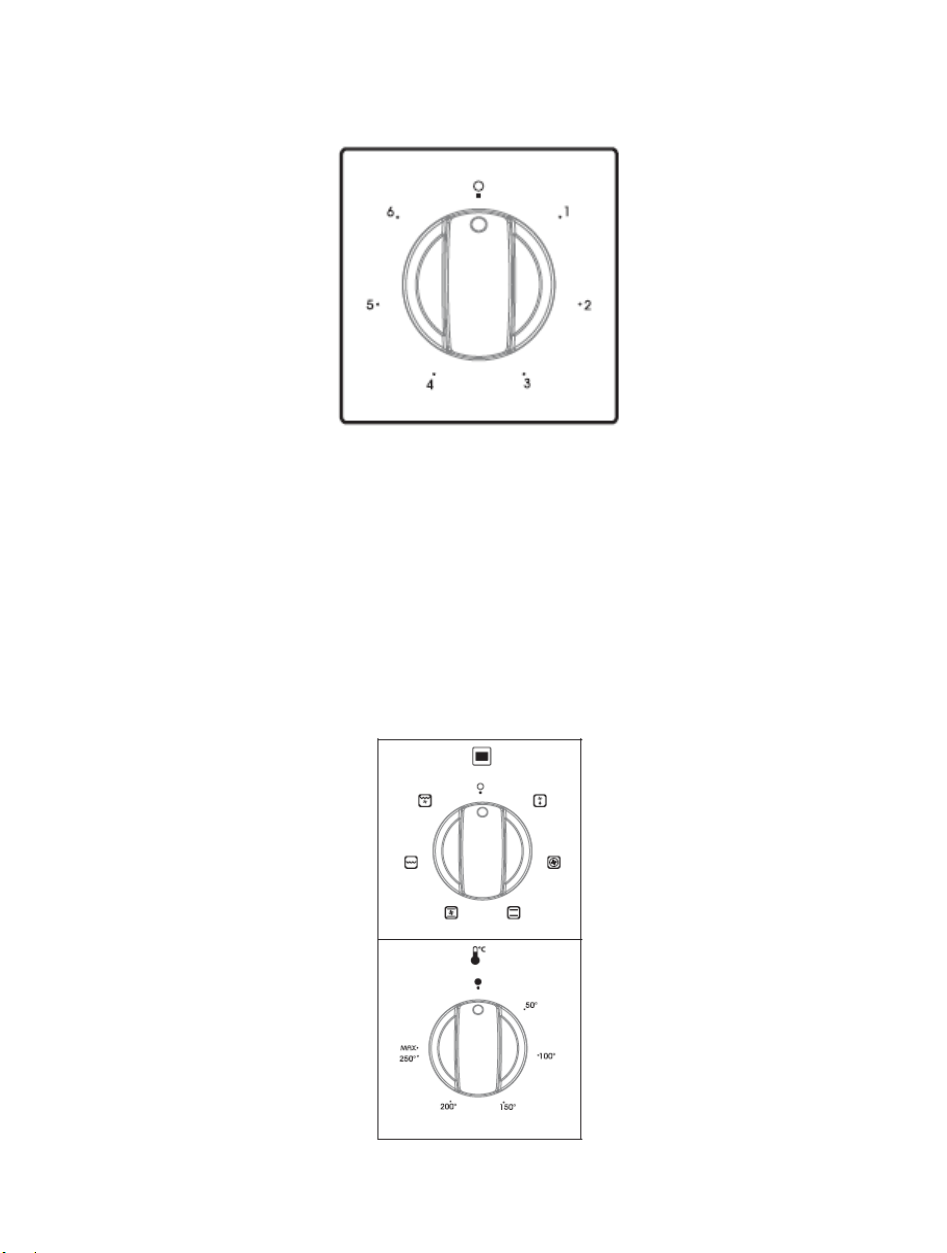

•Turn the appropriate Heat Zone control knob to the required

heat setting (Position 1 is low and position 6 is high – see

diagram below).

•Use only flat bottomed pans.

•Never use a pan with a smaller diameter than that of the heat

zone.

•Remember to turn the Heat Zone control knob back to Zero

when you have finished cooking.

3.2.2. Operating the Oven

•Turn the Oven Function Control Knob to the required setting

(See diagram below). See Section 3.2.4 for function list.

•Turn the Oven Thermostat Control Knob to the required heat

setting (See diagram below)

•The Oven Thermostat Operation Light will illuminate whilst the

oven heater is operating.
