Montpellier MTG60LS Manuale utente

60cm Twin Cavity Gas Cooker

MTG60LW/LS - White/Silver

Please read these instructions carefully before attempting to install or use this appliance.

We recommend that you keep these instructions in a safe place for future reference.

Installation and Operating Instructions

THE PERFECT BALANCE OF FUNCTION AND STYLE

LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier freestanding cooker.

Our cookers have been designed to provide you with the best combination of style, reliability and performance to

give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing

or using your freestanding cooker to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future reference.

Your cooker is covered by a comprehensive two year Parts & Labour Guarantee.

In the unlikely event that you experience a problem with your Integrated

Dishwasher, you can rest assured that you are fully protected against the cost

of repairs for the first 24 months . Please note that any claim must be

accompanied by the model reference number, serial number and proof of

purchase.

To activate your guarantee, you will need your product serial number. This can

be found on the rear of the machine.

There are two ways to register your Guarantee:

•Online: Visit the Support page on our website and complete the online Product

Registration form. www.montpellier-appliances.com

•By Post: Simply detach and ll in the form provided, attach a stamp and send

it in the post. Don’t forget to include your e-mail address so that we can send

conrmation through to you.

Welcome

Note: We are unable to take registrations over the phone.

ACROSS ALL OUR MODELS

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

Description Of The Appliance

Your Oven may be fitted with a fold-down lid (Not Shown above)

(Line Drawings indicative of model supplied)

(N.B. Model supplied may not have all features shown in this User

Manual).

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

ection

Installation

-This appliance must be installed by a ‘Gas Safe’ gas engineer.

-Remove all packaging, protective film and securing tape from

the appliance.

-Position the appliance in a dry atmosphere.

-The following dimensions are provided as a guide for

installation – your installer will carry out the installation in

accordance with the current regulations.

-Your ‘Gas Safe’ gas engineer will connect the cooker in

accordance with the current regulations.

To install this appliance, please proceed as follows:

1.1. Positioning the Cooker

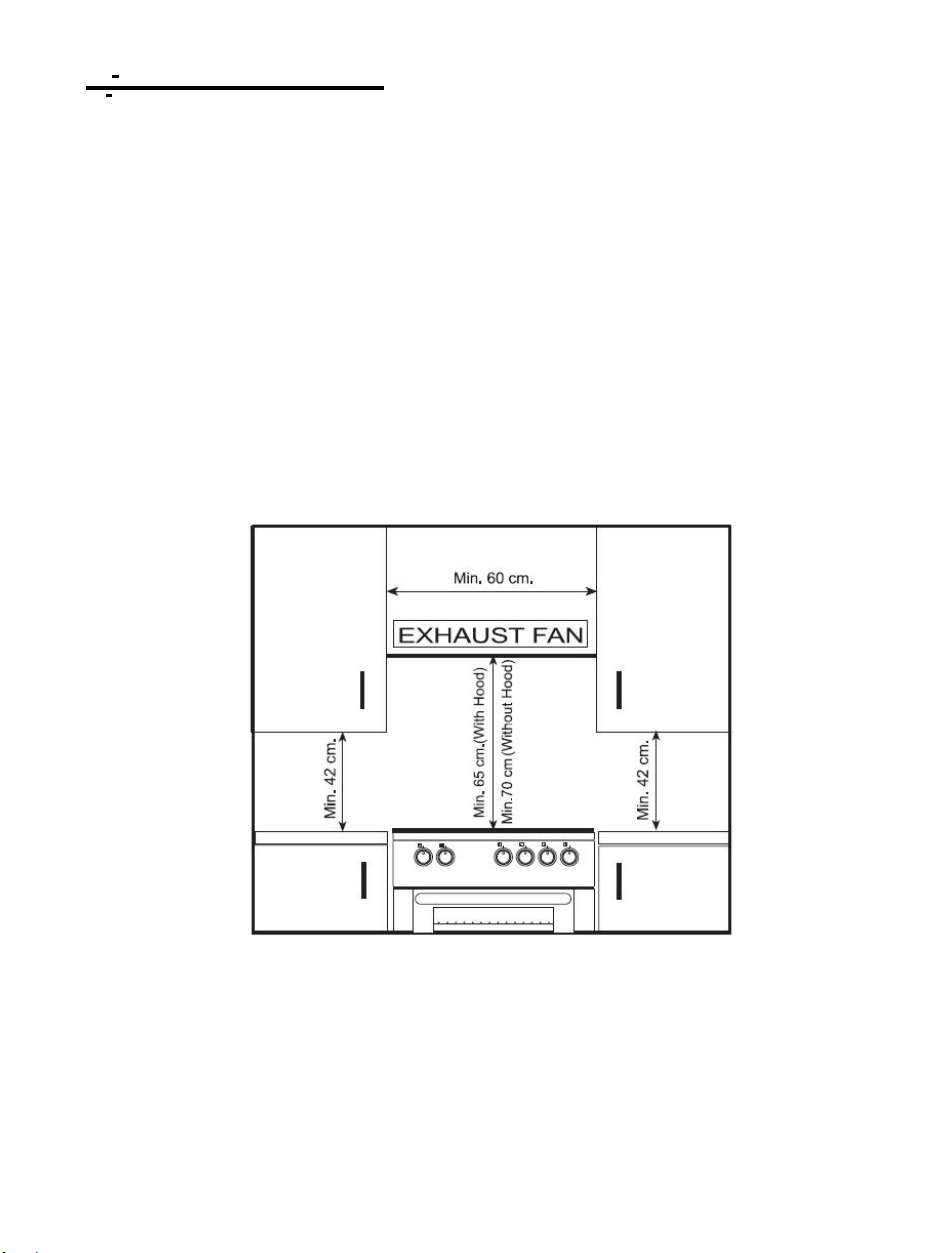

You must ensure a minimum gap of 2cm between the back

of the appliance and the rear wall to allow for ventilation. You

must ensure a minimum distance of 70cm between the

hotplate and overhanging cupboards or a cooker hood (as

shown above).

Adjust the height and stability of the cooker by adjusting the

two front feet as shown below. Rotate in a clockwise direction

to decrease the height and in an anti-clockwise direction to

increase the height.

1.2. Electrical Connection

This appliance can be fitted with a 13 Amp plug and plugged

into a standard, switchable 13 Amp socket.

Alternatively, the product can be ‘hard wired’ into a suitable

fused spur adjacent to the appliance housing. In this case the

product must be installed by a Qualified Electrician. Please

note that a switchable spur should be accessible above the

work surface in order that the power can be turned off.

1.3. Gas Connection

THE GAS CONNECTION MUST BE CARRIED OUT BY A ‘GAS-

SAFE’ REGISTERED GAS ENGINEER!

Connection to the gas supply should be with either rigid or

semi-rigid pipe, i.e. steel or copper. The connection should be

suitable for connecting to RC 1/2 (1/2 BSP male thread).

When the final connection has been made, it is essential that

a thorough leak test is carried out on the cooker and

installation. Ensure that the main connection pipe does not

exert any strain on the cooker. When a flexible tube is used,

make sure that it does not come into contact with hot areas

or adjacent housing units.

It is important to install the elbow correctly, with the shoulder

on the end of the thread, fitted to the cooker connecting pipe.

Failure to ensure the correct assembly will cause leakage of

gas.

1.4. Technical Specifications

Power supply: 230v – 50Hz

G30 28-30 12 mbar kW 873 g/h

II2H3+ GB Class:1

G20 20 mbar

LPG

G30/31 23-30/37

mbar

LARGE BURNER

DIA. of INJECTOR (1/100mm) 115 85

NOMINAL RATING (KW) 2,9 3

CONSUMPTION 276 l/h 218,1 g/h

MEDIUM BURNER

DIA. of INJECTOR (1/100mm) 97 65

NOMINAL RATING (KW) 1,75 1,75

CONSUMPTION 166.7 l/h 127,2 g/h

MEDIUM BURNER

DIA. of INJECTOR (1/100mm) 97 65

NOMINAL RATING (KW) 1,75 1,75

CONSUMPTION 166.7 l/h 127,2 g/h

SMALL BURNER

DIA. of INJECTOR (1/100mm) 72 50

NOMINAL RATING (KW) 11

CONSUMPTION 95.2 l/h 72,7 g/h

MAIN OVEN BURNER

DIA. of INJECTOR (1/100mm) 115 75

NOMINAL RATING (KW) 2,4 2,4

CONSUMPTION 228,6 l/h 174,5 g/h

GRILL BURNER

DIA. of INJECTOR (1/100mm) 110 69

NOMINAL RATING (KW) 2,2 2,1

CONSUMPTION 209,5 l/h 152,7 g/h

G30 28-30 12 mbar kW 873 g/h

II2H3+ GB Class:1

G20 20 mbar

LPG

G30/31 23-30/37

mbar

LARGE BURNER

DIA. of INJECTOR (1/100mm) 115 85

NOMINAL RATING (KW) 2,9 3

CONSUMPTION 276 l/h 218,1 g/h

MEDIUM BURNER

DIA. of INJECTOR (1/100mm) 97 65

NOMINAL RATING (KW) 1,75 1,75

CONSUMPTION 166.7 l/h 127,2 g/h

MEDIUM BURNER

DIA. of INJECTOR (1/100mm) 97 65

NOMINAL RATING (KW) 1,75 1,75

CONSUMPTION 166.7 l/h 127,2 g/h

SMALL BURNER

DIA. of INJECTOR (1/100mm) 72 50

NOMINAL RATING (KW) 11

CONSUMPTION 95.2 l/h 72,7 g/h

MAIN OVEN BURNER

DIA. of INJECTOR (1/100mm) 115 75

NOMINAL RATING (KW) 2,4 2,4

CONSUMPTION 228,6 l/h 174,5 g/h

GRILL BURNER

DIA. of INJECTOR (1/100mm) 110 69

NOMINAL RATING (KW) 2,2 2,1

CONSUMPTION 209,5 l/h 152,7 g/h

Section 2. Safety Advice

-This appliance must be installed by a ‘Gas Safe’

approved gas engineer.

-It is important that you use only metal pans specifically

designed and/or approved for use with Gas Hobs. Never allow

melamine or plastic containers to come in contact with the gas

burners.

-It is important that you use only ‘oven proof’ pans and dishes

when using the appliance for cooking or grilling. Never allow

cookware and/or utensils to come into contact with the top

heating element/grill.

Do not use melamine or plastic containers when cooking or

grilling.

Always take care when removing ovenware from the oven and

in particular avoid touching the Grill Element.

-Please read this booklet thoroughly before installing and

switching on the appliance. The manufacturer accepts no

responsibility for incorrect installation and usage.

-This appliance is guaranteed for Domestic Use Only.

-This appliance shall not be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction on how

to use the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without

supervision.

-This appliance must only be used for cooking/heating food

items. Do not use it for any other purpose.

-Do not twist or bend the connection/power cable, and keep it

away from hot surfaces.

-Following installation make sure that the power cable is not

trapped underneath the appliance.

-Keep the appliance surfaces clean. Failure to do this could lead

to the appliance malfunctioning.
