Ultralight vacuum cleaner

Please read and keep these

instructions

getting the best from

your new cleaner...

If your cleaner isn’t picking up as

well as it should, please check

• Dustbag

It is important to replace them when full, otherwise the

performance of the cleaner will be impaired

• Filters

It is important that the filters are cleaned and replaced

regularly to allow air through the appliance

• Blockages

Check the hose for blockages

• Belt

Check and replace damaged or broken belt

8407 Upright ib 4 03/12/2002 1:18 PM Page 1

Important safety

instructions

The use of any electrical appliance

requires the following of common sense

safety rules.

Primarily there is danger of personal

injury and secondly danger of damage to the

appliance and property. These are indicated

in the instructions text by the following two

conventions:

WARNING: Danger of personal injury

IMPORTANT: Damage to the appliance

In addition we offer the following

essential safety advice.

Location

•Do not use or keep this product outside

when it is raining.

•Do not store the appliance near hot

ovens or heating appliances.

Mains lead

•Do not allow the mains lead to become

strained or run this appliance over it.

•If the electrical cable becomes damaged

the complete cable assembly must be

replaced. Do not attempt this task

yourself, contact Morphy Richards using

the helpline number.

Children

•Children do not understand the dangers

associated with operating electrical

appliances. Never allow children to use

this appliance.

Other safety considerations

•Never use in the presence of explosive

liquids or vapours.

•Never pick up inflammable or poisonous

liquids such as petrol, copier toner, or

other volatile substances. Never pick up

acids, asbestos or asbestos dust.

•Never use the appliance without the bag

or filters installed.

•Never use the appliance to vacuum hot

ashes, broken glass, sharp objects or

liquids.

•Never modify the cleaner in any way.

•Always disconnect the appliance from the

mains supply after use or prior to

cleaning or replacing dust bags.

•The appliance should never be left

running unsupervised.

•Repairs to electrical appliances are only

to be undertaken by trained personnel.

Unprofessional repairs can be dangerous

for users.

•Use only genuine Morphy Richards spare

parts and accessories

•Never over-extend the hose such that the

cleaner is pulled over. If the cleaner is

knocked over, switch off before

attempting to upright.

•Never pick the cleaner up by the floor

nozzle when connected to the mains, use

the carrying handle.

•WARNING: Keep loose clothing, hair,

fingers etc. away from the floor

nozzle whenever the cleaner is

connected to the mains.

•Disconnect from the mains supply before

attempting to clear blockages, clear the

brush or replace the belt.

Electrical

requirements

Check that the voltage on the rating plate

of your appliance corresponds with your

house electricity supply which must be A.C.

(Alternating Current).

If the socket outlets in your home are not

suitable for the plug supplied with this

appliance, the plug should be removed and

the appropriate one fitted.

WARNING: The plug removed from

the mains lead, if severed, must be

destroyed as a plug with bared flexible

cord is hazardous if engaged into a live

socket outlet.

Should the fuse in the 13 amp plug

require replacement, a BS1362 13 amp fuse

must be fitted.

8407 Upright ib 4 03/12/2002 1:18 PM Page 2

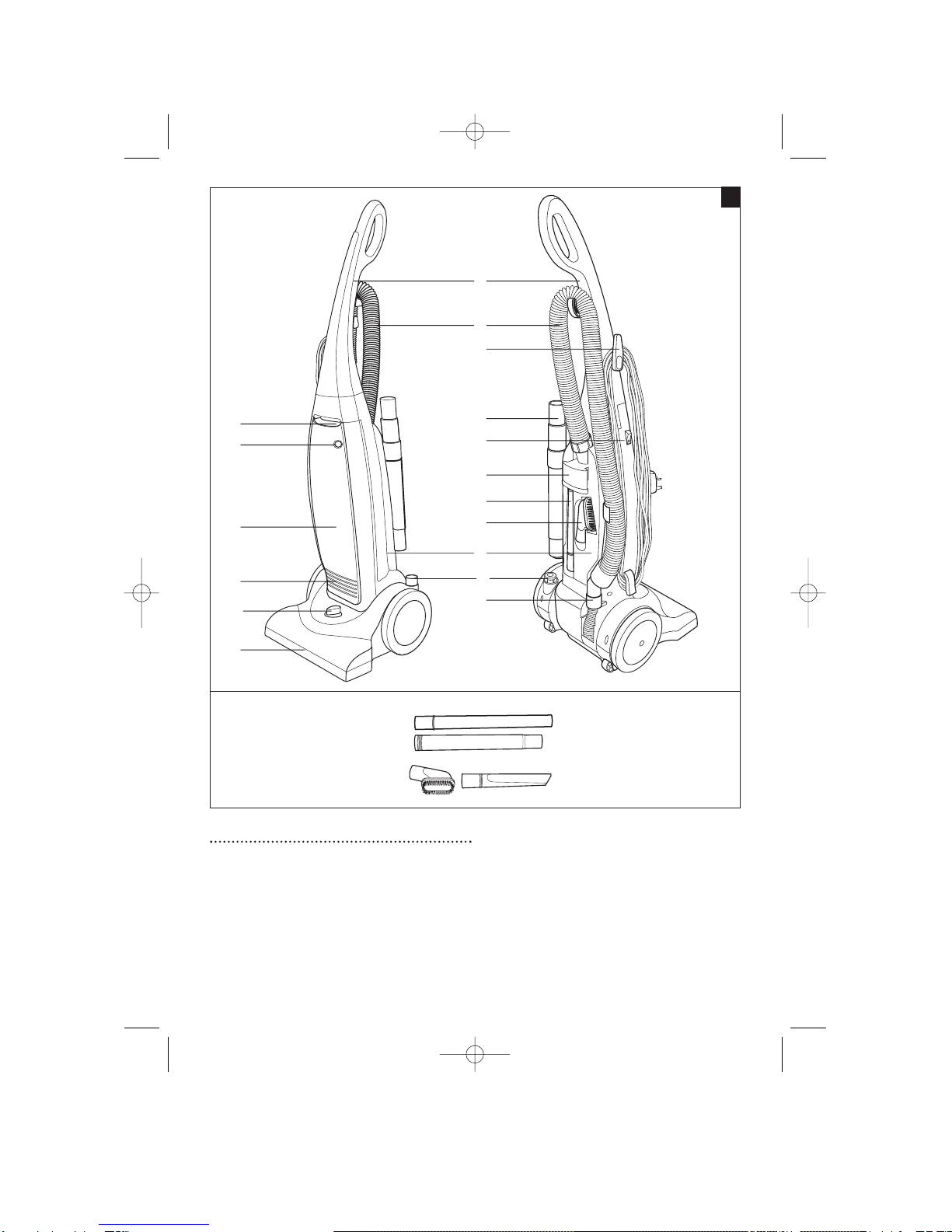

Features

⁄Upper handle

¤Flexible hose

‹Main body

›Furniture brush

ﬁHose connector

ﬂCrevice nozzle

‡Nested extension tubes (2)

·Carpet height adjustment knob

‚Exhaust filter

„Front panel

‰Full bag indicator

ÂOn/Off switch

ÊFront cover release

ÁFloor nozzle with powered brush

ËHandle release

ÈCarrying handle

ÍCord storage with quick release cleat

ÎSafety bag interlock

ÏBelt cover

ÌBelt tunnel blanking plate

ÓBrush end plates 3

Accessories

included

⁄

‹

›

‚

„

‰

ﬂ

‡

ﬁ

Extension tubes

Crevice tool

Furniture brush

8407 Upright ib 4 03/12/2002 1:18 PM Page 3

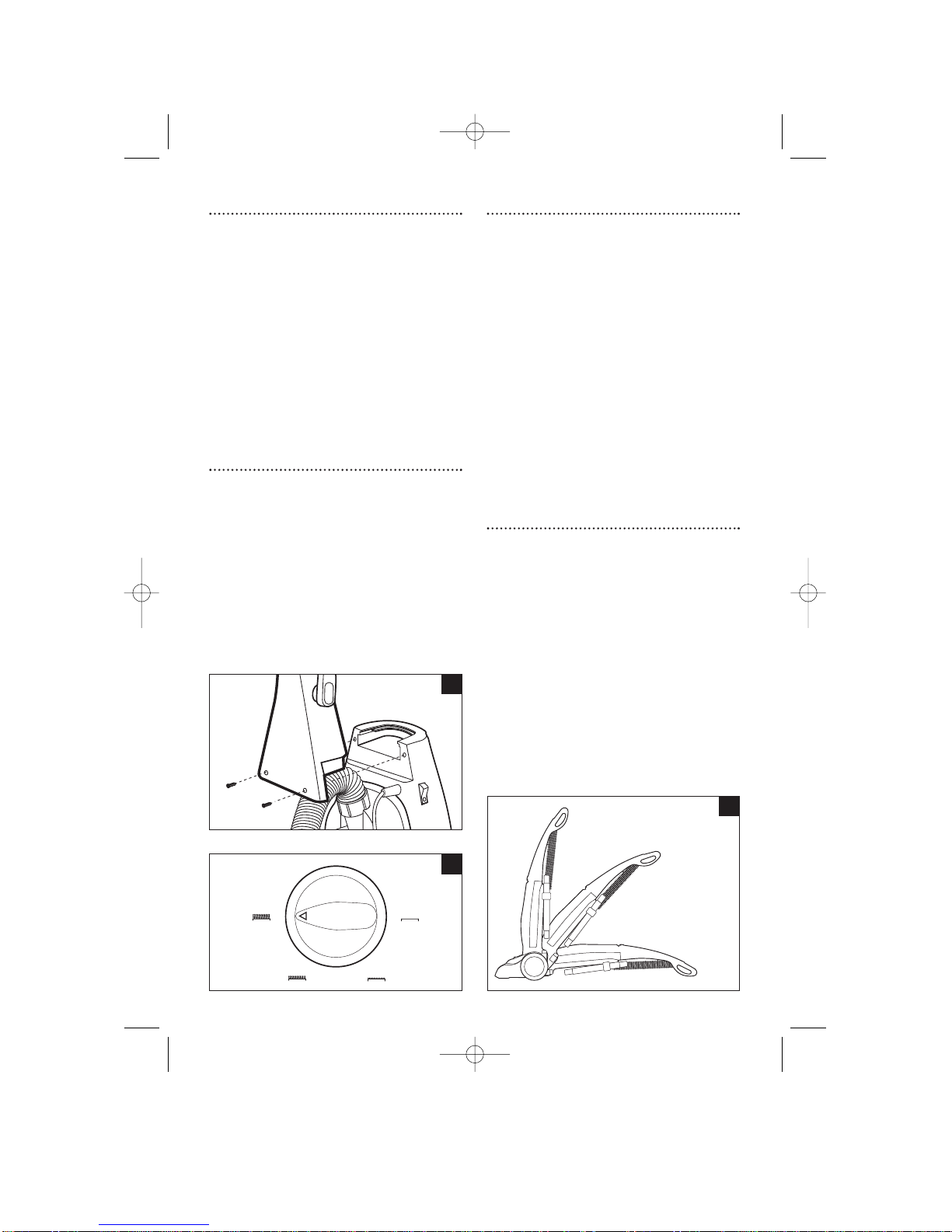

Assembly

Warning: Do not plug in the cleaner until

it is assembled.

1Carefully unpack all components.

2Lift cleaner body to upright position.

3Remove the two screws that are already

attached to the body.

4From the rear of the cleaner, align the

handle with groove and slide into the

body. If necessary, use thumb and finger

pressure to slide handle into position.

5Fasten the handle with the two screws.

Floor nozzle height

adjustment

Before using the cleaner the floor nozzle

height must be set to the correct height.

Choose the setting which most closely

matches your floor surface, ie deep carpet

pile, medium carpet pile, short carpet pile or

hard floor.

When using the attachments the cleaner

must only be used in the upright position

with the carpet height adjustment knob set

to deep carpet.

Using on carpets

1Place cleaner in its upright position.

2Set the carpet height adjustment knob to

the desired position.

3Release the mains cable by revolving the

quick release cleat through 180º and

extend the cable fully.

4Plug the cable into the mains socket.

5Step on the handle release button to

release the handle to the desired position

6Press the on/off button to the ‘on’

position.

IMPORTANT: To prevent damage to

carpets, never leave the cleaner switched on

in one place for an extended period.

•Never have the brushes set too low such

that the cleaner is hard to push.

Using attachments

Follow steps 1-4 above but set the carpet

height adjustment knob to the deep carpet

setting.

5Remove the hose connector from the rear

of the cleaner and push the required

attachment firmly onto the end of the

hose.

•If additional length is required, attach one

or both extension tubes between the

hose and tool.

6Switch on/off.

IMPORTANT: Never over extend the hose

such that the cleaner is pulled over.

DEEP CARPET HARD FLOOR

Use attachments

Use

Clean under furniture

Flat position

8407 Upright ib 4 03/12/2002 1:18 PM Page 4

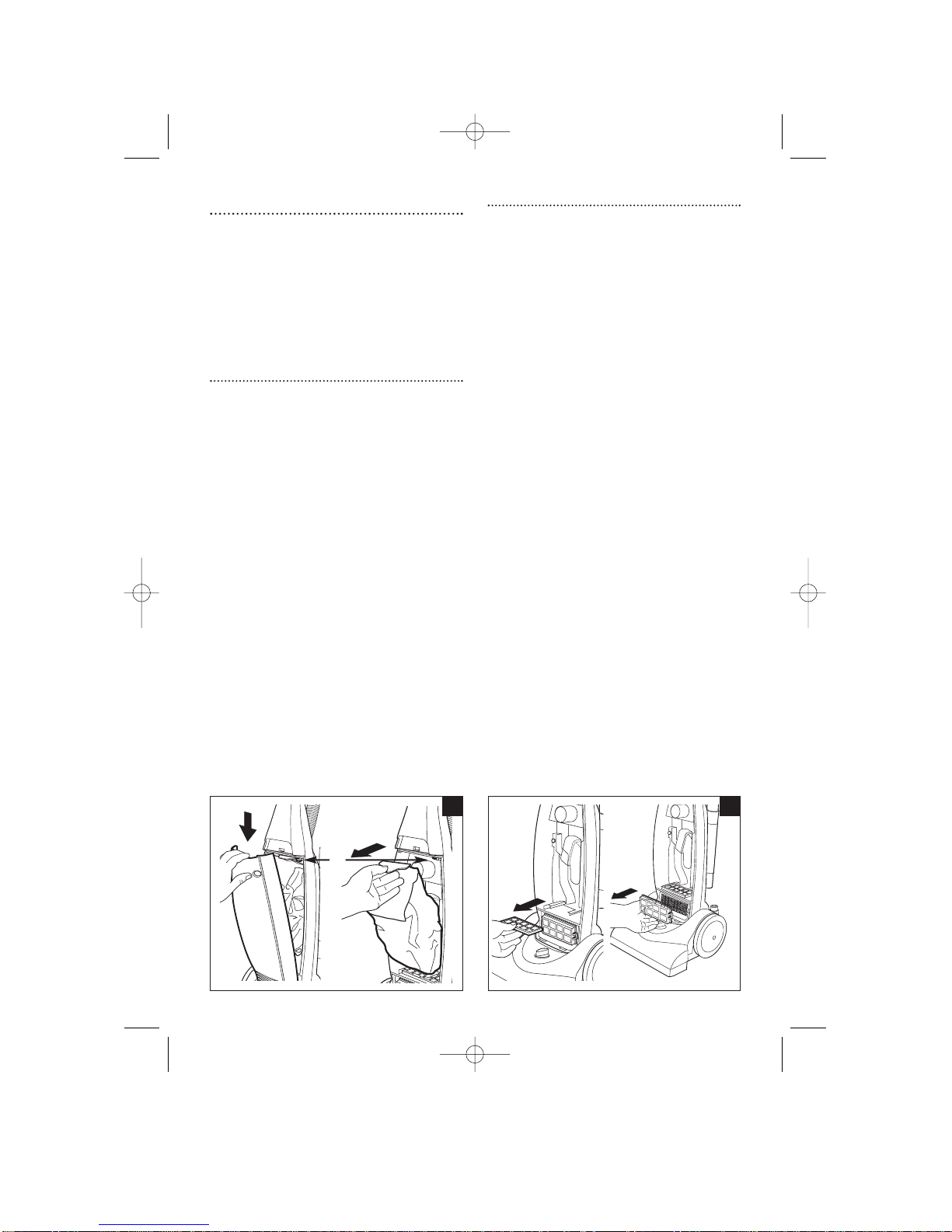

Dust bag condition

When the cleaner is switched on, if the

dust bag condition indicator is continuously

showing red (or if the suction is reduced) the

bag must be replaced and the filters

cleaned.

If it is still showing red after emptying the

dust bag and cleaning the filters, check to

see if the hose is blocked.

Changing the dust bag

1 Unplug power cable from wall socket.

2Remove the front by pressing the release

lever at the top.

3Remove the old dust bag by holding the

cardboard tab and pull towards you.

Remove carefully to avoid dust/dirt

spilling from dust bag and dispose.

4Take a new dust bag and fold over the

top tab at the crease. Holding the

cardboard tab, push the bag over the

opening of the dirt discharge tube until it

is seated against the rear of the

enclosure.

5The front panel will not close unless the

dustbag is correctly fitted due to the

safety bag interlock. Always check the

pre-motor and post motor filters every

time you change the dust bag.

6Once the new dust bag is in place,

replace the front panel by aligning the

bottom locking tabs with the slots in the

body, close cover slowly allowing the

front panel to snap in place. The latch

will self lock.

Changing the filters

Everytime a new bag is fitted, the filters

should be taken out and cleaned. Failure to

clean the filters will reduce the suction and

will damage the motor if used for prolonged

periods. This may invalidate the guarantee. If

the filters become damaged they must be

replaced.

IMPORTANT: Do not operate the cleaner

without the filters in place.

1Remove the front cover of the cleaner.

2The pre-motor filter is located underneath

the bag and the exhaust filter is below

facing forward. To remove the pre-motor

filter, simply slide it forward. To remove

the exhaust motor filter, pull the locking

tab on the right and it will snap out.

3Remove the filters from their holders by

unclipping and shake vigorously over a

dustbin. The pre-motor filter may also be

washed in warm water. Do not use

detergents. The filter must be completely

dry before re-fitting. Allow filter to dry

naturally, do not overheat. The exhaust

filter is non-washable.

4Replace front cover.

E F

8407 Upright ib 4 03/12/2002 1:18 PM Page 5

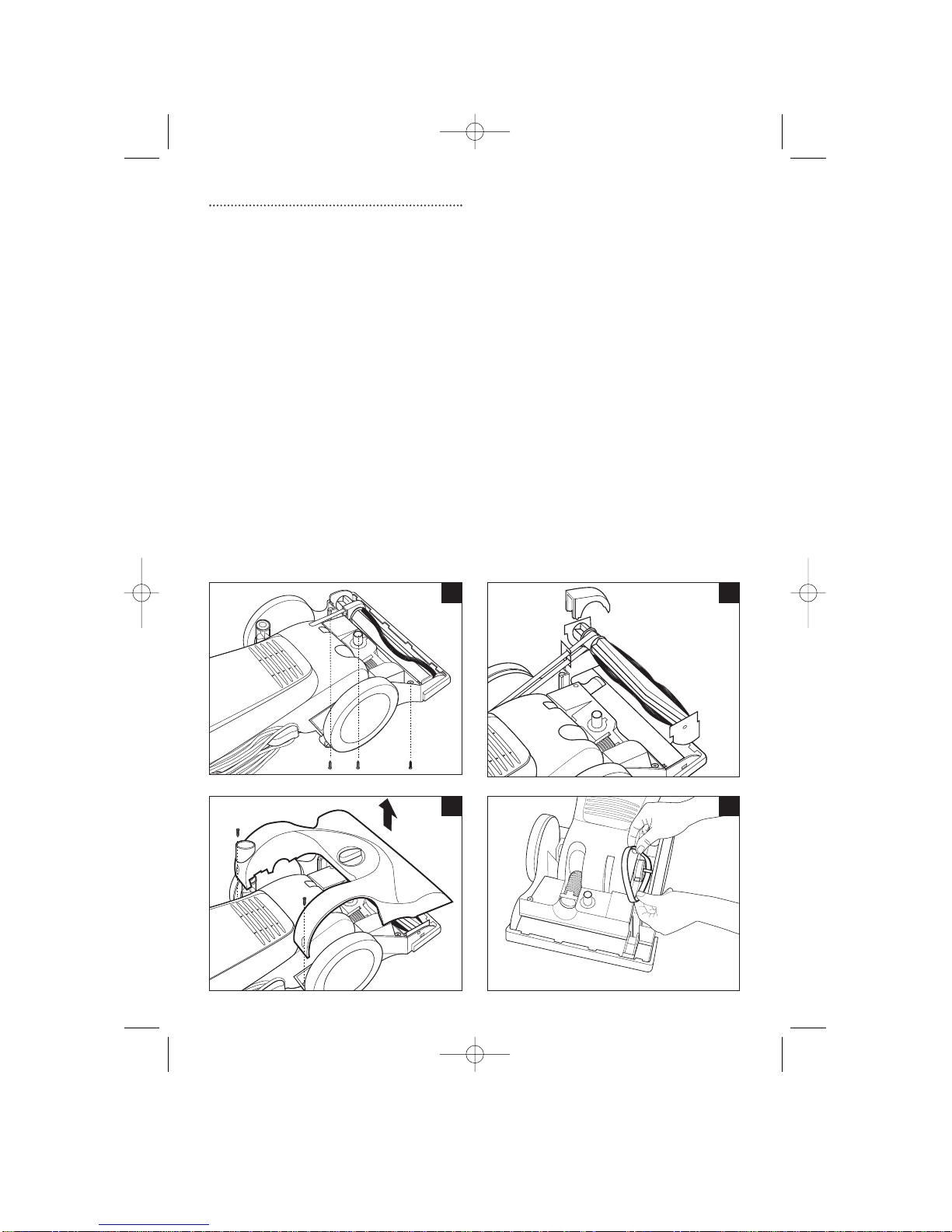

Changing the brush belt

If the power brush stops rotating it is

likely that the drive belt has snapped (usually

because the brush has been stalled).

Replacement belts can be obtained from

Morphy Richards or a Service Agent.

1Disconnect the cleaner from the mains

supply.

2Place the cleaner face down in the flat

position.

3Use a cross-head screwdriver to remove

the two screws from the front bottom and

the central screw under the height

adjustment mechanism G.

4Turn the cleaner over and remove the

carpet height adjustment knob.

5Remove the two screws at the rear and

lift the rear of the cover off over the

handle release button and unclip the

cover from the front of the floor nozzle

6If the belt has broken, remove any loose

pieces before replacing.

7Lift the belt cover Ïoff.

8Grasp the brush at both ends and lift

straight up I.

9Remove the belt tunnel blanking plate Ì.

10 Place one end of the new belt over the

motor shaft and the other around the

pulley end of the brush J.

11 Make sure both brush end plates Óare

fitted.

12 Place the belt tunnel blanking plate over

the belt and push end into its guide slot.

13 Align brush end plates with their guide

slots and push the brush down into

place.

14 Re-fit the belt cover.

15 Re-fit the main cover. Push the carpet

height adjustment knob back on - do not

over tighten.

16 Replace the two screws on the top of the

cover and the three screws underneath

the floor nozzle.

8407 Upright ib 4 03/12/2002 1:18 PM Page 6

Helpline

If you have any difficulty with your

appliance, do not hesitate to call us. We’re

more likely able to help than the store from

where you bought the product.

Please have the following information

ready to enable our staff to deal with your

query quickly:

•Name of the product

•Model number as shown on the

underside of the appliance.

8407 Upright ib 4 03/12/2002 1:19 PM Page 7

Your two-year

guarantee

•It is important to retain the retailers

receipt as proof of purchase. Staple

your receipt to this back cover for future

reference.

Please quote the following information if

the product develops a fault. These numbers

can be found on the rear of the product.

Model no. Serial no.

All Morphy Richards Products are

individually tested before leaving the factory.

In the unlikely event of any appliance proving

to be faulty within 28 days of purchase it

should be returned to the place of purchase

for it to be replaced.

If the fault develops after 28 days and

within 24 months of original purchase, you

should contact the helpline number quoting

model number and serial number on the

product, or write to Morphy Richards at the

address shown. You will be asked to return

the product (in secure, adequate packaging)

along with a copy of proof of purchase.

Subject to the exclusions set out below (1-6),

the faulty appliance will then be repaired or

replaced and dispatched usually within

seven working days of receipt.

If for any reason this item is replaced

during the 2-year guarantee period, the

guarantee on the new item will be calculated

from original purchase date. Therefore it is

vital to retain your original receipt or invoice

to indicate the date of initial purchase.

To qualify for the two-year guarantee the

appliance must have been used according to

the manufacturers instructions. For example

bags and filters shall have been regularly

cleaned or replaced.

Morphy Richards shall not be liable to

replace or repair the goods under the terms of

the Guarantee where:

1The fault has been caused or is attributable

to accidental use, mis-use, negligent use or

used contrary to the manufacturers

recommendations or where the fault has

been caused by power surges or damage

caused in transit.

2The appliance has been used on a voltage

supply other than that stamped on the

products.

3Repairs have been attempted by persons

other than our service staff (or authorised

dealer).

4Where the appliance has been used for hire

purposes or non-domestic use.

5Morphy Richards are not liable to carry out

any type of servicing work, under the

guarantee.

6Consumables such as bags, filters and belt

are not covered by the guarantee.

This guarantee does not confer any rights

other than those expressly set out above

and does not cover any claims for

consequential loss or damage. This

guarantee is offered as an additional beneﬁt

and does not affect your statutory rights as a

consumer.

•This guarantee is valid in the UK and

Ireland only.

8VC73300M Rev 4 11/02

The After Sales Division,

Morphy Richards Ltd, Mexborough,

South Yorkshire, England, S64 8AJ

Helpline (office hours)

UK (local rate) 0870 060 2603

Republic of Ireland 1800 409119

Morphy Richards products are

intended for household use only

Morphy Richards has a policy of

continuous improvement in product

quality and design. The Company,

therefore, reserves the right to change

the specification of its models at any

time.

8407 Upright ib 4 03/12/2002 1:19 PM Page 8

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Morphy Richards Aspirapolvere

Morphy Richards

Morphy Richards Essentials 73179 Manuale utente

Morphy Richards

Morphy Richards VC73184 Manuale utente

Morphy Richards

Morphy Richards 73106 Manuale utente

Morphy Richards

Morphy Richards Scoot cylinder vacuum cleaner Manuale utente

Morphy Richards

Morphy Richards VC73215 MUK Manuale utente

Morphy Richards

Morphy Richards 73281 Manuale utente

Morphy Richards

Morphy Richards PerformAir Upright Vacuum Manuale utente

Morphy Richards

Morphy Richards VC73240MUK Manuale utente

Morphy Richards

Morphy Richards POD COMPACT BAGLESS VACUUM CLEANER - REV 2 Manuale utente

Morphy Richards

Morphy Richards ESSENTIALS CYCLONIC BAGLESS UPRIGHT VACUUM CLEANER - REV... Manuale utente

Morphy Richards

Morphy Richards Supervac Deluxe Manuale utente

Morphy Richards

Morphy Richards Supervac Sleek Pro Manuale utente

Morphy Richards

Morphy Richards BAGLESS CYLINDER VACUUM CLEANER - REV 2 Manuale utente

Morphy Richards

Morphy Richards IB70313 Manuale utente

Morphy Richards

Morphy Richards Bagged cylinder Vacuum Manuale utente

Morphy Richards

Morphy Richards ESSENTIALS BAGLESS VACUUM CLEANER - REV 1 Manuale utente

Morphy Richards

Morphy Richards Ecovac 70096 Rev 2 (Page 1) Manuale utente

Morphy Richards

Morphy Richards Ecovac vacuum cleaner Manuale utente

Morphy Richards

Morphy Richards IB73105 Manuale utente

Morphy Richards

Morphy Richards ESSENTIALS CYLINDER VACUUM CLEANER - REV 3 Manuale utente

Morphy Richards

Morphy Richards ULTRALIGHT CYCLONE VACUUM CLEANER Manuale utente

Morphy Richards

Morphy Richards Essentials Family and Pets+ Manuale utente

Morphy Richards

Morphy Richards Storm Manuale utente

Morphy Richards

Morphy Richards IB73091 Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
