Ultralight vacuum cleaner

Please read and keep these

instructions

getting the best from

your new cleaner...

If your cleaner isn’t picking up as well as it should,

please check

• Dustbag

It is important to replace them when full, otherwise the

performance of the cleaner will be impaired.

• Filters

It is important that filters are cleaned and replaced regularly to

allow air through the appliance.

• Blockages

Check the hose, tubes and tools for blockages

• Belt

Check and replace damaged or broken belt

• Height adjustment

The height adjustment only comes into effect when the handle is

released by the handle release pedal Â.

73340 Rev 1 4/3/05 10:29 AM Page 1

Important safety

instructions

The use of any electrical appliance

requires the following of common sense

safety rules.

Primarily there is danger of personal

injury and secondly danger of damage to the

appliance and property. These are indicated

in the instructions text by the following two

conventions:

WARNING: Danger of personal injury

IMPORTANT: Damage to the appliance

In addition we offer the following

essential safety advice.

Location

•Do not use or keep this product outside

when it is raining.

•Do not store the appliance near hot

ovens or heating appliances.

Mains lead

•Do not allow the mains lead to become

strained or run this appliance over it.

•If the electrical cable becomes damaged

the complete cable assembly must be

replaced. Do not attempt this task

yourself, contact Morphy Richards using

the helpline number.

Children

•Children do not understand the dangers

associated with operating electrical

appliances. Never allow children to use

this appliance.

Other safety considerations

•Never use in the presence of explosive

liquids or vapours.

•Never pick up inflammable or poisonous

liquids such as petrol, copier toner, or

other volatile substances. Never pick up

acids, asbestos or asbestos dust.

•Never use the appliance without the bag

or filters installed.

•Never use the appliance to vacuum hot

ashes, broken glass, sharp objects or

liquids.

•Never modify the cleaner in any way.

•Always disconnect the appliance from the

mains supply after use or prior to

cleaning or replacing dust bags.

•The appliance should never be left

running unsupervised.

•Repairs to electrical appliances are only

to be undertaken by trained personnel.

Unprofessional repairs can be dangerous

for users.

•Use only genuine Morphy Richards spare

parts and accessories

•Never over-extend the hose such that the

cleaner is pulled over. If the cleaner is

knocked over, switch off before

attempting to upright.

•Never pick the cleaner up by the floor

nozzle when connected to the mains, use

the carrying handle.

•WARNING: Keep loose clothing, hair,

fingers etc. away from the floor

nozzle whenever the cleaner is

connected to the mains.

•Disconnect from the mains supply before

attempting to clear blockages, clear the

brush or replace the belt.

Electrical

requirements

Check that the voltage on the rating plate

of your appliance corresponds with your

house electricity supply which must be A.C.

(Alternating Current).

If the socket outlets in your home are not

suitable for the plug supplied with this

appliance, the plug should be removed and

the appropriate one fitted.

WARNING: The plug removed from

the mains lead, if severed, must be

destroyed as a plug with bared flexible

cord is hazardous if engaged into a live

socket outlet.

Should the fuse in the 13 amp plug

require replacement, a BS1362 13 amp fuse

must be fitted.

73340 Rev 1 4/3/05 10:29 AM Page 2

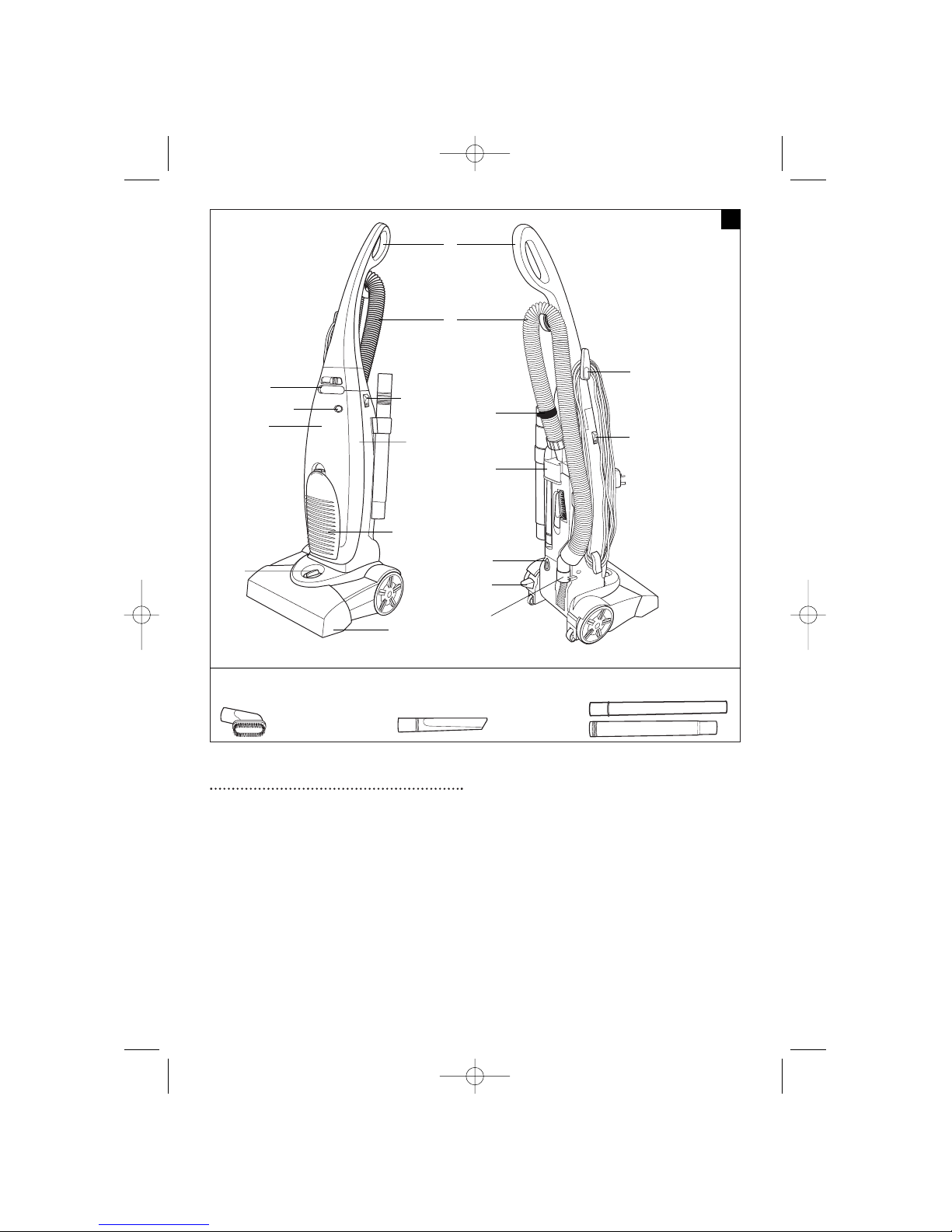

Features

⁄Upper handle

¤Flexible hose

‹Main body

›Hose connector

ﬁCarpet height adjustment knob

ﬂHepa filter grille

‡Front panel

·Full bag indicator

‚On/Off switch

„Front cover release handle

‰Floor nozzle with powered brush

ÂHandle release

ÊCarrying handle

ÁCord storage with quick release cleat

ËHose clip slot

ÈHose clip

ÍSafety bag interlock (shown page 5)

ÎBelt cover (page 7)

ÏBrush bar (page 7)

ÌMotor shaft (page 7)

ÓBrush bar end cap (page 7)

Accessories you should have

ÔFurniture brush

Crevice tool

ÒNested extension tubes x 2

Accessories included Extension tubes

Crevice tool

Furniture brush

‹

⁄



›

ﬁ

ﬂ

‡

‚

„

‰

‚ È

73340 Rev 1 4/3/05 10:29 AM Page 3

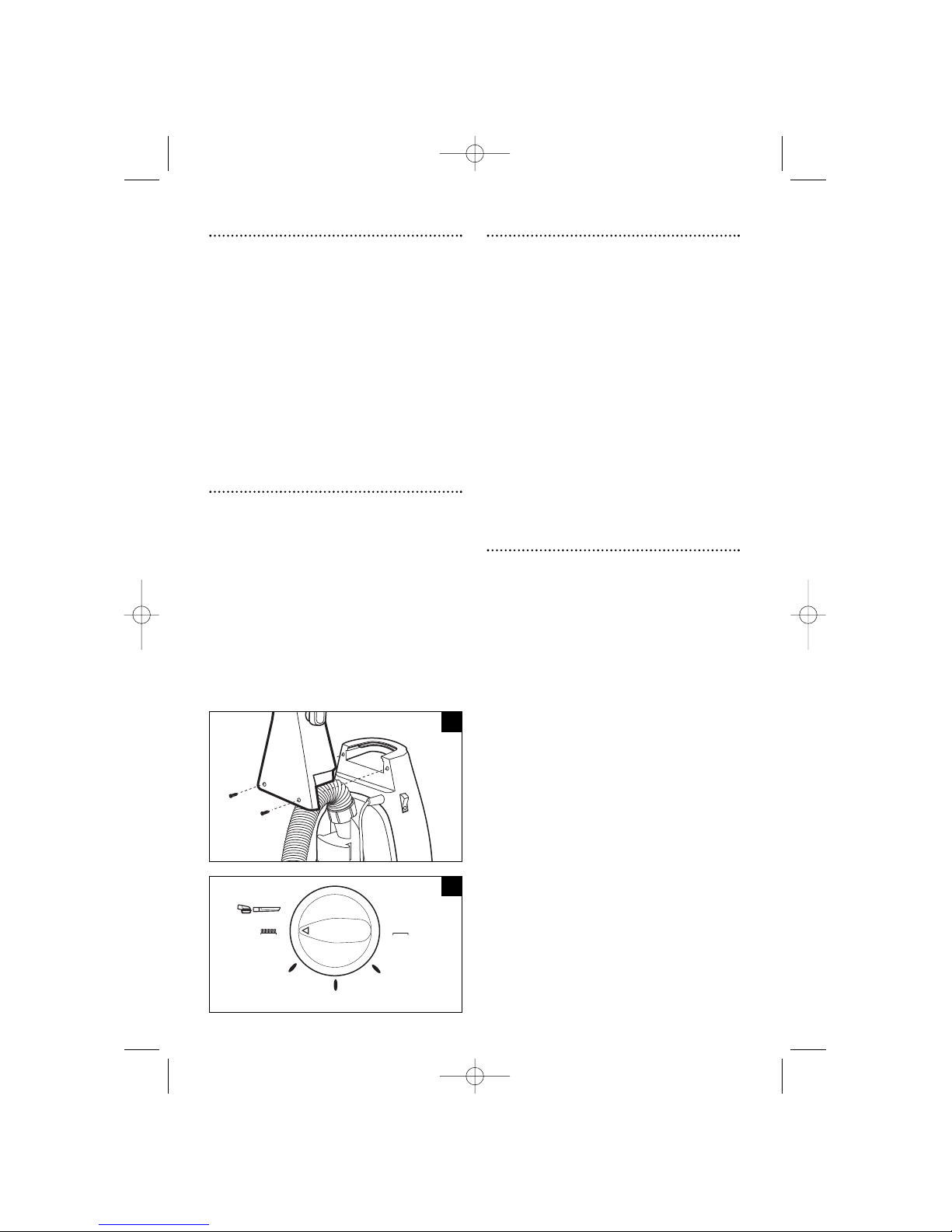

Assembly

WARNING: Do not plug in the cleaner

until it is assembled.

1Carefully unpack all components.

2Lift cleaner body to upright position.

3Remove the two screws that are already

attached to the body.

4From the rear of the cleaner, align the

handle with groove and slide into the

body. If necessary, use thumb and finger

pressure to slide handle into position.

5Fasten the handle with the two screws.

Floor nozzle height

adjustment

Before using the cleaner the floor nozzle

height must be set to the correct height.

Choose the setting which most closely

matches your floor surface, ie. deep carpet

pile, medium carpet pile, short carpet pile or

hard floor.

• When using the attachments the cleaner

must only be used in an upright position

with the carpet height adjustment knob

set to DEEP CARPET.

Note: The height adjustment only comes

into effect when the handle is released by

the handle release pedal Â.

Using on carpets

1Place cleaner in its upright position.

2Set the carpet height adjustment knob to

the desired position.

3Release the mains cable by revolving the

quick release cleat 1/2a turn and extend

the cable fully.

4Plug the cable into the mains socket.

5Step on the handle release pedal to

release the handle to the desired

position.

6Press the on/off button to the ‘on’

position.

IMPORTANT: To prevent damage to

carpets, never leave the cleaner switched on

in one place for an extended period.

•Never have the brushes set too low such

that the cleaner is hard to push.

Using attachments

Follow steps 1-4 above but set the carpet

height adjustment knob to the deep carpet

setting.

5Remove the hose connector ›from the

rear of the cleaner. Lift the hose ¤from

the top handle hook and push the

required attachment onto the end of the

hose.

•Push the required attachment firmly onto

the end of the hose.

•If additional length is required, attach one

or both extension tubes between the

hose and tool.

6Switch on/off.

•IMPORTANT: Always fix the hose clip È

to the main body slot Ëwhen using the

hose and tools.

•Never over extend the hose such that the

cleaner is pulled over.

•Turning the cleaner sideways helps

prevent the cleaner being pulled along by

the stretch hose.

DEEP CARPET HARD FLOOR

MEDIUM CARPET

TOOLS

73340 Rev 1 4/3/05 10:29 AM Page 4

Dust bag indicator

When the cleaner is switched on, if the

dust bag condition indicator is continuously

showing red (or if the suction is reduced) the

bag must be replaced and the filters

cleaned.

If it is still showing red after emptying the

dust bag and cleaning the filters, check to

see if the hose is blocked.

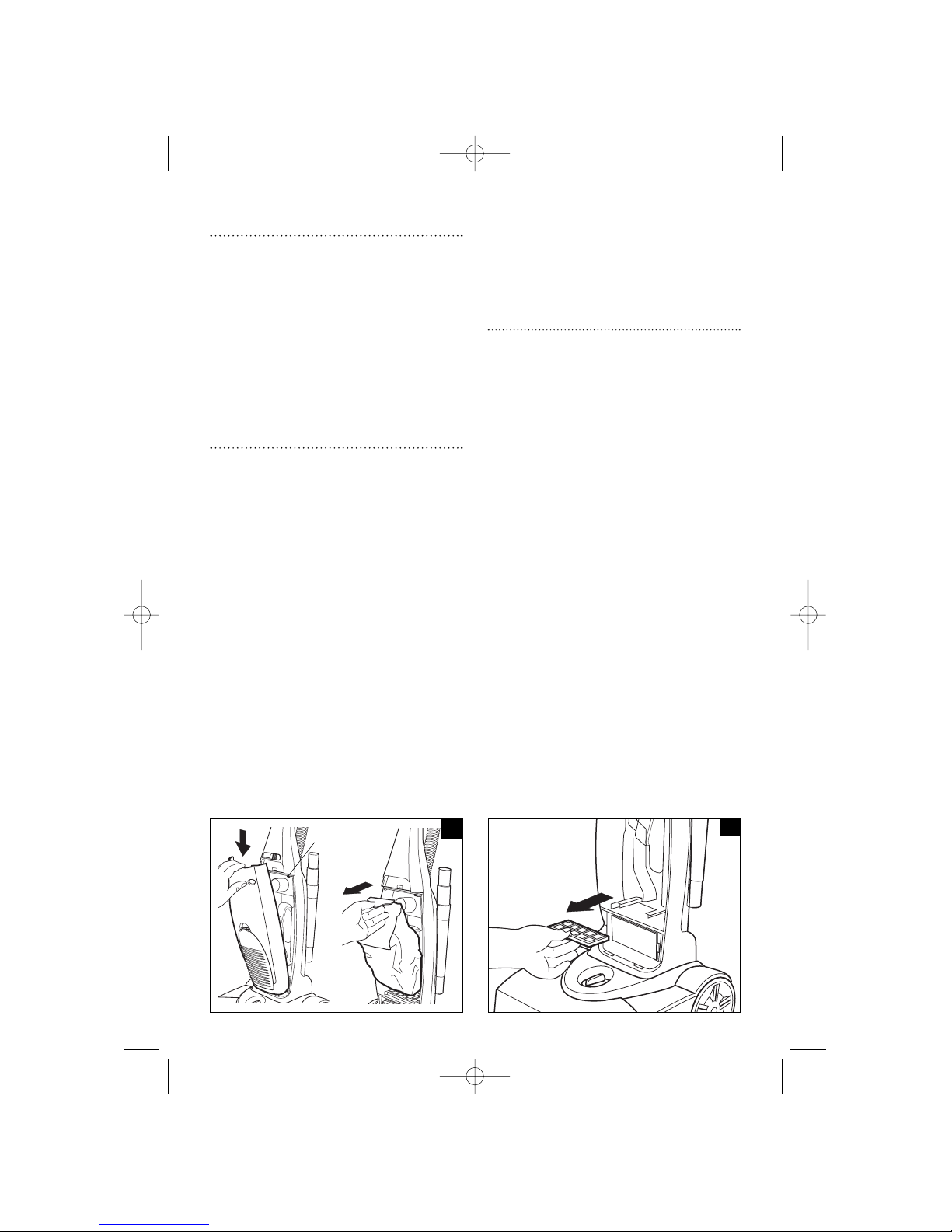

Changing the dust

bag

1Unplug the power cable from the socket.

2Remove the front by pressing the release

lever at the top.

3Remove the old dustbag by holding the

cardboard tab and pull towards you.

Remove carefully to avoid dust/dirt

spilling from the dust bag and dispose.

4Take a new dust bag and fold over the

top tab at the crease. Holding the

cardboard tab, push the bag over the

opening of the dirt discharge tube until it

is seated against the rear of the

enclosure.

5The front panel will not close unless the

dust bag is correctly fitted due to the

safety bag interlock. ÍAlways check

and if necessary clean the pre-motor filter

every time your change the dust bag.

6Once the new dust bag is in place,

replace the front panel by aligning the

bottom locking tabs with the slots in the

body, close cover slowly allowing the

front panel to snap in place. The latch will

self lock.

Cleaning the pre-motor filter

Everytime a new bag is fitted, the filter

should be taken out and cleaned. Failure to

clean the filter will reduce suction and will

damage the motor if used for prolonged

periods. This may invalidate the guarantee. If

the filter becomes damaged it must be

replaced.

IMPORTANT: Do not operate the cleaner

without the filter in place.

1Remove the front cover of the cleaner.

2The pre-motor filter is located below the

bag.

3To remove the filter, slide the holder out of

the machine.

4Remove the filter from the holder by

unclipping. To clean shake vigorously

over a dustbin.

*The pre-motor filter may also be washed

in warm water.

*Do not use detergents. The filter must be

completely dry before refitting. Allow the

filter to dry naturally, do not overheat.

5Replace front cover.

ÍE

73340 Rev 1 4/3/05 10:29 AM Page 5

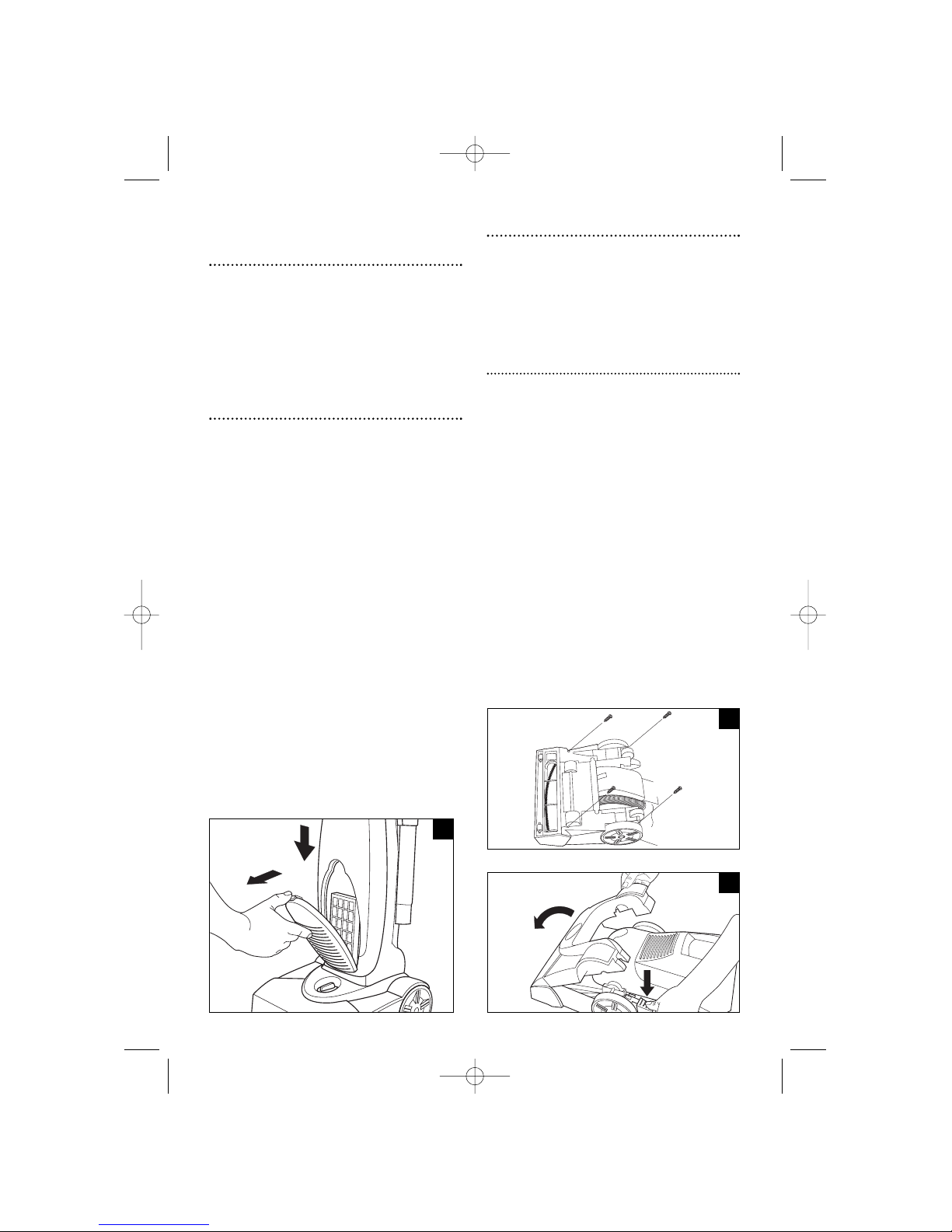

Replacing the HEPA

exhaust filter

The HEPA exhaust filter should be

replaced every 6 months.

•Replacement filters can be purchased

from our replacement parts helpline.

1Remove the front grille Fto access the

HEPA filter.

Safety cut-out

If the cleaner overheats a motor

protection thermostat will automatically

switch the motor off. If this happens, switch

the cleaner off, unplug from the power

supply and leave the cleaner to cool for

at least 30 minutes. Check the airways for

blockages, empty dust canister and clean

the filters before restarting.

Changing the belt

If the brush bar stops rotating it is likely

that the drive belt has snapped (usually

because the brush has been stalled). A spare

belt is supplied. Replacement belts can also

be obtained from Morphy Richards.

Removing the floor nozzle

cover

1Disconnect the cleaner from the mains

supply.

2Press the handle release pedal and place

the cleaner face down, in the flat position

on a soft surface (eg carpet).

3Use a cross-head screwdriver to remove

the four screws indicated G.

4Turn the cleaner over.

5While pressing the handle release

pedal lift the rear of the top cover,

unhook from the front then completely

remove the cover H.

73340 Rev 1 4/3/05 10:29 AM Page 6

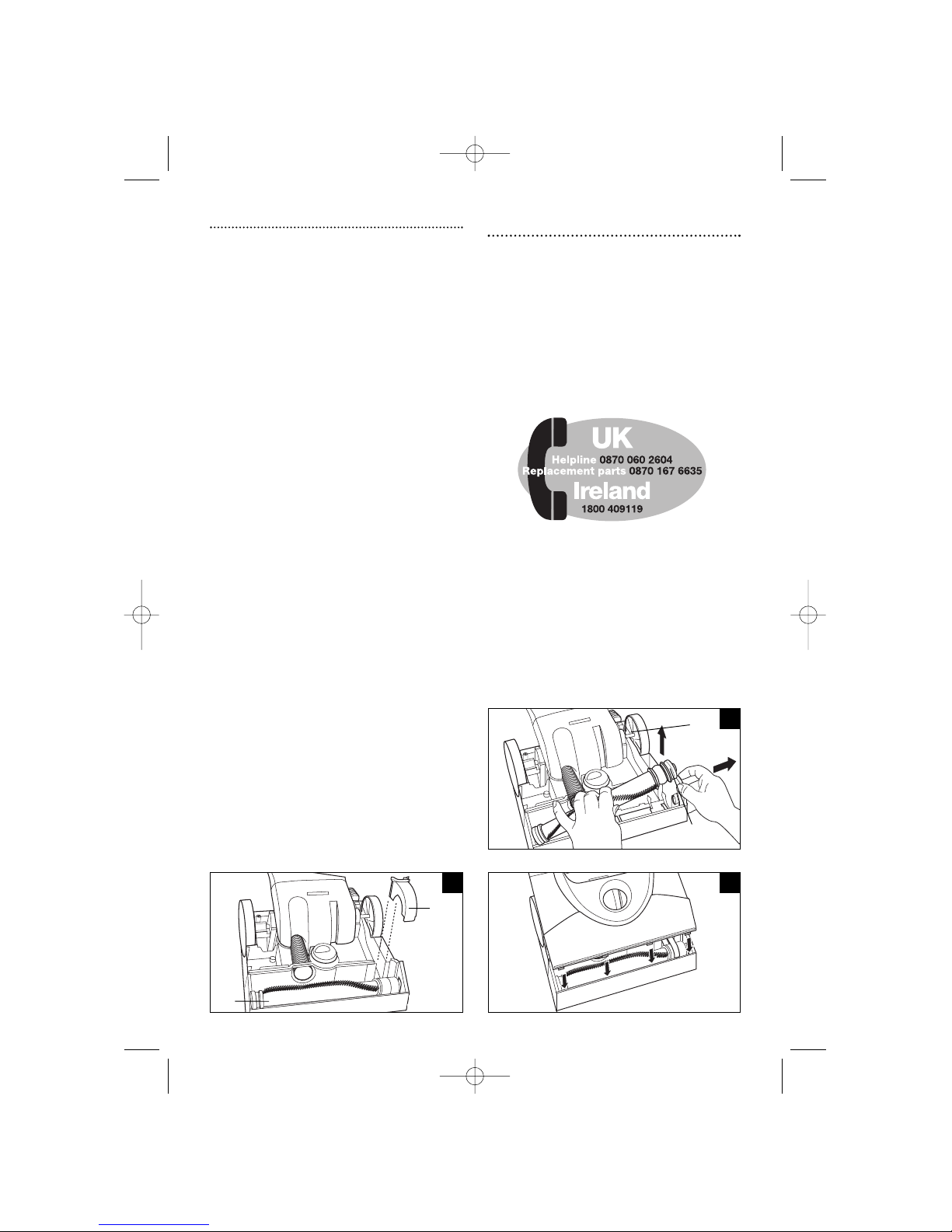

Replacing the belt

6Lift off the belt cover Î.

7Gently pull the right hand side (belt side)

of the floor nozzle outwards and at the

same time lift the brush bar Ïout of its

location I.

8If the belt has broken, ensure all pieces

are removed. Clean the motor shaft Ì.

9Check the brush bar end caps. Ó

10 Fit the left hand end cap into the floor

nozzle.

11 Fit the right hand end cap onto the brush

bar.

12 Place one end of the new belt over the

motor shaft Ìand the other around the

pulley end of the brush Ï.

13 Locate the left hand side of the brush bar

first, then while pulling the right hand side

of the nozzle gently outwards and

stretching the belt, lower the right hand

side of the brush into its location.

14 Rotate the brush by hand to ensure it is

correctly and securely located.

15 IMPORTANT: Re-fit the belt cover.

16 Replace the top cover, hooking it in at the

front first and by pressing the handle

release pedal to allow the rear to

correctly locate K.

17 Turn the cleaner face down and re-fit and

tighten the four fixing screws, do not

overtighten.

18 Return the cleaner to its correct working

position before re-testing.

Helpline

If you have any difficulty with your

appliance, do not hesitate to call us. We’re

more likely able to help than the store from

where you bought the product.

Please have the following information

ready to enable our staff to deal with your

query quickly:

•Name of the product

•Model number as shown on the

underside of the appliance.

73340 Rev 1 4/3/05 10:29 AM Page 7

Your two-year

guarantee

•It is important to retain the retailers

receipt as proof of purchase. Staple

your receipt to this back cover for future

reference.

Please quote the following information if

the product develops a fault. These numbers

can be found on the base of the product.

Model no. Serial no.

All Morphy Richards Products are

individually tested before leaving the factory.

In the unlikely event of any appliance proving

to be faulty within 28 days of purchase it

should be returned to the place of purchase

for it to be replaced.

If the fault develops after 28 days and

within 24 months of original purchase, you

should contact the helpline number quoting

model number and serial number on the

product, or write to Morphy Richards at the

address shown. You will be asked to return

the product (in secure, adequate packaging)

along with a copy of proof of purchase.

Subject to the exclusions set out below (1-

6), the faulty appliance will then be repaired

or replaced and dispatched usually within

seven working days of receipt.

If for any reason this item is replaced

during the 2-year guarantee period, the

guarantee on the new item will be calculated

from original purchase date. Therefore it is

vital to retain your original receipt or invoice

to indicate the date of initial purchase.

To qualify for the two-year guarantee the

appliance must have been used according to

the manufacturers instructions. For example

bags and filters should have been replaced

and cleaned as necessary.

Morphy Richards shall not be liable to

replace or repair the goods under the terms

of the Guarantee where:

EXCLUSIONS

1The fault has been caused or is

attributable to accidental use, mis-use,

negligent use or used contrary to the

manufacturers recommendations or

where the fault has been caused by

power surges or damage caused in

transit.

2The appliance has been used on a

voltage supply other than that stamped

on the products.

3Repairs have been attempted by persons

other than our service staff (or authorised

dealer).

4Where the appliance has been used for

hire purposes or non-domestic use.

5Morphy Richards are not liable to carry

out any type of servicing work, under the

guarantee.

6Consumables such as bags, filters and

belt are not covered by the guarantee.

This guarantee does not confer any rights

other than those expressly set out above

and does not cover any claims for

consequential loss or damage. This

guarantee is offered as an additional benefit

and does not affect your statutory rights as a

consumer.

•This guarantee is valid in the UK and

Ireland only.

VC73340M UK Rev 1 01/05

The After Sales Division,

Registered address,

Morphy Richards Ltd, Mexborough,

South Yorkshire, England, S64 8AJ

Helpline (office hours)

UK 0870 060 2604

Republic of Ireland 1800 409119

Morphy Richards products are

intended for household use only

Morphy Richards has a policy of

continuous improvement in product

quality and design. The Company,

therefore, reserves the right to change

the specification of its models at any

time.

73340 Rev 1 4/3/05 10:29 AM Page 8

Indice

Altri manuali Morphy Richards Aspirapolvere

Morphy Richards

Morphy Richards Supervac Deluxe Manuale utente

Morphy Richards

Morphy Richards Perfom air VC71067MUK Manuale utente

Morphy Richards

Morphy Richards 71077 VACUUM CLEANER Manuale utente

Morphy Richards

Morphy Richards Storm hard floor cylinder vacuum cleaner Manuale utente

Morphy Richards

Morphy Richards Ultralight vacuum cleaner Manuale utente

Morphy Richards

Morphy Richards IB73190 Manuale utente

Morphy Richards

Morphy Richards VC73215 MUK Manuale utente

Morphy Richards

Morphy Richards ESSENTIALS CYCLONIC BAGLESS UPRIGHT VACUUM CLEANER - REV... Manuale utente

Morphy Richards

Morphy Richards STORM LIGHT UPRIGHT VACUUM CLEANER - REV 3 Manuale utente

Morphy Richards

Morphy Richards IB73091 Manuale utente

Morphy Richards

Morphy Richards CYCLONIC BAGLESS VACUUM CLEANER - REV 4 Manuale utente

Morphy Richards

Morphy Richards IB73120 Manuale utente

Morphy Richards

Morphy Richards Goblin Manuale utente

Morphy Richards

Morphy Richards SuperVac 732102 Manuale utente

Morphy Richards

Morphy Richards PerformAir Upright Vacuum Manuale utente

Morphy Richards

Morphy Richards PERFORMAIR CYCLONIC VACUUM CLEANER 71062 Manuale utente

Morphy Richards

Morphy Richards ESSENTIAL MINI VACUUM CLEANER - REV 1 Manuale utente

Morphy Richards

Morphy Richards PerformAir Upright Vacuum Manuale utente

Morphy Richards

Morphy Richards Goblin 73276 Manuale utente

Morphy Richards

Morphy Richards Bagless Cylinder Vacuum Cleaner Manuale utente

Morphy Richards

Morphy Richards Supervac Manuale utente

Morphy Richards

Morphy Richards BAGLESS UPRIGHT VACUUM CLEANER - REV 1 Manuale utente

Morphy Richards

Morphy Richards IB71053 Manuale utente

Morphy Richards

Morphy Richards Storm 73215 Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
