ECO Series Instruction Manual
WWW.MOTIC.COM
MOTIC HONG KONG LIMITED
1
CONTENTS
1. NOTES ON INSTRUMENT SAFETY 2
1.1 General safety instructions 2
1.2 Instrument safety 2
1.3 Unpacking, transportation & storage 2
1.4 Waste disposal 3
1.5 Operation 3
1.6 Quality Warranty 4
2. INSTRUMENT DESCRIPTION 5
2.1 General Views 5
2.2 Parts names 6
2.3 Application 7
2.4 Instrument and its major features 7
3. FIRST TIME USE AND OPERATION 8
3.1 First time use 8
3.2 Operation of the biological microscope 10
3.2.1 Interpupillary distance adjustment 10
3.2.2 Setting brightfield illumination 10
3.3 Converting the microscope 11
3.3.1 Replace the 12V 20W halogen bulb or the LED illumination 11
3.3.2 Replace the objective 13
4. MAINTENANCE AND TROUBLESHOOTING 14
4.1 Maintenance 14
4.2 Troubleshooting 15
2
1. NOTES ON INSTRUMENT SAFETY
1.1 General safety instructions
●Please be sure to read these instructions before using the biological
microscope.
●Additional information is available upon request from our maintenance
department or authorized agency.
●To ensure safe operation and guarantee good performance of the
microscope please pay attention to the precautions and warnings specified
in the Operation Instructions.
●In this Operation Instructions manual, the following symbols indicate:
Caution! Electric shock hazard!
Caution! Danger!
1.2 Instrument safety
The ECO microscope has been designed, manufactured and inspected
according to the GB 4793.1-2007 and IEC 61010-1:2001 “Safety
Requirements for Electrical Equipment for Measurement, Control and
Laboratory Use”.
1.3 Unpacking, transportation & storage
●The original shipping container, a foam box in a fiberboard carton, should
be kept for use in long term storage or return shipment.
●When unpacking, please check the components according to the packing
list.
●Please comply with the temperature requirements for transport and storage
specified in the appendix of this manual.
●Set up, use and store the unpacked microscope on a firm and flat
workbench.
●Please do not touch the optical lens surfaces.
3
1.4 Waste disposal
●Important: Any damaged biological microscope must not be treated as
general waste; it should be disposed of according to relevant regulations.
1.5 Operation
When using the biological microscope, please pay attention to the following
safety instructions:
●If it is used for any purpose other than the specified ones, including any
individual component or part, the manufacturer will not take any
responsibility.
●After-sales service or repair done by unauthorized personnel will void the
warranty.
●Anyone who uses the instrument should receive instruction on the proper
handling of the instrument and safety practices for microscopy. The
biological microscope shall be placed only on a firm, flat workbench for
operation.
●Since the biological microscope is a precision instrument, improper
operation will impair or spoil its performance.
●The power unit is integrated in the main unit of the biological microscope:
the grid supply voltage is within 100-240V~50Hz.
The biological microscope must be connected only to the normal
power socket with a grounding terminal. Any extension cord without
ground protection is not allowed to avoid failure of the protection
function.
If there is any electrical failure (of the fuse system, ground protection
or transformer), turn off and unplug the unit immediately. Make sure
the microscope is set aside so it will not be used again and contact the
Motic service department or a Motic microscope repair agency to have
it repaired.
Please be sure to turn off the power before opening the instrument to
replace LED illuminator or replace the fuse! Only use a fuse for the
rated current.
4
Safety instructions for the use of immersion oil.
●Immersion oil is irritating to skin; avoid contact with skin, eyes
and clothing.
●Skin contact: wash with soap and plenty of water until the
immersion oil is completely removed.
●Eye contact: flush immediately with plenty of water for at least
5 minutes.
If irritation persists, seek medical advice.
●Dispose of immersion oil properly. Do not discharge into surface
water or sewage.
The biological microscope is not equipped with any special device to protect
against corrosive, latent infective, toxic, radioactive or other hazardous
samples. Therefore, when examining any such sample you must comply with
the relevant laws and regulations, in particular the provisions related to
accident prevention.
1.6 Quality Warranty
The ECO microscope and the attached accessories are only allowed to be
used for microscope examination as described in this manual. The
manufacturer takes no responsibility for any other use.
●The manufacturer guarantees that the product is free from any defect in
material or workmanship on the date of delivery.
●If any defect is found, notify the manufacturer immediately.
●Upon receipt of the Notification of Defect as described above, the
manufacture is responsible to solve the problem either by repairing the
defective instrument or replacing it with a new instrument of the same
model.
●The manufacturer provides no warranty for any failure or defect due to
normal wear and tear or improper use of the product.
●The manufacturer takes no responsibility for any damage caused by
operation error, negligence or unauthorized dismantling of the instrument,
or the use of spare parts from other manufacturers.
5
2. INSTRUMENT DESCRIPTION

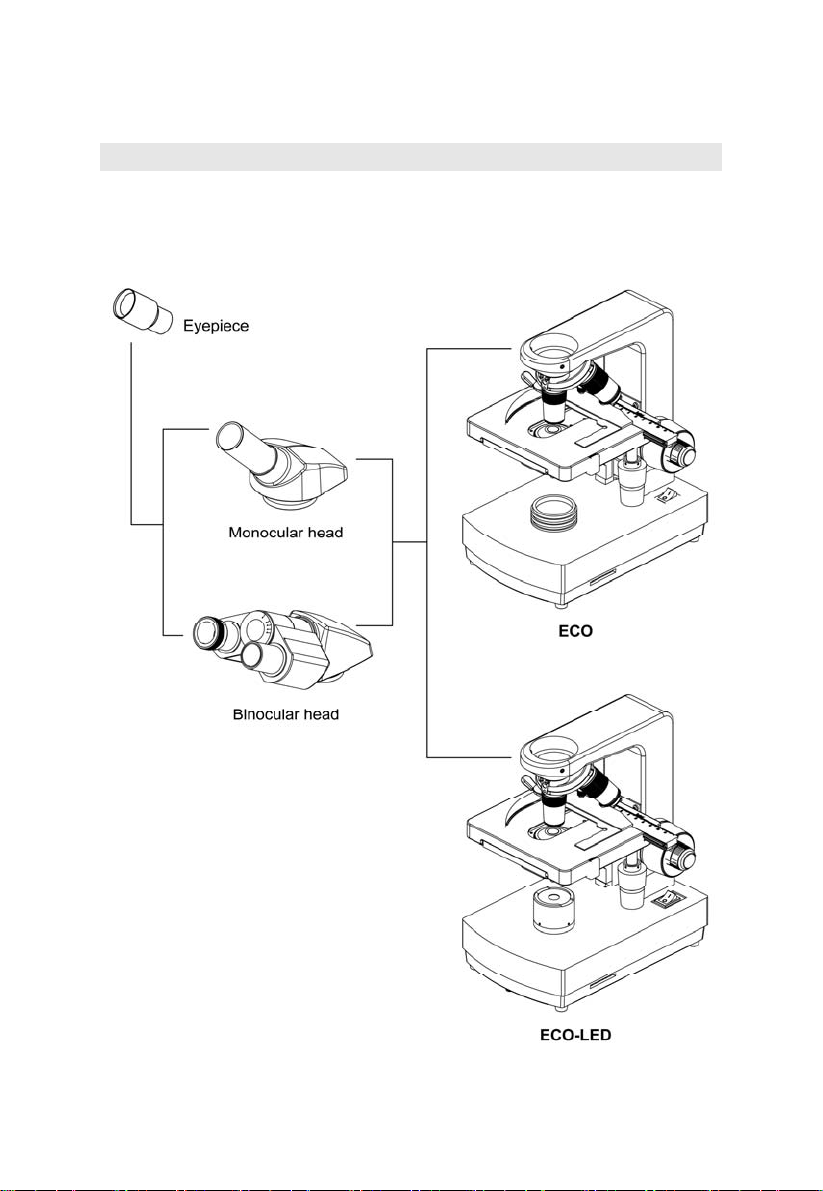

2.1 General Views
6
2.2 Parts names
7
2.3 Application
The scope of application of the ECO microscope as follows: medical specimen
microscopic observations in the visible.
2.4 Instrument and its major features
ECO microscope has not only the appearance of classic but also superior
performance, flexible and lightweight.
The major features of the microscope include:
●Binocular siedentopf, inclined at 30 degrees and rotating or Monocular
siedentopf, inclined at 45 degrees and rotating
●Widefield WF10X/18mm eyepieces
●Quadruple nosepiece with parcentric click stops
●Achromatic objectives 4X, 10X, 40X(S), 100X(S, Oil)
●Coaxial coarse and fine focusing with tension adjustment
●Low position coaxial mechanical stage
●Rack & Pinion focusable 1.25NA condenser
●Iris diaphragm with filter holder
●Halogen illumination 12V/20W or LED illumination with intensity control
●External power supply
8
3. FIRST TIME USE AND OPERATION
3.1 First time use
Before installing and starting up the microscope, be sure to carefully read and
observe the notes on instrument safety (see section 1).
Do not touch optical surfaces when unpacking the microscope to avoid
fingerprints!
●Remove the microscope from the transport case and place it onto the
worktable.
Retain the original packaging for storage of the instrument in longer periods
of non-use or for return to the manufacturer.

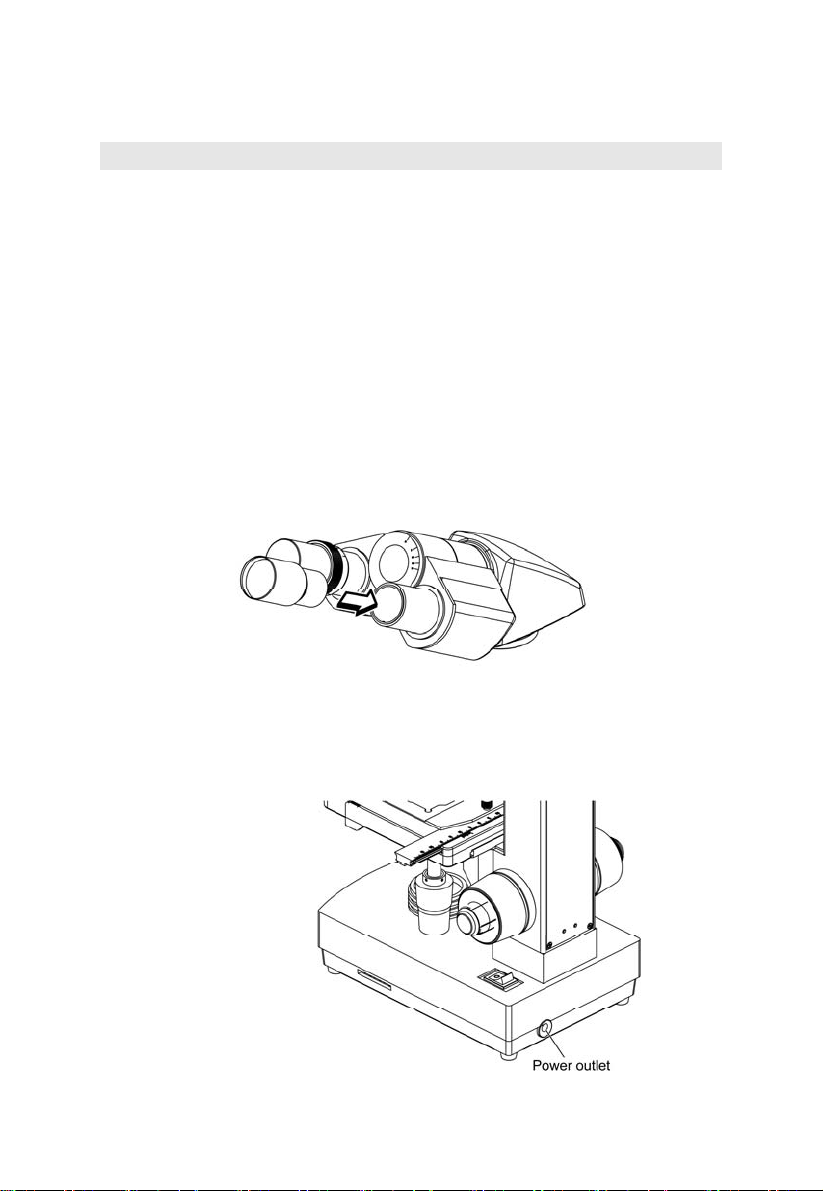

●Put the eyepiece into the tube and fix it with the set screw. (Fig.1)
(Fig.1)
●Make sure the microscope input voltage must be consistent with the supply
voltage and then connect the plug-in power unit to a power outlet. (Fig.2)
(Fig.2)
9
●Switching the microscope ON/OFF switch.
●Tip: Make sure adjust the light intensity control to minimum position and
then turn on or off the ON/OFF switch. (Fig.3)
(Fig.3)
●Adjust the illuminator to the desired intensity. (Fig.4)
(Fig.4)
●After finishing work, switch off the microscope and cover it with the dust
cover.
●The smoothness of the coarse focusing drive is factory-adjusted, but you
can readjust it when required. (Fig.5)
