The Motorola Netopia®2210-02

ADSL2+ Gateway

Single-port Ethernet

Uncontrolled Document

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS – POWER SUPPLY INSTALLATION. Connect the power supply cord to

the power jack on the Motorola Modem. Plug the power supply into an appropriate electrical outlet.

CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply blades, power supply

cord plug or the appliance coupler serves as the mains power disconnect. It is important that the direct plug-in power supply, socket-

outlet or appliance coupler be located so it is readily accessible.

(Sweden) Apparaten skall anslutas till jordat uttag när den ansluts till ett nätverk

(Norway) Apparatet må kun tilkoples jordet stikkontakt.

TELECOMMUNICATION INSTALLATION. When using your telephone equipment, basic safety precautions should

always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or

near a swimming pool.

• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock

from lightning.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

PRODUCT VENTILATION. The Motorola Modem is intended for use in a consumer's home.þAmbient temperatures around

this product should not exceed 104°F (40°C).þ It should not be used in locations exposed to outside heat radiation or trapping of its

own heat.þThe product should have at least one inch of clearance on all sides except the bottom when properly installed and should

not be placed inside tightly enclosed spaces unless proper ventilation is provided.

SAVE THESE INSTRUCTIONS

transformation or adaptation) without written permission from Motorola, Inc.

Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to pro-

vide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not lim-

ited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or changes in the product(s)

described in this manual at any time. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, Win-

dows Me, and Windows NT are either trademarks or registered trademarks of Microsoft Corporation in the U.S and/or other countries. Macintosh is a reg-

istered trademark of Apple, Inc. Firefox is a registered trademark of the Mozilla Foundation. All other product or service names are the property of their

respective owners.

Safety Information

Uncontrolled Document

ENGLISH

Thank you for selecting the Motorola Netopia®2210-02 ADSL2+ Gateway. This guide will help you set

up and configure your network.

Check your package contents. It should contain the items shown here:

If you don’t have everything, contact your supplier immediately.

Checklist

Motorola Modem User Manual

Power

Supply

Yellow RJ-45

Ethernet Cable

Gray RJ-11

Phone Cable

Uncontrolled Document

ENGLISH

1.Insert the included CD into your CDROM drive and follow the instructions pro-

vided.

2.Locate the Modem near a power source, a DSL wall outlet, and in a location

where air can circulate freely around it.

3.Connect the rounded end of the power supply to the power jack on the back panel

of the Modem. Then, plug the power supply into an electrical outlet.

The Power LED should light solid green.

4.Connect one end of the gray RJ-11 Phone cable to the port labeled “DSL” on the

Modem. Connect the other end of the Phone cable to your DSL wall outlet.

5.Connect one end of the yellow RJ-45 Ethernet cable to the port labeled “Ethernet”

on the modem. Connect the other end of the Ethernet cable to the Ethernet port on

your PC.

Connections

Uncontrolled Document

ENGLISH

Rear View Ethernet

Port

DSL Port

Uncontrolled Document

ENGLISH

When all of your connections are made, the status LEDs on the front of your Motorola Modem

will light, according to the following diagram:

Power -

Ethernet -

Off = No device connected or

Top View

Solid green = Device connected.

Solid Green = Power on

Solid green = DSL synch

DSL -

Internet -

Solid green = Connected to Internet

Off = Power off

Flashing Red = Power On/Self Test

Solid Red = PO/ST Failure

modem power is off

Off = Modem power off

Flashing green = DSL attempting synch

Flashing green/red = DSL fails to synch 3 times

Flashing red = No DSL signal

Off = Bridge mode or

modem power is off

Flashing green = Attempting PPP

connection

Red = Connection failed

Uncontrolled Document

ENGLISH

You can access the Web-based configuration pages at any time as follows:

1.Run a Web browser, such as Firefox, Safari, or Microsoft Internet Explorer, and

enter

http://192.168.1.254 in the URL Address text box.

Press Return.

Note: You may be prompted to select your language preference. If prompted, choose a

language to continue.

2.For security purposes you must create a password for your Gateway. Enter a new

password, repeat it, and click the Next button.

Device Configuration

Uncontrolled Document

ENGLISH

You must log in to the Modem. The default User name is

admin. Enter the Password you just created. Type these

in their respective fields and click OK.

3.You will be asked to log in with a User ID and Password.

The User ID and Password are supplied

by your Service Provider.

Type these in their respective fields and

click the Connect button.

Congratulations! Your connection is

up and running and you should be able

to browse the Internet by typing a URL

address in your browser’s Address text

box or by selecting any of your favorite bookmarks.

Should you require additional information, the inside pages of this Guide contain Frequently Asked

Questions (and Answers) and Basic Troubleshooting tips. The latest Administrator’s Handbook with

advanced configuration instructions is also available on-line at:

http://www.netopia.com/support/hardware/documentation.html

Uncontrolled Document

ENGLISH

Your Modem serves Dynamically-assigned IP addresses by default. Be sure to configure each computer

connected to your Modem to accept a Dynamically-assigned IP address, commonly referred to as DHCP.

Microsoft Windows:

Step 1. Navigate to the TCP/IP Properties Control Panel.

a. Windows 98, 2000, and ME versions follow a path like this:

Start menu -> Settings -> Control Panel -> Network (or Network and

Dial-up Connections -> Local Area Connection -> Properties) ->

TCP/IP [your_network_card] or Internet Protocol [TCP/IP] -> Prop-

erties

b. Windows XP follows a path like this:

Start menu -> Control Panel -> Network and Internet Connections

-> Network Connections -> Local Area Connection -> Properties

-> Internet Protocol [TCP/IP] -> Properties

Step 2. Select Obtain an IP address automatically.

Step 3. Select Obtain DNS server address automatically, if available.

Step 4. Remove any previously configured Gateways, if available.

Step 5. OK the settings. Restart if prompted.

Client Configuration

Uncontrolled Document

ENGLISH

c. Windows Vista is set to obtain an IP address automatically by default. You may not need to configure

it at all.

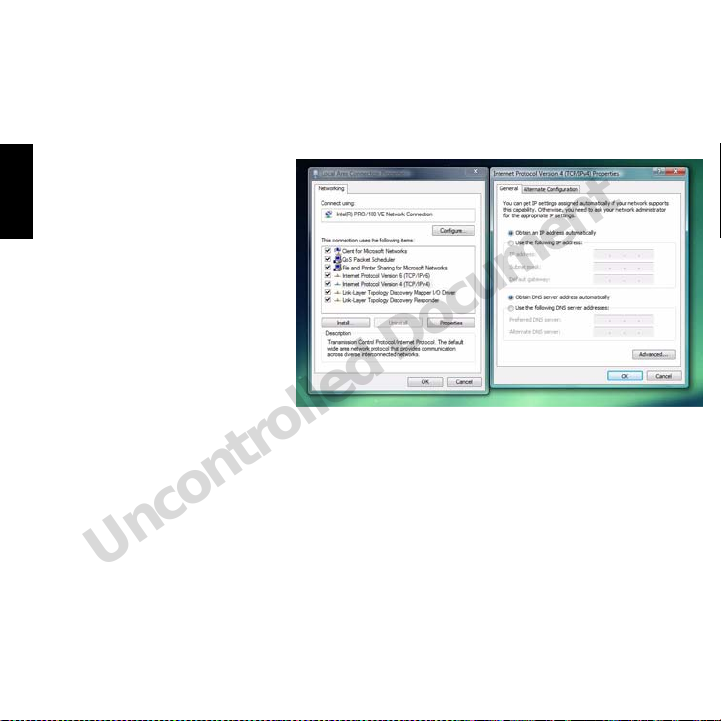

To check, open the Networking Control Panel and select Internet Protocol Version 4 (TCP/

IPv4). Click the Properties button.

The Internet Protocol Version

4 (TCP/IPv4) Properties win-

dow should appear as shown.

If not, select the radio buttons shown

above, and click the OK button.

Uncontrolled Document
