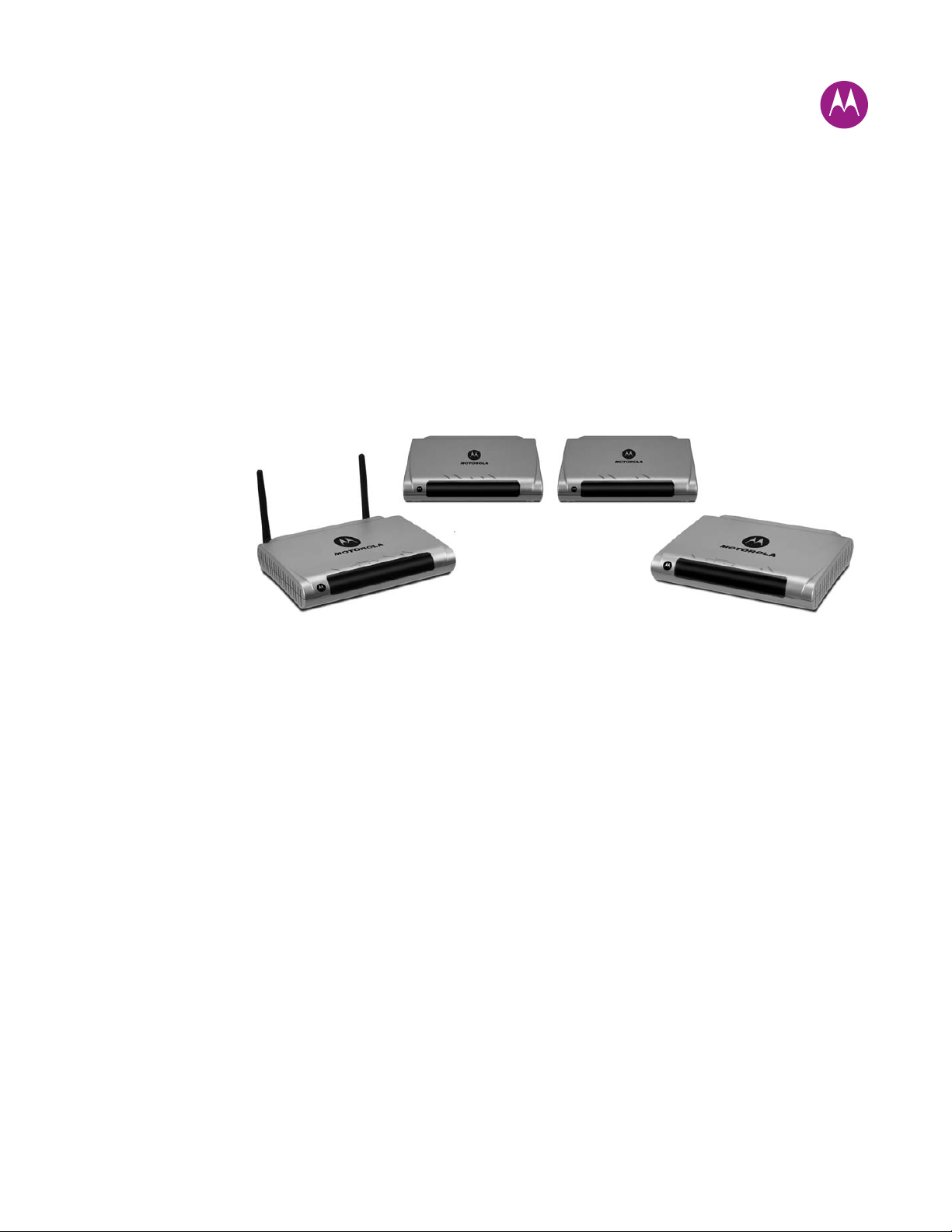

SPECIFICATION SHEET

Motorola Netopia®

2200 Series

ADSL2+ Gateways

Multiple LAN networking

options

Supports single-user

households and home

networking

Customer-friendly

installation

CD-less installation makes

setup simple

Compatible service delivery

Works with most DSL service

providers

Configured to support

Voice-over-IP (VoIP) and

streaming video services

Video-on-demand (VOD)

functionality

Highly integrated design

meets sensitive cost

targets for large-scale

deployments by service

providers

Low Price, High Value

With this low-priced gateway, experiencing high-

speed Internet is only the beginning. The 2200

Series has the ability to enable VoIP, experience

broadcast quality video, or set up a small home

network to share data, music, or video files.

They are easy to install and can be automatically

configured and remotely managed. The 2200

Series opens up the Internet without the high

cost.

Affordable Triple-Play for the Home

The Motorola Netopia® 2200 Series ADSL2+

gateways are ideal for the home user who

wants an affordable gateway armed with the

triple-play power of voice, video, and data

service delivery.

The Power of Choice

Customers have the choice of connecting

through an Ethernet port or a USB port for wired

ADSL2+ connection. With available four-port

Ethernet switch, the gateway can link multiple

computers and devices to share data, music,

and video files. Multiple computers can connect

to the same network printer and print from

anywhere in the home or small office.

The affordable, reliable residential gateway for optimized data, video, and

voice.

SPECIFICATION SHEET

MOTOROLA NETOPIA®2200 SERIES

ADSL2+ Gateways

Benefits

Consumers: High Quality, Flexible Delivery,

and Video-on-Demand

The 2200 Series enables high-speed data, VoIP,

and IPTV triple-play service delivery with the

following benefits:

•Broadcast-quality video and crystal-

clear voice quality provided by the

Motorola VGx Quality of Service (QoS)

technology

•Multiple Service delivery from different

providers concurrently delivered to

multiple TVs or devices, while maintaining

service quality and rapid channel changing

through support for TR-101 and IGMPv3

•VOD functionality enabled though Real

Time Streaming Protocol (RTSP) support

Service Providers: Remote Management and

Troubleshooting, and Cost-Effective

Deployment

For the service provider, comprehensive remote

manageability, including centralized remote

provisioning, troubleshooting, and management,

is offered through support of the DSL Forum

TR-069 specification.

The 2200 Series gateways are ideal for cost-

sensitive mass deployments to residential and

small-office subscribers and feature Motorola’s

legendary ease of use, reliability, and security.

The 2200 Series gives providers new

opportunities for competitive differentiation and

revenue generation.

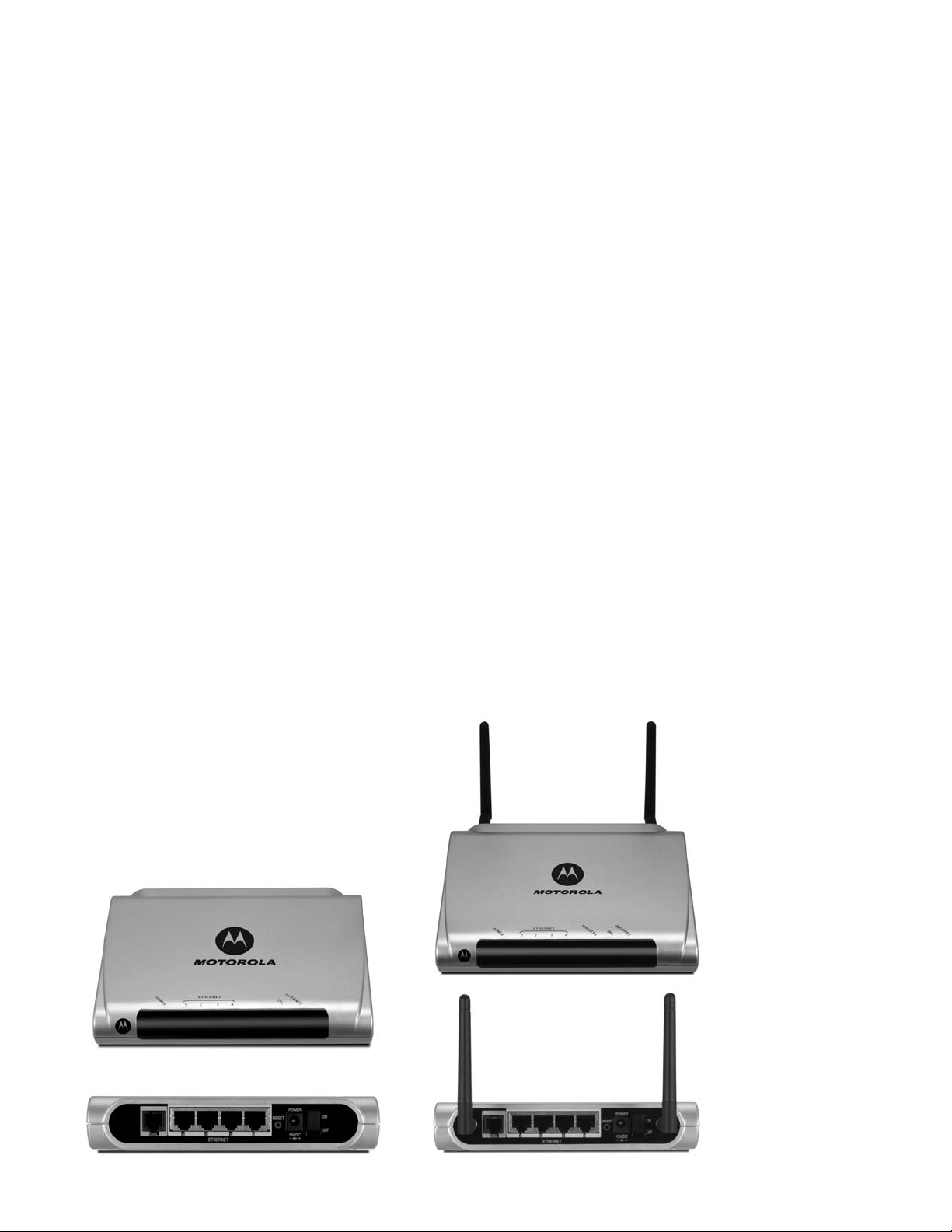

The Motorola Netopia

2200 Series ADSL2+

Gateway (2246N-VGx)

The 2246N-VGx is built for the

user who wants to branch

out. It is equipped with two

LAN options (Ethernet or

USB), but the addition of a

four-port Ethernet switch

allows the user to set up a

small network of computers

or other Ethernet-enabled

devices.

The Motorola Netopia

2200 Series ADSL2+

Gateway (2247NWG-VGx)

The 2247NWG-VGx is

equipped with a built-in

wireless access point for

connecting to the Internet

from anywhere in the home

or small business—and with

the four-port Ethernet switch,

PCs and laptops in a home

network can share the

Internet from one IP address.

Extra ports can be used to

hook up network peripherals

like printers or external

storage devices.

SPECIFICATION SHEET

MOTOROLA NETOPIA®2200 SERIES

ADSL2+ Gateways

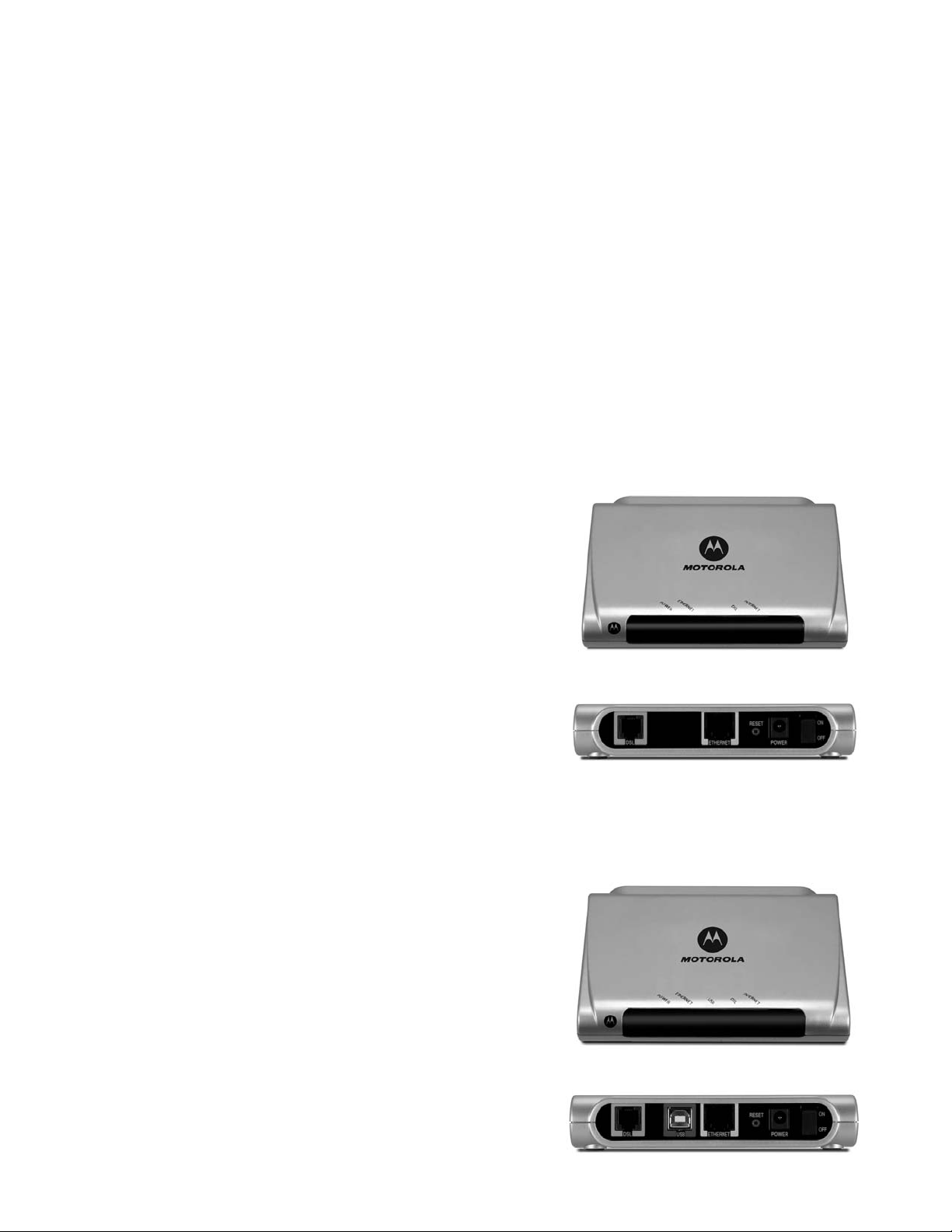

The Motorola Netopia

2200 Series ADSL2+

Gateway (2240N-VGx)

The 2240N-VGx is equipped

with a single Ethernet port for

connecting to a laptop or

desktop, perfect for the

single-PC user. Download

music and video files faster,

enable a VoIP adapter, and all

the while feel secure with

Motorola’s reliable firewall and

quality-of-service standards.

The Motorola Netopia

2200 Series ADSL2+

Gateway (2241N-VGx)

The 2241N-VGx offers the

same standards and quality of

service as the 2240N-VGx,

but is equipped with two LAN

options for connecting a PC

or laptop—Ethernet (standard)

or USB 1.1.

With Motorola Netopia 2200 Series ADSL2+ gateways,

users can download music and video files faster and

enjoy VoIP and IPTV services, all with the security of

Motorola’s reliable firewall and quality-of-service

standards.

SPECIFICATION SHEET

MOTOROLA NETOPIA®2200 SERIES

ADSL2+ Gateways

Hardware

WAN INTERFACE

ADSL2+ RJ-11

LAN INTERFACE

2240N-VGx/ One 10/100 Ethernet (RJ-45)

2250N-VGx

2241N-VGx/ One 10/100 Ethernet (RJ-45)

2251N-VGx One USB 1.1

2246N-VGx Four-port 10/100 Ethernet switch

2256N-VGx (RJ-45)

2247NWG-VGx/ Built-in 802.11b/g wireless

2257NWG-VGx Four-port 10/100 Ethernet switch

(RJ-45)

LEDS

Power, Link, Status, Activity

Firmware

ENCODING AND LINE SPEED

ANSI T1.413 Issue 2

ITU 992.1 (G.dmt) Annex A, B, 992.2 (G.lite),

992.3 ADSL2 (G.dmt.bis), 992.4 ADSL2 (G.lite.bis), 992.5

ADSL 2+

PROTOCOL SUPPORT

ATM Adaptation Layer 5 (AAL5)

Up to eight Permanent Virtual Circuits (PVCs)

Bridged or routed Ethernet encapsulation

IP multicast pass-through

PPP over Ethernet gateway/pass-through

PPP over ATM LLC and VC multiplexing

BRIDGING AND ROUTING FUNCTIONS

Network Address Translation (NAT), IP maps, and pinholes

Static routes

IP multicast outbound support through NAT

DHCP client, server, and relay

DNS proxy

RIP1 and RIP2 on LAN/WAN

DDNS

Transparent bridged Ethernet over ATM

TR-101 support

SECURITY

Network Address Port Translation (NAPT)

Stateful firewall

Configurable firewall function

Denial-of-service protection

VPN pass-through for PPTP, L2TP, and IPSec

WIRELESS (2247NWG-VGX AND 2257NWG-VGX

ONLY)

Antennas Removable, omni-directional,

with diversity support

3-D Reach®Express Wi-Fi®

EMEA 100 mW transmit power

North America 200 mW transmit power

Channel Set

North America 1–11

Europe 1–13

Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36,

48, and 54 Mbps with auto-rate

fallback

WEP 64-, 128-, and 256-bit encryption

802.1x, WPA, WPA-PSK, 802.11i/WPA2

Wi-Fi Multimedia (WMM) support

Transmit power control

SPECIFICATION SHEET

MOTOROLA NETOPIA®2200 SERIES

ADSL2+ Gateways

Motorola, Inc. 101 Tournament Drive, Horsham, Pennsylvania 19044 U.S.A. www.motorola.com

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Netopia and 3-D Reach are registered trademarks of Netopia, Inc., a

wholly owned subsidiary of Motorola, Inc. Wi-Fi and the Wi-Fi Alliance logo are registered marks of the Wi-Fi Alliance. All other product or service names are the

541635-001-a 5782 - 0707 - 0K

QOS AND TRAFFIC MANAGEMENT

VGx Virtual Gateway technology

Differentiated services (Diffserv)

IEEE 802.1p priority bits

IEEE 802.1q VLAN tagging

IGMP v2/v3 snooping/forwarding with fast leave

TR-111 support

DEVICE MANAGEMENT

TR-069 remote management

Remote and local management options using Web UI

(HTTP) and CLI (Telnet)

Two-level password-protected access

Statistic and log reporting, remote syslog support

Seven-layer diagnostics

SNMP v1 and v2

Utilities Ping, traceroute, reverse DNS

Regulatory

COMPLIANCE

FCC Part 68, Part 15, Class B

CE Mark

UL Listed, CSA Approved

European EMC and Immunity

DSL Forum TR-068 support

Industry Canada

RoHS-compliant

Environmental

TEMPERATURE

Operating 0 °C to 40 °C (32 °F to 104 °F)

Storage –40 °C to 85 °C (–40 °F to 185 °F)

RELATIVE HUMIDITY

5% to 90%, non-condensing

Physical

WIRED

(2240N-VGx/2250N-VGx/2241N-VGx/2251N-VGx)

Weight 1.2 lb (550 g)

Dimensions 1.06 in H x 4.36 in W x 5.71 in L

(2.69 cm x 11.07 cm x 14.50 cm)

WIRELESS

(2246N-VGx/2256N-VGx/2247NWG-VGx/

2257NWG-VGx)

Weight 1.2 lb (550 g)

Dimensions 1.2 in H x 5.2 in W x 6.8 in L

(3.0 cm x 13.2 cm x 17.2 cm)

Specifications are subject to change without notice.
