Motorola DCS 1800 Clam RAE Specifiche tecniche

PRODUCT DESCRIPTION

Full Document

MOTOROLA CONFIDENTIAL PROPRIETARY

This document and the information contained in it is CONFIDENTIAL INFORMATION

of Motorola and shall not be used, published, disclosed, or disseminated outside of Motorola

in whole or in part without Motorola’s consent. This document contains trade secrets of Motorola.

Reverse engineering of any or all of the information in this document is prohibited.

______________________________________________

DCS 1800 Clam RAE

Project No.: A29-01

Version 1.2

Ruchi Mangalik

Jan 6, 1997

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

Jan 6, 1997

Motorola Confidential Proprietary

MANAGEMENT SIGNATURES

Name Signature Date

Roger Kung

Corporate V.P. & GCCSD G.M.

Ken Leonhardt

Operations

Chris Colonna

Product Marketing Manager

Allen White

GCCSD Product Engineering

Doug Wick

Manufacturing

Ray Menzel

Materials

Vincent Cheung

Quality

Phil Tutor

Finance

Bernie McGill

Distribution

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

Jan 6, 1997

Motorola Confidential Proprietary

REVISION HISTORY

Version Date Name Reason

1.0 09-Oct-96 Mary Jo Schavitz Initial release.

1.1 27-Nov-96 Mary Jo Schavitz Deletion of SIM lock requirement for Malaysia.

1.2 1-6-97 Ruchi Mangalik Add GC requirements

................................................................................................................................................................

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

June 1, 1998 1

Motorola Confidential Proprietary

1. INTRODUCTION

This product description describes the DCS1800 Clam RAE product for the Greater China South Asia

region. This product description makes reference to the latest Asia/Pacific GSM Clam RAE product

description, version 1.1, issued by Ruchi Mangalik. Features that are different for DCS 1800 are

documented here.

1.1 Product Strategy

As GSM Clam RAE PD. The DCS StarTAC is part of the Signature Series and thus it must follow the

Signature guidelines. There no cosmetic differences between the DCS StarTAC and GSM StarTAC

because our strategy is to be indifferent and support all technologies. We do not want to make the

statement that one technology is more important than the other.

1.2 Target Markets

The countries of Malaysia, Singapore, Thailand, and Hong Kong.

1.3 Distribution Strategy

In keeping with the Global Distribution Strategy, distribution of DCS Clam RAE will be limited to

channels that enhance the premium positioning that this product reflects. A distribution strategy for

each country must be developed before the DCS Clam RAE can be introduced into that country.

Precise distribution plans will be released closer to the launch date (expected to be January 1997).

2. PRODUCT DESCRIPTION

2.1 Physical Characteristics

• Housing

The GCSA DCS1800 Clam RAE will use the same housing as the Motorola branded Europe

DCS1800 19 key Clam RAE. The model number for the Motorola branded Europe DCS1800 19

key Clam RAE is S5993ABB.

• Batteries

The Auxiliary battery feature must be implemented for the GCSA DCS Clam RAE model.

• Colour

Initially, all models will use black plastics. However, options for colour will also be investigated.

This is dependant on the core group.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

June 1, 1998 2

Motorola Confidential Proprietary

• SIM Card

As GSM Clam RAE PD.

• Display & Indicators

As GSM Clam RAE PD.

• Antenna

The DCS1800 Clam RAE will incorporate a retractable DCS1800 antenna which stands vertical

when the product is in the holster. The antenna must not interfere with the opening or closing of the

Clam, either when extended or retracted.

•Lens

Identical to the Motorola branded Europe DCS1800 19 key Clam RAE.

• Escutcheons

Identical to the Motorola branded Europe DCS1800 19 key Clam RAE.

• Keypad

Identical to the Motorola branded Europe DCS1800 19 key Clam RAE. The alpha numeric keys

will conforn to ITU-T standard E.161.

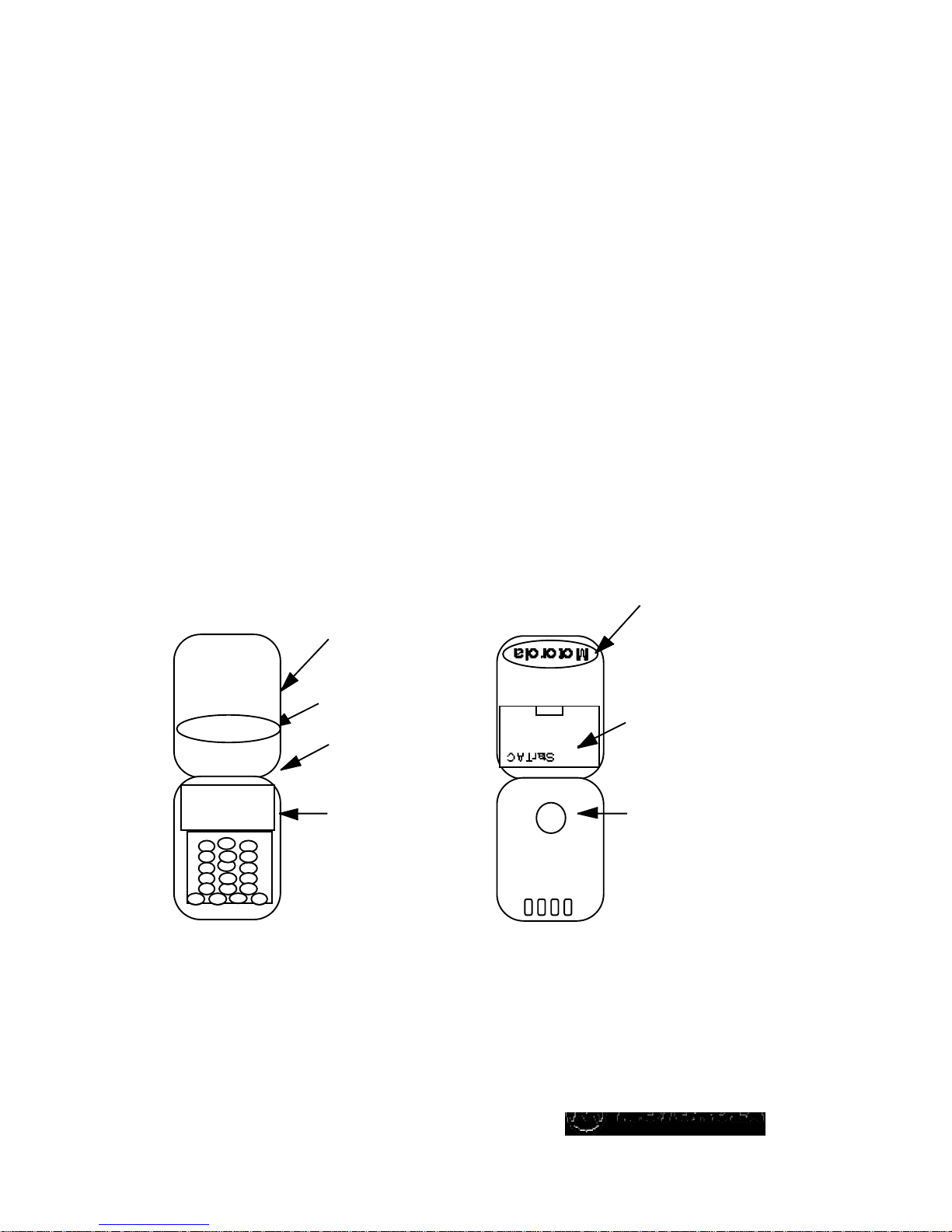

Operator

printed in

gold above

escutcheon.

StarTAC

Motorola

Inside View

“StarTac” in

Gold on a

Black Label

“Motorola”

in Gold on

Black M

StarTAC

Motorola

utside View

“StarTAC”in

on Black label

battery

“Motorola”in

Gold on

label

housing

Motorola

“batwings”

hard-tooled

back

Country printed

below escutheon

As shown above, for South Asia, the country name will be tampoed below the inside escutheon for

trans-shipment purposes. For Hong Kong, the operator name will be tampoed above the escutheon

and no country name.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

June 1, 1998 3

Motorola Confidential Proprietary

2.2 Key/Unique Features

The DCS1800 Clam RAE will be the first DCS ’wearable’Motorola product in the GCSA region. It

will lead the range in features, size and weight. Initially, it will be positioned as an aspirational

product, rather that a mainstream volume product.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

June 1, 1998 4

Motorola Confidential Proprietary

Features that will differentiate this product from those of our competitors are:

• Smallest, lightest phone on the market

• Aspirational values

• Auxiliary battery concept, giving unlimited talk and standby time

• Easy to use Personality™ MMI, enhanced for large display

• Full feature set

• VibraCall™, built in, not bolted on

• Full size, retractable SIM card

• Wide range of accessories included in package

2.3 Performance Characteristics

2.3.1 Transceiver Performance

Initial estimates of DCS1800 Clam RAE performance with standard batteries are shown below:

Volume

(cc) Weight

(gm) Talk Time

(Mins) Standby

Time (hours) with Battery

80 81 - - Standard Transceiver only

<100 <100 70-90 20-25 LiIon 350 mAh (SNN4875

w/Noryl transceiver

100 105 70-90 20-25 LiIon 350 mAh (SNN4875)

w/standard transceiver

100 110 120-140 30-38 LiIon 500 mAh (SNN4667)

109 126 210-280 60-70 LiIon 900 mAh (SNN4668)

109 125 110-140 30-35 NiMH 500 mAh (SNN4669)

Initial estimates of DCS1800 Clam RAE performance with auxiliary battery are shown below;

weights and volumes are additional to the core unit (i.e. w/LiIon 500 mAh battery)

Volume

(cc) Weight

(gm) Talk Time

(Mins) Standby

Time (hours) with Battery

40 54 200-260 55-65 LiIon 900 mAh (SNN4867)

2.3.2 Charge Times

Maximum acceptable charge times are shown below.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

June 1, 1998 5

Motorola Confidential Proprietary

Battery Charge time with E.P.+

Standard Travel Charger

to 95% charge

NiMH batteries 70 minutes

LiIon batteries 2 1/2 hours

The unit must feautre seamless power transitions with travel charger and cigarette lighter

adapter.

2.3.3 Compatible Battery Technology

As GSM Clam RAE PD.

2.3.4 Data Compatibility

As GSM Clam RAE PD.

3. EXPECTED LIFETIME

RAE is a new product platform which will evolve over time into various different product platforms.

It is anticipated the DCS 1800 RAE family will last beyond the year 2000. During this time model

variations will be introduced.

4. SOFTWARE AND MMI DESCRIPTION

Functional descriptions for each software and MMI feature are defined in the Europe DCS 6700 and

StarTAC Software Requirements Document, version 0.2. The StarTAC will be compatible with CPHS

version 3.1.

5. MODELS/VERSIONS

5.1 New Sales Models

Only the GCSA and the Motorola branded Europe models are listed below: Malaysia will not require

any SIM lock mechanism.

Model

Number Brand Description

S6373ABB Motorola (for

Malaysia) Poly Black housing; Non-SIM-locked.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

June 1, 1998 6

Motorola Confidential Proprietary

S6374ABB Motorola (for

Singapore) Poly Black housing; Non-SIM-locked.

S6375ABB Motorola (for

Thailand) Poly Black housing; Non-SIM-locked.

S6691ABB Motorola (for Hong

Kong) Poly Black housing; Non-SIM-locked.

S6691ABB Motorola (for HK

Peoples Telephone) Poly Black housing; Non-SIM-locked.

S6692ABB Motorola (for HK New

World PCS) Poly Black housing; Non-SIM-locked.

S6693ABB Motorola (for HK

Manderin Comm) Poly Black housing; Non-SIM-locked.

S6694ABB Motorola (for HK

Hutchison) Poly Black housing; Non-SIM-locked.

S6695ABB Motorola (for HK

Pacific Link) Poly Black housing; Non-SIM-locked.

S6696ABB Motorola (for HK P

Plus) Poly Black housing; Non-SIM-locked.

S5993 ABB Motorola (standard

Europe) Black housing; Non-SIM-locked; fully

featured. (std. package)

5.1.1 Package Contents

The package contents for all packages contain the following

•SWF transceiver

•500 mAh Li Ion Main battery SNN4667

•900 mAh Li Ion Aux Battery SNN4867

•EP power supply (SPN4278)

•Holster (SYN5378)

•Country plug (US/UK/Euro)

•User Manual (68P09395A63)

5.1.2 Flexing Information

FEATURE DEFAULT SETTING

SIM Lock None

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2

PRODUCT DESCRIPTION

______________________________________________

June 1, 1998 7

Motorola Confidential Proprietary

Home Zone None

Data 9600 Baud

Earpiece volume Maximum

Ringer Standard Tone

Ringer Volume High

Extended Menus Off except for Hong Kong

Language Automatic (English)

Keypad Tone Normal Tones

Phone Lock Off

Phone Lock Number 1234

Security Code 000000

Battery Saving Mode On

Wakeup graphic Motorola DCS StarTAC

Network Selection Automatic

Meter During Call Off (Hong Kong will have

InComing call timer ON)

User Definable Quick

Access Yes

Key Answer Only Off

5.2 Service Requirements

The following items are required for service:

• a Service Transceiver with IMEI, packed without any accessories/manual/etc.

• a Service Printed Circuit Board (PCB), fully phased and tested, with an IMEI.

5.3 Manual Requirements

Manual will be identical to the Motorola branded Europe DCS1800 19 key Clam RAE.

6. PACKAGING/LABELLING REQUIREMENTS

Transceiver labels

The following standard layout should be used for all models:

Note: All models should have the MC29600 baud logo.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Motorola Cornetta

Motorola

Motorola A920 Manuale utente

Motorola

Motorola i560 TELUS Manuale utente

Motorola

Motorola Telus i857 Manuale utente

Motorola

Motorola T720 CDMA Manuale di istruzioni

Motorola

Motorola MD7000 Series Manuale utente

Motorola

Motorola SD4502 - System Expansion Cordless Handset... Manuale utente

Motorola

Motorola E680 - Smartphone - GSM Manuale di istruzioni

Motorola

Motorola B802 - Premium 2 Handset Dect 6.0 Cordless Phone... Manuale utente

Motorola

Motorola E51 Series Manuale utente

Motorola

Motorola L701BT Manuale utente

Motorola

Motorola GMUN1006 Manuale utente

Motorola

Motorola C370 Series Manuale utente

Motorola

Motorola ML25055 Manuale utente

Motorola

Motorola C51 Series Manuale utente

Motorola

Motorola TELUS i305 Manuale utente

Motorola

Motorola SD4501 Manuale del proprietario

Motorola

Motorola i850 H65XAN6RR4AN Manuale utente

Motorola

Motorola i580 H83XAH6RR4AN Manuale utente

Motorola

Motorola T5ZX1 Manuale utente

Motorola

Motorola MD41 Manuale utente

Motorola

Motorola i885 Telus Manuale utente

Motorola

Motorola ML1200 Manuale utente

Motorola

Motorola C381P J2ME Manuale utente

Motorola

Motorola L4 - DECT Cordless Handset Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
