Motorola SURFboard SB4101 Manuale utente

High-Speed Access to the Internet

SURFboard

Cable Modem

SB4101 User Guide

Regulatory Information

Federal Communications Commission Radio and

Television Interface Statement for a Class 'B' Device.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in the residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a

particular installation.

If the equipment does cause harmful interference to

radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged

to try to correct the interference by one of the following

measures:

n Increase the separation between the equipment and

the affected receiver

n Connect the equipment on a circuit different from

the one the receiver is on

You may find the following booklet, prepared by the

Federal Communications Commission, helpful:

How to Identify and Resolve Radio-TV Interference

Problems

Stock No. 004-000-0342-4,

U.S. Government Printing Office

Washington, DC 20402

Changes or modifications not expressly approved by the

party responsible for compliance could void the user's

authority to operate the equipment.

This product was FCC compliant under test conditions

that included the use of the supplied cable between

system components. To be in compliance with FCC

regulation, the user must use this cable and install it

properly.

Different types of cord sets may be used for

connections to the main supply circuit. Use

only a main line cord that complies with all

applicable product safety requirements of the country of

use.

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for Class B

Personal Computers and Peripherals; and/or CPU

Boards and Power Supplies used with Class B Personal

Computers, Motorola BCS, 6450 Sequence Drive, San

Diego, CA 92121, 1-800-225-9446, declares under sole

responsibility that the product identifies with 47CFR Part

2 and 15 of the FCC Rules as a Class B digital device.

Each product marketed is identical to the representative

unit tested and found to be compliant with the standards.

Records maintained continue to reflect the equipment

being produced can be expected to be within the

variation accepted, due to quantity production and

testing on a statistical basis as required by 47CFR 2.909.

Operation is subject to the following condition: This

device must accept any interference received, including

interference that may cause undesired operation. The

above named party is responsible for ensuring that the

equipment complies with the standards of 47CFR,

Paragraph 15.101 to 15.109.

Canadian Compliance

This Class B digital apparatus meets all requirements of

the Canadian Interference-Causing Equipment

Regulations. Cet appareil numérique de la classe B

respects toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

Warning

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Caution

TO PREVENT ELECTRICAL SHOCK, DO NOT USE

THIS PLUG WITH AN EXTENSION CORD,

RECEPTACLE, OR OTHER OUTLET UNLESS THE

BLADES CAN BE FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

THESE SERVICING INSTRUCTIONS ARE FOR USE

BY QUALIFIED PERSONNEL ONLY. TO REDUCE THE

RISK OF ELECTRICAL SHOCK, DO NOT PERFORM

ANY SERVICING OTHER THAN THAT CONTAINED IN

THE INSTALLATION AND TROUBLESHOOTING

INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO

DO SO. REFER ALL SERVICING TO QUALIFIED

SERVICE PERSONNEL.

Repairs

If repair is necessary, return the Product (including all

Software, components, documentation, and other

contents of this Product package) together with proof of

purchase to the place of purchase.

No part of this publication may be reproduced in any

form or by any means or used to make any derivative

work (such as translation, transformation or adaptation)

without written permission from Motorola, Inc.

Motorola, Inc. reserves the right to revise this publication

and to make changes in content from time to time

without obligation on the part of Motorola, Inc. to provide

notification of such revision or change. Motorola, Inc.

provides this guide without warranty of any kind, either

implied or expressed, including, but not limited, to the

implied warranties of merchantability and fitness for a

particular purpose. Motorola, Inc. may make

improvements or changes in the product(s) described in

this manual at any time.

Motorola, the stylized M logo and SURFboard are

registered trademarks and the SURFboard logo is a

trademark of Motorola, Inc.

Macintosh is a registered trademark of Apple

Corporation.

Microsoft and Windows are registered trademarks of

Microsoft Corporation.

Netscape is a registered trademark of Netscape

Communications Corporation.

QuickTime and QuickTime logo are trademarks of Apple

Computer, Inc.

UNIX is a registered trademark of the Open Group.

Windows screens reproduced by permission of Microsoft

Corporation.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Top and Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation and Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cabling and Startup for a Single User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting Up a USB Driver in Windows 98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting Up a USB Driver in Windows 2000 and Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Configuring for TCP/IP in Windows 95, 98, and Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuring for TCP/IP in Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Verifying Your IP Address in Windows 95, 98, and Me. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Verifying Your IP Address in Windows 2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Cabling for Multiple Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table of Contents (cont’d)

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Problems and Possible Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Removing the SB4101 Device Listing from Windows 98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Removing the USB Driver from Windows 98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Removing the SB4101 Device Listing from Windows 2000 and Windows Me . . . . . . . . . . . . . . . . . . 42

Removing the USB Driver from Windows 2000 and Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Contact Us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Software License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Home Print Exit

Introduction Before You Begin Installation Configuration Troubleshooting Legal

Easier!*

Always on, always connected

Faster!**

Up to 100 times faster than a phone modem

Better!***

A great choice for Internet access

Just open your browser and surf!

surf!surf!

surf!

Congratulations, you have a new state-of-the-art SB4101 cable modem! This

high-speed, upgradeable modem enables you to connect your home or business

computer to a DOCSIS-compliant data network. The SB4101 transmits and receives

data at much higher speeds than traditional telephone or ISDN modems.

It provides high-speed access to the Internet and other online services.

A new Universal Serial Bus (USB) port is available for a single-user direct connection to

USB-equipped computers. The standard Ethernet connection provides network service

to single or multiple users.

Unlike a telephone modem, the SB4101 is always online. Just open your browser and

surf.

* Unlike analog phone modems and ISDN, you’re always on, always connected.

** Actual speed will vary. Many network and other factors affect download speeds.

*** SURFboard is made by the company with over 50 years of cable TV expertise.

Home Print Exit

Introduction Before You Begin Installation Configuration Troubleshooting Legal

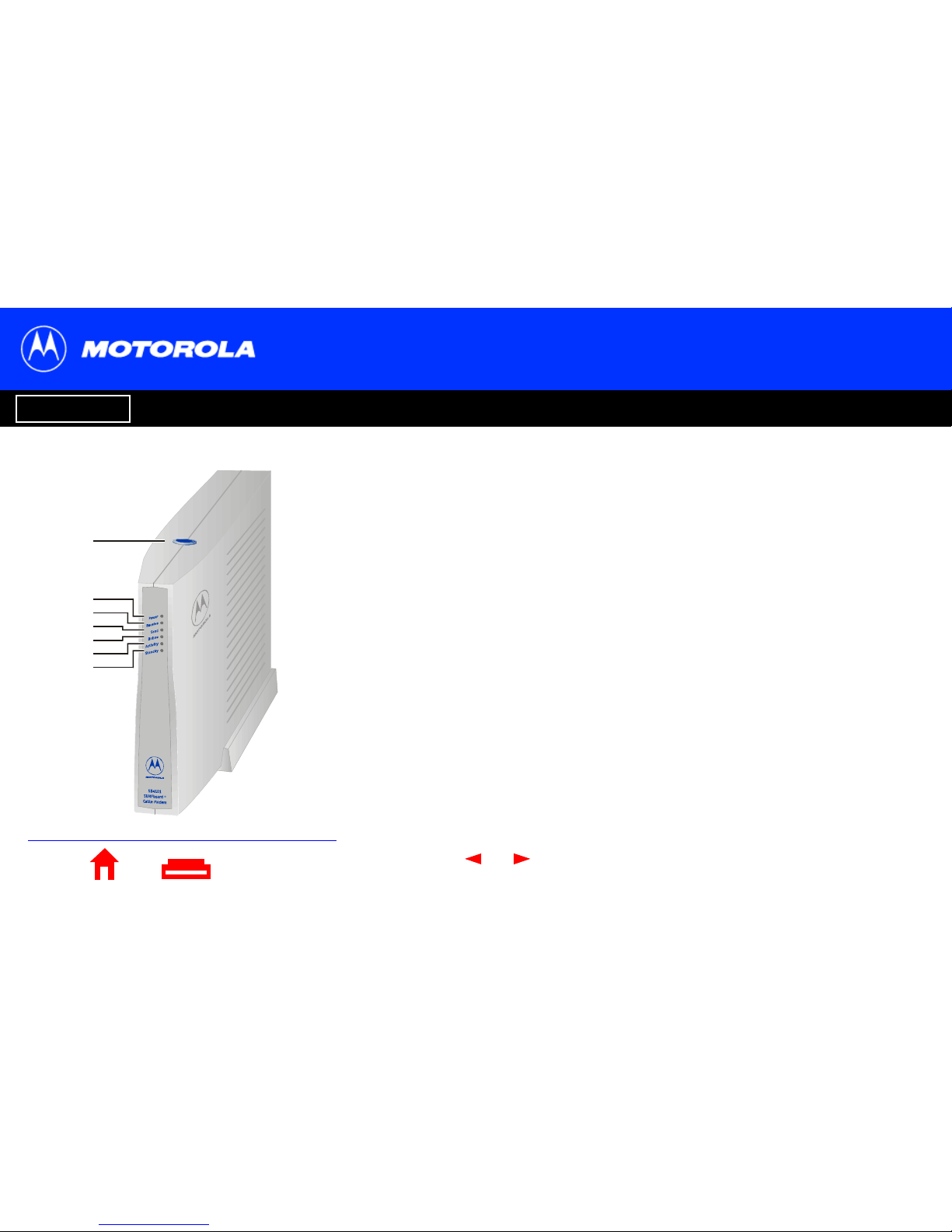

Top and Front Panel

The standby button suspends Internet service. The six front-panel lights provide

information about power, communications, and errors.

Item Description

1 Standby

Switch

Press this switch to disable the Ethernet and USB ports on the

SB4101. No data is transmitted or received. Press this switch again

to transmit and receive data. The Standby button offers added

Internet security. When the standby switch is activated, all other

lights turn off.

2Power

LED

When the light is flashing, startup diagnostics are being performed.

A solid light indicates the SB4101 is powered on.

3 Receive

LED

When the light is flashing, the SB4101 is scanning for a receive

channel connection. A solid light indicates the channel connection

is acquired.

4Send

LED

When the light is flashing, the SB4101 is scanning for the send

channel connection. A solid light indicates the channel connection

is acquired.

Home Print Exit

Introduction Before You Begin Installation Configuration Troubleshooting Legal

Top and Front Panel

Item Description

5 Online

LED

When the light is flashing, the SB4101 is scanning for the network

configuration server connection. A solid light indicates the network

connection is acquired.

6 Activity When the light is flashing, the SB4101 is transmitting or receiving

data. When the light is off, the SB4101 is not transmitting or

receiving data.

7 Standby After pressing the Standby button on the top of the SB4101, the

Standby light turns on indicating the Ethernet and USB ports are

disabled (not receiving or transmitting data). The cable connection

to the service provider remains active. Internet service is

interrupted until the Standby button is pressed again. The Standby

button offers added Internet security.

Altri manuali per SURFboard SB4101

Indice

Altri manuali Motorola Modem

Motorola

Motorola SM56 Guida all'installazione

Motorola

Motorola SURFboard SB5100 Manuale utente

Motorola

Motorola SB5100 - SURFboard - 38 Mbps Cable Modem Manuale utente

Motorola

Motorola SURFboard SBV6220 Manuale utente

Motorola

Motorola SM56 Guida all'installazione

Motorola

Motorola SURFboard SBV5222 Manuale di formazione

Motorola

Motorola SURFboard SBG901 Manuale utente

Motorola

Motorola SURFboard SBV5322 Manuale utente

Motorola

Motorola SURFboard SB4200E Manuale utente

Motorola

Motorola SBG1000 Manuale utente

Motorola

Motorola VMM6300 Manuale utente

Motorola

Motorola MD1600 Manuale utente

Motorola

Motorola ML1500 Manuale utente

Motorola

Motorola SB5100 Series Manuale utente

Motorola

Motorola SURFboard SBG900 Manuale utente

Motorola

Motorola SB5100 - SURFboard - 38 Mbps Cable Modem Manuale del proprietario

Motorola

Motorola iDEN iO1500R Manuale utente

Motorola

Motorola WSM6300 Manuale utente

Motorola

Motorola SURFboard SB4100 Manuale utente

Motorola

Motorola MG7540 Manuale utente

Motorola

Motorola SURFboard SBV5122 Manuale utente

Motorola

Motorola SURFboard SB5102 Manuale utente

Motorola

Motorola 326X V.34 Manuale utente

Motorola

Motorola CPEi 300 Series Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente
