Motorola NE 1000 Manuale utente

Motorola’s Network Encryptor supports the centralized encryption of MPEG services in a MediaCipher®

conditional access system.The NE also provides the ability to support efficient Single Program Transport

Stream (SPTS) distribution of services, which is necessary in Switched Digital Video (SDV) applications.

Support for centralized encryption in VOD systems can also be supported. The NE supports both full

encryption (unique tier per service) and Common Tier Encryption (CTE), where each encrypted service

shares the same access requirements. The NE can be configured to follow the input copy control infor-

mation within an input DTCP descriptor, as well as to follow settings provided by the DAC or made by

the operator directly on the NE EM (CTE only).

The NE receives and transmits all MPEG services in the form of MPEG-2 SPTSs using Gigabit Ethernet

(GigE). The ability to transmit encrypted SPTSs is necessary in SDV systems to make the most efficient

use of available encryption resources. The NE is the first Motorola digital cable headend product specifi-

cally designed to fully support the transmission of SPTSs at the output. As a result, the NE is a key

required component of all SDV system deployments using Motorola conditional access.

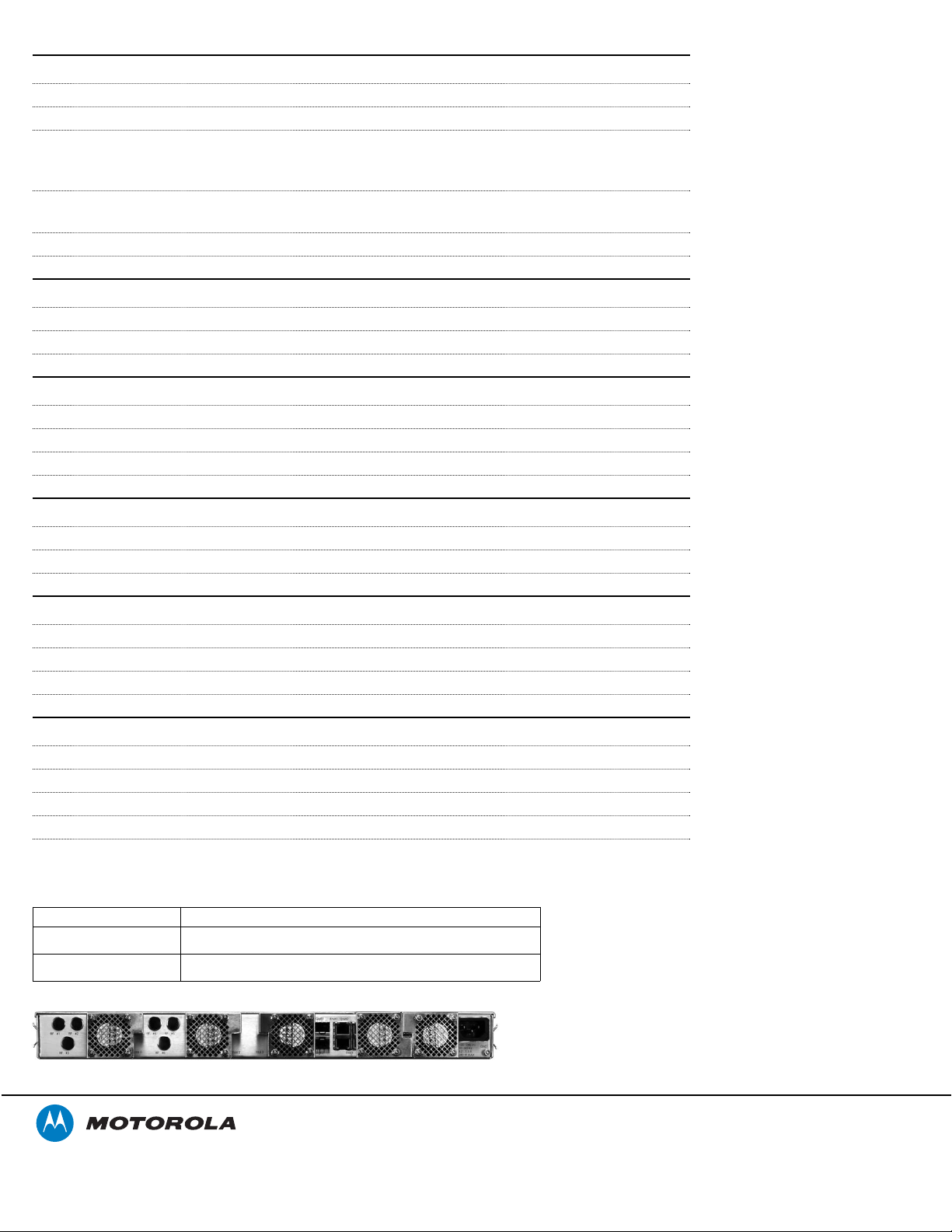

SPECIFICATION SHEET

BENEFITS

Single Program Transport

Stream (SPTS) encryptor for

switched digital and VOD solu-

tions

Supports MediaCipher encryp-

tion of up to 192 services

(unique tier per service), or up

to 384 services using Common

Tier Encryption (CTE)

Configurable using an embed-

ded element manager or

Motorola’s SmartStream

Device Manager (SDM)

NE1000

Network Encryptor

An XML interface allows the

Digital Addressable Controller

(DAC) to deliver Entitlement

Management Messages and

conditional access rights data

to the NE

Performs periodic insertion of

Motorola Entitlement Control

Messages

Provides status and alarms

using SNMP traps

Configurable control and man-

agement of copy control

information (CCI) and analog

protection system (APS) data

SPECIFICATIONS

INTERFACES

Configuration and Control Embedded Web interface (Element Manager) or SDM

Serial RS-232 (standard)

GigE

Physical Ports 2 ports; each supports insertion of either optical or

electrical SFP

Optical GigE 850 nm, 1310 nm, and 1550 nm wavelengths;

IEEE 802.3z full duplex; standard duplex LC™ SFP

Electrical GigE 1000Base-T SFP, IEEE 802.3z full duplex, RJ-45 connector

Fast Ethernet (10/100Base-T) 2 ports; IEEE 802.3u; RJ-45 connector; twisted pair

ENCRYPTION CAPACITY

Unique Tier Per Service 192 services

Common Tier Encryption (CTE) 384 services

MPEG-2 Transport Stream Format SPTS: in and out; MPTS: not supported

ELECTRICAL (AC POWER)

Input Voltage 100 to 240 VAC

VAC Frequency 50 to 60 Hz

Current 0.6 to 1.6 A, 120 V

Power Consumption 138 W (maximum)

ELECTRICAL (DC POWER)

Input Voltage –40 to –60 VDC

Current 3.5 A (maximum)

Power Consumption 138 W (maximum)

ENVIRONMENT

Ambient Temperature 0 °C to 50 °C

Ambient Humidity 5% to 90%

Storage Temperature –40 °C to 70 °C

Cooling 5 fans

OTHER

Limited Warranty 1 year

Dimensions 1.75" H x 19" W x 24" L (1 RU)

Weight 13 lb

Mounting Rack mount

Specifications are subject to change without notice.

Product Number Description

533992-001-00 NE - NETWORK ENCRYPTOR - AC POWER

533992-002-00 NE - NETWORK ENCRYPTOR - DC POWER

Motorola, Inc. 101 Tournament Drive, Horsham, Pennsylvania 19044 U.S.A.

www.motorola.com

MOTOROLA, the Stylized M Logo, and MediaCipher are registered in the U.S. Patent andTrademark Office.

All other product or service names are the property of their respective owners.

535021-001-a 5732 - 0207 - 0K
