INTRODUCTION

This manual (L3000E) is a supplement to the Motorola Digital

Communicator L3000 User’s Guide. It explains advanced features

that are available on your portable.

This manual explains how the radio works when it ships from the

factory. Many features are programmable by your organization. Be

sure to refer to your organization’s instructions to ﬁnd out the differ-

ences.

This Supplement explains the following Advanced Dispatch Fea-

tures:

Multi-Simultaneous Talkgroup Scan

This feature allows you to monitor more than one talkgroup within

your ﬂeet.

Status Message

Status Message - Allows you to send a Status Message to the dis-

patcher, or to the target ID of your choice. Status Messages like “AT

LUNCH” and “EN ROUTE” can be programmed and sent. Up to

10 named (aliased) Status Messages are available per unit.

Emergency Group Call

Emergency Group Call - Provides priority access to talkgroup mem-

bers, and provides visible and audible indications of an emergency

condition. The emergency call will take place on a pre-programmed

emergency talkgroup or the last selected talkgroup (depending on

how the portable is programmed).

Isolated Site Operation (ISO)

ISO allows you to continue group call communications within a sin-

gle cell site when connectivity to the network is lost. This feature

does this by allowing the cell to operate in a local, one cell only

mode.

l3000E Getting Started Page 1 Monday, January 27, 1997 4:01 PM

ADVANCED FEATURE PORTABLE

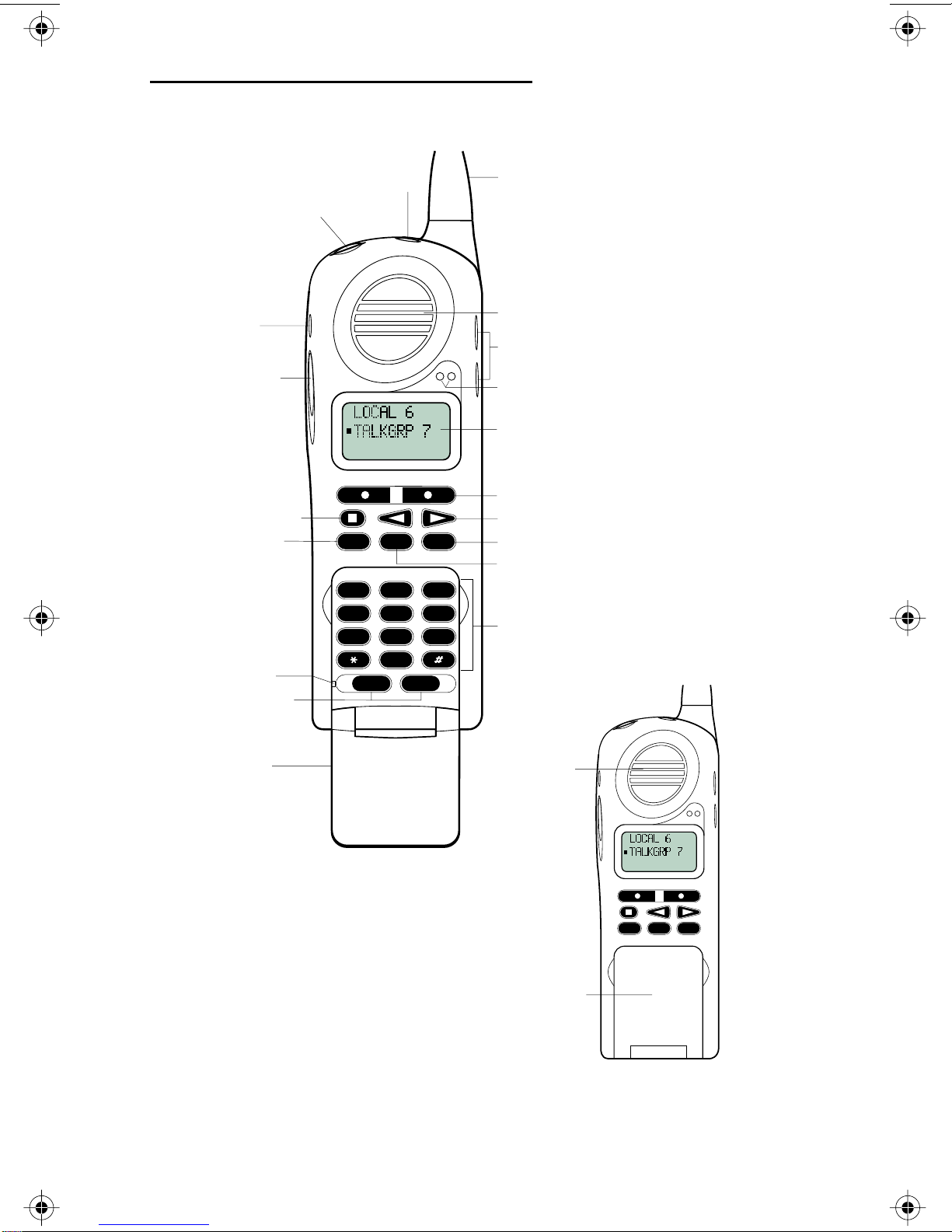

18. Power (On/Off) Key

19. Emergency Key 1. Antenna

4. Status Indicators

5. Alphanumeric Display

6. Option Keys

7. Directional Keys

15. Active-Line Key

14. Phone Mode

Key 9. Group Mode Key

8. Private Mode Key

17. Mute Key

16. Push-To-Talk

(PTT) Button

3. Volume Control Keys

13. Microphone

12. Phone Control

Keys

11. Flip (Open)

ABC

DEF

SEND END

10. Alphanumeric Keypad

2. Earpiece

PHONE GROUP PRVT

MNO

JKL

GHI

PRS

TUV

WXY

20. Speaker

PHONE GROUP PRVT

11. Flip (Closed)

l3000E Getting Started Page 2 Monday, January 27, 1997 4:01 PM

1. Antenna

2. Earpiece -

When the Flip is open, the earpiece is used for listening

during low-audio communication.

3. Volume Control Keys -

Used to adjust volume levels of the ear-

piece, speaker, ringer, keypad, and message notification.

4. Status Indicators -

Solid or blinking lights indicate different con-

ditions that your unit may be in. (See the “Safety and General Infor-

mation” section of the L3000 User’s Guide for the Status Indicator

Table).

5. Alphanumeric Display -

A three-line display, providing up to 11

characters per line.

6. Option Keys -

Used to select the option that appears directly above

the key on the third line of the display.

7. Directional Keys -

Used to perform Memory, Scrolling, optiona

scrolling, and editing.

8. Private Mode Key -

Used for one-to-one private radio communi-

cation.

9. Group Mode Key -

Used for one-to-many radio communication.

10. Alphanumeric Keypad -

Used for direct entry of radio IDs, ser-

vice area IDs, talkgroup IDs, phone numbers or names.

11. Flip -

Used to answer and end phone calls. Also used during Radio

Operation to swith between high audio levels (Flip closed) and Ear-

piece audio levels (Flip open).

12. Phone Control Keys -

Used to place ( ) or terminate

( ) telephone calls.

13. Microphone -

Used to speak into during communication.

14. Phone Mode Key -

Used for telephone communication.

15. Active Line Key -

Used to control the Active Line Indicator ( )

that appears on the display.

16. Push-toTalk (PTT) Button -

Used to transmit voice during Group

Calls and Private Conversations. Also used to send Call Alerts.

17. Mute Key -

Used to enable and disable the microphone during tele-

phone calls so that the other party cannot hear you. A solid yellow

status indicator illuminates when the microphone is muted.

18. Power On/Off Key -

Used to turn the portable unit on and off.

19. Emergency Key -

Used to make emergency group calls.

20. Speaker -

When the flip is closed, the speaker is used for listening

during high-audio radio communication.

SEND

END

l3000E Getting Started Page 3 Monday, January 27, 1997 4:01 PM

ADVANCED FEATURES (L3000E)

The L3000E is provided with an advanced feature set as described

in this section. Additionally, the L3000E has 4.8 kbs data function-

ality and can initiate and receive data calls. For a complete descrip-

tion of these functions please refer to te Circuit Data User’s Guide

(publication number 68P81084C18).

Multi-Simultaneous Talkgroup Scan

Multi-Simultaneous Talkgroup Scan (Scan) allows users within a

ﬂeet to monitor more than one talkgroup. A Talkgroup Mode,

within the range of 1-255, is comprised of up to four talkgroups (one

Primary Talkgroup and up to three Secondary Talkgroups). Calls

can only be initiated on the user’s Primary Talkgroup, however, a

user can respond to an active call on either a Primary or Secondary

Talkgroup. Both Primary and Secondary Talkgroups can be named

(aliased), however, Talkgroup Modes cannot be aliased. The default

setting of the Scan feature is “ON”, but the user has the capability

of disabling Scan through an option key. The unit will store the last

Scan setting, and power on with that setting.

Entering Group Mode

Press the Power key to power on your unit. Press to enter

Group Mode.

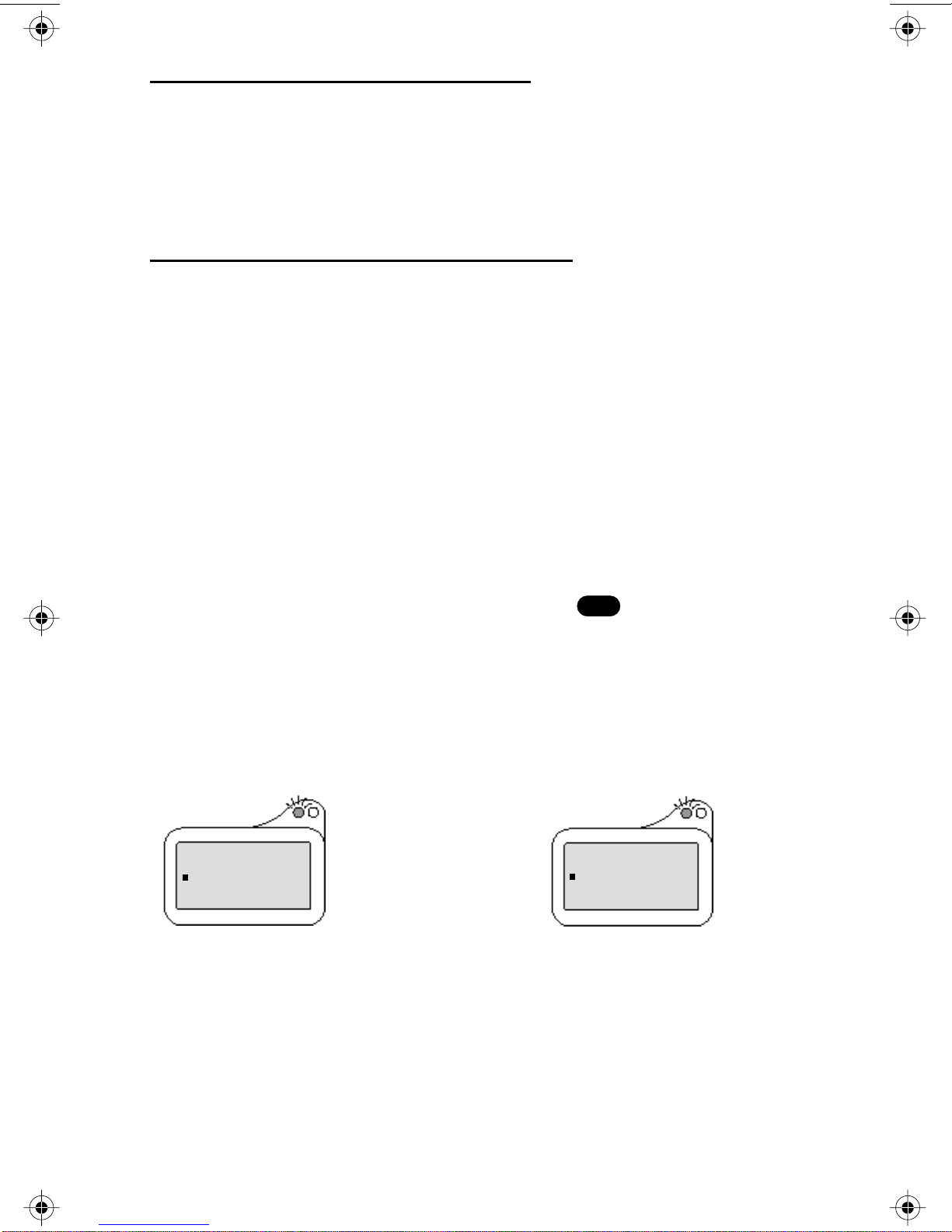

Two different Talkgroup Modes are displayed below. The Primary

Talkgroup is indicated to the right of the Talkgroup Mode. The dis-

play on the left shows a non-aliased Primary Talkgroup, and the dis-

play on the right shows an aliased Primary Talkgroup.

Primary Talkgroup Primary Talkgroup

Not Aliased Aliased

GROUP

LLOO

OOCC

CCAA

AALL

33::

::EE

EEll

llee

eecc

cctt

ttrr

rrii

iicc

ccii

LLOO

OOCC

CCAA

AALL

1100

0022

22::

::TT

TTgg

1155

l3000E Getting Started Page 4 Monday, January 27, 1997 4:01 PM

Initiating a Group Call

Press and hold the PTT button to initiate a

group call on your Primary Talkgroup.

The example to the right illustrates the dis-

play if Fred pressed the PTT to initiate a

call on the Electricians talkgroup. This is

Fred’s Primary Talkgroup for Mode 3.

All subscriber units that have afﬁliated with

your Primary Talkgroup as either a Primary

or Secondary Talkgroup in any Talkgroup

Mode will receive your group call if they are

not already engaged in an active call.

The following screens will be displayed on the receiver subscriber

units indicating they have joined the call. The second line of the

display will indicate the Mode number followed by Primary or Sec-

ondary Talkgroup, which may be aliased. The third line of the dis-

play indicates the PTT-ID of the unit initiating the group call, which

can also be aliased.

Example: Jason joins the Electricians talk-

group. He has also selected Electricians as

his Primary Talkgroup for Talkgroup 3, but

he has no alias for his talkgroup, so the Talk-

group number (TG ID) is displayed. Fred’s

PTT-ID is displayed on the third line.

Example: Julie joins the call and the unit

updates the alias to indicate active Second-

ary Talkgroup. (Mode 1, Secondary Talk-

group 3). Fred’s PTT-ID is displayed on the

third line.

Fred’s Display

LLOO

OOCC

CCAA

AALL

33::

::EE

EEll

llee

eecc

cctt

ttrr

rrii

iicc

ccii

Jason’s Display

LLOO

OOCC

CCAA

AALL

33::

::TT

TTgg

IIDD

DD::

::FF

FFrr

rree

eedd

Julie’s Display

LLOO

OOCC

CCAA

AALL

11::

::EE

EEll

llee

eecc

cctt

ttrr

rrii

iicc

ccii

IIDD

DD::

::FF

FFrr

rree

eedd

l3000E Getting Started Page 5 Monday, January 27, 1997 4:01 PM

Responding to a Secondary Talkgroup

To respond to a call on a Secondary Talkgroup, press the PTT but-

ton.

FOR EXAMPLE:

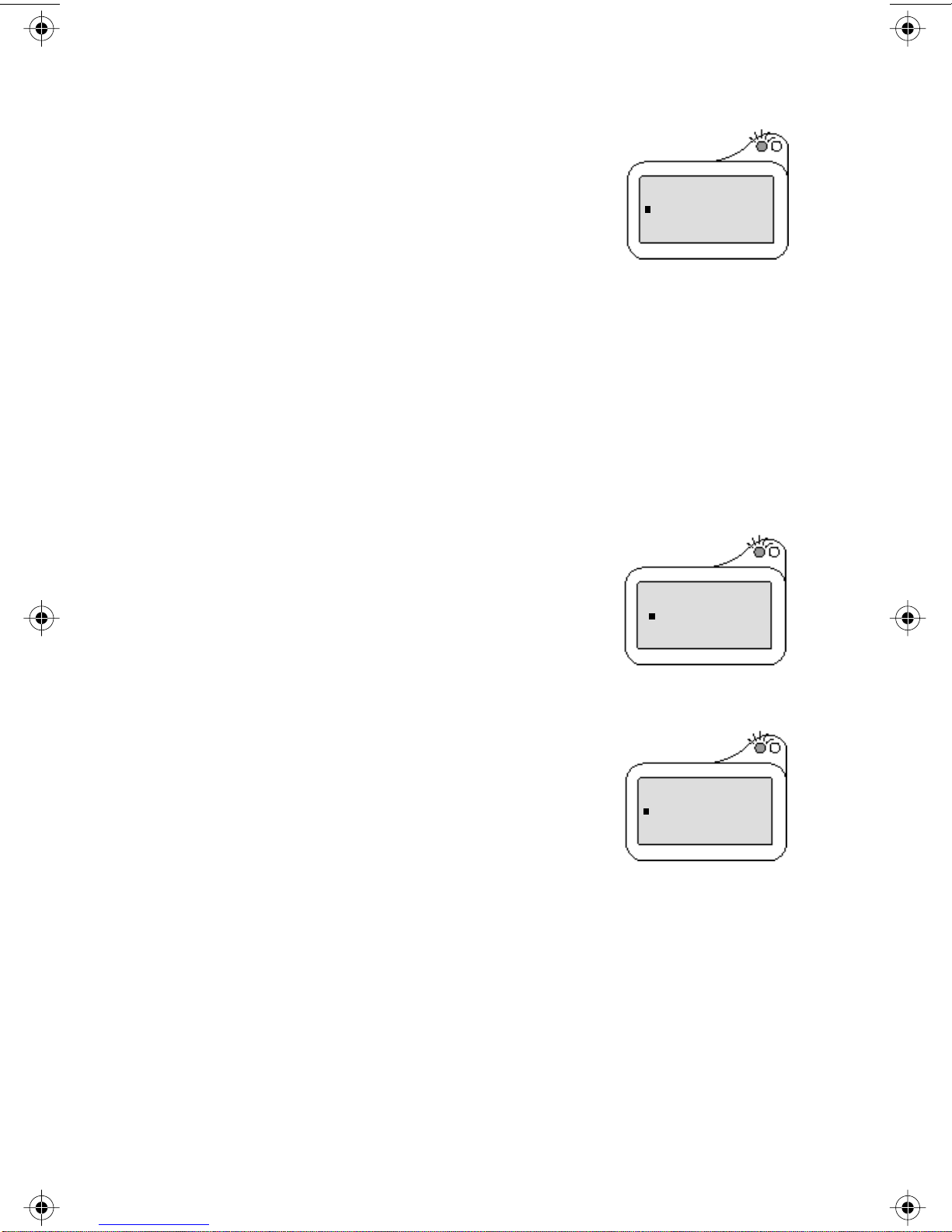

Julie responds to Fred by pressing the PTT

button.

Fred has released his PTT button, then

begins to receive Julie’s response.

Jason receives Julie’s response.

After the Secondary Talkgroup call is com-

pleted, all receiving subscriber units’ displays will revert to their Pri-

mary Talkgroup of the selected Talkgroup Mode.

Julie’s Display

LLOO

OOCC

CCAA

AALL

11::

::EE

EEll

llee

eecc

cctt

ttrr

rrii

iicc

ccii

Fred’s Display

LLOO

OOCC

CCAA

AALL

33::

::EE

EEll

llee

eecc

cctt

ttrr

rrii

iicc

ccii

IIDD

DD::

::JJ

JJuu

uull

llii

iiee

Julie’s Display

LLOO

OOCC

CCAA

AALL

33::

::TT

TTgg

IIDD

DD::

::FF

FFrr

rree

eedd

l3000E Getting Started Page 6 Monday, January 27, 1997 4:01 PM

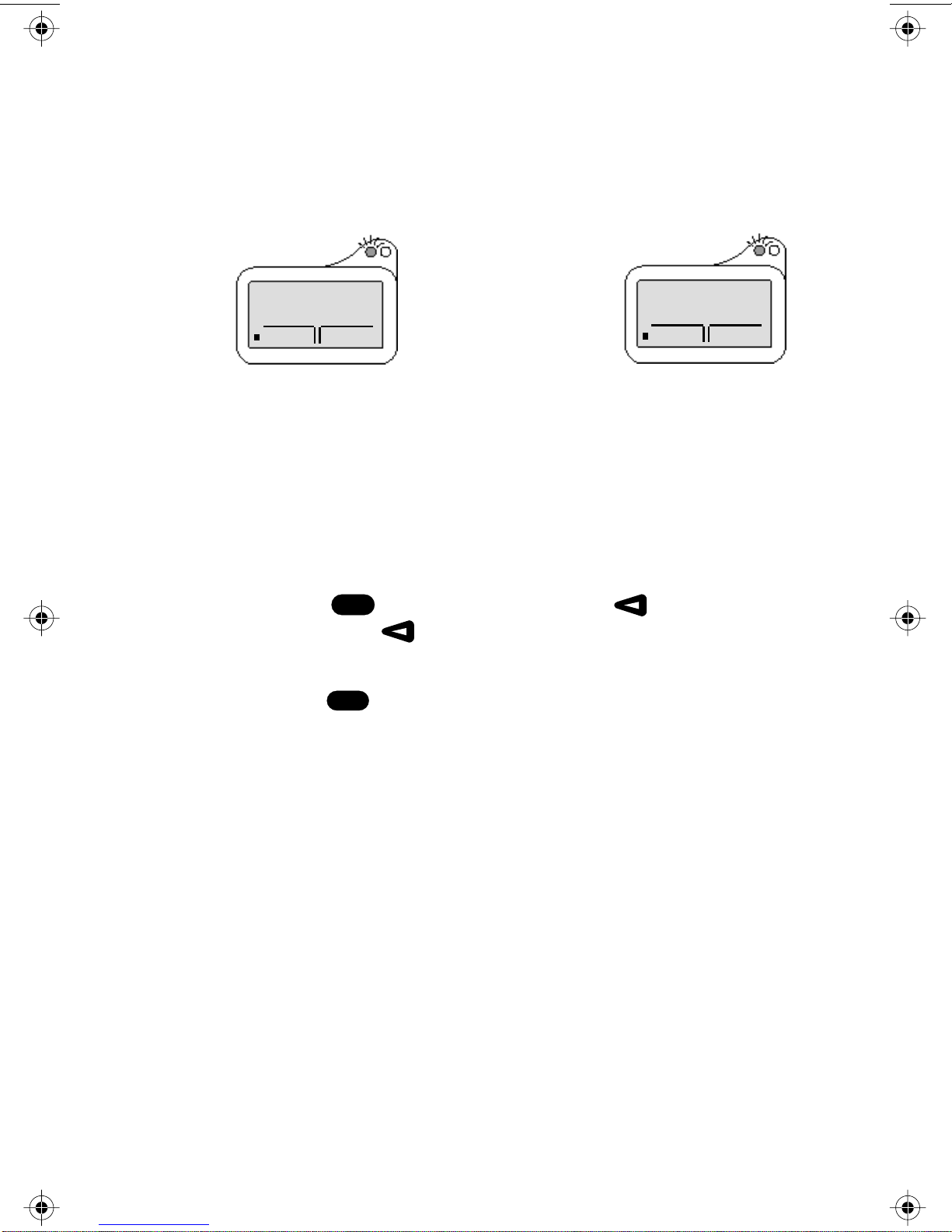

Turning Scan On and Off

The capability to turn scan on and off is available as an option key.

Press the “Scan” option key. The unit will afﬁliate with the selected

mode. Press the “S Off” option key to disable scan.

When Scan is disabled, you will not have access to your Secondary

Talkgroups.

Talkgroup Mode Selection by Direct Entry

You may select a different Talkgroup Mode at any time.

1. Press the key. To erase a digit, press . To clear all dig-

its, press and hold . To return to your previously selected Talk-

group Mode, press the “Cancl” option key.

2. Press the key.

3. Press the PTT button or the “Ok” option key. “Mode 18” will

ﬂash until afﬁliation is complete. If you selected the Talkgroup

Mode by pressing the PTT button, you will initiate a call on your

Primary Talkgroup.

LLOO

OOCC

CCAA

AALL

1188

88--

--EE

EEnn

nngg

ggii

iinn

nnee

eeee

eerr

SSCC

CCAA

AANN

SSTT

TTSS

Scan Disabled

LLOO

OOCC

CCAA

AALL

1188

88::

::EE

EEnn

nngg

ggii

iinn

nnee

eeee

eerr

OOFF

FFFF

SSTT

TTSS

Scan Enabled

TUV

l3000E Getting Started Page 7 Monday, January 27, 1997 4:01 PM

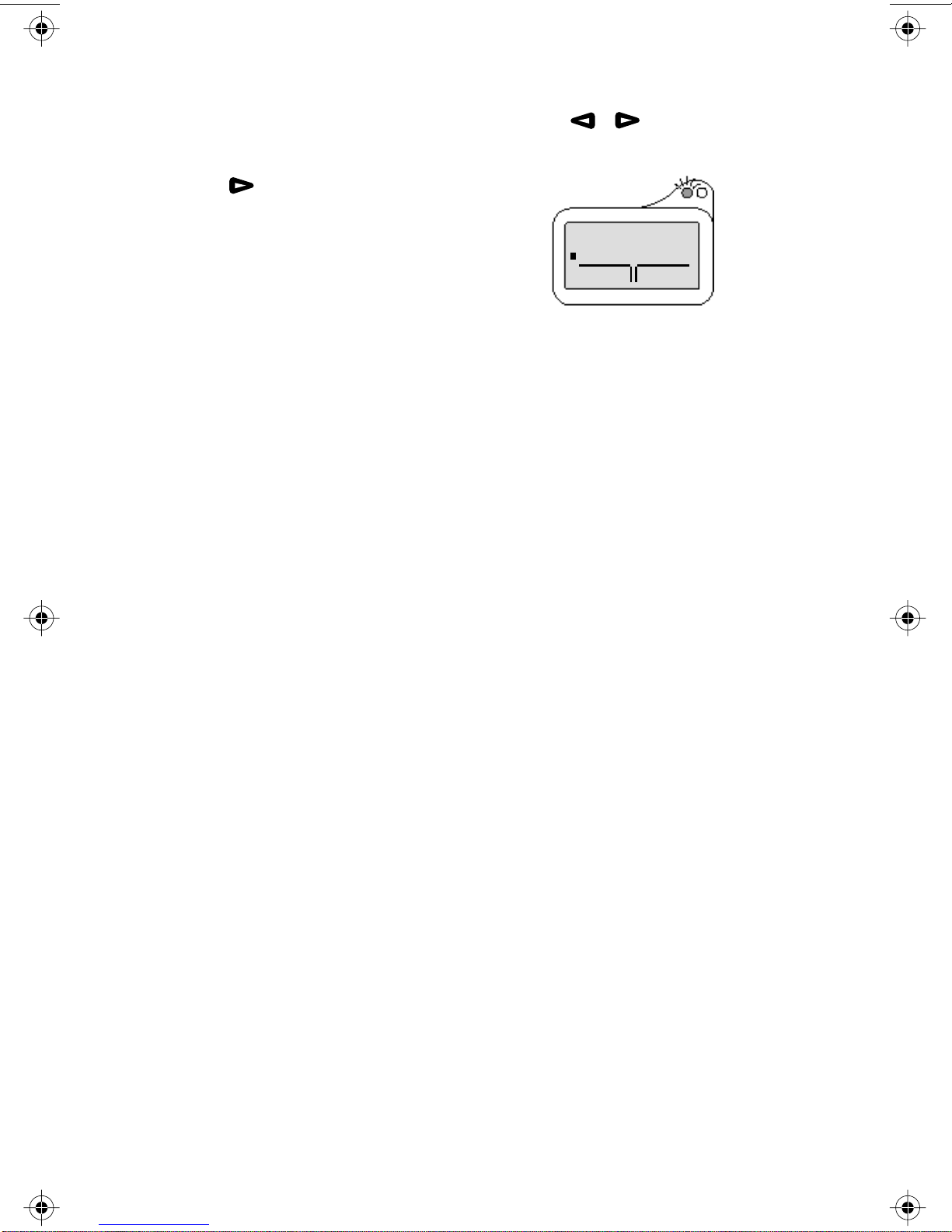

Talkgroup Mode Selection by Memory Scroll

The Memory Scroll feature allows you to use the keys to

scroll through memory for Talkgroup Modes.

1. Press . Press and hold this key to

Auto Scroll through your lists more quickly.

2. Press the PTT button or the “Ok” option

key.

Note: To transmit, press the PTT; to listen

only, press “Ok”.

LLOO

OOCC

CCAA

AALL

MMOO

OODD

DDEE

1188

CCAA

AANN

NNCC

CCLL

OOKK

l3000E Getting Started Page 8 Monday, January 27, 1997 4:01 PM

Emergency Group Call

Placing an Emergency Group Call

An Emergency Group Call allows a user to have priority access to his

talkgroup members and provide them visual and audible indications

of an emergency condition. The Emergency call can be placed from

any mode (private, group, phone).

1. Press and hold the Emergency Button. The portable will emit an

emergency start tone to indicate that you have successfully

requested an emergency call.

2. Press the PTT to talk. The currently

selected Talkgroup Mode will be selected

unless your organization preprogrammed an

emergency Talkgroup Mode. If this is the

case, the preprogrammed emergency Talk-

group Mode will ﬂash in the display. The

Talkgroup Mode appears in the second line

of the display as shown.

3. To end an emergency call, press and hold

the Emergency Button for 3 seconds. The

portable will return to the last selected talk-

group. The initiator cannot exit the emer-

gency call without ﬁrst cancelling the emergency call.

Cancelling an Emergency Group Call

Press the Emergency Button until the unit generates an Emergency

Call Cancel tone. This tone indicates the cancellation has occurred.

The display will return to the non-emergency state.

An emergency call will be cancelled if no talkgroup activity occurs

for 30 seconds. The dispatcher, or any other person provisioned to

cancel an emergency call, can also cancel the emergency call.

EEMM

MMEE

EERR

RRGG

GGEE

EENN

NNCC

CCYY

11::

::SS

SSEE

PPll

llaa

aann

nntt

IIDD

DD::

::JJ

JJoo

oohh

hhnn

l3000E Getting Started Page 9 Monday, January 27, 1997 4:01 PM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Motorola Radio

Motorola

Motorola GP68 Manuale utente

Motorola

Motorola CM140 Istruzioni per l'uso e l'installazione

Motorola

Motorola ASTRO Series Manuale utente

Motorola

Motorola Spectra SmartNet C2 Manuale utente

Motorola

Motorola 6871436M01-J Guida di riferimento

Motorola

Motorola ASTRO APX O2 Control Head Mobile Radio Guida di riferimento

Motorola

Motorola GM160 Istruzioni per l'uso e l'installazione

Motorola

Motorola RADIUS GM300 Manuale utente

Motorola

Motorola GP300 Series Manuale utente

Motorola

Motorola GP320 Series Istruzioni per l'uso e l'installazione

Motorola

Motorola pro7100 Manuale utente

Motorola

Motorola RADIUS GM300 Manuale utente

Motorola

Motorola TALKABOUT Manuale utente

Motorola

Motorola GP360 Series Manuale utente

Motorola

Motorola P43DEN Manuale utente

Motorola

Motorola ASTRO W3 Manuale utente

Motorola

Motorola RADIUS GM300 Manuale utente

Motorola

Motorola GM1200 Series Manuale utente

Motorola

Motorola GP series Istruzioni per l'uso e l'installazione

Motorola

Motorola Astro XTL 5000 Manuale utente

Motorola

Motorola Syntor X9000 Manuale utente

Motorola

Motorola MAG ONE Manuale utente

Motorola

Motorola CLP series Manuale utente

Motorola

Motorola MCS 2000 Istruzioni operative

Manuali Radio popolari di altre marche

EisSound

EisSound KBSound iSelect Manuale utente

Midland

Midland 1001LWX Manuale utente

Konig

Konig HAV-SR41 Manuale utente

Roberts

Roberts exprssion Manuale utente

VDigi

VDigi DD3.0 Manuale utente

Radio Shack

Radio Shack 21-1863 Manuale utente

Roberts

Roberts Stream 207 Manuale utente

Sony

Sony Walkman SRF-M97 Manuale utente

Stanley

Stanley FatMax FMC770 Manuale utente

auna

auna DAB-Radio 10026947 Manuale utente

SOUNDMASTER

SOUNDMASTER UR190 Manuale utente

HYT

HYT TC-320 Manuale utente

auna multimedia

auna multimedia Yellowstone 10026851 Manuale utente

B-Tech

B-Tech GMRS-V2 Manuale utente

Weierwei

Weierwei VEV-V8 Manuale utente

SOUNDMASTER

SOUNDMASTER DAB750 Manuale utente

Telefunken

Telefunken TF-1505 Manuale utente

Makita

Makita LXRM03 Manuale utente
