Motorola MVME197DP Manuale utente

MVME197IG/D1A1

May 1994

Supplement to

MVME197DP and MVME197SP

Single Board Computers

Installation Guide

(MVME197IG/D1)

The attached pages are replacements and/or additions to the installation guide. They

correct minor errors and update some features.

Please replace the pages according to the following table and place this page behind

the title page of the installation guide as a record of this change:

❏A vertical bar (|) in the margin of a replacement page indicates a text

change or addition.

❏The supplement number is shown at the bottom of each replacement page.

Replace Old With New

v/vi, v/vi,

1-1 through 1-4, 1-1 through 1-4,

1-7 through 1-10 1-7 through 1-10

Notice

While reasonable efforts have been made to assure the accuracy of this document,

Motorola, Inc. assumes no liability resulting from any omissions in this document, or

from the use of the information obtained therein. Motorola reserves the right to revise

this document and to make changes from time to time in the content hereof without

obligation of Motorola to notify any person of such revision or changes.

No part of this material may be reproduced or copied in any tangible medium, or

stored in a retrieval system, or transmitted in any form, or by any means, radio,

electronic, mechanical, photocopying, recording or facsimile, or otherwise, without the

prior written permission of Motorola, Inc.

Restricted Rights Legend

If the documentation contained herein is supplied, directly or indirectly, to the U.S.

Government, the following notice shall apply unless otherwise agreed to in writing by

Motorola, Inc.

Use, duplication, or disclosure by the Government is subject to restrictions as set forth

in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software

clause at DFARS 252.227-7013.

Motorola, Inc.

Computer Group

2900 South Diablo Way

Tempe, Arizona 85282-9602

Related Documentation

The following publications are applicable to the MVME197 module series and may

provide additional helpful information. If not shipped with this product, they may be

purchased by contacting your Motorola sales ofﬁce.

Notes

1. The support information manuals (SIMVME197LE and

SIMVME197) contain: the connector interconnect signal

information, parts lists, and the schematics for the

specific board(s) indicated.

Document Title Motorola

Publication Number

MVME197LE Single Board Computer User’s Manual

MVME197LE Single Board Computer Support Information

MVME197DP and MVME197SP Single Board Computer

User’s Manual

MVME197DP and MVME197SP Single Board Computer

Support Information

MVME197LE, MVME197DP, and MVME197SP Single

Board Computers Programmer’s Reference Guide

MVME197BUG 197Bug Debugging Package User’s Manual

MVME197BUG 197Bug Diagnostic Firmware User’s Manual

MVME712M Transition Module and P2 Adapter Board

User’s Manual

MVME712-12, MVME712-13, MVME712A, MVME712AM,

and MVME712B Transition Module and LCP2 Adapter Board

User’s Manual

MC68040/MC68EC040/MC68CL040 Microprocessor User’s

Manual

MC88110 Second Generation RISC Microprocessor User’s

Manual

MC88410 Secondary Cache Controller User’s Manual

MVME197LE

SIMVME197LE

MVME197

SIMVME197

MVME197PG

MVME197BUG

MVME197DIAG

MVME712M

MVME712A

M68040UM/AD

MC88110UM/AD

MC88410UM/AD

2. Although not shown in the above list, each Motorola

Computer Group manual publication number is

suffixed with characters which represent the revision

level of the document, such as “/D2” (the second

revision of a manual); a supplement bears the same

number as the manual but has a suffix such as “/A1” (the

first supplement to the manual).

To further assist your development effort, Motorola has collected user’s manuals for

each of the peripheral controllers used on the MVME197 module series and other

boards from the suppliers. This bundle includes manuals for the following:

68-1X7DS for use with the MVME197 series of Single Board Computers.

NCR 53C710 SCSI Controller Data Manual and Programmer’s Guide

Intel i82596 Ethernet Controller User’s Manual

Cirrus Logic CD2401 Serial Controller User’s Manual

SGS-Thompson MK48T08 NVRAM/TOD Clock Data Sheet

The following non-Motorola publications may also be of interest and may be obtained

from the sources indicated. The VMEbus Speciﬁcation is contained in ANSI/IEEE

Standard 1014-1987.

ANSI/IEEE Std 1014-1987 The Institute of Electrical and Electronics

Versatile Backplane Bus: VMEbus Engineers, Incorporated

Publication and Sales Department

345 East 47th Street

New York, New York 10017-2633

Telephone: 1-800-678-4333

ANSI Small Computer System Interface-2 Global Engineering Documents

(SCSI-2), Draft Document X3.131-198X, P.O. Box 19539

Revision 10c Irvine, California 92713-9539

Telephone (714) 979-8135

MVME197IG/D1A1 1-1

BOARD LEVEL

HARDWARE DESCRIPTION

Introduction

This chapter describes the board level hardware features of the MVME197DP

and MVME197SP versions of the MVME197 series of Single Board Computers,

hereafter referred to as the MVME197, unless separately specified (refer to the

next section for model designations).

The chapter is organized with a board level overview and features listed in this

introduction, followed by a more detailed hardware functional description.

Front panel switches and indicators are included in the detailed hardware

functional description. This chapter closes with some general memory maps.

All programmable registers used in the MVME197 module series reside in

ASIC (Application-Specific Integrated Circuit) devices that are covered in the

MVME197LE, MVME197DP, and MVME197SP Single Board Computers

Programmer’s Reference Guide.

Model Designations

The MVME197DP/SP module series of the Single Board Computers are

available in the following models.

Table 1-1. MVME197DP/SP Model Designations

Model

Number

Motorola

Part Number Model Description

MVME197SP series

MVME197-101 01-W3815B04 Single Processor MC88110, 256KB Cache, 128MB

Onboard ECC DRAM, 50 MHz

MVME197DP series

MVME197-201 01-W3815B03 Dual Processor MC88110, 256KB Cache per Processor,

128MB Onboard ECC DRAM, 50 MHz

Board Level Hardware Description

1-2 MVME197IG/D1A1

Overview

Each MVME197 module is a double-high VMEmodule based on the MC88110

RISC (Reduced Instruction Set Computing) microprocessor.

The MVME197DP/SP module series have 128/256MB of onboard DRAM with

programmable ECC (Error Checking and Correction), 256KB of external cache

memory for each MC88110/MC88410 microprocessor/cache controller

combination (note that the MVME197SP version has only one MC88110/

MC88410 device combination), 4MB of flash memory, 8KB of static RAM (with

battery backup), a time of day clock (with battery backup), an Ethernet

transceiver interface, four serial ports with EIA-232-D interface, six tick timers,

a watchdog timer, 256KB of BOOT ROM, a SCSI bus interface with DMA

(Direct Memory Access), a Centronics printer port, an A16/A24/A32/D8/

D16/D32 VMEbus master/slave interface, and a VMEbus system controller.

Input/Output (I/O) signals are routed through the MVME197’s backplane

connector P2. A P2 Adapter Board or LCP2 Adapter board routes the signals

and grounds from connector P2 to an MVME712 series transition module. The

MVME197 supports the MVME712M, MVME712A, MVME712AM, and

MVME712B transition boards (referred to here as the MVME712X, unless

separately specified). The MVME197 also supports the MVME712-12 and

MVME712-13 (referred to as the MVME712-XX, unless separately specified).

These transition boards provide configuration headers, serial port drivers, and

industry standard connectors for the I/O devices.

The MVME197 modules have eight ASIC devices (described in the following

order: BusSwitch, DCAM, ECDM, PCC2, and VME2).

Note

For the MVME197 series, the term Local Bus, as used in

other MVME1xx Single Board Computer series, is referred

to as the Local Peripheral Bus.

The BusSwitch ASIC provides an interface between the processor bus

(MC88110/410 bus) and the local peripheral bus (MC68040 compatible bus).

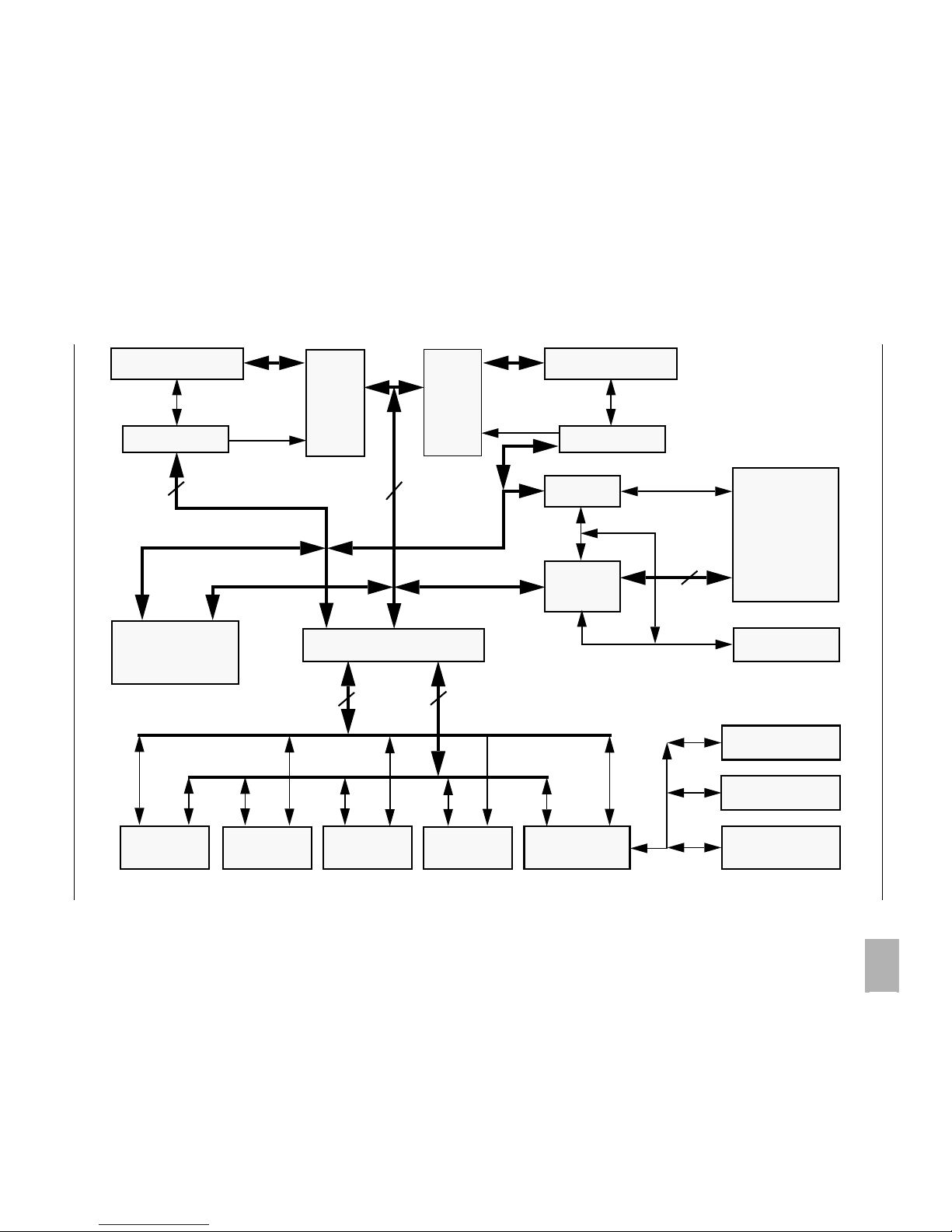

Refer to the board specific MVME197 block diagram (Figure 1-1 and 1-2). It

provides bus arbitration for the MC88410 bus and serves as a seven level

interrupt handler. It has programmable map decoders for both busses, as well

as write post buffers on each, two tick timers, and four 32-bit general purpose

registers.

The DCAM (DRAM Controller and Address Multiplexer) ASIC provides the

address multiplexers and RAS/CAS/WRITE control for the DRAM as well as

data control for the ECDM.

Requirements

MVME197IG/D1A1 1-3

The ECDM (Error Correction and Data Multiplexer) ASIC multiplexes

between four data paths on the DRAM array. Since the device handles 16 bits,

four such devices are required on the MVME197 to accommodate the 64-bit

data bus of the MC88110 RISC microprocessor. Single-bit error correction and

double-bit detection is performed in the ECDM.

The PCCchip2 (Peripheral Channel Controller) ASIC provides two tick timers

and the interface to the LAN chip, the SCSI chip, the serial port chip, the

printer port, and the BBRAM (Battery Backup RAM).

The VMEchip2 ASIC provides a VMEbus interface. The VMEchip2 includes

two tick timers, a watchdog timer, programmable map decoders for the master

and slave interfaces, and a VMEbus to/from the local peripheral bus DMA

controller, a VMEbus to/from the local peripheral bus non-DMA

programmed access interface, a VMEbus interrupter, a VMEbus system

controller, a VMEbus interrupt handler, and a VMEbus requester.

The local peripheral bus to VMEbus transfers can be D8, D16, or D32.

VMEchip2 DMA transfers to the VMEbus, however, can be 64 bits wide as

Block Transfer (BLT).

Requirements

All MVME197 boards are designed to conform to the requirements of the

following documents:

❏VMEbus Specification (IEEE 1014-87)

❏EIA-232-D Serial Interface Specification, EIA

❏SCSI Specification, ANSI

Features

These are some of the major features of the MVME197DP/SP single board

computers:

❏Single MC88110 RISC Microprocessor with an MC88410 Cache Controller

(MVME197SP module series)

❏Dual MC88110 RISC Microprocessors, each with one MC88410 Cache

Controller (MVME197DP module series)

❏256 kilobytes of external cache per processor, controlled by the MC88410

(MVME197DP and MVME197SP module series)

❏128 or 256 megabytes of 64-bit Dynamic Random Access Memory (DRAM)

with Error Checking and Correction (ECC)

Board Level Hardware Description

1-4 MVME197IG/D1A1

❏4 megabytes of Flash memory

❏Six status LEDs (FAIL, RUN, SCON, LAN, SCSI, and VME)

❏8 kilobytes of Static Random Access Memory (SRAM) and Time of Day

(TOD) clock with Battery Backup RAM (BBRAM)

❏Two push-button switches (ABORT and RESET)

❏256 kilobytes of BOOT ROM

❏Six 32-bit tick timers for periodic interrupts

❏Watchdog timer

❏Eight software interrupts

❏I/O

– SCSI Bus interface with Direct Memory Access (DMA)

– Four serial ports with EIA-232-D buffers

– Centronics printer port

– Ethernet transceiver interface

❏VMEbus interface

– VMEbus system controller functions

– VMEbus interface to local peripheral bus (A24/A32, D8/D16/D32

BLT (D8/D16/D32/D64))(BLT = Block Transfer)

– Local peripheral bus to VMEbus interface (A24/A32, D8/D16/D32

BLT (D16/D32/D64))

– VMEbus interrupter

– VMEbus interrupt handler

– Global CSR for inter-processor communications

– DMA for fast local memory - VMEbus transfers (A16/A24/A32,

D16/D32 BLT (D16/D32/D64))

Specifications

The specifications for the MVME197DP/SP are listed in the following table.

Features

MVME197IG/D1A1 1-7

Addr 32 LOCAL PERIPHERAL

BUS

PROCESSOR BUS

MUX Address

RAS, CAS

Addr

BusSwitch

Mezzanine

Port

MC88110

ECDM

(X4)

DCAM

Data 64

Address Bus

Data Bus

Data

Bus

256

Memory

Array

128/256 MB

LAN

82596CA

VMEbus

(VMEchip2) SCSI -II

NCR53710 Flash

Memory PCCchip2

Address Bus

Data Bus

Data 32

I2C EEPROM

I2C Bus

MC88410

256KB

Cache

MC88110

MC88410

256KB

Cache

4 Serial Ports

CL-CD2401

BOOT ROM

NVRAM/RTC

Figure 1-2. MVME197DP Block Diagram

Board Level Hardware Description

1-8 MVME197IG/D1A1

Functional Description

The following sections contain a functional description of the major blocks on

the MVME197DP/SP single board computers.

Front Panel Switches and Indicators

There are two push-button switches and six LEDs on the front panel of the

MVME197. The switches are RESET and ABORT. The RESET switch (S3) will

reset all onboard devices and drive the SYSRESET* signal if the board is the

system controller. The RESET switch (S3) will reset all onboard devices except

the DCAM and ECDM if the board is not the system controller. The VMEchip2

generates the SYSRESET* signal. The BusSwitch combines the VMEchip2 local

reset, the power up reset, and the reset switch to generate a local board reset.

Refer to the Reset Module section in the BusSwitch chapter of the MVME197LE,

MVME197DP, and MVME197SP Single Board Computers Programmer’s Reference

Guide for more information.

The ABORT switch (S2) can generate an interrupt to CPU0 via the NMI* signal.

It is normally used to abort program execution and return to the debugger.

This capability is controlled via the ABORT register in the BusSwitch. Refer to

the BusSwitch chapter of the MVME197LE, MVME197DP, and MVME197SP

Single Board Computers Programmer’s Reference Guide for more information.

The six LEDs on the MVME197 front panel are: FAIL, SCON, RUN, LAN,

VME, and SCSI.

1. The yellow FAIL LED (DS1) is lit when the BRDFAIL signal line is active.

2. The green SCON LED (DS2) is lit when the VMEchip2 is the VMEbus

system controller.

3. The green RUN LED (DS3) is lit when the MC88110 bus MC* pin is low.

4. The green LAN LED (DS4) lights when the LAN chip is the local

peripheral bus master.

5. The green VME LED (DS5) lights when the board is using the VMEbus or

when the board is accessed by the VMEbus.

6. The green SCSI LED (DS6) lights when the SCSI chip is the local peripheral

bus master.

Altri manuali per MVME197DP

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Motorola Computer a scheda singola

Motorola

Motorola MVME2400 Series Manuale utente

Motorola

Motorola CompactPCI CPN5365 Manuale operativo

Motorola

Motorola IXP/CPCI-9120 Manuale utente

Motorola

Motorola MVME6100 Manuale utente

Motorola

Motorola MVME197LE Manuale utente

Motorola

Motorola MVME2600 Series Guida

Motorola

Motorola McIAS 1610 Series Guida utente

Motorola

Motorola MVME177P Guida rapida

Motorola

Motorola CompactPCI CPV5350 Manuale di installazione e funzionamento

Motorola

Motorola M68MPFB1632 Manuale utente

Motorola

Motorola MVME187 Manuale utente

Motorola

Motorola MVME2100 Manuale utente

Motorola

Motorola MCP750HA Series Guida rapida

Motorola

Motorola MVME297-002 Manuale utente

Motorola

Motorola MVME167-32 Manuale utente

Motorola

Motorola MVME1603 Guida rapida

Motorola

Motorola MVME5100 Series Guida rapida

Motorola

Motorola MVME177 Guida

Motorola

Motorola MVME2600 Series Manuale utente

Motorola

Motorola MVME1603 Guida rapida

Motorola

Motorola MCPN750A Guida rapida

Motorola

Motorola CPIP5430 Guida rapida

Manuali Computer a scheda singola popolari di altre marche

WIN Enterprises

WIN Enterprises PL-80910 Manuale utente

AXIOMTEK

AXIOMTEK SBC81206 Series Manuale utente

Embest

Embest SOM-PH8800 Manuale utente

SeaLevel

SeaLevel SBC-R9 Manuale utente

SMART Embedded Computing

SMART Embedded Computing ATCA-8310 Manuale utente

WinSystems

WinSystems PPM-LX800-G Manuale utente

GIGAIPC

GIGAIPC QBiX-PPC Series Manuale utente

OLIMEX

OLIMEX A10S-OLinuXino-MICRO Manuale utente

Commell

Commell FS-978 Manuale utente

GIGAIPC

GIGAIPC QBiP-8665A/ Manuale utente

VersaLogic

VersaLogic Python EBX-11 Manuale utente

Micro Computer Specialists

Micro Computer Specialists IRV-3702 Manuale utente

CompuLab

CompuLab SB-A510 Manuale utente

Boser

Boser HS-7321 Manuale utente

Premier Farnell

Premier Farnell Embest SBC8530 Manuale utente

MicroSys Electronics

MicroSys Electronics miriac SBC-LS1043A2 Manuale utente

Aaeon

Aaeon UP Manuale utente

Portwell

Portwell WUX Series Manuale utente
