Motorola ComCenter Users Guide

Introduction:

Welcome to Motorola’s world of personal wireless accessories. The Motorola

ComCenter Manager software and related cables are designed to enhance your

experience with compatible Motorola phones. This combination lets you stay connected

to your data, wherever you go.

All Motorola wireless products are designed and manufactured to meet Motorola’s

rigorous specifications and world-class quality standards. We are confident that you will

find this accessory to be a convenient way to keep connected! Thank you for choosing a

Motorola product!

This guide is intended to provide all the information you will need to make the most of

your Palm™ personal digital assistant and compatible Motorola phone. It has been

designed for you to easily learn the features of the Motorola ComCenter Manager

software in the shortest amount of time.

1.0 Welcome:

The Motorola ComCenter Manager software application and associated cables

provide the Palm™ owner with direct access to many features of your compatible

Motorola phone, including Internet and Email access.

With the provided cable attached, you will be able to use the contact information in your

Palm™ to dial your phone as well. You can even upload contacts into your phone

directly from your Palm™.

With the Motorola ComCenter, you have:

•A phonebook integrated with Palm™’s built-in Address Book application.

•A QuickDial one-touch dialing.

•Logging of all outgoing calls dialed from your Palm™.

•Direct control over the phone’s Send, End, and numerical keys.

•Ability to upload a phonebook entry from your Palm™ into your phone.

•Ability to change languages between English, Spanish, and French.

2.0 Installation:

2.1 Install

Motorola ComCenter

Page 2

In order to install the Motorola ComCenter Manager application, you must first delete

any previous versions of this software from your Palm™ before running the installation

program. See section 2.2 for uninstalling previously installed versions of Motorola

ComCenter Manager from your Palm™ device.

1. Place your Palm™ personal digital assistant into the HotSync™ cradle.

2. Insert the Motorola ComCenter Manager CD into the CD ROM drive on your

PC. The installation should begin automatically.

3. Select the location to copy the program files.

4. Select the appropriate Palm™ user for the program.

5. Click Done.

6. Press the HotSync™ button on your cradle.

7. The installation process is now complete.

2.2 Uninstall

To delete the application:

1. Press the Palm™ Launcher button (the House icon next to the graffiti area).

2. Open the menu.

3. Select Delete…

4. Select ComCenter.

5. Press Delete… button.

Deleting the ComCenter applicaton will delete its preference settings.

ComCenter creates custom database files for storing information. These databases do

not get deleted with the main application. This allows for easy upgrading without losing

settings for QuickDial entries, or call log entries.

The databases for ComCenter are labeled CCCallLogDB and CCQuickDialDB.

To delete any of ComCenter’s databases:

1. Press the Palm™ Launcher button (the House icon next to the graffiti area).

2. Open the menu.

3. Select Delete…

4. Select the database you wish to delete.

5. Press Delete… button.

Motorola ComCenter

Page 3

3.0 How-to:

3.1 Main Screen

Figure 1 shows the main screen that will appear on your Palm™ when the program is

running.

Figure 1.

The first time you run ComCenter, you will be greeted with the QuickTips screen. It

shows helpful tips on how to use ComCenter. If you wish to prevent QuickTips from

appearing each time you run ComCenter, check the Don’t Show box.

ComCenter will search for a valid Motorola phone when first started. When the phone

is connected to the Palm™ via the appropriate cable, and powered on, the phone will

display Motorola [GSM/CDMA/TDMA]. If the phone is not connected or powered on,

ComCenter will display No Device Found.

After ComCenter finds a valid phone, it will automatically create a Connection profile

(“Motorola P2K phone”) and a Network profile (“MotorolaNet”). If you change phones,

ComCenter will automatically detect this, and make updates as necessary to the

Connection profile. In order to make a data call for the first time, you will need to

configure the Network Profile for your Internet Service Provider (See section 3.6.2).

Motorola ComCenter

Page 4

Figure 2.

If you have configured ComCenter with an Email and Web application to launch (see

section 3.6), the application’s icons will be shown in the left hand side of the screen

(figure 2). Pressing one of the icons will launch the assigned application. If you wish to

return to ComCenter after launching one of those applications, you must use the

Palm™ Launcher button (the House button next to the Graffiti area) to relaunch

ComCenter.

The three buttons in the lower left corner of the display are as follows:

1. Phonebook screen

2. QuickDial screen

3. Call Log screen

Pressing any of those buttons will bring up the appropriate screen (see sections 3.3 to

3.5 for further details of each screen).

The two buttons in the lower right corner of the display are linked to the phone’s End and

Send buttons.

The current date and time are displayed in the lower right corner.

Motorola ComCenter

Page 5

3.2 Keypad Screen

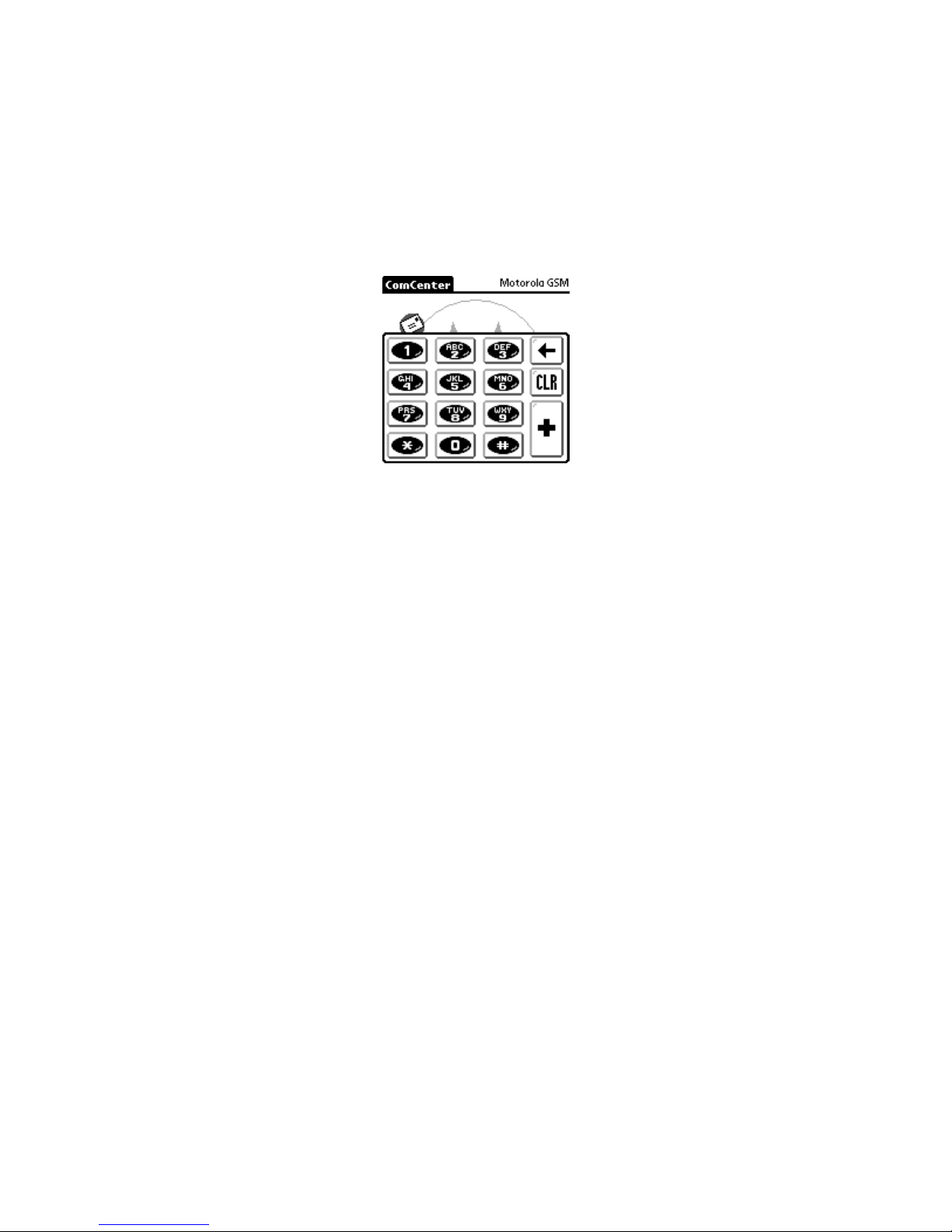

Figure 3 shows the keypad screen. To display this screen, press either (up or down)

hard scroll button on your Palm™. To remove the screen, press either hard scroll button

again. You can also bring this screen up by using the Graffiti area to write the phone

number.

Figure 3.

The buttons on this screen are linked to the keypad on your phone.

Pressing the back arrow deletes one digit.

Pressing the CLR button is the same as pressing the End button on your phone.

As you press the digits, the numbers will be displayed above the keypad. Hiding the

keypad will not clear the digits already entered. Pressing Send,CLR, or opening the

Phonebook, QuickDial, or Call Log screen will clear the digits entered.

While in this screen, you can enter in digits by pressing the numbers on the screen, or

by writing the digits in the graffiti area. You can even SPELL the phone number out (eg.

555-help) and the ComCenter will automatically convert the letters to numbers for you!

Motorola ComCenter

Page 6

3.3 Phonebook Screen

Pressing the button will open the Phonebook screen (Figure 4).

Figure 4.

The Motorola ComCenter Manager Phonebook accesses the Palm’s built-in Address

Book database. This allows a single Address Book entry with multiple numbers to be

accessible as individual numbers, eliminating the need to manually search for a specific

number. Each phone number type is listed next to the corresponding name. As shown

in Figure 4, Albert’s work and home number are listed as two separate entries.

The upper right corner displays the current selection’s phone number.

The Phonebook has many different ways of filtering out entries.

You can:

1. Filter by Category (same as the Address Book)

2. Filter by last name range (right hand side of list)

3. Filter by phone number type (bottom row of list)

4. Spell out the last name using Graffiti (the letters entered are shown in the left

side of the date/time bar)

Note: If you have the Address Book preferences set to sort by Company first,

ComCenter will automatically sort by last name before startup, and re-sort by

company when quitting. This will cause a slight delay when starting and ending

the program.

You can scroll one entry at a time by pressing the Palm™ scroll buttons, or a page at a

time by pressing the arrows in the list.

Any entry that is assigned a QuickDial button will have it’s QuickDial slot number

displayed next to the name in brackets (eg. [2]). This allows you to see those entries

that can be speed dialed.

Once an entry is selected (highlighted), pressing button will dial the number. The

number may contain letters, numbers, #, *, or commas only. If the phone number

contains any letters, it will automatically be converted to the equivalent keypad number.

Motorola ComCenter

Page 7

You can also upload the selected entry to your phone by pressing the button. The

entry will preserve the name, number, and number type in your phone.

Press the button to go back to the main screen, or press the other buttons to go to

the QuickDial or Call Log screen.

3.4 QuickDial Screen (Speed Dial)

Pressing the button will open the QuickDial screen (Figure 5).

Figure 5.

The QuickDial screen is where you can do one-touch dialing. There are 40 QuickDial

entries in total, 8 on 5 pages. You can select a page by selecting the 1-5 button on the

right, or pressing up and down on the Palm™ scroll buttons.

To assign a number to a QuickDial slot, press any empty slot. This will bring up the edit

dialog (Figure 6).

Figure 6.

A new entry will have the Position drop-down disabled (gray arrow).

The Cancel button will exit the dialog without saving the entry.

You can enter in a name and valid telephone number into the appropriate fields or

assign a phonebook entry into the QuickDial slot by pressing the Assign… button.

Motorola ComCenter

Page 8

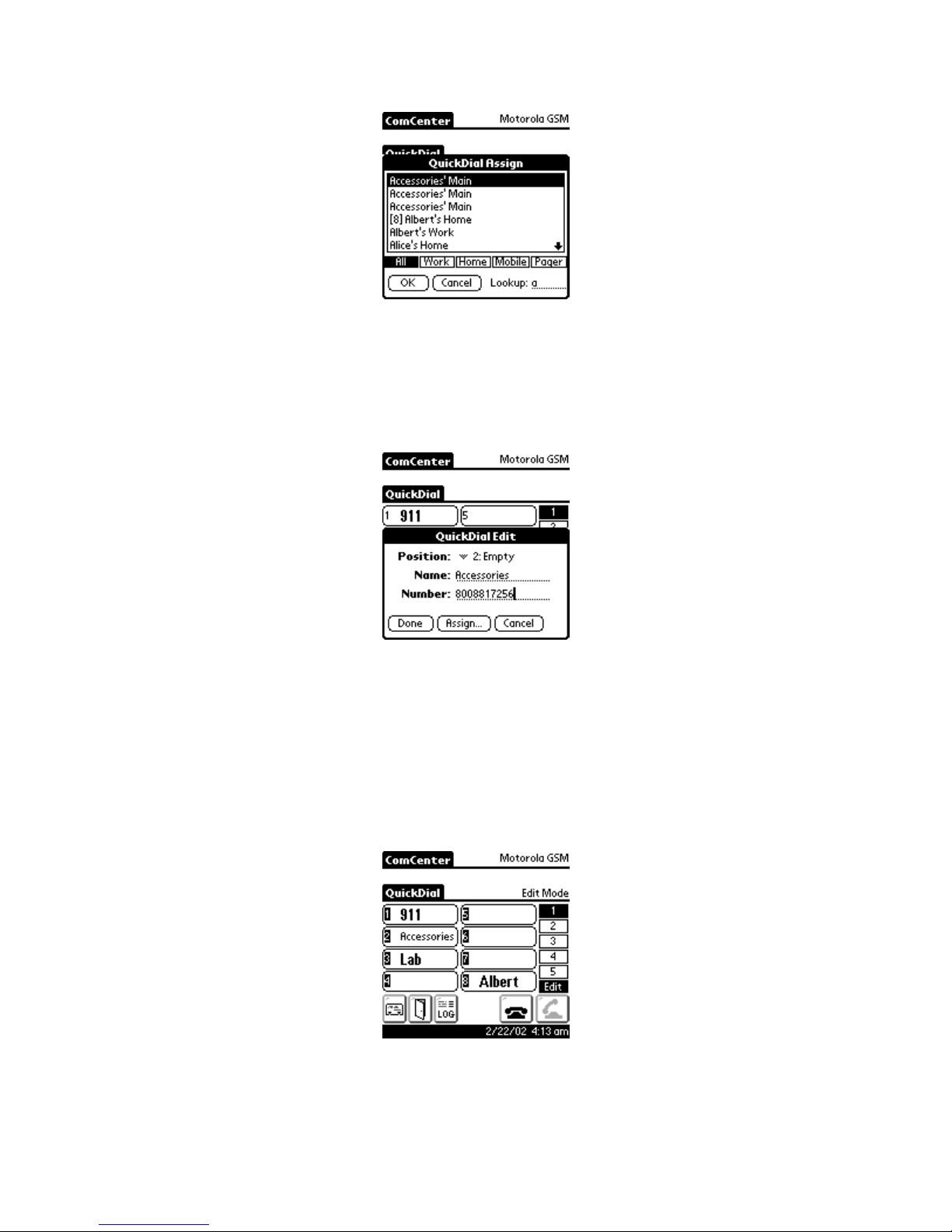

Figure 7.

You will notice the same features as found in the Phonebook screen, with the exception

of being unable to filter by category or last name. You can however, filter by phone type

or spelling of the last name.

Once you have selected an entry, click Ok.

Figure 8.

The name and number of the phonebook entry will populate the fields. You can edit

them before pressing Done.

Pressing Done will prompt the software to ask if you want to save the changes. Once the

changes have been saved, the new QuickDial entry will be visible.

If you wish to edit an entry, you must go into Edit Mode by pressing the Edit button

(Figure 9).

Figure 9.

This will again bring up the edit dialog (Figure 6), and the Position dropdown will

now be enabled.

Motorola ComCenter

Page 9

You can change a QuickDial position by selecting the new slot number with the

dropdown list. If you move an entry into an occupied slot, it will ask if you want to swap,

replace, or cancel the edit.

The Cancel button will now be shown asDelete. Pressing this button will delete the

QuickDial entry.

3.5 Call Log Screen

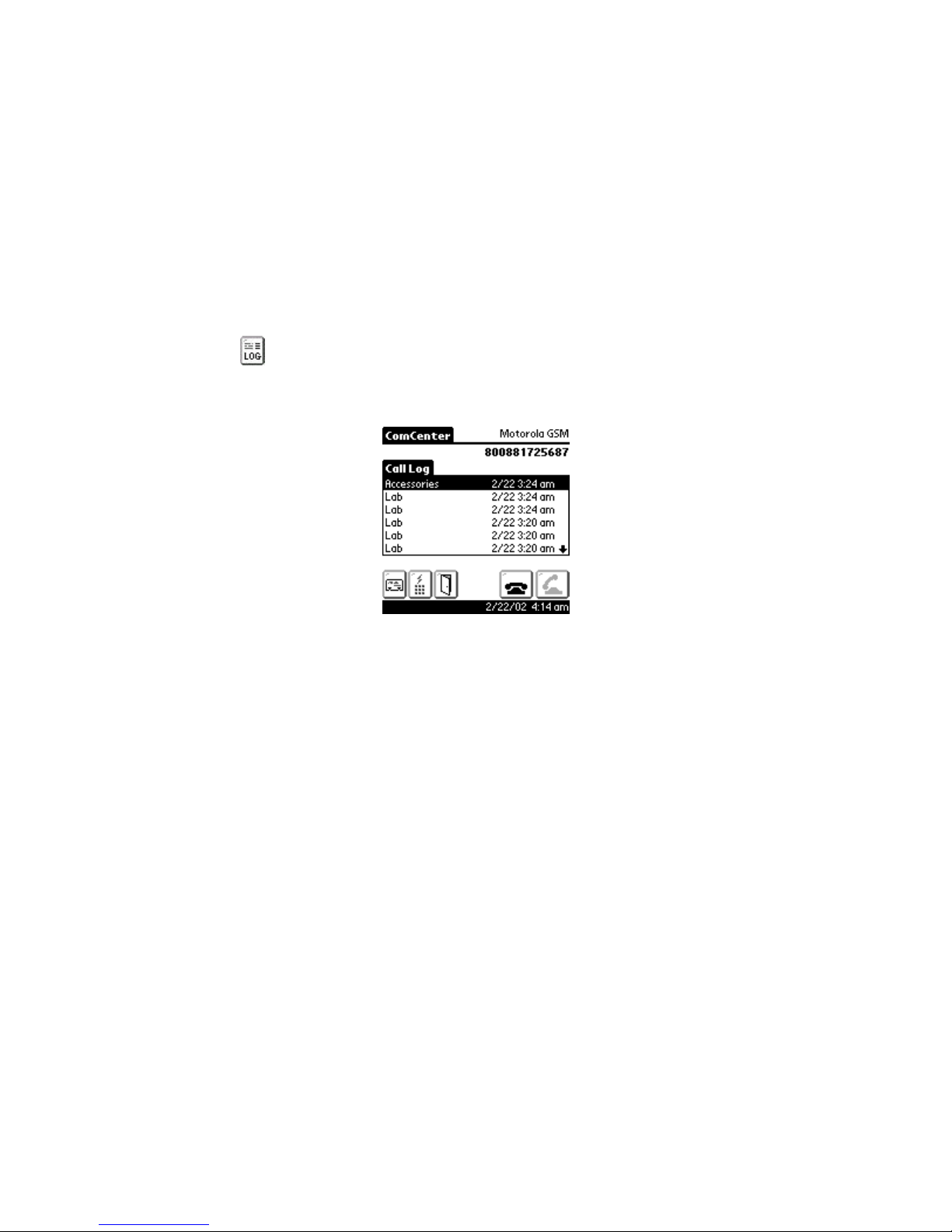

Pressing the button will open the Call Log screen (Figure 10). Any calls made from

Motorola ComCenter Manager will be logged and displayed on this screen. It will not

list any calls made directly from your phone.

Figure 10.

You can select an entry and redial the number by pressing the Send button.

All calls show the date and time it was made, as well as the number dialed in the upper

right corner. If a number was manually dialed via the keypad, the name will not be

shown.

You can scroll through the list with the Palm™ scroll buttons, or with the arrows in the

list.

Motorola ComCenter

Page 10

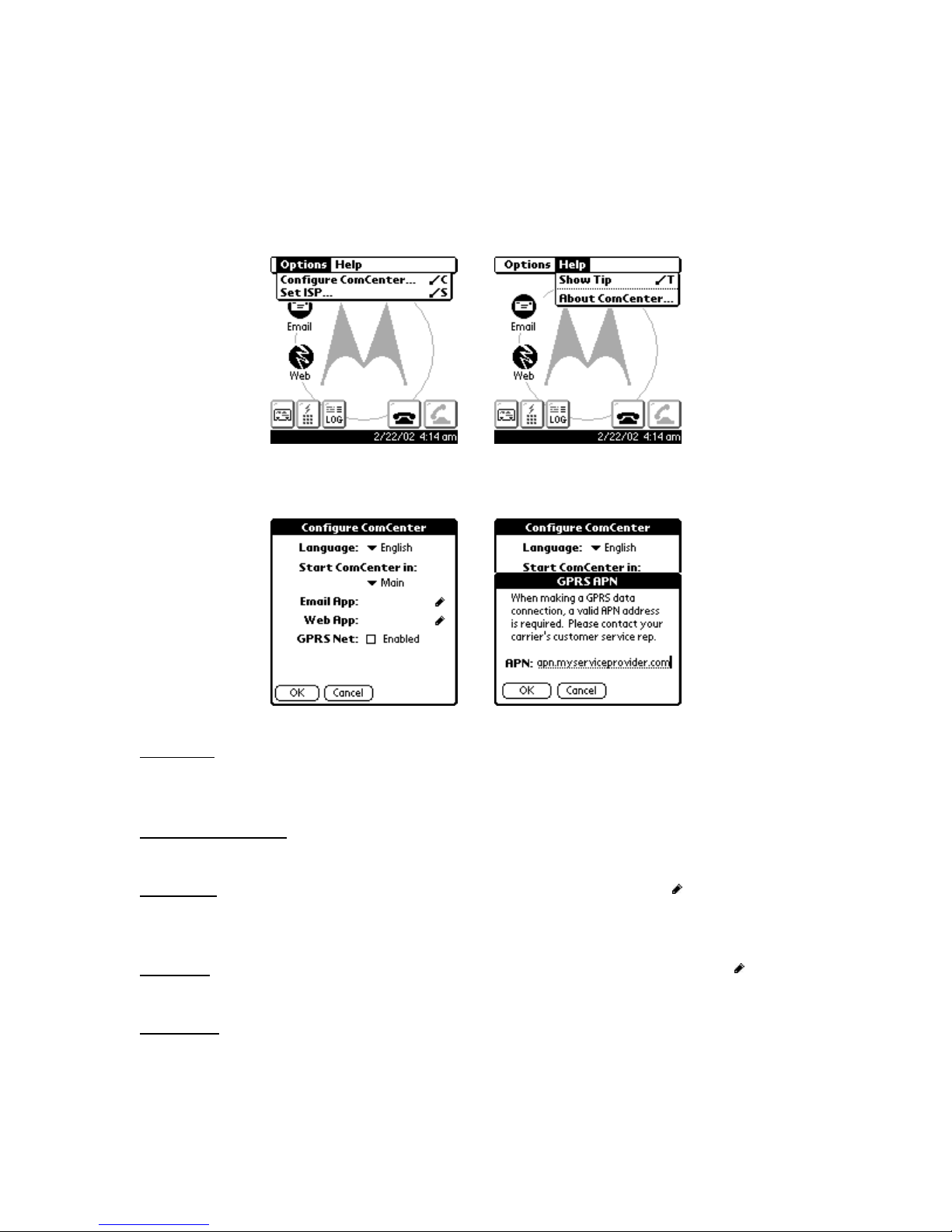

3.6 Menu options

You can get to the menus by pressing the Palm™ Menu button on the left of the Graffiti

area. If you are running Palm™ OS v3.5 or newer, you can tap the application title

(“ComCenter”) to display the menus.

Figure 11.

3.6.1 Configure ComCenter…

Figure 11a. Figure 11b.

Language –Lets you set the default language of ComCenter (note: this does not affect

the language configuration of the Palm™, or any other applications that might reside on

your device).

Start ComCenter in –Allows the user to select which screen to display when the

ComCenter application is launched.

Email App –The application selected for Email. Click the pointer icon ( ) to choose an

application. When an application is chosen, its icon will be visible in ComCenter’s main

screen (see Figure 2).

Web App –The application selected for Web Browsing. Click the pointer icon ( ) to

choose an application.

GPRS Net–Visible for GSM/GPRS phones only. If selected, Figure 11b will be

displayed to request the service provider’s APN IP address.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Motorola Telefono

Motorola

Motorola L801 Manuale utente

Motorola

Motorola SD7561 Manuale utente

Motorola

Motorola T505 - MOTOROKR - Speaker Phone Manuale utente

Motorola

Motorola V120C Manuale utente

Motorola

Motorola FXP-851 Manuale utente

Motorola

Motorola TALKABOUT T2688 Manuale utente

Motorola

Motorola AX Series Manuale utente

Motorola

Motorola TELUS i265 Manuale utente

Motorola

Motorola i325 Manuale utente

Motorola

Motorola C4201H Manuale utente

Motorola

Motorola i570 Manuale utente

Motorola

Motorola I670 - Nextel - IDEN Phone Manuale utente

Motorola

Motorola Roadster Manuale utente

Motorola

Motorola V260/V262 Manuale utente

Motorola

Motorola SD4591 Manuale utente

Motorola

Motorola 3G Manuale utente

Motorola

Motorola CT50 Manuale utente

Motorola

Motorola MBP2000PU Manuale utente

Motorola

Motorola POPULOUS Manuale utente

Motorola

Motorola Roadster 2 Manuale utente

Motorola

Motorola V60i Manuale utente

Motorola

Motorola D4A Manuale utente

Motorola

Motorola STU 111/SECTEL 1000 Manuale utente

Motorola

Motorola L512CBT Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente

Ericsson

Ericsson Dialog 3213 Manuale utente
