Motorola AP-6521E Manuale utente

AP-6521E Access Point

INSTALLATION GUIDE

2AP-6521E Access Point

MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions,

Installation Guide 3

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 AP-6521E Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.5 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.0 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Access Point Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3.1 Antenna Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3.2 Power Injector System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Wall Mount Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5 Suspended Ceiling T-Bar Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6 Above the Ceiling (Plenum) Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.7 LED Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.0 Basic WiNG Express Access Point Configuration . . . . . . . . . . . . . . . . . . . . 19

4.0 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.1 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2 Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.3 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.0 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.1 Regulatory Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.2 Wireless Device Country Approvals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.2.1 Country Selection - Note for AP & Wireless Controller. . . . . . . . . . . . . . . 31

5.2.2 Frequency of Operation - FCC and IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.3 Health and Safety Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.3.1 Warnings for the use of Wireless Devices . . . . . . . . . . . . . . . . . . . . . . . . 32

5.3.2 Potentially Hazardous Atmospheres - Fixed Installations . . . . . . . . . . . . . 32

4AP-6521E Access Point

5.3.3 Safety in Hospitals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.4 RF Exposure Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.4.1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.5 International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.6 EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.7 US and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.8 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.9 Radio Frequency Interference Requirements - FCC . . . . . . . . . . . . . . . . . . . . . . 34

5.10 Radio Frequency Interference Requirements - Canada . . . . . . . . . . . . . . . . . . 34

5.4.1 Radio Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.11 CE Marking and European Economic Area (EEA) . . . . . . . . . . . . . . . . . . . . . . . 35

5.12 Mexico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.13 Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.14 Waste Electrical and Electronic Equipment (WEEE). . . . . . . . . . . . . . . . . . . . . 36

5.15 Turkish WEEE Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

5.16 Japan (VCCI) - Voluntary Control Council for Interference Class B ITE . . . . . . 38

5.17 Korea Warning Statement for Class B ITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

5.18 Other Countries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6.0 Motorola Solutions Support Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Installation Guide 5

1 Introduction

AP-6521E Series Access Points are components of Motorola Solutions Wireless Controller System. An AP-6521E

links wireless 802.11a/b/g/n devices to the controller, enabling the growth of your wireless network with a

cost-effective alternative to standard Access Points. The AP-6521E Series Access Point is an enterprise class

802.11n Access Point, installed in minutes anywhere a CAT-5e (or better) cable is located.

An AP-6521E Series Access Point utilizes a setup wizard to define its operational mode as either a Dependent mode

AP, Standalone AP or Virtual Controller AP.

AP-6521E Series Access Points ship with a single dual-band radio supporting the 802.11a/b/g/n radio bands. For

more information on available SKUs, refer to the following:

The AP-6521E series Access Point is approved under MODEL: NCAP-500.

Motorola Solutions recommends the Access Point receive power and transfer data through the same CAT-5e (or

better) Ethernet cable using a Motorola Solutions Power Injector. The Power Injector

(Part No. AP-PSBIAS-2P2-AFR) is an 802.3af PoE injector. For information, see Power Injector System.

A separate power supply (Part No. PWRS-147376-01R) is also available if you do not wish to use a Power Injector.

This standard power supply just supplies power to the Access Point’s power connector and does not converge

power and Ethernet within a single cable connection.

Part Number Description

AP-6521E-60010-US 802.11a/b/g/n single radio, integrated antenna, high power,

United States model, with WiNG Express

AP-6521E-60020-US 802.11a/b/g/n single radio, external antenna, high power,

United States model, with WiNG Express

AP-6521E-60010-EU 802.11a/b/g/n single radio, integrated antenna, high power,

European model, with WiNG Express

AP-6521E-60020-EU 802.11a/b/g/n single radio, external antenna, high power,

European model, with WiNG Express

AP-6521E-60010-WR 802.11a/b/g/n single radio, integrated antenna, high power,

World Wide model, with WiNG Express

AP-6521E-60020-WR 802.11a/b/g/n single radio, external antenna, high power,

World Wide model, with WiNG Express

6AP-6521E Access Point

1.1 Document Conventions

The following graphical alerts are used in this document to indicate notable situations:

1.2 Warnings

• Read all installation instructions and site survey reports, and verify correct equipment installation before

connecting the Access Point.

• Remove jewelry and watches before installing this equipment.

• Verify any device connected to this unit is properly wired and grounded.

• Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment

operation specifications.

1.3 Site Preparation

• Consult your site survey and network analysis reports to determine specific equipment placement, power

drops, and so on.

• Assign installation responsibility to the appropriate personnel.

• Identify and document where all installed components are located.

• Ensure adequate, dust-free ventilation to all installed equipment.

• Prepare Ethernet port connections.

• Verify cabling is within the maximum 100 meter allowable length.

1.4 AP-6521E Package Contents

An AP-6521E Access Point is available in integrated antenna and external antenna models. Contents differ

depending on the model ordered.

• AP-6521E Access Point

• AP-6521E Installation Guide (This Guide)

• Rubber Wall Mount Spacers (4)

• LED light pipe and badge

• Wall mount screw and anchor kit

NOTE Tips, hints, or special requirements that you should take note of.

CAUTION Care is required. Disregarding a caution can result in data loss or

equipment malfunction.

WARNING! Indicates a condition or procedure that could result in personal injury or

equipment damage.

Installation Guide 7

1.5 Features

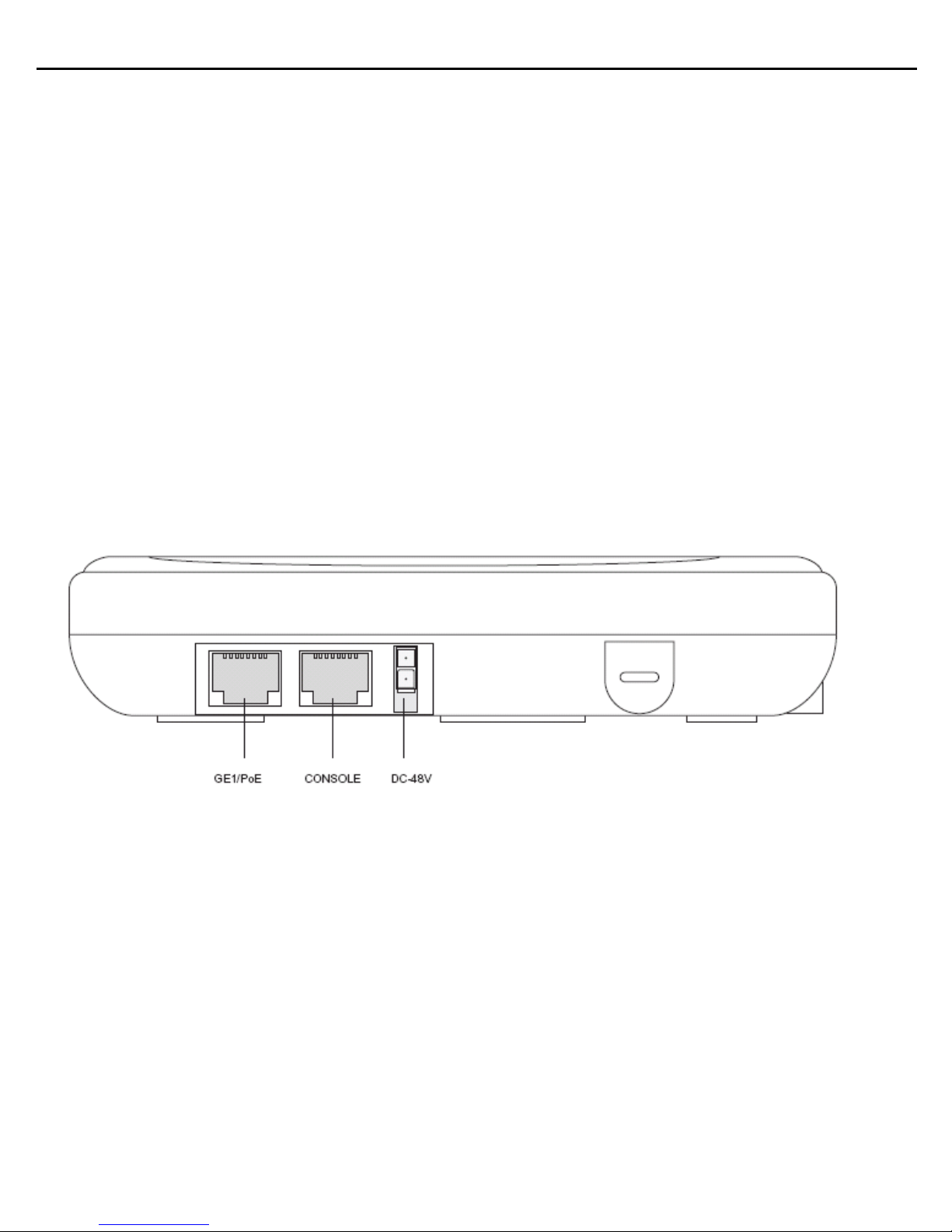

• One RJ-45 console connector

• LED indicators

• Safety wire tie point

• Wall mount slots

• Clips for suspended T-Bar mounting

• DC power connector

An AP-6521E Series Access Point has one RJ-45 connector supporting an 10/100/1000 Ethernet port connection

and requires 802.3af compliant power from an external source.

The Access Point contains runtime firmware which enables the unit to boot after either a power up or a watchdog

reset. The runtime firmware on the Access Point can be updated via the Ethernet interface.

8AP-6521E Access Point

2 Hardware Installation

2.1 Installation Instructions

An AP-6521E Series Access Point can attach to a wall, mount under a suspended T-Bar or mount above a ceiling.

Select a mounting option based on the physical environment of the coverage area. Do not mount the Access Point

in a location that has not been approved in a site survey.

To prepare for the installation, perform the following:

1. Verify the contents of the box includes the intended Access Point and accessory hardware.

2. Review site survey and network analysis reports to determine the location and mounting position for the

Access Point.

3. Connect a CAT-5 or better Ethernet cable to a PoE compatible device and run the cable to the installation

site. Ensure there is sufficient cable slack to perform the installation steps.

4. Determine whether the Access Point is powered using a Power Injector system, combining data and

power to the Access Point’s GE1/PoE port or will be powered from a conventional power adapter

providing power only to the Access Point’s DC-48V connector.

2.2 Precautions

Before installing an AP-6521E model Access Point:

• Verify the intended deployment location is not prone to moisture or dust.

• Verify the environment has a continuous temperature range between 0° C to 40° C.

Installation Guide 9

2.3 Access Point Placement

For optimal performance, install the Access Point away from transformers, heavy-duty motors, fluorescent lights,

microwave ovens, refrigerators and other industrial equipment. Signal loss can occur when metal, concrete, walls

or floors block transmission. Install the Access Point in an open area or add Access Points as needed to improve

coverage.

Antenna coverage is analogous to lighting. Users might find an area lit from far away to be not bright enough. An

area lit sharply might minimize coverage and create dark areas. Uniform antenna placement in an area (like even

placement of a light bulb) provides even, efficient coverage.

Place the Access Point using the following guidelines:

• Install the Access Point at an ideal height of 10 feet from the ground.

• Orient the Access Point antennas vertically for best reception.

• Point the Access Point antennas downward if attaching to the ceiling (external antenna models only).

To maximize the Access Point’s radio coverage area, Motorola Solutions recommends conducting a site survey to

define and document radio interference obstacles before installing the Access Point.

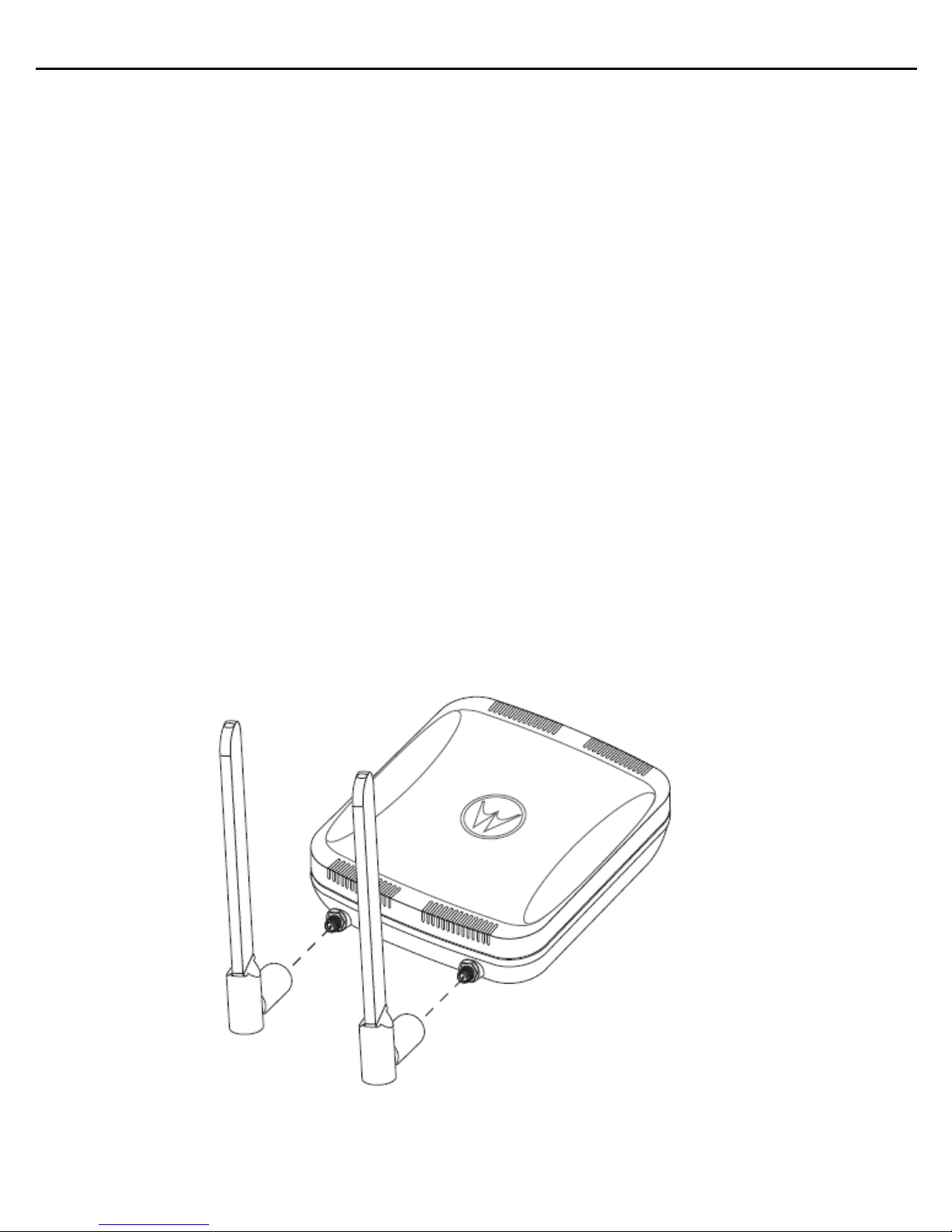

2.3.1 Antenna Options

Motorola Solutions supports two antenna suites for the single radio, dual-band AP-6521E Access Point. One

antenna suite supporting the 2.4 GHz band, and another antenna suite supporting the 5 GHz band. Select an

antenna best suited to the intended operational environment of your Access Point.

10 AP-6521E Access Point

The 2.4 GHz antenna suite includes the following models:

The 5 GHz antenna suite includes the following models:

For a more exhaustive overview of the antennas and associated components supported by the Motorola Solutions

Access Point family, refer to the Enterprise Wireless LAN Antenna Specification Guide available at

https://portal.motorolasolutions.com/Support/US-EN/Wireless+Networks.

Part Number Antenna Type Approximate Gain (dBi)

ML-2452-APA2-01 Dipole 3

ML-2452-HPA5-036 Dipole 2.9

ML-2499-HPA3-01R Dipole 4.6

ML-2499-APA2-01R Dipole 2

ML-2452-APA2GA1-01 Dipole 2

ML-2452-PNA5-01R Panel 4.5

ML-2452-PTA3M3-36 Patch 5

ML-2499-SD3-01R Patch 4.8

Internal Antenna PIFA 2.4

Part Number Antenna Type Approximate Gain (dBi)

ML-2452-APA2-01 Dipole 5

ML-2452-HPA5-036 Dipole 4.9

ML-5299-APA1-01R Dipole 2

ML-5299-HPA1-01R Dipole 5

ML-2452-APA2GA1-01 Dipole 1

ML-2452-PNA5-01R Panel 5

ML-2452-PTA3M3-36 Patch 3

ML-5299-PTA1-0R Patch 5

Internal Antenna PIFA 6

Indice

Altri manuali Motorola Punto di accesso wireless

Motorola

Motorola WiNG 5 Manuale utente

Motorola

Motorola CB3000 - Client Bridge - Wireless Access... Manuale utente

Motorola

Motorola WS2000 - Wireless Switch - Network Management... Manuale utente

Motorola

Motorola AP-7131 Series Manuale di installazione e funzionamento

Motorola

Motorola AP-8163 Manuale utente

Motorola

Motorola AP-7131 Series Manuale utente

Motorola

Motorola MOTOwi4 25600 Manuale

Motorola

Motorola P-7131N-FGR Manuale di installazione e funzionamento

Motorola

Motorola CB3000 - Client Bridge - Wireless Access... Manuale utente

Motorola

Motorola AP-7131 Series Manuale utente

Motorola

Motorola PMP 320 Manuale

Motorola

Motorola WiNG 5.5 Manuale utente

Motorola

Motorola AP-7131N-FGR Manuale di installazione e funzionamento

Motorola

Motorola WA840G Manuale utente

Motorola

Motorola AP-8132 Manuale utente

Motorola

Motorola PMP 320 Manuale utente

Motorola

Motorola WA840G Manuale utente

Motorola

Motorola AP-650 Series Manuale utente

Motorola

Motorola AP 5131 - Wireless Access Point Manuale utente

Motorola

Motorola 5750APUSG Manuale utente

Motorola

Motorola AP6562 Manuale utente

Motorola

Motorola WA840G Manuale di istruzioni

Motorola

Motorola AP 7161 Manuale utente

Motorola

Motorola AP6522 Manuale utente

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
