Mount-It! TPM-MA09-24P Manuale utente
75x75mm
100x100mm (2~8kg)x2
(4.4~17.6lbs)x2
13"-32"
If you have any questions , please contact us. TMP-MA09-24P-EU1.0

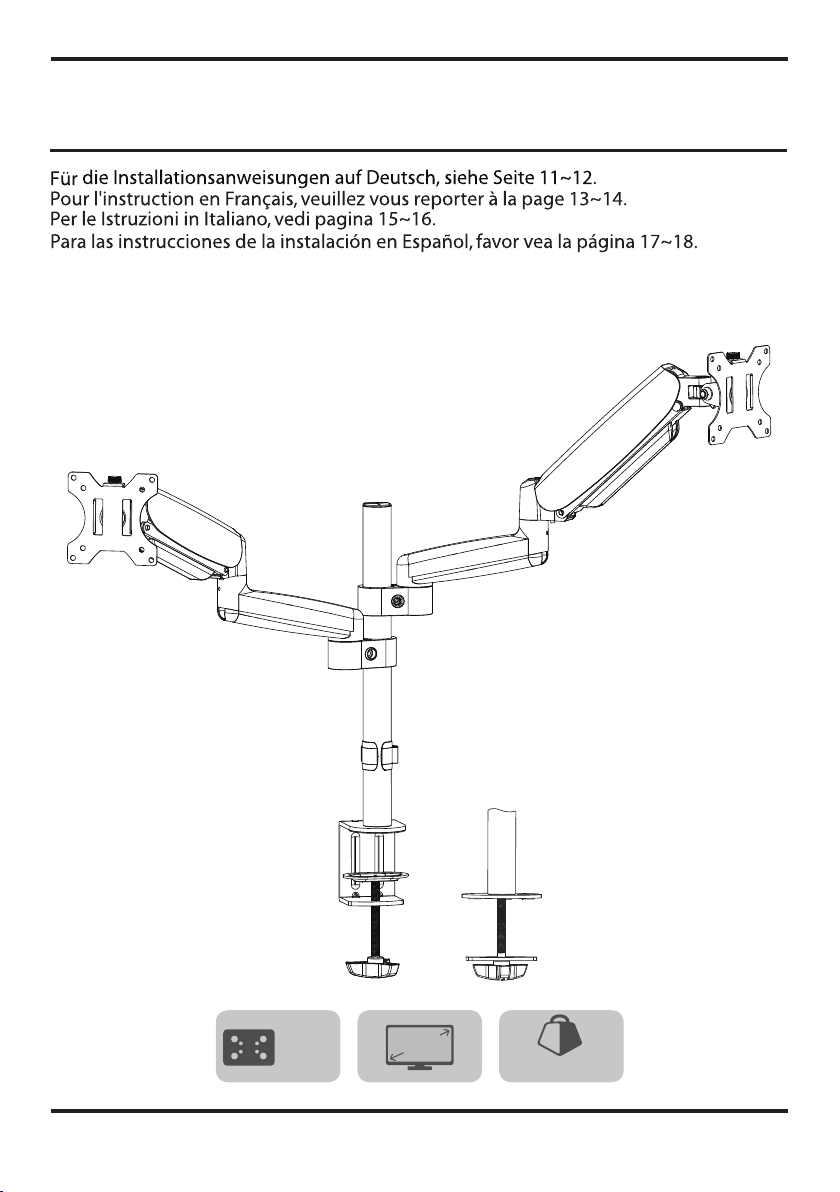

Height Adjustable Dual Monitor Desk Mount
Instruction Manual
01
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product, please contact us.
Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed
weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
NOTE: Not all hardware included will be used.
WARNING!

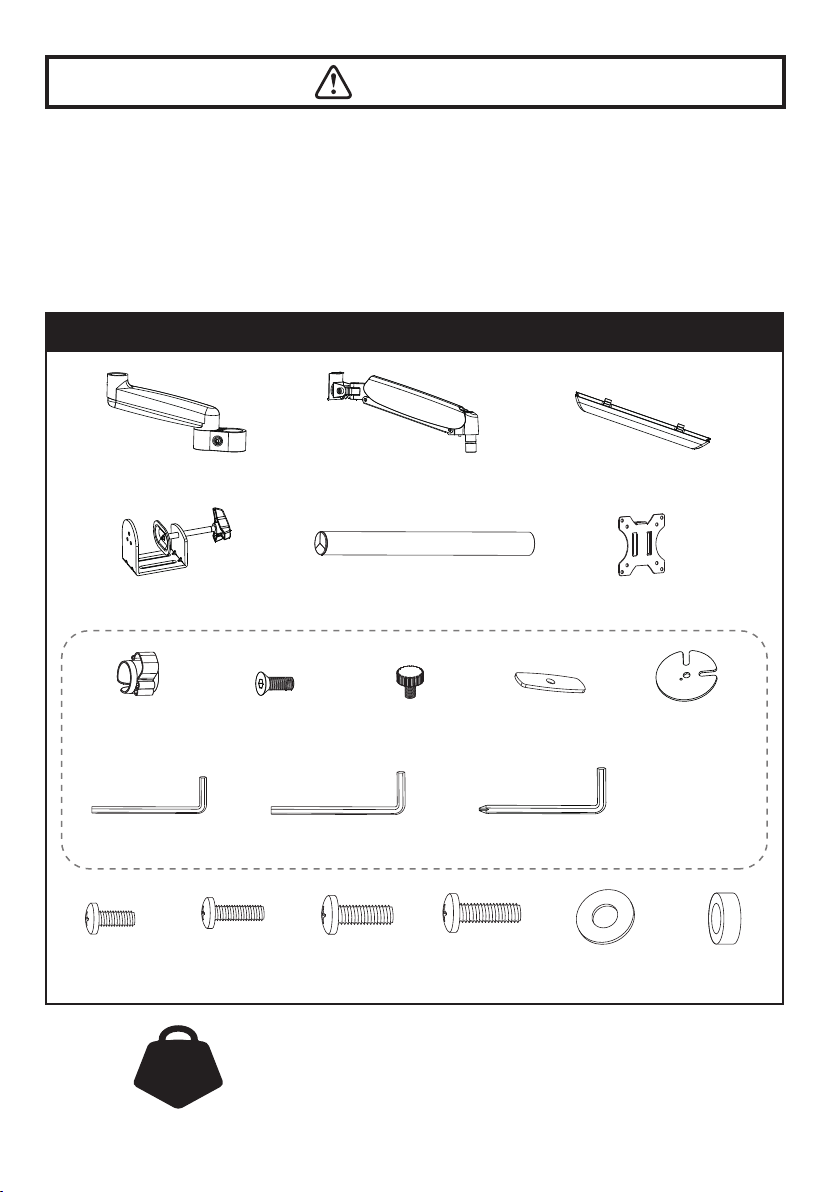

PACKAGE CONTENTS
DO NOT EXCEED WEIGHT CAPACITY.
(2~8kg)x2
(4.4~17.6lbs)x2
F (x1)
Wire clip
J (x1)
Base Plate
G (x3)
Bolt
I (x1)
Support Plate
K(x1)
3mm Allen Key
L(x1)
4mm Allen Key
M(x1)
6mm Allen Key
H (x2)
Bolt
M-E (x8)
D6 Washer
M-C (x8)
M6x12mm M-F (x8)
Spacer
M-B (x8)
M4x16mm
M-D (x8)
M6x16mm
M-A (x8)
M4x12mm
A (x2)
Arm
B (x2)
Arm
C (x1)
Clamp
D(x1)
Pole
E (x2)
VESA Plate
B1 (x2)
Cable Cover
02

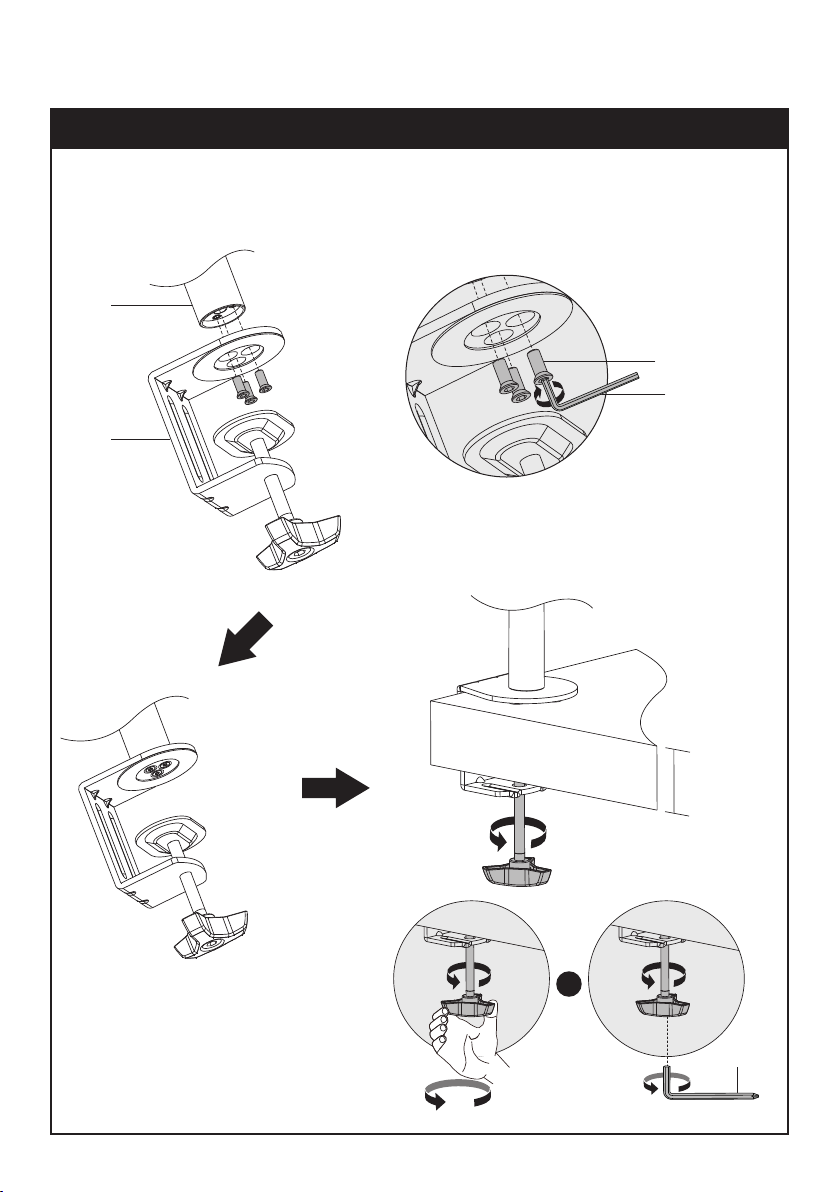

OPTION A: Clamp Installation
Install the Clamp (C) to the Pole (D) using 3pcs Bolt(G). Tighten using 4mm Allen key (L).
Secure stand to the desktop by tightening the plastic knob or by using 6mm Allen key (M).
ASSEMBLY STEPS
STEP 1: Clamp Installation OR Grommet Base Installation
G
L
10-80mm
(0.39~3.1")
M
OR
D
C
03
STEP 1: (Continued)

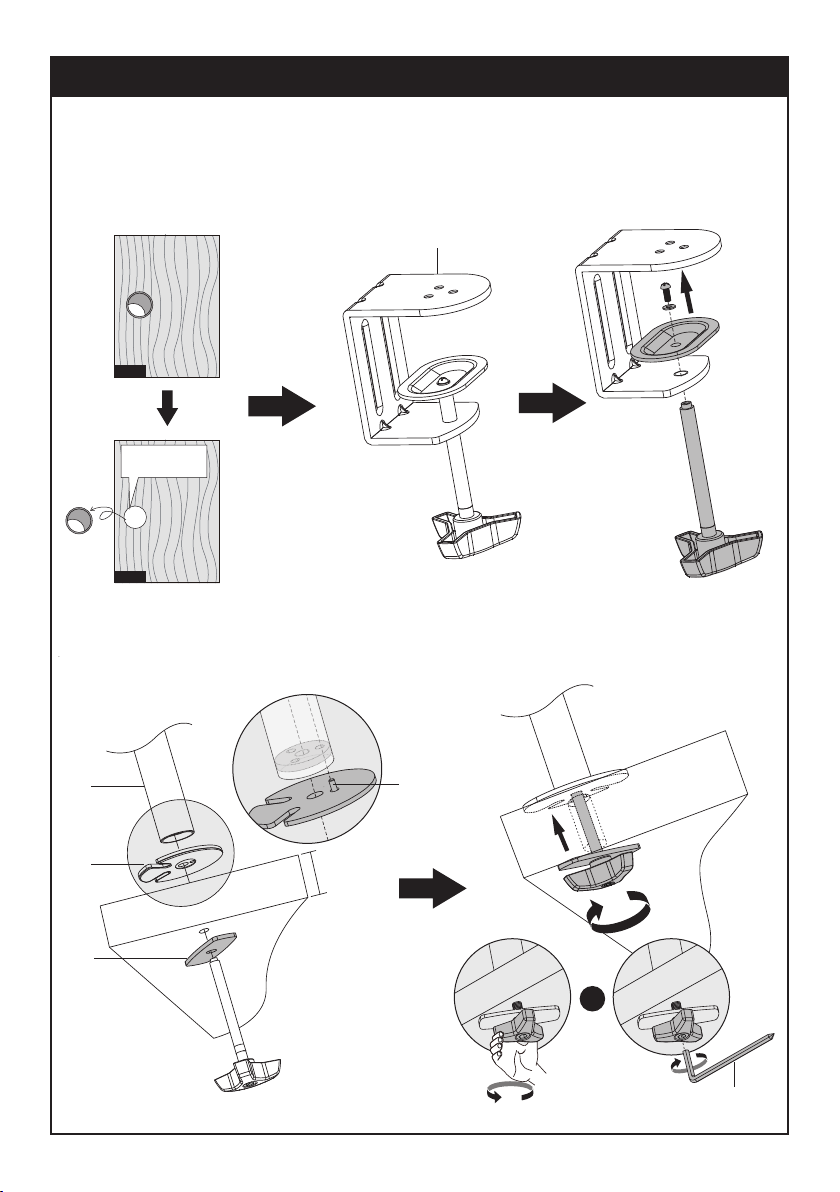

OPTION B: Grommet Base Installation
If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing
the desk mount.
Loosen the screw, separate the clamp (C) into two parts.
Install the Base Plate (J) to the Pole(D）using 1pc of Bolt (G).
Install the pole (D) on the desktop using the support plate (I) and the bolt separated from clamp(C).
Secure stand to desktop by tightening the plastic knob or by using 6mm Allen key (M).
10-80mm
(0.39~3.1")
D
J
I
G
M
OR
DESK
DESK
C
ø10~60mm
(ø0.39~2.36")
04

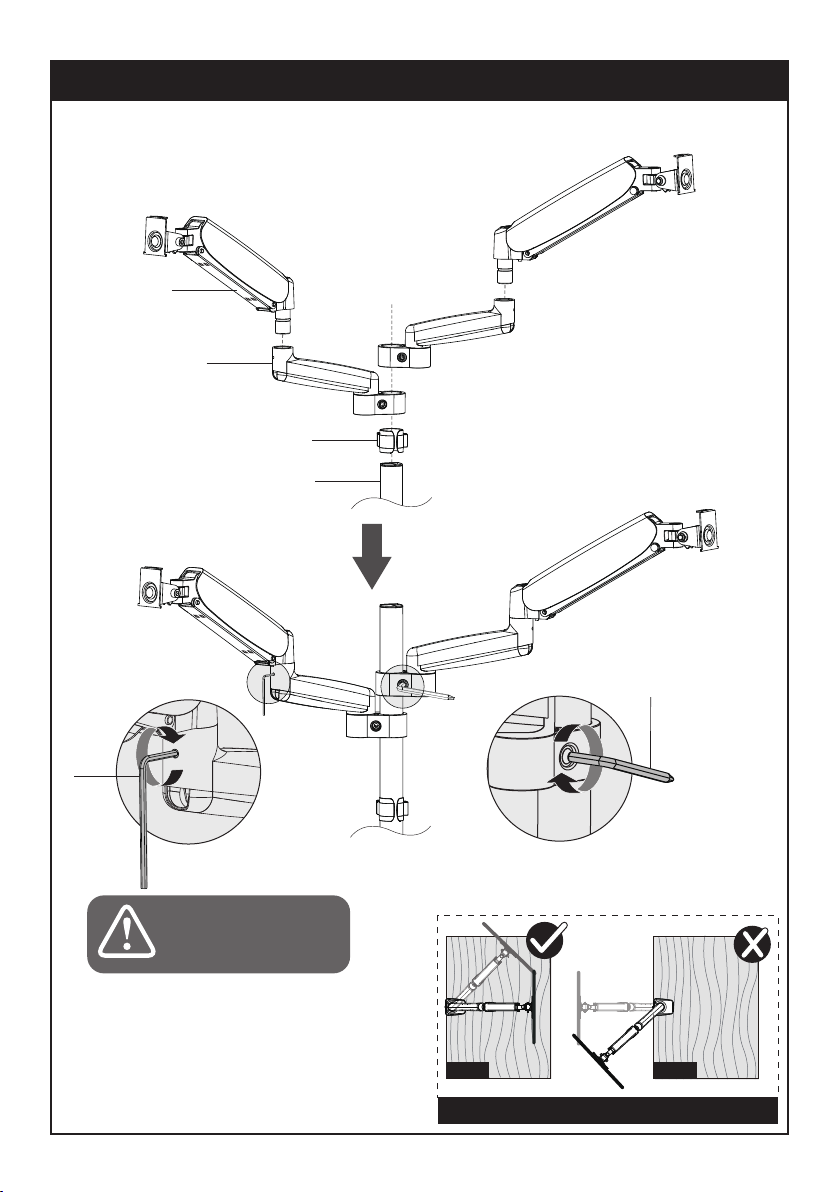

STEP 2 : Arm Installation
Just tighten the bolt, do not
over tighten it in case the
cast aluminum part could
be damaged.
K
M
B
A
D
F
DESK DESK
Pay attention while clamp install !
Install the wire clip(F) and swivel arm(A and B) to the pole(D).
Fasten the bolt with supplied 6mm Allen key (M) and 3mm Allen key (K)
05
NOTE: Hand tighten screws to avoid over tightening.

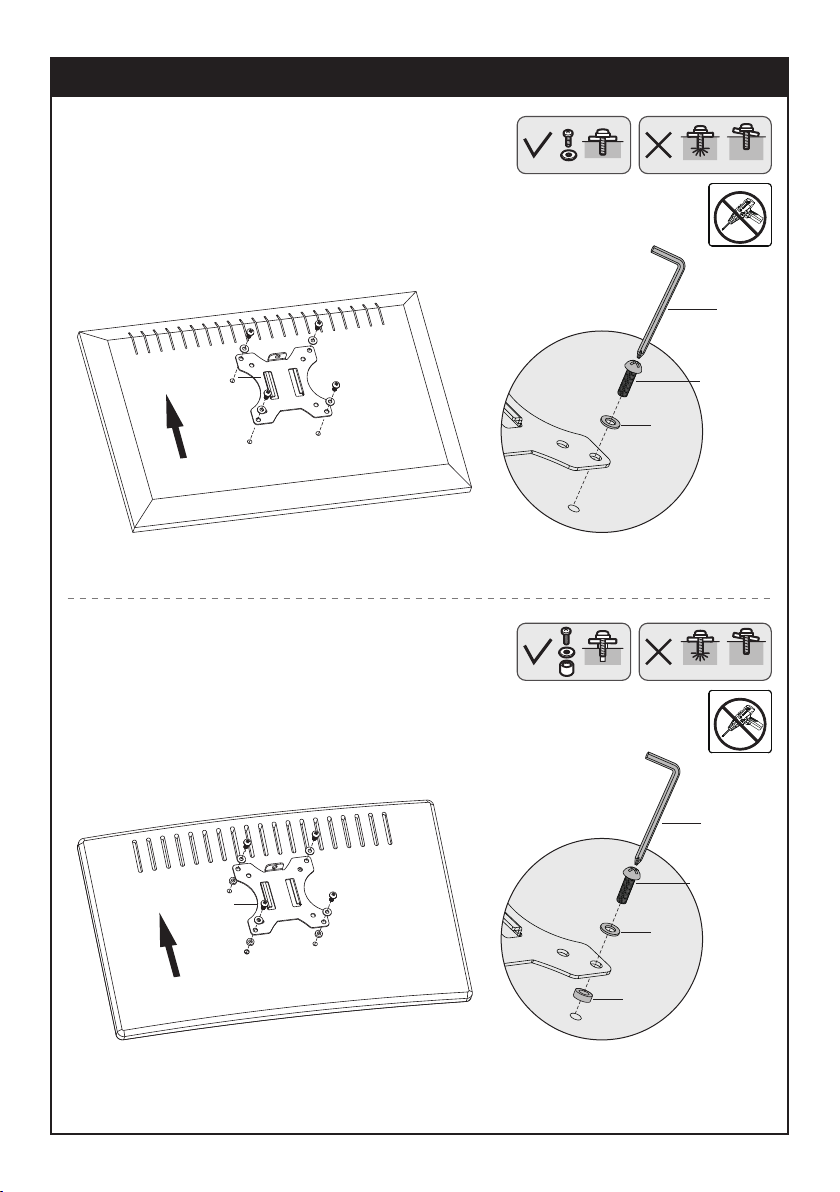

STEP 3 : Attach Monitor
M-A
M-C
M-E
M
M-B
M-D
M-E
M-F
M
E
OPTION A: Flat Back Monitor
Attach the VESA plate (E) to back of monitor and secure
it with screws (M-A) or (M-C) and washers (M-E)
using 6mm Allen Key (M). Do not tighten the screws
excessively or it might damage your monitor.
OPTION B: Curved Back Monitor
Attach the VESA plate (E) to back of monitor and secure
it with screws (M-B) or (M-D) and washers (M-E) and
spacers (M-F) using 6mm Allen Key (M). Do not tighten
the screws excessively or it might damage your monitor.
E
monitor monitor monitor
monitor monitormonitor
No!
No!
06

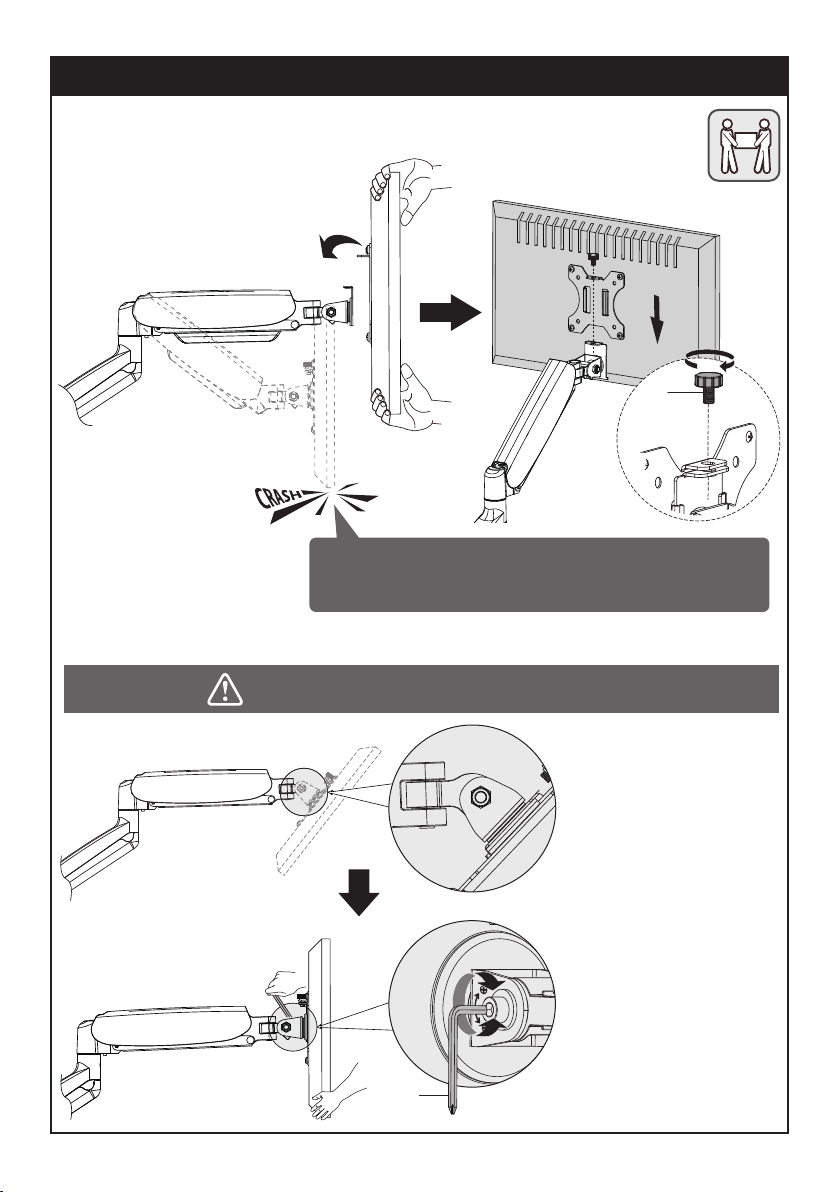

Slide the monitor onto the head of swivel arm, install the security bolt (H). Make sure the security
bolt is installed before you rotate the monitor.
STEP 4: Hang Monitor
H
Important Notice:
The gas spring is pre-set to minimum tension. Once the monitor is hanged on, hold the
monitor with both hands and DO NOT let go suddenly or immediately. Instead, leave the
monitor in a slow & gentle way while observing whether the arms will fall down wildly.
Problem: Tilt Down
M
Guideline to adjust monitor tilting angle.
Solution:
1. Loosen the tilting bolt.
2. Adjust monitor to your
desired tilting angle.
3. Retighten the tilting bolt
to x the tilting angle.
07

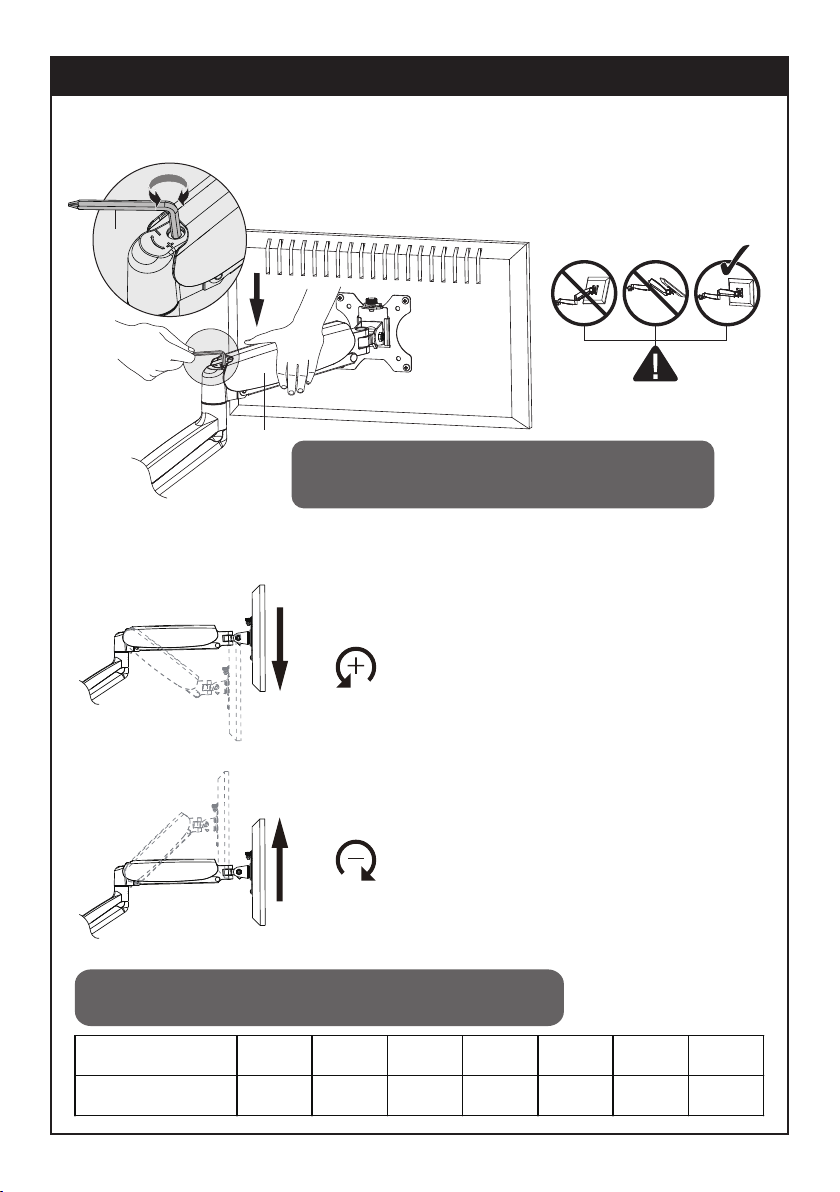

STEP 5: Adjust Tension
M
CAUTION
For proper functioning of this mount, depending on dierent weight of monitor you might need to adjust
tension in upper arm (B) using 6 mm allen key (M).
Note1:
Be sure to keep the arm in horizontal position during adjustment.
Or else it would be dicult to adjust the mount or damage the mount.
As for how many circles the screw should be turned, refer to below diagram.
Note2:
Monitor Weight
Circles (AT LEAST)
B
2kg
1 4 8 11 14 17min
4kg 5kg 6kg 7kg3kg 8kg
Problem: Fall Down
Solution: If the monitor falls down and fails to stay at
the desired height by itself:
Turn counter-clockwise(“+”direction) to increase gas
spring tension until the monitor can stay at the desired
height by itself.
Problem: Rise Up
Solution: If the monitor rises up and fails to stay at the
desired height by itself:
Turn clockwise(“-”direction) to reduce gas spring tension
until the monitor can stay at the desired height by itself.
08

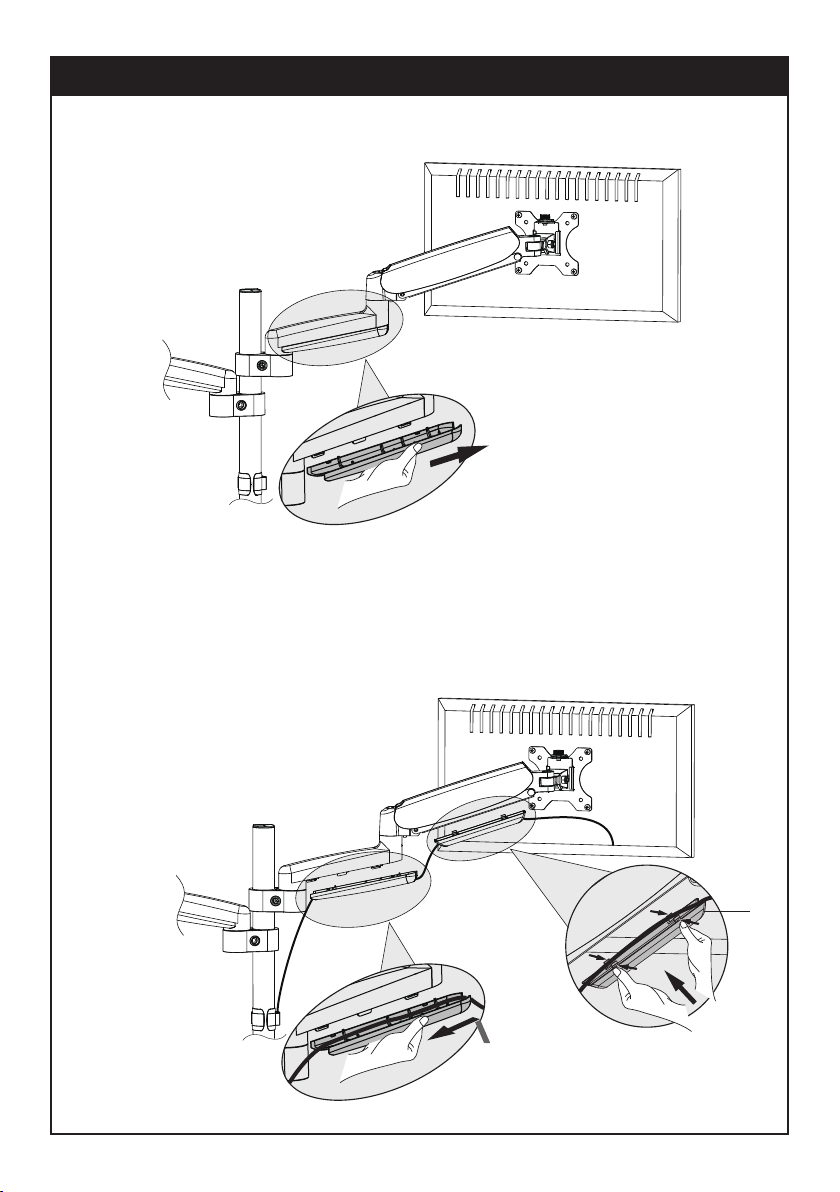

STEP 6: Cable Management
6-2 Attach Cable Cover
●For lower arm: Run cables through the cable cover, then slide the cover down to reattach the cable cover;
●For upper arm: Run cables through the cable cover (B1), then slightly press the tabs on the inside of the
cable cover inward and insert the cable cover to upper arm.
6-1 Remove Cable Cover
●For lower arm: Remove bottom plastic cover from lower arm as shown in the diagram.
Insert
Press
Press
Insert and Slide Down
Slide Upwards
B1
09
270°
180°
+90°
-45°
360°
360°

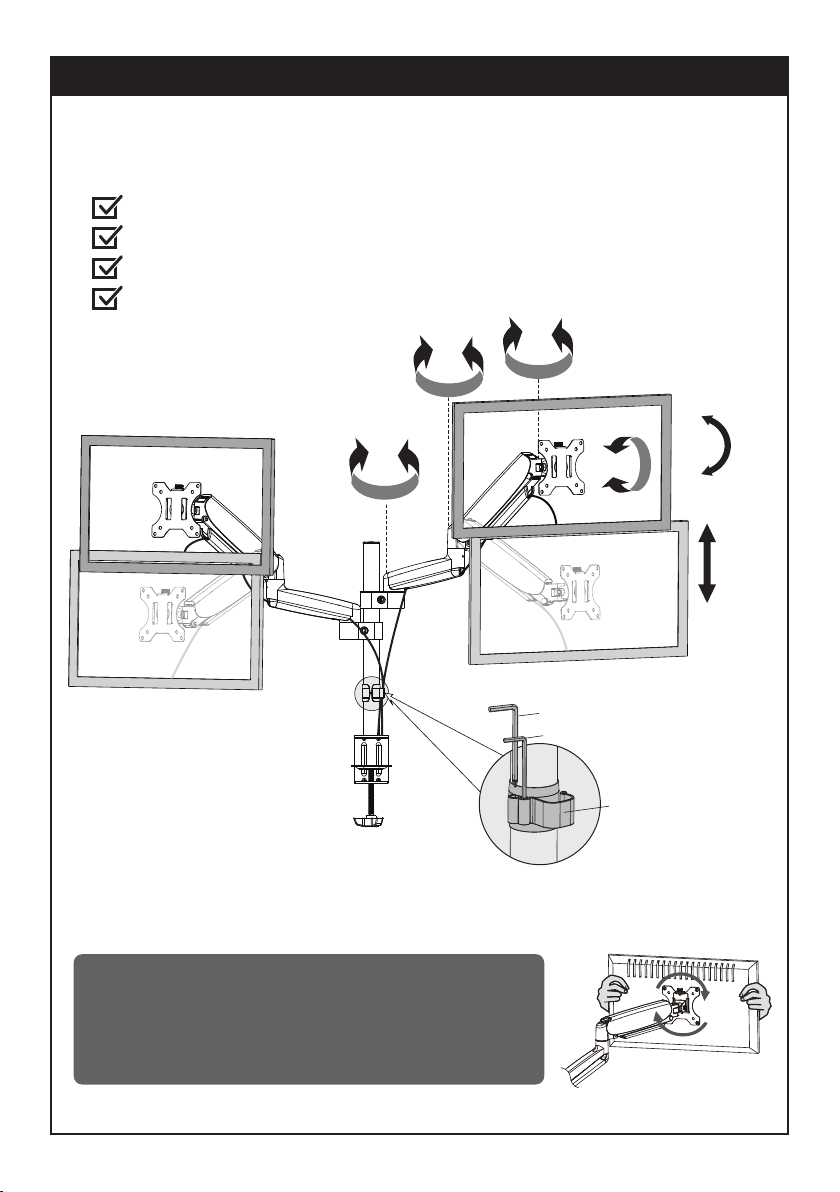

Adjust as Desired
Adjust monitor position and rotation.
Allen wrench(M, L) can be stored in Wire clip(F) for next time using.
Tilt
Swivel
Rotation
Height
L
M
F
Tilt
Swivel
Rotation
Height
Swivel Swivel
Note: To ensure stability, the tightness of the rotating axis has been
preset, so it would be kind of dicult to rotate the VESA plate.
Suggestion: Please attach the monitor rst, then hold the sides of it
with both hands, and rotate vigorously.
If that doesn't work out, please do not hesitate to ask ELIVED customer
service for help.
