Mount-It! MI-4882 Manuale utente
HEAVY-DUTY DUAL MONITOR ARM
FOR LARGE SCREENS
MI-4882
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
23
Mount-It!
Mount-It!

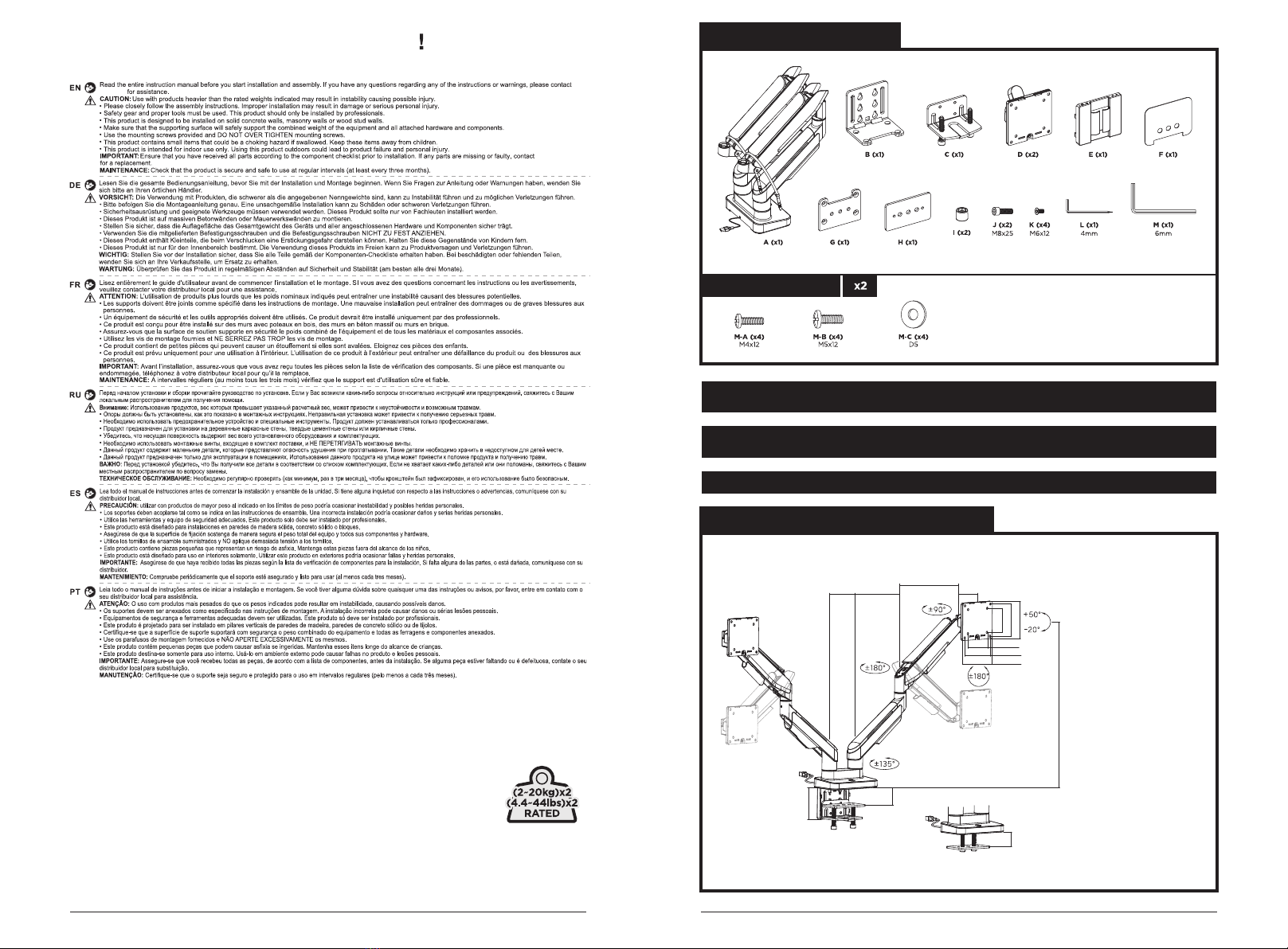

Mount and Accessories
Mounting Hardware
Spring Arms Grommet Plate Clamping Plate
VESA
Connector
Washer
VESA
Connector
Bolt
Bolt Hex Wrench Hex Wrench
Clamp L-Bracket Clamp Screw
Assembly
VESA Heads Clamp Cover Adhesive Pad
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity
is 44lbs for each mount.
Caution:
Ensure all mounting
surfaces are capable
of holding the weight
of your mount.
DO NOT EXCEED
MAXIMUM LISTED
WEIGHT CAPACITY.
SERIOUS INJURY OR
PROPERTY DAMAGE
MAY OCCUR!
min8.5”~max19.7”
4”
min0.4”
~max1.9”
min0.4”~max3.3”
min9.3”~max11.1”
6.9”4” 3.3”
4.6”
3.9”
3”
4.6”
3.9”
3”
5
4

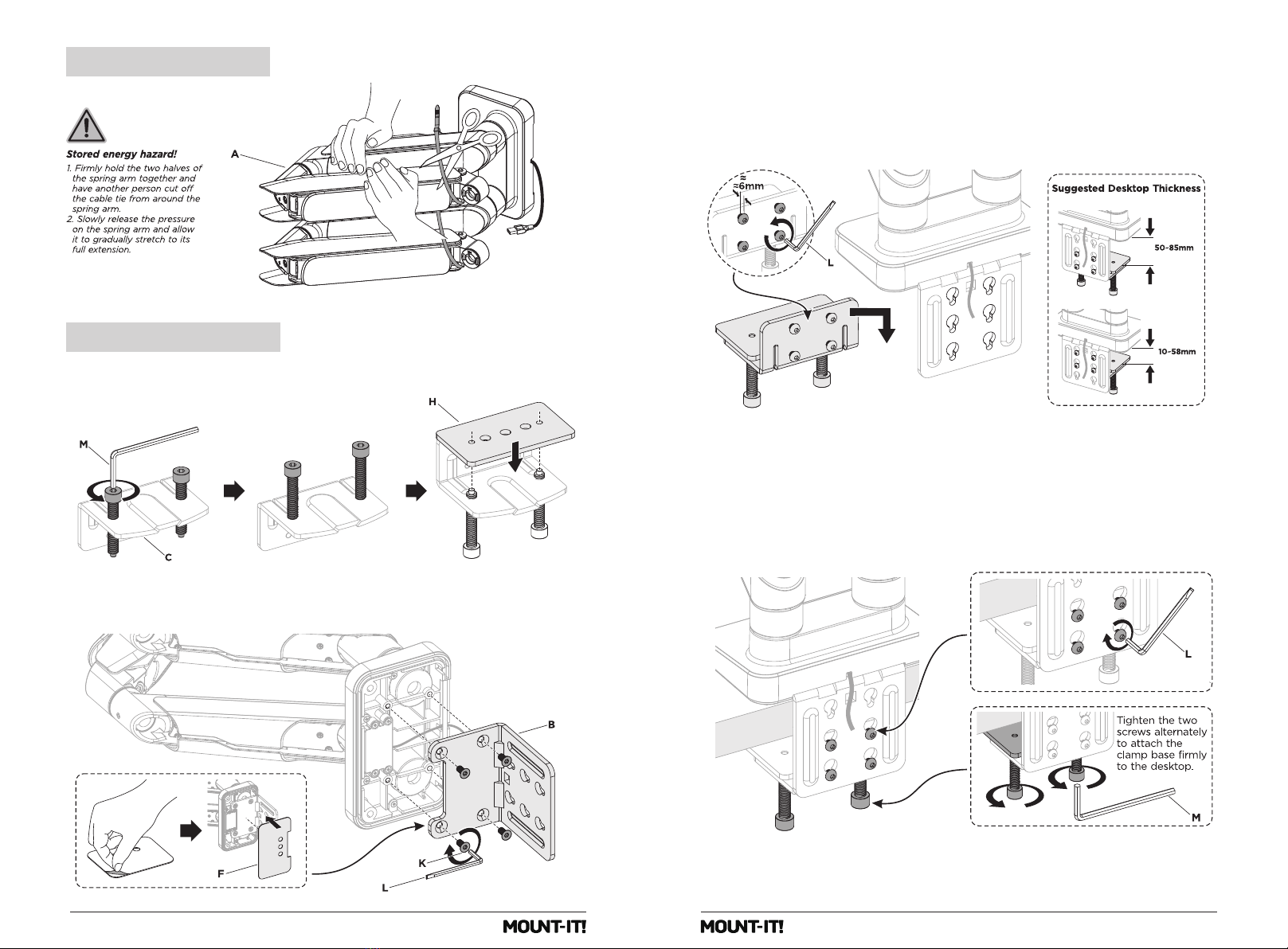

• Use 6mm Hex Wrench (#M) to loosen the bolts on the Clamp Screw Assembly (#A) until the threads on
the bolts are almost fully into the plate, as shown. Place Clamping Plate (#H) onto the tips of the bolts.
• Connect Clamp L-Bracket (#B) to the base of the spring arms using Bolts (#K) and tighten until secure
with Hex Wrench (#L).
• Peel off the backing from Adhesive Pad (#F) and stick it onto the installed Clamp L-Bracket as shown.
Clamp Installation
Step 2a
• Connect the Clamp Screw Assembly onto the back of the L-Bracket. The four screws on the backside
may need to be loosened so that there is a gap of approximately ¼in between the bracket and the bolt
head.
• For desks with a thickness between 50-85mm (1.96”-3.34”) attach the Clamp Screw Assembly to the
lower 4 holes of the Clamp L-Bracket.
• For desks with a thickness between 10-55mm (0.39”-2.16”) attach the Clamp Screw Assembly to the
lower 4 holes of the Clamp L-Bracket.
Cut the Cable Tie
Step 1
• Ensure the four bolts are fully seated in the smaller end of the keyhole mounting holes then tighten until
secure using Hex Wrench (#L).
• Place the assembled mount arms over the edge of the desk in the desired location then tighten the two
clamping bolts until they are secure and the clamp does not move.
Note: Alternate between the two bolts to keep the clamping plate level and for a more secure
installation.
0.2”
1.96”~3.34”
0.39”~2.16”
67

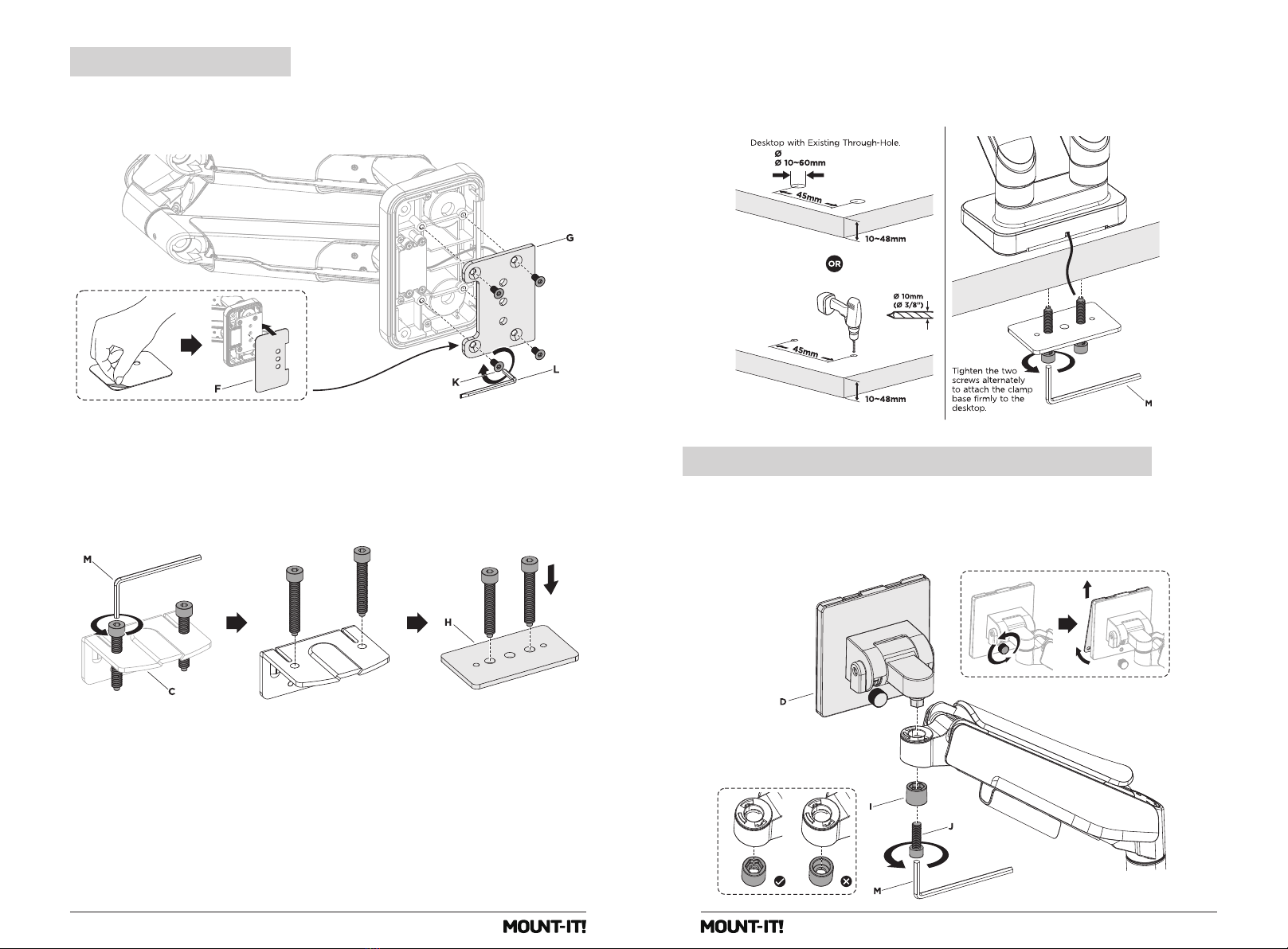

• Connect Grommet Plate (#F) to the base of the spring arms using Bolts (#K) and tighten until secure
with Hex Wrench (#L).
• Peel off the backing from Adhesive Pad (#F) and stick it onto the installed Grommet Plate as shown.
• Use the Hex Wrench (#M) to fully remove both bolts from the Clamp Screw Assembly (#C). Insert both
bolts into the large outer holes of the Clamping Plate (#H).
Grommet Installation
Step 2b • A grommet hole of .4-2.35in is required to install this mount. If one is not present in the desktop one can be
drilled using a 3/8” drill bit.
• Place the mount over the grommet hole and install the Clamping Plate through the underside of the desktop.
Tighten the bolt until secure using the Hex Wrench (#M).
Note: Alternate between the two bolts to keep the clamping plate level and for a more secure
installation.
Connect the VESA Head to the Spring Arm
Step 3
• Connect the VESA Heads (#D) to the end of the Spring Arms using VESA Connector Washers (#I) and
VESA Connector Bolts (#J). Tighten until secure using the Hex Wrench (#M).
Note: Ensure the Washersare oriented so that the hexagonal interior end is facing upwards, as
illustrated here.
• Remove the thumb screw from the back of the VESA Head, pull the bottom of the VESA Plate on the front
away then up to remove it.
0.4-2.35in
0.4-1.89in
0.4-1.89in
1.8in
1.8in
9
8

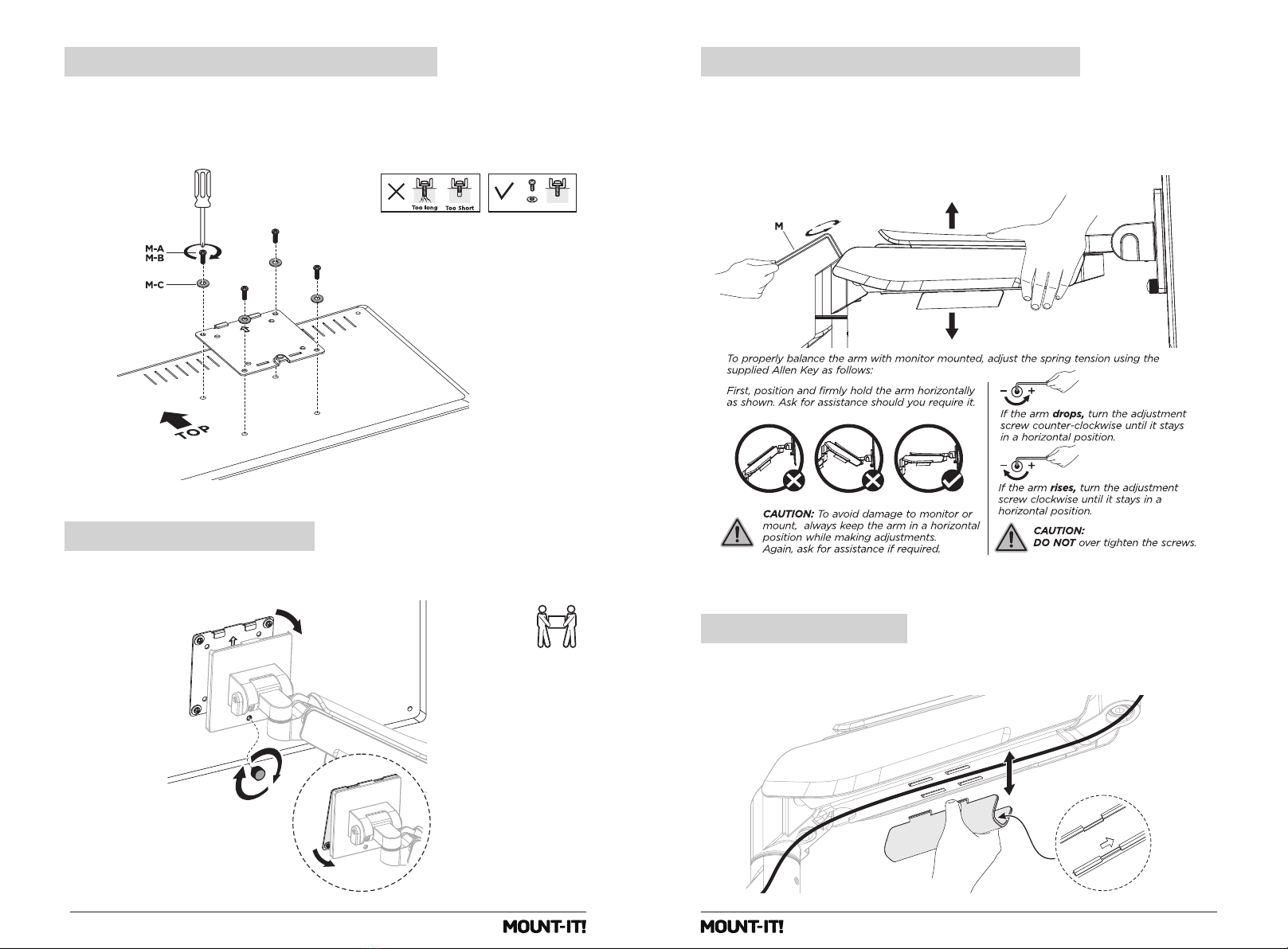

• Select the appropriate size mounting bolt (#M-A, M-B) for your monitorsmounting holesand verify the
length of the VESA bolt is not too long. If you are unsure of the correct bolt size for your display refer to
your monitor user manual or contact the monitor manufacturer for sizing information.
• Install the VESA Plate onto the back of the monitor using the selected Bolts (#M-A or M-B) and Washers
(#M-C) and ensure that the arrow on the plate is pointing up to the top of the monitor.
Attach the VESA Plate to the Monitor
Step 4
• Gas Spring tension may need to be adjusted to suit the weight of the monitors. To weight balance the
two gas spring arms,begin by pushing the arm down to the lowered position,then use Hex Wrench (#M)
to adjust the nut as pictured above, turning counterclockwise toward the + (plus) sign for heavier monitors,
increasing the tension and clockwise toward the – (minus) sign for lighter monitors, lowering the tension.
Adjust until the arm does notraise back to the highest position or sink to the lowest position when released.
This might require multiple rotations to reach the desired tension.
Weight Balancing the Gas Spring Arm
Step 6
• Remove the cable management cover from the underside of the spring arm by squeezing both sides of
the cover and then pulling it out. Run any cables beneath then reinstall the cable management cover.
Cable Management
Step 7
• Hang the monitor on the end of the VESA Head by hooking the top of the plate back onto the end of the
arm, and then lower it down into position. Reinstall the thumb screw to secure it in place.
Attaching the Monitor
Step 5
11
10

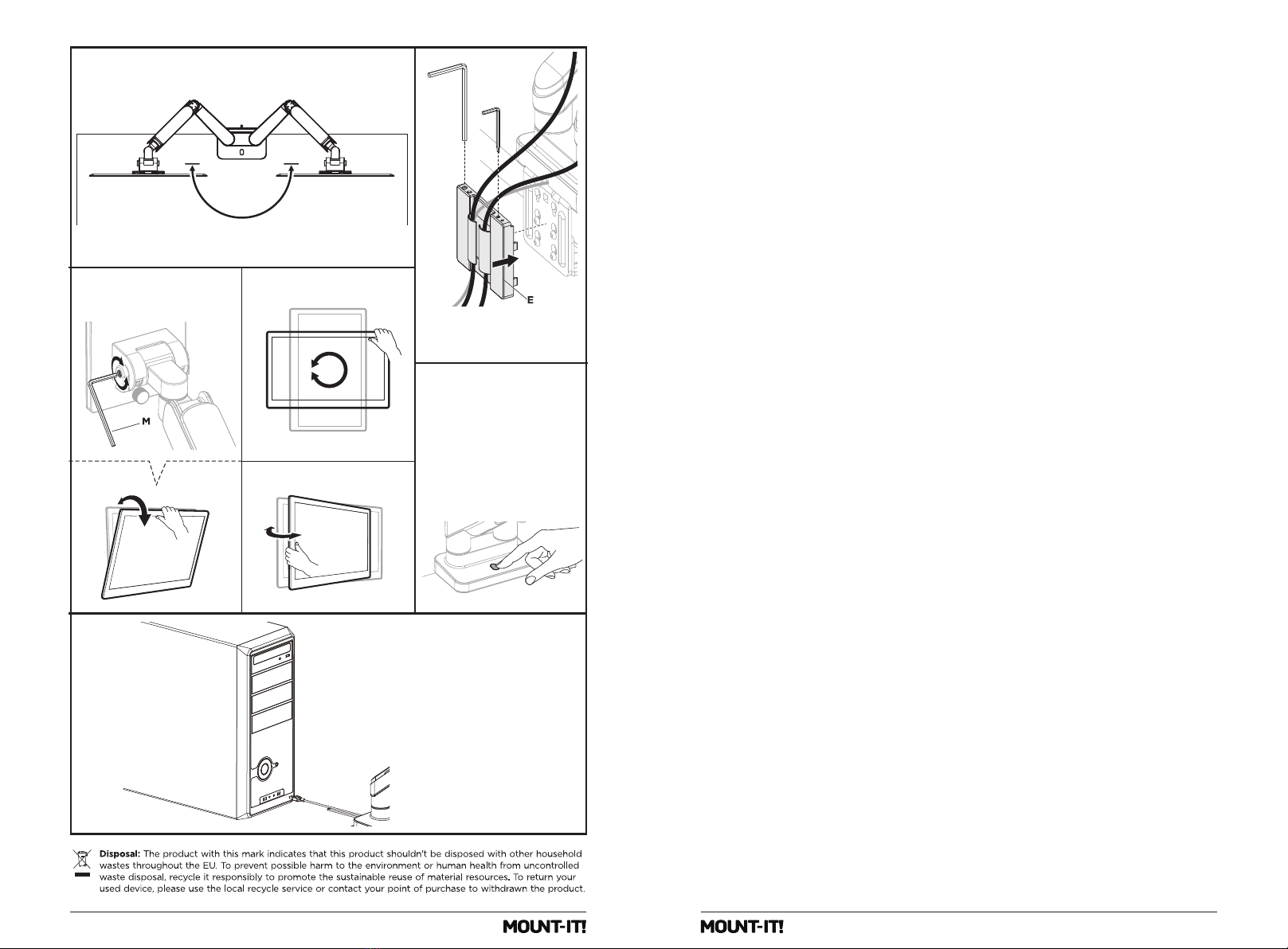

Attach the Clamp Cover (#C) to the
rear of the clamp to utilize the cable
management clips and to store the
Hex Wrenches.
Note: If the monitor tilts forward
on its own or is too difficult to tilt
adjust the tightness of the bolt
indicated here.
Lighting Functions
1. On/Off: Press and hold for 2
seconds to turn on/off
2. Light Mode: Press to cycle
through light modes (20 modes in
total)
3. Random Color: Double press for a
random light mode
4. Memory: The system automatically
stores the last used lighting mode
Plug the USB cable into a USB
outlet such as on a computer,
power strip, or similar.
