Mount-It! MI-7916 Manuale utente

English

Installation Instruction

UNPACKING INSTRUCTIONS

!Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

!Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

!Carefully read all instructions before attempting installation.

IMPORTANT SAFETY INFORMATION

!Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

!Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage arising

from incorrect assembly, incorrect mounting, or incorrect use of this product.

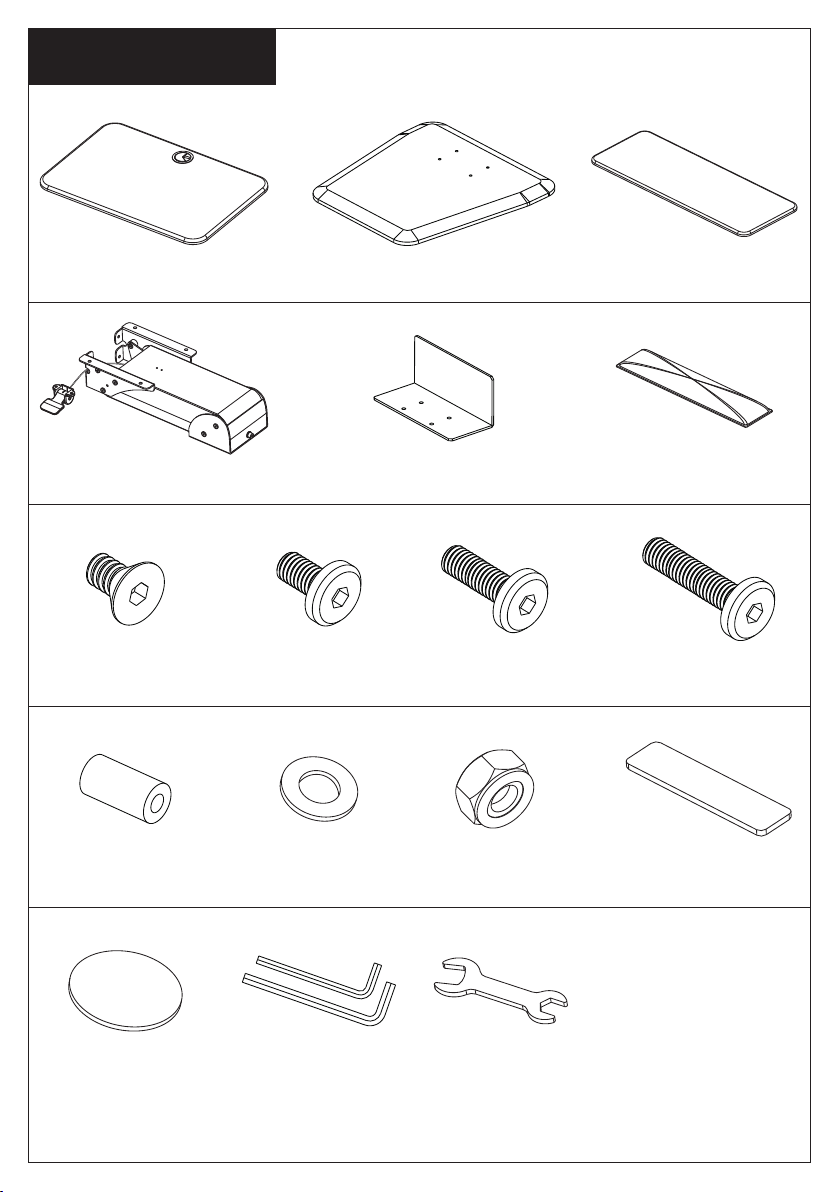

Supplied Par ts List

(1)Gas Spring Arm-d (1)L Plate-e (1)Wrist Pad-f

(1) Base-b(1) Monitor Platform-a (1) Keyboard Tray-c

(2)Spacer-k (4)M6 Washer-l (4)M6 Nut-m

(1)Allen Key-p

(2)Square Pad-n

(4)Round Pad-o (1)Wrench-q

(2)M6x35 Bolt-j

(4)M6x28 Bolt-i(4)M6x12 Bolt-g (4)M6x12 Bolt-h

Step 1 Connecting L Plate to Keyboard Tray

Warning:

Ensure screws are

secured firmly.

Step 2 Attaching Square Pads to the Back of Keyboard Tray

Step 4 Connecting L Plate to Gas Spring Arm

Warning:

Ensure screws are

secured firmly.

!Warning:

Don’t operate the lever until the

workstation is fully assembled.

Lever

on right

“L” plate can be connected to the Gas Spring

Arm in two different positions.

1. Install in a low position for fitting the

keyboard tray to the surface of desktop

directly.

2. Install in a high position for leaving some

space between the keyboard tray and the

surface of desktop.

Step 3 Make Decision for the Lever Location

Lever located on Left or Right?

Lever

on left

Wire go through

this gap

Warning:

Ensure screws are

secured firmly.

Step 5 Connecting Gas Spring Arm to Monitor Platform

Step 6 Attaching Lever to the Back of Monitor Platform

Warning:

Ensure screws are

secured firmly.

Note: The lever can be installed

eigher on the right or the left

side of monitor platform.

Warning:

Ensure screws are

secured firmly.

Step 7 Connecting Base to Gas Spring Arm

Step 8 Attaching Round Pads to the Back of Base

Step 9 Attaching Wrist Pad to Keyboard Tray

Step 10 Operating the Lever to Lift or Lower the WorkStation

Step 11 Adjusting the Tension of Workstation

• If the weight of the monitor(s) makes it difficult to lift the workstation, adjust the screw

at the back of the gas spring arm counterclockwise.

• If the workstation lowers too quickly, adjust the screw at the back of gas spring arm

counterclockwise.

• If the workstation doesn’t easily lower down, adjust the screw at the back of gas

spring arm clockwise.
